Produkttyp	Geschirrspüler (Einbau)
Marke	Fagor
Modell	3LVF-423
Abmessungen (HxBxT)	85 x 60 x 60 cm
Gewicht	ca. 40 kg
Nennspannung	220-240 V
Frequenz	50 Hz
Stromaufnahme	10 A
Energieverbrauch (ECO-Programm)	0,69 kWh
Wasserverbrauch (ECO-Programm)	9 l
Programme	Auto 45-55°C, Intensive 60°C, ECO 45°C, Glas 40°C, 60' 60°C, Einweichen
Kapazität	12 Maßgedecke
Geräuschpegel	46 dB(A)
Salz- und Klarspülernachfüllanzeige	Ja
Sicherheitseinrichtungen	Kindersicherung, Aquastopp
Wartungshinweise	Filter regelmäßig reinigen, Sprüharme auf Verstopfung prüfen
Ersatzteile	Filter, Sprüharme, Körbe, Salzbehälter
Hersteller	Fagor

Häufig gestellte Fragen - 3LVF-423 FAGOR

Wie installiere ich den Geschirrspüler korrekt?

Wie lade ich das Geschirr richtig ein?

Welches Programm eignet sich für stark verschmutztes Geschirr?

Warum wird das Geschirr nicht richtig trocken?

Was bedeuten die Fehlermeldungen auf dem Display?

Wie reinige ich den Filter des Geschirrspülers?

Kann ich Salz und Klarspüler nachfüllen?

Wie starte ich ein Spülprogramm?

Warum läuft Wasser aus dem Geschirrspüler?

Wie lange dauert das ECO-Programm?

BEDIENUNGSANLEITUNG 3LVF-423 FAGOR

Dear Customer,

This Quick Start Guide is enclosed with detailed dishwasher Operating Instructions. Before using the appliance carefully read the Operating Instructions, especially guidelines for safe use.

Before plugging your dishwasher into the mains power, remove the safety packaging. Do not start the dishwasher before it is properly set up.

Turn on the appliance1

→ Close the appliance door, press the on/off button to turn on the appliance.

Dispense detergent2

→ Press the latch to open the detergent dispenser.
→ Add detergent to the dispenser.

3

Check the special salt level

Add special salt to the dispenser when the corresponding indicator on the control panel comes on.

4

Load the dishes

→ Remove food leftovers from the dishes
Place the dishes in the baskets according to loading guidelines.
It is recommended to load the lower basket first, then the upper basket.

5

Select the wash programme

→ Select the desired programme and its indicator will light up. Press Start/Pause, and the dishwasher programme will resume.

6

Start your dishwasher

→ Close the dishwasher door.
→ The dishwasher will start a wash programme.

7

Turn off the appliance

→ Press Start / Pause to turn off the appliance

8

Remove dishes from the appliance

When the dishwasher is off, open the door and wait about 15 minutes before removing the dishes. This will also facilitate the drying process. Hot dishes are more susceptible to cracking.

9

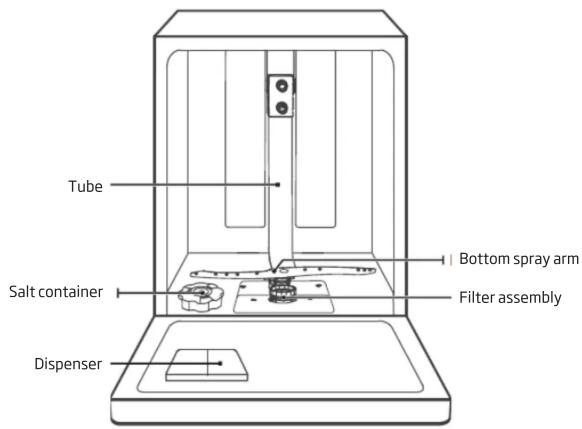

Features and components

→ Spray arms
→ Cutlery basket
→ Upper basket
→ Inner tube
→ Lower basket
→ Salt container
→ Detergent dispenser
→ Mugs and cups shelves
→ Main filter
→ Water supply hose connection
→ Water drain hose
→ Regulator

Cutlery basket

Cutlery rack
Cup rack

Lower basket
Upper basket

NOTE:

Figures are for illustrative purposes only Individual models may vary.

TABLE OF WASH PROGRAMMES: 3LVF-423 / 3LVF-423X

ITEM

Programme name

Default temperature[°C]

Type of soil

Soil level

Amount of detergent

Type of cycle

Duration (min.)*

Power consumption (kWh)*

Water consumption (l)*

1

Auto 45-55°

AUTO

Automatic programme selection for any type of soil, including residual dried food on the dishes.

Varying soil

5g/22g(1 piece)

Pre-wash 45°C

Automatic wash 45-55°C

Rinse

Rinse 65°C

Dry

150 0.9-1.3

9.5~1.3

2

Intensive

60°

Heavily soiled dishes with dried food reside.

Heavy soil

5g/22g(1 piece)

Pre-wash 50°C

Wash 60°C

Rinse

Rinse

Rinse 70°C

Dry

165

1.4

16.5

3

**ECO ECO

45°

Lightly soiled glass-ware and porcelain.

Light soil

5g/22g(1 piece)

Pre-wash

Wash 45°C

Rinse 65°C

Dry

220

0.69

9

4

Glass Light soil

40°

For lightly soiled crockery and glass.

5g/22g(1 piece)

Pre-wash

Wash 40°C

Rinse

Rinse 60°C

Dry

125

0.75

13.5

4

60' 60'

60°

Lightly soiled dishes that do not require full drying.

Light soil

5g/22g(1 piece)

Wash 50°C

Rinse 60°C

Rinse 60°C

Dry

60

0.9

9

5

Soak --

To rinse dishes that you plan to wash later that day.

--

--

Pre-wash

15

0.02

3.5

** Standard programme This is a reference program for research institutes. Tests according to EN 50242.

This programme is suitable for washing normally soiled tableware. This is the most effective programme taking into account the total energy and water consumption for this kind of tableware.

Programme duration, energy and water consumption value given in the table have been determined under laboratory conditions. Actual values can vary.
