PBF (FLUSH) PRE-CONSTRUCTION BOARD INSTALLATION GUIDE
PBF Pre-construction Board Installation guide


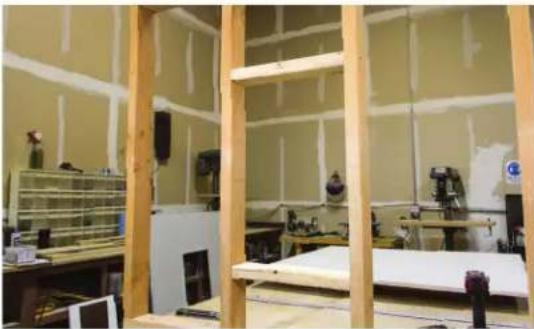

Interior view of a workshop with wooden frames and workbenches (no visible text or symbols)Before installing the PBF pre-construction board, we recommend securing two horizontal studs, at PBF board height, between the vertical studs of the chosen installation location to add additional support.


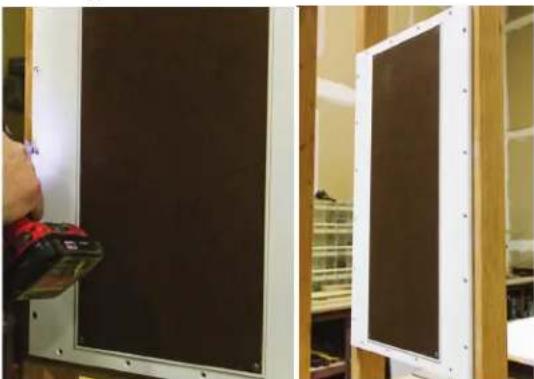

Two-panel photo showing a person using a power tool to clean or store floor panels, no visible text or symbols3 Once the board has been properly leveled, fasten the PBF board to the vertical and horizontal studs.


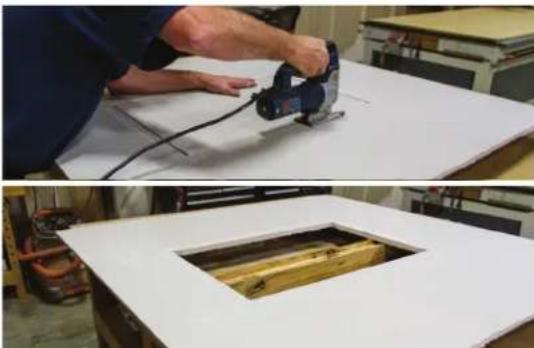

Two-panel photo showing a person using a power tool on a white sheet, and a wooden box with a hole in a workshop (no visible text or symbols)5 Cut along the traced path to make a frame for the pre-construction board.


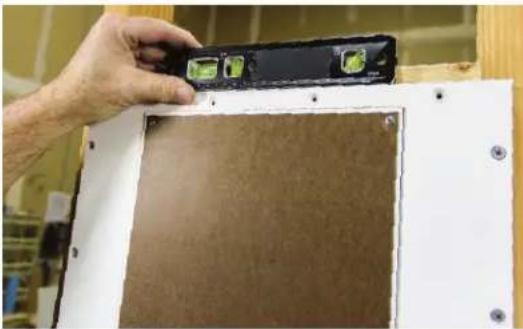

Hand holding a black calibration device with green measurement indicators on a brown surface, next to a white frame (no text or symbols visible)2 After this has been done, ensure that the board is level before fully securing it to the wall studs.


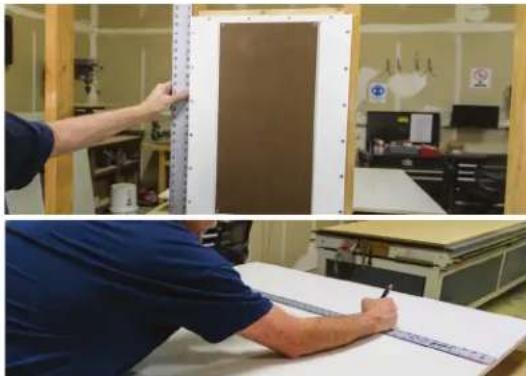

Two-panel image showing a person measuring a large rectangular panel in a workshop (top) and another writing on a white sheet with a ruler in the foreground (bottom).4 Measure the PBF board and make an outline of the board on a new panel of sheet rock.


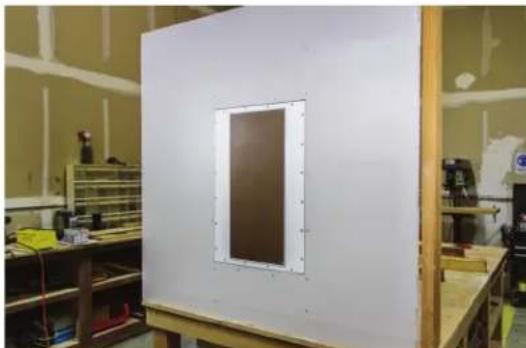

Interior view of a workshop with a large white panel and a rectangular recessed panel, no visible text or symbols.6 Lay the frame panel of sheet rock over the PBF board and fasten the frame to studs of the wall.
PBF PRECONSTRUCTION BOARD INSTALLATION GUIDE


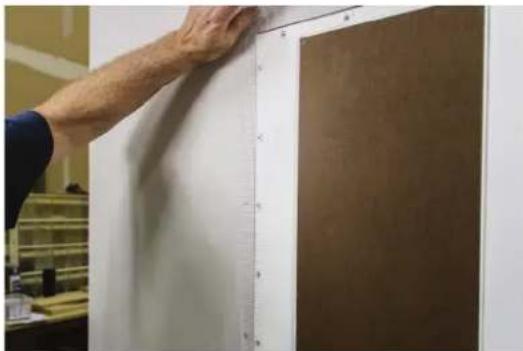

Now, cover the seams around the board with mesh tape, and begin the mudding process. Make sure to apply mud up to the lip of the PBF board.
After you finish the mudding process, the inner plug can now be removed and sanding can be performed to remove any unwanted surface features.
Mount the speaker bracket to the wall, and begin the speaker installation process.
After the speaker installation is completed, the grille will be flush with the wall.
