BEDIENUNGSANLEITUNG Easy Close Extra Tall SAFETY 1ST

Safety 1st EASY CLOSE EXTRA TALL U Pressure Fit min 73 cm - max 80 cm 91cm watch the helpful installation v i d e o 6m 24m www.safety1st.com

IMPORTANT! READ AND FOLLOW THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Index

Instructions for use/Warranty

5

17

12

14

Congratulations on your purchase.

To ensure maximum protection and optimum comfort for your child, it is essential that you read through the entire manual carefully and follow all instructions. The safety barrier/gate is suitable for use with children and pets. Instructions for adult assembly products.

Not included OK

5

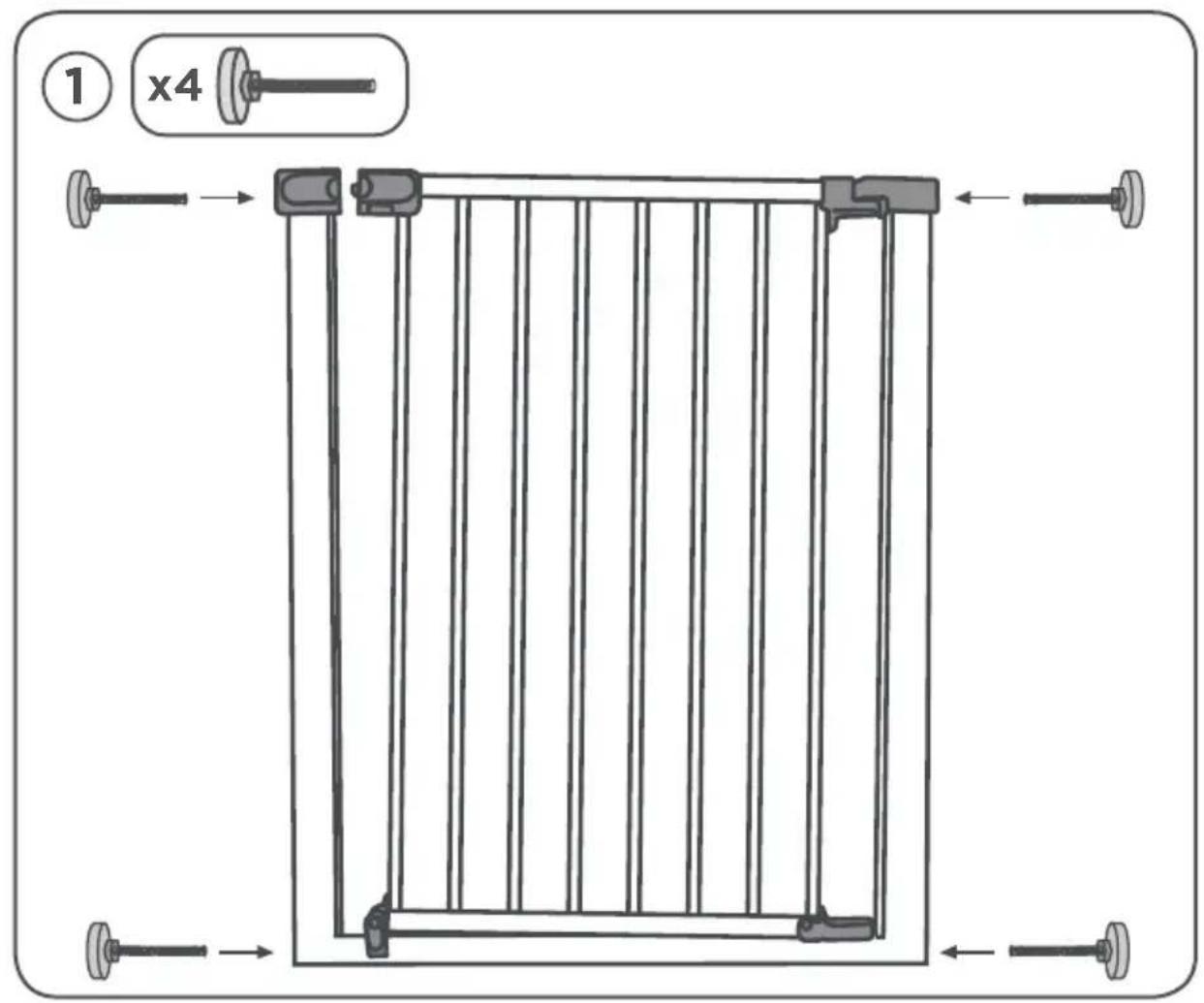

① x4

6

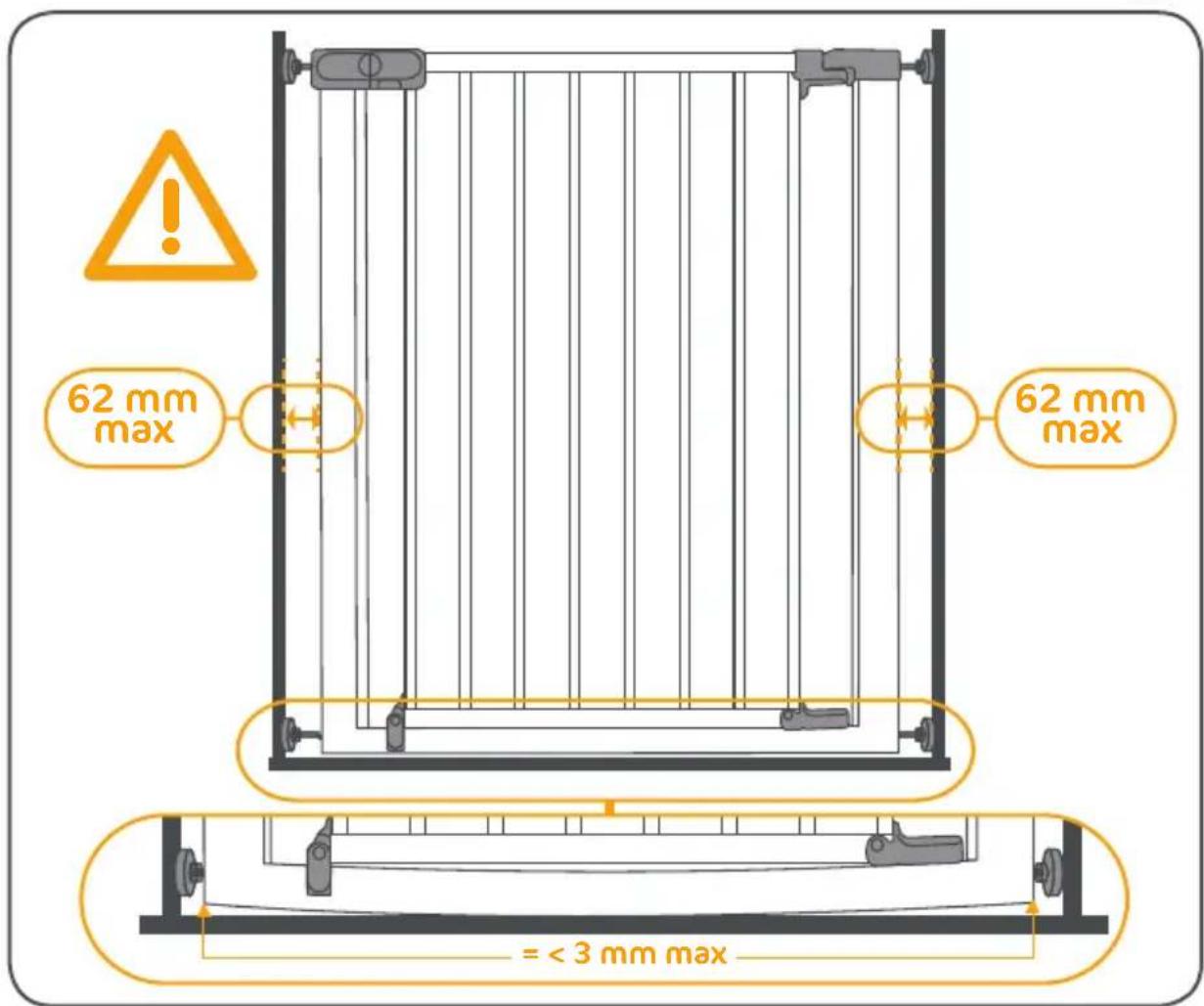

62 mm max 62 mm max =< 3 mm max

Option A

2
x4

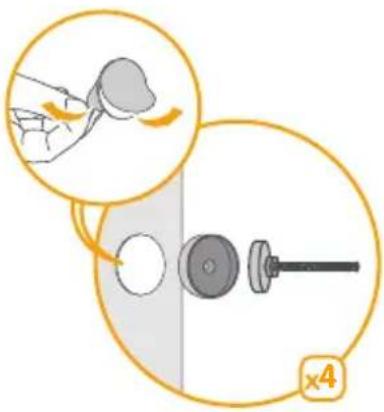

Diagram showing a hand holding a small object with motion arrows, alongside a close-up of the object's rotation and a magnified view labeled '×4'.

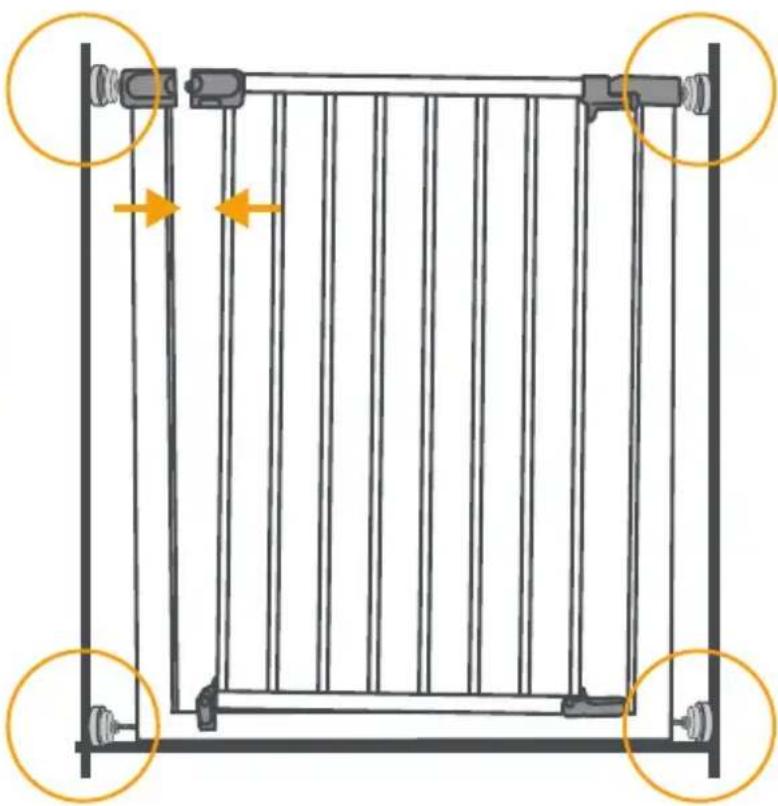

Diagram of a safety ladder structure with vertical bars and control points, no text or symbols present

8

Option B

2
x4

Illustration of a door handle with four tool icons: handle, screwdriver, screwdriver, and screwdriver (no text or labels)

Diagram showing a mechanical assembly with a circular component and a shaft, enclosed in a circle (no text or symbols)

Diagram of a safety ladder frame with vertical bars and control points, no text or symbols present

9

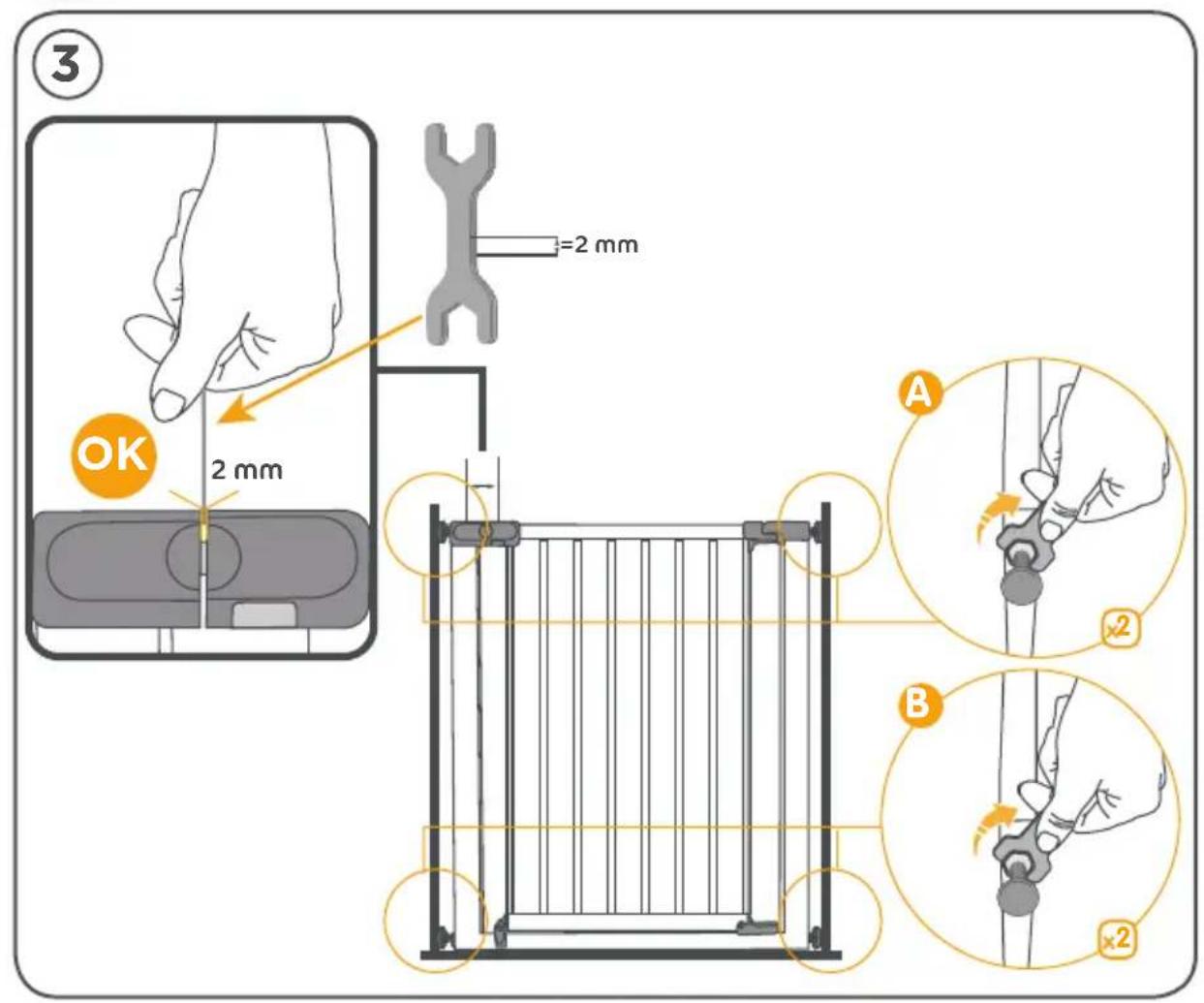

③ 3 =2 mm OK 2 mm A B ×2

10

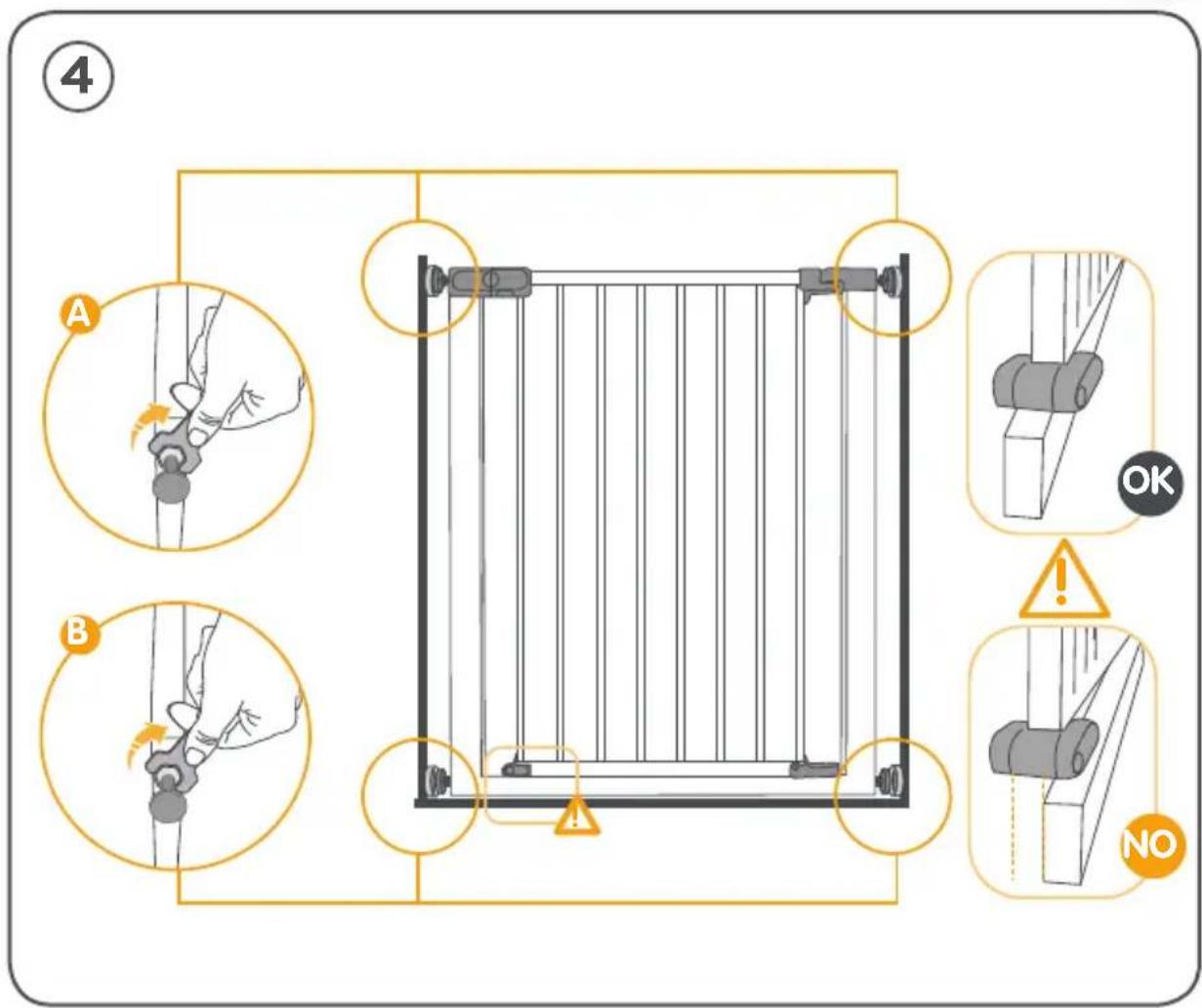

④ A B A OK ! NO

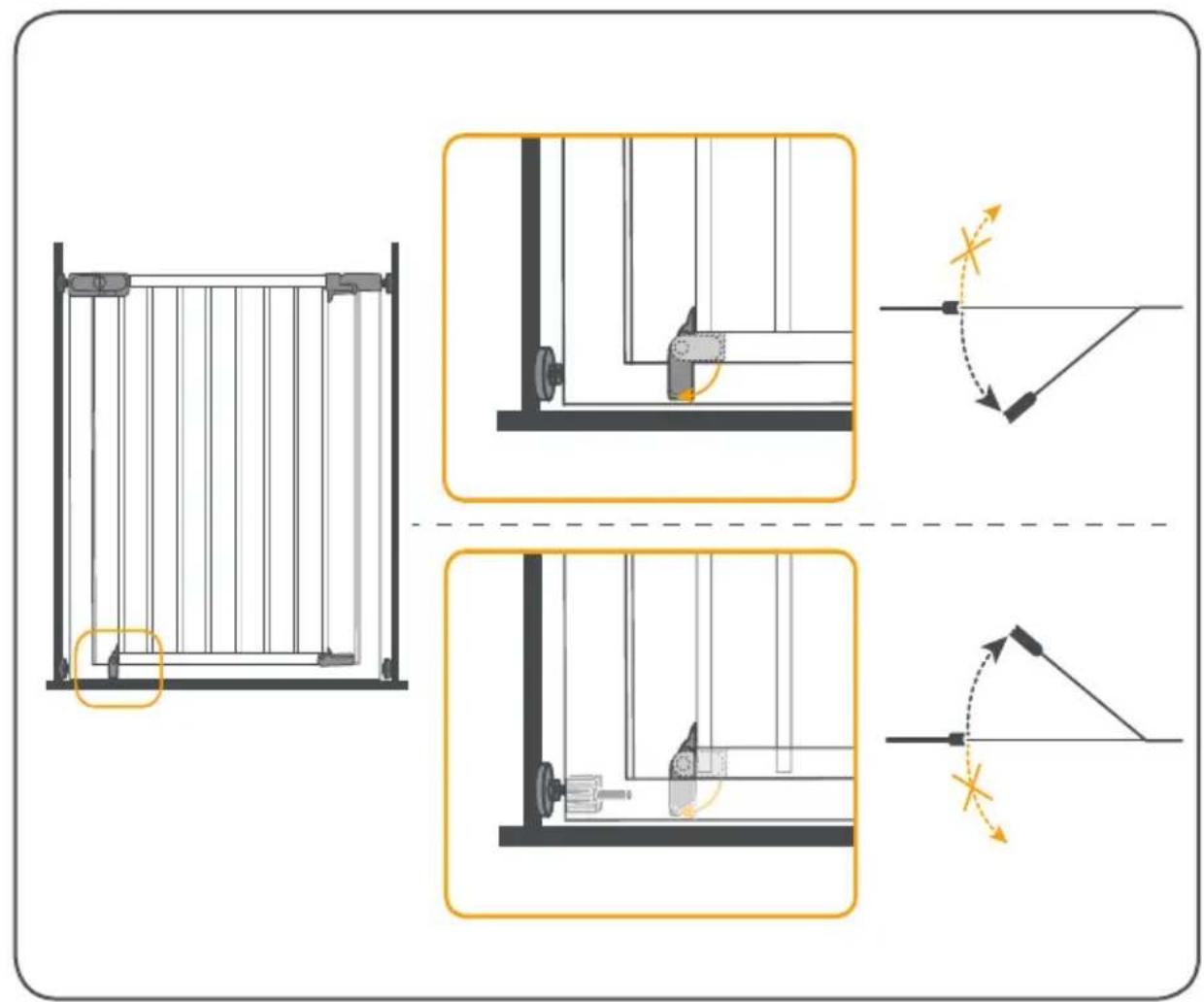

Technical diagram illustrating door frame installation and motion control mechanism with labeled components and directional arrows

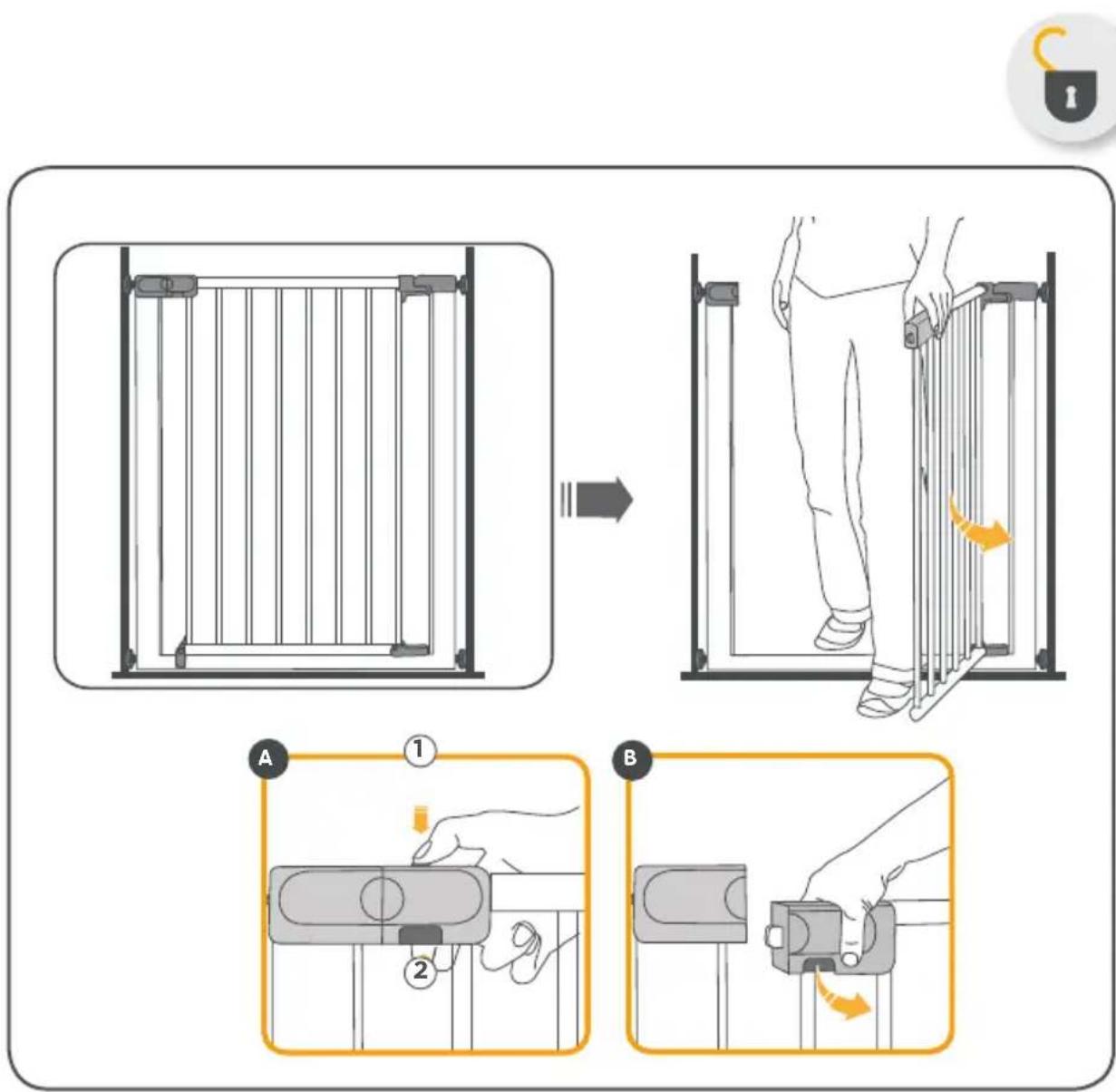

Illustration showing step-by-step instructions for installing a baby safety ladder, with labeled steps A and B.

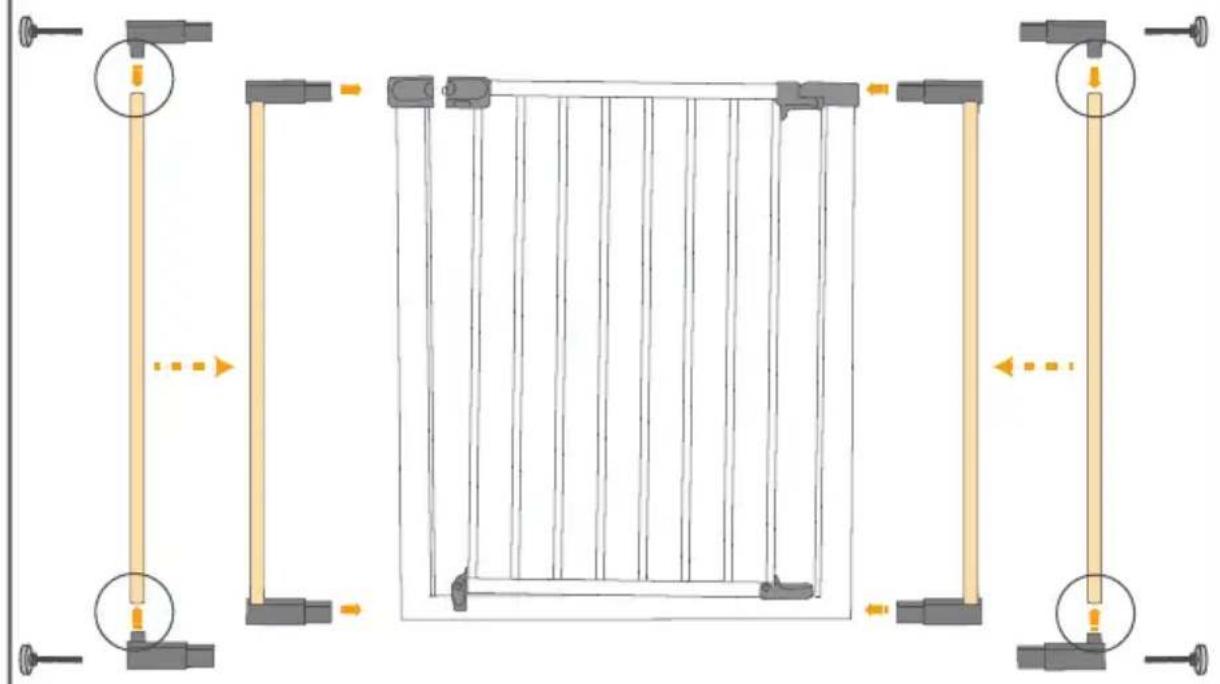

OPTIONAL EXTRA

Min. Max. Extensions
73 cm	80 cm	/
80 cm	87 cm	7 cm
87 cm	94 cm	2x7cm

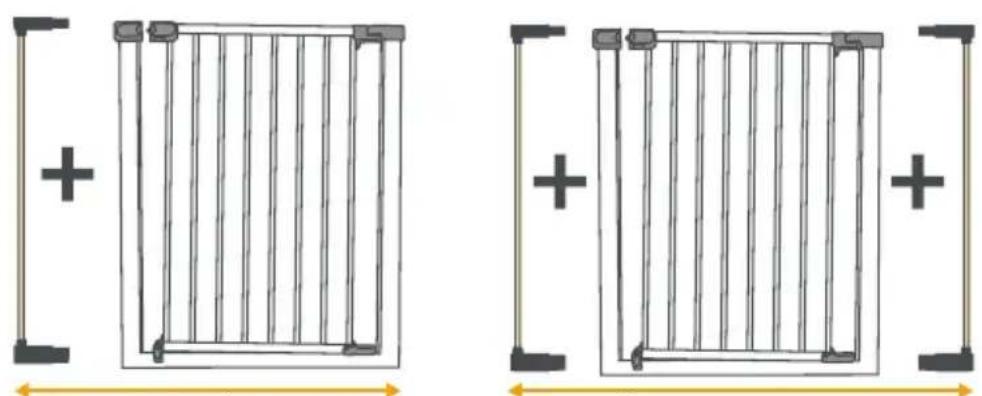

Two identical architectural diagrams showing vertical slats inside rectangular frames, each with a plus sign and dimension lines (no text or symbols)

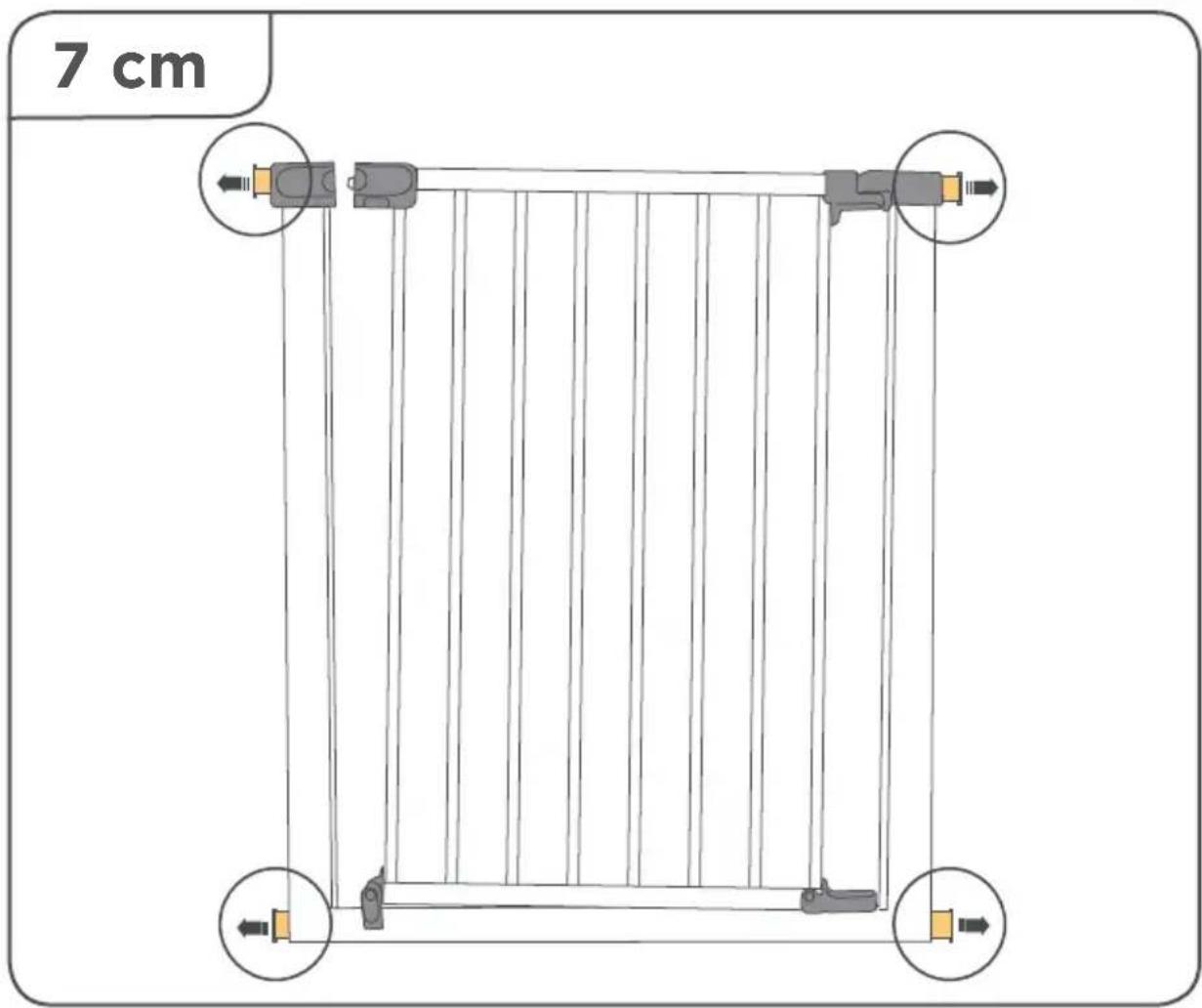

Min 80 cm / Max 87 cm Min 87 cm / Max 94 cm

7 cm

7 cm

Pure architectural floor plan diagram with vertical and horizontal beams, no text or symbols present

General U Pressure Fit Easy Close Extra Tall instructions.

Complies with safety requirements - Tested in an approved laboratory in accordance with order no. 91-1292 - December 1991.

safety barrier complies with EN 1930:2011.

The barrier is suitable for openings from a minimum of 73 cm, up to a maximum of 94 cm.

Intended for children between the ages of 6 and 24 months.

This safety barrier is for domestic use only Safety barrier should be checked regularly to ensure that it is secure and functioning in accordance with these instructions.

Safety barrier with manual closing system.

The Safety barrier/gate is suitable for use with children and pets.

Any safety barrier/gate which has been subjected to misuse, abuse, abnormal use, excessive wear and tear, or improperly installed will invalidate any claim against the manufacturer.

Damage to property during installation of the safety barrier/gate is the sole responsibility of the end user If the gate is used at the top of the stairs we recommend that the gate opens over the landing and not the stairs.

When opening and closing the safety barrier/gate be aware of trapping children's hands, fingers or limbs. Check that the Safety Gate is correctly closed.

CAUTION :

Used correctly, this barrier is designed to prevent accidents.

Children should never be left unattended. Incorrect positioning of the safety barrier in relation to the stairway may present a danger for your child. If the safety barrier is used at the top of the stairs, it should not be positioned below the top level. If the safety barrier is used at the bottom of the stairs, it should be positioned at the front of the lowest tread possible.

WARNING:

Incorrect fi tting or positioning of this safety barrier can be dangerous.

WARNING:

Do not use the safety barrier if any components are damaged or missing.

WARNING:

The safety barrier must not be fitted across windows. Ensure that the wall, door frame or newel post to which you fix the barrier is solid, stable, smooth and has non-greasy.

WARNING:

Stop using the barrier if the child is capable of climbing it.

Danger to older children climbing over the safety barrier.

Any additional or replacement parts should only be obtained from the manufacturer or distributor. Safety barrier should be checked regularly to ensure that it is properly fixed, secure and functioning.

WARNING:

Never use without wall cups.

Advice:

Always keep an eye on the child, since children quickly become more independent.

Maintenance:

Wash with a sponge and mild soap. Remember that all mechanical products need regular maintenance and careful use if they are to provide maximum satisfaction and last a long time.

17

Simple gray triangle shape with no text or symbols

Warranty

Dear Customer,

Thank you for the confi dence you have shown in us by choosing one of our products. We hope it will meet all your expectations. This certifi cate indicates that this product has been manufactured according to the quality standards applicable and that it has been subjected to numerous checks during the various manufacturing stages. Should an anomaly occur during the warranty period, we will respect the conditions stipulated in the guarantee.

Guarantee Certifi cate:

We guarantee that this product complies with the security regulations currently in effect, and that it is free from defects in material and craftsmanship at the time it is purchased by the retailer.

If this product fails within 24 months of the original purchase and under normal use as defined in the user's manual, we will repair or replace the product (for more information regarding our warranty policy, ask your retailer or consult our website), except

in the following cases:

• Use and purpose other than those indicated in the instructions for use.
  • Installation not in accordance with the instructions.
  • Repair carried out by a non-approved person or

retailer.

• Proof of purchase not presented.
• Product not maintained.
- Replacement of any parts subject to wear (wheels, areas which rub, etc.) during normal use.

From when?

From the date the product is purchased.

For how long?

For 24 consecutive months, non-transferable; only the first purchaser benefits from this.

What do you have to do?

After you purchase your product, you must keep the sales receipt showing the date of purchase. If a problem should arise, the product must be taken back to the retailer from whom it was bought. Any product sent directly to the manufacturer will not be covered by the guarantee.

This guarantee conforms with European Directive No. 1999/44/EC dated 25 May 1999.

Customer Services : 01284 413 141

Email : [e-mail]

Monday-Friday : 8.30am - 4.30pm

DOREL (U.K). LTD

Hertsmere House,

Shenley Road,

Borehamwood

Hertfordshire WD6 1TE

UNITED KINGDOM

.0529010
