BEDIENUNGSANLEITUNG GB15T/EN Penton

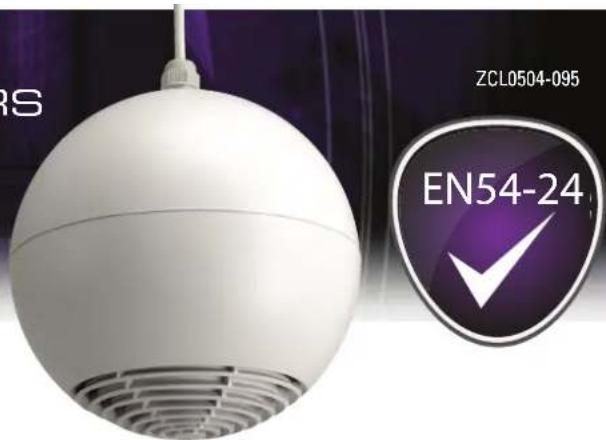

ABS SPHERICAL LOUDSPEAKERS

GB15T/EN
GB15T/ENC

ZCL0504-095 EN54-24

INSTALLATION INSTRUCTIONS

EN54-24:2008

Certificate No: 0359-CPR-00290 TYPE B

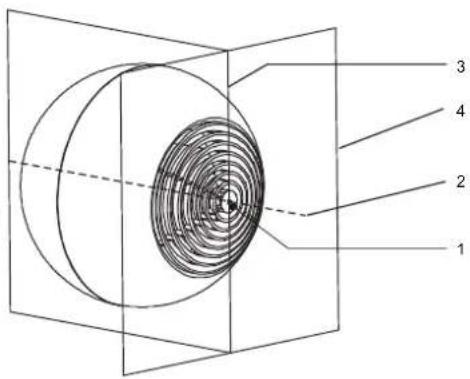

1. LOUDSPEAKER ENCLOSURE
2. REFERENCE AXIS
3. REFERENCE PLANE
4. HORIZONTAL PLANE

1 2 3 4

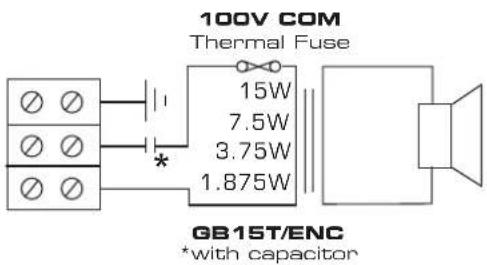

CIRCUIT DIAGRAM

100V COM Thermal Fuse 15W 7.5W 3.75W 1.875W GB15T/ENC *with capacitor

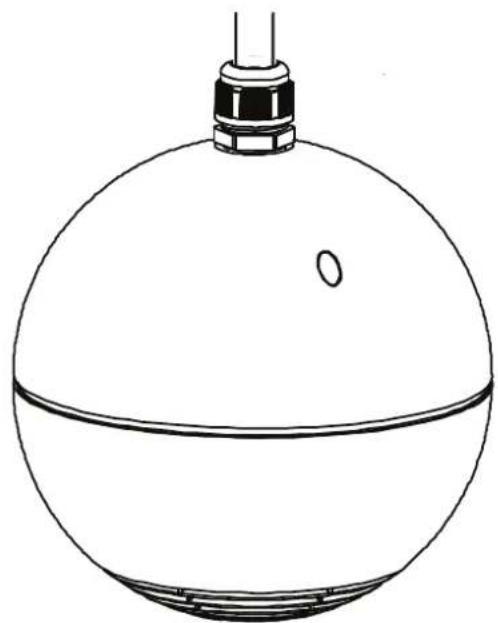

Line drawing of a spherical object with a small protrusion and a central hole, resembling a droplet or container (no text or symbols)

1 The GB15T/EN & ENC is a pendent speaker and is suspended via its connecting cable. The speaker is not supplied with a cable tail. We recommend using a 4 core plus drain wire, fire rated cable so that the speaker circuit can be looped in and out of the speaker bringing the speaker line monitoring all the way to the speaker.
2 Remove the lower half of the speaker by removing the screws then separate the speaker into two halves. The speaker terminations and cable gland will now be exposed for connection of the speaker cable. Please use the above circuit diagram for connection details and tapping selection.
3 We recommend that you fit a cable tail of the required length to the GB15T/EN & ENC. Use a junction box (not supplied) to terminate the cable tail via a suitable cable gland. The cable must be terminated at the junction box using ceramic terminals or terminals rated to a minimum of 600 degrees C or suitable to meet local fire standards. The cable tail must have a drain wire which needs to be secured in the junction box as this acts as a secondary support for the speaker.

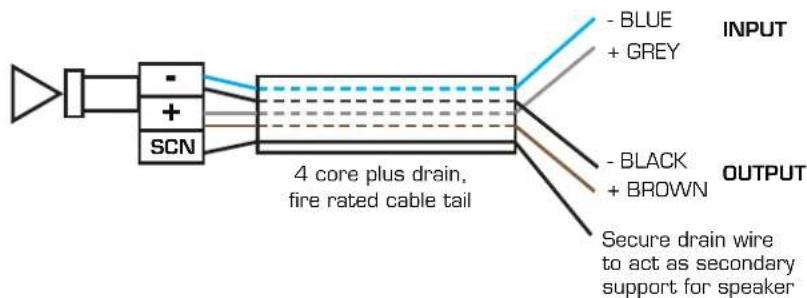

4 See recommended connection details below:

INPUT - BLUE + GREY 4 core plus drain, fire rated cable tail - BLACK + BROWN OUTPUT Secure drain wire to act as secondary support for speaker
