Produkttyp	HDMI-Extender/-Splitter (Audio-/Videoverlängerung)
Marke	HELGI
Modell	HLG0318-4K-HDBITT
Eingänge	1 x HDMI
Ausgänge	8 x RJ45 (HDBiT-Protokoll)
Übertragungsdistanz	Bis zu 120 m über CAT6 (bis zu 150 m mit hochwertigem Kabel)
Unterstützte Auflösungen	480p, 576p, 720p, 1080p (50/60 Hz)
HDCP-Kompatibilität	Ja
IR-Unterstützung	20–60 kHz IR-Signal
Gehäusematerial	Metall
Montage	Montierbar (Befestigungslöcher)
Stromversorgung	DC 12V / 3A (im Lieferumfang enthalten)
Leistungsaufnahme	< 24 W
Abmessungen (B x T x H)	299 x 110,7 x 29,6 mm
Gewicht	430 g
Farbe	Schwarz
Lieferumfang	1x Sender (TX), 1x Netzteil, 1x IR-Blaster-Verlängerungskabel, 1x Bedienungsanleitung
Betriebstemperatur	0 °C bis 60 °C
Reinigung	Mit einem trockenen, fusselfreien Tuch abwischen; keine Flüssigkeiten oder Reinigungsmittel verwenden
Sicherheitshinweise	Nur das mitgelieferte DC 12V-Netzteil verwenden; Netzwerkkabel während des Betriebs nicht ein- oder ausstecken
Kompatible Kabel	UTP/STP Cat5/5e/6 nach IEEE-568B

Häufig gestellte Fragen - HLG0318-4K-HDBITT HELGI

Wie schließe ich den HELGI HLG0318-4K-HDBITT an?

Warum zeigt mein Fernseher 'waiting for connection' an?

Was bedeutet 'Please check the TX input signal' auf dem Bildschirm?

Die Bildübertragung ist nicht stabil oder flackert. Was kann ich tun?

Kann ich den Extender auch mit anderen Empfängern nutzen?

Welche Netzwerkkabel werden empfohlen?

Wie funktioniert die IR-Signalübertragung?

Kann ich mehrere Empfänger anschließen?

Was muss ich bei der Reinigung beachten?

Was tun bei einem Ausfall des Geräts?

BEDIENUNGSANLEITUNG HLG0318-4K-HDBITT HELGI

HELGI

HDbiT 1 to 8 HDMI Extender Splitter

User manual

Line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

Important Safety Notes:

1. Do not plug-in/out the network cables and IR cables when it is in using.

2. Use DC12V only. Make sure the specification matched if using 3rd

party DC adapters

- Introduction

This product combines the extender and splitter function to split 1 HDMI signal to 8 identical HDMI signals via network cable and it is used as a sender to work with 8 receivers to transmit these 8 HDMI signals up to 120 meters.

With the JR signal transmission to control the source device operation in long distance, it is widely applied in HD audio visual display room, HDTV, Set top box, DVD etc exhibition center and digital monitoring system.

- Features:

1. Support 1 HDMI input to B HDBiT outputs.

2. Up to 120 meters transmission distance over single cat6 (high quality cable can reach 150 meters).

3. Compatible with the receiver device which supports HDbitT transport protocol.

4. Compatible with HDCP.

5. Metal housing and mountable design.

• Package contents

HDMI extender TX*1

DC12V/3A power adapter*1

IR blaster extension cable ^1

User manual *1

• Installation Requirement

1. HDMI source device(computer graphics card, DVD, PS3, HD monitoring equipment etc)
2. HDMI display device like SDTV, HDTV, and projector with HDMI port.
3. HDMI extender RX which supports HDBiT transport protocol
4. UTP/STP cat5/5e/6 cable, follow standard IEEE-568B

Network cable length supported between every connection:

CAT5 80m

CATSE 100m

CAT6 120m

- Panel description

Reset button IR blaster extension port HDMI input Signal link LED R45 output Power input (DC12V)

- Connection and operation

1. network cable

Follow the standard of IEEE-568B:

1-Orange/white 5-Blue/white

2-Orange 6-Green

3-Green/white 7-Brown/white

4-Blue 8-Brown

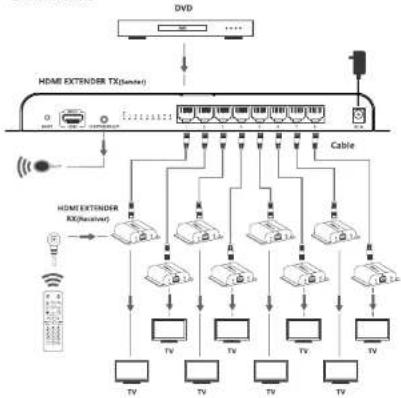

2. Connection

3. Connection instruction:

1). Connect HDMI input with HDMI output of source device.
2). Connect IR blaster extension cable to the IR extender out port
3). Connect RJ45 port with RJ45 input port of HDMI extender RX.
4). Connect HDMI output of HDMI extender RX to HDMI input of HDTV and
set the TV source input to correct HDMI input channel
5). Power on the device (power indicator led lights) and it works.

· FAQ

Q: TV display "waiting for connection" on the bottom right corner?
A: 1) Please check if the power supply of TX (sender) and RX(receiver)
is well connected and the power indicator led lights on. 2) Make sure all cables are firmly connected.

Q: TV display "Please check the TX input signal"?
1) please check if there is An HDMI signal input of TX.
2) Try to connect the signal source directly to display device to see
if there is signal output from source device or change the signal
source, HDMI cables and try again.

Q: Display not fluent and stable?

A: 1) Please check the cable length between TX(sender) and RX

(receiver) is within the required range.

2) Click "reset" button on the RX/RX panel, reset and reconnect.

• Specification

Items	Specification
HDMI signal	Compatible with HDCP:
Transport protocol	H0bitT
Support resolutions	480p@60Hz, 480p@60Hz, 576p@50Hz, 576p@50Hz, 720p@50/60Hz, 1080p@50/60Hz, 1080p@50/60Hz
Transmit distance	Up to 120meters transmission distance for 1080p 60Hz full HD over single CAT6

IR signal	Support 20-60kHz IR device
Input	1 x HDMI
Output	8 x RJ45
Connection indicator leds	8 x LED
Working temperature	0°C~60°C
Power supply	DC12V/3A
Power Consumption	<24W
Dimension	299(W) x 110.7(D) x 29.6(H) mm
Weight	430g
Color	Black

Disclaimer

The product name and brand name may be registered trademark of related manufacturers, TM and © may be omitted on the user manual. The pictures on the user manual are just for reference, and there may be some slight difference with the real products.

We reserve the rights to make changes without further notice to a product or system described herein to improve reliability, function or design.
