Microcassette Recorder

Operating Instructions

Model No. RN-405

RN-305

RN-202

PRINTED WITH SOYINK

This manual was printed with soy based ink.

The illustrations show

RN-405

P

Before connecting, operating or adjusting this product, please read these instructions completely. Please keep this manual for future reference.

Panasonic Consumer Electronics Company (En)

Division of Matsushita Electric Corporation of

America

One Panasonic Way Secaucus, New Jersey 07094

http://www.panasonic.com

Panasonic Sales Company, Division of

Matsushita Electric of Puerto Rico, Inc. ("PSC")

Ave. 65 de Infanteria, Km. 9.5 San Gabriel Industrial

Park, Carolina. Puerto Rico 00985

©2000 Matsushita Electric Industrial Co., Ltd.

Printed in Japan

RQT5405-P

F0100KBO

Power source

A R6/LR6, AA, UM-3

B DC IN 3V

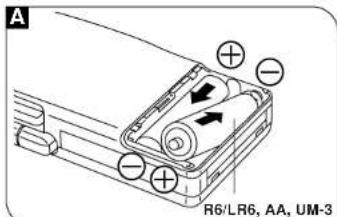

Dry cell batteries A

Use two R6/LR6, AA UM-3 (not included) batteries.

Press in and down towards the minus end.

Battery removal

Press the ⊕ side towards the ⊙ battery terminal and lift up.

AC power operation B

Use Panasonic AC adaptor RP-AC31 (not included).

- When not in use, disconnect the AC adaptor from the AC power outlet.

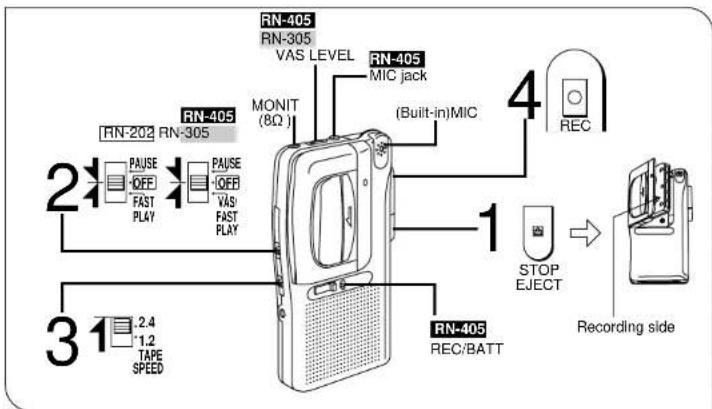

Recording

RN-202 RN-305 PAUSE OFF FAST PLAY RN-405 RN-305 VAS LEVEL MONIT (8Ω) RN-405 MIC jack (Built-in)MIC 1 STOP EJECT REC Recording side RN-405 REC/BATT 2 3 .2.4 1.2 TAPE SPEED

Basic operation

Function	Operation
Stop	Press [STOP, EJECT].
Temporary stop	Set [PAUSE] to PAUSE.To resume recording set it toOFF.
Recording for a long time	Set [TAPE SPEED] to [1.2].

■ Program time (with RT-60 MC microcassette

tape)

At [1.2]: 1 hour on one side

At [2.4]: 30 minutes on one side

Note:

- Use a tape with tabs in place.

●The recording level is automatically adjusted.

•The built-in microphone is omnidirectical, so that

recording is available in every direction.

Specifications

Power requirement

Battery: DC 3 V

(two R6/LR6, AA, UM-3

batteries)

AC: DC IN 3 V with

Panasonic AC adaptor

RP-AC31 (not included)

Frequency response 500–3500 Hz

Speaker: 3.6 cm (1

13/92"

Tape speed 1.2 cm/s (

10/32 [ps]

2.4 cm/s (15-16 ips)

Track system 2 track monaural

onaural

recording and playback

Jack: Input: (

only RN-405

MIC; 0.25 mV (200-600 Ω)

MONIT (8 0)

sions(W×H×D)

58.0×117.0×23.7mm

(25/16"×438"×15/16")

Mass (without batteries)

BN-202 : 130 g (4.6 oz.)

BUN 005

107-142

RN-305

: 150 g (4.0 oz.)

RN-405

; 134 g (4.7 oz.)

Play time:

[When used in hold mode, at 25°C (77°F) and on a flat

and stable surface]

Panasonic alkaline dry

cell batteries;

RN-202

RN-305

Recording: About 14.5 hours

Playback: About 9 hours

RN-405

Recording: About 13.5 hours

Playback: About 9 hours

●The play time may be less depending on the

operating conditions.

Note:

Specifications are subject to change without no-

tice.

Mass and dimensions are approximate.

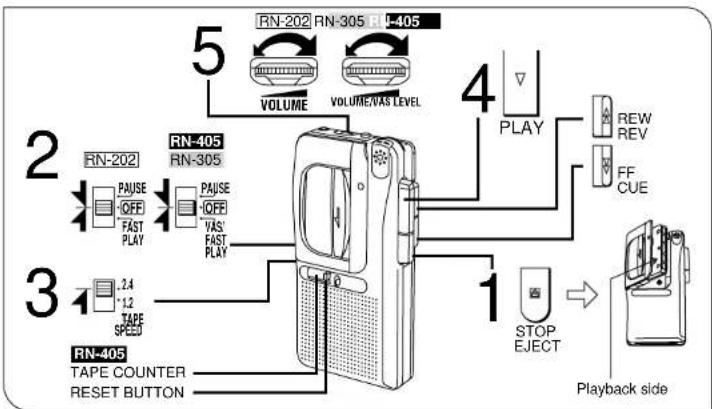

To playback tapes

RN-202 RN-305 L-405 VOLUME VOLUME/VAS LEVEL RN-202 RN-405 RN-305 PAUSE OFF FAST PLAY PAUSE OFF VAS FAST PLAY 1.2.4 TAPE SPEED TAPE COUNTER RESET BUTTON RUN-405 PLAY REW REV FF CUE STOP EJECT Playback side 2 3

Basic operation

Function	Operation
Stop	During playback, press [→ STOP, EJECT].
Fast forward or rewind	In the stop mode, press [▶FF, CUE] (Fast forward) or [◀◀ REW, REV] (Rewind).
Temporary stop	Set [PAUSE] to PAUSE.To resume playback set It to OFF.
To play faster than usual	Set [FAST PLAY] to FAST PLAY.

Cue and review

Sound can be monitored at a high speed as long as [▶▶FF, CUE] (cue) or [◀◀REW, REV] (review) is held down during playback.

When the button is released, normal playback will start.

Note:

Set [TAPE SPEED] to the same setting as you used for recording.

Troubleshooting Guide

BEFORE CALLING

Before requesting service for this unit, check the chart below for a possible cause of the problem you are experiencing. Some simple checks or a minor adjustment on your part may eliminate the problem and restore proper operation.

If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, refer to the directory of Authorized Service Centers (enclosed with this unit) to locate a convenient service center, or consult your dealer for instructions.

For detailed instructions, contact an authorized servicenter 1-800-211-7262 or web site (http://www.panasonic.com).

PROBLEM

No operations.

• No sounds

• A gritty noise is heard.

Cannot hear sound-too noisy. Sepa

No recording. Have the tape's accide

CHECKPOINT

- Have the batteries been installed with their polarities (⊕, ⊖) reversed?

- Is the earphone plug firmly connected to [MONIT (8 Ω)]? - Is the plug dirty? (Wipe away the dirt from the plug.)

unit from mobile phones.

sure prevention tabs been broken out?

To record with the VAS (Voice Activated System) function

(RTN-305 RN-405

The sound is recorded automatically, so there is no tape waste.
To use VAS function, select [VAS] in step 2 of Recording and adjust [VAS LEVEL].
- No sound is recorded at the "0" position.
- After using VAS function, set [VAS] to OFF.

1-3: If you wish to record only the louder sounds.
4-7: If you wish to record normal level sounds.
8-10: If you wish to record lower levels of sound than usual.

Silent auto-stop ( RN-405

When the tape comes to its end during recording or playback, the tape stops moving and the power is turned off.

After that, be sure to press [STOP ELECT].

To record through the external microphone ( RN-405

Plug the external monaural microphone (not included) into [MIC].

Plug type: 3.5 mm (1/8 in.) monaural

denser microphone without built-in supply.

- The built-in microphone will be automatically disconnected.

Note:

• Use a dynamic microphone or a condenser microphone with built-in power supply. Do not use a con-

Monitoring

The sound can be heard with earphone (not included) plugged into [MONIT(8 Ω)].

- Plug type: 3.5 mm ( ^1/_8 In.) monaural

- Do not adjust the volume during with the VAS function, or the VAS level would be change ( RN-305 RN-405 Only).

Note:

- Any change made to the volume during recording will not affect the recorded sound.

Erasure prevention

Removing the tab(s) of the cassette (with a small screwdriver) will prevent accidental erasure.

To record again, cover the hole of the tab with adhesive tape.

Small screw driver Side A Side B Tab for side A

Follow up recording

Recording can be started during play-back by simply pressing [●REC].

Quick review

To listen to the sound you have recorded, press and hold [◀◀REW, REV].

When the button is released, playback will start.

Tape counter and reset button ( RN-405 Only)

The digits return to "000" when the reset button is pressed. The digits advance with the tape to provide a ref-

erence to quickly find a desired portion of tape.

REC/BATT check indicator (CRN-405

[REC/BATT] check indicator will light during recording.

Also the tape speed will slow down, the sound is distorted, and the volume will decrease.

When the batteries are weak

[REC/BATT] check indicator will become dim or turn off during recording.

BATTERIES

• Align the poles (⊕ and ⊖) properly when inserting the batteries.
• Do not mix old and new batteries or different types of batteries.
• Do not recharge ordinary dry cell batteries.
• Remove the batteries if the unit is not to be used for a long time.
• Do not use the batteries if the covering has been peeled off.

Mishandling of batteries can cause electrolyte leakage which can damage items the fluid contacts and may cause a fire.
If electrolyte leaks from the batteries, consult your dealer. Wash thoroughly with water if electrolyte comes in contact with any part of your body.
- If rechargeable batteries are to be used, rechargeable batteries manufactured by Panasonic are recommended.

CAUTION

• Avoid using or placing this unit near sources of heat.
• Do not leave it in an automobile exposed to direct sunlight for a long period of time with doors and windows closed.
• To avoid product damage, do not expose this product to rain, water or other liquids.

• These speakers do not have magnetic shielding. Do not place them near televisions, personal computers or other devices easily influenced by magnetism.

Listening caution

Do not play your headphones or earphones at a high volume. Hearing experts advise against continuous extended play.

If you experience a ringing in your ears, reduce volume or discontinue use.

Do not use while operating a motorized vehicle. It may create a traffic hazard and is illegal in many areas.

You should use extreme caution or temporarily discontinue use in potentially hazardous situations.

Even if your headphones or earphones are the open-air type designed to let

you hear outside sounds, don't turn up the volume so high that you can't hear what's around you.

Sound can be deceiving. Over time your hearing "comfort level" adapts to higher volumes of sound. So what sounds "normal" can actually be loud and harmful to your hearing.

Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

To establish a safe level:

- Start your volume control at a low setting.

- Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.

Once you have established a comfortable sound level:

- Set the dial and leave it there.

MAINTENANCE

Head care

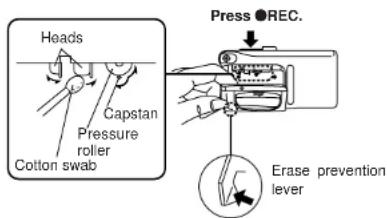

To ensure good sound quality, be sure to clean the head after approximately

every 10 hours of use with a cotton swab dampend with a little alcohol.

Heads Capstan Pressure roller Cotton swab Press ●REC. Erase prevention lever
