BEDIENUNGSANLEITUNG Streetwalker V2.0 Think Tank


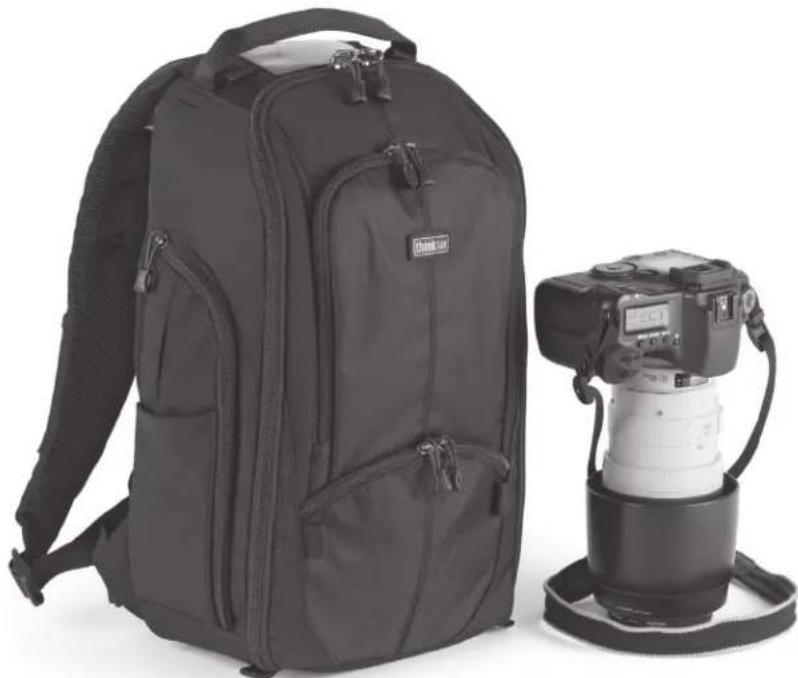

Black and white photo of a compact backpack and a DSLR camera on a stand (no text or symbols visible)StreetWalker™ Instructions
Instructions for using the waistbelt, optional Modular belt, sternum strap, and tripod or monopod attachment for StreetWalker, StreetWalker Pro and StreetWalker HardDrive.
Removable Waistbelt


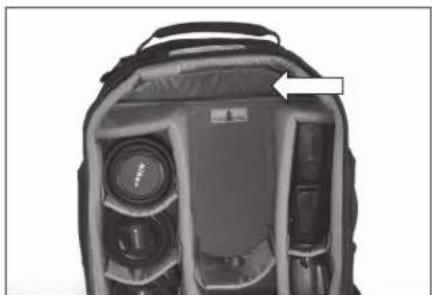

Close-up of a black athletic backpack with a white arrow pointing to the side (no text or symbols visible)The included waistbelt is removable by unthreading the webbing through the buckle.
Adjustable Sternum Strap


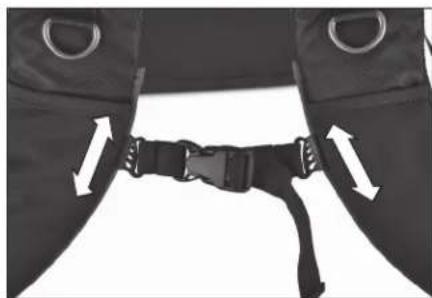

Close-up of a black athletic belt buckle with white directional arrows indicating movement (no text or symbols)The sternum strap can be raised or lowered, to accommodate a photographer's unique height or torso length.
Tripod or Monopod Attachment


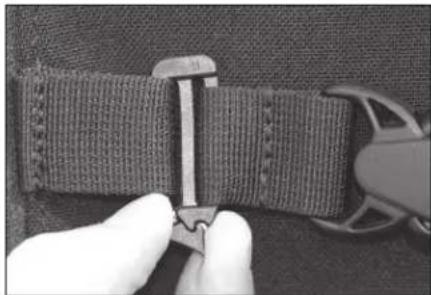

Close-up of a hand adjusting a textured fabric belt with a zipper (no visible text or symbols)Push the open Slik Clip through the webbing loops and snap it shut with your fingers on both sides.
Carrying a Tripod


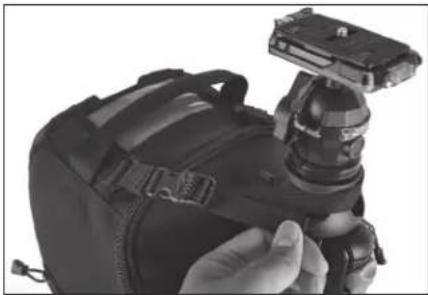

Close-up of a black camera module being handled with a strap (no visible text or symbols)Unlock the adjustable strap then pull the strap tight around the top of the tripod. Tighten the lower strap around the exposed tripod leg for additional stability.
Carrying a Monopod
StreetWalker™ Pro Instructions
Using the Tripod Cup
Attach a Modular Belt
StreetWalker™ HardDrive Instructions
Carrying Pro-size DSLRs
Laptop Compartment Opening

