BEDIENUNGSANLEITUNG CM012-2 Arkon

CM012-2 Friction Dashboard Mount with Travelmount™ Mini Suction Pedestal

Black and white photo of a black ergonomic device with a strap and circular base, labeled 'Patent Pending' (no other text or symbols)

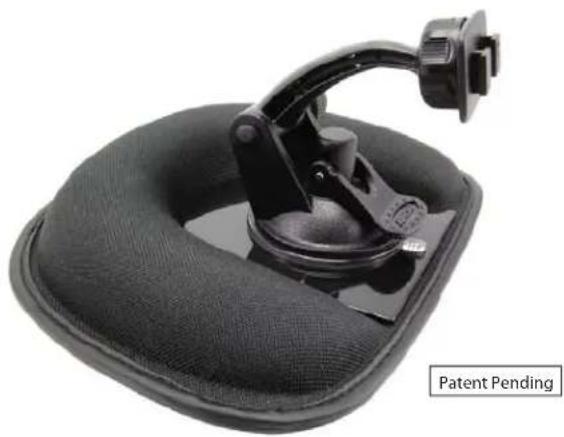

CM012 with GN014-SBH
Friction Dashboard Mount
with Pedestal

Package Contents:

(1) CM012 - Friction style dashboard mount
(1) GN014-SBH - Suction pedestal with swivel ball head
(1) Optional adhesive safety hook (recommended but not required)
(1) Alcohol cleaning pad

Device Compatibility:

- For use with any dual T-slot device or adapter plate.

Do not place mount in or near an air bag deployment zone or where it will obstruct view of the road.

Dashboard Mount Installation

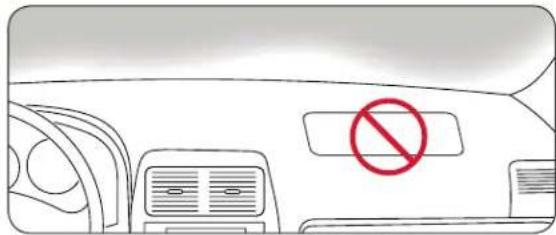

Step 1. Find a safe location on the vehicle dashboard that is not in an airbag deployment zone.

Diagram of a car interior with a red prohibition sign and no accompanying text labels

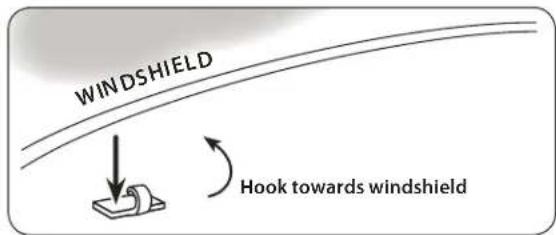

Step 2. Optional Safety hook installation will add extra stability. Clean the desired area with the included alcohol pad and let dry. Remove the adhesive backing on the safety anchor. The hook on the anchor must point towards the windshield. Press and hold the hook down on to the dashboard surface for about a minute. Allow 24 hrs. to cure to the dashboard surface at room temperature (72°F.)

WINDSHIELD Hook towards windshield

Step 3. Place the loop on the back of the dashboard mount around the safety hook and place on the dashboard in front of the hook.

Diagram of a device with a labeled component 'A' and directional arrow, no readable text or symbols present.

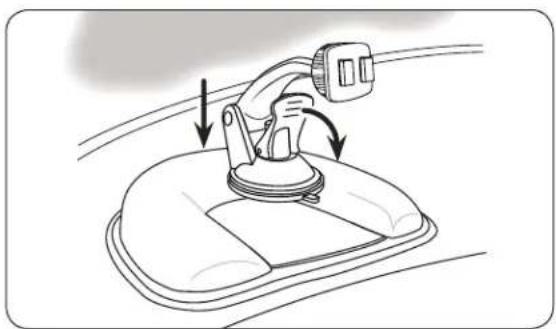

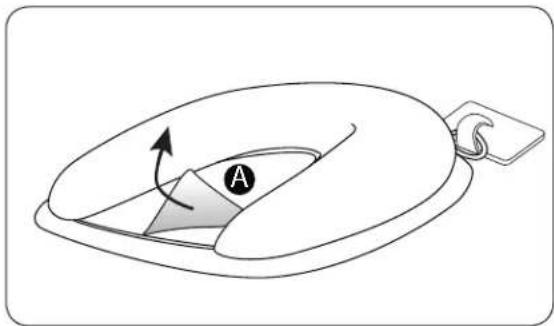

Step 4. Remove protective fi lm from pedestal mounting surface (A). Lower the pedestal onto the disc and press down fi rmly. Flip the locking lever down to secure the pedestal to the dash mount.

Diagram of a car seatbelt mechanism with arrows indicating clockwise motion (no text or symbols)

Continued on other side...

Safety Precautions

Do not install Arkon products over an air bag cover or within the air bag deployment zone. Arkon Resources, Inc. assumes no responsibility of liability for injury or death as a result of car crashes and / or air bag deployment.

Arkon is not responsible for any damages caused to your car, your device, or yourself due to the installation or use of this pedestal mount.

ARKON

RESOURCES INC.

The Mobile Mounting Specialists™

Consumer Hotline:

USA [phone]

INT'L [phone]

Monday-Friday 9 am-5 pm, PST

www.arkon.com

Arcadia, CA 91006 USA

Designed in USA | Made in China

© Copyright 2010 Arkon Resources, Inc.

CM012-2 Friction Dashboard Mount with Travelmount™ Mini Suction Pedestal

Dashboard Mount Installation - Continued

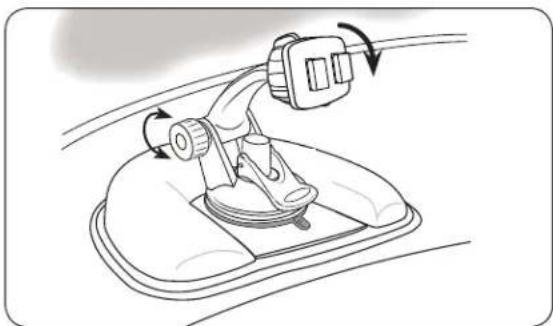

Step 5. Adjust the angle of the pedestal arm by tightening the rotation knob.

Diagram of a car seatbelt mechanism with rotating arm and adjustment knob (no text or symbols)

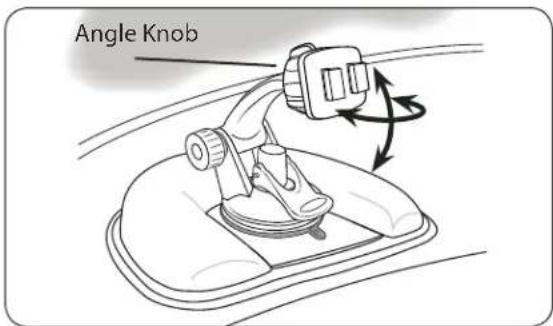

Step 6. Adjust the angle of the pedestal head by tightening the head adjustment knob.
