BEDIENUNGSANLEITUNG RM24200-L2 Chenbro Micom
RM24200 QUICK INSTALLATION GUIDE

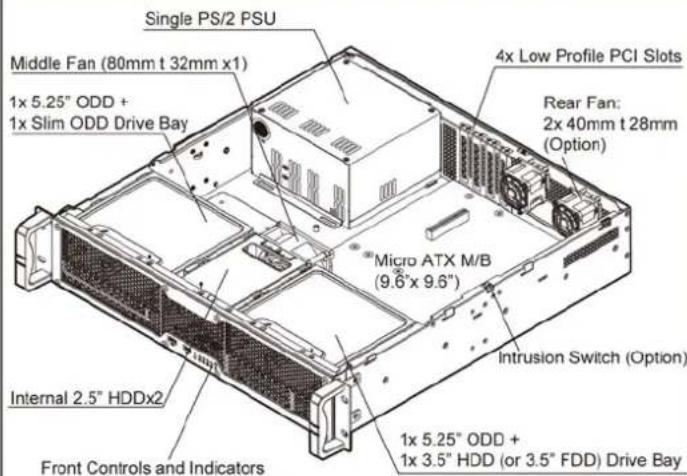

Major Components


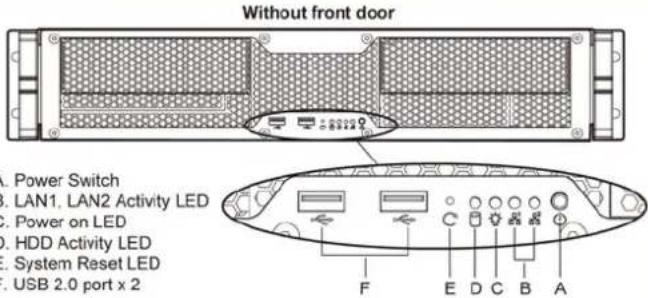

Without front door A. Power Switch B. LAN1, LAN2 Activity LED C. Power on LED D. HDD Activity LED E. System Reset LED F. USB 2.0 port x 2 E D C B A


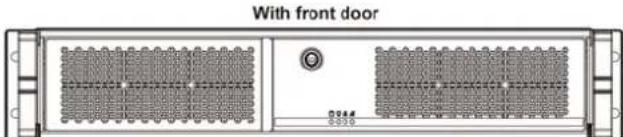

With front door 0044 2220Maintaining Front Door Filter
- Insert two filters on both left and right sides of the front door with four anchoring points

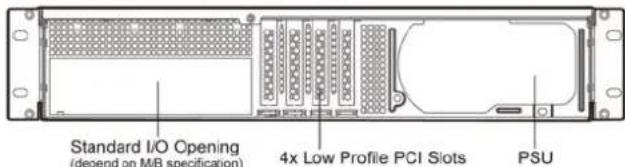

Rear Window Configuration


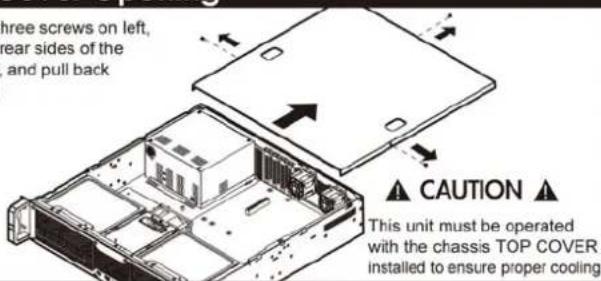

Release three screws on left, right and rear sides of the top cover, and pull back to open it
Top Cover Opening


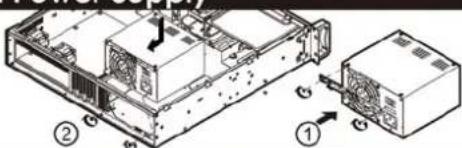

three screws on left, ear sides of the and pull back CAUTION This unit must be operated with the chassis TOP COVER installed to ensure proper coolingInstalling PS/2 Power Supply
1. Use two screws to fix a bracket at the back side of the PSU
2. Use two screws to fix the PSU assembly on the chassis


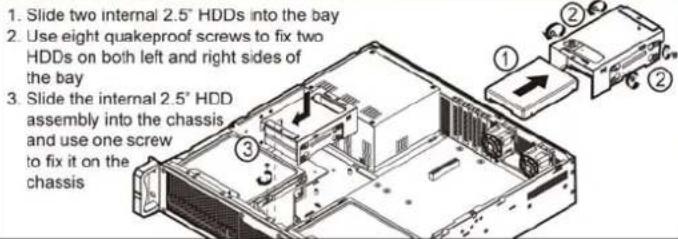

Technical diagram showing internal components of a computer drive with labeled parts and directional arrows indicating flow or movement.Installing Internal 2.5" HDD


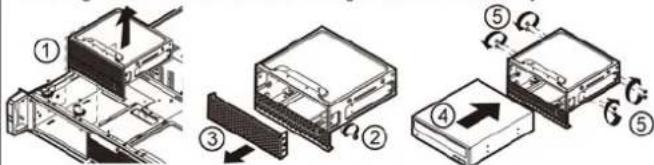

Installing 5.25" ODD
- Release two screws on top of the drive bay to take it out from the chassis
- Release one screw at the right side of the drive bay
- Take out the upper front cover
- Slide the 5.25" ODD into the drive bay assembly
- Use eight screws to fix on both left and right sides of the drive bay
Slide 3.5" HDD into drive bay, and use four quakeproof screws to fix it at the bottom of the drive bay

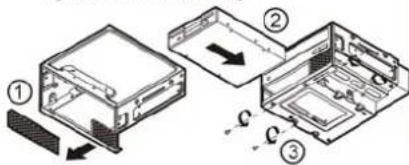

Installing FDD
- Remove the lower front cover of the drive bay
- Slide FDD into drive bay
- Use four screws to fix it on both left and right sides of the drive bay
- Slide the 5.25"/3.5" drive bay into the chassis
- Use two screws to fix it on the chassis
Installing 5.25" ODD/Slim ODD Drive Bay
Installing 5.25" ODD
- Release two screws on top of the drive bay to take it out from the chassis
- Release one screw at the right side of the drive bay
- Take out the upper front cover
- Slide the 5.25" ODD into the drive bay assembly
- Use eight screws to fix on both left and right sides of the drive bay
- Remove the slim ODD front cover
- Slide the slim ODD into the bay and use four screws to fix it
1. Slide the 5.25"ODD/slim ODD drive bay into the chassis
2. Use two screws to fix it with the chassis
Installing Middle Fan
Use a screw to fix the fan assembly (fan + finger guard+ fan bracket) on the rear side of internal 2.5" HDD on the chassis

Installing Rear Fan
Use a screw to fix the fan assembly (fan + finger guard+ fan bracket) on the rear window

Installing Intrusion Switch

Use two screws to fix the intrusion switch with a bracket on the chassis
