| Produkttyp | Analoge Quarzuhr (Datum bei Cal. 3910) |
| Marke | Citizen |
| Modell | Cal. 3910 / 3920 |
| Abmessungen (Gehäuse) | 18,0 mm × 18,0 mm × 22,0 mm ⌀ |
| Dicke | Cal. 3910: 1,70 mm (mit Batterie); Cal. 3920: 1,40 mm |
| Stromversorgung | Silberoxid-Batterie SR712SW, 1,55 V, 10 mAh |
| Batterielebensdauer | Ca. 2 Jahre |
| Genauigkeit | ±15 Sekunden pro Monat (bei normaler Temperatur) |
| Oszillatorfrequenz | 32.768 Hz |
| Schaltkreis | C/MOS-LSI (1 Einheit) |
| Betriebstemperaturbereich | −10 °C bis +60 °C (14 °F bis 140 °F) |
| Funktionen | Stunden- und Minutenzeiger, Datum (nur Cal. 3910 mit Schnellkorrektur), Stromsparschalter |
| Zeiteinstellung | Krone in zweite Position ziehen, dann drehen |
| Datumeinstellung | Krone in erste Position, dann drehen (Schnellkorrektur) |
| Stromsparschalter | Krone in zweite Position ziehen (Zeiger stoppen), Strom gespart |
| Wartung | Batteriewechsel alle 2 Jahre, durch Fachwerkstatt |
| Reinigung | Mit weichem, trockenem Tuch abwischen; kein Wasser oder Chemikalien |
| Sicherheit | Batterie nicht kurzschließen oder verschlucken; Zeiger nicht gewaltsam drehen |
| Ersatzteile/Reparatur | Nur durch autorisierten Citizen-Händler; Batterie (SR712SW) erhältlich |
Häufig gestellte Fragen - Cal 3910 CITIZEN
Benutzerfragen zu Cal 3910 CITIZEN
0 Frage zu diesem Gerät. Beantworten Sie die, die Sie kennen, oder stellen Sie Ihre eigene.
Eine neue Frage zu diesem Gerät stellen
Laden Sie die Anleitung für Ihr Uhr kostenlos im PDF-Format! Finden Sie Ihr Handbuch Cal 3910 - CITIZEN und nehmen Sie Ihr elektronisches Gerät wieder in die Hand. Auf dieser Seite sind alle Dokumente veröffentlicht, die für die Verwendung Ihres Geräts notwendig sind. Cal 3910 von der Marke CITIZEN.
BEDIENUNGSANLEITUNG Cal 3910 CITIZEN
TECHNICAL INFORMATION
CITIZEN QUARTZ
Cal. No. 39※※
Cal Nos. 3910E-06 and 3920E-07, slim-type analog watches for men, were developed with the objective of expanding the high-grade product range.
■2. FEATURES
1) These compact and slim men's electronic wrist watches employ a quartz crystal oscillator. (Cal. 3910 incorporates the world's thinnest movement with a date display function.)
Movement size,
[Cal. 3910] 18.0 mm x 18.0 mm x 22.0 mmφ Thickness 1.70 mm (measured when the power cell section is included.) [Cal. 3920] 18.0 mm x 18.0 mm x 22.0 mmφ Thickness 1.4 mm (measured when the power cell section is included.)
2) Watch design rich in variation
These watch designs are easily varied because of the thin, compactness of their movement parts.
3) Two year power cell life guaranteed
The power cells mounted in these watches are very small silver cells. The service life of these cells lasts as long as 2 years because each watch is incorporated with an IC with low current consumption.
■3. SPECIFICATIONS
| Caliber No. | 3910E-06 | 3920E-07 | ||
| Type | Analog quartz watch (without a center second hand) | ← | ||
| Module size (mm) |  | Thickness (t): 1.7 mm (measured when the power cell section is in- cluded) | Thickness: 1.4 mm (measured when the power cell section is included) | |
| Accuracy | ±15 sec./month at normal temp. | ← | ||
| Oscillation | 32,768Hz | ← | ||
| Integrated circuit | C/MOS-LSI (1 unit) | ← | ||
| Effective temp. range | -10°C ~ +60°C: (14°F ~ 140°F) | ← | ||
| Converter | Bipolar step motor | ← | ||
| Adjustment of time rate | DFC (without adjustment terminals) | ← | ||
| Measurement of time rate | 10 seconds | ← | ||
| Additional functions | Date (with quick setting device) | Yes (O) | No (X) | |
| Day (with quick setting device) | No (X) | ← | ||
| Days of the week bilingual display selection | No (X) | ← | ||
| Second hand stopping device | No (X)*1 | ← | ||
| Power saving switch | Yes (O) | ← | ||
| Power cell life indicator | No (X) | ← | ||
| Power cell | Hand movement | 10-second stepping movement | ← | |
| Part No. | 280-66 | ← | ||
| Cell code | SR712SW (Ag2O/NaOH) | ← | ||
| Size (mm) | 7.9φ x 1.3t | ← | ||
| Voltage | 1.55V | ← | ||
| Capacity | 10mAh | ← | ||
| Life time | Approx. 2 years | ← | ||
| Current consumption | Under 0.5μA | ← | ||
| Coil resistance | 1.6kΩ ~ 2.1kΩ | ← | ||
| Remarks | *1. The hand-stopping device is used for the hour and minute hands, not for the second hand. | ← | ||
■4. HANDLING INSTRUCTIONS
[Regarding Cal. 3910]

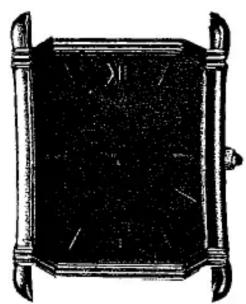

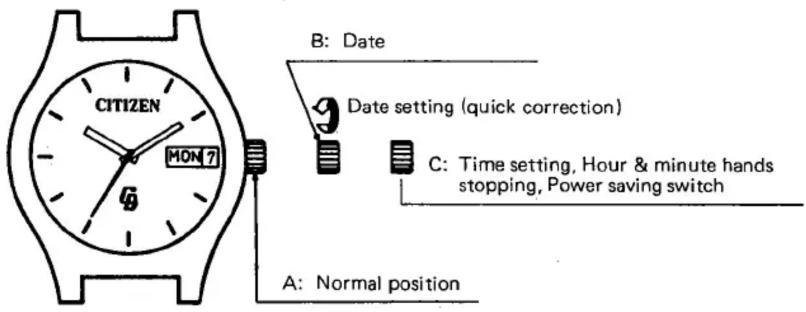

Pull the crown out to the second clicking position (a state in which power is saved) and set the time in the same manner as in the normal analog model with the date display function.
Push the crown back to the first clicking position to set the date. Be sure to push the crown back to its normal position after setting the time and date.
(Note)
The date display is designed to change at approx. 3:00 A.M.
Do not carry out quick correction of dates between 9:00 PM and 3:00 AM.
Quick correction should not be done during this period. If it is carried out during this period, the date display may not change the following day.
[Regarding Cal. 3920]
Pull the crown out to the first clicking position (a state in which power is saved) and set the time in the same manner as in the normal analog model. Push the crown back into its normal position after setting the time, and start the watch.
Cal. 3920 has not been provided with a date display function.
■5. CONSTRUCTION OF MOVEMENT

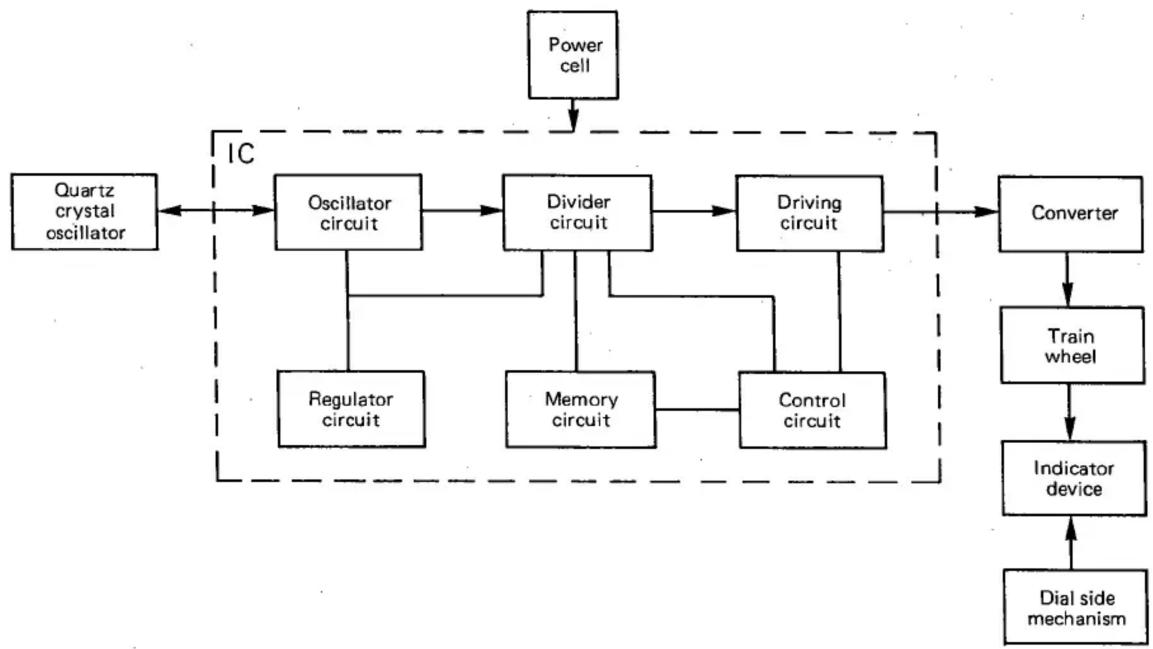

- The regulator circuit changes variable outside voltage into constant voltage by applying it to the oscillator circuit and subsequent circuits.
Marke : CITIZEN
Modell : Cal 3910
Kategorie : Uhr
