Produkttyp	Analog-Quarzuhr mit drei Hauptzeigern und drei Hilfszifferblättern
Marke	Citizen
Modell	Cal. 4330
Kalibernummer	4330A-01
Modulgröße	23,7 × 22,6 × 3,7 mm
Genauigkeit	±20 Sekunden pro Monat
Oszillatorfrequenz	32.768 Hz
Temperaturbereich	-10 °C bis +60 °C
Stromversorgung	Knopfzelle SR626SW (1,55 V, 26 mAh), Lebensdauer ca. 2 Jahre
Datumsanzeige	Ja, über kleinen Zeiger
Wochentagsanzeige	Ja, über kleinen Zeiger
Dualzeit	Ja, über kleinen Zeiger (24-Stunden-Format)
Sonne-Mond-Anzeige	Ja, bei 6 Uhr
Sekundenstoppvorrichtung	Ja (auch als Energiesparschalter nutzbar)
Energiesparschalter	Ja (durch Kronenposition)

Häufig gestellte Fragen - Cal 4330 CITIZEN

Wie stelle ich die Uhrzeit bei der Citizen Cal. 4330 ein?

Ziehen Sie die Krone auf die zweite Position. Der Sekundenzeiger stoppt, wenn er auf 12 Uhr steht. Drehen Sie die Krone, um die Zeiger einzustellen. Für die Minute drehen Sie den Zeiger 4-5 Minuten über die gewünschte Zeit hinaus und dann zurück. Drücken Sie die Krone gleichzeitig mit einem Zeitsignal zurück.

Wie stelle ich das Datum ein?

Drücken Sie den Datumsstellknopf (nicht zwischen 21:00 und 2:00 Uhr). Der Datumszeiger bewegt sich gegen den Uhrzeigersinn um einen Tag.

Wie stelle ich den Wochentag ein?

Ziehen Sie die Krone auf die zweite Position. Drehen Sie die Krone, um den Wochentagszeiger einzustellen. Der Wochentag ist mit der Uhrzeit gekoppelt.

Wie stelle ich die Dualzeit ein?

Ziehen Sie die Krone auf die erste Position. Drehen Sie sie im oder gegen den Uhrzeigersinn. Die Dualzeit wird auf dem 24-Stunden-Hilfszifferblatt angezeigt.

Wie lese ich die Sonne-Mond-Anzeige?

Die Sonne-Mond-Anzeige zeigt den Tagesverlauf an. Die Sonne symbolisiert den Tag, der Mond die Nacht.

Wie wechsle ich die Batterie?

Die Batterie (Typ SR626SW) sollte alle 2 Jahre von einem Fachhändler gewechselt werden.

Was bedeutet der Energiesparschalter?

Wenn die Krone auf die zweite Position gezogen wird, stoppt der Sekundenzeiger und die Uhr geht in den Energiesparmodus. Dies schont die Batterie.

Wie genau ist die Uhr?

Die Genauigkeit beträgt ±20 Sekunden pro Monat bei normalen Temperaturen (zwischen -10°C und +60°C).

Kann ich die Uhr beim Schwimmen tragen?

Die Wasserbeständigkeit ist in der Anleitung nicht angegeben. Es wird empfohlen, die Uhr nicht mit Wasser in Kontakt zu bringen, es sei denn, sie ist explizit als wasserdicht gekennzeichnet.

Wo finde ich die vollständige Bedienungsanleitung?

Die vollständige Bedienungsanleitung kann kostenlos als PDF von der Website notice-facile.com heruntergeladen werden.

BEDIENUNGSANLEITUNG Cal 4330 CITIZEN

TECHNICAL INFORMATION

CITIZEN QUARTZ

Cal. No. 43

(Excepto No. de Cal. 438/439**)

Top-down view of a circular mechanical component with two side brackets (no visible text or symbols)

(Cal. No. 4300※)

Close-up of a wristwatch with three dials and analog face (no visible text or symbols)

(Cal. No. 4310※)

Illustration of a wristwatch with analog dials and frame (no visible text or symbols)

(Cal. No. 4330※)

§1. OUTLINE

- Cal. No. 4300※

This is an analog multi-hand quartz watch with three analog hands (hour, minute, second) and three small hands indicating date, day and dual time.

- Cal. No. 4310※

This is an analog multi-hand quartz watch with three analog hands (hour, minute, second) and three small hands indicating date, day and time of the 24-hour system. This watch also indicates the age of the moon.

- Cal. No. 4330※

This analog multi-hand quartz watch has the Sun & Moon dial in the direction of six o'clock, as well as the functions of Cal. No. 4300※.

§2. SPECIFICATIONS

Caliber No.		4300A-01	4310A-01	4330A-01
Type		Analog quartz watch with a sweep second plus 3 small hands
Module size (mm)		23.7 × 22.6 × 3.7 t
Accuracy		±20 sec/month (at normal temperature)
Oscillation		32,768 Hz
Integrated circuit		C/MOS-LSI (1 unit)
Effective temperature range		-10°C ~ +60°C (14°F ~ 140°F)
Converter		Bipolar step motor
Adjustment of time rate		Digital frequency control (in factory only)
Measurement of time rate		10 seconds
Additional functions	Date display (with quick setting device)	Installed (Small hand)	←→	←→
	Day display	Installed (Small hand)	←→	←→
	Dual time display	Installed (Small hand)	Not installed	Installed (Small hand)
	24-hour system display	Not installed	Installed (Small hand)	Not installed
	Indication of age of the moon (with quick setting device)	Not installed	Age of the moon dial rotating one turn every 59 days	Not installed
	Indication with picture dial	Not installed	←→	Installed (Sun & moon)
	Second and stopping device	Installed
	Power saving switch	Installed
Power cell		Part No.: 280-39 Size (mm): 6.8 × 2.6 t Capacity: 26 mAHCell No.: SR626SW Voltage: 1.55 V Lifetime: Approx. 2 years

§3. HANDLING INSTRUCTION

3-1. Name of each part

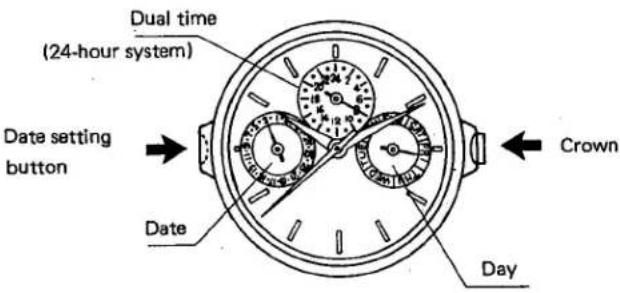

Cal. 4300X

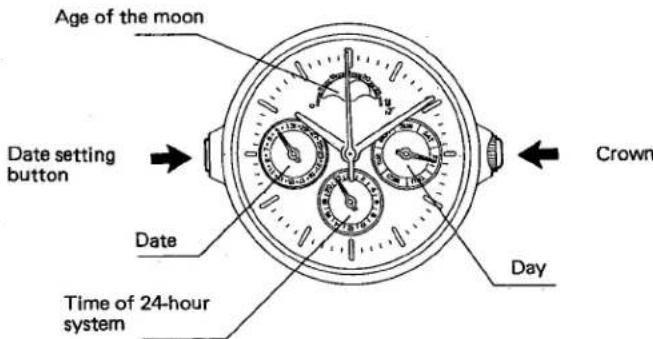

Cal. 4310X

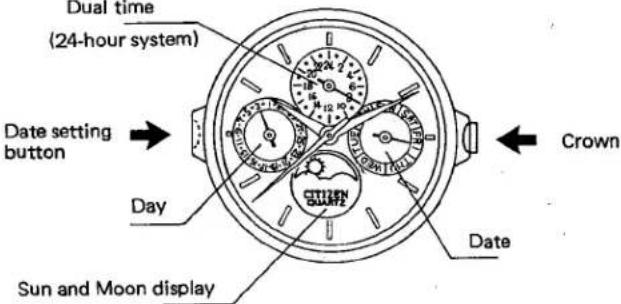

Cal. 4330X

3-2. How to see each indication

	Day	Date	Time on the 24-hour system	Dual time	Age of the moon
Normal
Setting

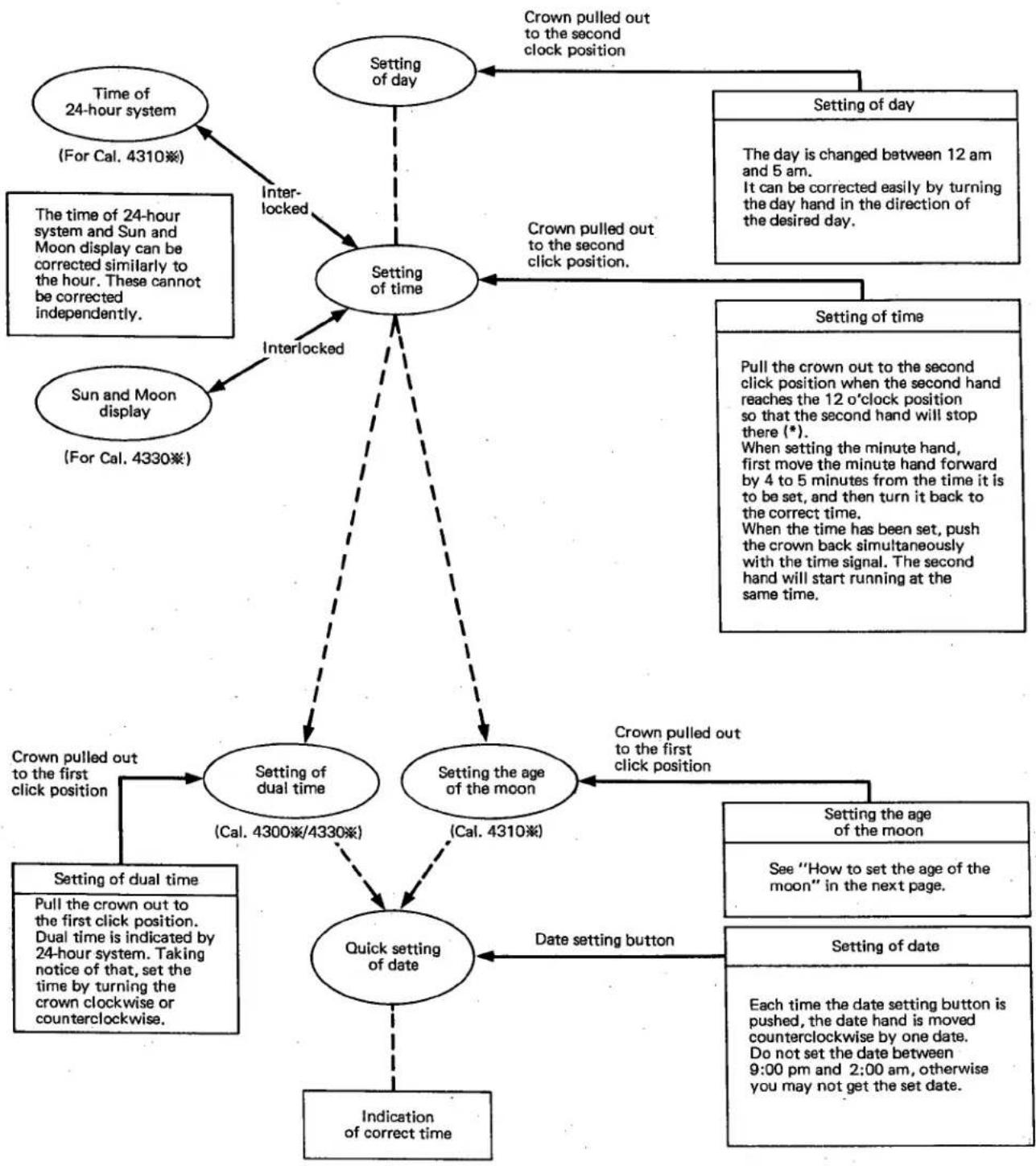

3-3. Setting each indication

* This function is called the second hand stopping device used as the power saving switch, too.
* After each indication is set, push the crown in to the normal position.

- How to set and read age of the moon (Cal. 4310※)

* This function indicates the age of the moon, but does not display the shape of the moon.
* Use the moon dial only as a guide to the age and phase of the moon when reading and setting the watch.

1) Setting the age of the moon

- In case the watch is equipped with the age of the moon scale

(1) Confirming today's or tomorrow's age of the moon Check today's or tomorrow's age of the moon with a newspaper. If tomorrow's age of the moon is found, subtract one day from it.

(2) Setting the age of the moon (Example: age of the moon: 4.4)

Pull the crown to the first click position and rotate the moon mark clockwise until the center of the moon comes to around the position of 4.4 of the age of the moon scale.

- In case the watch is not equipped with the age of the moon scale

In this case, when the age of the moon shown in a newspaper, is 0, 7, 15 or 22, set the moon mark to the corresponding position of the age of the moon as shown in 2) "How to read the age of the moon" below.

The age of the moon can be set more accurately if it is set when it is 0 (New moon) or 15 (Full moon).

2) How to read age of the moon (Example of indication)

1	New moonAge of the moon: 0(Spring tide)	3	First quarter moonAge of the moon: Approx. 7(Neap tide)
5	Full moonAge of the moon: Approx. 15(Spring tide)	7	Last quarter moonAge of the moon: Approx. 22(Neap tide)

* The level of the tide can be seen from the indicated age of the moon.
- The age of the moon can be set more accurately if it is set when it is the New moon (the moon mark cannot be see at all — Age of the moon: 0) or the Full moon (the moon mark is at the top (position of 12 o'clock) — Age of the moon: 15).

3) What is the age of the moon

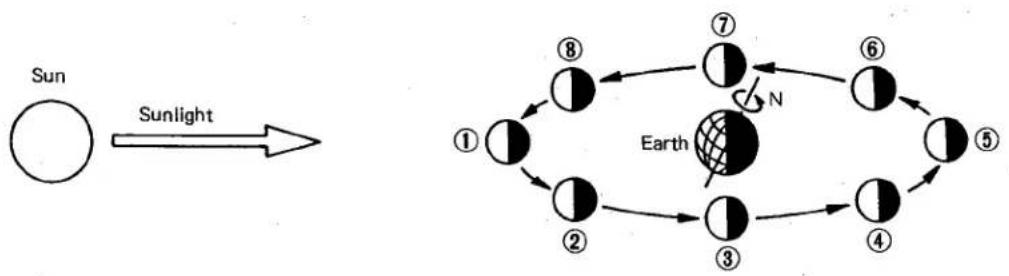

● Waxing and waning of the moon

The waxing and waning of the moon are caused by the change of the positions of the sun and moon viewed from the earth.
    note right of B "Earth"

When the moon is at position (1) shown above (the sun and moon are in the same direction), the moon viewed from the earth is illuminated from its back. The moon is called the new moon at this time.

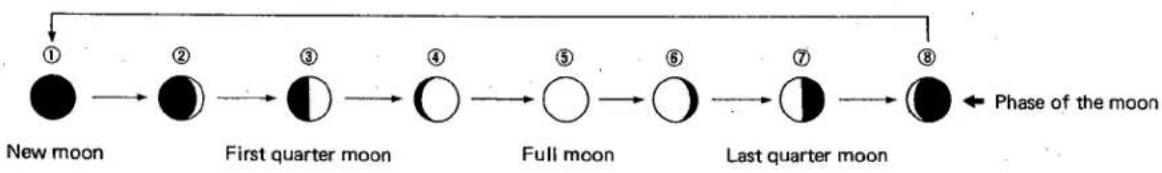

The moon can be seen at various positions as shown below.

The moon waxes and wanes repeatedly in order of (1) - (8) - (1).

- The age of the moon

The age of the moon is indicated in units of days. The average period from a new moon to the next new moon is equivalent to about 29.5 days.
