BEDIENUNGSANLEITUNG Sporty Trailer IPS-055 InnoPet

Assembly Manual:

Illustration of a vintage camera with circular components and a red 'START' speech bubble (no readable text or symbols)

1 Content: 1 Trailer frame/ bag, 1 front wheel, 2 rear wheels, 1 flag, 1 towing arm (including 2 clevis pins), 1 rain cover.

Close-up of a hand holding a bicycle wheel component (no visible text or symbols)

2 Push rear wheel to the bottom of axle till the spring clip clicks. Check both wheels are securely locked by pulling.

Close-up of hands adjusting a bicycle wheel (no visible text or symbols)

3 Insert the front wheel axle into the slot till hearing the spring clip click. Check the front wheel is securely locked by pulling. (Skip this step if you are going to use it as a bicycle trailer)

Person using a small electric vacuum cleaner with visible fan and wheels (no text or symbols)

4 Unfold the trailer by pulling backwards the trailer frame as shown in the photo.

Close-up of a person's hand holding a small object, partially obscured by red dashed circles (no visible text or symbols)

5 Press both sides' supporting arm till the end and make sure each side of the supporting arm is properly locked.

Three-panel photo showing a hand holding a tool interacting with dark, irregular objects in a glass bowl (no visible text or symbols)

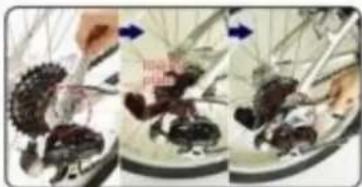

a. Securely install the towing arm on the rear wheel axle as the picture shown.

clords pin clords safety wire

b. Insert the towing arm through both clevis. Secure towing arm by inserting the clevis pin through clevis and towing arm. Property secure clevis pin by setting the safety wire over the tip of clevis pin.

Close-up of a bicycle wheel with a hand adjusting the wheel rim (no visible text or symbols)

c. Insert the bar into the slot of connecting plate. Secure the bar by inserting bolt and set the bolt ring over the end of bar.

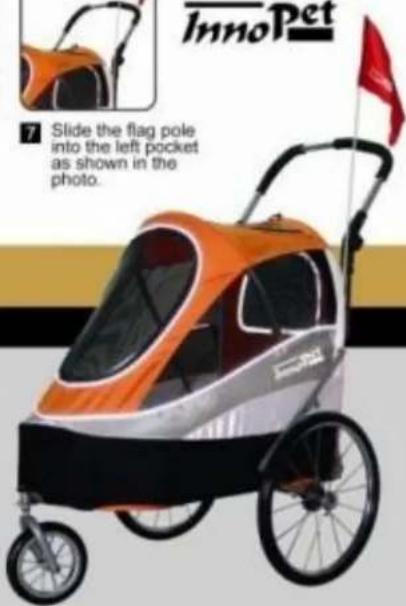

7 Slide the flag pole into the left pocket as shown in the photo.

Sporty Dog Trailer

Folding steps:

1 Release the lock.

Two-step illustration showing hands using a bicycle wheel to adjust the wheel rim, with red arrows indicating direction (no text or symbols)

2 Press down the spring clip to remove each wheel.

Close-up of a car's front wheel and side wheel (no visible text or symbols)

3 During the stroller state, secure towing bar inside stroller by Velcro straps as shown in the photo. Remember to take out the towing bar before flatten stroller.

Rain cover:

1 place the hook around the front wheel axle to secure rain cover.

InnoPet 7 Slide the flag pole into the left pocket as shown in the photo.
