BEDIENUNGSANLEITUNG Comfort EFA IPS-075 InnoPet
Assembly Manual:
4 1) Release the screw cap of the front wheel (without removing screws).
2) Place the front wheel on the front fork.
3) Position the front wheel which placed on the front fork to aim at the hole of both sides then lock the screw cap.
4) Pull the fixed handle forward tight then installment completely.
6 Lift up the handle until both side of the joins click.
8 Secure the frame by capping the hooks on the frame bolts on both sides of the stroller.
9 1) Push the black switch button which placed at the bottom of front wheel to the right, the front wheel can be rotated 360 degrees.
2) Push the black switch button which placed at the bottom of front wheel to the left, then the front wheel fixed.


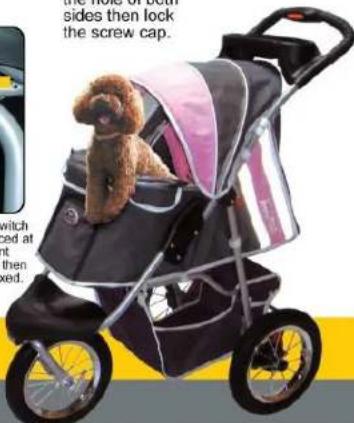

Illustration of a small dog in a black stroller with pink canopy, no text or symbols visibleComfort Stroller
Folding steps:
2 Press the red button.
Hold the button and twist it downwards.
InnoPet

