BEDIENUNGSANLEITUNG Lomond 500 Vango
TENT PITCHING INSTRUCTIONS – LOMOND
FLYSHEET FIRST PITCHING
- Assemble poles and lay them on the ground
- Open out flysheet and position in required direction
- Locate pole sleeves on the flysheet and insert poles. The poles are colour coded to the pole sleeves.
- Locate one end of each pole at one side of the tent into the metal pin system attached to the groundsheet
- Make sure poles locate into correct pin system, all poles follow corresponding flysheet seams to pin system
- Push poles into an arch from opposite ends and locate pole ends into corresponding metal pin
- Tighten all the tensions straps at the base of the poles.
- Securely peg out the rear corners of the tent
- Ensure the tent is in a straight line
- Peg out the remaining poles and pegging points using pin pegs at the base of poles
- Attach all flysheet pole clips onto poles
- Peg out ALL guy lines using pin-pegs ensuring that guy line fabric attachment points are evenly tensioned.
PRE-ATTACHED FRONT EXTENSION
- To erect the pre-attached canopy, insert the pole into the sleeve, connect to Ring and Pin system, tighten the tension straps and attach pole clips to pole.
- Pull canopy away from tent until roof of canopy is taut
- Peg out ALL guy lines using pin-pegs ensuring that guy line fabric attachment points are evenly tensioned.
INNER ATTACHMENT
- Suspend the inner by attaching toggles of inner tent through rings on inside of flysheet
• Do the rear first and work forward - It is advisable to remove the inner when taking down the tent when wet.
TENSION BAND SYSTEM:
- Remove Tension Band System from pockets and attach into the corresponding clips at the apex of the pole
- Adjust the straps until they are taut
• DO NOT OVERTENSION. Excess tension will alter the shape of the tent - Tension bands are designed to stabilise the tunnel structure of the tent
- The bands are not required to be used in calm weather
RING & PIN SYSTEM
- Locate one end of pole onto the corresponding metal pin (figure 1)
- Peg the corners of the tent through the metal rings using pin-pegs (figure 2)
- Pegs should be positioned at a 45 degree angle to ensure maximum grip


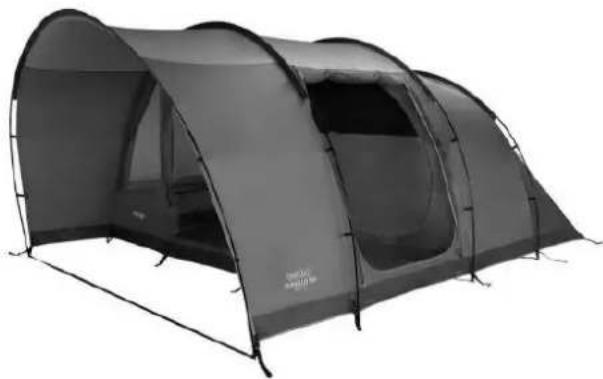

Exterior view of a modern camping tent with arched roof and open windows (no signage or text visible)
Figure 1.
Figure 2.
