Produkttyp	Videorekorder (VHS)
Modellvarianten	29D250, 29D254, 29D450, 29D454
Abmessungen (B x H x T)	360 mm x 92 mm x 226 mm
Gewicht	ca. 2,4 kg
Stromversorgung	220–240 V ~ 50 Hz, 25 W
Videokopf-System	29D250/254: rotierender Zweikopf-Schrägspur-System; 29D450/454: rotierender Vierkopf-Doppelazimut-System
Bandgeschwindigkeiten	SP (Standard Play): 23,39 mm/s; LP (Long Play): 11,70 mm/s
Maximale Aufnahmezeit (E-240)	SP: 4 Stunden; LP: 8 Stunden
Automatische Funktionen	Auto-Head-Reinigung, Auto-Play, Auto-Return, Digital-Tracking, Auto-Uhreinstellung (29D254/454)
Timer-Aufnahme	8 Programme, Tages-/Wochen-/Einmalaufnahme, VPS/PDC (29D254/454)
Schnellsuchfunktionen	Quick-Find, Index-Suche, Zeit-Suche (nur 29D450/454)
Spezielle Wiedergabe	Standbild, Zeitlupe (29D450/454), NTSC-Wiedergabe
Kindersicherung	Parents Lock (Tasten sperren)
Bildqualitätsauswahl	Normal, Weich, Scharf
Anschlüsse	2x Scart (AV1/TV, AV2/Decoder), Antenneneingang, HF-Ausgang
Fernbedienung	Infrarot-Fernbedienung mit 2 R6-Batterien
Reinigung	Gehäuse mit weichem, feuchtem Tuch; keine Benutzerwartung im Inneren
Sicherheitshinweise	Nicht öffnen, vor Feuchtigkeit schützen, ausreichende Belüftung sicherstellen
Reparatur	Nur durch qualifiziertes Personal; keine vom Benutzer wartbaren Teile
Lieferumfang	Fernbedienung, 2 Batterien, HF-Kabel

Häufig gestellte Fragen - 29D250 FUNAI

Wie stelle ich die Uhrzeit am Funai 29D250 ein?

Wie kann ich eine Timer-Aufnahme programmieren?

Was bedeuten die verschiedenen Bandgeschwindigkeiten SP und LP?

Kann ich NTSC-Kassetten auf dem Gerät abspielen?

Wie aktiviere ich die Kindersicherung (Parents Lock)?

Warum erscheint kein Bild bei der Wiedergabe, aber Ton ist vorhanden?

Wie verbinde ich den Rekorder mit dem Fernseher?

Wie kann ich unerwünschte Programme überspringen?

Wie kopiere ich ein Videoband von einem anderen Rekorder?

Was tun, wenn der Rekorder keine Timer-Aufnahme durchführt?

BEDIENUNGSANLEITUNG 29D250 FUNAI

VIDEO CASSETTE RECORDER VHS

29D-250 29D-254 (VPS/PDC)

29D-450 29D-454 (VPS/PDC)

Owner's Manual

Table of Contents

Safety Information	2
Before Using This Product	2
Installation	5
Basic Operation	9
Advanced Operations	10
Maintenance	14
Troubleshooting Guide	15
Specifications	15
Declaration of Conformity	16

Features

• Automatic Operations
- On Screen Display
• Auto Repeat Playback
• Picture Select
• One Touch Recording • Passive Lock
• Parents Lock • Auto Return
• Auto Return • Timer Recording

Supplied Accessories

• Remote control
• Two R6 batteries
• RF cable

Important Copyright Information

Unauthorised recording or use of broadcast television programming, video tape, film or other copyrighted material may violate applicable copyright laws. We do not take responsibility for the unauthorised duplication, use, or other acts which infringe upon the rights of copyright owners.

A Note About Recycling

This product's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

• Auto Head Cleaner

• NTSC Playback
• Auto Clock Setting (29D-254/29D-454)
• VPS/PDC (29D-254/29D-454)
• Quick-Find (29D-450/29D-454)
• Index/Time Search (29D-450/29D-454)

- System Change Features: CMESECAM/PACS

This product consists of materials which can be recycled and reused if disassembled by a specialised company.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical

wastes.

Model/Serial Number

This appliance has a serial number located on the rear panel. Please note down the model number and serial number and retain the information for your records.

Model number:

Serial number:

1VMN20847

HK243ED***

EN

Safety Information

WARNING:

• Live parts inside. Do not remove any screws.
- To avoid fire or electric shock, do not expose
this unit to rain or moisture.

- Dangerous voltage inside

Precautions

• Use only cassettes with the VHS mark with this VCR.
- Do not attempt to open the cabinet. There are no parts you can service inside. Refer all servicing to qualified service personnel.
- Slots and openings in the cabinet and the sides or bottom are provided for ventilation. To ensure reliable operation and to protect the unit from overheating, these openings must not be blocked or covered.
- Avoid installation in enclosed spaces such as bookcases
unless proper ventilation is provided.
- Keep the unit away from radiators and other heat sources. - Avoid use near strong magnetic fields.
- Do not push objects of any kind into the VCR through the cabinet slots or openings as they could touch electrically live parts or short circuit parts resulting in a fire or electric shock.
- Never spill liquid on this unit. If liquid is spilled and penetrates into the unit, consult qualified service personnel.

Before Using This Product

Video Cassette Tape

This VCR will operate with any cassette that bears the VHS mark. For best results, we recommend the use of high-quality tapes. Do not use poor quality or damaged tapes.

You can prevent accidental erasing of a recording by breaking off the erase-prevention tab on the back edge of the cassette. If you decide to record on the tape again, cover the hole with plastic tape.

Two Different Tape Speeds

Before recording, select the tape speed: SP mode (Standard Play) or LP mode (Long Play). The table below shows the maximum recording/playback time using E-60, E-120, E-180 or E-240 tapes in each mode.

Tape Type	Recording/Playback Time
Tape Speed	SP Mode	LP Mode
E-60	1 hour	2 hours
E-120	2 hours	4 hours
E-180	3 hours	6 hours
E-240	4 hours	8 hours

• Use this unit in a horizontal (flat) position only.
• Before attempting to operate the unit, make sure that the timer recording mode is "OFF".
• This product is in Stand-by mode when it turns off while the power cord is connected.

Power Supply

The main power supply is engaged when the power cord plug is plugged in a 220-240V, 50Hz, AC outlets. To operate the unit, press FUNCTION to turn on the unit. (FUNCTION indicator on the VCR comes on.)

Dew Warning

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, after heating up a cold room, or under conditions of high humidity. Do not use the VCR for at least 2 hours until it is dry inside.

Positioning

Do not place the VCR directly on top of, or underneath, your TV set. Ensure that there is at least 20 cm between the VCR and the TV set, and that air can circulate freely through the ventilation openings of the VCR.

TV Colour System

Different countries use different television colour systems. Tapes recorded in the PAL, MESECAM or NTSC system can be played back on this unit. Usually, the picture on the TV screen will be in black and white when you play back a tape that is recorded in a different colour system.

Tapes recorded in the NTSC system can be played back on this unit and a PAL system TV set. This feature is only available in the SP mode. When playing such tapes, the picture may roll up or down, shrink vertically and black bars may appear both at the top and bottom of the screen. Adjust the vertical hold control on your TV, if the TV features this control.

Description of Controls

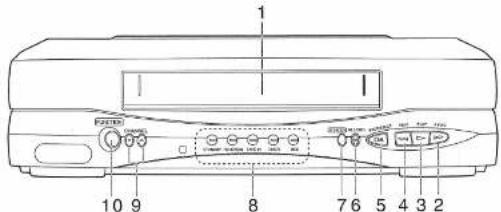

Front Panel

1 2 3 4 5 6 7 8 9 10

1. Cassette compartment

2. EFWD (Fast Forward) button

3. PLAY button

4. REW (Rewind) button

5. STOP/EJECT button

6. REC/OTR button

7. AUTO RETURN button

B. Indicators (See below).

9 CHANNEL (▲/▼) buttons

1. FUNCTION burson

Indicator

1. STANDBY indicator

2. FUNCTION indicator

3. TAPE IN indicator

4. TIMER indicator

5. REC indicator

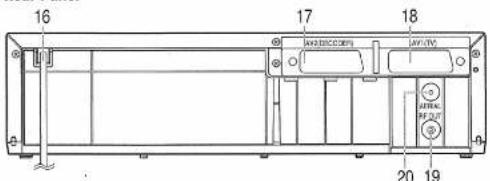

Rear Panel

16 17 18 20 19 INSTRUCEDUCT INSTRUCEDUCT OFF-IN OFF-IN OFF-IN OFF-IN

1. Power cord

2. AV2 (DECODER) socket

3. AV1 (TV) socket

4. RF OUT socket

5. AERIAL socket

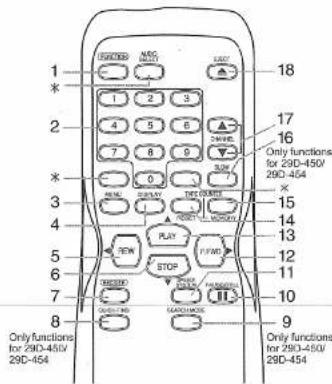

Remote Control

1 * 2 * 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 Only functions for 29D-450/ 29D-454 Only functions for 29D-450/ 29D-454

* These buttons do not function for this VCR.

1. FUNCTION button

2. number buttons

3. MENU button

4. DISPLAY button

5. REW/◄ button

6. STOP/▼ button

7 REC'OTR burton

1. QUICK FINDI

(Only functions for 79D-450/29D-454)

1. SEARCH MODE button

(Only functions for 20D, 450/70D, 450)

1. PALISESTILL

2. PACS/STYLE GmbH

3. SPEED/SYSTEM TUNION

4. E.FWD button

5. PLAY/▲ button

6. TAPE COUNTER RESET button

7. TAPE COUNTER MEMORY button

8. SLOW button

(Only functions for 29D-450/29D-454)

1. CHANNEL (▲/▼) buttons

2. EFFECT button

To insert the batteries:

Install two R6 batteries matching the polarity indicated inside the battery compartment.

Caution

Do not mix old and new batteries. (Also never mix alkaline batteries with manganese batteries.)

Installation

Connecting the VCR

VCR to TV Connection

1) Disconnect the TV's power cord from the AC outlet.
2) Disconnect the VHF/UHF TV aerial coaxial cable from the TV.
3) Connect the VHF/UHF TV aerial coaxial cable to the VCR.
4) Connect the VCR to the TV using the RF cable.
5) Plug the power cords of the VCR and TV into the AC outlets.

Other Connections

Euro Scart (AV) Sockets

Your VCR is provided with two Scart sockets which you may connect to other external devices with Scart sockets. We recommend this connection to ensure a better audio and picture quality.

Euro Scart cables are obtainable at your dealer.

AV1 (TV) Connection to TV

If your TV has Scart sockets, you may connect your VCR's AV1 (TV) scart socket to the Scart socket on the back of your TV. Please see the instruction manual for your TV.

AV2 (DECODER) Connection for Other External Devices

The second Scart socket AV2 (DECODER) is designated for other external devices, e.g. decoder, another VCR, video camera and so on.

Note: If you want to connect a TV with Scart socket to your VCR, the TV must be connected to the VCR through AV1 (TV). A connection to AV2 (DECODER) will not function correctly.

External Input Mode

To receive the signal from an external source (decoder, video camera, another VCR, etc.), connect the source to the AV2 (DECODER) socket, and press CHANNEL (▲/▼) or enter "002" with the number buttons. "AV2" appears on the TV screen. If you use the AV1 (TV) socket, press

CHANNEL (▲/▼) or enter "001" with the number buttons. "AV1" appears on the TV screen.

Initial Settings

Selecting the Language

The following steps should only be performed if there is a power failure or if the VCR is unplugged for more than 30 seconds.

• Use the remote control for this procedure.
1) Turn on the TV and select the video channel on the TV. 2) Press FUNCTION.
3) Press PLAY/▲ or STOP/▼ repeatedly to select your desired language.
4) Press MENU

Changing the Language

If you want to change the language used on the TV screen menus, follow the steps below.

• Use the remote control for this procedure.
1) Press MENU
2) Press PLAY/▲ or STOP/▼ to select "INITIAL", then press E.FWD/▶.
3) Press PLAY/▲ or STOP/▼ to select "LANGUAGE", then press E.FWD/▶.
4) Press PLAY/▲ or STOP/▼ repeatedly to select your desired language.
5) Press MENU.

Video Channel Setting

Video channel setting will be necessary, if your VCR is connected to the TV via the RF cable.

• Use the remote control for this procedure.
1) Insert a pre-recorded tape into the VCR. The VCR will turn on and start playback automatically.
if playback does not start, press PLAY?▲. 2) Select and adjust your TV to channel 36.
• If the playback picture appears on the TV screen, continue with step 9). • If channel 36 is set for broadcasting, or interference lines appear on the picture, the RF converter must be set to a different channel between CH22 and CH69. Continue with step 3).
3) Press MENU.
4) Press PLAY/▲ or STOP/▼ repeatedly to select to "INITIAL". Then, press E.FWD/▶.
5) Press PLAY/▲ or STOP/▼ repeatedly to select to "RF
OUT ^® . Then, press F.FWD/▶. The RF OUT CH menu will appear.
5) Press PLAY/▲ or STOP/▼ to select a channel which is not used for broadcasted between channel 22 and channel 69 in your area, then press F.FWD/▶.
7) Press SPEED/SYSTEM to select your desired system (G or K).
8) Press MENU to exit.

Set the TV channel to the RF OUT CHANNEL which was selected on the VCR. A picture from the VCR will appear on the TV screen. If a picture does not appear, repeat steps 3) to 8) using a different channel which is not used for broadcasted.

9) Press STOP/▼ to stop the tape.

Note: You may also access the RF OUT CH menu by pressing and holding MENU on the remote control for 3 seconds during power off until the RF OUT CH menu appears.

Setting the Clock

This VCR incorporates a 24-hour clock. The clock must be set for the Timer Recording function to operate correctly.

• Use the remote control for this procedure.
1) Press MENU.
2) Press PLAY/▲ or STOP/▼ to select "INITIAL", then press E.FWD/▶.
3) Press PLAY/▲ or STOP/▼ to select "CLOCK", then press E.FWD/▶.
4) (29D-254 and 29D-454 only) Press PLAY/▲ or STOP/▼ to select "MANUAL" or "AUTO", then press F.FWD/▶.

• If you select "MANUAL", continue with step 5).
• If you select "AUTO", Auto Clock Setting becomes "ON". Press FUNCTION. The clock will appear on the TV screen when you turn on the VCR again.
  5) Press PLAY/▲ or STOP/▼ until the relevant year appears, then press F.FWD/▶.
  6) Press PLAY/▲ or STOP/▼ until the relevant month appears, then press E.FWD/▶.
  7) Press PLAY/▲ or STOP/▼ until the relevant day appears, then press E FWD/i>
  8) Press PLAY/▲ or STOP/▼ until the relevant hour appears, then press E.FWD/▶.
  9) Press PLAY/▲ or STOP/▼ until the relevant minute appears.
  10) Press MENU to start the clock.

Note:

• Press REW/◀ to go one step back from the current step during steps 5) to 9).
• Although seconds are not displayed, they begin counting from 00 when you exit by pressing MENU. Use this feature to synchronize the clock with the correct time.
• If the VCR is unplugged or if there is a power failure for more than 30 seconds, you may have to reset the clock. [AUTO CLOCK] (29D-254 and 29D-454 only)
• Channel Presetting must be set before the Auto Clock is set.
• To set the clock automatically, the channel assigned to position 01 must have the PDC signal.
• The clock cannot be set automatically if you are not receiving a channel that carries a time signal in your area. In this case, set the clock manually.
• Once the auto clock setting is performed, the VCR will correct the current time by receiving PDC broadcasts whenever you turn off the VCR.
• The VCR will correct the current time automatically at 8:00, if the VCR power is turned off.
• Between 23:00\~1:00, the AUTO CLOCK function does not work even if the VCR power is turned off.

Channel Presetting

Tuning of broadcast channels not already preset in the VCR can be performed in two ways.

Automatic Channel Preset

- By "AUTOMATICALLY" tuning channels and placing them in sequential order in the VCR's memory i.e. the first channel found will be memorized into the VCR's channel position 1, the second channel found will be memorized into the VCR's channel position 2 and so on.

- Execution of the "Automatic" channel presetting cancels all the preset channels. DO NOT use this feature if you intend to use some of the pre-tuned channels. Use the "Manual" channel presetting function to tune in the additional channels you require.

Manual Channel Preset

- Each channel is tuned manually and individually. Follow the steps laid out in the "Manual Channel Preset" section.

- It is necessary to set the video channel if your VCR is connected to the TV via the RF cable, and TV channel 36 is set for broadcasting, or interference lines appear on the picture. Please refer to "Video Channel Setting".

Automatic Channel Preset

You can programme the tuner to scan only the channels that you can receive in your area.

• Use the remote control for this procedure.
1) Turn on the TV and select the TV channel to the video channel on the TV.
2) Press MENU.
3) Press PLAY/▲ or STOP/▼ to select "INITIAL", then press F.FWD/▶.
4) Press PLAY/▲ or STOP/▼ to select "CH TUNING", then press F.FWD/▶.
5) Press PLAY/▲ or STOP/▼ to select "AUTO", then press F.FWD/▶.
• The tuner scans and memorizes all the active channels in your area. After scanning, the tuner stops on the lowest memorized channel.

To Select a Desired Channel

You can select a desired channel by using CHANNEL (△/▼), or directly pressing the number buttons on the remote control.

- Enter a channel number as a two-digit number for the quickest results. For example, to select channel 6, press 0 and 6. If you only press 6, channel 6 will be selected after a brief delay.

- You can only select channels 1–99.

Manual Channel Preset

• Use the remote control for this procedure.

1) Press MENU

2) Press PLAY/▲ or STOP/▼ to select "INITIAL", then press F.FWD/▶.
3) Press PLAY/▲ or STOP/▼ to select "CH TUNING", then press E.FWD/▶.
4) Press PLAY/▲ or STOP/▼ to select "MANUAL", then press F.FWD/▶.
5) Press PLAY/▲ or STOP/▼ to select "POSITION", then press F.FWD/▶.
- When a weak signal is received in Manual Tuning mode, you can change the background to solid blue or the
6) Press the number buttons, PLAY/▲, or STOP/▼ to select your desired position number, then now EWD/#
*You can select position number 01-99.
- If [ON] appears on the right side of "SKIP", press PLAY/▲ or STOP/▼ to point to "SKIP". Then, press E.FWD/▶ to select [OFF].
If you want to remove scrambled signals, press PLAY/▲ or STOP/▼ repeatedly to point to "DECODER". Then, press F.FWD/▶ to select [ON].
- If you want to change the video or audio mode, press PLAY/▲ or STOP/▼ repeatedly to point to "VIDEO MODE" or "AUDIO MODE". Then, press F.FWD/▶ to select your desired mode.
7) Press PLAY/▲ or STOP/▼ to select "CHANNEL", then press E.FWD/▶.
Press PLAY/▲ or STOP/▼. The VCR tuner will begin to search up or down automatically. When a channel is found, the VCR will stop searching and the picture will appear on the TV Screen.
• You can select desired channel number by using the number buttons. You must refer to the following Channel Plan table and press three digits to select the channel number. (To select channel 24, press "0" button first and then press "2" and "4")
• If this is the channel you want, press F.FWD/▶

Channel Plan
CH Indication	TV Channel
02 – 12	E2 – E12
21 – 69	E21 – E69
74 – 78	X, Y, Z, Z+1, Z+2
80 – 99, 100	S1 – S20, GAP
121 – 141	S21 – S41
142 – 153	R1 – R12

This VCR can receive Hyper and Oscar frequency bands.

8) Press MENU to exit.

Note: To confirm that a channel has been added, press CHANNEL (▲/▼).

To Skip a Preset Channel

The channels you can no longer receive or seldom watch can be set to be skipped when you access channels by pressing CHANNEL (A/W).

• Use the remote control for this procedure.
1) Press MENU.
2) Press PLAY/▲ or STOP/▼ to select "INITIAL", then press E FWD/▶
3) Press PLAY/▲ or STOP/▼ to select "CH TUNING", then press F.FWD/▶.
4) Press PLAY/▲ or STOP/▼ to select "MANUAL", then press E.FWD/▶.
5) Press PLAY/▲ or STOP/▼ to select "POSITION", then press E.FWD/▶
6) Press the number buttons, PLAY/▲, or STOP/▼ to select relevant position number, then press E.FWD/▶.
7) Press PLAY/▲ or STOP/▼ to select "SKIP", then press F.FWD/▶ to select [ON]. • To memorize the channel again, press F.FWD/▶, "ON will change to "OFF".

Note for 29D-254 and 29D-454 only

• The VCR refers to the PDC channel which was memorized into position 01 when you set the Auto Clock.

The position 01 must therefore be set "SKIP" to [OFF].
8) Press MENU to exit.

Note: To confirm that a channel has been deleted, press CHANNEL (▲/▼).


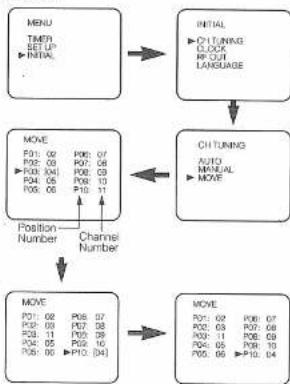

Channel Reprogramming

You can replace two channels.

• Use the remote control for this procedure.

1) Press MENU
2) Press PLAY/▲ or STOP/▼ to select "INITIAL", then press F.FWD/▶.
3) Press PLAY/▲ or STOP/▼ to select "CH TUNING", then press F.FWD/▶.
4) Press PLAY/▲ or STOP/▼ repeatedly to select "MOVE", then press F.FWD/▶.
5) Press PLAY/▲ or STOP/▼ repeatedly to select the position number you want to change the channel, then press F.FWD/▶.

- You cannot select a position number where "---" appears next to the number. This is because SKIP is set to [ON] for this position number.

- When a weak signal is received in Channel Reprogramming mode, you can change the background to solid blue by pressing TAPE COUNTER RESET. If you press the button again, the background will return to the static screen.

6) Press PLAY/▲ or STOP/▼ repeatedly until the channel move to another position number, then press F.FWD/▶.

7) Press MENU.

Basic Operation

Playback

Tracking Adjustment

• Tracking adjustment will be activated automatically (Digital Tracking function) when you start playback

- When playing pre-recorded tapes or tapes recorded on units other than your own, noise lines (black and white streaks) may appear on the playback picture. If this occurs, you can adjust the tracking control manually by pressing

CHANNEL (▲/▼) until the streaks disappear. To return to the DTR function, stop the tape once and start playback again.

Note for 29D-450 and 29D-454 only:

• You can reduce the noise lines by pressing CHANNEL (A(π)) in Slow mode, too. Slow
  CHANNEL (▲/▼) is slow mode, too. Slow tracking adjustment is not set automatically.

- In the Still mode, press SLOW, and press CHANNEL (▲/▼) until the streaks disappear. To return to the Still mode, press PAUSE/STILL again.

Playback System Change When you select AUTO by pressing SPEED/SYSTEM, this unit will distinguish the system (MESECAM or PAL) automatically according to the format of recorded tape during playback.

If the picture on the TV screen is black and white, select the system MESECAM or PAL manually by using

SPEED/SYSTEM. Each time you press SPEED/SYSTEM, TV screen will change as follows.

1) Turn on the TV and select the video channel on the TV. 2) Insert a prerecorded tape.

The VCR will turn on automatically. If the erase-protection tab has been removed, the VCR will start playback automatically.

3) Press PLAY/▲ to begin playback. •Tracking adjustment will be activated automatically (Digital Tracking function) when you start playback. To adjust the tracking manually, press CHANNEL (▲/▼).

• Using the buttons on the VCR

Just press PLAY on the VCR. Power will automatically turn on and playback will start. (Direct Button Operation)

• Using the buttons on the remote control

4) Press STOP/▼ to stop playback.

Speed Search

1) Press F.FWD/▶ or REW/◀ during playback to view a videotape at a high speed in either a forward or reverse direction. In this mode, the sound will be muted.

2) Press the button again, the VCR will now search in super high speed. (This function will not operate for a NTSC tape.)

3) Press PLAY/▲ to return to normal playback.

Still Picture

Press PAUSE/STILL during playback to view a still picture on the TV screen.

If you press PAUSE/STILL to freeze the picture, usually there will be noiselines on the TV screen. This is normal, however, each time you press PAUSE/STILL the lines will change position. (Only 29D-250/29D-254)

When the picture begins to vibrate vertically, stabilize the picture by pressing CHANNEL (▲/▼) in the Drill mode.

After the VCR has been in Still mode for 5 minutes, it will stop automatically to protect the tape and the video head. Note for "Speed Search" and "Still Picture">

Usually there will be video "noise" lines (black and white streaks or dots) on the screen. This is normal. The still picture will, in addition to containing the "noise" lines, be black and white.

This is not a fault of the machine but merely a by-product of the technology involved in producing a VCR with LP mode.

Slow Motion (29D-450 and 29D-454 only)

Press SLOW to reduce the playback speed. The VCR mutes the sound during slow motion. You can control the speed by pressing F.FWD/▶ (faster) or REW/◀ (slower). Press PLAY/▲ to return to normal playback.

If it is left in the Slow mode for more than 5 minutes, the VCR will automatically switch to the Stop mode.

Recording

Viewing and Recording the Same Programme

1) Insert a cassette tape with its erase-prevention tab in place. (If necessary, rewind or fast forward the tape to the point at which you want to begin recording.)

2) Press the number buttons or CHANNEL (▲/▼) to select the channel to be recorded.

3) Press SPEED/SYSTEM to select the tape speed (SP/LP). 4) Press REC/OTR to begin recording.

• The REC indicator on the VCR comes on.

5) Press STOP/▼ when recording is completed.

Skipping Unwanted Programme Material During Recording

1) Press PAUSE/STILL when you want to temporarily halt recording.

You can check the remaining pause time with ■ marks on the TV screen. Each ■ mark represents 1 minute. After 5 minutes, the VCR will automatically switch to the Stop mode to prevent tape damage.

2) Press PAUSE/STILL or REC/OTR to resume recording.

Recording One Programme While Viewing Another You can record one programme while viewing another. To start recording, follow steps 1) to 4) under "Viewing and Recording the Same Programme". Then, set the TV to the channel you want to watch.

To Monitor the Progress of Your Recording

Select the video channel on the TV

Assemble Function

• You can record in continuation from previous programme on a pre-recorded tape.
  1) Insert a pre-recorded tape. Press PLAY/▲ to start playback.
  2) Press PAUSE/STILL at the desired point on the tape.

Advanced Operations

Counter Memory

This feature can be used to memorize a beginning point that you want to watch again. Rewinding or fast forwarding makes it easy to locate this point.

Note: • If a tape includes both programmes recorded in the PAL system and ones recorded with NTSC system, this function may not be operated correctly.

• TAPE COUNTER MEMORY does not function if the Auto Repeat mode is set to ON. In this case, set the Auto Repeat mode to OFF.

1) Stop the tape at the desired point

2) Press TAPE COUNTER RESET to display 0:00:00.

3) Press TAPE COUNTER MEMORY so that "M" appears on the TV screen.

4) Press REC/OTR or PLAY/▲.

- Press STOP/▼ when recording or playback is completed. 5) Press REW/◄ or F.FWD/►, The VCR will automatically stop when the counter returns to 0:00:00 (approx.).

To Exit the Counter Memory

Press TAPE COUNTER MEMORY so that the "M" disappears from the TV screen.

Note: When you set the Auto Repeat mode to ON while the Counter Memory mode is ON, the VCR exits the Counter Memory mode automatically.

OTR (One Touch Recording)

This function enables you to set the duration of a recording simply by pressing REC/OTR.

1) Follow steps 1) to 3) in "Viewing and Recording the Same Programme" section.
2) Press REC/OTR repeatedly until the desired recording length appears in the upper left corner of the TV screen. (Normal recording) → [0:30] → [1:00] → [7:30] → [8:00] (OTR: 30 minutes)

Recording stops when 0:00 is reached.

• To check time remaining during an OTR
Press DISPLAY.
• To change the recording length during an OTR
Press REC/OTR repeatedly until the desired length appears.
• To stop an OTR before recording is finished
• To cancel the OTR but continue recording
Press REC/OTR repeatedly until "●" appears without the recording length.

Auto Repeat Playback

The VCR has an auto repeat function that allows you to repeat a tape indefinitely without touching PLAY/▲.

3) Press REC/OTR. The VCR will be in the Recording Pause mode.
4) Press CHANNEL (▲/▼) to select the channel to be recorded.
5) Press REC/OTR or PAUSE/STILL. The recording will begin.
6) Press STOP/▼ when recording is completed.

• Use the remote control for this procedure.

- Insert a pre-recorded tape.

1) Press MENU.

2) Press PLAY/▲ or STOP/▼ to select "SET UP", then press ESWD/▶

3) Press PLAY/▲ or STOP/▼ to select "AUTO REPEAT".

4) Press F.FWD/▶ so that "ON" appears next to "AUTO REPEAT" on the TV screen. When in Stop mode, Auto Repeat mode will start automatically.

If the on-screen menu still remains, press MENU to exit, then press PLAY/▲.

Note: Once you select the Auto Repeat mode, it stays in effect even after you turn off the VCR. TAPE COUNTER MEMORY does not function if the Auto Repeat mode is set to ON. When you set the Auto Repeat mode to ON while the Counter Memory mode is ON, the VCR exit the Counter Memory mode automatically.

To Stop Playback

Press STOP/▼

To Exit the Auto Repeat Mode

Repeat steps 1) to 3). Then, press F.FWD/▶

"OFF" will appear next to "AUTO REPEAT" on the TV screen. Press MENU to exit.

Picture Select

This function enables you to select the picture quality of a tape.

• Use the remote control for this procedure.
1) Press MENU.
2) Press PLAY/▲ or STOP/▼ to select "SET UP", then press E.FWD/▶.
3) Press PLAY/▲ or STOP/▼ to select "PICTURE".

4) Press F.FWD/▶ until the desired mode (NORMAL, SOFT, or SHARP) is indicated on the TV screen.

5) Press MENU to exit.

Note: Once you select the Picture Select mode, it stays in effect even after you turn off the VCR.

Automatic Operations

Automatic Rewind, Elect. Off

When the end of a tape is reached during recording, playback, or fast-forward, the tape will automatically rewind to the beginning. After that, the VCR will eject the tape and turn itself to off.

• The tape will not auto-rewind during timer recording or One Touch Recording.

- When the Counter Memory is activated, the tape will rewind to the M0:00:00 position and the VCR will enter the Stop mode.

Tape Eject

A tape can be ejected with the VCR power on or off (but the VCR must be plugged in).

- If a timer recording is set, a tape can only be ejected with the power on.

Real Time Tape Counter

- This shows the elapsed recording or playback time in hours, minutes, and seconds. (Nothing is shown in the case of blank portion.)

- The “-” indication will appear when the tape is rewound further than the tape counter position. "0:00:00".

Timer Recording

You may programme the VCR to start and end a recording while you are away. You can set 8 programmes to record on specific days, daily or weekly within a 1-year period.

• Use the remote control for this procedure.

- Insert a cassette tape with its erase-prevention tab in place. (If necessary, rewind or fast forward the tape to the point at which you want to begin recording.)

1) Press MENU

2) Press PLAY/▲ or STOP/▼ to select "TIMER", then press F.FWD/▶.

Note: If you have not set the clock yet, "CLOCK" setting menu appears. If so, follow the steps outlined in the "Setting the Clock" section. Then, set the timer.

- When you press F.FWD/▶ after pressing PLAY/▲ or STOP/▼ during steps 3) to 9), the input mode will move to the next step.

- If you do not press F.FWD/▶ within 5 seconds of setting an item, the input mode will move to the next step.

- Press REW/◀ to go back one step from the current setting during steps 4) to 10). If REW/◀ is pressed when the TIMER NUMBER is flashing, the entire programme

3) Programme number flashes. Press PLAY/▲ or STOP/▼ repeatedly until the desired programme number appears. Then, press F.FWD/▶.

4) For once-only recording: Press PLAY/▲ or STOP/▼ repeatedly until the relevant month appears. For daily recording: To record a TV programme at the same time on the same channel from Monday through Friday. While the month digit is flashing, press PLAY/▲ or STOP/▼ repeatedly to select "MO-FR".

For everyday recording: To record a TV programme at the same time on the same channel everyday. While the month digit is flashing, press PLAY/▲ or STOP/▼ repeatedly to select "MO-SU". For weekly recording: To record a TV programme at the same time on the same channel every week. While the month digit is flashing, press PLAY/▲ or STOP/▼

5) For once-only recording only: Press PLAY/▲ or STOP/▼ repeatedly until your desired day appears.

6) Press PLAY/▲ or STOP/▼ repeatedly until the relevant start hour appears. Next, enter the minute digit.

7) Press PLAY/▲ or STOP/▼ repeatedly until the relevant end hour appears. Next, enter the minute digir.

8) Press PLAY/▲ or STOP/▼ repeatedly until the relevant channel number appears.

9) Press PLAY/▲ or STOP/▼ repeatedly until the desired tape speed appears.

10) Press PLAY/▲ or STOP/▼ repeatedly to set VPS/PDC "ON" or "OFF". (29D-254 and 29D-454 only)

11) Press F.FWD/▶. Programme 1 is now completed. • To set another timer programme, repeat steps 3) to 11).

12) Press MENU to exit.

13) Press FUNCTION to activate the timer.

The TIMER indicator on the VCR comes on.

To Stop a Timer Programme Which Has Already Started

Press STOP/EJECT on the VCR.

Note: STOP/▼ on the remote control will not function in the Timer Recording mode.

To Correct Timer Programmes

If you want to correct an automatic timer after you finished setting programme,

1) Repeat steps 1) to 3) in the "Timer Recording" section. 2) Select the setting you want to change using F.FWD/▶ or REW/◀.

3) Enter the correct numbers using PLAY/▲ or STOP/▼, then press F.FWD/▶.

4) Press MENU to exit. 5) Press FUNCTION to return to timer standby mode.

To Cancel or Check the Start/End Time

1) Repeat steps 1) to 2) in the "Timer Recording".

2) Select a programme number you want to check using PLAY/▲ or STOP/▼. The details of selected programme appears on the TV screen. You may cancel the entire programme by pressing REW/◄.

3) Press MENU to exit.

Avoid Overlap of TIMER Programmes...

A timer programme does not work while another programme is under execution.

Hint for Timer Recording

- If there is a power failure or if the VCR is unplugged for more than 30 seconds, the clock setting and all timer settings will be lost.

- If the tape runs out before the end time, the VCR will switch to the Stop mode immediately, eject the tape and the VCR power will be turned off. The TIMER indicator will flash.

- If a tape is not in the VCR, timer recording cannot be performed and the TIMER indicator flashes. If an erase-prevention tab of the tape is missing, the tape will be ejected and the TIMER indicator will flash. Please insert a recordable tape.

- When all the Timer Recordings are completed, the TIMER indicator also flashes. To play or eject the recorded tape, press FUNCTION first, and then press PLAY/▲ or EJECT. To rewind the tape to the beginning of the recorded

• The TV that is connected to your VCR may be turned on or off when the VCR is in the Timer-recording mode.

- The VCR will only perform a timer recording after it has been placed into timer standby mode.

Auto Return

Using the AUTO RETURN Button

When all the Timer Recordings are completed (TIMER indicator flashes), press AUTO RETURN on the VCR first. The VCR will rewind to the beginning of the recorded programme(s).

Note: If there are any remaining programmes, press FUNCTION to turn on the VCR and then press AUTO RETURN. In this case, if you press any other button once and then press AUTO RETURN, AUTO RETURN will not be carried out.

Using the VCR Menu

If there are any remaining programmes including Daily, Everyday, & Weekly, AUTO RETURN will not operate.

1) Press MENU

2) Press PLAY/▲ or STOP/▼ repeatedly to point to "SET UP", then press E.FWD/▶.

3) Press PLAY/▲ or STOP/▼ to point to "AUTO RETURN", then press F.FWD/▶. [ON] will appear next to "AUTO RETURN".

4) Press MENU.

Watch the Recorded Timer Programme

Press FUNCTION to turn on the VCR, then press PLAY/▲.

Parents Lock

Parents Lock prevents use of the VCR by making the VCR feature buttons on the VCR and the remote control inoperative.

• The FUNCTION indicator on the VCR comes on.

1) Press and hold down FUNCTION on the remote control for 5 seconds until the TIMER, REC and TAPE IN indicators begin flash. The Parents Lock is activated. When you want to cancel it, press and hold FUNCTION on the remote control again for 5 seconds.

When Parents Lock is activated:

- You may insert a tape. However, the VCR power will

- You may press EJECT to remove the tape (unless a timer recording is programmed or has finished).

- Timer recording will take place as scheduled, even if Parents Lock is activated. "P.I." will appear steadily on the TV screen during the timer recording.

VPS (Video Programme System)/PDC

Operation for 29D-254/29D-454 on

The Video Programme System (VPS) or the Programme Delivery Control (PDC) is a very convenient system which assures that the TV programmes you have programmed for timer recording, will be recorded exactly from beginning to end, even if the actual broadcasting time differs from the scheduled time due to delayed start or extension of the programme duration. Also, if a programme is interrupted and, for example, some special news is broadcast, the recording will also be interrupted automatically and resumed when the programme continues.

When the VPS/PDC signal drop out because the broadcast signal is weak, or when a broadcasting station does not transmit a regular VPS/PDC signal, the timer recording will be performed in the normal mode (without VPS/PDC) even if it was programmed for VPS/PDC. When the starting time of the VPS/PDC timer recording is from 0:00 to 3:59 on a given day, the VPS/PDC function operates from 20:00 on the previous day to 4:00 on the following day. When the starting time of the VPS/PDC timer recording is from 4:00 to 23:59 on the given day, the VPS/PDC function operates from 0:00 on the day to 4:00 on the following day. This means that if the relevant programme is broadcasted within this period, it will be recorded correctly. If the timer is not programmed correctly, the incorrect timer setting stays in effect unless you cancel it. To cancel the incorrect timer setting, refer to "To Cancel or Check the Start/End Time" on page 12.

QUICK-FIND

Operation for 29D-450/29D-454 only

This function enables you to search and confirm the contents of the recorded programme(s) using the index mark.

• Use the remote control for this procedure.

• The tape must be fully rewound.

1) Press QUICK-FIND.

To Skip to the Beginning of Next Programme

1) Press QUICK-FIND

To View at Normal Speed

1) Press PLAY/▲. The Quick-Find is cancelled.

Note: This function will not operate in the Recording mode. When you want to cancel the Quick-Find while in progress, press STOP/▼. When the end of a tape is reached during the Quick-Find, the tape will automatically rewind to the beginning. After rewinding finishes, the VCR will eject the tape and turn itself off.

INDEX SEARCH

Operation for 29D-450/29D-484 only

- The index mark will be made automatically when REC/OTR is pressed. It will also be marked at the starting point of Timer recording and OTR.

- The index mark is not recorded if PAUSE/STILL is pressed and released during recording.

- The time gap between index marks on the tape should be greater than 1 minute for SP recording and 2 minutes for LP recording.

- Use the remote control for this procedure.

1) Press SEARCH MODE

2) Press PLAY/▲ or STOP/▼ repeatedly until the number of programmes that you want to skip appears.

3) Press REW/◄ or F.FWD/►

The VCR begins rewinding or fast forwarding to the beginning of desired programme.

When the preset programme is reached, the VCR will start playback automatically.

Note: • Index Search can be set up to 20.

• This function will not operate in the Recording mode.

- Operations must be followed up within 30 seconds, from steps 2) to 3). Otherwise the Index Search mode will be cancelled.

- To exit the Index Search mode, press MENU in step 2). Or press STOP/▼ after step 3).

TIME SEARCH

Operation for 29D-450/29D-454 only

If a tape includes both programmes recorded in the PAL system and ones recorded in the NTSC system, this function may not be operated correctly.

• Use the remote control for this procedure.

1) Press SEARCH MODE twice.

2) Press PLAY/▲ or STOP/▼ repeatedly until the desired time appears.

3) Press REW/◄ or F.FWD/►

The VCR begins rewinding or fast forwarding to the specified point.

When 0:00 is reached, the VCR will start playback automatically.

Note: • Time Search can be set up to 9 hours 59 minutes (9:59).
- This function will not operate in the Recording mode.
• Operations must be followed up within 30 seconds,
from steps 2) to 3). Otherwise the Time Search mode
will be cancelled.
• To exit the Time Search mode, press MENU in step 2). Or press STOP/▼ after step 3).

Copying a Video Tape

You can make copies of videotapes made by friends or relatives for your own enjoyment.

WARNING:

- Unauthorized recordings of copyrighted video tapes may be an infringement of copyright laws.

Connect the recording VCR (this unit), playing VCR (another VCR) and your TV as outline in the following diagram.

1) Insert a pre-recorded videocassette into the playing VCR. 2) Insert a blank videocassette, or one you want to record over, into the cassette compartment of the recording VCR.

3) Press SPEED/SYSTEM on the remote control to select the desired recording speed (SP/LP).

4) Select "AV2" position on the recording VCR. See "Other Connections".

5) Press REC/OTR on the recording VCR.

6) Begin playback of the tape in the playing VCR.

7) To stop recording, press STOP/EJECT on the recording VCR, then stop playback of the tape in the playing VCR.

Note: • For best results during dubbing, use the VCR's front panel controls whenever possible. The remote control might affect the playback VCR's operation. • If video or colour fades in and out, you may be copying a copy guarded video tape.

To Monitor the Recording

Turn on the TV and select the video channel on the TV.

A Status Display

To check the Counter, or Clock & Channel number, press DISPLAY. Each time you press DISPLAY, TV screen will change as illustrated:

When you select the channel using the number buttons, select the desired channel (position number).

Maintenance

Cabinet Cleaning

- Wipe the front panel and other exterior surfaces of the VCR with a soft cloth that has been immersed in lukewarm water and wrung dry.

- Never use a solvent or alcohol. Do not spray insecticide liquid near the VCR. Such chemicals may cause damage and discolouration to the exposed surfaces.

Auto Head Cleaning

- This feature automatically cleans the heads as you insert or remove a cassette to ensure a clear picture.

• The playback picture may become blurred or interrupted even if the TV programme received is clear. This does not mean that the recorded programme has been erased. This problem is caused by dirt accumulated on the head after long periods of use, or usage of rental or old tapes. In this case, head cleaning requires highly technical expertise and the nearest dealer should therefore be consulted. Clean heads only when problems occur.

Note: If the on screen display or indicators on the front panel show an abnormal reading or no reading, unplug the VCR for 2 minutes, then replug it again. Please note that language, clock, and timer settings will be cleared after disconnection.

Service

Should your VCR become inoperative, do not try to correct the problem by yourself. There are no user-serviceable parts inside. Turn the unit off, unplug the power cord, and take the unit to a Service Centre for servicing.

PAL/MESECAM

• This unit can be played as MESECAM system when in MESECAM position. (See "Playback" section.)
• Playback a tape recorded with SECAM broadcasts in Middle East areas are possible on this unit.
• When a recorded tape with a SECAM-VHS appliance or a SECAM recorded tape is replayed with this appliance, black and white pictures are produced.
• This appliance cannot be used in France: a SECAM system appliance must be used instead.

Troubleshooting Guide

If you have followed the instructions contained in this manual and have difficulty in operating your VCR, locate the SYMPTOM in the left column below. Check the corresponding cell CORRECTIVE ACTION columns to remedy the problem.

SYMPTOM	CORRECTIVE ACTION
No power.	Make sure the power cord is connected to an AC outlet.Make sure the power is turned on.
Timer recording is not possible.	Make sure the timer recording is set correctly.Make sure the power is off.Make sure the VCR clock is set correctly.
Recording mode cannot be engaged.	Make sure the erase-prevention tab on the tape is intact. If removed,cover the hole after the tab with adhesive tape.
No picture or poor picture on playback.	Set your TV to the video channel.Fine tune your TV.
No picture but the audio is OK in playback.	Head cleaning is necessary, consult the nearest Authorized Service Centre.
Playback picture is partially noisy.	Adjust tracking control for a better picture by using CHANNEL (Δ/▼).
On-the-air TV programmes cannot be seen.	Re-check the AERIAL and RF OUT connections.Set your TV to the TV channel correctly.
No operation by infrared Remote Control.	Check the batteries in the remote control.
Video or colour fades in and out when making a copy of a video tape.	You cannot copy a copyrighted video tape. You are experiencing copy guard protection.

Make your contribution to the environment!!!

Specifications

General Specifications

Television system		PAL B/G, PAL D/K, SECAM B/G,SECAM D/K TV standard
Videoheads	29D-25029D-254	Rotary two-head helicalscan system
	29D-45029D-454	Rotary four-head doubleazimuth video system
Tape width		12.65mm
Tape speed		SP: 23.39mm/sec.LP: 11.70mm/sec.
Tuner channel		E2-E12E21-E69R1-R12CATV

Note: This VCR complies with HYPER and OSCAR frequency bands of the CATV.

RF converter		Built-in UHF converter
Converter output channel		UHF Channel 22 to 69 (adjustable)
Converter output system		K. G
Timer indication		24-hour system
Operating temperature		5°C ~ 40°C
Terminals	AERIAL RF OUT AUDIO/VIDEO	Coaxial type, female Coaxial type, male 21 pin scart socket x 2

• Spent batteries do not belong in the dustbin.
• You can dispose of them at a collection point for spent
  batteries or special waste.
  Contact your council for details.

Electrical Specifications

Video output level	1Vp-p
Video output impedance	75Ω unbalanced
Audio output level	-6dBv
Video input level	0.5~2.0Vp-p
Audio input level	-10dBv
Video S/N ratio(STANDARD)	45dB
Audio S/N ratio(STANDARD)	41dB

Other Specifications

Power requirement	220~240V ~ 50Hz
Power consumption	25 Watts
Dimensions	W 360mmH 92mmD 226mm
Weight	2.4 Kg (approx.)

Note: Designs and specifications are subject to change without notice.

Declaration of Conformity

EMC-Directive: 89 / 336 / EEC

Low Voltage Directive: 73 / 23 / EEC

CE Marking: 93/68 EEC

We: FUNAI EUROPE GMBH

Gasstrasse 18

22761 Hamburg, Germany

declare that the Video Cassette Recorder

29D-250, 29D-254

29D-450 and 29D-454

are in compliance with following norms:

EN 55013:2001+AI:2003

EN 55029: 2002 + A1: 2005 EN 61000 3-2-2000

EN 61000-3-2: 2000 EN 61000-3-2: 1995

EN 61009-5-3: 1993 * AT: 2001 EN 60065-1998

EIN BOOKS: 1998
