BEDIENUNGSANLEITUNG PIR Video Camera Yale


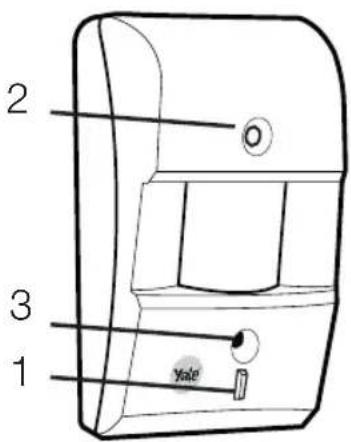

2 3 1 YaleDescription:
1) Learn/Test Button with LED
Send test signal: hold and release within 3 secs
This is used when checking accessory range (See Smart Home Alarm user manual).
Send learn signal: hold for 10 secs+. Learn button LED will flash when learn signal is sent.
2) Camera Flash
3) Camera

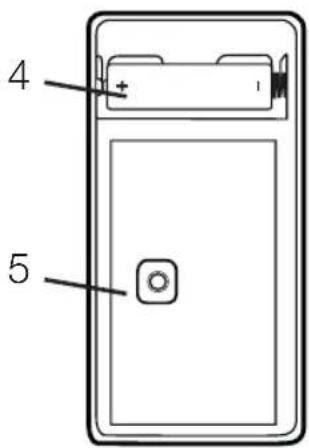

4) 3 x AA Lithium batteries
5) Cover tamper switch
Pack contents
- 1 x PIR Video Camera with bracket
- 4 x wall plugs & screws
- 3 x AA Lithium batteries
For more information on this product and Yale Smart Living Range visit
www.yale.co.uk/smart-living
Consumer Support: info@yale.co.uk
PIR Video Camera (SR-PVC)
Program your PIR before installation and test afterwards. Please see your current Smart Home Alarm user manual.
SPECIAL NOTE:
When inserting new batteries, the following are disabled for 5 minutes.
- Tamper Switch
• Video will not be sent in the first 5 minutes
Please make sure you do not trigger the PIR Video Camera for 5 minutes before testing the system.
Compatible with Yale Smart Home Alarms (SR-range) ONLY.
The 2 year guarantee for this Yale Smart Home Alarm Kit is active from the date of purchase (A copy of this guarantee is available on our website).
Operation
Sleep Timer
The PIR features an automatic “sleep time” of approximately 1 minute for power conservation. After transmitting a detected motion, the PIR will not retransmit for 1 minute. Any further motion detected within this one-minute sleep period will extend the sleep time by another minute.
| LED indicator | |
| Off Normal operation | |
| LED flash (2 sec) | When motion is detected and the LED flashes for 2 seconds, this indicates one of the following:Low batteryTamper switch activatedPIR in test mode |
WARNING:
When you delete the PIR Video Camera from the system, please ensure the PIR batteries are removed to avoid unnecessary drain.
Specification
Environmental conditions:
-10°C to 40°C, relative humidity 85% non-condensing. Indoor use only
Radio:
2.4GHz
Motion Detection Range:
110°
Issue No. 1A
WEEE
Note: Waste electrical products and batteries should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
Information and illustrations are subject to change. Yale reserves the right to alter the specification and product design at any time without notice.
