| Produkttyp | Analog-Quarz-Solaruhr |
| Kalibernummer | 8511A |
| Modulgröße (mm) | Ø23,7 x 3,4 mm |
| Ganggenauigkeit (bei normaler Temperatur) | ±20 Sekunden/Monat (5°C – 35°C) |
| Oszillationsfrequenz | 32.768 Hz |
| Betriebstemperaturbereich | -10°C bis +60°C |
| Anzeigefunktionen | Stunden, Minuten, Sekunden, Datum |
| Stromversorgung | Solarenergie, Lithium-Ionen-Akku (wiederaufladbar) |
| Gangreserve (voll geladen) | ca. 60 Tage |
| Ladezeit von leer bis voll (bei 100.000 Lux) | ca. 3,5 Stunden |
| Ladezeit für einen Tag Betrieb (bei 500 Lux) | ca. 2 Stunden |
| Besondere Merkmale | Überladungsschutz, Schnellstart, Warnung bei unzureichender Ladung (2-Sekunden-Intervall) |
| Ersatzakku (Teilenummer) | 295-28 (MT621) |
| Wartung | Kein regelmäßiger Akkuwechsel erforderlich; Akku nur durch Fachkraft ersetzen |
| Reinigung | Mit einem weichen, trockenen Tuch reinigen |
| Sicherheitshinweis | Nur den vorgeschriebenen Lithium-Ionen-Akku verwenden; andere Akkus können zur Überladung und Beschädigung führen |
| Reparierbarkeit | Modulebene; Ersatzteile durch autorisierten Service |
| Allgemeine Informationen | Die Uhr wandelt Lichtenergie in elektrische Energie um; keine Quecksilberbelastung |
Häufig gestellte Fragen - CAL 8511 CITIZEN
Benutzerfragen zu CAL 8511 CITIZEN
0 Frage zu diesem Gerät. Beantworten Sie die, die Sie kennen, oder stellen Sie Ihre eigene.
Eine neue Frage zu diesem Gerät stellen
Laden Sie die Anleitung für Ihr Uhr kostenlos im PDF-Format! Finden Sie Ihr Handbuch CAL 8511 - CITIZEN und nehmen Sie Ihr elektronisches Gerät wieder in die Hand. Auf dieser Seite sind alle Dokumente veröffentlicht, die für die Verwendung Ihres Geräts notwendig sind. CAL 8511 von der Marke CITIZEN.
BEDIENUNGSANLEITUNG CAL 8511 CITIZEN
TECHNICAL INFORMATION INFORMACION TECNICA
CITIZEN QUARTZ
Cal. No. 851※
Contents
§1. OUTLINE ...... 1
§2. SPECIFICATIONS ....1
§3. ABOUT SOLAR CELL WATCH 2
§4. SETTING THE TIME AND CALENDAR ...... 2
§5. SPECIAL ADDITIONAL FEATURES OF THE SOLAR POWER WATCH ....3
§6. WHEN THE SECOND HAND MOVEMENT IS ABNORMAL......4
§7. TIME REQUIRED FOR RECHARGE 4
§8. NOTE ON RECHARGING 4
§9. CAUTION......4
§10. DISASSEMBLY AND ASSEMBLY OF THE MODULE 5
§11. TROUBLESHOOTING AND ADJUSTMENT ...... 7
ESPAÑOL
Índice
§1. DESCRIPCIÓN GENERAL....11
§2. ESPECIFICACIONES....11
§3. ACERCA DEL RELOJ CON CÉLULA SOLAR .....12
§4. AJUSTE DE LA HORA Y DEL CALENDARIO....12
§5. CARACTERISTÍCAS ADICIONALES ESPECIALES DEL RELOJ CON CÉLULA SOLAR....13
§6. CUANDO EL MOVIMIENTO DE LA AGUJA DE LOS SEGUNDOS SEA ANORMAL....14
§7. TIEMPO REQUERIDO PARA RECARGAR....14
§8. PRECAUCIONES DURANTE LA RECARGA....14
§9. ADVERTENCIA......15
§10. DESMONTAJE Y MONTAJE DEL MÓDULO ..... 16
§11. MÉTODO DE INSPECCIÓN Y DE AJUSTE DEL MÓDULO .....18
§1. OUTLINE
This analog solar watch has a solar cell on its dial, which converts the energy of light into electric energy to operate the hands.
§2. SPECIFICATIONS
| Caliber No. | 8510A | 8511A | 8515A | |
| Type | Analog Quartz Solar Cell Watch | |||
| Module size (mm) | ø23.7 x 3.4 mm | |||
| Accuracy (at normal temperature) | Within ±20 sec/monthNormal temperature range of 5°C/41°F ~ 35°C/95°F | |||
| Oscillation frequency | 32,768 Hz | |||
| IC | C/MOS-LSI 1 unit | |||
| Operating temperature range | -10°C ~ +60°C (14°F ~ 140°F) | |||
| Converter | Bipolar step motor | |||
| Time adjustment function | Not installed | |||
| Measurement gate | 10 sec | |||
| Display features | Time | Hour, Minute, Second | ||
| Calendar | Date | |||
| Additional functions | Quick start | |||
| Overcharging prevention | ||||
| Insufficient recharging | ||||
| Time setting indication | ||||
| Secondary battery | Part No & Code | 295-28 (MT621) | 295-33 (MT621) | |
| Remarks | Secondary battery block (With welded lead plate at (+) side) | Secondary battery block (With welded lead plate at (-) side) | ||
§3. ABOUT SOLAR CELL WATCH
- A secondary battery is used in this watch to store electrical energy. This secondary battery is a clean energy battery which doesn't use any toxic substances such as mercury. Once fully charged, the watch will continue to run for about 60 days without further charging.
To use this watch comfortably, make sure that the watch is always recharged before it finally stops. There is no concern for overcharging this watch. (Overcharging Prevention Feature) we recommend that you recharge the watch everyday.
- Because the secondary battery repeatedly charges and discharges, it is not necessary to replace regularly like a normal battery.

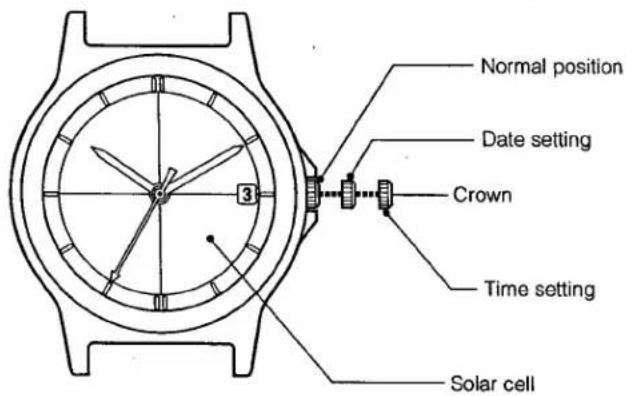

§4. SETTING THE TIME AND CALENDAR
Setting the Time
- Stop the second hand at the 0 second position by pulling out the crown to the 2nd click.
- Turn the crown to set the time.
- After setting the time, firmly push the crown back into its normal position.
Setting the Calendar
- Pull the crown out to the 1st click.
- Set to the desired date by turning the crown.
- If you adjust the date when the watch display is reading between 9:00 pm and 1:00 am, the date might not change on the following day.
After you have set the calendar, be sure to firmly return the crown to its normal position.
§5. SPECIAL ADDITIONAL FEATURES OF THE SOLAR POWER WATCH
These functions are only found in the solar power watch.

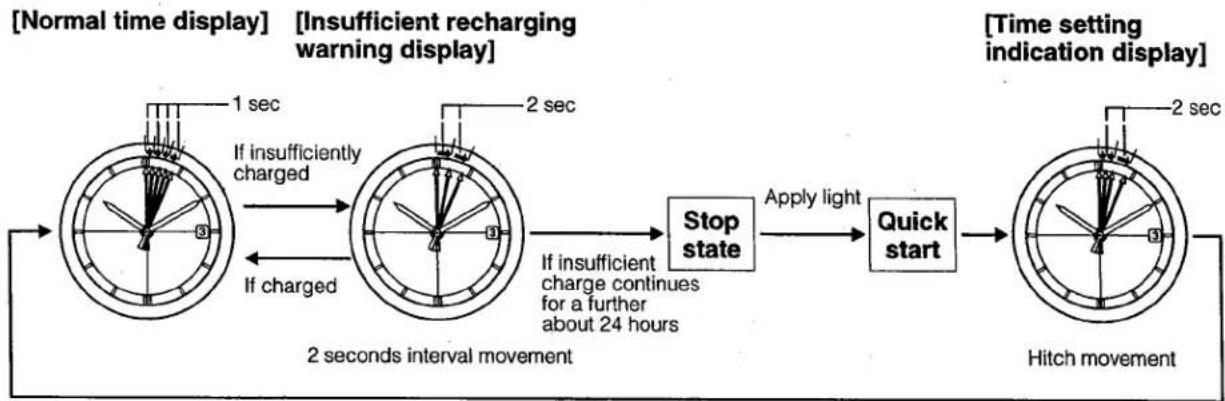

If this watch becomes insufficiently charged, a warning function comes into operation and the display changes, as below:
note right of C: If insufficient charge continues for a further about 24 hours.
note left of D: 2 seconds interval movement
note right of H: Hitch movement
note left of C: If insufficient charge continues for a further about 24 hours.
note right of D: 2 seconds interval movement
note left of E: Stop state
If sufficiently charged and time is set
Insufficient Recharging Warning Feature
The second hand changes to two-second interval movement to indicate insufficient recharging.
Even in such a case, the watch keeps correct time, but it about 24 hours pass after two-second interval movement begins, the watch stops operating.
After exposing the watch to light, recharging takes place and the watch returns to one-second interval movement.
Quick Start Feature
The watch will stop if it is completely discharged.
It will begin to operate soon after it is exposed to light.
(However, the time it takes to start may vary according to the brightness of the light.)
Please note that if the light is blocked the watch might stop again as a result of being insufficiently recharged.
Time Setting Indication Feature
If the watch stops, subsequent exposure to light allows the 'quick start' function to start again, and the second hand moves with a hitch movement to indicate that displayed time is now incorrect.
In this case, quickly recharge the watch and reset the time.
Otherwise, the hitch movement will continue.
Overcharging Prevention Feature
You can recharge without worry.
Once the secondary battery is fully recharged, the overcharging prevention feature comes into operation and prevents further recharging, so that the secondary battery is not overcharged.
§6. WHEN THE SECOND HAND MOVEMENT IS ABNORMAL
Two-second interval movement
Insufficient recharging warning feature is working.
Recharge the watch immediately by exposing it to light until it has returned to one-second interval movement.
During two-second interval movement, the watch continues to keep the correct time.
Two-second interval movement continues for about 24 hours, and the watch stops.
Hitch movement
Time setting indication feature is working.
Immediately expose the solar cell to light in order to recharge it, then reset to the correct time.
§7. TIME REQUIRED FOR RECHARGE
Time required for recharge may vary according to the design (color of the dial, etc.) and operating environment. The following table will serve you as rough reference.
* The recharging time is the time when the watch is continuously exposed to radiation.
| Illuminance (lux) | Environment | Time required | ||
| One day usage | From the stop state to the one second movement | Empty to full | ||
| 500 | Inside an ordinary office | 2 hours | 9 hours 30 minutes | 180 hours |
| 1000 | 60–70cm under a fluorescent light | 50 minutes | 5 hours | 90 hours |
| 3000 | 20cm under a fluorescent light | 20 minutes | 1 hour 30 minutes | 30 hours |
| 10000 | Exterior, cloudy | 5 minutes | 30 minutes | 9 hours |
| 100000 | Exterior, summer, sunny | 2 minutes | 10 minutes | 3 hours 30 minutes |
Full recharging time .....The time from when the watch is stopped to when it is fully recharged. (Empty to full)
One day usage ....The recharging time required for the watch to run for one day.
§8. NOTE ON RECHARGING
The watch will be damaged during recharging if it leaves in hot (about 60^ C/140°F or more). Avoid recharging at high temperatures.
§9. CAUTION
Never use another battery apart from the secondary battery (Titanium Lithium Ion Battery) used in this watch.
The watch structure is so designed that a different kind of battery other than the specified cannot be used to operate it. However, in case a different kind of battery such as a silver battery is used by some chance, there is a danger that the watch will be overcharged to burst, causing damage to the watch and even to the human body.
When you replace the secondary battery, be sure to use a designated secondary battery.
