42PD8900TA - Fernseher HITACHI - Kostenlose Bedienungsanleitung

Produkttyp	HD-Ready-Plasmafernseher
Bildschirmdiagonale	42 Zoll (106 cm)
Auflösung	1.024 x 1.080 Pixel (A4 ALIS)
Pixelabstand	0,90 x 0,51 mm
Farben	68,6 Milliarden Farben / 4.093 Graustufen
Panelhelligkeit (Spitze)	1.400 cd/m²
Kontrastverhältnis (Panel)	4.000:1 (typisch)
Tuner	2x analog (ANT 1/ANT 2)
Audioleistung (RMS)	36 W (10 Lautsprecher)
Anschlüsse	2x HDMI, RGB (D-Sub 15), Composite, S-Video, Komponente, USB (nur Fotos), SD-Kartenslot
Besondere Merkmale	Picture Master Bildprozessor, ALIS-Panel, Dynamic Contrast, Advanced Colour Management, Motor-Schwenkfuß, PIP/SPLIT/4-Bild/12-Bild
Abmessungen (mit Standfuß)	1.134 x 728 x 350 mm (B x H x T)
Gewicht (mit Standfuß)	43,0 kg
Stromversorgung	AC 100-240 V, 50/60 Hz
Leistungsaufnahme (max.)	370 W
Leistungsaufnahme (Standby)	< 3 W
Standfuß	Motor-Schwenkfuß (Modell SDBG4237, separat verpackt)
Reinigung	Nur mit weichem, trockenem Tuch reinigen; keine aggressiven Reinigungsmittel
Entsorgung / Reparatur	Reparatur durch autorisierten Fachbetrieb; Ersatzteile gemäß EU-Ökodesign-Richtlinie verfügbar

Häufig gestellte Fragen - 42PD8900TA HITACHI

Wie schließe ich einen HDMI-Player (z.B. Blu-ray) an?

Kann ich Fotos von einer SD-Karte oder einem USB-Stick anzeigen?

Was ist die ALIS-Technologie?

Wie aktiviere ich die Bild-im-Bild-Funktion (PIP)?

Welche Bildmodi gibt es?

Wie stelle ich die Lautstärke automatisch anpassen (Perfect Volume)?

Der Fernseher schaltet sich nicht ein. Was kann ich tun?

Wie reinige ich den Bildschirm richtig?

Der Ton ist verzerrt oder leise. Was kann ich tun?

Kann ich den Fernseher an der Wand montieren?

BEDIENUNGSANLEITUNG 42PD8900TA HITACHI

PLASMA AND LCD TELEVISIONS

Interior view of a modern living room with red and white decor, a flat-screen monitor, and a red cushion chair (no visible text or symbols)

HITACHI

Inspire the Next

Plasma & LCD Televisions

Welcome to state-of-the-art screen technology that is second to none. Hitachi's new generation of high performance plasma TVs offers 42* and 55* screens with advanced features and specifications such as Picture Master digital processors that deliver virtual, true-to-life images with up to 68.6 billion colours. Equally impressive and available in 26", 32" and 37" screens, our latest breed of LCD TVs sets a new benchmark for sophisticated technology and stunning design, with In-Plane Switching technology (IPS) only one of many cutting-edge features.

Whether you're watching a movie, surfing the web, or delivering a presentation in a boardroom setting, you can expect a high performance picture with brilliant graphics, razor sharp images and optimum control of colour enhancement.

Our aesthetic, sleek designs make for a distinguished addition to any work or home environment. And with our motorised swivel, you can change the direction of the panel from the comfort of your armchair to suit your needs.*

Read on to discover more about the very latest in the Hitachi Plasma and LCD range. The future of TV has arrived. It's time to see life from a whole new perspective,

From the Past into Future 50 Years of HITACHI TVs

*Features may vary by model.

PLASMA & LCD TELEVISIONS

Interior scene with a woman reclining on a white sofa and another person standing near a TV, both in a modern living room with dark wood flooring (no visible text or symbols)

Advanced Image Processor

PICTURE MASTER

Hitachi's advanced digital signal processor

reproduces high resolution images with superior

colour density. Our plasma TVs are capable of

displaying up to 4,093 individual steps per colour

(Red, Green, Blue), resulting in a total of 68.6 billion

colours. Similarly, our LCD TVs achieve up to 1.06

billion colours (1,021 steps per colour). For sharper,

clearer images and true-to-life quality.*

HITACHI FLASMA TV

HITACHI LCD TV

ADVANCED DIGITAL COLOUR MANAGEMENT

This system has been created to control a whole spectrum of designated colours, independent colour combinations or colour richness. Advanced Colour Management delivers the purest whites, brilliant blue skies and the most vibrant blazing reds – a virtual feast for the eyes.

BRIGHT, CLEAR PICTURES WITH ADVANCED DYNAMIC CONTRAST

Our advanced Picture Master* image processor is able to automatically detect the amplitude level of digitally converted input signals to display scenes with the most suitable contrast. Be it bright scenes or dark images, the final result is pictures with dynamic, optimum contrast.

VT (VERTICAL TEMPORAL) FIELD IMAGE PROCESSING

The progressive image is generated by making use of a total of 3 consecutive fields of information. The VT 3 Field Image Processing detects 26 points instead of the usual 8 points to determine the correct video image.

MEMORISING YOUR INPUT (MEMORY BY INPUT)

The Picture Master* image processor has the capability to memorise your personalised picture settings in adjustments made to the contrast, brightness, colour, tint, sharpness, colour temperature and noise reduction. It remembers individual settings for all input sources in Dynamic, Natural and Cinema modes, automatically recalling these settings for each input device (eg. DVD player, VCR, set top box etc).

Plasma

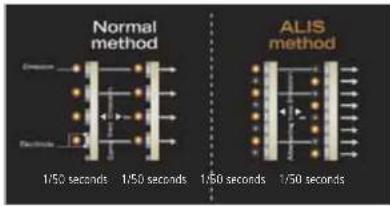

ADVANCED ALIS PANEL - UP TO 1,400cd/m ^2

The ALIS (Alternate Lighting of Surfaces) technology on Hitachi's 42* plasma models will dazzle you with its ability to match high definition input signals. With a fine pitch display of over one million pixels, every detail is reproduced to perfection.

Precise, vertical 1,024/1,080 pixels and a high luminance effect are made possible by emitting light from even numbered and odd numbered lines alternately every 1/50 second.

42PD8900TA with ALIS 1,080 Line Panel (High Definition Image)

1.060 lines of high definition input, signals are drawn with little interpolation processing

42PD7300TA & 42PD580DTA with ALIS 1,024 Line Panel (High Definition Image)

1,050 lines of high de- and uniput signals are displayed in 1,024 lines with little interpolation processing.

Normal Panel (Normal Image)

1,080i Input Interpolation Normal Panel

Extra processing is needed to convert input signal for displaying 1,000 lines of information.

Our 42* models come with a panel luminance whitepeak of 1,400cd/m ^2 , enabling unprecedented clear, bright pictures. All models bring you stunning high contrast images, allowing you to experience magnificent viewing from high quality sources such as high definition digital broadcasts.

TRUE HIGH DEFINITION IMAGES

The ALIS panel is developed to match high definition input signals. 1,080 lines are displayed with minimal interpolation processing, thereby displaying true high resolution images.

LONGER PANEL LIFE

By lighting the screen lines alternately, the ALIS technology panel significantly reduces the wear on screen phosphors, thus achieving an average panel life of approximately 60,000 hours (when panel life function is used).*

* 60,000 hours average to half original brightness based on measurements in Hitachi's standards. Actual hours may vary depending upon operating conditions and environment.

Two-panel image showing a city skyline at dusk with colorful reflections, labeled 'WITH IPS' (no text on buildings or screens)

Two-panel image showing a city skyline at night and a close-up of a cityscape with reflections (no text or symbols)

LCD

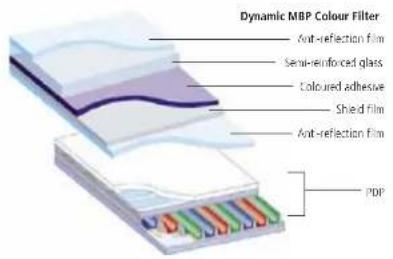

HIGHLY ENHANCED CONTRAST WITH DYNAMIC MBP COLOUR FILTER

Hitachi's new high resolution Plasma TVs are equipped with a dynamic Multi Band Pass (MBP) colour filter. This vastly improves the reproduction of black without sacrificing brightness levels.

SILENT OPERATION

Hitachi Plasma TVs have been specifically developed without any fans for cooling, so you can watch all your favourite channels in total peace.

FAST RESPONSE FOR MOTION PICTURES

Using the same fluorescent phosphors as conventional Cathode Ray Tube (CRT) televisions to emit light, Plasma TVs are ideally suited for displaying moving images. The fast response for motion pictures results in smooth, natural moving images.

SUPERIOR IMAGE CONTRAST

As Plasma TVs are self-luminescent, they excel in the reproduction of black under theatre-like lighting. They are also equipped with the ability to reproduce dynamic contrast by making darker areas more intense and brighter areas more vivid. With this breakthrough in technology, you can enjoy realistic and exciting images.

SUPERIOR LCD TECHNOLOGY

When viewed off centre, conventional LCD screens suffer from lacklustre colours and poor contrast. Likewise, images can appear washed out at nighttime or in darker rooms.

Developed by Hitachi, IPS technology lets you enjoy superb picture quality with rich colour definition and high contrast from almost any viewing angle – up to 178 degrees both horizontally and vertically. What's more, images on a Hitachi LCD screen retain their superior contrast and crisp definition, even in poor lighting conditions. So no matter where you're sitting (or standing), you'll always see brilliant, true-to-life pictures.

Features may vary by model. See specifications for further details.

PLASMA & LCD TELEVISIONS

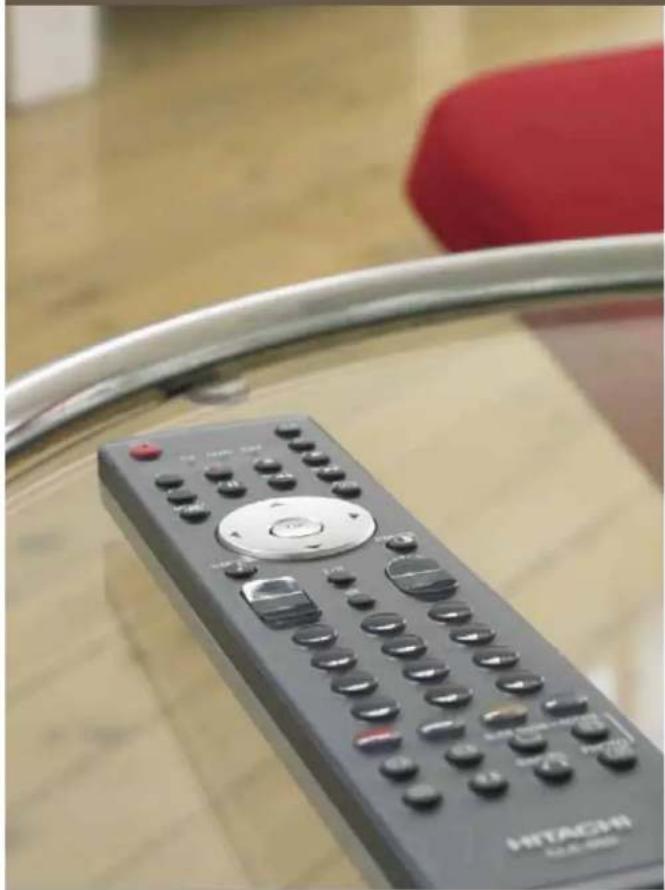

Close-up of a black HITACHI remote control with control buttons and a red seat, placed on a patterned surface (no visible text or symbols beyond branding)

Advanced Features

BUILT-IN TV TUNERS

The entire revolutionary range of Hitachi Plasma and LCD TVs now come with built-in analogue TV tuners. Selected models offer twin tuners to further enhance your convenience. It's no longer necessary to buy a separate tuner or install any additional setup to receive TV signals, the 42PD580DTA even offers an integrated HD tuner. So now you can enjoy total entertainment, all in one, giving you a choice of PinP, Split, P on P4 and P on P12. For further details see our specifications table.

DVD PLAYER COMPATIBLE REMOTE CONTROL

The sleek remote control on our 8800 / 8900 series gives you full access to all functions of the Plasma TV and primary functions of DVD players – Hitachi, Pioneer, Panasonic, Toshiba, Philips, JVC, Samsung, Sony, Onkyo, and more.*

* Features may vary by model.

Not all models of the listed brands are compatible.

POWERFUL SOUND

Hearing is believing. Which is why Hitachi TVs generate an immersive, crystal clear surround sound experience to match the true-to-life picture quality. Ranging from 20W to 36W and fitted with a 3-way, 10 speaker sound system (including 2 woofers), Hitachi is sure to blow you away. See specifications for further details.

FULL DIGITAL AMPLIFIER

Designed to process both the input and output sound signal in full digital format, the Full Digital Amplifier provides high quality digital audio performance. The design also incorporates oxygen-free copper material in the sound output coil to facilitate maximum signal transmission and reduce sound deterioration.

HDMI

The latest High Definition Multimedia Interface is included on all models, to provide an interface between any audio/video source, supporting digital video and multi-channel digital audio on a single cable. Selected models offer twin HDMI inputs for your convenience.

DYNAMIC BASS

This provides deep, rich bass to small speaker systems by boosting low frequency sounds. This allows super bass effect without a subwoofer or additional speaker components.

MOTORISED SWIVEL

A true turning point for Plasma and LCD screens. It is now possible for you to change the direction of the panel 30 degrees in either direction of centre with the touch of a button. Perfect for board meeting situations, or for private viewings of your favourite movie, you can swivel the screen from the comfort of your chair.

USB PHOTO INPUT TERMINAL & SD CARD SLOT

This unique feature enables you to perform a slide show of all your favourite digital pictures directly onto your TV screen. Simply plug your SD card, digital camera or card reader into the side terminal and photos can be displayed as a slide show or even rotated to 90, 180 or 270 degrees.*

*USB 1.1 (Usage for digital still camera and USB card reader only). Features may vary by model. See specifications for further details.

PLASMA & LCD TELEVISIONS

Two people watching a flat-screen TV on a bed, one holding a smartphone (no visible text or symbols)

Specifications

Front view of a flat-screen computer monitor with a blank screen (no visible text or symbols)

55PD8800TA PLASMA

68.6

Dillion

Colours

TWIN

HDMI

PHOTO CONNECT

50 C400 +1850

Front view of a flat-screen computer monitor (no visible text or labels)

42PD7300TA PLASMA

HDMI

Front view of a flat-screen computer monitor (no visible text or labels)

42PD580DTA PLASMA

Front view of a black flat-screen computer monitor (no visible text or symbols)

42PD8900TA PLASMA

Front view of a modern flat-screen monitor with a black frame and stand (no visible text or symbols)

37LD8800TA LCD

Front view of a modern flat-screen monitor with a black screen and silver bezel (no visible text or symbols)

32LD8800TA LCD

32LD380TA LCD

Design and specifications subject to charge with product improvement.

PLASMA & LCD TELEVISIONS

Plasma

		42PD7300TA 42PD580DTA
		42" (106cm) HD READY PLASMA TV 42" (106cm) PLASMA HDTV
DISPLAY	EFFECTIVE DISPLAY AREA [H x VI]	922mm x 522mm, (1,059mm) Diagonal, 16:9	926mm x 525mm, (1,064mm) Diagonal, 16:9
	NUMBER OF PIXELS [H x V] 1,024 x 1,024 pixels (A3 ALIS) 1,024 x 1,024 pixels (A3 ALIS)
	PIXEL PITCH [H x V] 0.90 x 0.51mm 0		.90 x 0.51mm
	NUMBER OF COLOURS / GREY SCALE	16.77 Million Colours / 256 Grey Scale	16.77 Million Colours / 256 Grey Scale
	PANEL BRIGHTNESS (AT WHITE PEAK) 1,400cd/m	1,400cd/m	1
	CONTRAST RATIO (P A N E L)	3,000:1 (Typical)	3,000:1 (Typical)
INPUT SIGNAL	RF	U/V tuner: NTSC M, SECAM B,G / D,K, PAL B, G/IV, K	Analogue U/V tuner: NTSC M, SECAM B,G / D,K, PAL B, G/IV, KDigital: DVB HD Tuner Built-in
	RF MULTIPLEX	A2 / NICAM	A 2 / NICAM
	TEXT / VIDEO SIGNAL	250 pages / NTSC 3.58 / 4.43, PAL, SECAM	250 pages / NTSC3.58 / 4.43, PAL, SECAM
	COMPONENT SIGNAL	480i/p, 576i/p, 720p (50/60), 1080i (50/60)	480i/p, 576i/p, 720 p (50/60), 1080i (50/60)
	HDMI SIGNAL (VIDEO MODE)	480i/p, 576i/p, 720p (50/60), 1080i (50/60), VGA	480i/p, 576i/p, 720p (50/60), 1080i (50/60), VGA
	ANALOGUE RGB SIGNAL	VGA-SXGA (31.5 to 80kHz, 50Hz to 85Hz (1,024 x 768/60Hz recommended))
SIGNAL INPUT AND TERMINALS	RGB INPUT / VIDEO INPUT	RGB1 (RGB): Mini D-sub 15P + Audio: Stereo mini jack / Input1 (CVBS) + (L,R); RCA pin Input2 (S-video) + (L,R); RCA pin Input3 (Y,Pb,Pr) + (L,R); RCA pin, HDMI	RGB1 (RGB): Mini D-sub 15P + Audio: Stereo Mini Jack / Input1 (CVBS) + (L,R); RCA pin Input2 (S-video) + (L,R); RCA pin Input3 (Y,Pb,Pr) + (L,R); RCA pin HDMI
	SIDE INPUT / PHOTO INPUT	No / No	No / No
SIGNAL OUTPUT	HEADPHONE OUTPUT / SUBWOOPER OUTPUT	No / Yes	No / Yes
	AV OUTPUT	TV / AV / SV	TV / AV / SV
PICTURE	NOISE REDUCTION / LTI / CTI	Yes / No	Yes / No
	PICTURE MODES / CO MS FILTER	3 (Natural, Cinema, Dynamic) / 2L (PAL) / 3D (NTSC) Comb Filter	3 (Natural, Cinema, Dynamic) / 2L (PAL) / 3D (NTSC) Comb Filter
	WHITE BALANCE	5 (Cool, Normal, Warm, Black & White, User)	5 (Cool, Normal, Warm, Black & White, User)
	DYNAMIC CONTRAST / CO LOUR MANAGEMENT	No / No	No / No
SOUND	SURROUND / ENHANCEMENT	SRS WOW / No	SRS WOW / No
	AUTO VOLUME LEVELER (AVL)	No	No
	SOUND MODE	No	No
	AUDIO POWER (RMS)	10W+10W	10 W+10W
OPERATION	OSD LANGUAGES / TIMER (OFF/ON)	English, T-Chinese, S-Chinese, Russian, Japanese / No	English, T-Chinese, S-Chinese, Russian, Japanese / No
	MULTI PICTURE FUNCTION	PIP (main) TV, Input1/2/3(480), HDMI, RGB, (sub) TV, Input1/2	PIP (main) TV, Input1/2/3(480), HDMI, RGB, (sub) TV, Input1/2
	WIDE MODE (PICTURE SIZE) - TWVIDEO	6 Mode: 4:3 Standard, Panoramic, 4:3 Zoom 1/2, Full, 16:9 Zoom	6 Mode: 4:3 Standard, Panoramic, 4:3 Zoom 1/2, Full, 16:9 Zoom
	WIDE MODE (PICTURE SIZE) - PC	Full (Auto Adjust)	Full (Auto Adjust)
GENERAL	POWER REQUIREMENT	AC100-240V, 50/60Hz	AC100-240V, 50/60Hz
	POWER CONSUMPTION, PEAK / ST ANDAY	350W/-<3W	350W/-<3W
	DIMENSIONS [W x H x D]	Excluding Stand: 1,036mm x 713mm x 93mmIncluding Stand: 1,036mm x 775mm x 330mm	Excluding Stand: 1,036mm x 713mm x 121mmIncluding Stand: 1,035mm x 775mm x 330mm
	WEIGHT (EXCLUDING / INCLUDING STAND)	32.8kg / 40.3kg	33.6kg / 41.1kg
	DESK STAND (INCLUDED)	Fixed Desk Stand (CMPAD42T5 - packed separately)	Fixed Desk Stand ( CMPAD42T - packed separately)
	STAND DIMENSIONS [W x H x D] / WE LIGHT	876mm x 247mm x 330mm / 7.5kg	676mm x 247mm x 330mm / 7.5kg

Plasma

		42PD8900TA 55PD8800TA
		42" (106cm) HD READY PLASMA TV (TWIN ANALOGUE TUNERS)	55" (140cm) HD READY PLASMA TV (TWIN ANALOGUE TUNERS)
DISPLAY	EFFECTIVE DISPLAY AREA [H x V]	922mm x 522mm, (1,059mm) diagonal, 16:3	1,230mm x 692mm, (1,412mm) Diagonal, 16:9
	NUMBER OF PIXELS [H x VI] 1,024 x 1,080 pixels (A4 ALIS) 1,366 x 768 pixels (P2 ALIS)
	PIXEL PITCH [H x VI] 0.90 x 0.51mm 0		.90 x 0.90mm
	NUMBER OF COLOURS / G REY SCALE	68.6 Billion Colours / 4,093 Grey Scale	68.6 Billion Colours / 4,093 Grey Scale
	PANEL BRIGHTNESS (AT WHITE PEAK) 1,400cd/m	1,000cdm	1
	CONTRAST RATIO (P ANELI)	4,000:1 (Typical) 1,000:1 (Typical)
INPUT SIGNAL	RF	W-U/V tuner: NTSC-M, SECAM B, G/D, K/K1, PAL B, G, H/I/D, K
	RF MULTIPLEX	A2 / NICAM	A 2 / NICAM
	TEXT / VIDEO SIGNAL	100 pages / PAL, SECAM, NTSC3.5B, NTSC4.43, PAL60, N-PAL, M-PAL	100 pages / PAL, SECAM, NTSC3.5B, NTSC4.43, PAL60, N-PAL, M-PAL
	COMPONENT SIGNAL	480/p, 576/p, 720p (50/60), 1080i (50/60)	480/p, 576/p, 720p (50/60), 1080i (50/60)
	HDMI SIGNAL (VIDEO MODE)	480/p, 576/p, 720p (50/60), 1080i (50/60), VGA	480/p, 576/p, 720p (50/60), 1080i (50/60), VGA
	ANALOGUE RGB SIGNAL	VGA-UXGA (15kHz, 30 to 106kHz, 5kHz to 85Hz)
SIGNAL INPUT AND TERMINALS	RGB INPUT / VIDEO INPUT	RGB : Mini D-sub 15P + Audio: Stereo Mini Jack / AV1, 2 (CVBS / Y,Pb,Pr) = (L,R): RCA pin AV3 (CVBS,S-video) + (L,R): RCA pin AV4 (CVBS) + (L,R): RCA pin AV5 (CVBS,S-video) = (L,R): RCA pin (Side Input) HDMI1 (Video) HDMI2 (Video) + 3.5mm Stereo Mini Jack
	SIDE INPUT / PHOTO INPUT	Yes / Yes (USB+SD)	Yes / Yes (USB+SD)
SIGNAL OUTPUT	HEADPHONE OUTPUT / SUBWOOPER OUTPUT	Yes / Yes	Yes / Yes
	AV OUTPUT	1(CVBS) + L/R: RCA pin	1 (CVBS) + L/R: RCA pin
PICTURE	NOISE REDUCTION / LTI / CTI	Yes / Yes	Yes / Yes
	PICTURE MODES / CO MB FILTER	3 (Natural, Cinema, Dynamic) / 3D Y/C Comb Filter	3 (Natural, Cinema, Dynamic) / 3D Y/C Comb Filter
	WHITE BALANCE	4 (Cool, Normal, Warm, Black & White)	4 (Cool, Normal, Warm, Black & White)
	DYNAMIC CONTRAST / CO LOUR MANAGEMENT	Yes / Yes	Yes / Yes
SOUND	SURROUND / ENHANCEMENT	SRS WOW / BBE	SRS WOW / BBE
	AUTO VOLUME LEVEL (AVL)	Yes (Perfect Volume)	Yes (Perfect Volume)
	SOUND MODE	4 (Movie, Music, Speech, Favourite)	4 (Movie, Music, Speech, Favourite)
	AUDIO POWER (RMS)	36W (10 Speakers)	3 6W (10 speakers)
OPERATION	Q5D LANGUAGES / TIMER (OFF/ ON)	English, T-Chinese, S-Chinese, Russian, Japanese, Arabic / Yes	English, T-Chinese, S-Chinese, Russian, Japanese, Arabic / Yes
	MULTI PICTURE FUNCTION	PIP, SPLIT, 4 Picture, 12 picture (main) AV1-5, HDMI1-2, TV, RGB, (sub) AV1-5, TV	PIP, SPLIT, 4 Picture, 12 Picture (main) AV1-5, HDMI1-2, TV, RGB, (sub) AV1-5, TV
	WIDE MODE [PICTURE SIZE] - TV/VIDEO	5 Mode: Panoramic, Zoom, Cinema, Full, 4:3	5 Mode: Panoramic, Zoom, Cinema, Full, 4:3
	WIDE MODE [PICTURE SIZE] - PC	6 Mode: Full, Real, Normal, Zoom1, Zoom2, Zoom3	6 Mode: Full, Real 1, Normal, Zoom1, Zoom2, Zoom3
GENERAL	POWER REQUIREMENT	AC100-240V, 50/60Hz	AC100-240V, 50/60Hz
	POWER CONSUMPTION, PEAK / ST ANDBY	370W / <3W	480W / <3W
	DIMENSIONS [W x H x D]	Excluding Stand: 1,134mm x 648mm x 98mm Including Stand: 1,134mm x 728mm x 350mm	Excluding Stand: 1,510mm x 840mm x 105mm Including Stand: 1,510mm x 933mm x 450mm
	WEIGHT (EXCLUDING / INCLUDING STAND)	37.3kg / 43.0kg	61.8kg / 73.3kg
	DESK STAND (INCLUDED)	Power Swivel (SDBG4237 - packed separately)	Power Swivel (SDBG5500 - packed separately)
	STAND DIMENSIONS [W x H x D] / WEIGHT	520mm x 182mm x 350mm / 5.7kg	680mm x 196mm x 450mm / 11.5kg

PLASMA & LCD TELEVISIONS

LCD

DISPLAY CHARACTERISTICS	IPS LCD / EFFECTIVE DISPLAY AREA [H x V]	Yes / 576mm x 324mm, (660mm) Diagonal, 16.9	No / 638mm x 392mm, (800mm) Diagonal, 16.9
	NUMBER OF PIXELS [H x V] 1,366 x 768 pixels 1		366 x 768 pixels
	PIXEL PITCH [H x V] 0.42 x 0.42 mm 0		51 x 0.51mm
	NUMBER OF COLOURS / GREY SCALE	16.77 Million Colours / 256 Grey Scale	16.77 Million Colours / 256 Grey Scale
	VIEWING ANGLE (LEFT/RIGHT/UR/DOWN) 176 Degrees (Typical) 1		70 Degrees (Typical)
	PANEL BRIGHTNESS (AT WHITE PEAK) 500 cd/m	2	500 cd/m2
	CONTRAST RATIO (P A N E L)	600:1 (Typical) 800:1 (Typical)
	LCD RESPONSE TIME	8 Mill seconds (Grey to Grey)	8 Mill seconds (Grey to Grey)
INPUT SIGNAL	RF / RF MULTIPLEX	U/V Tuner: NTSC3.58, SECAM B/G, D/K, PAL I, B/G, D/K / A2 / NICAM	U/V Tuner: NTSC M, SECAM B/G, D/K, K', PAL I, H, B/G, D/K / A2 / NICAM
	TEXT / VIDEO SIGNAL	100 pages / NTSC3.58 / 4.43, PAL, SECAM	812 pages / NTSC3.58 / 4.43, PAL, SECAM
	COMPONENT SIGNAL	480ip, 576ip, 720p (50/60), 1080i (50/60)	480ip, 576ip, 720p (50), 1080i (50/60)
	HDMI SIGNAL (VIDEO MODE)	No	480ip, 576ip, 720p (50), 1080i (50/60), VGA
	ANALOGUE RGB SIGNAL	VGA WXGA (30.5 to 61kHz, 55Hz to 64Hz (1,366 x 768 / 60Hz Recommended))	VGA WXGA
SIGNAL INPUT AND TERMINALS	RGB INPUT	RGB: Mini D-sub 15P, Audio: Stereo Mini Jack	RGB: Mini D-sub 15P, Audio: Stereo mini jack
	DVI INPUT	24 pin D	No
	VIDEO INPUT V	ideo1, 2 (Y,Pb,Pr) = (L,R): RCA pin Video3, 4 (CVBS,S-video) + (L,R): RCA pin	AVI, 2, 3 (CVBS/S-video) + (L,R): RCA pin Component1, 2 (Y,Pb,Pr) + (L,R): RCA pin, HDMI (HDMI) + DVI Audio in: Mini Jack
	SIDE INPUT / PHOTO INPUT	Yes / No	Yes / No
SIGNAL OUTPUT	SPEAKER OUTPUT	10W+10W	10 W+10W
	HEADPHONE OUTPUT / SUBWOOTER OUTPUT	Yes / Yes	No / Yes
	A/V OUTPUT	(CVBS,S-video) + (L,R): RCA pin	(CVBS,S-video) + (L,R): RCA pin
PICTURE	NOISE REDUCTION / LTI/ CTI	Yes / No	Yes / Yes
	PICTURE MODES / CD M3 FILTER	4 (Dynamic, Natural, Game, Cinema) / 3D Y/C Comb Filter	No / SL Comb Filter
	WHITE BALANCE	PC Mode: 3 (High, Low, Manual), Video Mode: 2 (High, Low)	3 (Cool, Normal, Warm)
	DYNAMIC CONTRAST / COLOUR MANAGEMENT	No / No	No / No
SOUND	SURROUND / ENHANCEMENT	SRS WOW / No	SRS WOW / No
	AUTO VOLUME LEVELER (AVL)	No	Yes (Perfect Volume)
	SOUND MODE / AUDIO POWER (RMS)	No / 10W+10W	No / 10W+10W
OPERATION	OSD LANGUAGES / TIMER (OFF/ ON)	English, T-Chinese, S-Chinese, Russian / No	English, Chinese1, Chinese2, Russian / No
	PIN P FUNCTION	PIP: (Main) PC (Sub) TV, Video1 - 4, POP: (Main) PC, TV, Video1 - 4 (Sub) TV, Video1 - 4	No
	WIDE MODE [PICTURE SIZE] - TV/VIDEO	5 Mode: 4:3, Panoramic, Zoom, Cinema, Full	3 Mode: Full, 4:3, Panoramic
	WIDE MODE [PICTURE SIZE] - PC	No	No
GENERAL	POWER REQUIREMENT	AC100-240V, 50/60Hz	AC100-240V, 50/60Hz
	POWER CONSUMPTION, PEAK / ST AND BY	120W / <1W	150W / 1W
	DIMENSIONS [W x H x D] / WEIGHT	Including Stand: 662mm x 523mm x 257mm / 18.0kg	Including Stand: 822mm x 603mm x 333mm / 19.0kg
	STAND (INCLUDED)	Swivel	Yes

LCD

DISPLAY CHARACTERISTICS	IPS LCD / EFFECTIVE DISPLAY AREA (H x V)	Yes / 698mm x 392mm, (801mm) Diagonal, 16:9	Yes / 819.6mm x 460.8mm, (940mm) Diagonal, 16:9
	NUMBER OF PIXELS (H x V) 1,366 x 768 pixels 1		,366 x 768 pixels
	PIXEL PITCH (H x V) 0.51 x 0.51mm 0		.60 x 0.60mm
	NUMBER OF COLOURS / GREY SCALE	1.06 Billion Colours / 1,021 Grey Scale	1.06 Billion Colours / 1021 Grey Scale
	VIEWING ANGLE (LEFT/RIGHT/UR/DOWN) 178 Degrees (Typical) 1		78 Degrees (Typical)
	PANEL BRIGHTNESS (AT WHITE PEAK) 500 cd/m		500 cd/m2
	CONTRAST RATIO (PANEL)	800:1 (Typical)	800:1 (Typical)
	LCD RESPONSE TIME	8 Milliseconds (Grey to Grey)	9 Milliseconds (Grey to Grey)
INPUT SIGNAL	RF / RF MULTIPLEX	W-L/W Tuner: NTSC-M, SECAM B, G/D, K/K1, PAL B, G, H/LD, K / A2 / NICAM
	TEXT / VIDEO SIGNAL	100 pages / PAL, SECAM, NTSC3.58, NTSC4.43, PAL 60, N-PAL, M-PAL	100 pages / PAL, SECAM, NTSC3.58, NTSC4.43, PAL 60, N-PAL, M-PAL
	COMPONENT SIGNAL	480i/p, 576i/p, 720p (50/60), 1080i (50/60)	480i/p, 576i/p, 720p (50/60), 1080i (50/60)
	HDMI SIGNAL (VIDEO MODE)	480i/p, 576i/p, 720p (50/60), 1080i (50/60), VGA	480i/p, 576i/p, 720p (50/60), 1080i (50/60), VGA
	ANALOGUE RGB SIGNAL	VGA UXGA (15kHz, 30 to 106kHz, 50Hz to 85Hz)	VGA UXGA (15kHz, 30 to 106kHz, 50Hz to 85Hz)
SIGNAL INPUT AND TERMINALS	RGB INPUT	RGB: Mini D-sub 1SP, Audio: Stereo Mini Jack	RGB: Mini D-sub 1SP, Audio: Stereo Mini Jack
	DVI INPUT	No	No
	VIDEO INPUT	AV1, 2 (CVBS / Y,Pb,Pr) + (L.R): RCA pin AV3 (CVBS, S-video) + (L.R): RCA pin AV4 (CVBS) + (L.R): RCA pin AV5 (CVBS, S-video) + (L.R): RCA pin (Side Input) HDMI1 (video) HDMI2 (video) + 3.5mm stereo Mini Jack
	SIDE INPUT / PHOTO INPUT	Yes / Yes USB + SD	Yes / Yes USB + SD
SIGNAL OUTPUT	SPEAKER OUTPUT	Bottom 20W (6 speakers)	Bottom 20W (6 speakers)
	HEADPHONE OUTPUT / S UBWOOFER OUTPUT	Yes / Yes	Yes / Yes
	A/V OUTPUT	1 (CVBS) + (L.R): RCA pin	1 (CVBS) + (L.R): RCA pin
PICTURE	NOISE REDUCTION / LET/ CTI	Yes / Yes	Yes / Yes
	PICTURE MODES / CO M3 FILTER	3 (Dynamic, Natural, Cinema) / 3D Y/C Comb Filter	3 (Dynamic, Natural, Cinema) / 3D Y/C Comb Filter
	WHITE BALANCE	4 (Cool, Normal, Warm, Black & White)	4 (Cool, Normal, Warm, Black & White)
	DYNAMIC CONTRAST / COLOUR MANAGEMENT	Yes / Yes	Yes / Yes
SOUND	SURROUND / ENHANCEMENT	SRS WOW / BEE	SRS WOW / BEE
	AUTO VOLUME LEVELER (AVL)	Yes (Perfect Volume)	Yes (Perfect Volume)
	SOUND MODE / AUDIO POWER (RMS)	4 (Movie, Music, Speech, Favourite) / 20W (6 Speakers)	4 (Movie, Music, Speech, Favourite) / 20W (6 speakers)
OPERATION	OSD LANGUAGES / TIMER (OFF/ ON)	English, T-Chinese, S-Chinese, Russian, Japanese, Arabic / Yes	English, T-Chinese, S-Chinese, Russian, Japanese, Arabic / Yes
	PIN FUNCTION	PIP, SPLIT, 4 Picture, 12 Picture (main) AV1-S, TV, RGB, (sub) AV1-S, TV	PIP, SPLIT, 4 Picture, 12 Picture (main) AV1-S, HDMI1-2, TV, RGB, (sub) AV1-S, TV
	WIDE MODE [PICTURE SIZE] - TV/VIDEO	5 Mode: Panoramic, Zoom, Cinema, Full, 4:3	5 Mode: Panoramic, Zoom, Cinema, Full, 4:3
	WIDE MODE [PICTURE SIZE] - PC	6 Mode: Full, Real, Normal, Zoom1, Zoom2, Zoom3	6 Mode: Full, Real, Normal, Zoom1, Zoom2, Zoom3
GENERAL	POWER REQUIREMENT	AC100-240V, 50/60Hz	AC100-240V, 50/60Hz
	POWER CONSUMPTION, PEAK / ST ANDBY	150W / <1.1W	178W / <1.1W
	DIMENSIONS (W x H x D) / WEIGHT	Including Stand: 813mm x 663mm x 350mm / 27.6kg	Including Stand: 940mm x 736mm x 350mm / 32.9kg
	STAND (INCLUDED)	Power Swivel	Power Swivel (SDBG4237 - packed separately)

PLASMA & LCD TELEVISIONS

From the Past into Future

50 Years of HITACHI TVs

FOR FURTHER INFORMATION CONTACT:

HITACHI AUSTRALIA PTY LTD (ABN 34 075 381 332)

HTTP://AUS.HITACHI.COM.AU

HITACHI

Inspire the Next

CALL 1800 HITACHI (1800 448 2244) FOR YOUR NEAREST STOCKIST

HITACHI IS A REGISTERED TRADEMARK OF HITACHI LTD.

2006/09
