Produkttyp	Videorekorder
Marke	Sanyo
Modell	VHR-774
Abmessungen (B x H x T)	ca. 430 x 95 x 250 mm
Gewicht	ca. 3,5 kg
Stromversorgung	220-240 V, 50 Hz
Leistungsaufnahme	ca. 20 W (Betrieb), < 5 W (Standby)
Bandformat	VHS
Maximale Aufnahmezeit	bis zu 6 Stunden (LP-Modus)
Wiedergabemodi	SP, LP, EP
Timer-Aufnahme	ja, programmierbar
Fernbedienung	Infrarot-Fernbedienung (im Lieferumfang)
Anschlüsse	HF-Eingang, HF-Ausgang, Cinch (Audio/Video), SCART
Kopfanzahl	4 Videoköpfe
Bildsuchlauf	vorwärts/rückwärts
Standbild/Zeitlupe	ja
Automatischer Suchlauf	ja
Kanalspeicher	bis zu 99 Sender
Reinigung	Videoköpfe mit Reinigungskassette reinigen; Gehäuse mit trockenem Tuch abwischen
Sicherheitshinweise	Nicht öffnen; kein Wasser; Netzstecker ziehen bei Gewitter; Belüftungsschlitze frei halten
Ersatzteile/Reparierbarkeit	Ersatzteile wie Riemen, Köpfe, Netzkabel sind über Fachhändler erhältlich; Reparatur nur durch Fachpersonal
Lieferumfang	Videorekorder, Fernbedienung, Bedienungsanleitung, Netzkabel, HF-Kabel

Häufig gestellte Fragen - VHR-774 SANYO

Wie kann ich den Videorekorder mit dem Fernseher verbinden?

Warum nimmt der Rekorder nicht auf?

Wie kann ich die Timer-Aufnahme programmieren?

Die Kassette lässt sich nicht auswerfen. Was tun?

Wie reinige ich die Videoköpfe?

Das Bild ist verschneit oder verrauscht. Was kann ich tun?

Kann ich den Rekorder auch ohne Fernbedienung bedienen?

Was bedeuten die Fehlermeldungen auf dem Display?

Ist der Rekorder für Aufnahmen von digitalen Quellen geeignet?

Wo finde ich Ersatzteile oder Reparaturdienste für den VHR-774?

BEDIENUNGSANLEITUNG VHR-774 SANYO

INSTRUCTION MANUAL

VHR-774E

Video cassette recorder

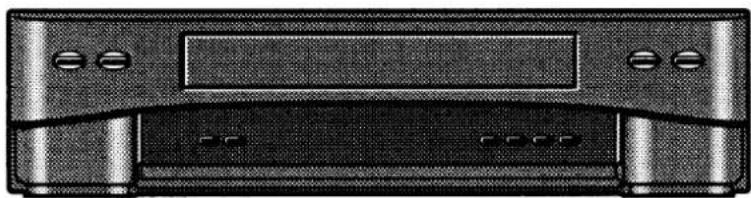

Front view of a black electronic device with two buttons and a central screen (no visible text or symbols)

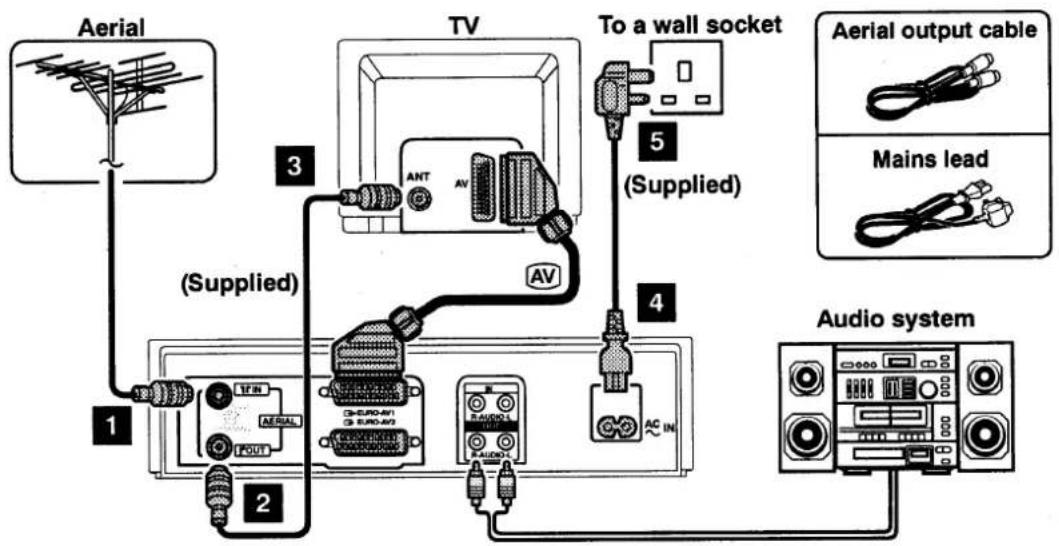

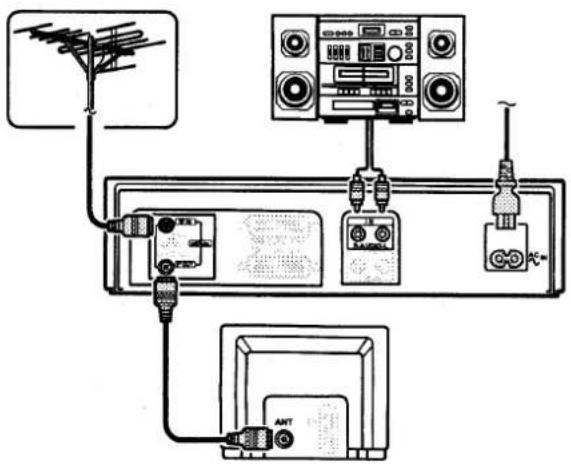

- CONNECTIONS

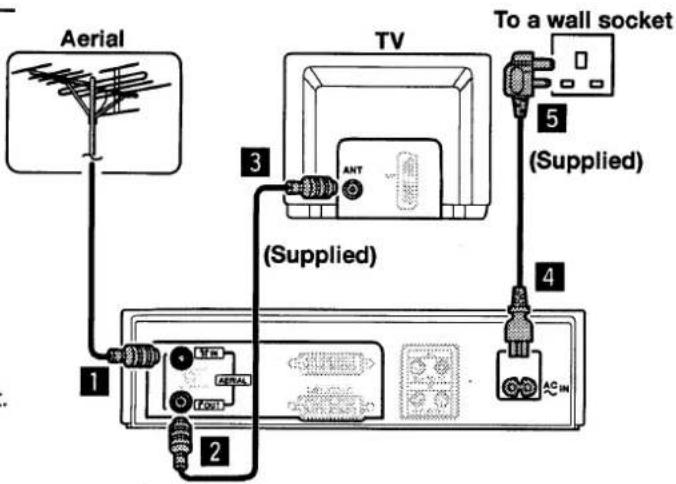

Aerial/RF connection

1 Unplug the aerial cable from your TV receiver and reconnect it to the terminal marked AERIAL IN on the VCR.
2 Connect the aerial output cable (supplied) as an accessory with the VCR to the AERIAL OUT terminal on the VCR.
3 Connect the other end of this aerial output cable to the TV receiver.
4 Plug the mains lead (supplied) into the VCR power socket before using the unit. Insert the plug straight and firmly.
5 Insert the plug of this mains lead into the wall socket.

Note: If your TV receiver has an AV terminal, AV connections are also possible.

-VCR PRESETTING

After all connections have been made, insert the remote control batteries then proceed to "Adjusting the TV receiver to the video channel" → "Language selection" → "Tuning control adjustments" → "Clock setting" to preset the VCR. The settings are entered with the remote control.

Adjusting the TV receiver to the video channel

Turn on the VCR and the TV.

Select on your TV the designated video channel (0 or 8) and adjust the tuning on the TV to UHF channel 36, so that the welcome screen is clear. When the welcome screen is clear, press the OK button.

If the VCR has been connected to the TV using the "AV connection", simply set the TV to the AV mode and the welcome screen will appear on your screen.

Language selection

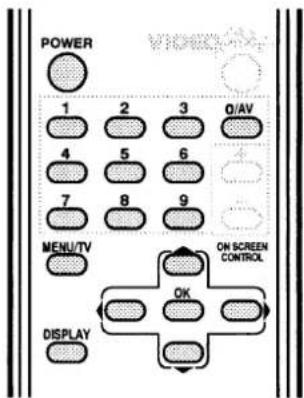

Using the cursor (▲, ▼, ◀ or ▶) buttons, select the desired language, then press the OK button.

Tuning control adjustments

1 With "MANUAL" selected, press the OK button.
2 With "CHANNEL" selected, press the cursor (◀ or ▶) button until the broadcast from the desired channel appears on the TV screen.
3 Using the cursor (▼) button, select "PRG POS.".
4 Using the numeric buttons, enter the channel position number (e.g. "01").
5 Press the OK button.
6 When all channels have been preset, press the MENU/TV button.

Clock setting

1 Press the MENU/TV button.
2 With "TIMER" selected, press the OK button.
3 Using the cursor (▼) button, select "CLOCK SET", then press the OK button.
4 When all date and time have been entered, press the OK button.

-VIDEO PLUS+ TIMER RECORDING PROGRAMMING

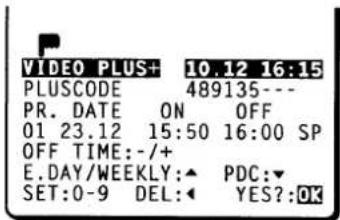

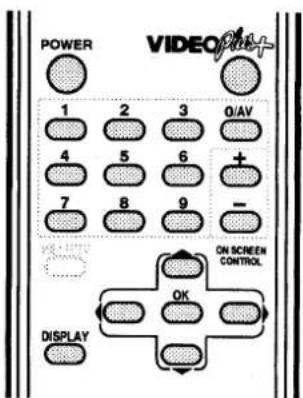

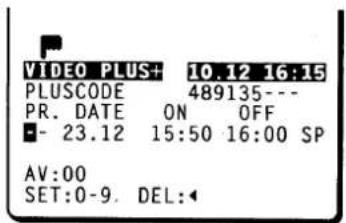

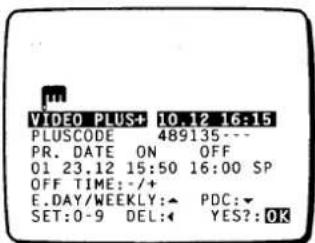

On-screen programming

1 Press the VIDEO Plus+ button.
2 Using the numeric buttons, enter the PlusCode number for the programme you want to record.

3 Press the OK button.

4 When all the settings are as desired, press the OK button.

You can then enter another recording by repeating steps 2 to 4.

5 Press the POWER button.

- The timer indicator (☐) will light on the VCR display and the VCR goes into timer recording stand-by mode.

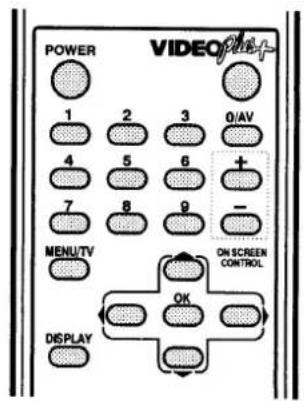

Programming on the VCR display

1 Press the VIDEO Plus+ button.
2 Using the numeric buttons, enter the PlusCode number for the programme you want to record.

3 Press the OK button.

- The programmed recording channel position number and recording date are displayed.

4 Press the cursor (▶) button.

- The on time is displayed.

5 Press the cursor (▶) button once again.

• The off time is displayed.

6 When all the settings are as desired, press the OK button.

You can then enter another recording by repeating steps 2 to 6.

7 Press the POWER button.

- The timer indicator (☐) will light on the VCR display and the VCR goes into timer recording stand-by mode.

CONTENTS

GB

Please read carefully before using the VCR.

1

INTRODUCTION

PRECAUTIONS.... 3

PARTS NAMES AND FUNCTIONS .... 5

Remote control batteries insertion ..... 7

2

PREPARATION

CONNECTIONS 8

Aerial/RF connection 8

AV connection 8

Hi-Fi audio connection.... 8

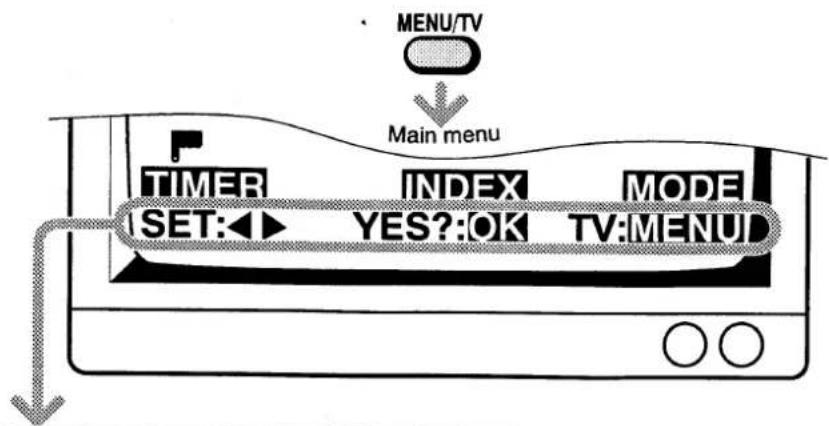

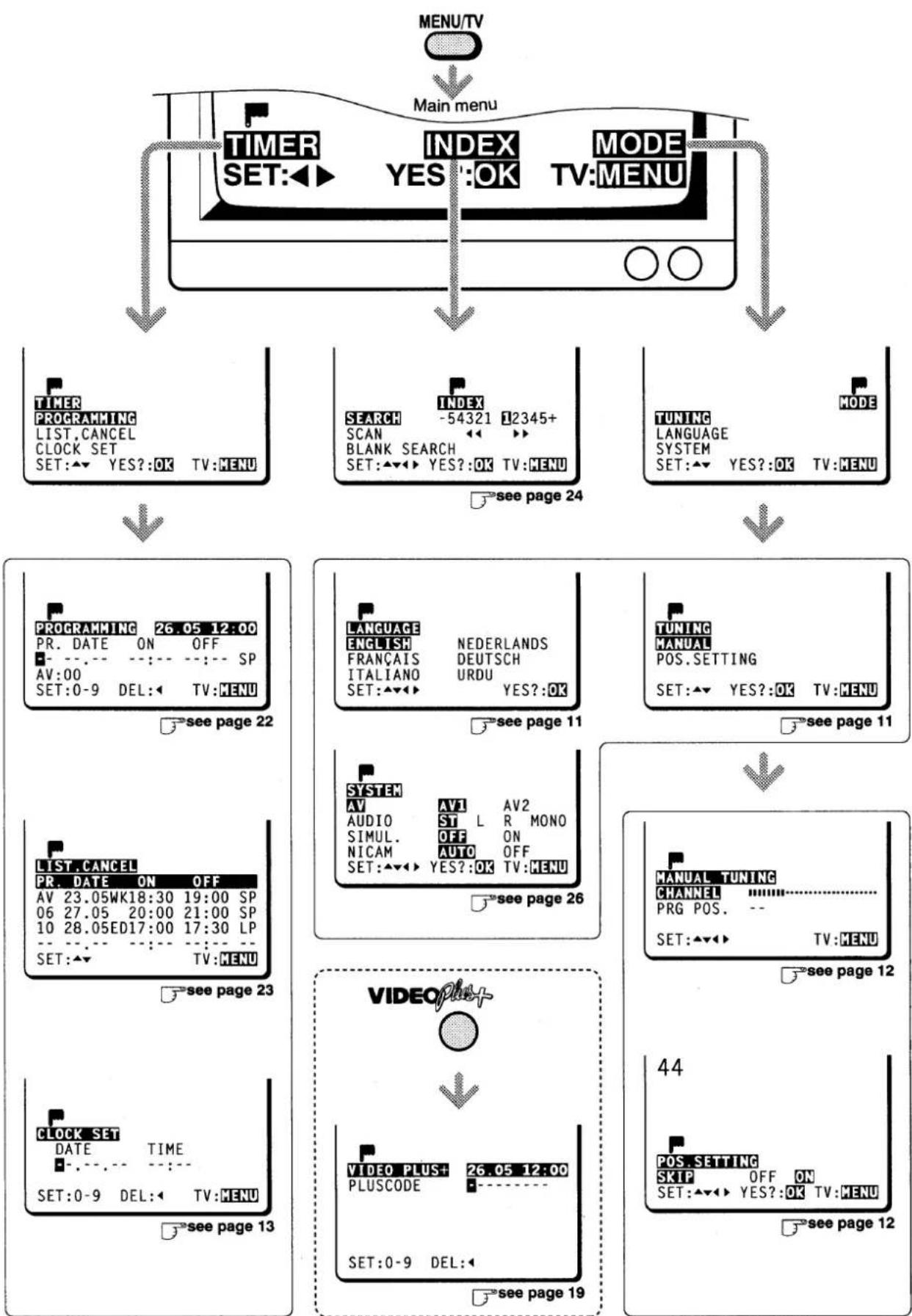

MENUS AND BASIC CONTROL 9

Make sure to follow these settings before operating the VCR.

VCR PRESETTING....11

Adjusting the TV receiver to the video channel 11

Language selection.... 11

Tuning control adjustments.... 11

Clock setting....13

Changing the settings.... 13

3

BASIC OPERATION

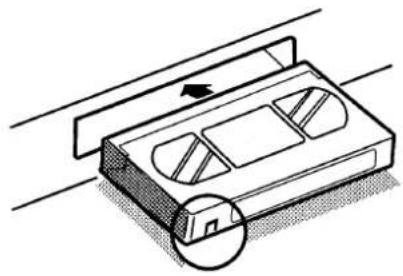

CASSETTE LOADING AND UNLOADING....14

PLAYBACK 14

Normal playback....14

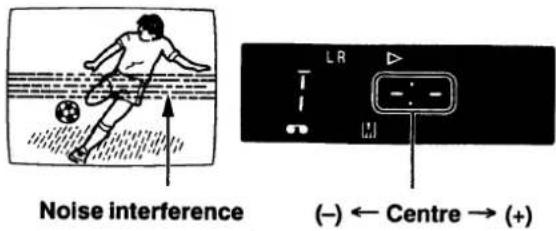

Tracking adjustment.... 15

Special playback....15

Endless play 16

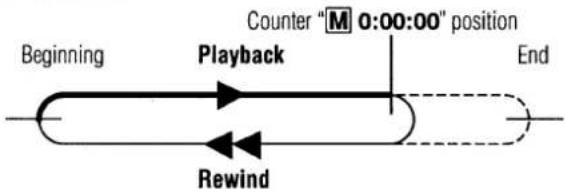

Counter memory 16

RECORDING TELEVISION BROADCASTS .....17

Normal recording 17

Quick Start Recording (QSR) timer .... 17

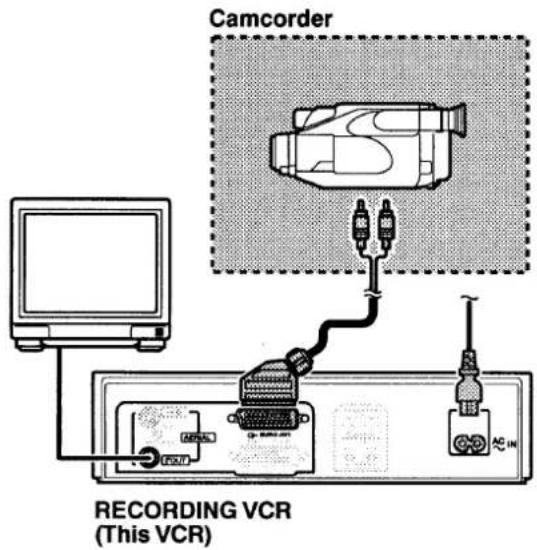

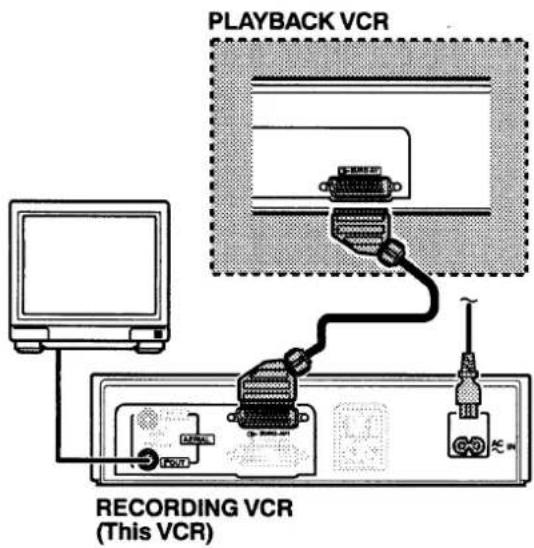

COPYING A TAPE....18

4

ON-SCREEN OPERATION

VIDEO PLUS+ TIMER RECORDING PROGRAMMING ..... 19

On-screen programming....19

Programming on the VCR display......20

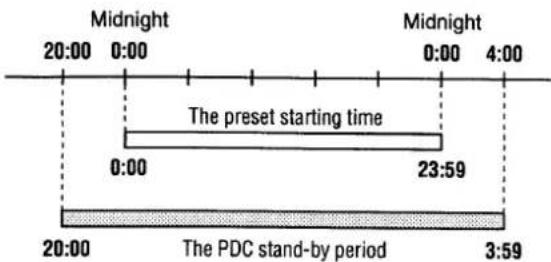

PDC (Programme Delivery Control) function 21

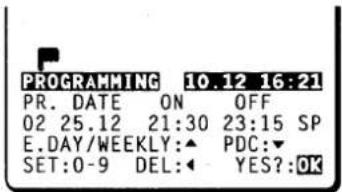

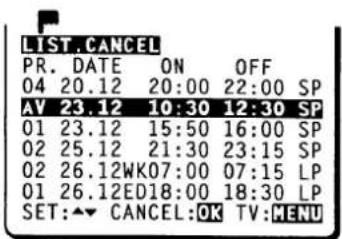

ON-SCREEN TIMER RECORDING PROGRAMMING......22

Confirmation......23

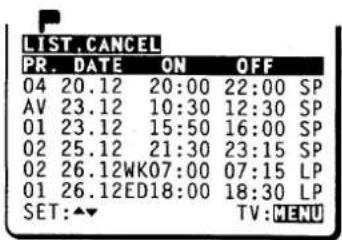

Cancelling 23

TAPE SEARCH FUNCTIONS ....24

Recording search functions .....24

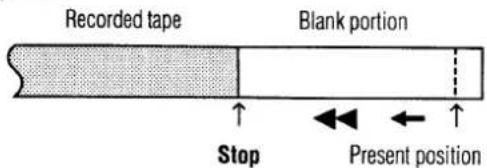

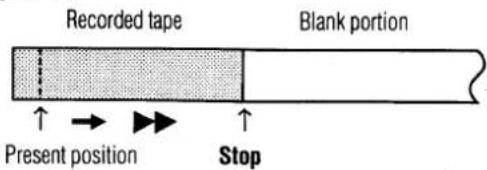

Blank search function 25

RECORDING AND PLAYBACK SYSTEMS SETTINGS.....26

Hi-Fi stereo/bilingual programmes sound selection....26

NICAM programmes....26

FM SIMULCAST RECORDING....27

5

OTHER

TROUBLESHOOTING....28

SPECIFICATIONS....29

Repairs 29

GUARANTEE TO CUSTOMER ....30

This VCR is based on a VHS-PAL signal system. Only video cassette bearing the VHS symbol can be used.

GB

INTRODUCTION

The unauthorized recording of television programmes, video tapes, films and other such material may infringe upon copyright or the rights of third parties.

Safety precautions

DANGER:

This VCR contains live parts. Do not remove the cabinet.

Illustration of a no-smoking sign emitting smoke from a bottle onto a box (no text or symbols)

WARNING:

To prevent fire or shock hazard, do not expose this product to rain or moisture.

CAUTION:

Do not put your hand or other objects in the cassette loading slot because of the risk of injury or an accident. Be sure to keep small children away from the VCR.

Operating precautions

Note:

If the unit does not operate properly, switch it off, refer to the "TROUBLESHOOTING" or consult a dealer or a service center.

Illustration of a mechanical device with a circular component and stacked blocks (no text or symbols)

Place the VCR on a flat, stable, level surface. Never subject it to violent shaking or any other shock or impact.

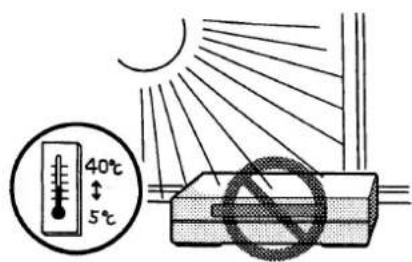

Be sure to use this VCR only in a temperature range of 5^ C to 40^ C ( 41^ F to 105^ F) and at less than 80% humidity.

Illustration of a U-shaped magnet attracting a rectangular block with a diagonal line and no text or symbols.

Do not expose the unit to high temperatures.

Excessive heat (heat sources such as heaters, ovens, closed car on hot days, etc.) may damage the unit.

Do not use the unit under the following conditions:

• in locations with high humidity
• in presence of excessive dirt or dust
• in areas subject to strong vibrations
- near strong magnetic fields (e.g. transmitting antennas, motors, fluorescent lights, etc.)

Do not stack anything on top of your VCR, or block the air vents, to prevent damaging or overheating.

Do not place anything, except VHS video cassette tapes, in the unit.

Do not allow rain, steam, dew, salt water, sand, oily smoke, metal objects, etc. entering the unit.

Power on display

The POWER button of this VCR is a secondary circuit, and does not disconnect the unit from the AC power source, even if the VCR is in stand-by, as long as the mains lead is connected to an AC electrical outlet.

Stand-by display

"Stand-by" is the condition in which only the time is displayed.

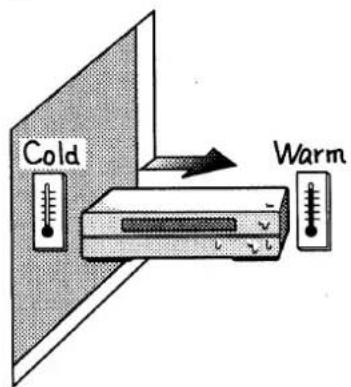

Caution concerning condensation

Be careful of condensation

Condensation is the moisture that forms on the outside of a glass when you fill it with cold water. Condensation can also form inside a VCR when it is suddenly moved from a cold place to a warm, humid one, or when a heater has been turned on to quickly heat the room.

Particular care must be taken with your VCR because water particles that form on the video head drum, which is the main VCR mechanism, can cause the video tape to stick to the drum. This prevents proper tape travel and may damage both tape and mechanism.

Follow the procedures below the first time you use the VCR, and whenever you use it in places which are subject to condensation:

① Connect the aerial cable and make all other necessary connections.
② Plug the mains lead into a wall socket.
③ Turn on the VCR power to warm it up and speed up the drying of any water particles that may have formed on the video head drum.
④ Do not insert a video cassette.

Wait for 1-1/2 to 2 hours before using the VCR.

GB

INTRODUCTION

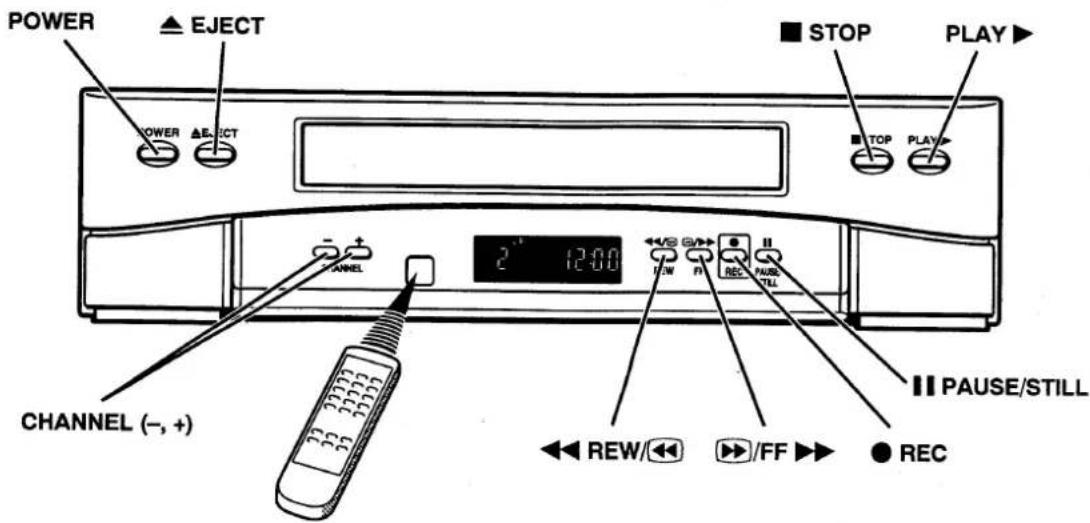

Front panel

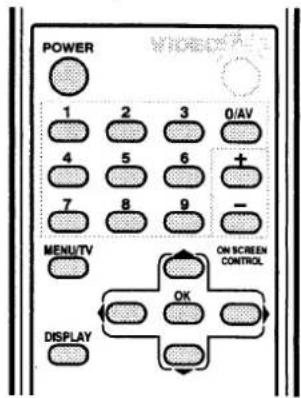

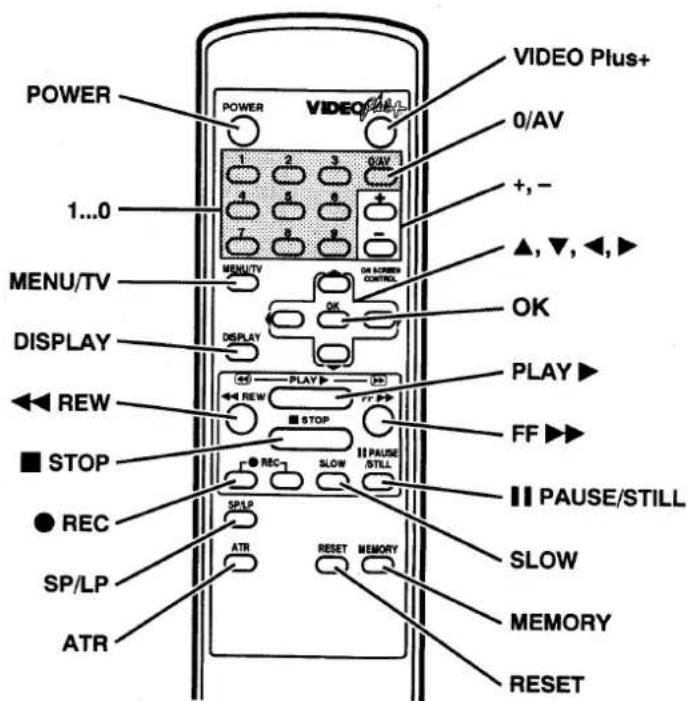

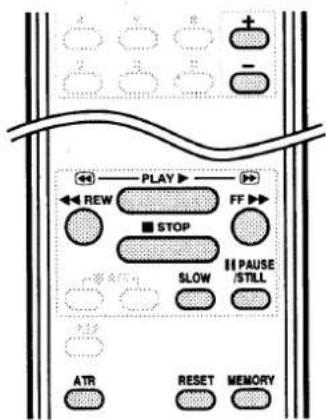

Remote control

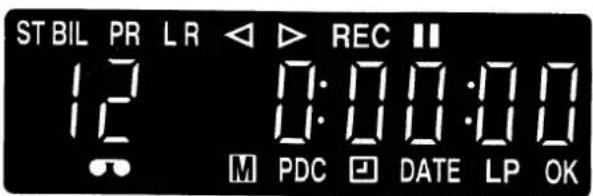

Digital display

Function	Button	Page	Display
			VCR digital display	TV screen
Cassette inserted		14	●
Channel selection down/up		17	1-44	01-44
Tracking adjustment during playback	CHANNEL (-, +), (+, -)	15	T - : -
Vertical lock adjustment during still picture		15
Unload the cassette tape	▲EJECT	14
Fast-forward		14	▷ (Blinking)	▶▶
Forward search during playback		15	▷
Power on	POWER	4
Playback	PLAY ▶	14	▷	▶
Still picture during playback		15	▷||
Recording pause		17	REC ||	●||
Immediate recording			REC	●
If pressed during normal recording, easy programmed recording (QSR) is possible	●REC	17	REC - : - -	QSR - : - -
Rewind		14	◀ (Blinking)	◀◀
Reverse search during playback		15	◀
Stop tape travel	■STOP	14
On the remote control only
Numeric buttons for channel direct access	1...0	17	1-44	01-44
On-screen operation numbers input		13
Up/down/right/left cursor control for on-screen operation	▲, ▼, ▶, ◀	9
Auto-tracking adjustment	ATR	15	T - : - -
External input mode (AV mode) select button	0/AV	18	AV	AV
To turn on/off the on-screen display of the clock, counter, etc.	DISPLAY	9		SIMUL.OFF or ON 09:52 SP 0:00:00 M
To display a blue background for on-screen menus
VIDEO Plus+ timer recording set button	VIDEO Plus+	19
To display/erase the on-screen operation main menu	MENU/TV	9
Counter memory	MEMORY	16	M
To confirm entered data	OK	9
Counter reset	RESET	16	0:00:00
Slow motion	SLOW	15	▷
To select the recording tape speed	SP/LP	14	LP

INTRODUCTION

GB

INTRODUCTION

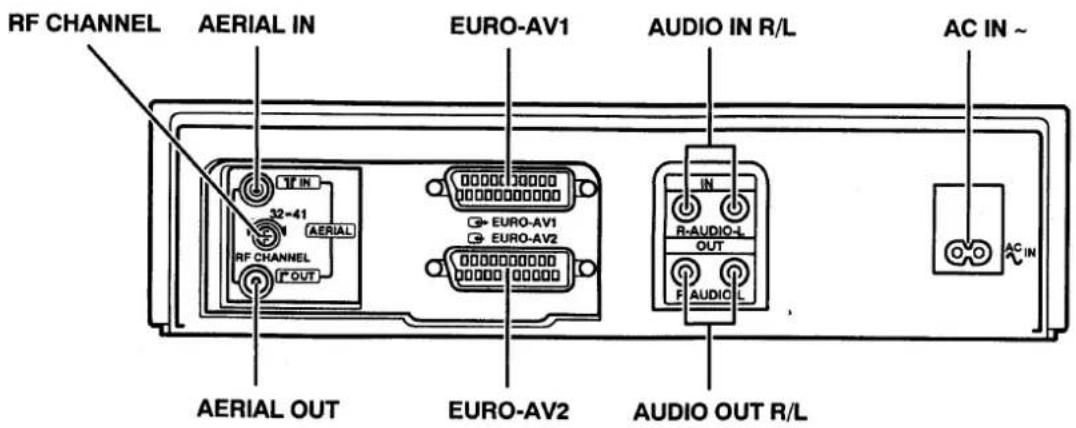

Rear panel

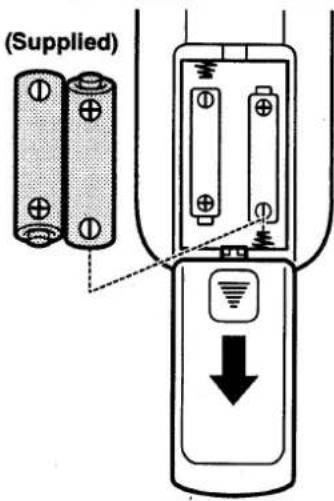

Remote control batteries insertion

1 Slide open the lid.
2 Insert 2 "AA (IEC R6)" 1.5 volt batteries (supplied) as an accessory with the VCR according to the ⊕ and ⊖ signs.
3 Replace the lid.
☐ Operate the remote control unit within a range of approx. 30° from the front of the VCR.
☐ Operate the unit within approx. 6m (20 ft.) from the front of the VCR.
☐ The battery life under normal operating conditions is about six months. If the batteries become weak, the operating distance will decrease; when this occurs, replace the batteries.
☐ If the remote control unit is not to be used for a long period of time, remove the batteries.

IMPORTANT

If the plug supplied with this appliance is not suitable for the socket outlets in your home, it should be cut off and the correct type fitted.

Disposal of plug

If the non rewireable plug is to be cut off, the removed plug should be disposed of carefully as there is a shock hazard should the plug be inserted into a live socket.

Replacing the fuse

The detachable fuse cover must be replaced after changing the fuse.

Only a 3A fuse should be used, it should comply with BS1362, and should carry the ASTA mark

Mains lead connections

The wires in the mains lead are coloured according to the following code:

Blue: Neutral Brown: Live

If the colours of the wires in the mains lead of this apparatus do not correspond with the colour markings identifying the terminals in your plug, proceed as follows:

• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured blue or black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured brown or red.
• Do not connect either wire to the Earth terminal.

Aerial/RF connection

1 Unplug the aerial cable from your TV receiver and reconnect it to the terminal marked AERIAL IN on the VCR.
2 Connect the aerial output cable (supplied) as an accessory with the VCR to the AERIAL OUT terminal on the VCR.
3 Connect the other end of this aerial output cable to the TV receiver.
4 Plug the mains lead (supplied) into the VCR power socket before using the unit. Insert the plug straight and firmly.
5 Insert the plug of this mains lead into the wall socket.

☐ For mains lead connections, see page 7.

- Both video and audio (monaural) signals are fed to the TV receiver and can be viewed by setting the TV receiver to your preset video channel (see page 11).

AV connection

If your TV receiver has an AV terminal, the following AV connections are also possible. The AV cable is sold separately.

AV Connect the EURO-AV terminal on the VCR to the AV terminal on the TV receiver.

Note:

Be sure to use a full wired EURO AV cable. (SCART lead)

• The advantage of this connection is a higher quality of picture and sound during playback.
• If connections are made to an AV control compatible TV, the TV's input can be controlled at the VCR. This means that when the VCR PLAY ▶ button is pressed, the TV input is switched automatically so that the TV functions as a video monitor.
• Some TV receivers have to be switched manually to the EURO AV mode.

EURO-AV2 terminal

The EURO-AV2 terminal is used for signal input only. It is used to connect a satellite receiver or when recording from an external video source.

Hi-Fi audio connection

• To listen to the sound from the VCR over an audio system, connect the AUDIO OUT R/L terminals to the input terminals on the audio system.
• To record the sound from an audio system, connect the AUDIO IN R/L terminals to the output terminals on the audio system. The connecting cable is sold separately.
- Stereo sound can only be enjoyed when the VCR is connected to a stereo monitor/TV or stereo audio system using an AV or Hi-Fi connection. When the VCR is connected to a TV using an RF connection the sound will be monaural.

The VCR can easily be programmed by using the menus displayed on-screen.

The menus are controlled from the remote control. The buttons that can be used with each menu are displayed at the bottom of the screen.

If you memorize the basic operations, each setting can easily be made by following the steps of the concerned menu.

☐ If a wrong sub-menu has been selected, press the MENU/TV button twice to return to the main menu, and start again.
☐ To cancel a menu halfway through, press the MENU/TV button once to return to the normal TV broadcast screen.
☐ When using an on-screen menu, if the menu is difficult to read due to the broadcast in the background, press the DISPLAY button to obtain a blue background. Press this button again to return to normal TV broadcasts background menus.

The buttons for each operation are indicated at the bottom of the screen, next to the message they apply to.

"SET:▲▼◀▶"

To move the cursor to a different location, press any of the cursor buttons.

"YES?:OK"

When the cursor is at the desired position, or the desired setting has been entered, press the OK button to go on to the following step, or to enter the setting.

"TV:MENU"

To cancel the on-screen menu and return to the normal TV screen, press the MENU/TV button.

"SET:0-9"

When required, enter the settings by pressing the numeric buttons.

"DEL:◀"

Always available together with the message "SET:0-9", as it allows to go back and erase any wrong number entered by mistake.

"CANCEL:OK"

To cancel the timer recording selected by the cursor, press the OK button.

"TIME SHIFT:▲▼"

For time shifting (Summer/Standard time), press the cursor (▲ or ▼) button.

"AV:00"

To record from an external source, press the 0/AV button twice.

"E.DAY/WEEKLY:▲"

To select a recording mode (every day or weekly) other than the standard one off recording, press the cursor (▲) button.

"PDC:▼"

To set the PDC function on or off, press the cursor (▼) button.

"OFF TIME:-/+

To advance or retard the off time of a recording programmed with the VIDEO Plus+ function, press the (- or +) button.

PREPARATION

GB

PREPARATION

If you are not presetting the VCR for the first time, please refer to page 13.

After all connections have been made, insert the remote control batteries then proceed to "Adjusting the TV receiver to the video channel" → "Language selection" → "Tuning control adjustments" → "Clock setting" to preset the VCR.

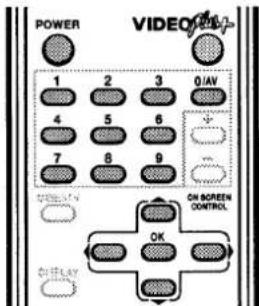

The settings are entered with the remote control. The buttons that can be used with each menu are displayed at the bottom of the screen.

Before setting

■ Press the POWER button.
■ Turn on the TV.

Adjusting the TV receiver to the video channel

If the VCR has been connected to the TV using the "AV connection", simply set the TV to the AV mode and the welcome screen will appear on your screen. When using the "RF connection", select on your TV the designated video channel (on modern TVs it is normally 0, on older ones 8) and adjust the tuning on the TV to UHF channel 36 so that the welcome screen is clear.

This is your video channel.

If in your area, UHF channel 36 is used by a broadcaster, follow the steps below.

1 Tune the TV receiver to an available UHF channel between channel 32 and 41.
2 Using a small screwdriver, slowly turn the video channel adjustment screw "RF CHANNEL" on the back of the VCR, to the right for a higher channel than 36 and to the left for a lower channel than 36. Adjust the tuning on the TV, if necessary, so that the welcome screen is clear.

This is your video channel.

To view a tape playback or to watch a TV broadcast tuned on the VCR tuner, set the TV to the video channel.

When the welcome screen is clear, press the OK button on the remote control.

• LANGUAGE menu is displayed.

Language selection

The language of the on-screen menus can be selected between the 6 available languages (English, French, Italian, Dutch, German, Urdu).

Using the cursor (▲, ▼, ◀ or ▶) button, select the desired language, then press the OK button.

• TUNING menu is displayed.

Tuning control adjustments

This VCR has a built-in tuner capable of memorizing up to 44 television channels.

Note:

This VCR has the VIDEO Plus + function built-in (see page 19), to be able to use this function the main channels must be programmed as follows:

e.g. in the London area the details are

BBC 1 to channel position "1", BBC 2 to channel position "2", ITV to channel position "3", C 4 to channel position "4".

Example:

To preset BBC 1 to channel position "1".

1 With "MANUAL" selected, press the OK button.

• MANUAL TUNING menu is displayed.

2 With "CHANNEL" selected, press the cursor (◀ or ▶) button until the broadcast from the desired channel (e.g. BBC 1) appears on the TV screen.

(▶): The channel with the next higher frequency is searched and tuned.

◀): The channel with the next lower frequency is searched and tuned.

London & South-East	BBC 1	BBC 2	ITV	C 4
Bluebell Hill......	40	46	43	65
Crystal Palace......	26	33	23	30
Dover......	50	56	66	53
Heathfield......	49	52	64	67
Oxford......	57	63	60	53

Fine tuning

When the desired channel appears on the TV screen, if the tuning of a channel is not optimum, it can be improved by manual fine tuning.

☐ Press the (+ or −) button to obtain the best possible picture and sound.

Note:

If the search stops on a bad TV screen and the on-screen display does not appear, press the cursor (◀ or ▶) button again.

• The searching will start again.

3 Using the cursor (▼) button, select "PRG POS.".

4 Using the numeric buttons, enter the channel position number (e.g. "01").

5 Press the OK button.

- BBC 1 has now been preset to channel position number "1".

Repeat steps 2 to 5 to preset another channel (e.g. BBC 2) to another channel position number.

6 When all channels have been preset, press the MENU/TV button.

Skip function

If only channel position numbers 1 to 10 have been preset, set the skip function for channel position numbers 11 to 44, so that only the preset channel position numbers will appear when pressing the (+ or -) button.

① Press the MENU/TV button.

- Main menu is displayed.

② Using the cursor (▶) button, select "MODE", then press the OK button.

③ With "TUNING" selected, press the OK button.

④ Using the cursor (▼) button, select "POS.SETTING", then press the OK button.

⑤ Using the (+ or -) button, select the channel position number to skip.

⑥ Using the cursor (▶) button, select "ON", then press the OK button.

Repeat steps ⑤ and ⑥ for every channel position number to skip.

⑦ When finished, press the MENU/TV button.

• The normal TV broadcast screen will return.

PREPARATION

Clock setting

Using the numeric buttons, enter the date (day, month, year) and time (hours, minutes).

Example:

To set December 10, 1995, 16:15.

1 Press the MENU/TV button.

☐ To obtain a blue background, press the DISPLAY button.

2 With "TIMER" selected, press the OK button.

3 Using the cursor (▼) button, select "CLOCK SET", then press the OK button.

4 Enter in sequence, 10 12 95 16 15.

☐ If you entered a wrong number, press the cursor (◀) button to delete it then enter the correct number.

Time shift

For time shifting (TIME SHIFT) adjustment (Summer/Standard time), simply press the cursor (▲ or ▼) button.

5 When the date and time have been entered, press the OK button.

• The normal TV broadcast screen will return.

Note:

Seconds will start counting from "00" as the OK button is pressed.

Changing the settings

Follow the steps below to modify or correct a setting.

Language selection

① Press the MENU/TV button.
② Using the cursor (▶) button, select "MODE", then press the OK button.
③ Using the cursor (▼) button, select "LANGUAGE", then press the OK button.
④ To set the desired language, refer to "Language selection" on page 11.

Clock setting

Please refer to "Clock setting".

Tuning control adjustments

① Press the MENU/TV button.
② Using the cursor (▶) button, select "MODE", then press the OK button.
③ With "TUNING" selected, press the OK button.
④ To modify the channels settings, refer to "Tuning control adjustments" on page 11.

Power interruption

If the power to the VCR has failed or has been disconnected for more than 1 hour, the digital display displays “- : - -”.

And the welcome screen is displayed, the selected language is English, the time, date (and recording programmes) should be reset.

To enter the settings with the remote control again, refer to "VCR PRESETTING" starting on page 11.

Note:

The tuner preset memory will not be erased. So there is no need to follow the steps under "Tuning control adjustments".

CASSETTE LOADING AND UNLOADING

Loading

When a video cassette is inserted, it will be loaded automatically and the cassette-in (●●) indicator will illuminate.

Auto power on

The power is automatically switched on as a cassette is inserted while the VCR is in the stand-by mode.

Unloading

Power off eject

The video cassette will be ejected when the ▲EJECT button is pressed, even when the VCR is in stand-by mode.

Diagram of a cassette tape being inserted into a slot, showing motion direction (no text or symbols)

Erasure-prevention tab

If the erasure-prevention tab on the back of the video cassette is removed, the cassette cannot be recorded on.

This tab is designed to prevent the accidental erasure of recorded material.

To record onto the same cassette again, place two layers of adhesive tape over the space where the tab was, so as to cover the space completely.

Playback/Recording duration

The recording tape speed can be selected by pressing the SP/LP button.

During playback, the tape speed cannot be changed, the playback speed will always match the speed selected for recording.

Standard Play mode (SP): Best image and sound quality. No display indicates SP mode.

Long Play mode (LP): Twice the SP mode duration.

PLAYBACK

Before starting

■ Insert a recorded video cassette.
■ Turn on the TV then set it to the preset video channel or AV mode.

Normal playback

1 Press the PLAY ▶ button.

Auto play

The VCR will play back a tape automatically when a video cassette is inserted whose erasure-prevention tab has been removed.

2 To stop the playback, press the ■STOP button.

☐ To rewind the tape, press the ◀REW button.
☐ To advance (fast-forward) the tape, press the FF▶▶ button.

Auto eject

When a video cassette without an erasure-prevention tab is played to the end of the tape, the tape will be automatically rewound and then the cassette will be ejected.

BASIC OPERATION

Tracking adjustment

Auto-tracking adjustment

① If the playback picture is disturbed by noise interference press the ATR button, adjustment to the optimum point will occur automatically.

Manual tracking adjustment

② If the playback picture still shows interference, manually adjust it with the (+ or -) button, to minimize the noise.

If you wish to return the tracking adjustment to its original "centre position" after having changed it, press both the CHANNEL (-, +) buttons on the VCR simultaneously.

Note:

The tracking cannot be adjusted while an on-screen menu is displayed.

Special playback

Forward search

① Press the FF ▶ button during playback or fast-forward operation. The picture can be viewed while the tape is advanced at a fast speed.
② Normal playback will resume when the PLAY button is pressed.

Reverse search

① Press the ◀◀REW button during playback or rewind operation. The picture can be viewed while the tape is rewound at a fast speed.
② Normal playback will resume when the PLAY ▶ button is pressed.
☐ To search for a particular scene you can switch from fast forward to forward search and vice versa by simply pressing the FF▶▶ button, or from rewind to reverse search by simply pressing the ◀◀REW button.

Still picture

① Press the I IPAUSE/ STILL button during playback. A still picture can be viewed.
② Normal playback will resume when the PLAY ▶ button is pressed.
☐ If the still picture moves up and down, press the (+ or -) button to adjust the still picture.

Frame advance

① Press the I IPAUSE/STILL button during still playback to advance the picture frame by frame. Each press advances one frame.
② Normal playback will resume when the PLAY ▶ button is pressed.

Slow motion

① Press the SLOW button during playback or during still picture. The tape speed can be set from 1/5 to 1/30 of normal speed by pressing the SLOW button.
② Normal playback will resume when the PLAY ▶ button is pressed.

Notes:

• If still picture or slow motion playback is continued for about five minutes, the VCR will automatically change to stop mode in order to prevent the tape from being damaged.
• During special playback modes the picture may contain some noise or vibration. But this is not a malfunction.
• This VCR will not guarantee the picture quality of special playback in the LP mode.
• If noise bars are visible in the still picture, frame advance or slow motion mode, use the (+ or -) button while in the slow motion mode to correct.

Endless play

This function will play back a tape to the end, rewind it then replay it again, and again until you stop it.

1

In the stop or playback mode, firstly press the PLAY ▶ button then whilst holding the PLAY ▶ button down press the ◀REW button.

- The tape is rewound to the beginning and then playback will start.

☐ If the counter memory function is used in combination with endless play, the VCR will play back the tape to the counter reading "M 0:00:00" then start again from the beginning.

Example 1:

Without using the counter memory.

Example 2:

Using the counter memory, the "M" indicator switched on.

2

To cancel the endless play, press the ■STOP button.

Notes:

• During the endless play, the VCR doesn't accept special playback functions such as forward search, reverse search or still picture.
• This function can only be activated using the control on the VCR itself. The feature cannot be activated using the remote control.

Counter memory

This convenient feature for finding the beginning of a specific recording etc., is made possible by the "Linear Time Counter" that indicates the tape run time in hours, minutes and seconds.

• Whenever you load a cassette tape, the counter will be reset to "0:00:00".
• When rewinding further back from position "0:00:00", the counter shows figures beginning with “—”.
• The tape stops at the memorized position "0:00:00" even when using fast forward when the counter reading begins with "--".

1

Press the RESET then the MEMORY button before starting recording or playback.

- The zero point of the counter is now memorized and the memory indicator "M" will illuminate.

2

Press the ◀◀REW button at the end of recording, or playback.

- The tape will be rewound automatically to the memorized position and then stop.

☐ The counter operates using control signals which are recorded on the tape, hence if you play back a tape or portion of tape which has nothing recorded on it, the counter will not operate.

GB

BASIC OPERATION

Before starting

■ Insert a video cassette with erasure-prevention tab.
■ Turn on the TV then set it to the preset video channel or AV mode.

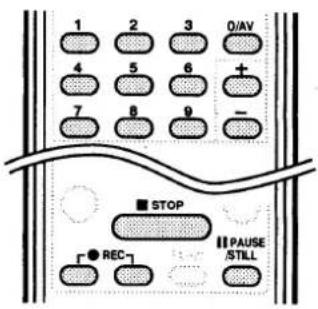

Normal recording

1 Press the numeric buttons, or the (+ or -) button, to select the channel to be recorded.

Example:

Position number "2"

☐ To select the tape speed, press the SP/LP button.

2 Press the ●REC buttons.

• Video recording starts.

Mis-erasure prevention eject

The cassette will automatically be ejected if recording is attempted on a video cassette without an erasure-prevention tab.

If you wish to avoid recording unwanted material

① During recording, press the Ⅱ PAUSE/STILL button. The TV picture and sound will not be recorded.

② Press the II PAUSE/ STILL button or ●REC buttons, and the recording will resume.

Note:

If the record pause mode continues for about five minutes, the VCR will automatically go into the stop mode in order to prevent damage to the tape.

3 To stop the recording, press the ■STOP button.

Auto rewind

The VCR automatically rewinds the tape when it reaches the end. This function does not operate with timer recording or QSR timer recording.

Quick Start Recording (QSR) timer

Timer recording is simple.

You can start a recording and then programme when the VCR is to stop recording and go to stand-by mode automatically.

Note:

Be sure that the set date and time are correct.

1 Press the ●REC buttons to start recording.

2 Press the ●REC buttons again.

- The "QSR - - : - -" indication will display on the TV screen.

3 Within 10 seconds, set the recording end time by using ●REC and (+ or −) button.

☐ Each press of the ●REC buttons will advance the recording end time by units of 30 minutes.
☐ Each press of the + button will advance the recording end time by units of 1 minute.
☐ Each press of the – button will retard the recording end time by units of 1 minute.
- The timer indicator (☐) will light after the recording end time is set.

☐ To stop the recording at any time, press the ■STOP button.

Checking/Changing

When the ●REC buttons are pressed during QSR recording, the recording end time will blink for 10 seconds. The recording end time can be changed by pressing

●REC and (+ or −) buttons during this 10-second period.

Recording one programme while watching another

① Start recording the desired TV programme selected on the VCR.
② Select on the TV receiver the programme you want to watch.

Copying (dubbing) a tape can be done using two video recorders, a playback VCR and a recording VCR.

Before starting

■ Connect the PLAYBACK VCR (or Camcorder) and the RECORDING VCR.

for RECORDING VCR

1 Insert a video cassette with erasure-prevention tab.

☐ To select the tape speed, press the SP/LP button.

2 Make sure the input matches the input mode selected under "AV" of the SYSTEM menu.

① Display the SYSTEM menu, see page 26.

② Using the cursor (◀ or ▶) button, select "AV1" or "AV2". Press the OK button.

3 Set to the "AV" mode.

☐ Press the 0/AV button once to display "AV" instead of a channel position number or,

☐ Press the CHANNEL (− or +) button to display "AV" instead of a channel position number.

4 Set to the record pause mode.

☐ The record pause mode is set by pressing the ●REC button then the IIPAUSE/ STILL button.

for PLAYBACK VCR (Camcorder)

5 Insert the recorded video cassette.

6 Start playback by pressing the PLAY ▶ button.

for RECORDING VCR

7 When the desired starting position is reached, start recording by pressing the IIPAUSE/STILL button or the ●REC button.

8 When the copy is completed, press the ■STOP button on the RECORDING VCR then on the PLAYBACK VCR.

GB

ON-SCREEN OPERATION

VIDEO Plus+ and PlusCode are trademarks of Gemstar Development Corp.
VIDEO Plus+ system is manufactured under license from Gemstar Development Corporation.

This VCR has a built-in VIDEO Plus+ system.

Programming timer recordings is now as simple as entering a PlusCode number (1 to 9 digits) listed next to each programme in your local TV guide or newspaper TV programme listing.

There are two ways of programming Video plus+ timer recordings. One is using the on-screen display and the other one is using the VCR display.

PlusCode

Note:

Make sure that the following broadcasting stations are preset as indicated below (see page 11):

BBC 1 to channel position "1", BBC 2 to channel position "2", ITV to channel position "3", C 4 to channel position "4".

On-screen programming

Before starting

■ Be sure that the set date and time are correct. If the date and time are not set, the "CLOCK SET" on-screen menu will display (see page 13).
■ Insert a video cassette with erasure-prevention tab.
■ Turn on the TV then set it to the preset video channel or AV mode.

1 Press the VIDEO Plus+ button.

☐ To obtain a blue background, press the DISPLAY button.

2

Using the numeric buttons, enter the PlusCode number for the programme you want to record.

Example:

Enter the PlusCode number 489135.

☐ If you entered a wrong number, press the cursor (◀) button to delete it then enter the correct number.

3

Press the OK button.

- The settings for the programmed recording are displayed.

Additional settings

□ E.DAY(Everyday)/WEEKLY recording

Press the cursor (▲) button repeatedly to select; "ED": for every day (Monday through Friday) Everyday recording starting on Saturday or Sunday will not be possible.

"WK": for weekly (the same programme everyweek) No display: for one off recording (see display above)

□ Recording tape speed setting

Press the SP/LP button repeatedly to display at the right of the off time:

"SP": for the best image and sound quality "LP": for the longest recording duration

□ Changing the off time

Each press of the (+ or -) button will change the recording off time by units of 10 minutes.

□ PDC recording (see page 21.)

Press the cursor (▼) button repeatedly. If the VCR has not been adapted for PDC, the PDC option will not appear on-screen.

- When the "PDC" indicator appears, the PDC function is set.

By pressing the cursor (◀) button three times, you can delete the programme settings and then start again from step 2.

4 When all the settings are as desired, press the OK button.

You can enter another recording by repeating steps 2 to 4.

5 Press the POWER button.

- The timer indicator (☐) will light on the VCR display and the VCR goes into timer recording stand-by mode.

Programming on the VCR display

You can programme or confirm a VIDEO Plus+ timer recording on the VCR display even if the TV is turned off.

Before starting

■ Be sure that the set date and time are correct. If the date and time are not set, the VIDEO Plus+ button will not function. Set the date and time by using the "CLOCK SET" on-screen menu (see page 13).
■ Insert a video cassette with erasure-prevention tab.

1 Press the VIDEO Plus+ button.

- 9 bars (−) will display on the VCR display.

2 Using the numeric buttons, enter the PlusCode number for the programme you want to record.

Example:

Enter the PlusCode number 489135.

☐ If you entered a wrong number, press the cursor (◀) button to delete it then enter the correct number.

3 Press the OK button.

- The programmed recording channel position number and recording date are displayed.

Additional settings

□ Everyday/Weekly recording

Press the cursor (▲) button repeatedly to select: "Ed": for every day (Monday through Friday) Everyday recording starting on Saturday or Sunday will not be possible. (The OK button will not end the procedure.) "WK": for weekly (the same programme everyweek) No display: for one off recording

□ Recording tape speed setting

Press the SP/LP button repeatedly. No display indicates SP mode.

□ PDC recording (see page 21.)

Press the cursor (▼) button repeatedly. If the VCR has not been adapted for PDC, the PDC option will not appear on the VCR display.

- When the "PDC" indicator appears, the PDC function is set.

4 Press the cursor (▶) button.

• The on time is displayed.

5 Press the cursor (▶) button once again.

• The off time is displayed.

□ Changing the off time

Each press of the (+ or -) button will change the recording off time by units of 10 minutes.

6 When all the settings are as desired, press the OK button.

You can enter another recording by repeating steps 2 to 6.

7 Press the POWER button.

- The timer indicator (☐) will light on the VCR display and the VCR goes into timer recording stand-by mode.

Notes:

- If the channel position number "PR." displays "--"

Enter the channel position number this broadcast channel has been preset to.

That setting will be memorized and set the next time that same broadcast channel is selected.

- When recording from an external source

Press the 0/AV button twice. The setting under "PR." (channel position) will change to "AV".

If a channel position number is already displayed, first press the cursor (◀) button twice.

• If there is a power failure during a timer recording, the recording will stop. If the power is returned to the VCR within 60 minutes, the recording will resume if the off time has not yet been reached.
• The (☐) indicator will flash if no video cassette is loaded when going into timer stand-by mode.
• The (☐) indicator will flash and the video cassette is ejected if a video cassette with no erasure-prevention tab is loaded.
• If 6 timer recordings have already been set, the message "PROGRAM FULL" on-screen or "FULL" on the VCR display will appear, when the VIDEO Plus+ button is pressed.

You will first have to cancel one of the programmed timer recordings (see page 23) before you can set a new timer recording.

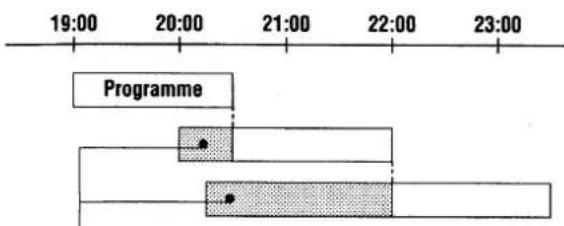

PDC (Programme Delivery Control) function

Currently the PDC system is not widely used by broadcaster in the UK.

If it does gain wider use and you want to make use of it, this VCR can be adapted. Please consult your Sanyo authorized service agent.

The PDC function ensures that the recording is made according to the recording on and off time control signals broadcasted by the station. Therefore, if the recording on and/or off time are changed, the VCR is informed of the altered times and recording changed, whether it is at an earlier or later time.

Also, if the programme being recorded is interrupted (for ex. by a news special, etc.) and the PDC function is on, recording will be automatically interrupted and will automatically resume when the programme starts again.

Notes:

• Set the recording times and date exactly as advertised. If the on time is different from advertised, PDC timer recording will not be done.
• Not all TV stations transmit PDC signals. Check in your region to find out which stations transmit PDC signals.
• If the station does not transmit PDC signals or if the PDC function is not set, the recording will be held at the programmed times.

PDC stand-by period

When programming with the PDC function, the recording can be held anytime in the stand-by period if the starting time differs from the scheduled one. The stand-by period varies depending on the preset on time.

The preset on time is between 0:00 (midnight) and 23:59 (the following day)

The PDC stand-by period is from 20:00 (the previous day) to 3:59 (the following day)

Timer recording enables you to set up to 6 programmes to be recorded upon a period of up to 1 year.

Daily recordings (Monday through Friday) and weekly recordings are possible.

Before starting

■ Be sure that the set date and time are correct. If the date and time are not set, the "CLOCK SET" on-screen menu will display (see page 13).
■ Insert a video cassette with erasure-prevention tab.
■ Turn on the TV then set it to the preset video channel or AV mode.

1 Press the MENU/TV button.

☐ To obtain a blue background, press the DISPLAY button.

2 With "TIMER" selected, press the OK button.

3 With "PROGRAMMING" selected, press the OK button.

Note:

The message "PROGRAM FULL" will display if 6 timer recordings have already been set.

4 Using the numeric button, enter the desired settings.

"PR.": channel position number

"DATE": recording date

"ON": recording on time

"OFF": recording off time

□ When recording from an external source

Press the 0/AV button twice. The setting under "PR." (channel position) will change to "AV".

Example:

To record a programme on channel position "2" from 21:30 to 23:15 on December 25.

Enter 02 25 12 2130 2315, using the numeric buttons.

☐ If you entered a wrong number, press the cursor (◀) button to delete it then enter the correct number.

Additional settings

□ E.DAY(Everyday)/Weekly recording
Press the cursor (▲) button repeatedly to select:
"ED": for every day (Monday through Friday) Everyday recording starting on Saturday or Sunday will not be possible.
"WK": for weekly (the same programme everyweek)
No display: for one off recording (see display above)

□ Recording tape speed setting

Press the SP/LP button repeatedly to display at the right of the off time:

"SP": for the best image and sound quality "LP": for the longest recording duration

☐ PDC recording (see page 21.) Press the cursor (▼) button repeatedly. If the VCR has not been adapted for PDC, the PDC option will not appear on-screen.

- When the "PDC" indicator appears, the PDC function is set.

5 When all the settings are as desired, press the OK button.

• The normal TV broadcast screen will return.

You can enter another recording by repeating steps 1 to 5.

6 Press the POWER button.

- The timer indicator (☐) will light on the VCR display and the VCR goes into timer recording stand-by mode.

GB

ON-SCREEN OPERATION

Confirmation

1 Press the MENU/TV button.

2 With "TIMER" selected, press the OK button.

3 Using the cursor (▼) button, select "LIST,CANCEL".

4 Press the OK button.

• The programmed timer recordings are listed.

☐ To cancel the programmed timer recordings, continue with step 5.
☐ To return to the normal TV broadcast screen, press the MENU/TV button.

Cancelling

5 Using the cursor (▲ or ▼) button, select the programme to cancel.

6 Press the OK button.
7 To return to the normal TV broadcast screen, press the MENU/TV button.

Programme priority

• If several timer recordings have overlapping recording time, the recording with the earliest on time will be recorded first, until the end.
• Recordings programmed with PDC always have priority.
• If two PDC-programmed recordings overlap, the recording that starts first will have priority.

These portions will not be recorded

Please refer to "Confirmation" to check recording times.

Notes:

• If there is a power failure during a timer recording, the recording will stop. If the power is returned to the VCR within 60 minutes, the recording will resume if the off time has not yet been reached.
• The (☐) indicator will flash if no video cassette is loaded when going into timer stand-by mode.
• The (☐) indicator will flash and the video cassette is ejected if a video cassette with no erasure-prevention tab is loaded.

This VCR can automatically search for the recording you wish to watch or the beginning of the next blank (unrecorded) portion of the tape.

Before starting

■ Insert the recorded video cassette.
■ Turn on the TV then set it to the preset video channel or AV mode.

Recording search functions

An index signal is automatically placed at the beginning of each recording made on this VCR. This index can be used to search for the recording you wish to watch.

Index signals are not recorded after a recording pause.

Notes:

• Make sure that indexes are at least five minutes apart from each other.
- If a cassette tape is not loaded, the "INDEX" on-screen menu will not be accessible.

Search function

The VCR will go directly to the beginning of a recording and start playback.

① Press the MENU/TV button.
② Using the cursor (▶) button, select "INDEX".
③ Press the OK button.

• INDEX menu is displayed.

④ With "SEARCH" selected, select the desired index number using the cursor (◀ or ▶) button.

Example:

To search for the third recording after the search start position, use the cursor (▶) button to select the index number "3" on the "+" side (right side).

⑤ Press the OK button.

- The search function will start, "SEARCH" and the index number will be displayed on the TV screen.

☐ To stop the search function, press the ■STOP button.

Scan function

The VCR will play back the first 5 seconds of the recording every time it finds an index signal.

① Press the MENU/TV button.
② Using the cursor (▶) button, select "INDEX".
③ Press the OK button.
• INDEX menu is displayed.

④ Using the cursor (▼) button, select "SCAN".

⑤ Using the cursor (◀ or ▶) button, select "◀◀" or "▶◀".
“◀◀”: To scan toward the beginning of the tape. “▶▶”: To scan toward the end of the tape.

⑥ Press the OK button.

- The scan function will start, "SCAN" and the direction will be displayed on the TV screen.

⑦ When the desired recording is found, press the PLAY▶ button during that 5-second period to start normal playback from that position.

☐ To stop the scan function, press the ■STOP button.

ON-SCREEN OPERATION

Blank search function

The blank search function automatically searches for the beginning of the next blank (unrecorded) portion of the tape, and stops the VCR at that position. This is convenient when you want to continue recording at the end of a previous recording.

1 Press the MENU/TV button.

2 Using the cursor (▶) button, select "INDEX".

3 Press the OK button.

- INDEX menu is displayed.

4 Using the cursor (▼) button, select "BLANK SEARCH".

5 Press the OK button.

• The blank search function will start, "BLANK SEARCH" will be displayed on the TV screen.
• When the unrecorded portion of the tape is found, the VCR will stop at that position.

Example 1:

Example 2:

☐ To stop the blank search function, press the ■STOP button.

Note:

This function may also stop the VCR at slight pauses (unrecorded portions) between taped programmes. Play back a few seconds of the tape to make sure it is at the position you want.

The settings for the recording and playback systems should be left to the normal setting.

1 Press the MENU/TV button.
2 Using the cursor (▶) button, select "MODE", then press the OK button.
3 Using the cursor (▼) button, select "SYSTEM", then press the OK button. • SYSTEM menu is displayed.

"AV": AV input selection (setting matching the connection)

To select the EURO-AV1 or EURO-AV2 when the VCR is in "AV" mode.

"AUDIO": Audio selection (ST)

To listen to Hi-Fi stereo programmes or Hi-Fi stereo recorded tapes.

"SIMUL.": Simulcast broadcasts selection (OFF)

Set to "ON" to record FM simulcast broadcasts.

"NICAM": NICAM selection (AUTO)

To record NICAM broadcasts when available.

4 Using the cursor (▲, ▼, ◀ or ▶) button, select the desired setting, then press the OK button.

Hi-Fi stereo/bilingual programmes sound selection

The sound Hi-Fi stereo or bilingual programmes can be selected to listen to the desired sound.

The sound can be selected with the SYSTEM menu.

① Display the SYSTEM menu.
② Using the cursor (▼) button, select "AUDIO".
③ Using the cursor (◀ or ▶) button, select "ST", "L", "R" or "MONO".
④ Press the OK button.

The selected sound is shown on the VCR display.

Stereo programmes

When a stereo broadcast is received, the stereo indicator "ST" illuminates on the VCR display.

On-screen “AUDIO” line	VCR display	Selected sound
ST	“LR”	Left and Right channels
L	“L”	Left channel
R	“R”	Right channel
MONO	No indicator	Monaural

Bilingual programmes

When a bilingual broadcast is received, the bilingual indicator "BIL" illuminates on the VCR display.

On-screen “AUDIO” line	VCR display	Selected sound
ST	“LR”	Main and Sub
L	“L”	Main
R	“R”	Sub
MONO	No indicator	Main

Note:

When playing back a tape not recorded on a Hi-Fi VCR the "LR" indicators go off.

- Stereo programmes and bilingual programmes cannot be recorded on the monaural audio track. They are only recorded on the Hi-Fi stereo audio tracks.

NICAM programmes

The audio recording pattern of NICAM broadcasts is set in the SYSTEM menu.

① Display the SYSTEM menu.
② Using the cursor (▼) button, select "NICAM".
③ Using the cursor (◀ or ▶) button, select "AUTO". To record the normal (FM mono) sound, select "OFF".
④ Press the OK button.

ON-SCREEN OPERATION

GB

ON-SCREEN OPERATION

Some television programmes have a simulcast stereo sound broadcasted by an FM radio station. You can record the simulcast sound transmitted by the FM radio station and the picture transmitted by the TV station.

Before starting

■ Connect an audio system (FM tuner) to the rear AUDIO IN R/L terminals.
■ Insert a video cassette with erasure-prevention tab.
■ Turn on the TV then set it to the preset video channel or AV mode.
■ Turn on the audio system.

1 Select "ON" at the "SIMUL." line of the SYSTEM menu.

① Display the SYSTEM menu, see page 26.
② Using the cursor (▼) button, select "SIMUL."
③ Using the cursor (▶) button, select "ON", then press the OK button.

2 Select on the VCR the TV station to record, and tune in on the FM tuner the station retransmitting the stereo sound.

☐ To select the tape speed, press the SP/LP button.

3 Press the REC ● buttons to start recording.

☐ To stop the recording, press the ■STOP button.

This VCR is highly sophisticated. It is shipped from the factory after having been checked and adjusted under the most rigid quality control and inspection system. Should problems occur, check the following points.

POWER TROUBLE

Symptom	Check points
No power	The mains lead is disconnected.
The remote control unit doesn't operate	The batteries are low.

RECEIVER TROUBLE

Symptom	Check points
No TV programmes received	Are the connections between your VCR and TV correct?Was tuning correctly preset?
Off the air reception on the VCR is poor	The video channel setting of the TV receiver does not correspond to the video channel presetting of the VCR.

PLAYBACK TROUBLE

Symptom	Check points
Playback picture does not appear	The video channel setting of the TV receiver does not correspond to the video channel presetting of the VCR.
Interference in playback picture	Adjust the tracking control.Dust or dirt on video heads. Take the VCR to an Authorized Service Station or dealer.

RECORDING TROUBLE

Symptom	Check points
No recording	The erasure-prevention tab on the cassette has been removed.
Timer recording is not possible	The starting day and time have not been set correctly.The clock time is not set correctly.There has been a power interruption of more than 60 minutes.

ON-SCREEN TROUBLE

Symptom	Check points
The main menu does not appear	The VCR has not been preset as described under “VCR PRESETTING”.
The VIDEO Plus+ button does not function	If the VCR displays “- : - -” and the welcome screen appears on the TV, because the VCR is connected for the first time or because the power has failed or has been disconnected for more than 1 hour, first set the “LANGUAGE” and the “CLOCK”.

Hi-Fi TROUBLE

Symptom	Check points
Hi-Fi audio recording is performed incorrectly	The AV input selection is not set correctly.
Sound of a Hi-Fi recorded tape drops out	The tape might be defective.Use a new video cassette tape.

GB

OTHER

General

Video format:	VHS PAL
Television system:	CCIR: 625 lines, PAL colour signals
Video heads:	4 heads
Tape speed:	SP: 23.39 mm/secLP: 11.70 mm/sec
RF converter:	Built-in UHF converter
Converter output:	On channel 32 - 41
Timer indication:	24-hour indication
Power failure backup:	Approx. one hour
Timer recording:	1 year 6 programmes with every day and weekly recording function
Power requirement:	220-240 V AC, 50Hz
Dimensions (W x H x D):	360 x 89 x 290 mm
Weight:	Approx. 4 kg
Power consumption:	22 W

Electrical characteristics

Video input:	0.5 - 2.0Vp-p, 75 ± 5 ohms
Video output:	1.0 ± 0.2Vp-p, 75 ± 5 ohms
Audio input:	-3.8 dBs, more than 10 kohms
Audio output:	-3.8 dBs, less than 1 kohm
Video S/N:	More than 43 dB
Horizontal resolution:	More than 240 lines

Hi-Fi audio

Audio recording system:	VHS Hi-Fi system (2 channel), (Normal audio track is monaural)
Frequency response:	20 Hz - 20,000 Hz
Dynamic range:	More than 90 dB
Wow and flutter:	Less than 0.005% (WRMS)
Channel separation:	More than 60 dB

Accessories

Mains lead	Aerial output cable	Remote control unit	“AA (IEC R6)” size, 1.5-volt battery

Appearance and specifications are subject to change without notice.

This unit conforms with EEC standard 87/308.

Automatic head-cleaning system

This VCR is equipped with an automatic head-cleaning system which automatically cleans the heads every time a cassette is loaded or unloaded. However if during playback noise appears in the picture, it is recommended to use commercially available head-cleaning cassettes to completely clean the VCR heads.

Repairs

This VCR is a precision instrument and, if treated with care, will provide years of satisfactory performance. However, in the event of difficulty, the owner is advised not to attempt to make repairs or open the cabinet. Servicing should always be referred to your servicing dealer or Authorized Warranty Station.

GUARANTEE TO CUSTOMER

Sanyo U.K. Sales Ltd. (the Company) guarantees to the initial retail purchaser that if this equipment is or becomes defective and that, in the opinion of the Company, the defect is due to faulty material or workmanship the Company will, for a period of 12 calendar months from the date of sale to the original purchaser repair or replace, at its sole option, free of charge, any such defective component part of the equipment, always provided that:-

1. The equipment has at all times been used in accordance with the operating instructions issued by the Company, and has not been connected to an electrical mains supply for which it has not been adjusted.
2. Accidental damage, or damage caused by negligence of misuse by the user, including leakage from exhausted batteries, is specifically excluded.
3. Unauthorised repairs, or any modification to the equipment which has not been expressly approved by the Company, shall render this guarantee null and void.
4. Failure due to fair wear and tear of any item, such as batteries, record playing styli, and tape recording, playback and erase heads and head cleaning is specifically excluded.

This guarantee is not transferable and is only applicable within the United Kingdom (and the Republic of Ireland). Nothing in this express guarantee affects the statutory rights available to the purchaser of this equipment.

DearCustomer

Thank you for buying Sanyo. This equipment should give you many years of pleasure and faithful service but in the event that a fault occurs, the following notes for your guidance may be helpful:-

1. PLEASE RETAIN YOUR PURCHASE RECEIPT WHICH WILL BE REQUIRED FOR SERVICE DURING GUARANTEE.
2. If your Sanyo equipment proves faulty during the period of guarantee, take it or send it back to the dealer who originally supplied it together with this guarantee and the proof of purchase. We have made arrangements with our approved dealers under which they will carry out in guarantee service repairs on our behalf. In this way, we hope to reduce to a minimum the amount of time you will be without your equipment.
3. If for some reason it is impossible to return the equipment to the original supplier, please contact our Service Administration Department at the address below for further advice.
4. Should the equipment require servicing after the expiry of the guarantee period, take or send it to the original supplier or any other Sanyo dealer. He will be pleased to give you a quotation for the repair. If you are in any doubt about what to do, write to us at the address below or telephone:

Sanyo U.K. Sales Ltd.

Sanyo House Otterspool way, Watford, Hertfordshire WD2 8JX Tel: Watford 246363

SANYO

Printed on 100% recycled paper

1AC6P1PP464--

TK4H/E-C2F (0294KP-SY01)

SANYO Electric Co., Ltd.

Printed in Germany
