BEDIENUNGSANLEITUNG MC=E461 PANASONIC

Operating Instructions

Vacuum Cleaner

MC-E460K, MC-E461K, MC-E463K

MC-E460, MC-E461, MC-E463

Line drawing of a vacuum cleaner on a black surface (no text or symbols)

Panasonic

We would particularly advise that you carefully study these Operating Instructions before attempting to operate the unit and that you note the Important Safety Instructions.

This product complies with the European directives 73/23/EEC and 89/336/EEC and with the Australian Standards AS 3350.2.2 (1995) and Australian EMC requirements for the C-Tick Mark.

TABLE OF CONTENTS

Page

Page

• Caution for AC Mains Lead (UK, IRL only) 2
- Important Safety Instructions for the user .... 3
• Cautions 3
- Identification of main parts 4
A) Handle assembly 5
B) Power cord release / storage 5
C) ON/OFF Switch 5
D) Variable power control 6
E) Handle adjustment by foot pedal 6
F) Beater bar switch 7

HOW TO ASSEMBLE / OPERATE YOUR CLEANER

G) Automatic height adjustment 7
H) Floor scratch prevention 7
I) How to use the accessories 8
J) Dust bag change indicator 8
• How to change the dust bag 9
- Filter care 9
• Blockages 10
- Maintenance for the rotary brush....10
• Servicing and repairs 11
- Trouble shooting guide 12

MAINTENANCE AND SERVICING

CAUTION FOR AC MAINS LEAD (UK, IRL only)

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 13 amp fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 13 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark 📂 or the BSI mark 🌐 on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local Panasonic Dealer.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN

THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMP SOCKET.

If a new plug is to be fitted please observe the wiring code as shown below.

If in any doubt please consult a qualified electrician.

IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:

Blue: Neutral

Brown : Live

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED.

Under no circumstances should either of these wires be connected to the earth terminal of the three pin plug, marked with the letter E or the Earth Symbol 12

How to replace the Fuse:

• There are two types of the supplied AC Mains Lead: A and B as shown below.
  1 Open the fuse compartment with a screwdriver.
  2 Replace the fuse and fuse cover if detachable.

Line drawing of a plug with a wrench inserted, no text or symbols present

TYPE A

Simple line drawing of a plug with wires and connectors (no text or symbols)

TYPE B

Line drawing of an electrical plug with two terminal blocks and a cable (no text or symbols)

Fuse cover Part No.: AMC8D48C0000.

When using this vacuum cleaner, please observe these basic precautions. WARNING: To reduce the risk of fire, electric shock, or injury:

• Do not leave the vacuum cleaner plugged in to mains outlet. Unplug from the outlet when not in use and before cleaning the appliance or undertaken maintenance operations.
  • Electric shocks can occur if used outdoors or on wet surfaces.
• This appliance is not intended for use by young children or infirm persons without supervision; young children should be supervised to ensure that they do not play with the appliance.
• Do not use with damaged cord or plug. If the vacuum cleaner is not working as it should be, or has been dropped, damaged, left outdoors, or come into contact with water, consult an authorised Panasonic Service Centre.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, pull cord around sharp edges or corners. Do not run vacuum cleaner over the cord. Keep cord away from heated surfaces.
• Do not handle plug or vacuum cleaner with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may block or reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not use the vacuum cleaner without filters and / or dust bag in place. Never try to patch a broken dust bag.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.
• This appliance should be serviced by an authorised Panasonic Service Centre, and only genuine Panasonic spare parts should be used.
• Keep feet, fingers and hands away from the rotary brush. (It may cause injury).

NOTE: These vacuum cleaners are designed for general household use only and are not suitable for use in a garage, garden or to suck up liquids.

1) To avoid any possible damage to the mains cable, never run over the cord or allow it to become caught in the rotary brush when using the vacuum cleaner.

Illustration of a smoking cigarette with a cross crossed over a cup and scattered cigarettes (no text or symbols)

4) To avoid damaging the machine or the dust bag, never let the vacuum cleaner pick up wet matter, mud, burning ashes or large and sharp objects.

Line drawing of a car with a tool inserted, showing motion and safety (no text or symbols)

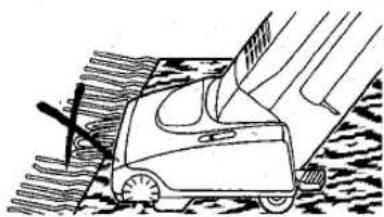

2) Do not run the vacuum cleaner over tassels or fringes of rugs or mats as they could get caught up in the rotary brush and may cause damage to the brush and belt.

Diagram of a mechanical device with coiled spring and internal components, no text or symbols present

5) Do not pull on the cord when disconnecting the appliance from the mains, always pull on the plug body itself.

Illustration of a vacuum cleaner emitting exhaust smoke next to a grid of industrial equipment (no text or symbols)

3) Keep the vacuum cleaner away from heat sources such as radiators, fires, direct sunlight, etc.

Line drawing of a hand using a computer mouse to press or interact with a device (no text or symbols present)

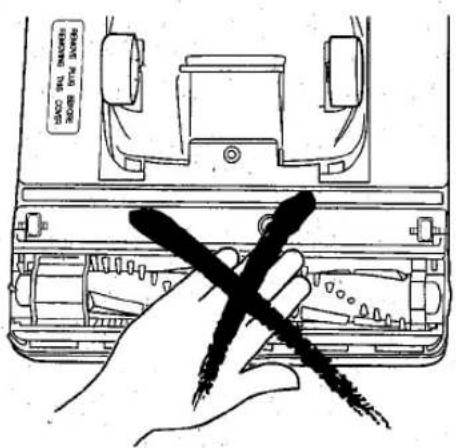

6) To avoid injury, keep your fingers and hands away from the rotary brush, and never put them between the cleaner bodies.

IDENTIFICATION OF MAIN PARTS

HOW TO ASSEMBLE / OPERATE YOUR CLEANER

Line drawing of a hand using a tool to adjust or install a mechanical component with tubing (no text or symbols)

1) Insert the base of the handle into the top of the body of the machine as shown. Push in handle and tighten the screw.

IMPORTANT: Do not over tighten the screw.

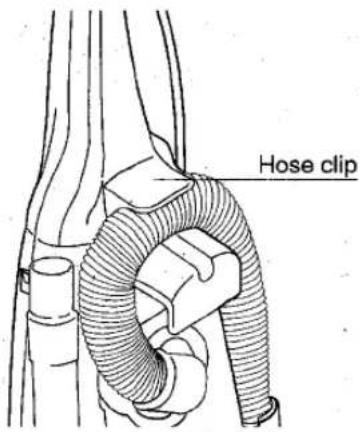

2) Set the hose around the hose clip.

NOTE: Always place the hose in the clockwise direction.

Diagram of a rope or cable structure with labeled 'Upper' (no other text or symbols)

3) Turn the upper cord hook in the upright position and wind the power cord around the upper and lower cord hooks.

Upper cord hook

Lower cord hook/ Carrying handle

Illustration of hands connecting a cable to a hose and plug (no text or symbols)

1) Turn the upper hook to release the power cord for instant use.

Illustration of a hand using a tool to lift a flexible hose or hose component (no text or symbols present)

2) Fix the power cord by the cord clip to help secure the cord during use.

NOTE: To avoid any possible damage to the power cord, never run over the cord or allow it to become caught in the rotary brush.

To start or stop the vacuum cleaner push the switch button to "I" to turn ON and to "O" to turn OFF.

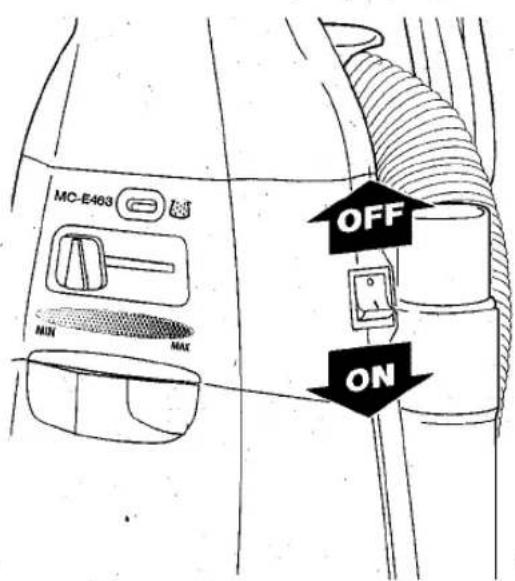

D) VARIABLE POWER CONTROL (MC-E463K, MC-E463 only)

These vacuum cleaners incorporate a variable power control to select the most suitable power required for your cleaning needs.

MIN: To clean curtains and soft furnishing's etc., with tool attached.

Illustration of a hand using a tool to clean or paint the curtain (no text or symbols visible)

MAX: To clean with high suction continuously on carpets.

Line drawing of a car being pulled off a tiled floor (no text or symbols)

E) HANDLE ADJUSTMENT BY FOOT PEDAL

To lower the body of the cleaner, step on the pedal at the left rear corner of the vacuum cleaner.

Line drawing of a hand operating a handheld device with a curved blade (no text or symbols)

1) Upright position The handle should be in an upright position when cleaning tools are used.

Line drawing of a car with motion lines indicating airflow or spray (no text or symbols)

2) Middle position For normal cleaning, depress the foot pedal and pull back the handle to a comfortable angle and release the pedal to lower the cleaning head.

Line drawing of a car interior with legs and stairs, showing no text or symbols

3) Low position For cleaning under furniture, depress the pedal a second time. The handle may now be lowered almost to the floor as shown.

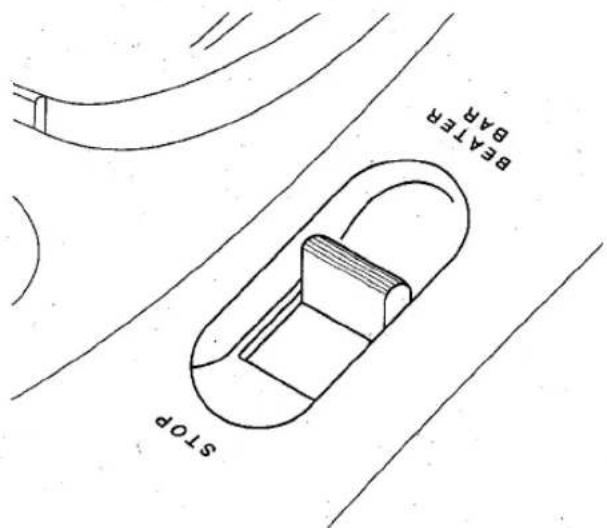

When cleaning carpeted surfaces, slide the switch to the "BEATER BAR" position.

When cleaning on hard floors or when using the accessories, slide the switch to the "STOP" position to stop the brush from rotating.

NOTE: Ensure that the vacuum cleaner is switched on before moving the beater bar switch.

Line drawing of a hand using a pressure scale on a device (no text or symbols)

SWITCH BEATER BAR ON OR OFF

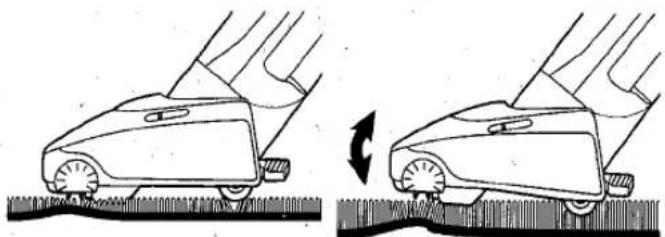

Your Panasonic vacuum cleaner is designed with an Automatic Height Adjustment, which adjusts the cleaning head to the proper height of any carpet pile.

This system allows you to move from one carpeted area to another, without having to make time consuming manual adjustments.

Diagram showing two identical car wheels with motion arrows indicating vertical motion (no text or symbols)

To ensure correct operation of the vacuum cleaner on hard floors, slide the "BEATER BAR" switch to the "STOP" position.

Tiled floor

Line drawing of a tiled floor with a cleaning robot and a hand holding a tool (no text or symbols)

Carpeted floor

I) HOW TO USE THE ACCESSORIES

1) To use the accessories keep the vacuum cleaner in upright position and slide the beater bar switch to "STOP" position to stop the rotary brush rotating.
2) Pull out the hose from the rear side of the vacuum cleaner and remove the hose from the hose clip and support. Then connect any accessory as illustrated.

NOTE: After having finished using the accessories, re-insert the hose to the suction inlet and re-install the hose into the hose clip and support.

Line drawing of a woman using a vacuum cleaner on a curtain (no text or symbols)

CAUTION: While using the accessories, hold the handle with one hand as shown above to avoid pulling the cleaner over.

Two line drawings showing hand positioning of a door panel and a pair of hands holding a tool, both without any text or symbols.

J) DUST BAG CHECK INDICATOR

The dust bag check indicator (yellow mark) will appear in the window, when airflow through the bag is insufficient.

When this happens, check the paper bag, it may be full or blocked with fine dust and needs to be replaced.

NOTE: If after having replaced the bag, the yellow mark continues appearing in the window, check to see if the hose or suction inlet is clogged. (see BLOCKAGES).

Also the yellow mark can appears when using the crevice nozzle.

Technical line drawing of a mechanical device with internal components and a cylindrical component (no text or symbols)

MAINTENANCE AND SERVICING

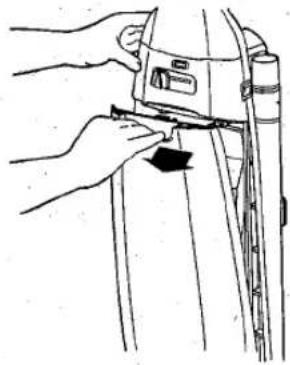

IMPORTANT NOTE: Before servicing any part, always DISCONNECT THE CLEANER FROM THE ELECTRICITY MAINS

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

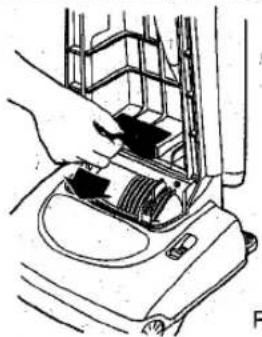

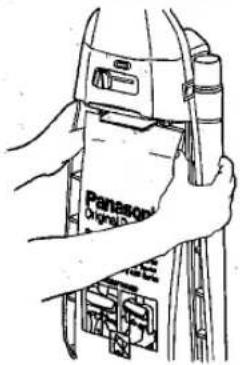

1) Remove dust cover simply pulling it forwards.

2) Grip the cardboard of the dust bag and pull out.

3) Install the dust bag by pressing the cardboard as shown. Before replacing the dust cover, make sure all edges of the dust bag are completely inside the bag compartment.

IMPORTANT: Dust bags should be changed regularly for the maximum efficiency of the filters and prolonged motor efficiency.

We recommend the use of genuine Panasonic bags Type U-2E only.

Line drawing of a hand inserting a component into a device (no text or symbols)

Fig. 1

Line drawing of a hand inserting a component into a device (no text or symbols)

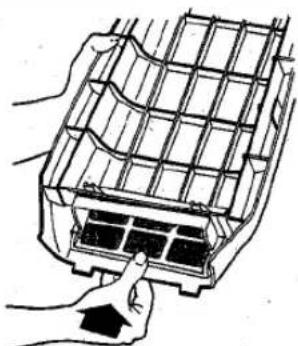

Central Filter (Fig. 1) Part no. AMC8F0391100

The central filter (foam filter) is installed in the dust bag compartment to protect the motor from dirt. When it becomes dirty, simply rinse it out in warm water and dry it thoroughly before replacing. To remove the central filter, hold the filter at the top (as illustrated) and pull it out.

Important: Ensure that the filter is completely dry before re-installing it into the cleaner.

Diagram of a car air conditioner unit being inserted into a tray, showing internal grid structure and hand placement (no text or symbols)

Illustration of hands inserting a grid into a device component (no text or symbols visible)

Clean Air Filter (Fig. 2) Part no. AMC8F28G1000

The clean air filter (electrostatic), is installed in the dust cover. This filter retains any small dust particles which may be present in the expelled air. It is advisable to change the clean air filter when it becomes dirty. As a guide, once or twice a year is usually sufficient, depending on use.

To change the clean air filter, first remove the dust cover and then slide out the filter support and simply unhook the filter from the retaining ribs.

IMPORTANT: Never use the cleaner without the correct filters properly installed. Failure to do so may result in motor damaged.

BLOCKAGES

If your cleaner stops to pick up dust, or the dust bag check indicator shows "Full" while the dust bag is still empty, a blockage may have occurred.

Remove the hose from the suction inlet, push the small clips inwards, turn the hose right and pull it upwards (Fig. 1). Clear any obstruction from the hose and/or suction inlet using a blunt implement, taking care not to damage the hose.

If the obstruction occurs in the suction pipe inlet, it can be removed with care as shown in Fig. 2.

Line drawing of hands installing a hose component on a vehicle (no text or symbols)

Fig. 1

Illustration of a hand adjusting a hose with a belt buckle (no text or symbols)

Fig. 2

MAINTENANCE FOR THE ROTARY BRUSH

DO NOT USE YOUR FINGERS OR HANDS TO REMOVE OR CLEAN THE ROTARY BRUSH.

When it is necessary remove threads, strings, hairs, etc., which have wound around the rotary brush, cut across them with a pair of scissors making sure not to cut the brush.

Before replacing any part DISCONNECT THE CLEANER FROM THE MAINS SUPPLY. We always recommend you use genuine Panasonic replacement parts only. If you have any query, contact your local Panasonic dealer / service agent. To replace any of the following parts, place the vacuum cleaner in the horizontal position by using the pedal. Then turn it over exposing the underside.

HOW TO REPLACE - DRIVE BELT TYPE UB-1L / ROTARY BRUSH ASSEMBLY

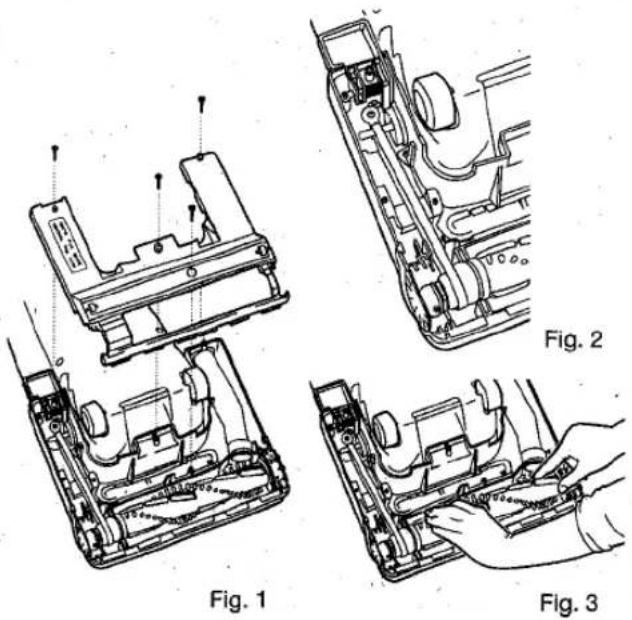

1. Remove the 4 screws from the base plate and lift it off. (Fig. 1)
2. Release the belt from the motor shaft and lift the rotary brush assembly to remove the belt. (Fig. 2)
3. To reassemble the rotary brush assembly, simply return the belt to the motor shaft and rotary brush pulley. Re-insert the rotary brush mounts to their holding points, and turn the rotary brush to ensure that the belt has been seated correctly.(Fig. 3)
4. Replace the base plate and re-fasten the screws securely.

HOW TO REPLACE - ROTARY BRUSH / SIDE BRUSHES / BEARING SUPPORT A-B

1. First remove the base plate, drive belt and lift out the rotary brush assembly (as illustrated above).

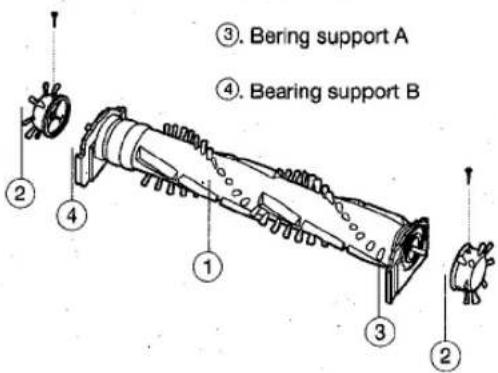

2. Remove the 2 screws at both ends of the rotary brush assembly and separate the different parts as shown in the exploded view.
3. Replace any damaged part and reassemble in reverse order.

①. Rotary Brush
②. Side brush
③. Bering support A
④. Bearing support B

TROUBLE SHOOTING GUIDE
Before returning the vacuum cleaner to a Panasonic Service Centre, check the following points:
Trouble	Check Point	Cause / Remedy
Motor fails to rotate (no noise is heard at all).	Mains plug connection.Mains plug fuse.	Mains plug connected firmly and mains outlet is on.Check fuse and replace if blown.
Motor runs but no suction.	Hose inlet clogged.Check dust indicator.Paper bag broken.Central filter.	If there is a blockage, remove it.If shows full, replace the paper bag.If paper bag is broken replace it.If the central filter is full of dust, clean or replace it.
Rotary brush does not rotate.	Rotary brush housing is clogged.Belt broken / loose.	If there is any obstruction, remove it.If the belt is broken , replace it. If loose re-install it again.

This vacuum cleaner is attached with a thermal-fuse device, that will operate when over heating occurs. If your cleaner does not work, it is possible that the over heating device has operated. If this occurs, take the vacuum cleaner to an official Panasonic Service Centre to be repaired.

SPECIFICATIONS	MC-E460KMC-E460	MC-E461KMC-E461	MC-E463KMC-E463
Power source	230-240V~50Hz	230-240V~50Hz	230-240V~50Hz
Max. output	1200W	1400W	1400W
Nominal output	900-1000 W	1100-1200 W	1100-1200 W
Dimensions (WxLxH) mm	312x310x1050	312x310x1050	312x310x1050
Net weight	6 kg	6 kg	6,1 kg
Dusting brush	√	√	√
Upholstery nozzle	√	√	√
Extension wand	√	√	√

Design and specifications may be changed without notice. Weight and dimensions shown are approximate.

REMINDER FOR CUSTOMER

The model and serial number of this product may be found on the name plate located at the back of your cleaner. You should note the model and serial number in the spaces provided and retain this book for a future reference.

Model Number: ....

Serial Number:

Date Purchased:

Where Purchased:

Matsushita Electric España, S.A.

DIVISION DE ASPIRADORAS

Zona Industrial del Polígono de CELRÀ

17460 CELRÀ (Girona) SPAIN

100% recycled paper
