Produkttyp	Bodenstaubsauger
Marke	Panasonic
Modell	MC-E962
Beuteltyp	Beutellos (Zyklontechnologie)
Leistung	2000 Watt
Staubbehältervolumen	1,5 Liter
Filtertyp	HEPA-Filter (waschbar)
Gewicht	5,5 kg
Abmessungen (B x H x T)	270 x 400 x 320 mm
Kabellänge	7 Meter
Aktionsradius	ca. 8 Meter
Geräuschpegel	78 dB(A)
Funktionen	Bodenschonend, automatische Kabelaufwicklung, Parkposition
Zubehör (im Lieferumfang)	Fugendüse, Polsterdüse, Kombidüse
Reinigung des Filters	Regelmäßig unter fließendem Wasser ausspülen
Entleeren des Staubbehälters	Behälter entnehmen und über Mülleimer leeren
Überhitzungsschutz	Ja (automatische Abschaltung)
Standby-Leistungsaufnahme	0,5 Watt
Energieeffizienzklasse	A (gemäß EU-Verordnung)
Farbe	Schwarz / Silber

Häufig gestellte Fragen - MC-E962 PANASONIC

Wie wechsle ich den Filter bei meinem Panasonic MC-E962?

Der HEPA-Filter sitzt im Motorraum. Öffnen Sie die Filterabdeckung, entnehmen Sie den alten Filter und setzen Sie einen neuen ein. Der Filter ist waschbar: spülen Sie ihn unter kaltem Wasser aus und lassen Sie ihn vollständig trocknen, bevor Sie ihn wieder einsetzen.

Was mache ich, wenn der Staubsauger keine Saugkraft mehr hat?

Überprüfen Sie zuerst den Staubbehälter und den Filter auf Verstopfungen. Leeren Sie den Behälter und reinigen Sie den Filter. Kontrollieren Sie auch die Düsen und das Rohr auf Blockaden. Falls das Problem bestehen bleibt, kann der Motor überhitzt sein; lassen Sie das Gerät abkühlen.

Kann ich die Zubehörteile des Panasonic MC-E962 separat nachkaufen?

Ja, Ersatz- und Zusatzteile wie Filter, Düsen und Schläuche sind bei Panasonic-Kundendienstzentren oder online erhältlich. Verwenden Sie immer Originalteile, um die Leistung zu gewährleisten.

Wie reinige ich den Staubbehälter?

Drücken Sie die Entriegelungstaste, um den Behälter zu entnehmen. Leeren Sie ihn in den Müll. Bei Bedarf können Sie den Behälter mit einem feuchten Tuch auswischen. Lassen Sie ihn vor dem Wiedereinsetzen vollständig trocknen.

Warum schaltet sich mein Staubsauger während des Betriebs aus?

Der Überhitzungsschutz schaltet das Gerät aus, wenn es zu heiß wird. Lassen Sie den Staubsauger ca. 30 Minuten abkühlen, bevor Sie ihn wieder einschalten. Prüfen Sie auch, ob Staubbehälter oder Filter verstopft sind.

Wie oft sollte ich den HEPA-Filter wechseln?

Der Filter sollte alle 3 bis 6 Monate ausgetauscht werden, je nach Nutzung. Wenn Sie den Filter regelmäßig reinigen, verlängert sich die Lebensdauer. Ein verstopfter Filter reduziert die Saugleistung erheblich.

Kann ich den Panasonic MC-E962 auch auf Parkett verwenden?

Ja, der Staubsauger ist mit einer bodenschonenden Düse ausgestattet und kann auf allen Hartböden wie Parkett, Laminat und Fliesen eingesetzt werden. Verwenden Sie die spezielle Parkettdüse, falls im Lieferumfang enthalten.

Wie entferne ich Verstopfungen im Saugschlauch?

Trennen Sie den Schlauch vom Gerät und von der Düse. Biegen Sie den Schlauch leicht, um eventuelle Blockaden zu lösen, oder klopfen Sie vorsichtig darauf. Bei hartnäckigen Verstopfungen können Sie einen langen Gegenstand (z.B. einen Kleiderbügel) verwenden, um das Hindernis zu entfernen.

Wie funktioniert die automatische Kabelaufwicklung?

Halten Sie das Netzkabel fest und betätigen Sie den Fußtaster an der Rückseite des Geräts. Das Kabel wird automatisch aufgewickelt. Ziehen Sie vorher immer den Stecker aus der Steckdose.

Was bedeuten die Symbole auf dem Bedienfeld?

Die Symbole zeigen die Saugkraftstufen (z.B. Minimal, Normal, Maximal) sowie die Filterwechselanzeige an. Ein durchgestrichener Filter zeigt an, dass der Filter gereinigt oder ausgetauscht werden muss. Bitte konsultieren Sie die Bedienungsanleitung für genaue Erklärungen.

BEDIENUNGSANLEITUNG MC-E962 PANASONIC

Operating Instructions

Vacuum Cleaner

MC-E960K, MC-E961K, MC-E962K

Black-and-white illustration of a vacuum cleaner with attached tool, no visible text or symbols

Panasonic

We would particularly advise that you carefully study these Operating Instructions before attempting to operate the unit, and that you note the Important Safety Instructions.

This product complies with the directives 73/23/EEC and 89/336/EEC.

TABLE OF CONTENTS

• Caution for AC Mains Lead	Page 2
• Important safety instructions for the user	3
• Cautions	3
• Identification of main parts	4
• A) How to assemble your cleaner	5
• B) How to operate your cleaner	5-7
• C) How to store your cleaner	7
• D) Maintenance and Servicing	7-8
• E) Accessories (Optional)	8

REMINDER FOR CUSTOMER

The model and serial number of this product may be found on the nameplate located at the back of your cleaner. You should note the model and serial number in the spaces provided and retain this book as a permanent record of your purchase.

Model Number:

Serial Number:

Date Purchased:

Where Purchased:

CAUTION FOR AC MAINS LEAD

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 13 amp fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 13 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark 📂 or the BSI mark 🌐 on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local Panasonic Dealer.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMP SOCKET.

If a new plug is to be fitted please observe the wiring code as shown below.

If in any doubt please consult a qualified electrician.

IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:

Blue : Neutral

Brown : Live

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED.

Under no circumstances should either of these wires be connected to the earth terminal of the three pin plug, marked with the letter E or the Earth Symbol.

How to replace the Fuse:

- There are two types of the supplied AC Mains Lead A and B as shown below.

1 Open the fuse compartment with a screwdriver.
2 Replace the fuse and fuse cover if detachable.

TYPE A

Simple line drawing of a mechanical switch or electrical component with no text or symbols

TYPE B

Simple line drawing of an electrical plug with two connectors (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS FOR THE USER

When using this vacuum cleaner, please observe these basic precautions. WARNING: To reduce the risk of fire, electric shock, or injury:

• Do not leave the vacuum cleaner plugged in to mains outlet. Unplug from the outlet when not in use and before cleaning the appliance or undertaken maintenance operations.
  • Electric shocks can occur if used outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when being used near children.
• Do not use with damaged cord or plug. If the vacuum cleaner is not working as it should be, or has been dropped, damaged, left outdoors, or come into contact with water, consult an authorised Panasonic Service Centre.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, pull cord around sharp edges or corners. Keep cord away from heated surfaces.
• Do not handle plug or vacuum cleaner with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may block or reduce air flow.
• Turn off all controls before unplugging.
• Do not use without filters and/or dust bag in place. Never try to patch a broken dust bag.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.
• This appliance should be serviced by an authorised Panasonic Service Centre, and only genuine Panasonic spare parts should be used.
• Use extra care when cleaning on stairs. Hold the handle of the cleaner in one hand to avoid overturned the vacuum cleaner.
• In case you have any battery operated accessory that will not be in use for a long period of time, we recommend to remove the battery to prevent the risk of electrolyte leakage.

NOTE: These vacuum cleaners have been designed for indoor use. Do not use in garage or outdoors.

CAUTIONS

This cleaner includes an automatic thermal safety device which automatically turns off the power if the suction inlet, hose or extension wand becomes clogged. If this occurs, disconnect from the mains, remove the material responsible for the clogging and then wait about thirty minutes, before operating your cleaner again.

1) Never let the vacuum cleaner pick up wet matter, mud or burning ashes or materials likely to damage the unit.

Simple line drawing of crossed tools and a cross (no text or symbols)

2) Before using the vacuum cleaner, remove large or sharp objects from the floor to avoid damaging the machine or the dust bag.

Illustration of a vintage mechanical device with a mounted device and a control panel (no text or symbols visible)

3) Keep the vacuum cleaner away from heat sources such as radiators, fires, direct sunlight, etc.

Illustration of a hand holding an electrical plug with a switch, next to a device with a circular component (no text or symbols present)

4) Do not pull on the cord when disconnecting the appliance from the mains, always pull on the plug body itself.

This appliance is provided with a flexible cord and if this becomes damaged, it must be repaired by Panasonic, or an Authorised Service Centre or a qualified person in order to avoid any hazard.

IDENTIFICATION OF MAIN PARTS

B-7) Manual suction control

A) Telescopic tube

B-5) Accessories lid

A) Suction inlet

B-4) Floor nozzle with dust sensor (depending on model)

Simple line drawing of a mechanical lever or pivot (no text or symbols)

D-1) Dust bag compartment

B-4) Floor nozzle

E) Power nozzle socket (depending on model)

B-9) Dust bag check indicator

D-1) Dust bag

Simple line drawing of a 3D rectangular block with an internal cutout (no text or symbols)

A) Extension tube (depending on model)

Two parallel cylindrical objects with rounded ends, no text or symbols present

WHOW TO ASSEMBLE YOUR CLEANER

DI HOW TO OPERATE YOUR CLEANER

B-1) Cord connection

Line drawing of a robotic vacuum cleaner with attached sensors and control buttons (no text or symbols)

B-2) Automatic cord rewind

Rewind the cord, pressing the pedal.

B-3) ON/OFF Switch

Line drawing of a vacuum cleaner device with attached circuit board (no text or symbols)

Start or stop the cleaner, pressing the pedal.

B-4) Floor nozzle

The floor nozzle position has been adapted for cleaning carpeted floor, parquet, hard floor and rugs.

Simple line drawing of a hand holding a tool over a flat surface (no text or symbols)

Illustration of a hand using a tool to cut a circular object on a flat surface (no text or symbols)

B-4) Floor nozzle with dust sensor (depending on model)

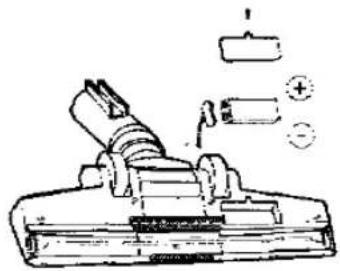

The dust sensor is operated by a 9V battery. To connect it, remove the cover as shown in Fig.1 and take out the battery from its clips. Then connect it with the ⏻ and ⏱ polarity properly aligned and replace the cover.

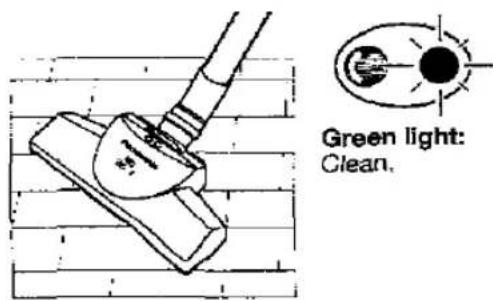

The dust sensor works automatically when air is sucked through the nozzle inlet, but it will not operate if there is not enough air flow.

The Red light remains on when dust is present in the vacuumed air and chages to a Green light when there is no longer any dust present in the vacuumed air.

Diagram of a vacuum cleaner with battery and sensor components (no text or labels)

Fig.1

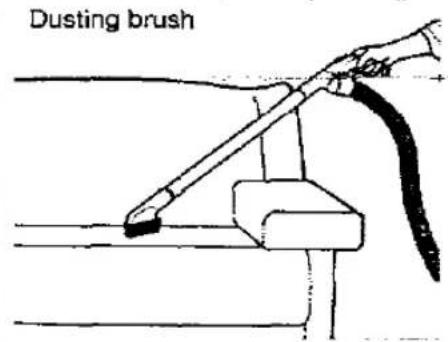

B-5) Accessories

Technical line drawing of a mechanical device with open lid and internal components (no text or symbols)

B-6) Variable power control

To select the power suction, slide the button to the appropriate position required, depending on your cleaning needs.

Line drawing of a hand holding a device with a circular button, no text or symbols present

B-7) Manual suction control

To adjust to the right suction for any cleaning operation.

1500W

350W
Curtains

Quick cleaning on hard flooring.

Simple line drawing of a tool interacting with a surface, no text or symbols present

For more in-grained dirt on carpeted floor.

Simple line drawing of a tool applying material to a surface (no text or symbols)

B-8) Park position

Located in the top rear side of the vacuum cleaner, there is a convenient clip for. parking the floor nozzle during breaks when vacuuming.

NOTE: When in the park position, we suggest the appliance is switched off.

Mechanical diagram showing a car wheel and attached gear assembly (no text or labels)

B-9) Dust bag check indicator

The dust bag check indicator (red pilot) will come on, when airflow through the bag is insufficient. When this happens, check the paper bag, it may be full or blocked with fine dust and needs to be replaced. (See paragraph D-1).

NOTE: If after having replaced the bag, the red pilot still remains on, check to see if the hose, tube or suction inlet is blocked.

HOW TO STORE YOUR CLEANER

For easy storage and transporting, the vacuum cleaner includes a clip system built onto the body of the cleaner, which will keep the extension wand, hose and nozzle in a vertical position.

Mechanical device diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

ED MAINTENANCE AND SERVICING

IMPORTANT NOTE: Before servicing any part, always DISCONNECT the cleaner from the electricity supply.

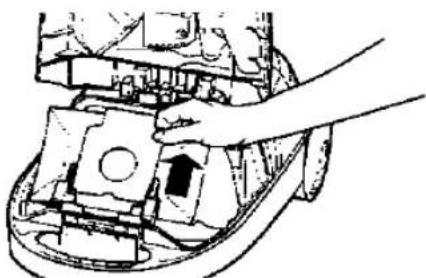

D-1) How to replace the dust bag

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

Hand inserting a component into a vehicle's wheel (no text or symbols visible)

1) Release the hook as shown by arrow and lift the cover up.

2) Grip the cardboard of the dust bag and pull it out.

Line drawing of a hand operating a mechanical device with no visible text or symbols

Line drawing of a hand operating a vacuum cleaner (no text or symbols)

3) Install the new dust bag placing the cardboard into the guides of dust bag support.

4) Close the dust cover.

We recommend the use of genuine Panasonic bags Type C-2E only.

IMPORTANT: When the dust bag is not in position or it has not been installed correctly, the dust cover will not close.

D-2) Filter care

Central Filter (Fig. 1) Part no. AMC8F29L1000

The central filter (electrostatic), is installed in the dust bag compartment to protect the motor from dirt.

It is advisable to change the central filter when it becomes dirty. As a guide, once or twice a year is usually sufficient.

To remove the central filter, hold the filter at the top (as illustrated) and pull it out.

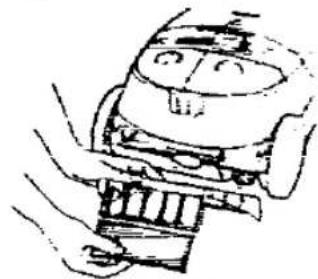

Clean Air Filter (Fig. 2) Part no. AMC8F28L1000

Part no. AMC8F28L2000 / MC-E962K

The clean air filter (electrostatic), is installed in the rear side of the cleaner. This filter retains any small dust particles which may be present in the expelled air.

It is advisable to change the clean air filter when it becomes dirty. As a guide, once or twice a year is usually sufficient depending on use.

To change the clean air filter, hold the exhaust cover (as illustrated) and pull it out.

Hand holding a small robotic device with a circular head and wheels (no text or symbols visible)

Fig. 1

Technical line drawing of a mechanical assembly or tool, showing internal components and alignment (no text or symbols)

Fig. 2

Hand holding a small object with a cartoon character inside, no visible text or symbols

IMPORTANT: Never use the cleaner without the correct filters properly installed. Failure to do so may result in motor damaged.

D-3) How to replace the dust sensor battery

The dust sensor is operated by a 9V battery.

To check the battery condition, set the vacuum cleaner at Max. suction power. If the indicator lamps do not light, replace the battery.

To change the battery remove the screw from the cover as shown in Fig.1. Remove the old battery and replace with a new one. Be sure to place the battery with the + and - polarity properly aligned.

If after having replaced the battery, the indicator lamps still do not operate, take the nozzle to an Authorised Service Centre for repair.

NOTE: For a long life durability and to protect the environment, we recommend the use of Panasonic battery type 6LR61/1BP.

EACCESSORIES (Optional)

E-1) Electric power nozzle model MC-E16

Optional accessory for models which are fitted with power nozzle socket.

This power nozzle deals very effectively with pet hairs, fibres an stubborn dirt that normal tools have difficulty in removing.

Simple line drawing of a handheld electronic device with a handle and cable (no text or symbols)

E-2) Re-usable cloth bag

Part no. AMC8F9931300

Simple line drawing of a folded paper or envelope with a central hole (no text or symbols)

Panasonic España, S.A.

DIVISION DE ASPIRADORAS

Zona Industrial del Polígono de CELRÀ

17460 CELRA (Girona) SPAIN
