BRUGSANVISNING 80-172 Biltema
Art. 80-172
12.8V 3.0Ah
It's specially designed as high-performance lithium batteries for start. It's characteristics is 1/3 weight of normal lead-acid battery, non pollution, super cranking power, quick recharge capability and excellent cycle life.
Specification
Voltage: (V) 12.8
Capacity(C10, 25°C): (Ah) 3.0
Weight: (kg) Approx. 0.7
Charging Current : (A) Standard: 1.5A, Max: 15.0A
Charging Voltage Limit: (V) 14.4±0.5
High Rate Discharge : (64A,25°C) 5s Voltage ≥10.0V, 90s Voltage ≥7.2V
EX-works O.C.V : 13.10V
Cranking AMPS By Digital Tester 180A
Operating Temperature Range
Cycle Life ≥1000
Self Discharge
Batteries can be stored for 12 month at 25^ C. Please charge batteries before using. For higher temperature the duration will be shorter.

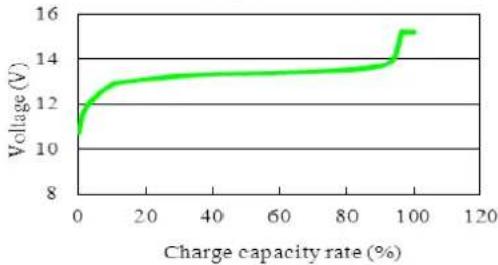

Charge characteristic
line

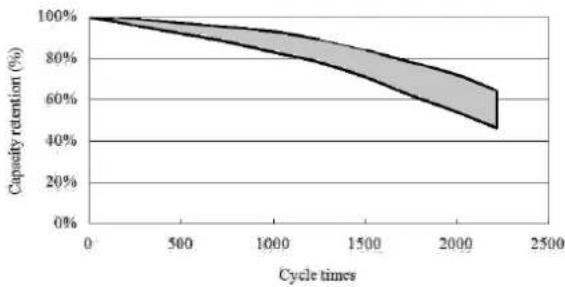

| Charge capacity rate (%) | Voltage (V) | | ------------------------ | ----------- | | 0 | 10.5 | | 20 | 12.5 | | 40 | 12.8 | | 60 | 13.0 | | 80 | 13.2 | | 90 | 13.5 | | 95 | 14.0 | | 100 | 15.0 |Cycle life
line

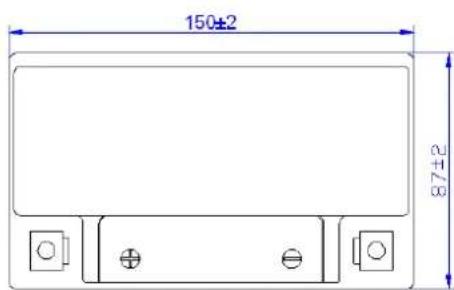

| Cycle times | Capacity retention (%) | | ----------- | ---------------------- | | 0 | 100% | | 500 | ~95% | | 1000 | ~85% | | 1500 | ~75% | | 2000 | ~65% | | 2200 | ~45% |Dimension (±2mm)
L: 150, W: 87, H: 105
ISO14001
