BRUGSANVISNING 80-173 Biltema
Art. 80-173
12.8V 3.5Ah
It's specially designed as high-performance lithium batteries for start. It's characteristics is 1/3 weight of normal lead-acid battery, non pollution, super cranking power, quick recharge capability and excellent cycle life.
Specification
Voltage: (V) 12.8
Capacity(C10, 25°C): (Ah) 3.5
Weight: (kg) Approx. 0.8
Charging Current : (A) Standard:2.0A, Max: 18.0A
Charging Voltage Limit: (V) 14.4±0.5
High Rate Discharge : (80A,25°C) 5s Voltage ≥10.0V, 90s Voltage ≥7.2V
EX-works O.C.V : 13.10V
Cranking AMPS By Digital Tester 210A
Operating Temperature Range Charge: 0^ 45^
Storage : - 20°C\~40°C
Cycle Life ≥1000
Self Discharge batteries before using. For higher temperature the duration will be shorter.
line

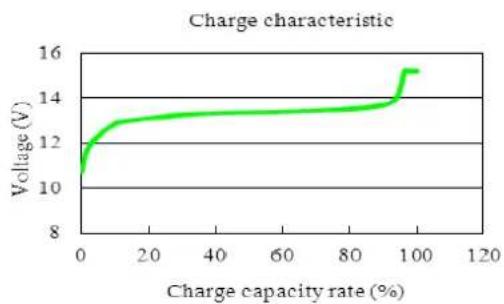

| Charge capacity rate (%) | Voltage (V) | | ------------------------ | ----------- | | 0 | 10 | | 20 | 13 | | 40 | 13 | | 60 | 13 | | 80 | 13 | | 100 | 15 |
line

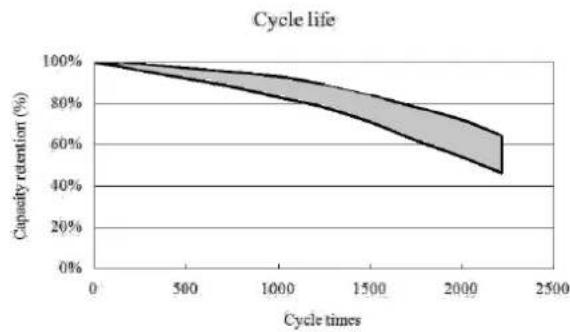

| Cycle times | Capacity retention (%) | | ----------- | ---------------------- | | 0 | 100% | | 500 | ~95% | | 1000 | ~85% | | 1500 | ~75% | | 2000 | ~65% | | 2200 | ~45% |Dimension (±2mm)

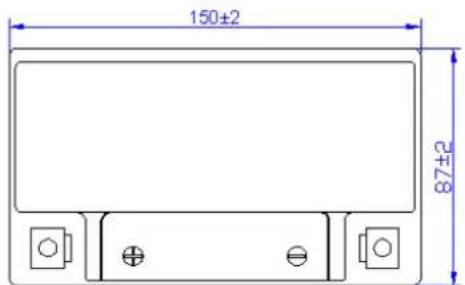

L: 150, W: 87, H: 93
ISO14001
