BRUGSANVISNING kMix HM330 KENWOOD

safety

• Read these instructions carefully and retain for future reference.
• Remove all packaging and any labels.
• If the plug or cord is damaged it must, for safety reasons, be replaced by Kenwood or an authorised Kenwood repairer in order to avoid a hazard.
  • DO NOT process hot ingredients.
• Wash the beaters and kneaders if supplied: see ‘care and cleaning’.
• Never let the cord or plug get wet – you could get an electric shock.
• Keep fingers, hair, clothing and utensils away from moving parts.
• Never let the cord touch hot surfaces or hang down where a child could grab it.
• Never use a damaged handmixer.
• Get it checked or repaired: see ‘service and customer care’.
• Never use an unauthorised attachment.
• Always switch off the appliance and disconnect from the power supply, if it is left unattended, before assembling, disassembling or cleaning.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• Children should be supervised to ensure that they do not play with the appliance.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

Cleaning

• Always switch off, unplug and remove the beaters or kneaders before cleaning.
• Never put the handmixer body in water or let the cord or plug get wet.

Beaters, kneaders

- Wash by hand or in your dishwasher, then dry.

Handmixer body

- Wipe with a damp cloth, then dry.

Use your Kenwood 6-speed handmixer for mixing, beating and whipping cream, eggs, sauces and many other mixtures. Heavier doughs and other mixtures can be prepared with the kneaders included with selected models of the handmixer.

Before plugging in

• Make sure your electricity supply is the same as the one shown on the rear of your handmixer.

- No action is required to switch between 50Hz and 60Hz.

Important - Plug and Fuse Information

- The wires in the cord are coloured as follows: Blue = Neutral

- If the plug supplied with your appliance has a fuse fitted it is rated 3A. If the fuse fails it must be replaced with one of the same rating.

Note:

• For non-rewireable plugs the fuse cover MUST be refitted when replacing the fuse. If the fuse cover is lost then the plug must not be used until a replacement can be obtained. The correct fuse cover is identified by colour and a replacement may be obtained from your Kenwood Authorised Repairer (see Service).
• If a non-rewireable plug is cut off it must be DESTROYED IMMEDIATELY. An electric shock hazard may arise if an unwanted non-rewireable plug is inadvertently inserted into a 13A socket outlet.
• This appliance conforms to EC Regulation 1935/2004 on materials and articles intended to come into contact with food.

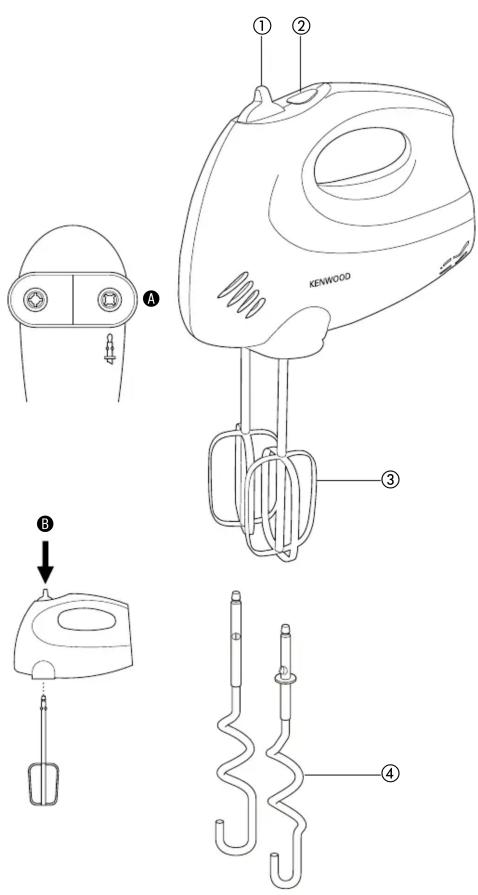

key

① speed switch and tool release button
② turbo button
③ beaters
④ kneaders

to use your handmixer

1 Insert the beaters or kneaders — turn and push.

important the kneader with the metal collar will only fit into the marked socket A.

- To remove the tools, switch off and unplug the mixer then press down on the tool release

B

2 Plug in.
3 Push the speed switch forward.
- As the mixture thickens, increase the speed.
- If the handmixer labours increase the speed and/or push the turbo button.

- The turbo button gives an extra boost of power for those extra tough mixing jobs. Use for up to 30 seconds at a time.

important: When making bread dough we recommend that the dough load does not exceed 450g flour.

service and customer care

UK

If you need help with:
• using your appliance or
• servicing, spare parts or repairs (in or out of guarantee)
☐ call Kenwood customer care on 0345 222 0458 or visit

www.kenwoodworld.com. Have your model number ready (e.g. HM330) and date code (5 digit code e.g. 19C11) ready. They are on the underside of the power unit.

• spares and attachments

call 0844 557 3653.
• other countries
- If you experience any problems with the operation of your appliance, before requesting assistance visit www.kenwoodworld.com.
- Please note that your product is covered by a warranty, which complies with all legal provisions concerning any existing warranty and consumer rights in the country where the product was purchased.
- If your Kenwood product malfunctions or you find any defects, please send it or bring it to an authorised KENWOOD Service Centre. To find up to date details of your nearest authorised KENWOOD Service centre visit www.kenwoodworld.com or the website specific to your Country.
- Made in China.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH THE EUROPEAN DIRECTIVE ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)

At the end of its working life, the product must not be disposed of as urban waste.

It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

guarantee (uk only)

If your handmixer goes wrong within one year from the date you bought it, we will repair it (or replace it if necessary) free of charge provided:

- you have not misused, neglected or damaged it;

- it has not been modified (unless by Kenwood);

- it is not second-hand;

- it has not been used commercially;

- you have not fitted a plug incorrectly; and

- you supply your receipt to show when you bought it.

This guarantee does not affect your statutory rights.

white bread dough

450g/1 lb strong plain flour 10ml/2 tsp dried yeast (the type that requires reconstituting)
5ml/1 tsp sugar
5ml/1 tsp salt
15g/% oz lard
250ml/9 fl.oz. warm water

The correct water temperature should be 43^ C and can be achieved by mixing one third boiling water with two thirds cold.

Place the dried yeast with the sugar and water in a mixing bowl and leave to froth. Add the remaining ingredients. Fit the kneaders to the handmixer then combine the ingredients together on a low speed until the flour is incorporated, then increase the speed and knead until the dough is smooth and elastic for approximately 2-3 minutes. Leave the dough to rise in a warm place for 45-60 minutes.
Re-knead the dough on speed 3 for 30-45 seconds keeping the kneaders in the mix.
Shape the dough into a loaf or rolls and place on greased baking trays. Then leave somewhere warm until it has doubled in size.
Bake at 230^ C/450°F/Gas mark 8 for 20-25 minutes (for a loaf) or 10-15 minutes (for rolls). When ready the bread should sound hollow when tapped on the base.

Kenwood Ltd

New Lane
Havant
Hampshire
PO9 2NH

kenwoodworld.com

© Copyright 2020 Kenwood Limited. All rights reserved 19395/5

KENWOOD

HM330

instructions

Line drawing of a KENWOOD blender with handle and control knobs (no text or symbols on the device itself)
