BRUGSANVISNING AC195 JBL
Key Features:
▶ Compact enclosure
▶ 258 mm (10 in) LF transducer
▶ 90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 25 mm (1 in) exit 35mm (1.5") voice-coil compression driver
▶ Dual Neutrik NL4 connectors plus screw terminals
▶ Multiple attachment points for ultimate flexibility
Applications:
▶ Performing Spaces
Clubs & Bars
▶ Houses of Worship
▶ Multi Media Spaces
▶ Retail & Hospitality Spaces
▶ Presentation Suites
▶ Educational Facilities
AC195 is a compact 2-way full-range loudspeaker system comprised of one 258 mm (10 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The rotatable PT ^™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response.
The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount ^® or similar type mounting.
AC195 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.


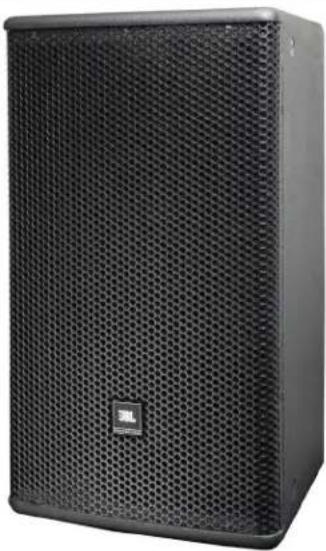

Black industrial speaker with mesh grille and logo (no visible text or symbols)Specifications:
| System: |
| Frequency Range (-10 dB)1: 68 Hz - 20 kHz |
| Frequency Response (±3 dB)1: 85 Hz - 18kHz |
| System Sensitivity (1w @ 1m)1: 95 dB |
| Nominal Impedance: 8 ohms |
| Maximum SPL(1m)2: 118 dB (124 dB peak) |
| 300W (1200W peak), 2 hrs3: 200 W/400 W/800 W(Continuous/Program/Peak) |
| 2 hr Power Rating‡: System Power Rating (AES): 300W (1200W peak), 2 hrs |
| Coverage Pattern: 90° x 50° (H x V) |
| Crossover: 1.8 kHz |
| Transducers: |
| Low frequency driver: 1 x 10" woofer (P/N: 5050692), 258 mm (10 in)driver with 66 mm (2.5 in) voice-coil |
| High frequency driver: 1 x 2408H-2 driver with 25 mm (1 in) exit/35 mm (1.5in) voice-coil |
| Physical: |
| Input Connector: Dual Neutrik NL4MP connectors plus covered bar-rier trip terminals |
| Enclosure: 15 mm multi-ply hardwood plywood |
| Grille: Powder coated, 1.5mm perforated steel, with acous-tically transparent black foam backing |
| Finish: Textured black paint finish. White (-WH) availableupon request. Not available with WRC & WRXfinish. |
| Suspension / Mounting: 14 x M10 and 4 x M10 for Wall Mount Bracket.Optional U-bracket, overhead suspension bracket, andwall-mount bracket |
| Dimensions (H x W x D): 535 mm x 310 mm x 329 mm21.0 in x 12.2 in x 12.9 in |
| Net Weight: 13.1 kg (28.8 lbs) |
JBL continually engages in research related to product improvement. Some materials, production methods and design refinements are introduced into existing products without notice as a routine expression of that philosophy. For this reason, any current JBL product may differ in some respect from its published description, but will always equal or exceed the original design specifications unless otherwise stated.
1 Full space (4π) conditions
2 Calculated maximum SPL based on rated power handling
- IEC shaped pink noise with 6dB CF for 100hrs
4 AES standard, one decade pink noise with 6 dB crest factor within device's operational band, free air. Standard AES 2 hr rating plus long-term 100 hr rating are specified for low-frequency transducers.

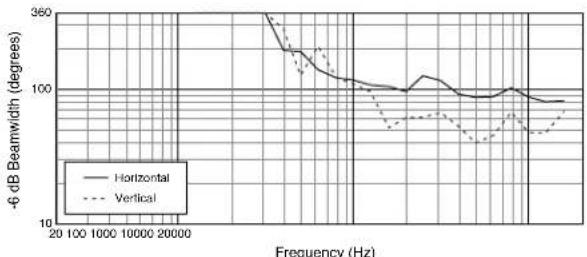

Beamwidth
line

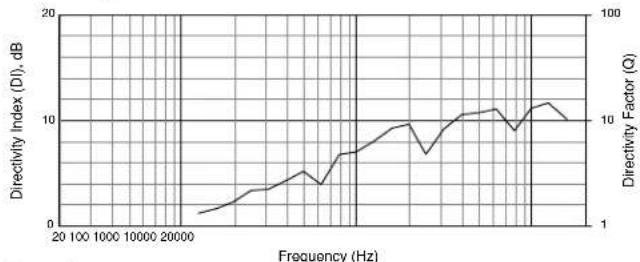

| Frequency (Hz) | Horizontal | Vertical | | -------------- | ---------- | -------- | | 20 | 350 | 350 | | 100 | 300 | 250 | | 1000 | 250 | 200 | | 10000 | 200 | 150 | | 20000 | 150 | 100 |Directivity Index
line

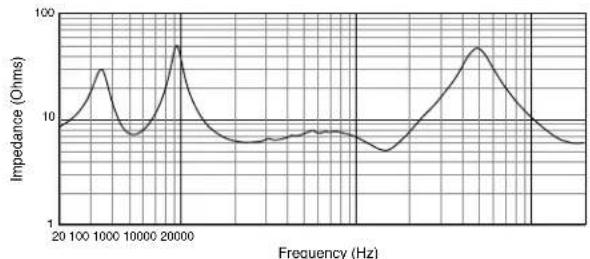

| Frequency (Hz) | Directivity Index (DI), dB | Directivity Factor (Q) | | -------------- | -------------------------- | ---------------------- | | 20 | ~1 | ~1 | | 100 | ~2 | ~2 | | 1000 | ~3 | ~3 | | 20000 | ~4 | ~4 | | 5000 | ~6 | ~6 | | 10000 | ~8 | ~8 | | 20000 | ~10 | ~10 | | 5000 | ~12 | ~12 | | 10000 | ~11 | ~11 | | 20000 | ~10 | ~10 |Impedance
line

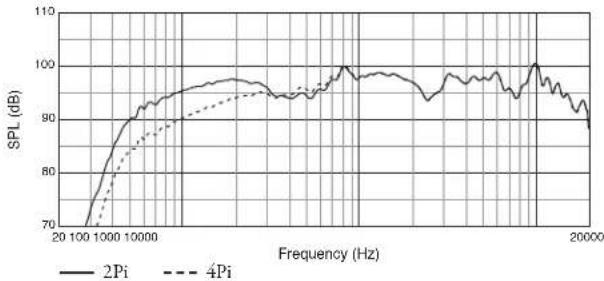

| Frequency (Hz) | Impedance (Ohms) | | -------------- | ----------------- | | 20 | ~10 | | 100 | ~25 | | 1000 | ~8 | | 10000 | ~95 | | 20000 | ~7 | | 30000 | ~8 | | 40000 | ~6 | | 50000 | ~15 | | 60000 | ~35 | | 70000 | ~10 |Frequency Response, 1W/1M
line
| Frequency (Hz) | 2Pi | 4Pi | | -------------- | ---- | ---- | | 20 | 70 | 70 | | 100 | 85 | 80 | | 1000 | 90 | 85 | | 10000 | 95 | 90 | | 20000 | 100 | 95 | | 30000 | 95 | 90 | | 40000 | 100 | 95 | | 50000 | 95 | 90 | | 60000 | 100 | 95 | | 70000 | 95 | 90 | | 80000 | 100 | 95 | | 90000 | 95 | 90 | | 100000 | 100 | 95 | | 200000 | 95 | 90 |Horizontal Left Off-Axis Frequency Response

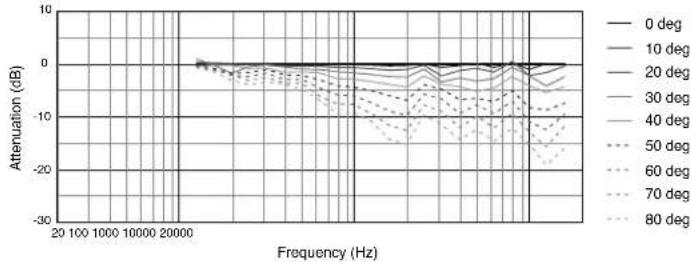

line

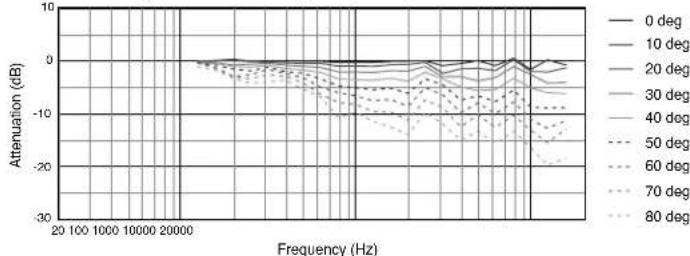

| Frequency (Hz) | 0 deg | 10 deg | 20 deg | 30 deg | 40 deg | 50 deg | 60 deg | 70 deg | 80 deg | | -------------- | ----- | ------ | ------ | ------ | ------ | ------ | ------ | ------ | ------ | | 20 | -1.0 | -1.5 | -2.0 | -2.5 | -3.0 | -3.5 | -4.0 | -4.5 | -5.0 | | 100 | -1.5 | -2.0 | -2.5 | -3.0 | -3.5 | -4.0 | -4.5 | -5.0 | -5.5 | | 1000 | -2.0 | -2.5 | -3.0 | -3.5 | -4.0 | -4.5 | -5.0 | -5.5 | -6.0 | | 10000 | -2.5 | -3.0 | -3.5 | -4.0 | -4.5 | -5.0 | -5.5 | -6.0 | -6.5 | | 20000 | -3.0 | -3.5 | -4.0 | -4.5 | -5.0 | -5.5 | -6.0 | -6.5 | -7.0 |Horizontal Right Off-Axis Frequency Response

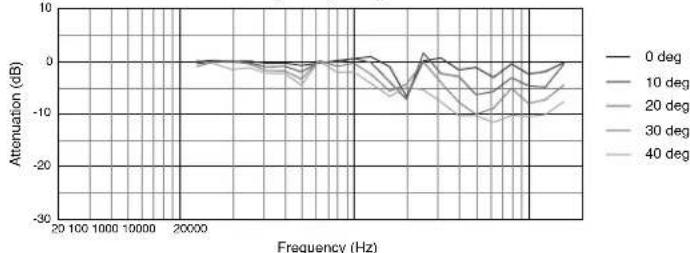

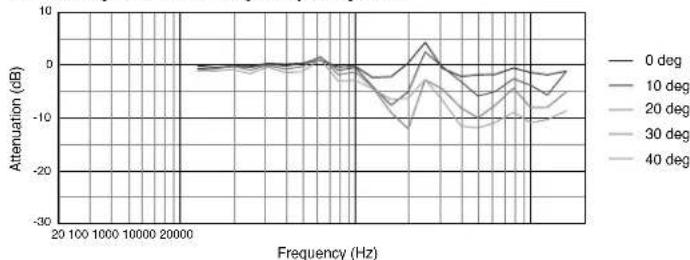

Vertical Up Off-Axis Frequency Response
Vertical Down Off-Axis Frequency Response
line
| Frequency (Hz) | 0 deg | 10 deg | 20 deg | 30 deg | 40 deg | | -------------- | ----- | ------ | ------ | ------ | ------ | | 20 | -1.5 | -1.8 | -2.0 | -2.2 | -2.5 | | 100 | -1.2 | -1.6 | -1.8 | -2.0 | -2.3 | | 1000 | -1.0 | -1.4 | -1.6 | -1.8 | -2.1 | | 10000 | -0.8 | -1.2 | -1.4 | -1.6 | -1.9 | | 20000 | -0.5 | -0.9 | -1.1 | -1.3 | -1.6 | | 5000 | -0.2 | -0.6 | -0.8 | -1.0 | -1.3 | | 10000 | 0.0 | -0.3 | -0.5 | -0.7 | -1.0 | | 20000 | 0.2 | 0.0 | -0.2 | -0.4 | -0.8 | | 50000 | 0.5 | 0.3 | 0.1 | -0.1 | -0.5 | | 100000 | 0.8 | 0.6 | 0.4 | 0.2 | -0.3 | | 200000 | 1.2 | 1.0 | 0.8 | 0.6 | -0.2 | | 500000 | 1.5 | 1.3 | 1.1 | 0.9 | -0.1 | | 1000000 | 1.8 | 1.6 | 1.4 | 1.2 | 0.1 | | 2000000 | 2.2 | 2.0 | 1.8 | 1.6 | 0.3 | | 5000000 | 2.5 | 2.3 | 2.1 | 1.9 | 0.5 | | 10000000 | 2.8 | 2.6 | 2.4 | 2.2 | 0.7 | | 20000000 | 3.2 | 3.0 | 2.8 | 2.6 | 1.0 | | 50000000 | 3.5 | 3.3 | 3.1 | 2.9 | 1.3 | | 100000000 | 3.8 | 3.6 | 3.4 | 3.2 | 1.6 | | 200000000 | 4.2 | 4.0 | 3.8 | 3.6 | 2.1 | | 500000000 | 4.5 | 4.3 | 4.1 | 3.9 | 2.5 | | 1000000000 | 4.8 | 4.6 | 4.4 | 4.2 | 3.1 | | 2000000000 | 5.2 | 5.0 | 4.8 | 4.6 | 3.7 | | 5000000000 | 5.5 | 5.3 | 5.1 | 4.9 | 4.3 | | 10000000000 | 5.8 | 5.6 | 5.4 | 5.2 | 4.9 | | 20000000000 | 6.2 | 6.0 | 5.8 | 5.6 | 5.5 | | 50000000000 | 6.5 | 6.3 | 6.1 | 5.9 | 6.3 | | 100000000000 | 6.8 | 6.6 | 6.4 | 6.2 | 6.9 | | 200000000000 | 7.2 | 7.0 | 6.8 | 6.6 | 7.5 | | 500000000000 | 7.5 | 7.3 | 7.1 | 6.9 | 8.3 | | 100000000000 | 7.8 | 7.6 | 7.4 | 7.2 | 8.9 | | 20000000000 | 8.2 | 8.0 | 7.8 | 7.6 | 9.5 | | 50000 | nan | nan | nan | nan | nan | | >5 | ~-5 | ~-4 | ~-3 | ~-2 | ~-1 | | <5 | ~-8 | ~-7 | ~-6 | ~-5 | ~-3 | | >5 | ~-12 | ~-11 | ~-13 | ~-12 | ~-9 | | <5 | ~-15 | ~-14 | ~-16 | ~-15 | ~-13 | | >5 | ~-18 | ~-17 | ~-19 | ~-18 | ~-16 | | <5 | ~-22 | ~-21 | ~-23 | ~-22 | ~-19 | | >5 | ~-25 | ~-24 | ~-26 | ~-25 | ~-22 | | <5 | ~-28 | ~-27 | ~-29 | ~-28 | ~-24 | | >5 | ~-32 | ~-31 | ~-33 | ~-32 | ~-27 | | <5 | ~-35 | ~-34 | ~-36 | ~-35 | ~-31 | | >5 | ~-38 | ~-37 | ~-39 | ~-38 | ~-34 | | <5 | ~-42 | ~-41 | ~-43 | ~-42 | ~-37 | | >5 | ~-45 | ~-44 | ~-46 | ~-45 | ~-41 | | <5 | ~-48 | ~-47 | ~-49 | ~-48 | ~-34 | | >5 | ~-52 | ~-51 | ~-53 | ~-52 | ~-37 | | <5 | ~-55 | ~-54 | ~-56 | ~-55 | ~-41 | | >5 | ~-58 | ~-56 | ~-58 | ~-57 | ~-44 | | <5 | ~-62 | ~-61 | ~-63 | ~-62 | ~-47 | | >5 | ~-65 | ~-64 | ~-66 | ~-65 | ~-51 | | <5 | ~-68 | ~-67 | ~-69 | ~-68 | ~-54 | | >5 | ~-72 | ~-71 | ~-73 | ~-72 | ~-57 | | <5 | ~-75 | ~-74 | ~-76 | ~-75 | ~-61 | | >5 | ~-78 | ~-77 | ~-79 | ~-78 | ~-64 | | <5 | nan | nan | nan | nan | nan | | >5 (estimated)| | <5 (estimated)| | >5 (estimated)| | >5 (estimated)| | <5 (estimated)| | >5 (estimated)| | <5 (estimated)| | <5 (estimated)| | >5 (estimated)| | <5 (estimated)| | >5 (estimated)| | <5 (estimated)| | >5 (estimated)| | <5 (estimated)| | >5 (estimated)| | <5 (estimated)| | >5 (estimated)| | <5 (estimated)| | >5 (estimated)| | <5 (estimated)| | >5 (actual)| | <5 (actual)| | >5 (actual)| | <5 (actual)| | >5 (actual)| | <5 (actual)| | >5 (actual)| | <5 (actual)| | >5 (actual)| | <5 (actual)| | >5 (actual)| | <5 (actual)| | >5 (actual)| | <5 (actual)| | <5 (actual)| | >5 (actual)| | <5 (actual)| | <5 (actual)| | >5 (actual)| | <5 (actual)| | <5 (actual)| | >5 (actual)| | <5 (actual)| | <5 (actual)| | >5 (actual)| | <5 ( actual)| | <5 (actual)| | >5 (actual)| | <5 (actual)| | <5 (actual)| | >5 (actual)| | <5 (actual)| | <5 (actual)| | >5 (actual)| | <5 (actual)| | <5 (actual)| | >5 (actual)| | <5 (actual)| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |Dimensions:
Dimensions in mm (inch)
PROFESSIONAL
by HARMAN
JBL Professional
8500 Balboa Boulevard, P.O. Box 2200
Northridge, California 91329 U.S.A.
© Copyright 2015 JBL Professional
AC195
www.jblpro.com
SZ
07/15
