BRUGSANVISNING HP8B JBL

HP6B, HP8B,

HP82B,

HP88F

simple

set-up guide

thank you for choosing JBL. For over 50 years, JBL has been involved in every aspect of musical and film recording and reproduction, from live performances to monitoring the recordings you play in your home, car, or office.

We're confident that the JBL loudspeakers you have chosen will provide every note of enjoyment that you expected – and that when you think about purchasing additional audio equipment for your home, car, or office, you will once again choose JBL.

Please take a moment to complete the enclosed profile card. It enables us to keep you posted on our latest advancements, and helps us to better understand our customers and build products that meet your needs and expectations.

JBL Consumer Products

one. Speaker Placement

HP6B, HP8B, HP82B

HP88F

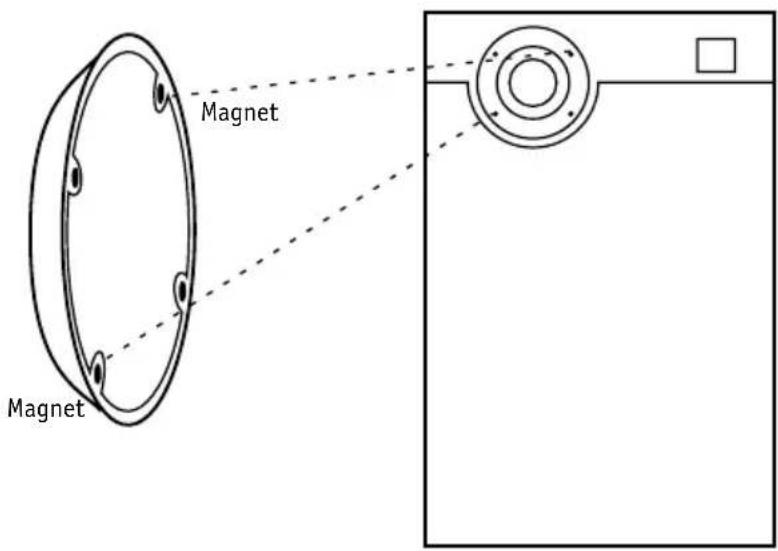

Tweeter Grille Installation (optional)

two. Speaker Connections

Connection Tips

Speakers and electronics terminals have corresponding (+) and (−) terminals. It is important to connect both speakers identically: (+) on the speaker to (+) on the amplifier and (−) on the speaker to (−) on the amplifier. Wiring “out of phase” results in thin sound, weak bass and a poor stereo image.

Speaker Outputs

Troubleshooting

If there is no sound from any of the speakers, check the following:

• Receiver/amplifier is on and a source is playing.
• Review proper operation of your receiver/amplifier.

If there is no sound coming from one speaker, check the following:

• Check the "Balance" control on your receiver/amplifier.
• Check all wires and connections between receiver/amplifier and speakers.
• Make sure all wires are connected. Make sure none of the speaker wires are frayed, cut, or punctured.

If the system plays at low volumes but shuts off as volume is increased, check the following:

• Check all wires and connections between receiver/amplifier and speakers.
• Make sure all wires are connected. Make sure none of the speaker wires are frayed, cut, or punctured.
• If more than one pair of main speakers is being used, check the minimum impedance requirements of your receiver/amplifier.

If there is low bass output, check the following:

- Make sure the polarity (+ and -) of the left and right "Speaker Inputs" are connected properly.

Specifications

SYSTEM HP6B HP82B

Frequency Response (-6dB): 57Hz - 22kHz 48Hz - 22kHz

Recommended Maximum

Power Handling*: 100 watts 150 watts

Sensitivity @ 1 watt/1 meter: 89dB 90dB

Normal Impedance: 8 ohms 8 ohms

Crossover Frequency: 2800Hz 3000Hz

Woofer: 6-1/2" cast frame 8" cast frame

Midrange: N/A N/A

Tweeter: 1" pure titanium 1" pure titanium

Finish: black ash woodgrain vinyl black ash woodgrain vinyl

Dimensions (HxWxD): 16-1/2 x 9-1/4 x 8-1/8 inches 19-7/8 x 11-1/2 x 9-1/8 inches

419 × 235 × 206mm 501 × 292 × 232mm

Weight (each): 15 lbs/6.8 kg 21-1/4 lbs/9.6 kg

SYSTEM HP8B HP88F

Frequency Response (-6dB): 46Hz - 22kHz 40Hz - 22kHz

Recommended Maximum

Power Handling*: 200 watts 250 watts

Sensitivity @ 1 watt/1 meter: 91dB 93dB

Normal Impedance: 8 ohms 8 ohms

Crossover Frequency: 850Hz, 3000Hz 850Hz, 3000Hz

Woofer: 8" cast frame 2 x 8" cast frame

Midrange: 5" cast frame 5" cast frame

Tweeter: 1" pure titanium 1" pure titanium

Finish: black ash woodgrain vinyl black ash woodgrain vinyl

Dimensions (HxWxD): 23-1/8 x 11-1/2 x 10 inches 35-1/4 x 11-1/2 x 12-1/2 inches

584 x 292 x 254mm 870 x 292 x 318mm

Weight (each): 27 lbs/12.25 kg 47 lbs/21.3 kg

Occasional refinements may be made to existing products without notice, but will always meet or exceed original specifications unless otherwise stated.

*The maximum recommended amplifier power rating will ensure proper system headroom to allow for occasional peaks. We do not recommend sustained operation at these maximum power levels.

JBL Consumer Products

80 Crossways Park West, Woodbury, NY 11797

8500 Balboa Boulevard, Northridge, CA 91329

1-800-336-4JBL (4525) (USA only)

© 1996 JBL, Incorporated. JBL is a registered trademark of JBL, Incorporated.

Printed in USA 7/96 Part No. 330990-001

H A Harman International Company

Declaration of Conformity

We, JBL Europe A/S

Kongevajen 1948

DK-3460 Birkerød

DENMARK

declare in own responsibility, that the products described

in this owner's manual are in compliance with technical standards:

EN 50 081-1/1992

EN 50 082-1/3.1995

Steen Michaelsen

JBL Europe A/S

Birkored. DENMARK. 7:96
