BRUGSANVISNING Harbor S116 Montauk JBL

Harbor

Series

S115

Newport

S116

Montauk

S118

Mackinac

JBL

INSTRUCTION MANUAL

Harbor Series Loudspeaker Systems

Harbor Series Instruction Manual

Congratulations on choosing JBL Harbor Series loudspeakers. JBL Harbor Series loudspeakers were designed using technology developed for JBL's latest studio monitor systems. The same low distortion, accurate, dynamic sound demanded by recording professionals is available for the home listener.

Built with careful attention to detail, and with only the highest-quality materials, your JBL speakers will provide many years of excellent performance.

The instructions in this manual will help you realize the full potential of your loudspeakers.

Harbor JBL Series loudspeakers are designed to produce a flat frequency response in the home when located free standing, at least 1 foot from a wall.

The S116 and S118 will additionally benefit from placement 3" from the wall or back panel when set on a bookshelf or 15" to 20" from the wall when placed on a speaker stand.

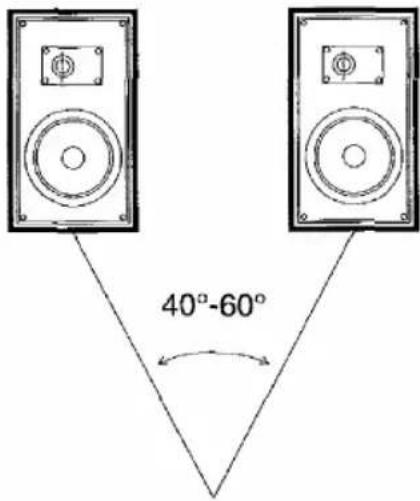

For best stereo imaging, the two loudspeakers should be equidistant from your listening position and separated by an angle of between 40° and 60° (see Fig. 1). For example, if your listening position is 8 to 12 feet from each speakers, the two systems should be about 8 feet apart. Since every room is different, there are no absolutes regarding placement, so please experiment.

Placing the loudspeakers in corners or against a wall will increase the amount of bass but not necessarily its quality. If unavoidable, we recommend that you use your tone controls or an equalizer to reduce the bass.

Mounting against a wall: Be careful not to block the rear panel mounted reflex port as this will sharply reduce bass output. A minimum 4" spacing between rear panel and adjacent surface is recommended.

Connections

To connect the loudspeaker to the receiver or amplifier, use two conductor insulated wire. Your JBL dealer can recommend suitable cables.

We recommend #16 AWG (1.3 mm diameter) wire as a minimum size. If your speakers are more than 30 feet from your receiver or amplifier, use larger diameter wire. Interconnects are an important component in audio system. You may wish to audition and compare the performance of some of the specially designed audio cables and speaker wire sets available from your dealer.

For each channel, the red terminal on the loudspeakers should be connected to the red or (+) loudspeaker connection terminal on the amplifier (or receiver), and the black terminal on the loudspeaker should be connected to the black of (-) terminal on the amplifier. Connecting the loudspeakers in this manner ensures that they will work in phase; that is, work together rather than in opposition.

Connecting the loudspeakers out of phase (reverse polarity to one speaker) will not damage them, but will results in less bass and poor imaging. Most two conductor wire is color-coded or has a ridge on one of its insulating jackets, so that you can easily identify which wire is connected to which terminal at the other end.

When connecting more the one pair of loudspeakers to an amplifier or receiver, consult your dealer or amplifier manufacturer to ensure that the resulting load can be handled safely.

General Care

JBL Harbor Series loudspeaker system are constructed of high quality particle board, superior to solid wood in its acoustic properties. For maximum strength and resistance from vibration, all panels are cut from 3/4" stock and are rigidly braced. Enclosure surfaces are finished in high quality lacquer.

Note:

Occasional dusting with a clean, soft cloth will maintain the original beauty of the finish. Furniture waxes, polishes, or cleaners are not recommended. Because of the high gloss lacquer finish, it is advantageous to make every effort to avoide finger prints and other smudges that might have to be cleaned off.

The grille may be gently vacuumed, and stains can be removed with an aerosol cleaner, following the manufacturer's instructions. Never use any solvents to clean any part of the system.

Service

Should your loudspeakers system ever need service, return it to the JBL dealer from whom it was purchased.

Technical Specifications

Technical ecifications	S118 Mackinac	S116 Montauk	S115 Newport
Recommended amplifier power range	10-150 W	10-125 W	10-80 W
Nominal impedance	8 Ω	8 Ω	8 Ω
Sensitivity	91 dB	90 dB	88 dB
Frequency response	45 Hz -20 kHz	50 Hz - 20 kHz	90 Hz - 23 kHz
Crossover frequency	800 Hz / 4 kHz	3 kHz	3 kHz
Low frequency transducer	8 in / 200 mm	6.5 in / 165 mm	5.25 in / 133 mm
Midrange transducer	5 in / 125 mm
High frequency transducer	1 in / 25 mm	1 in / 25 mm	0.5 in / 12 mm
	Pure Titanium dome	Pure Titanium dome	Titanium Laminate dome
Enclosure finish	Black Lacquer	Black Lacquer	Black Lacquer
	White Lacquer	White Lacquer	White Lacquer
Grille color	Black	Black	Black
Dimensions
Height	23 in / 584 mm	15.5 in / 394 mm	12 in / 305 mm
Width	11.75 in / 298 mm	10 in / 254 mm	7.25 in / 191 mm
Depth	11.75 in / 298 mm	8.625 in / 219 mm	6.375 in / 162 mm
Net weight	28.6 lb / 13 kg	14.3 lb / 6.5 kg	8 lb / 3.6 kg
Shipping weight	37.4 lb / 19 kg	* 33 lb / 15 kg	* 16 lb / 7.2 kg

* The S115 and S116 are packed and shipped in pairs
