OWNER'S MANUAL

Washing Machine

Please read this manual carefully before operating your washing machine and retain it for future reference.

WF-D850J

WF-HD85FS

WF-HD90FS

roduct Features

The Turbo Drum DD washing machine does not operate with the lid open.

If the lid is opened during wash, rinse and spin cycles, the machine will stop automatically.

Please close the lid gently. Closing the lid in an aggressive manner can cause damage and/or injury.

FUZZY logic control

- A built-in load sensor automatically detects and weighs the laundry load and a microprocessor optimizes the washing conditions such as the ideal water level and washing time.


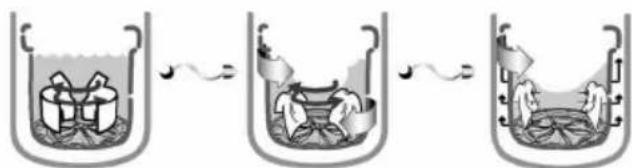

Turbo Drum DD washing

Three-step diagram showing a container with liquid and a container with plants, connected by a coiled tube (no text or symbols)

Stains are removed by pulsator movement
Stains are removed by the tub movement
With low speed spinning of the tub, stains are removed

Low Noise Direct Drive System

• LG Inverter Direct Drive™ motor gives you a quieter and more durable madine. We attach the motor directly to the washing tub for more stability, less vibration and higher energy efficiency.
  ● The washing machine will adjust to the optimum rotating speed according to the wash program.

READ THIS MANUAL

Inside you will find many helpful hints on how to use and maintain your washer properly. Just a little preventive care on your part can save you a great deal of time and money over the life span of your washer. You will find many answers to common problems in the Troubleshooting section. If you review our chart of Troubleshooting Tips first, you may not need to call for service at all.

Introduction	Safety Information	4
	Identification of Parts	7
	Function Information	8
Before Starting to Wash	Preparation Before Washing	9
	Use of Water, Dispenser Drawer, Detergent and Softener	10
	Special Guide for Stain Removal	13

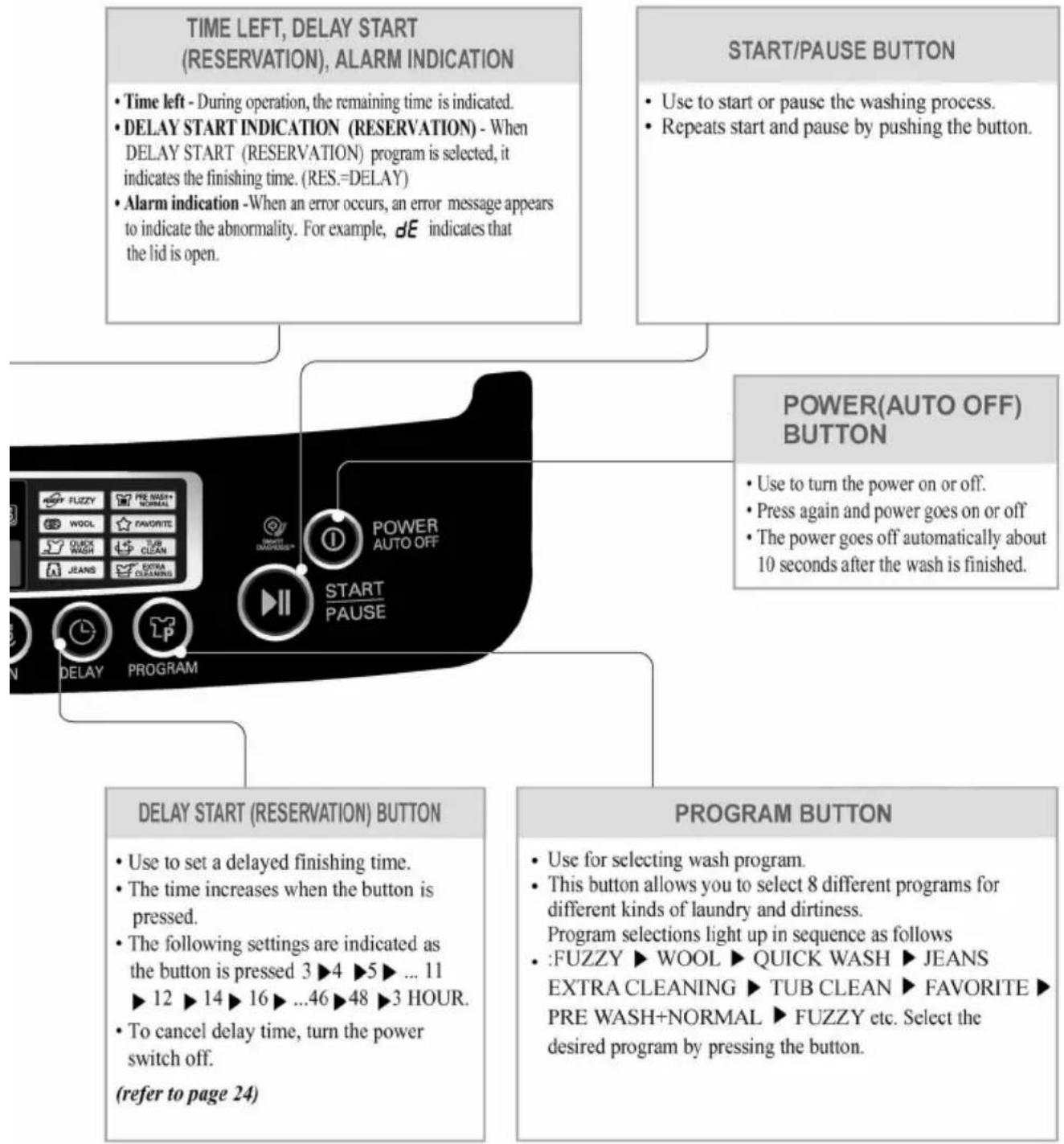

	Function of each Button	14
Washing Programs	FUZZY Wash	16
	WOOL Wash	16
	QUICK WASH	16
	JEANS Wash	16
	EXTRA CLEANING	16
	SOAK Wash	18
	FAVORITE Wash	19
	PRE WASH + NORMAL Wash	20
Additional Function Program	TUB CLEAN	21
	AIR DRY	22
	TUB DRY	22
	Option Washing	23
	DELAY START (RESERVATION) WASH	24
	Other Useful Functions	25
Installation	Placing and Leveling	26
	Connecting Water Supply Hose	27
	Connecting Drain Hose	30
Care and Maintenance	Grounding Method	31
	Cleaning and Maintenance	32
	Use of Handle Locker	34
Troubleshooting	Common washing problems	35
	Troubleshooting	36
	SmartDiagnosis ^TM	37
Terms of Warranty	Terms of Warranty	38
Specification	Specification	39

afety Information

Read carefully and thoroughly this booklet as it contains important safety information that will protect the user from unexpected dangers and prevent potential damages to the product.

This booklet is divided into 2 parts: Warning and Caution.

: This is a warning sign specifying user's applications which might be dangerous.

: This is a sign specifying 'Strictly Forbidden' applications.

WARNING : Failure to comply with the instructions under this sign may result in major physical injuries or death.

CAUTION: Failure to comply with the instructions under this sign may result in minor physical injuries or damages to the product.

PROPER INSTALLATION

CAUTION

• The base opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.
  • Install or store where it will not be exposed to temperatures below freezing or exposed to the weather. If the product is exposed to such conditions, electric shock, fire, break down or deformation may occur.
• Properly ground washer to conform with all governing codes and ordinances. Follow details in Installation Instructions.
  If machine is not grounded properly, break down and leakage of electricity may occur, which may cause electric shock.
• Must be positioned so that the plug is accessible.
  If the plug is placed between the wall and the machine, it may get damaged, possibly causing fire or electric shock.
  • Make sure the plug is completely pushed into the outlet.
  Failure to do so may cause electric shock and fire due to overheating.

afety Information

YOUR LAUNDRY AREA	WARNING
	·Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags, chemical, etc.Operating with such materials around the machine may trigger explosion or fire.·Close supervision is necessary if this appliance is used by or near children.Do not allow children to play on, with, or inside this or any other appliances.There is potential danger that children might drown or suffocate in the tub.Do not touch the power plug with a wet hand.It will cause electric shockDo not put your hand, foot or anything under the washing machine while the washing machine is in operation.There is a rotating mechanism under the machine, you could be injured.
WHEN USING THE WASHER	CAUTION
	·Use this appliance only for its intended purpose as described in this Owner's Manual.·The laundry process can reduce the flame retardancy of fabrics. To avoid such a result, carefully follow the garment manufacturer's wash and care instructions.·The instruction shall state the substance of the following:This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been giving supervision or instruction concerning use of the appliance by person responsible for their safeChildren should be supervised to ensure that they do not play with the appliance·To minimize the possibility of electric shock, unplug this appliance from the power supply or disconnect the washer at the household distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning.NOTE:Pressing Power button to turn off does NOT disconnect the appliance from the power supply.·Make sure the drainage is working properly.If water is not drained properly, your floor may get flooded. Flooded floors may induce electricity leakage, further resulting in electric shock or fire.·If, during spinning, opening the lid does not stop the tub within about 15 seconds, immediately discontinue operating the machine.Call for repair. A machine that spins with its door open may cause injuries.Never reach into washer while it is moving.Wait until the machine has completely stopped before opening the lid.Even slow rotation can cause injury.Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.Operating with a damaged plug may cause electric shock.Do not use water hotter than 60°C.Use of extremely hot water may cause damage to fabrics or cause leakage of water as well as long term damage to some of the machines parts.

afety Information

WHEN USING THE WASHER	WARNING
	Do not use a plug socket and wiring equipment for more than their rated capacity.Exceeding the limit may lead to electric shock, fire , break down, and/or deformation of parts.If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover.Mixing different chemicals can produce toxic gases which may cause death.Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, dry-cleaning solvents, kerosene, etc). Do not add these substances to the wash water.Do not use or place these substances around your washer or dryer during operation.It may ignite or explode.
WHEN NOT IN USE	CAUTION
	Turn off water faucets to relieve pressure on hoses and valves and to minimize leakage if a break or rupture should occur. Check the condition of the fill hoses; they may need replacement after 5years.When the air temperature is high and the water temperature is low, condensation may occur and thus wet the floor.Wipe off dirt or dust on the contacts of the power plug.Using unclean power plug may cause fire.Before discarding a washer, or removing it from service, remove the washer lid to prevent children from hiding inside.Children may be trapped and suffocated if the lid is left intact.Do not attempt to repair or replace any part of this appliance unless specifically recommended in this Owner's Manual, or in published user-repair instructions that you understand and have the skills to carry out.Operating the machine with improperly replaced parts may be a cause for fire or electric shock.Do not tamper with controls.It may lead to electric shock, fire , break down, deformation.Do not yank the power cord in an attempt to disconnect the power plug.Firmly hold the power plug to unplug the machine.Failure to observe these instructions may cause electric shock or fire due to short-circuit.When you are cleaning the washing machine, do not apply water directly to any part of the washing machine.It will cause short circuit and electric shock.

dentification of Parts

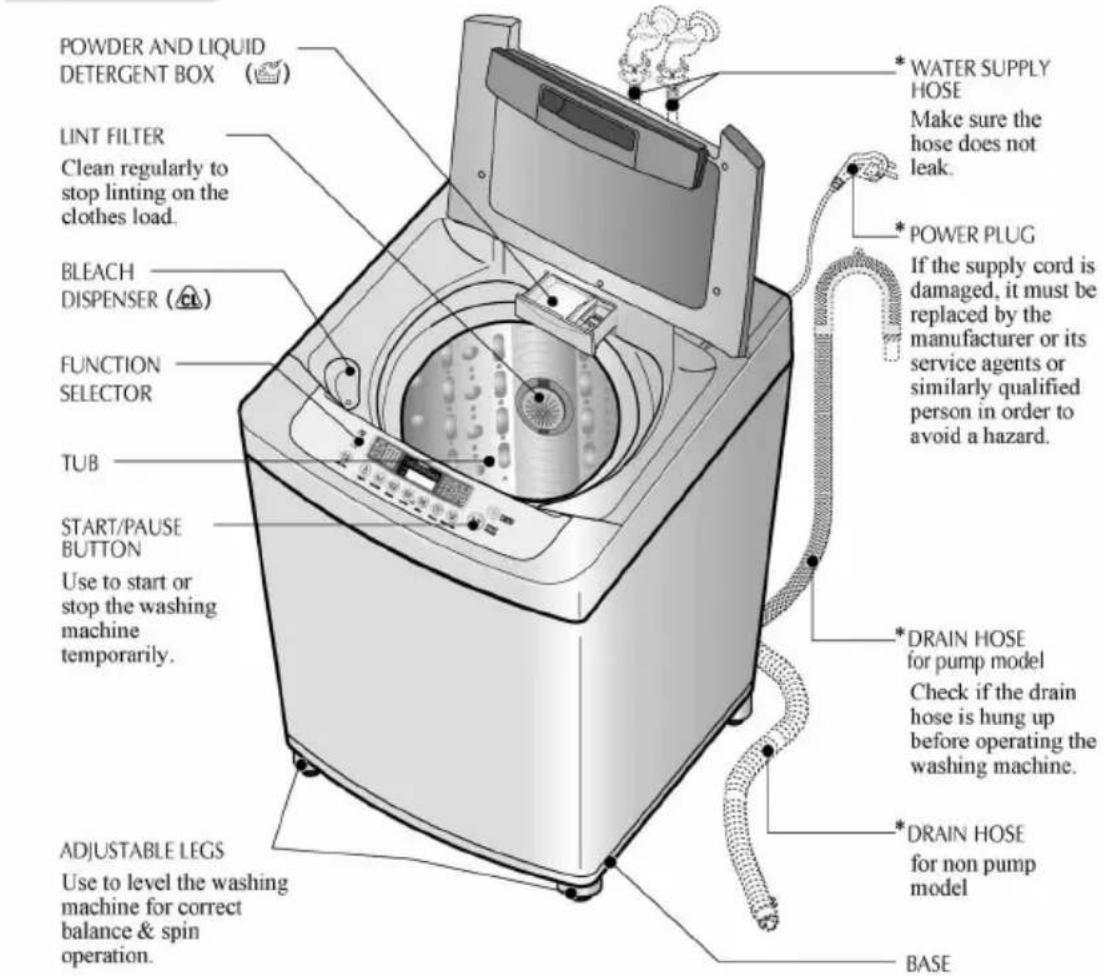

Body

Accessories

Water supply hoses

1 Each for COLD and HOT water

Drain hose

or

Anti-rat cover (option)

Fixing screw for Anti-rat cover

NOTE

“*” Part can be different according to the model.

unction Information

Our machine provides various washing methods which suit various conditions and types of laundry.

Different types of laundry washing

FUZZY Wash

Use this Program for everyday washing e.g. sheets, towels, T-shirts. (refer to page 16)

JEANS Wash

Use this Program for heavily soiled durable garments e.g. overalls, jeans.

Thick and heavy clothes or those which are excessively dirty like jeans or working uniforms. (refer to page 16)

EXTRA CLEANING

Use this program to get better rising performance. (refer to page 16)

WOOL Wash

Use this program for Wool clothes (lingerie, wool, etc.) which may be easily damaged. (refer to page 16)

The fibers of machine washable woolens have been specifically modified to prevent felting when they are machine washed.

Most handknitted garments are not made of machine washable wool and we recommend that you hand wash them

• Before washing your woolens check the care label for the washing instructions.
• When washing woolens use a mild Detergent recommended for washing wool.
• Hand washed woolens may be spun in a washing machine to reduce the time they take to dry.
  • To dry woolens lay down them flat on a towel and pat into shape. Dry woolens out of direct sunlight.

(The heat and tumble action of a dryer may cause shrinkage or felting of woolen garments.)

Some wool underlays and sheepskin products can be washed in a washing machine but may cause pump blockages.

(Ensure that the whole article is suitable for machine washing and not just the backing material.)

You may wish to handwash these articles and place them in the machine to spin dry.

FAVORITE Wash

This setting allows you to store your FAVORITE wash conditions in the normal cycle memory. (refer to page 19)

PRE WASH + NORMAL Wash

Washing laundry with Pre Wash+ Normal cycle that pretreats immediate stain without hand-wash(refer to page 20)

Wash according to the condition of laundry

QUICK WASH

QUICK WASH can be selected to wash lightly soiled clothes of less than 2.0 kg in a short time. (refer to page 16)

SOAK Wash

SOAK Wash can be selected to wash heavily soiled laundry by soaking in water for some time to remove dirt and grime. (refer to page 18)

Other washing method

TUB CLEAN

Use this program to clean the inside of washing machine especially Inner tub & Outer tub. (refer to page 21)

DELAY START Wash

DELAY START Wash is used to delay the finishing time of the operation.

The number of hours to be delayed can be set by the user accordingly. (refer to page 24)

OPTION WASH

We have varicus wash options cater for your different washing needs- SPIN, RINSE/SPIN, RINSE, WASH/RINSE, WASH, WASH/RINSE/SPIN, SOAK/WASH/RINSE/SPIN. (refer to page 23)

reparation Before Washing

Care Labels

* Look for a care label on your clothes. This will tell you about the fabric content of your garment and how it should be washed.

Sort clothes into loads that can be washed with the same wash cycle, Water Temperature and spin speed.

Sorting

To get the best results, different fabrics need to be washed in different ways.

• SOIL (Heavy, Normal, Light)

Separate clothes according to the type and amount of soil.

• COLOR (Whites, Lights, Darks)

Separate white fabrics from colored fabrics.

• LINT (Lint producers, Collectors)

Separate lint producers and lint collectors.

Lint Producers

Terry cloth, Chenille, Towels, Nappies, Diapers

Lint Collectors

Synthetics, Corduroy, Permanent Press, Socks

Check before Loading

- Check all pockets to make sure that they are empty. Things such as nails, hairclips, matches, pens, coins, and keys can damage both your washer and your clothes.

- Mend any torn garments or loose buttons. Tears or holes may become larger during washing.

- Remove belts, underwires, etc. to prevent damage to the machine or your clothes.

- Pretreat any dirt and stains.

• Make sure the clothes are washable in water.

- Check the washing instructions.

- Remove tissue in pockets.

CAUTION

Do not wash or spin any item labeled or known to be water-proof or water-resistant, even if the product care label on the item permits machine washing. Failure to follow these instructions could result in severe damage to your laundry, your washer and/or property damage as a result of abnormal vibration of the washer.

- Examples of water-proof or water-resistant items include certain mattress pads, mattress covers, rain gear, camping gear, skiing apparel, outdoor gear and similar items.

Pretreatment on stains or heavy soil

• Pretreat shirt collars and cuffs with a pre-wash product or liquid Detergent when placing them in the washer. Before washing treat special stains with bar soaps, liquid Detergent or a paste of water and granular Detergent.
• Use a pretreat soil and stain remover.

Treat stains AS SOON AS POSSIBLE. The longer they are left the harder they are to remove.

(For more detail refer to page13)

Loading

Do not wash fabrics containing flammable materials (waxes, cleaning fluids, etc.).

Load Size

The WATER LEVEL should just cover the clothes. Adjust the load size accordingly. Loosely load clothes no higher than the top row of holes in the washer tub. To add items after washer has started, press Start button and submerge additional items. Close the lid and press Start button again to restart.

Light and Large-sized clothing

Clothes like downs and woollens are light weight, large and float easily. Use a nylon net and wash them in a small amount of water. If the laundry floats during the wash cycle, it may become damaged. Use dissolved Detergent to prevent the Detergent from clumping.

Long laundry items

Use nylon nets for long, DELICATE items. For laundry with long strings or long length, a net will prevent tangling during washing. Fasten zippers, hook, and strings to make sure that these items don't snag on other clothes.

※ Nylon net is not supplied by LG.

WARNING

Fire Hazard

Never place items in the washer that are dampened with gasoline or other flammable fluids.

No washer can completely remove oil.

Do not dry anything that has ever had any type of oil on it (including cooking oils).

Doing so can result in death, explosion, or fire.

se of Water, Dispenser Drawer, Detergent and Softener

Using Water

WATER LEVEL

• This machine detects the quantity of laundry automatically, then sets the WATER LEVEL and also indicates the suggested amount of Detergent for the detected load weight.
• When you select a wash program, the WATER LEVEL and amount of Detergent (to be used) will be shown on the control panel.

Water-Detergent
9	10
7	8
5	6
3	4
1	2

NOTE

[ Minimum water amount ]

The washer will only operate at a minimum water level. You might need to pour in water to the minimum level to start the washing.

Water Temperature (for 2 valve model)

• The machine sets the appropriate temperature automatically according to the wash program.
- The temperature of the water impacts the effectiveness of all laundry additives and therefore, the cleaning results. We recommend temperatures of:
- HOT 49\~60°C...(120-140°F) White items, diapers, underclothing and heavily soiled, colorfast items.
- WARM 29\~40°C...(85-105°F) Most items
- COLD* 18\~24°C...(65-75°F) Only very bright colors with light soil.
- When washing in COLD water additional steps may be needed:
- Adjust Detergent amount and pre-dissolve Detergent in WARM water
- Pretreat spots and stains
- Soak heavily soiled items
- Use appropriate bleach
* Temperature below 24°C...(65°F) will not activate laundry additives and may cause lint, residue, poor cleaning, etc. In addition, Detergent manufactures and care labels define COLD water as 26\~29°C...(80-85°F). If the temperature of the water in the tub is too cold for your hands, the Detergent will not activate and clean effectively.

NOTE

If iron is present in the water the clothes may become an all-over yellow or they may be stained with brown or orange spots or streaks. Iron is not always visible. Installation of water softener or an iron filter may be necessary for severe cases.

Using the Dispenser Drawer

The dispenser drawer contains 2 compartments:

• Liquid Fabric Softener

• Power Low-Sudsing, High-Efficiency Detergent

The dispenser automatically dispenses additives at the appropriate time in the wash cycle.

1. Slowly open the dispenser drawer by pulling the drawer out until it stops.

2. After adding cleaning agents, slowly close the dispenser drawer. Closing the drawer too quickly could result in early dispensing of the agente.

- Avoid overfilling or splashing when adding cleaning agent to the dispenser. Doing so could result in early dispensing of cleaning agent.

At the end of the cycle, you may see water in the compartments. This is normal.

NOTE : Do not use bleach in the dispenser drawer.

Line drawing of a hand holding a wooden tray with a black arrow indicating direction (no text or symbols)

Using Detergent

Detergent

Follow the Detergent package directions. Using too little or too much Detergent is a common cause of laundry problems.

Use more Detergent if you have hard water, large loads, greasy or oily soils or lower Water Temperature.

Choosing the right Detergent

We recommend the use of domestic Detergent, (powder, liquid or concentrated). Soap flakes or granulated soap powders should not be used in your washing machine. When washing woolens, remember to use Detergent suitable for washing woolens.

How much Detergent

The amount of Detergent to use will vary depending on the amount of soil in your clothes (Jeans and work clothes may need more Detergent, while bath towels usually need less.).

For liquid and concentrated Detergents, follow the recommendations of the Detergent manufacturer.

Note: To check you are using the correct amount of Detergent, lift the lid of your machine about halfway through the wash. There should be a thin layer of foam over the surface of the water. Lots of foam may look good, but it does not contribute to cleaning your clothes. No foam means not enough Detergent has been used; soil and lint can settle back on the clothes or the washing machine.

If excess Detergent is used, the rinse will not be as clean and efficient. Also, it could cause environmental pollution.

Adding Detergent

Add measured detergent to the detergent compartment of the dispenser drawer.

Technical line drawing of a mechanical housing or enclosure with an arrow indicating direction (no text or symbols present)

Detergent is flushed through the dispenser at the beginning of the wash cycle.

Detergent dosage may need to be adjusted according to water temperature, water hardness, size and soil level of the load.

Avoid using too much detergent in your washer, as it can lead to oversudsing and detergent residue being left on the clothes.

Note : Using Liquid detergent

• Dilute Liquid detergent with water and pour into the tub, start the cycle.
• Delay wash course is not available if you use liquid detergent.

Attention

Using liquid detergent without diluting, or leaving laundry for a long time after pouring diluted liquid detergent into the tub might cause damage, bleaching or discoloration of cloth.

se of Water, Dispenser Drawer, Detergent, Bleach and Softener

Using Liquid Bleach

• Check clothing care label for special instructions and separate the laundry to be bleached
  • Dilute liquid chlorine bleach.
• Measure the recommended amount of liquid bleach carefully following instructions on the bottle.
• Before starting the washer, pour measured amount of bleach directly into bleach dispenser. Avoid splashing or overfilling. Powdered bleach should be mixed thoroughly with water before pouring.

Bleach dispenser (ct)

Line drawing of a mechanical component with a cylindrical part inserted, showing no text or symbols

NOTE

■ Never pour undiluted liquid bleach directly onto clothes or into the wash tub.
This may cause change of color or damage the laundry.
■ Do not pour powdered bleach into bleach dispenser.

Using Fabric Softener

If desired, pour the recommended amount of liquid fabric softener into the right-hand compartment of the dispenser drawer.

Use only liquid fabric softener.

Dilute with water to the maximum fill line.

- Do not exceed the maximum fill line.

Overfilling can cause early dispensing of the fabric softener, which could stain clothes.

Technical line drawing of a mechanical component with no visible text or symbols

NOTE : Do not pour fabric softener directly onto the wash load.

It may stain the clothes.

Fabric softener is automatically dispensed in the final rinse with indication beep.

Attention

■ Do not mix with Detergent or bleach.
■ Never pour fabric softener directly on clothes. It may stain them.
■ Do not stop the washer during the first spin for timely dispensing.
■ Option washing is not designed to be used with fabric softener dispenser.

Scrud(Waxy Build up)

Scrud is the name given to the waxy build-up that can occur within any washer when the fabric softener comes into contact with Detergent. This build-up is not brought about by a fault in the machine.

If scrud is allowed to build-up in the machine, it can cause stains on your clothes or an unpleasant smell in your washer.

If you wish to use fabric softener, we recommend

• Using fabric softener sparingly.
- When filling the dispenser, do not splash or overfill.
- Clean dispenser as soon as the cycle is finished.
- Clean your machine regularly. (refer to page 21, 32 or 33)
- Cold water washing increases the chance of this build-up occurring. We recommend a regular WARM or HOT wash e.g. every 5th wash should be at least a warm one.
- Diluted fabric softener is less likely to leave residue on the dispenser and contribute to scnid build-up.

pecial Guide for Stain Removal

WARNING

■ Do not use or mix liquid chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acid or products containing ammonia. These mixtures can produce dangerous fumes which can cause serious injury or death.
■ To reduce the risk of fire or serious injury to persons or property, comply with the basic warnings listed below:

- Read and comply with all instructions on stain removal products.

- Keep stain removal products in their original labeled containers and out of children's reach.

• Thoroughly wash any utensil used.

- Do not combine stain removal products, especially ammonia and chlorine bleach. Dangerous fumes may result.

- Never wash items which have been previously cleaned in, washed in, soaked in or spotted with gasoline, dry cleaning solvents or other flammable or explosive substances because they give off vapors that could ignite or explode.

- Never use highly flammable solvents, such as gasoline, inside the home. Vapors can explode on contact with flames or sparks.

For successful stain removal:

• Remove stains promptly.
• Determine the kind of stain, then follow the recommended treatment in the stain removal chart below.
• To pretreat stains, use a prewash product, liquid Detergent, or a paste made from granular Detergent and water.
• Use COLD water on unknown stains because HOT water can set stains.
• Check care label instructions for treatments to avoid on specific fabrics.
• Check for colorfastness by testing stain remover on an inside seam.
• Rinse and wash items after stain removal.

Follow fabric care label instructions

Stain Removal
STAIN	TREATMENT
Adhesive tape, chewing gum, rubber cement	Apply ice. Scrape off excess. Place stain face down on paper towels. Saturate with prewash stain remover or nonflammable dry cleaning fluid.
Baby formula, dairy products, egg	Use product containing enzymes to pretreat or soak stains.
Beverages (coffee, tea, soda, juice, alcoholic beverages)	Pretreat stain. Wash using COLD water and bleach-safe for fabric.
Blood	Rinse with COLD water. Rub with bar soap. Or pretreat or soak with product containing enzymes. Wash using bleach-safe for fabric.
Candle wax, crayon	Scrape off surface wax. Place stain face down between paper towels. Press with warm iron until wax is absorbed. Replace paper towels frequently. Treat remaining stain with prewash stain remover or nonflammable dry cleaning fluid. Hand wash to remove solvent. Wash using bleach-safe for fabric.
Chocolate	Pretreat or soak in WARM water using product containing enzymes. Wash using bleach-safe for fabric.
Collar or cuff soil, cosmetics	Pretreat with prewash stain remover or rub with bar soap.
Dye transfer on white fabric	Use packaged color remover. Wash using bleach-safe for fabric.
Grass	Pretreat or soak in WARM water using product containing enzymes. Wash using bleach-safe for fabric.
Grease, oil, tar (butter, fats, salad dressing, cooking oils, car grease, motor oils)	Scrape residue from fabric. Pretreat. Wash using hottest water safe for fabric. For heavy stains and tar, apply nonflammable dry cleaning fluid to back of stain. Replace towels under stain frequently. Rinse thoroughly. Wash using hottest water safe for fabric.
Ink	Some inks may be impossible to remove. Washing may set some inks. Use prewash stain remover, denatured alcohol or nonflammable dry cleaning fluid.
Mildew, scorch	Wash with chlorine bleach if safe for fabric. Or, soak in oxygen bleach and HOT water before washing. Badly mildewed fabrics may be permanently damaged.
Mud	Brush off dry mud. Pretreat or soak with product containing enzymes.
Mustard, tomato	Pretreat with prewash stain remover. Wash using bleach-safe for fabric.
Nail polish	May be impossible to remove. Place stain face down on paper towels. Apply nail polish remover to back of stain. Repeat, replacing paper towels frequently. Do not use on acetate fabrics.
Paint, varnish	WATER BASED : Rinse fabric in cool water while stain is wet. Wash. Once paint is dry, it cannot be removed, OIL BASED AND VARNISH : Use solvent recommended on can label. Rinse thoroughly before washing.
Rust, brown or yellow discoloration	For spots, use rust remover safe for fabric. For discoloration of an entire load, use phosphate Detergent and nonchlorine bleach. Do not use chlorine bleach because it may intensify discoloration.
Shoe polish	LIQUID : Pretreat with a paste of granular Detergent and water. PASTE : Scrape residue from fabric. Pretreat with prewash stain remover or nonflammable dry cleaning fluid. Rub Detergent into dampened area, Wash using bleach safe for fabric.

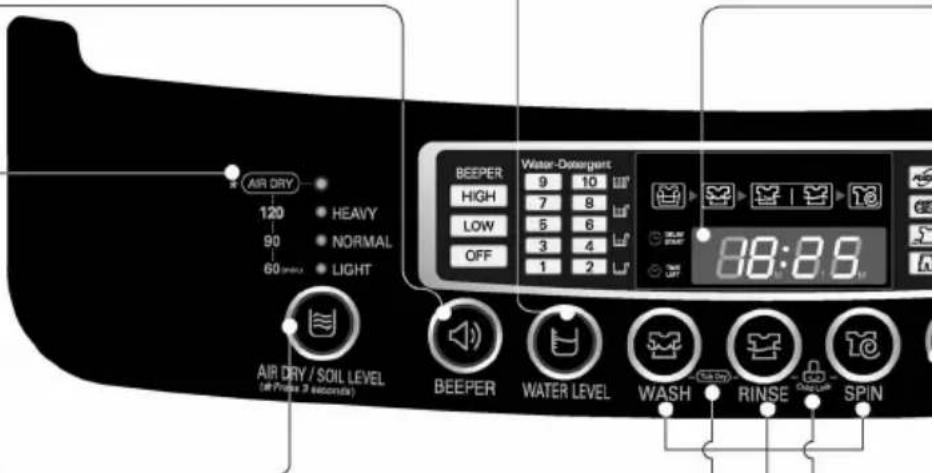

unction of each Button

BEEPER BUTTON

- Use to select Beeper Pressing the button allows HIGH ▶ OFF ▶ LOW ▶ HIGH respectively

WATER LEVEL BUTTON

• Use to select the proper amount of water in relation to the weight and type of laundry.
• Automatically controlled, but can be selected manually by pressing the WATER LEVEL Button.
• WATER LEVEL is automatically selected for FUZZY program. The following settings are indicated as the button is pressed

7 ▶ 8 ▶ 9 ▶ 10 ▶ 1 ▶ 2 ▶ 3 ▶ 4 ▶ 5 ▶ 6 ▶ 7

AIR DRY

• This function is used to reduce the drying time of the laundry by allowing air to circulate within the bowl in order to reduce moisture levels. It does not dry the clothes completely.
• Air dry selections light up in sequence as follows. 60 ▶ 90 ▶ 120 ▶ 60 as the button is pushed.
• Press the button for 3 seconds to select and press the Power button to cancel the operation. (refer to page 22)

SOIL LEVEL BUTTON

• This button allows you to select the strength of the wash action.
- Power option selections light up in sequence as follows Normal ▶ Heavy ▶ Light ▶ Normal as the button is pushed.

This can be selected for any Program.

- Adjustment can be made while washing.

TUB DRY

• Use this when you want to dry the empty tub after a wash.
• This can be set / canceled by pressing the WASH button and RINSE button simultaneously.

(refer to page 22)

WASH.RINSE.SPIN BUTTON

• Use when wash, rinse, spin time need to be adjusted.
  • The time increases when the button is pressed.
• If adjustments are needed during the wash, press the SRART/PAUSE button before making any changes.
• When the button is pressed during washing, the remaining time is displayed.

CHILD LOCK FUNCTION

- Use to lock or unlock the control buttons to prevent settings from being changed by a child. To lock, push the RINSE and SPIN buttons simultaneously and to unlock push them one more time during the washing process.

(refer to page 25)

ashing Programs

Washing Programs	POWER AUTO OFF	Add the laundry	PROGRAM	Add the Detergent
FUZZYUsed for normal loads, this mode automatically selects the most appropriate conditions and completes the sequence in one operation. The built-in sensor detects the size of the load and the ideal wash power and wash, rinse and spin times are set accordingly.				• Add the appropriate quantity of Detergent as indicated by the WATER LEVEL.Or follow the Detergent manufacturer's instructions
WOOLUse this program for washing delicate fabrics such as lingerie and woolens. (wash only "water washable" clothes)Before washing your woolens check the care label for the washing instructions.(wash only water washable clothes)			• Select the WOOL program on the Control panel.	• Use neutral Detergent appropriate for the laundry.• When washing woolens use a mild Detergent recommend- ed for washing wool.
QUICK WASHUse this mode when washing lightly soiled clothes for a short time. The highly recommended laundry amount is under 2.0kg.			• Select the QUICK WASH program on the Control panel.	• Add the appropriate quantity of Detergent as indicated by the WATER LEVEL.Or follow the Detergent manufacturer's instructions
[WSZC] JEANSUse jeans program when washing jeans of different sizes		• Spread the jeans evenly in the tub	• Select the JEANS program on the Control panel.
EXTRA CLEANINGUse this program to increase rinsing performance.This would include underwear and baby clothes.If someone has sensitive skin or skin trouble,use this program.			• Select the EXTRA CLEANING program on the Control panel.

START PAUSE	Close the lid	Finish	Caution & Note
The inner tub rotates for several times to detect laundry load.Then the WATER LEVEL and the amount of Detergent to be used will be shown and water will be supplied.	Water will be supplied after the start of the wash to supplement the water the laundry has absorbed.	When the wash program ends, the buzzer will ring for 10 seconds before the Power goes off automatically.	·If water is already in the tub, or putting wet laundry into the tub before starting will increase the WATER LEVEL.·With lightweight bulky loads, WATER LEVEL can be set low.
			·When setting the WATER LEVEL manually, do not set to Medium to prevent damage to laundry.Washing with HOT water may damage the laundry (Water is set to cold automatically). Ensure that the load is under 2kg.In order to avoid damage to laundry, the spin cycle may appear slow. This also avoids wrinkles and clothing may still contain some water. This is normal.
			·When static pressure of water is more than 2 kg/cm^2 , the QUICK WASH course will be within 20min.

OAK Wash

Use this mode to wash normal clothes or thick and heavy clothes which are excessively dirty. SOAK mode can be used with FUZZY or JEANS or SILENT or FAVORITE program.

1 Press the POWER (AUTO OFF) button to turn power on.

POWER AUTO OFF

2 Press the PROGRAM button to select the washing program.

3 Press the WASH button, to select SOAK program.

• Keep pressing the WASH button until the light turns on 'SOAK' and 'WASH' simultaneously as shown below.
  • SOAK program only works when washing time is 40, 50 or 60 minutes.

4 Add the Detergent. • Add the appropriate quantity of Detergent as the Detergent

5 Add the laundry and press the START/PAUSE button.

START PAUSE

• The WATER LEVEL will be shown and water will be supplied.

6 Close the lid. • Water will be supplied for 2 minutes after the start of the wash to supplement the absorbed water by the laundry.

Finish - When the wash program ends, the buzzer will ring for 10 seconds before the Power goes off automatically.

NOTE

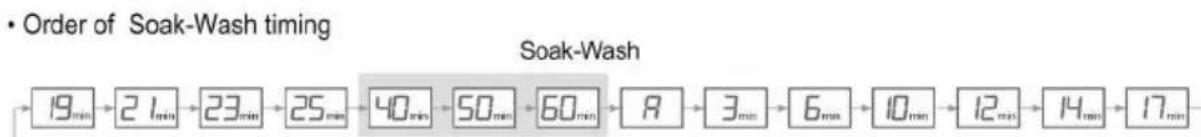


- Select soaking time 40 minutes, 50 minutes, or 60 minutes (including washing time) by pressing the Wash button repeatedly.

- If necessary, select the times of Rinse and the time for Spinning by pressing the Rinse or Spin buttons till you reach the desired times.

- Select soaking time 40minutes, 50minutes, or 60minutes (including washing time) by pressing the Wash button repeatedly. - If necessary, select the times of Rinse and the time for Spinning by pressing the Rinse or Spin buttons till you reach the desired times.

AVORITE Wash

Selecting the FAVORITE program allows you to store your FAVORITE wash conditions in the normal cycle memory and then recall it for use at a later time.

1 Press the POWER (AUTO OFF) button to turn power on.

POWER AUTO OFF

2 Select the FAVORITE program.

PROGRAM

3 Select your FAVORITE wash conditions.

• Press the WATER LEVEL button to select water level.
• Press the WASH button, the RINSE button & the SPIN button to select wash time, number of rinses & spin time that you want to store.

4 Press the START/PAUSE button to store & start your FAVORITE wash cycle. Power turns off automatically after wash.

START PAUSE

NOTE

To recall your FAVORITE cycle.

1. Press POWER on.
2. Select the FAVORITE cycle by pressing the PROGRAM.
3. Press the START/PAUSE button. Then the wash cycle starts.

RE WASH + NORMAL Wash

Washing laundry with Pre Wash+ Normal cycle that pretreats immediate stain without hand-wash.

1 Press the POWER (AUTO OFF) button to turn power on.

POWER AUTO OFF

2 Press the PROGRAM button to select PREWASH + NORMAL program.

3 Add the laundry into the washing tub.

4 Press the START/PAUSE button.

START PAUSE

5 Add the Detergent and close the lid.

NOTE

- Washing laundry with Pre Wash+ Normal cycle that pretreats immediate stain without hand-wash. i.e. Necessary for clothes which could be smelled badly without prompt laundry.

TUB CLEAN

If scrud is allowed to build-up in the machine it can result in stains on your clothes or unpleasant smell in your washer.

Scrud is the way build-up that can occur within any washer when the fabric softener comes into contact with Detergent, and according to particular degree of dirtiness or quality of water to be use, in these case, use this program to clean inner tub and outer tub.

1 Press the POWER (AUTO OFF) button to turn power on.

POWER AUTO OFF

2 Press the PROGRAM button to select the TUB CLEAN program.

PROGRAM

3 Press the START/PAUSE button. • Left time is displayed.

START PAUSE

4 After 10 minutes of water supplement. Add the oxygenated bleach (about 300 m l).

• Do not use Detergent box.
• Do not place any laundry inside tub.

5 Close the lid. When the lid is open the machine will not operate, and an

NOTE

• Before using this program remove lint inside lint filter.
• When using this program, do not place any laundry inside tub.
  • This program takes about 40 minutes to be completed.
  • After using this program, remove dirt inside filter.
  • After finishing this program, open the lid of wash to remove any irritating odor.
• Do not pour bleach into the tub directly. It might cause damage to the tub.
• Do not leave diluted oxygenated bleach inside tub for a long time as this may cause the tub to rust. The remaining diluted oxygenated bleach water must be drained out.
• Use this program once every month.

The purpose of the TUB CLEAN function is to prevent scud build up when used as per the instructions.

It will not remove existing stubborn traces of scud.

- Do not use this program consecutively each time.

Automatic detection of time to clean Tub

• After Power On button pressing, if tcl is blinking in the display, it is the time for Tub Cleaning.
- If you want to skip the Tub Clean, press option buttons to select desired cycle.
- After performing tub clean, tcl will disappear until next cleaning time.
- Tub Clean time is detected automatically as per the usages of washer (Generally once after 30 usages)

IR DRY

AIR DRY for your laundry.

Press the POWER (AUTO OFF) button to turn power on.

POWER AUTO OFF

When you press the Air dry button for 3 seconds, the Air dry course will be Selected.

AIR DRY / SOIL LEVEL (★Press 3 seconds)

When the Air dry is selected, other buttons will be inactive. If you want to cancel the Air dry function, press the power button.

Press the START/PAUSE button.

START PAUSE

When the complete buzzer goes off, the power will automatically be turned off in 10 seconds.

NOTE

■ When you select Air dry for more than 60 minutes

1) You can reduce the drying time by minimizing the moisture in the laundry.
2)Always keep the laundry amount to 2kg or less and make sure to spread it out evenly.
3) Select 60 minutes for cotton laundry and 120 minutes for synthetic fiber laundry for effective moisture removal.

UB DRY

Press the POWER(AUTO OFF) button.

POWER AUTO OFF

When you press the Wash and Rinse button simultaneously, the Tub Dry course will be set or canceled. When you select the Tub Dry, do not put any laundry in the drug

Press the START/PAUSE button.

START PAUSE

When the complete buzzer goes off, the power will automatically be turned off in 10 seconds.

NOTE

■ When you select Tub Dry

1) Use this function to minimize the growth of mold from the residual moisture within the laundry.
2) When you select the Tub Dry course, do not put any laundry or detergent in the drum.
3) It is good to use this about once a week.

ption Washing

When you only need the Wash, Wash/Rinse or Rinse cycles, these can be set manually.

1 Press the POWER (AUTO OFF) button to turn power on.

POWER AUTO OFF

Only Wash	Only Rinse	Only Spin
Press theWASHbutton to select the desired timing.	Press theRINSEbutton to select the desired times of rinse.	Press theSPINbutton to select the desired spin duration.
Only Wash,Rinse	Only Rinse,Spin	Only Drain
Press theWASHbutton to select the desired timing.Press theRINSEbutton to select the desired times of rinse.You can use this option for preventing wrinkles of laundry	Press theRINSEbutton to select the desired times of rinse.Press theSPINbutton to select the desired times of spin.	You only want to drain out the water without spinning.

3 Press the WATER button, to control the water level according to the amount of laundry. If you do not choose anything, it is set the middle water level automatically.

4 Add the laundry into the washing tub.

5 Add the detergent and close the lid.

6 Press the START/PAUSE button.

START PAUSE

NOTE

• When a Wash, Wash/Rinse or Rinse only option is selected, after the wash is completed the water will not be drained off. If you wish to drain the water, press SPIN button and wait until the water in the tub has drained completely. Then press the START/PAUSE button.
• If you do not specify the water level, then Medium will be automatically selected.
• If only Rinse is selected, the process will start after water is supplied to the tub.

ELAY Wash

DELAY Wash is used to delay the finishing time of the operation.

The hours to be delayed can be set by the user accordingly.

The time on the display is the finishing time, not the start time.

1 Press the POWER (AUTO OFF) button to turn power on.

POWER AUTO OFF

2 Press the PROGRAM button to select the washing program.

- Select the program for laundry on the Control panel. This program will not work in WOOL and TUB CLEAN Program.

3 Press the DELAY button.

- The delay light will light up and 'TIME LEFT' 63:00 will be marked. - Press the button repeatedly to set the desired finishing time. For example, to finish washing in 9 hours from now, Press the DELAY button repeatedly until 9:00 appears in the display.

(RES.=DELAY)

4 Add the suggested amount of Powdered Detergent to the dispenser draw.

- Use only Powdered detergent for the DELAY function as liquid detergent will be dispensed immediately when poured. - When the lid is open the machine will not operate, and an alarm signal will remind you to close the lid

5 Add the laundry and press the START/PAUSE button.

START PAUSE

- When you press the START/PAUSE button the light will blink.

6 Close the lid. • The water will continue to top up for the first 2 minutes after the start of the wash to supplement the water the laundry has absorbed.

Finish

• The water will continue to top up for the first 2 minutes after the start of the wash to supplement the water the laundry has absorbed.

• The washing will be finished according to the delayed time.

NOTE

• Finishing time can be delayed from 3\~48 hours. Delaying from 3\~12 hours can be done in 1 hour time intervals and from 12\~48 hours in 2 hour time intervals.
• If the lid is open, the machine will not work, and an alarm signal will alarm to remind you to close the lid.
• To select washing time, rinsing times, spinning time, water level, hot/cold or wash power manually, press the DELAY button and select the desired option. Then press the START/PAUSE button.
• When the laundry cannot be taken out immediately after the wash program ends, it is better to omit the spinning program. (The laundry will be wrinkled if left for a long time after spinning.)

ther Useful Functions

Child Lock Function

If you want to lock all the buttons on the control panel to prevent settings from being changed by a child, you can use the child lock function.

How to Lock

1 Press the POWER (AUTO OFF) button.

POWER AUTO OFF

- Turn Power on.

2 Press the START/PAUSE button to start washing.

START PAUSE

• After all washing conditions are.

3 Press both the RINSE button and the SPIN button simultaneously.

• During the wash program, all the buttons are locked until washing is completed or the child-lock function is deactivated manually.
• The child lock function cannot be activated in standby mode. The child lock function can ONLY be activated once a wash program has started.

How to Unlock

If you want to unlock during wash, press both the RINSE and the SPIN button simultaneously again.

NOTE

- “ [L] & the remaining time are alternatively shown on the display while in operation.

lacing and Leveling

Please ensure that transit restraint has been removed before operating your machine.

1 Place the machine on a flat and firm surface which allows proper clearance.

We suggest a minimum clearance of 2 cm to the right side and left sides of the machine for ease of installation.

At the rear, a minimum clearance of 10 cm is suggested.

NOTE

If the washer is installed on a uneven, weak or tilted floor causing excessive vibration, spin failure or “UE” error can happen to it.

It must be placed on a firm and level floor to prevent spin failure.

2 Check that the machine is level

Open the lid and look from above to see if it is same as shown.

Top view of the machine

Two identical diagrams showing a circular object inside a container, with no visible text or symbols.

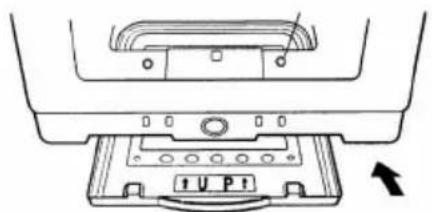

3 Leveling the machine

Lift the front of the washing machine and twist the Adjustable Leg until the washing machine is placed evenly.

※ Installing the Anti-Rat Cover (option) Insert the anti-rat cover to be firmly fixed from the back or front of washing machine and screw it

Technical diagram of a device rear panel with mounting base and internal components (no text or symbols)

Caution

If the power is supplied from an extension lead or multi out let power board, position them so that they are not exposed to splashing or ingress of moisture.

onnecting Water Supply Hose

Before connecting the Water Supply Hose to the water tap, check the hose type and then choose the correct instruction here under.

Note that the Water Supply Hose supplied may vary from country to country. Make sure to connect the blue inlet hose to the COLD water tap, and the orange inlet hose to the HOT water tap.

Connecting Water Supply Hose to water tap

Normal Type

(Normal tap without thread & screw type inlet hose.)

1 Untighten the screw

Untighten the screw of the connector so that the tap can be placed in the middle.

2 Fixing the connector to the tap

Push the upper connector up till the rubber packing is in tight contact with the tap. Then tighten the 4 screws.

Line drawing of a faucet with handle and valve (no text or symbols)

3 Attach the water supply hose securely to the connector

Push the water supply hose vertically upwards so that the rubber seal within the hose can attach firmly to the tap.

4 Fixing the connector to the water supply hose

Attach the water supply hose to the connector and then tighten it by screwing it to the right.

Line drawing of a faucet with a handle and base, no text or symbols present

5 Check the connection of water supply hose and the connector

After connecting the hose, turn on the tap to check for any water leakage.

If the water leaks, turn off the tap and start again from step 1

NOTE

The washing machine is to be connected to the water mains using new hose-sets and old hose-sets should not be reused.

onnecting Water Supply Hose

Normal Type

(Normal tap without thread & one touch type inlet hose.)

1 Separate middle connector from water supply hose

Separate middle connector from the water supply hose by pulling the pressing rod and the pressing handle that is attached to the water supply hose.

Middle connector

Fixed Sticker Pressing Handle Pressing Rod Water Supply Hose

2 Loosen the fixed nuts to connect the connector to the tap

Untighten the screw of the connector so that the tap can be placed in the middle.

NOTE

In case tap is too large.

If the tap diameter is too large or is square, untighten the 4 screws and remove the guide plate. Then follow step1.

3 Fixing connectors to the tap

Push the upper connector up till the rubber packing is in tight contact with the tap. Then tighten the 4 screws.

4 Fixing upper connector and middle connector

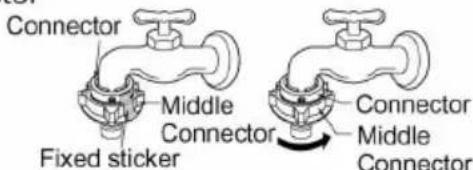

Remove the fixed sticker in between the upper and middle connectors. Tighten the connectors by holding one connector and twist middle connector to the right.

5 Connecting middle connector and water supply hose

Press down the pressing rod of the water supply hose which was separated from middle connector (refer to Step1) and then join it to the middle connector.

Water Supply Hose

6 Check for water leakage

After connecting the hose, turn on the tap to check for any water leakage.

If the connection leaks, turn off the tap and start again from step 1.

If you skip step 1, water leakage may occur.

Screw Type

1 Attach the water supply hose to the tap.

Push the water supply hose up so that the rubber packing within the hose can attach firmly to the tap.

2 Connect the water supply hose to the tap.

Connect the water supply hose to the tap and then tighten it by screwing it to the right.

3 Check water leakage.

After connecting the hose, turn on the tap to check for any water leakage.

Connecting Water Supply Hose to the machine

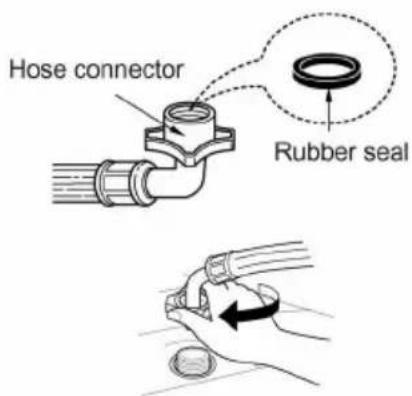

- Check to see if there is a rubber seal inside the connector.

- Connect the water supply hose to inlet valve of the washing machine, and then lock it by turning the hose connector.

Connecting Drain Hose

Before connecting Drain Hose, check your Drain Hose model and choose the correct instructions.

Pump Model

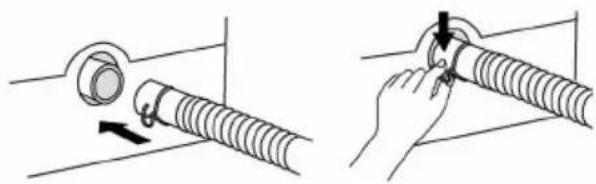

1 Fit the end of the drain hose to the outlet of the drain pump and tighten the clamp.

Illustration of two hands adjusting a coiled hose component (no text or symbols present)

2 Put the other end of the drain hose over the standpipe or wash tub.

NOTE

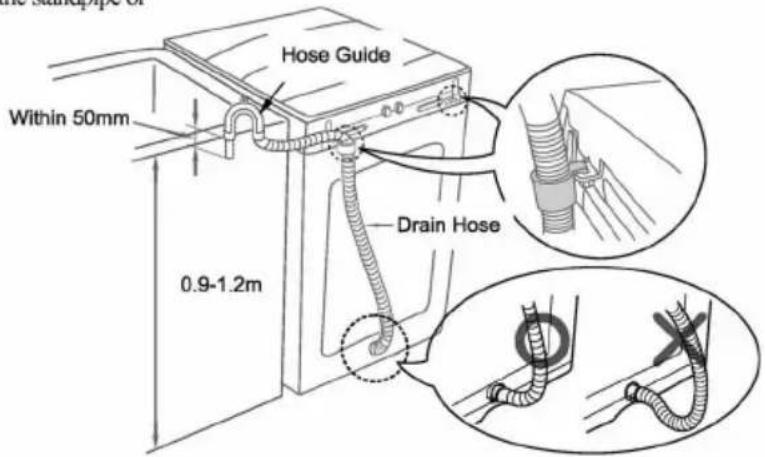

• To prevent siphoning, the drain hose should not extend more than 50 mm from the end of the hose guide.
• The discharge height should be approximately 0.9 \~ 1.2 m from the floor.

Non-Pump Model

1 Before connecting

Ensure that the hose clip is set as indicated here.

2 Connect the elbow hose

Push the elbow hose toward the body of the washing machine.

3 Place the drain hose

To change the direction of the hose, pull out the elbow hose and change the direction.

Repeat Step 2.

rounding Method

Earth wire should be connected.

If the earth wire is not connected, there is possible a danger of electric shock caused by the current leakage.

Grounding Method with Ground insert space Terminal

If the AC current outlet has a ground terminal, then separate grounding is not required. Note that AC power outlet configurations may differ from country to country

Caution

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

Other Grounding Method

Burying Copper Plate

Connect the Ground Wire to a Ground Copper Plate and bury it more than 75cm in the ground.

Using Ground Wire

Connect the Ground Wire to the socket provided exclusively for Grounding.

Using a Short Circuit Breaker

If grounding methods described above are not possible, a separate circuit breaker should be employed and installed by a qualified electrician

Caution

• To prevent a possible explosion, do not connect ground to a gas pipe
- Do not connect ground to telephone wires or lightning rods. This may be dangerous during electrical storms
- Connecting ground to plastic has no effect
- Ground wires should be connected when an extension cord is used.

leaning and Maintenance

Cold water washing (for tow valve model)

- If you always use COLD water, we recommend that a WARM or HOT wash be used at a regular intervals e.g. every 5th wash should be at least a WARM one.

When you have finished

• Turn off taps to prevent the chance of flooding should a hose burst.
  • Always unplug the power cord after use.

When water supply into the tub is not clean or the filter is clogged with particles (such as sand), clean the filter in the inlet valve occasionally.

(The figure of power cord and water tap may vary according to the country)

To Clean the Filter in the Inlet Valve

1 Close the tap. Select the HOT/COLD(WARM) and then press the [START/PAUSE] button to remove Water from the machine completely.

2 Turn off the power before pulling out the cord.

3 After removing the water supply hose pull out the filter. Then use a brush to clean the filter.

4 Put back the filter after cleaning it.

NOTE

- Before cleaning the filter, the impurities in the water supply hose should be removed.

To Clean the Lint Filter

1

2

3

4

5

6

NOTE

- If the lint filter is torn or damaged, purchase a new one from LG service center.

To Clean the Pump casing (for pump model)

1

Place a towel on the floor under the drain pump cap. Excess water may flow out.

2

Turn the cap counter-clockwise and pull it out.

3

Remove any foreign objects and fluff inside pump casing and from the filter.

Filter

4

Replace the cap. Insert the filter along the guide ribs inside the pump casing. Filter must face the guide ribs inside pump casing and securely turn the cap clockwise.

Guide rib

NOTE

- Check if water leaks after reassembling. (The Rubber ring is in the cap)

leaning and Maintenance

When there is a fear of freezing

• Close the water taps and remove the Water Supply Hose.
• Remove the water which remains in the water supply.
• Lower the drain hose and drain the water in the bowl and the drain hose by spinning.

If frozen

• Remove the water supply hose, and immerse it in HOT water at approx.. 40°C.
• Pour approx.. 2 liters of HOT water at approx.. 40^ , into the bowl and let it stand for 10 minutes.
• Connect the water supply hose to the water tap and confirm that the washing machine performs the supply and drainage of water.

Wash Inner-tub

Leave the lid open after washing to allow moisture to evaporate. If you want to clean the inner-tub use a clean soft cloth dampened with liquid Detergent, then rinse. (Do not use harsh or gritty cleaners.)

Inlet Hoses

Hoses connecting washer to faucet should be replaced every 5 years.

Exterior

Immediately wipe off any spills. Wipe with damp cloth. Try not to hit surface with sharp objects.

Long Vacations

Be sure water supply is shut off at faucets. Drain all water from hoses if weather will be below freezing.

Cleaning the inside of your washer

If you use fabric softener or do regular COLD water washing, it is very important that you occasionally clean the inside of your washer.

• Fill your washer with HOT water.
- Add about two cups of a powdered Detergent that contains phosphate.
- Let it operate for several minutes.
- Stop the washer, open the lid and leave it to soak overnight.
• After soaking, drain out the washer and run it through a normal cycle.

Or use TUB CLEAN PROGRAM periodically.

We do not recommend that you wash clothes during this procedure.

Products that might damage your washing machine

• Concentrated bleaches and diaper sanitizer will cause damage to the paintwork and components of your washer.
• Hydrocarbon solvents i.e. petrol, paint thinners and lacquer thinners, etc. can dissolve plastic and blister paint (Be careful when washing garments stained with these solvents as they are flammable. DO NOT put them in washer or dryer.)
• Some pre-treatment sprays or liquids can damage your washer's control panel.
• Use of dyes in your washer may cause staining of the plastic components. The dye will not damage the machine but we suggest you thoroughly clean your washer afterwards. We do not recommend the use of dye strippers in your washer.
• Do not use your washer lid as a work surface.

Use of Handle Locker

You can use handle hold function if you like to use.

Handle hold function is operated by holder under the handle.

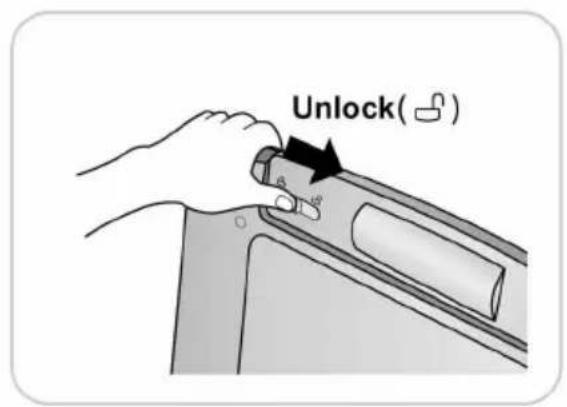

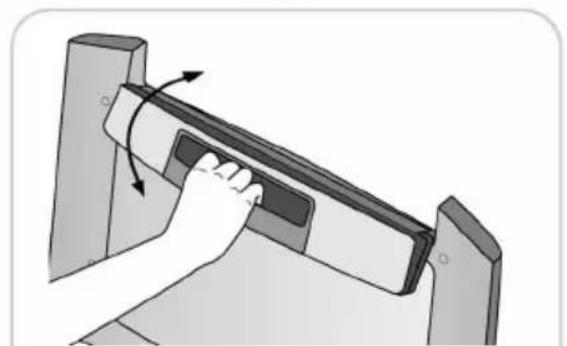

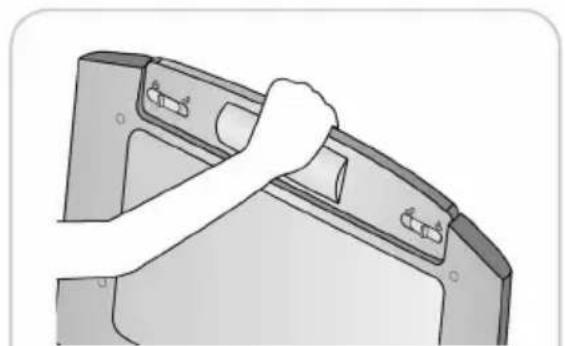

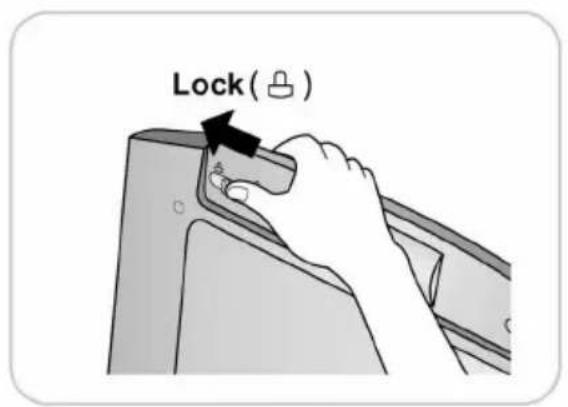

• Slide holder to left/right side until you listen to "Click" sound to holding handle.
• Do opposite to loose the Handle holding.

Illustration of a hand pressing down on a device handle panel (no text or symbols visible)

Illustration of a hand holding a rectangular device with directional arrows indicating motion (no text or symbols)

NOTE

Do not operate the machine with the door locked improperly. You can cause damage to the machine and injure yourself.

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Diagram of a mechanical component with a cylindrical part inserted, showing no text or symbols

ommon washing problems

Many washing problems are results of poor soil & stain removing, residues of lint and scum, and fabric damage. For satisfactory washing results, follow these instructions.

WASH PROBLEM

Problems	Possible Causes	Solutions & Preventive Measures
Poor soil removal	Not enough DetergentWash Water temperature is too low.Overloading the washerIncorrect wash cycleIncorrect sortingDo not pretreat stain	Use correct amount of Detergent according to load size, level of soil and water hardness.Different Water Temperature may be required according to soil type.Reduce load size.Use JEAN or SOAK & JEAN wash cycle for heavy soiled laundry.Separate heavily soiled items from lightly soiled ones.Pretreat stain and heavy soil according to directions shown on page 9.
Blue Stains	Undiluted fabric softener poured directly onto fabric	Rub the stain with bar soap. Wash.Do not overfill fabric softener dispenser and do not pour liquid fabric softener directly onto fabric.See page 12 for more instructions.
Black or gray marks on clothes	A buildup caused by the interaction of fabric softener and DetergentNot enough Detergent	Keep the recommendations against Scrud(waxy buildup). (refer to scrud page12.)Use correct amount of Detergent for load size, amount of soil and water Hardness.
Yellow or brown rust stains	Iron or manganese in water water pipes, or water heater	To restore discolored load of whites, use rust remover safe for fabric.Install non-precipitation water softener or an iron filter in your water supply system for an ongoing problem.Before washing, run water for a few minutes to clear out impurities.
Lint	Incorrect sortingTissues left in pocketOverload the washer	Wash lint givers e.g. towels, flannelette sheets, separately from lint collectors e.g. synthetic fabrics and remove tissues in pockets before wash. See page 9 for sorting and caring before loading.Do not overload the washer
Residue or Detergent	Overload the washerUndissolved DetergentUse too much Detergent	Do not overload the washer.Some Detergents need to be pre-dissolved, check the Detergent instructions. Try pre-dissolving the Detergent.Increase Water Temperature using HOT water safe for fabric.Use proper amount of Detergent.
Holes, tears, or snags	Incorrect use of chlorine bleach.Unfastened zippers, hooks, bucklesRibs, tears and broken threadsOverload the washerDegradation of fabric	Never pour chlorine bleach directly on fabric.See page 11 for adding liquid bleach.Fasten zippers, hooks, and buckles.Remove objects in pockets. See page 9 for caring before loading.Do not overload the washer.

roubleshooting

Before calling for service, check the problem against the list below.

Symptom	Error Message	Check up
Water Supply Failure		• Is the water tap turn off?• Is the water supply cut off?• Is the tap or water supply hose frozen?• Is the water pressure low or is the filter of the inlet valve clogged with impurities?
Drainage Failure		• Is the drain hose positioned correctly?• Is the drain hose bent or placed too high?• Is the internal part of the hose or drain pump (only pump model) clogged with impurities?• Check if electric power has gone off.
Spin Failure		• Is the laundry evenly balanced?• Is the washing machine placed on a flat surface?
Cover(Lid) Open		• Is the lid closed?
Tub Clean Alarm		• Please empty the tub, insert bleach into the detergent dispenser and select the Tub Clean cycle.• If you want to skip the Tub Clean, press option buttons to select desired cycle. In this case, you would see the message again after few washing times. Once performed Tub Clean cycle, will disappear until next point of time to clean the tub.
Abnormal Water Level Sensing		• Please call your nearest LG Electronics service center for help.
Overflow Failure
Abnormal Motor
Abnormal Motor
Clutching Error

smartDiagnosis™

USING SMARTDIAGNOSISTM

• Only use this feature when instructed to do so by the call center. The transmission sounds similar to a fax machine, and so has no meaning except to the call center.
• SmartDiagnosis™ cannot be activated if the washer does not power up. If this happens, then troubleshooting must be done without SmartDiagnosis™.

If you experience problems with your washer, call to Customer information center. Follow the call center agent's instructions, and do the following steps when requested:

① Press the POWER button to turn on the washer. Do not press any other buttons or turn the cycle selector knob.

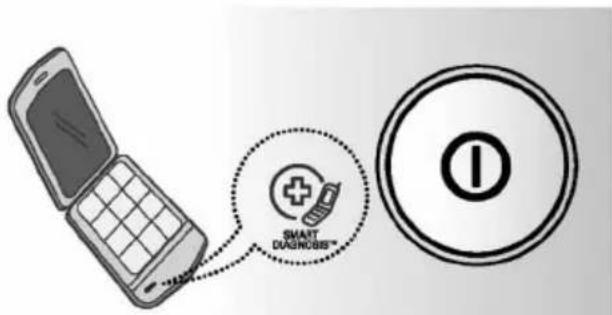

When instructed to do so by the call center, place the mouthpiece of your phone very close to the POWER button.

3 Press and hold the BEEPER button for three seconds, while holding the phone mouthpiece to the icon or POWER button.
④ Keep the phone in place until the tone transmission has finished. This takes about 6 seconds, and the display will count down the time.

• For best results, do not move the phone while the tones are being transmitted.
• If the call center agent is not able to get an accurate recording of the data, you may be asked to try again.
• Pressing the POWER button during the transmission will shut off the SmartDiagnosis™.

Once the countdown is over and the tones have stopped, resume your conversation with the call center agent, who will then be able to assist you using the information transmitted for analysis at the call center.

Note

Smart Diagnosis is a troubleshooting feature designed to assist, not replace, the traditional method of troubleshooting through service calls. The effectiveness of this feature depends upon various factors, including, but not limited to, the reception of the cellular phone being used for transmission, any external noise that may be present during the transmission, and the acoustics of the room where the machine is located. Accordingly, LG does not guarantee that Smart Diagnosis would accurately troubleshoot any given issue.

Terms of Warranty

What Is Not Covered:

• Service trips to your home to teach you how to use the product.
- If the product is connected to any voltage other than that shown on the rating plate.
- If the fault is caused by accident, neglect, misuse or Act of God.
- If the fault is caused by factors other than normal domestic use or use in accordance with the owner's manual.
- Provide instruction on use of product or change the set-up of the product.
- If the fault is caused by pests for example, rats or cockroaches etc..
- Noise or vibration that is considered normal for example water drain sound, spin sound, or warning beeps.
- Correcting the installation for example, levelling the product, adjustment of drain hose.
- Normal maintenance which is recommended by the owner's manual.
- Removal of foreign objects / substances from the machine, including the pump and inlet hose filter for example, grit, nails, bra wires, buttons etc.
- Replace fuses in or correct house wiring or correct house plumbing.
• Correction of unauthorized repairs.
- Incidental or consequential damage to personal property caused by possible defects with this appliance.
- If this product is used for commercial purpose, it is not warranted.

(Example : Public places such as public bathroom, lodging house, training center, dormitory)

If the product is installed outside the normal service area, any cost of transportation involved in the repair of the product, or the replacement of a defective part, shall be borne by the owner.

Model	WF-D850J	WF-HD85FS	WF-HD90FS
Power supply	220V~, 60Hz	240V~, 50Hz
Wash capacity	8.5kg		9.0kg
Weight	38.5kg
Water tab pressure	30-800kPa (0.3-8.0kgf/cm2)

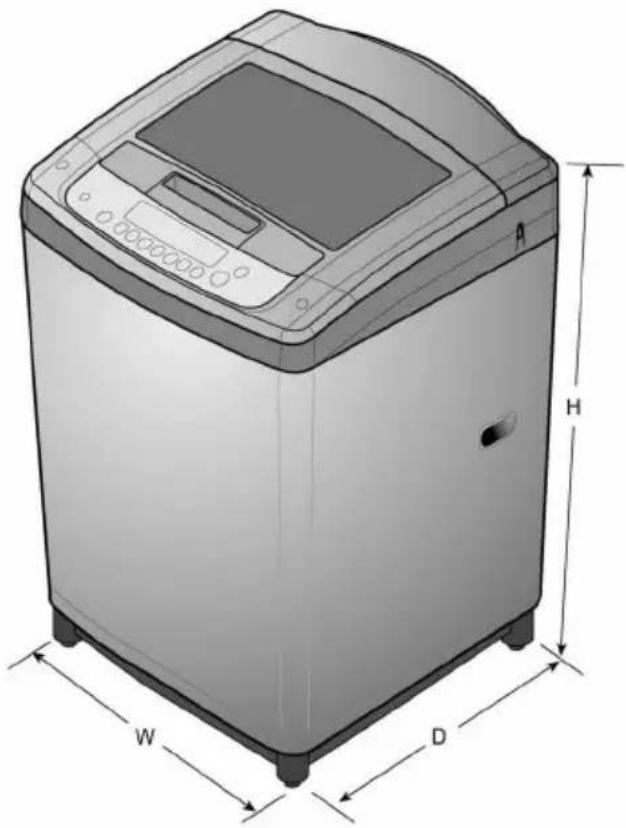

Size(mm)	540(W) x 540(D) x 935(H)

※ In our continuing effort to improve the quality of our appliances, it may be necessary to make changes to the appliance without revising this manual.

LG

Life's Good
