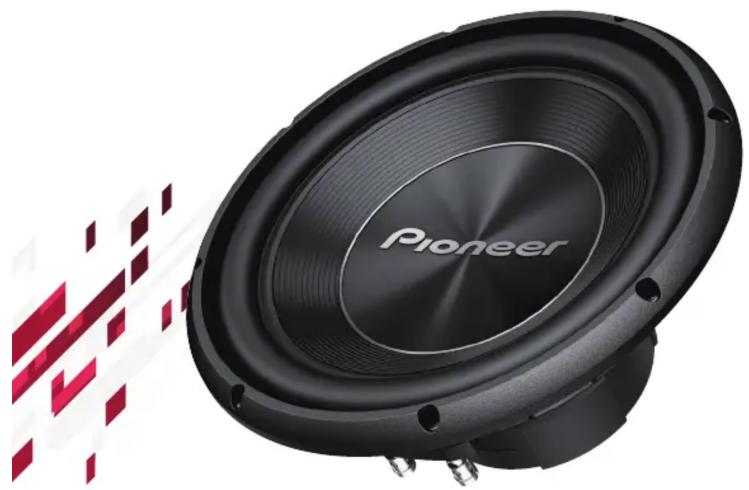

TS-A300D4 12" Dual 4Ω Voice Coil Subwoofer

Black Pioneer speaker with red accent stripes, no visible text or symbols on the speaker body

A-series sound design

• High power handling and high sensitivity
• Powerful and accurate bass
• Frequency matched to Pioneer A-series full-range loudspeakers

series/séries

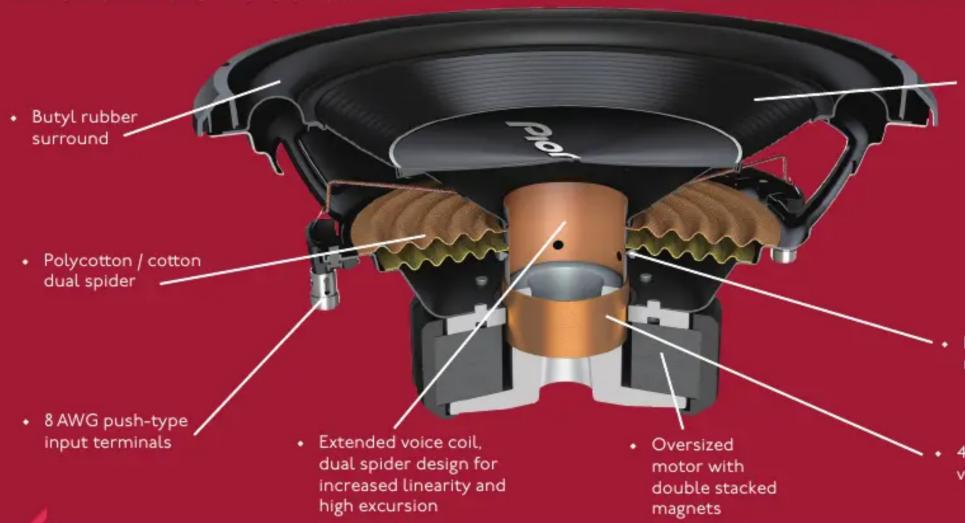

• 12" glass fiber and mica interlaced Injection Molded Polypropylene (IMPP) cone construction
• Butyl rubber surround and polycotton / cotton dual spider for strength and linearity during high excursion
• Oversized 60 oz double stacked magnet and vented pole yoke for increased power handling
• Smooth and seamless integration with Pioneer A-series full-range automotive loudspeakers

FEATURES AND TECHNOLOGY

• Glass fiber and mica interlaced IMPP cone provides powerful and accurate bass
Reinforced spider mounting collar
-layer, copper oice coil

Glass fiber

Mica

TM INJECTION MOLDED CONE

EASILY UPGRADE TO HIGH PERFORMANCE

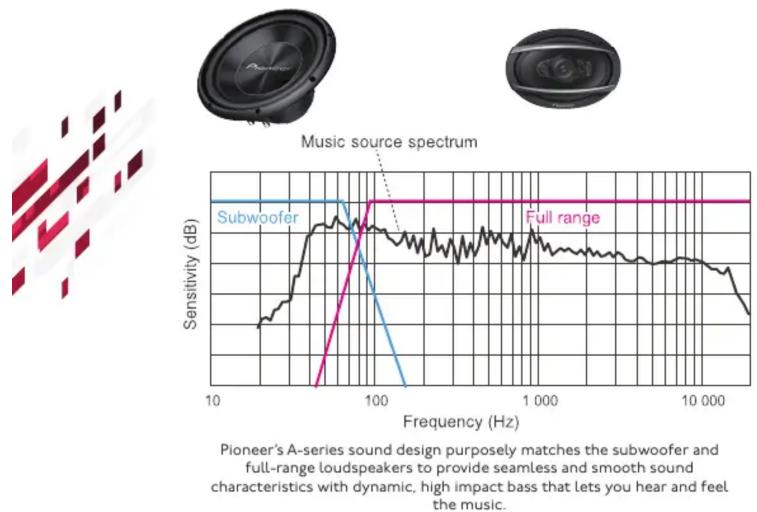

Pioneer's A-series sound design purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music.

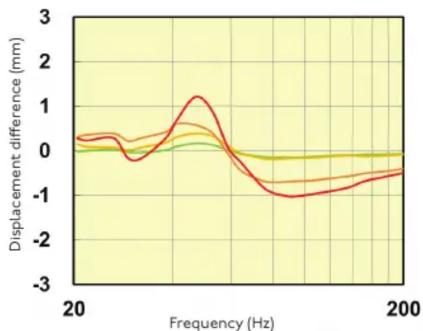

Linear, balanced motion in both the forward and reverse directions of cone movement is critical to accurate reproduction of recorded sound waves. Careful engineering of the entire motor structure and suspension system (voice coil, magnet, surround and spider) is required maintain a high level of linearity, even during high output / high excursion transients.

Input power

32 Watts

65 Watts

128 Watts

256 Watts

CarSoundFit

For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.

Download on the App Store

GETTON Google Play

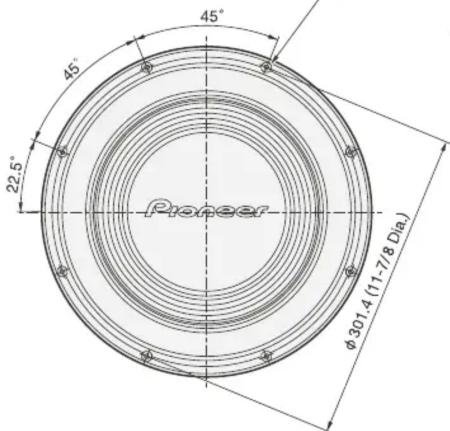

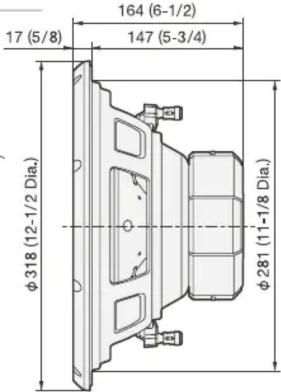

Dimensions
mm (inches)
8-φ4.5 (3/16 Dia.)
Holes

Pioneer A-series Subwoofers	TS-A250D4 (also available) TS	-A300D4
System Type	Component subwoofer Component subwoofer
Sound Pressure Level (Sensitivity)	74dB (±1.5dB) 77dB (±1.5dB)
Frequency Range	20 Hz to 2 kHz 20 Hz to 2.3 kHz
Continuous Power Handling (RMS)	400 Watts 500 Watts
Maximum Peak Power Handling	1300 Watts 1500 Watts
Nominal Impedance	4Ω Dual Voice Coil (DVC) 4Ω Dual Voice Coil (DVC)
Woofer Cone Diameter	10" 12"
Woofer Cone Material	Glass fiber and mica reinforced Injection Molded Polypropylene (IMPP)	Glass fiber and mica reinforced Injection Molded Polypropylene (IMPP)
Woofer Surround	Butyl Rubber Butyl Rubber
Basket Material	Stamped Steel Stamped Steel
Spider	Aramid Fiber (single)	Polyester-Cotton / Cotton (double)
Magnet Material	Double stacked ferrite Double stacked ferrite
Magnet Weight	56 oz	60 oz
Voice Coil Former Material	Aluminum	Kapton
Voice Coil Wire Material	Copper, round wire, 4-layer	Copper, round wire, 4-layer
Mounting Depth	5.25"	5.8"
Fs (Hz)	30 Hz	25 Hz
Qts	0.59	0.69
Vas (liters • cu ft.)	36.6 • 1.29	87.1 • 3.07
Xmax (mm • inch)	10.8 • 0.43	10.1 • 0.4
Sealed Enclosure Volume cu ft. (min • rec • max)	0.5 • 0.7 • 0.8	0.85 • 1.25 • 1.75
Ported Enclosure Volume cu ft. (min • rec • max)	0.6 (2"x 6" port) • 0.7 (2"x 5" port)0.8 (2"x 4" port)	1.25 (3"x 6" port) • 1.5 (3"x 6.5" port)2.0 (3"x 4" port)

Frequency matched Pioneer A-series full-range speakers available in the following sizes and applications:

TS-A6960F, TS-A6970F, TS-A6990F (6"x 9") ♦ TS-A6880F (6"x 8") ♦ TS-AI670F, TS-AI680F (6.5")

TS-AI370F (5-1/4") • TS-A4670F (4" x 6")
