BRUGSANVISNING GPSMAP 1222 Touch GARMIN
GARMIN®
Printing a Mounting Template
NOTICE
It is not recommended that you print a mounting template on your own. Use the template that came in the product box.
If you do print the template, you must follow these instructions for printing a mounting template precisely. To print large templates, you need large enough paper and printer. Failure to have the correct sized paper and printer, or a failure to follow these instructions, may result in an incorrectly sized template and therefore an incorrect cutout (too large or too small) on the mounting surface of your boat.

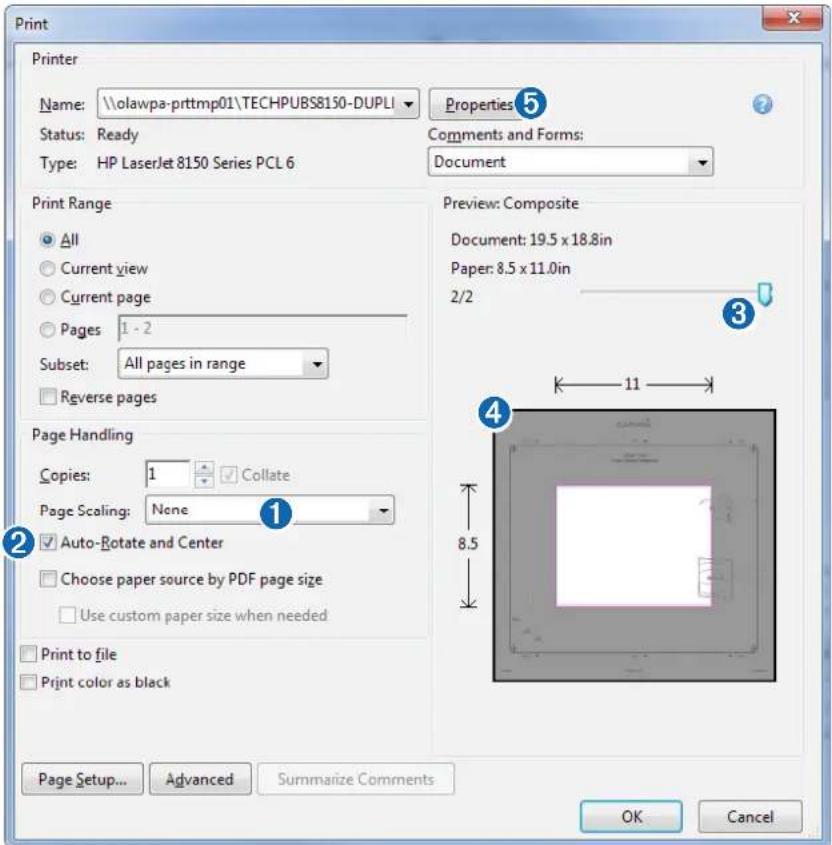

1 Select File > Print.
3 Ensure the check mark is next to Auto-Rotate and Center ②.
4 Drag the arrow ③ to the right, to view page 2 in the window below.
4 Verify that the paper size is larger than the template ④.
In this example, the paper is not larger than the template.
5 If the paper size is not large enough, select Properties ⑤ and select a Page Size that is larger than the template.
NOTICE
Garmin is not responsible for any damages or expenses resulting from a miscut mounting surface arising from a failure to follow these instructions.


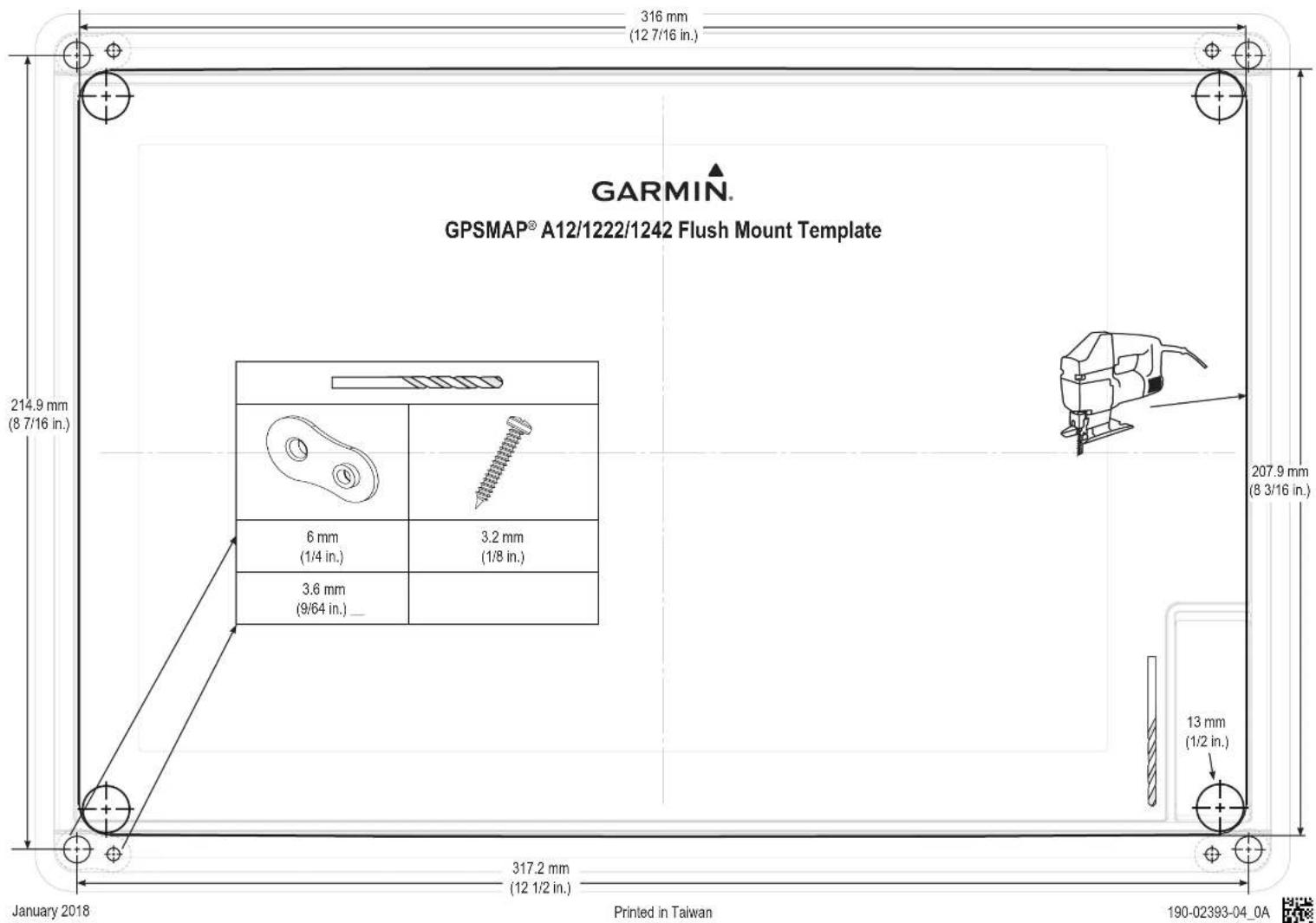

316 mm (12 7/16 in.) GARMIN. GPSMAP® A12/1222/1242 Flush Mount Template 214.9 mm (8 7/16 in.) 6 mm (1/4 in.) 3.6 mm (9/64 in.) _ 317.2 mm (12 1/2 in.) Printed in Taiwan January 2018 13 mm (1/2 in.) 207.9 mm (8 3/16 in.) 190-02393-04_0A
