BRUGSANVISNING GPSMAP 1223 GARMIN
GARMIN®
Printing a Mounting Template
NOTICE
It is not recommended that you print a mounting template on your own. Use the template that came in the product box.
If you do print the template, you must follow these instructions for printing a mounting template precisely. To print large templates, you need large enough paper and printer. Failure to have the correct sized paper and printer, or a failure to follow these instructions, may result in an incorrectly sized template and therefore an incorrect cutout (too large or too small) on the mounting surface of your boat.

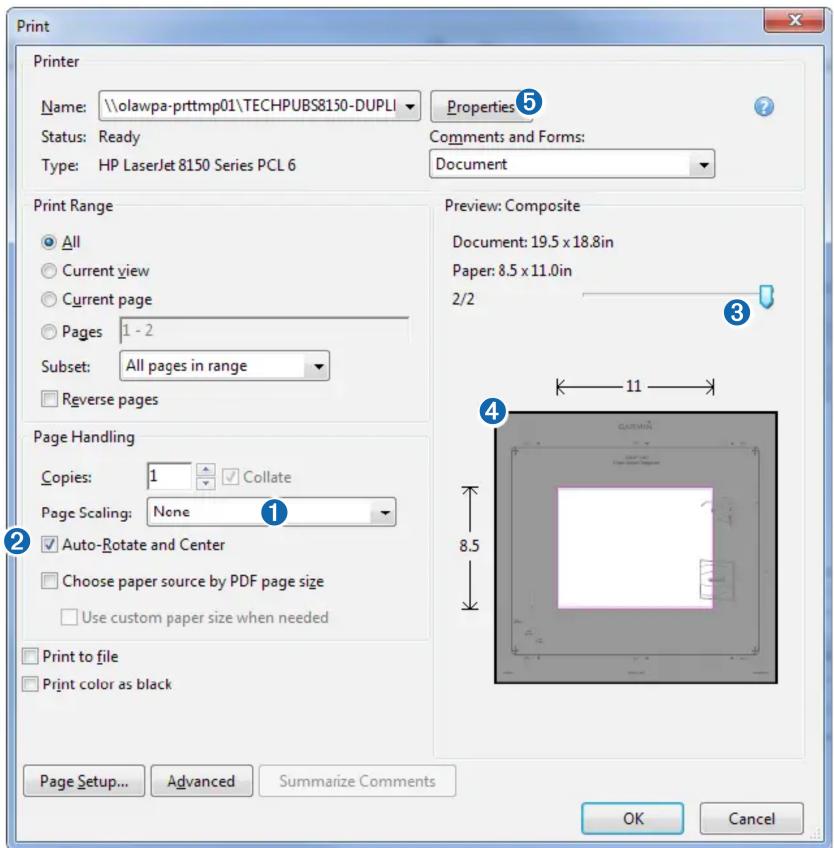

1 Select File > Print.
2 Select None for Page Scaling 1.
3 Ensure the check mark is next to Auto-Rotate and Center ②.
4 Drag the arrow ③ to the right, to view page 2 in the window below.
4 Verify that the paper size is larger than the template ④.
In this example, the paper is not larger than the template.
5 If the paper size is not large enough, select Properties ⑤ and select a Page Size that is larger than the template.
NOTICE
Garmin is not responsible for any damages or expenses resulting from a miscut mounting surface arising from a failure to follow these instructions.
other

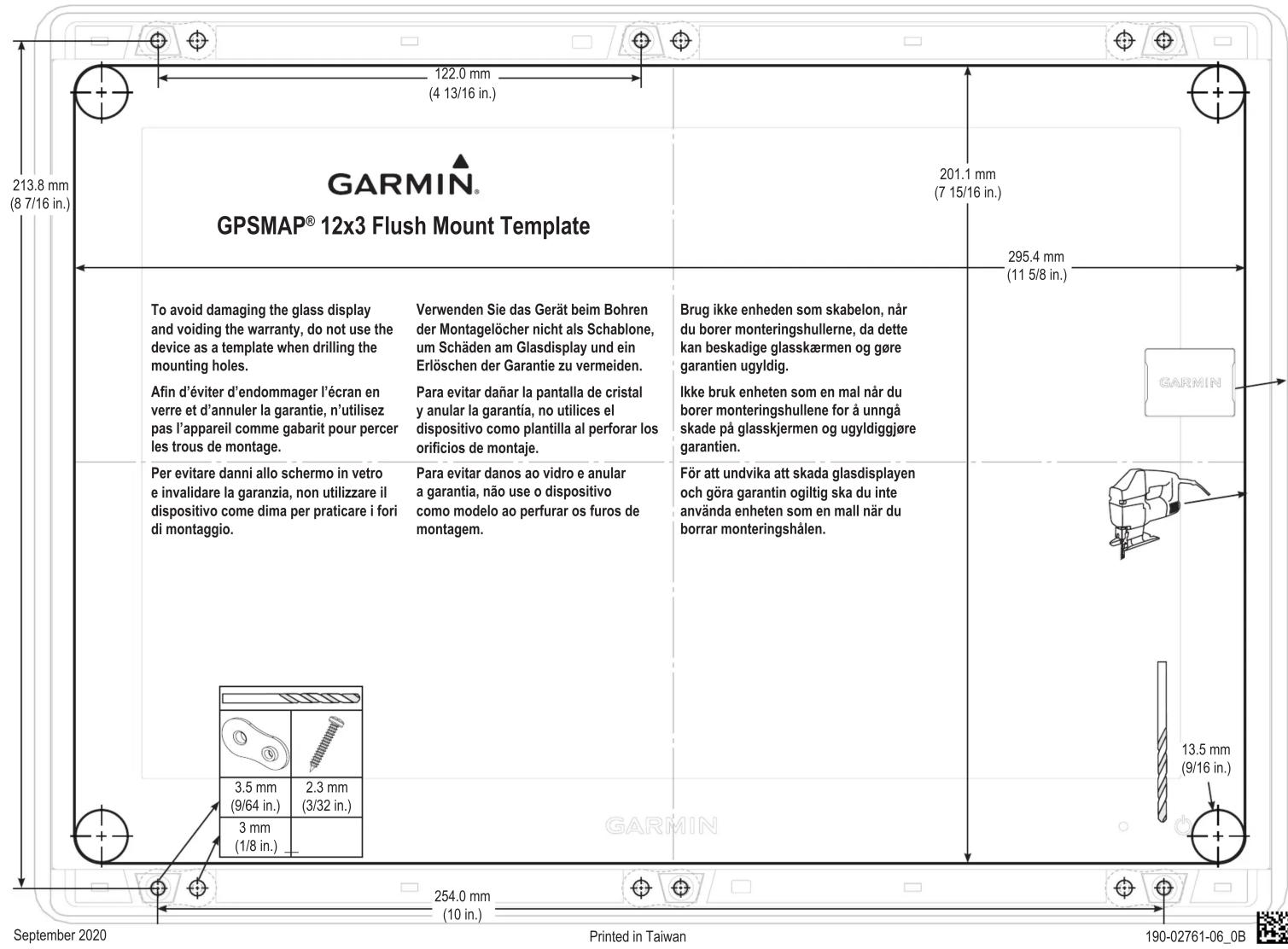

| Dimension | Value | | --------- | ----- | | Total Height | 213.8 mm (8 7/16 in.) | | Top Margin Height | 122.0 mm (4 13/16 in.) | | Top Margin Width | 295.4 mm (11 5/8 in.) | | Component Labels | Description of the GPSMAP® 12x3 Flush Mount Template | | Component Labels | Description of the GPSMAP® 12x3 Flush Mount Template | | Component Labels | Description of the GPSMAP® 12x3 Flush Mount Template | | Component Labels | Description of the GPSMAP® 12x3 Flush Mount Template | | Component Labels | Description of the GPSMAP® 12x3 Flush Mount Template | | Component Labels | Description of the GPSMAP® 12x3 Flush Mount Template | | Component Labels (Top) | 201.1 mm (7 15/16 in.) | | Component Labels (Bottom) | 3.5 mm (9/64 in.) | | Component Labels (Bottom) | 2.3 mm (3/32 in.) | | Component Labels (Bottom) | 3 mm (1/8 in.) | | Component Labels (Bottom) | 13.5 mm (9/16 in.) | | Component Labels (Bottom) | 254.0 mm (10 in.) | | Component Labels (Bottom) | Printed in Taiwan | | Component Labels (Bottom) | Printed in Taiwan | | Component Labels (Bottom) | Printed in Taiwan | | Component Labels (Bottom) | Printed in Taiwan | | Component Labels (Bottom) | Printed in Taiwan | | Component Labels (Bottom) | Printed in Taiwan | | Component Labels (Bottom) | Printed in Taiwan | | Component Labels (Bottom) | Printed in Taiwan | | Component Labels (Bottom) | Printed in Taiwan | | Component Labels (Bottom) | Printed in Taiwan |Mærke : GARMIN
