BRUGSANVISNING Dolomiti 2B Ramp Ozone

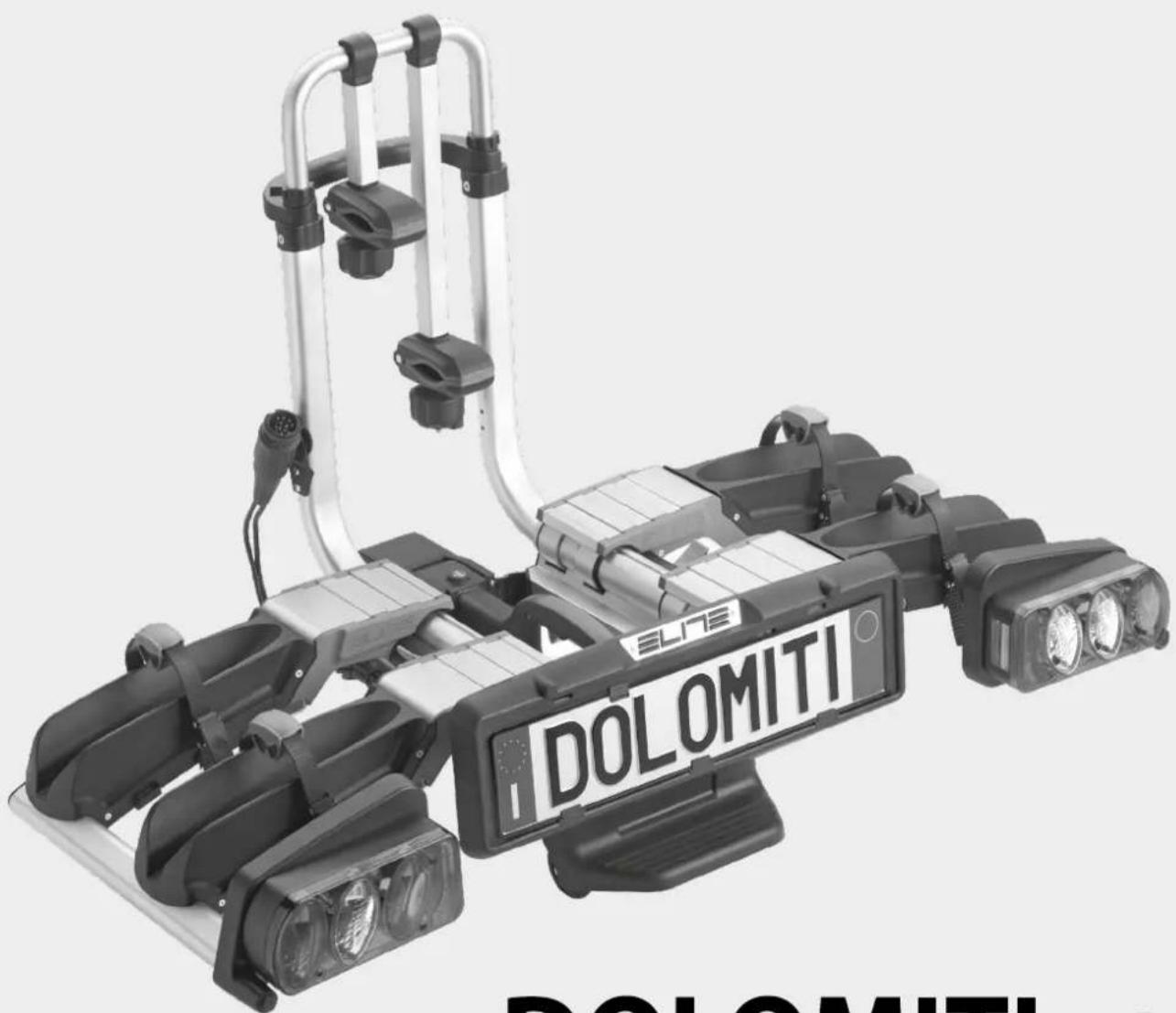

DOLOMITI 2B

RAMP

Illustration of a hand pressing down on a car wheel (no text or symbols)

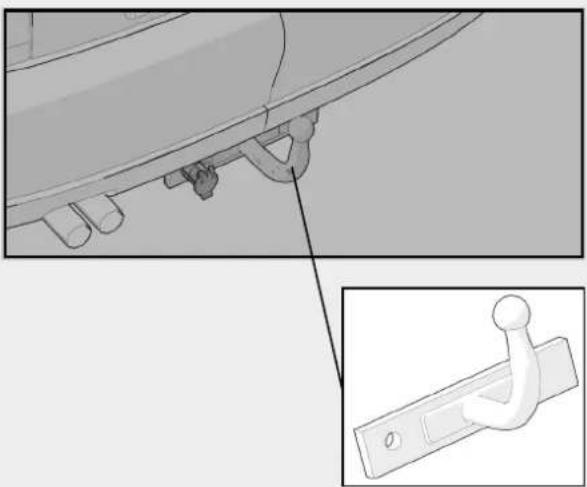

Mechanical assembly diagram showing a lever and bracket component with an inset close-up of the handle (no text or symbols)

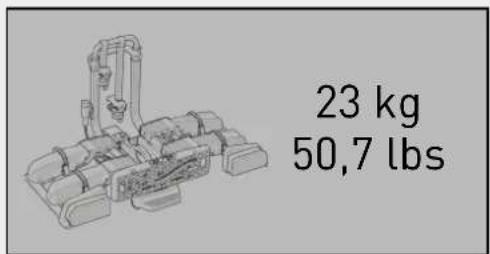

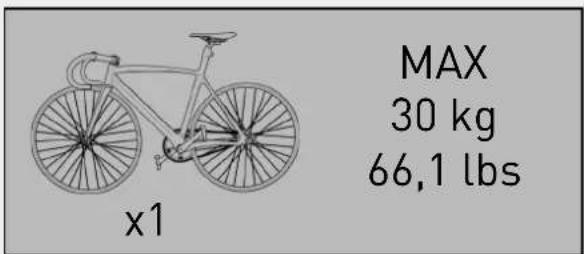

Load capacity		x2
40kg-88,2lbs	23 kg50,7 lbs	Max 17kg-37,5lbs
45kg-99,2lbs		Max 22kg-48,5lbs
50kg-110,2lbs		Max 27kg-59,5lbs
55kg-121,2lbs		Max 32kg-70,5lbs
60kg-132,3lbs		Max 37kg-81,6lbs
65kg-143,3lbs		Max 42kg-92,6lbs
70kg-154,3lbs		Max 47kg-103,6lbs
75kg-165,3lbs		Max 52kg-114,6lbs
80kg-176,4lbs		Max 57kg-125,6lbs
>82kg-180,8lbs		Max 60kg-132,3lbs

ISTRUCTIONS

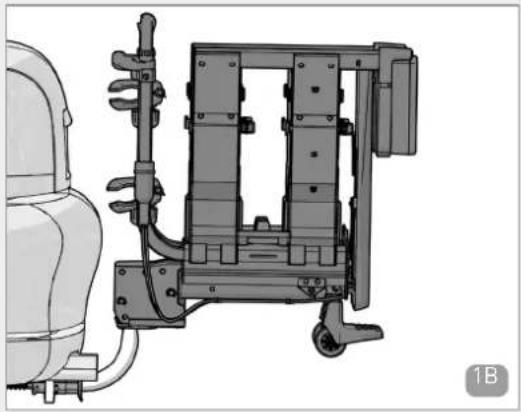

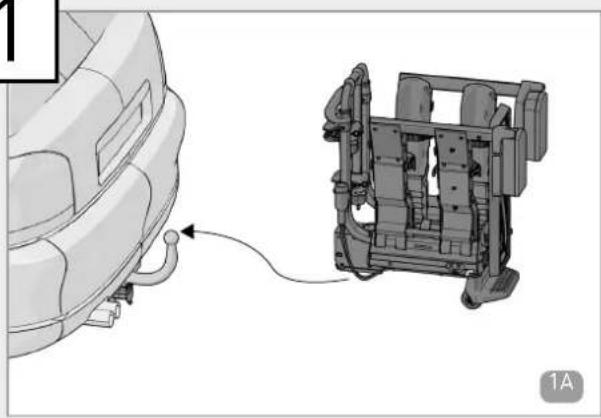

1

Mechanical assembly diagram showing a car body connected to a mechanical component with a cable (no text or symbols present)

Technical illustration of a mechanical device with attached components, no visible text or symbols

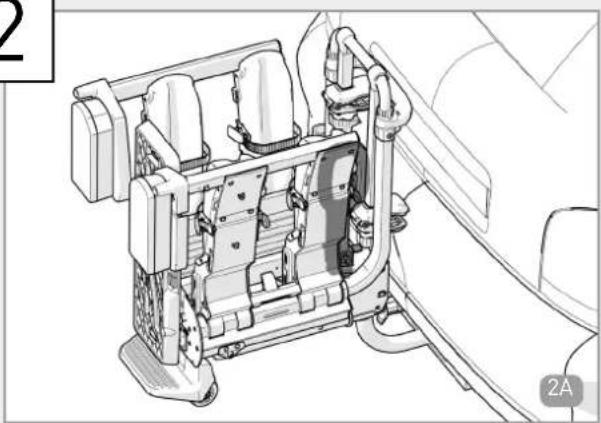

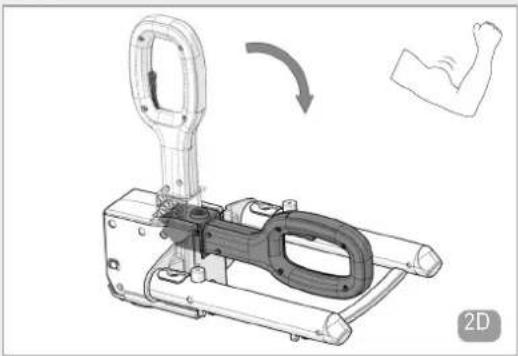

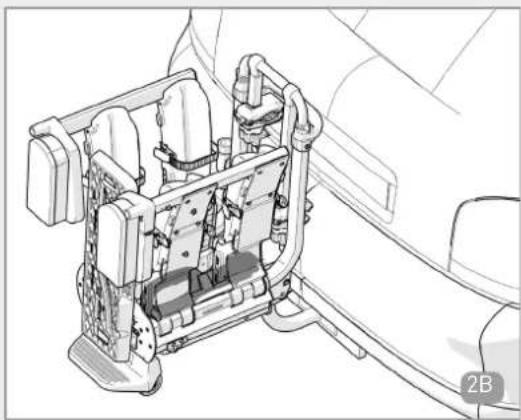

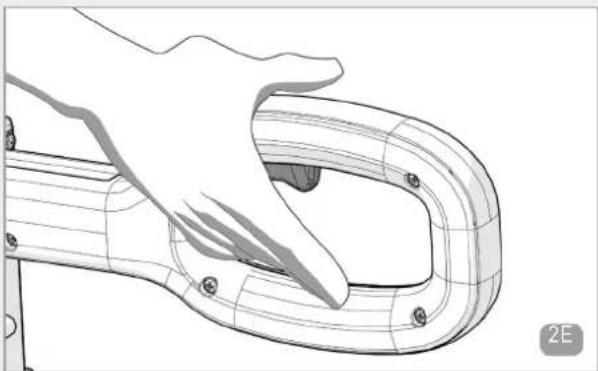

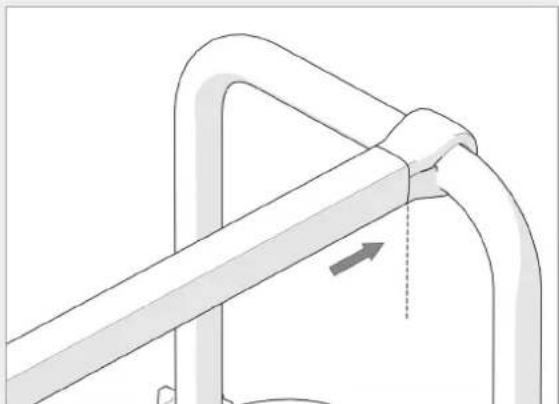

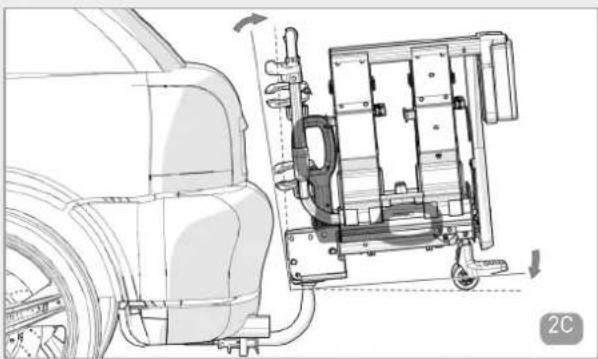

2

Technical line drawing of a vehicle internal structure with no visible text or symbols

Technical line drawing of a vehicle's internal components, possibly an engine or chassis assembly (no text or symbols visible)

Technical line drawing of a vehicle's internal components, showing engine, suspension, and wheel assembly (no text or symbols)

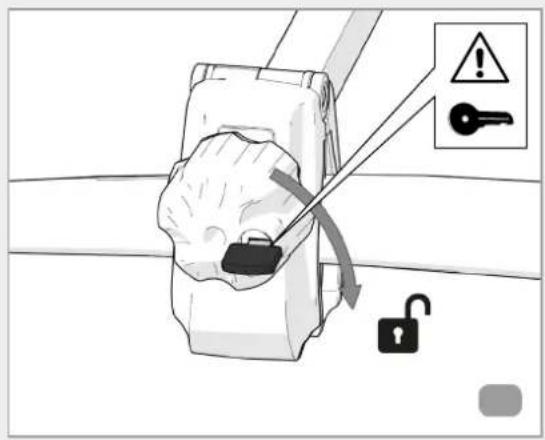

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Line drawing of a hand gripping a curved mechanical component (no text or symbols)

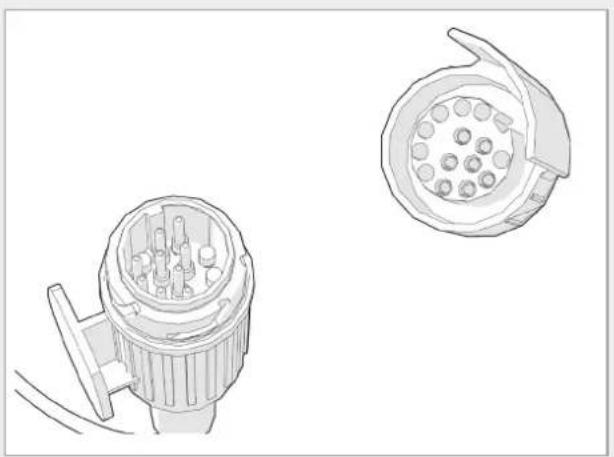

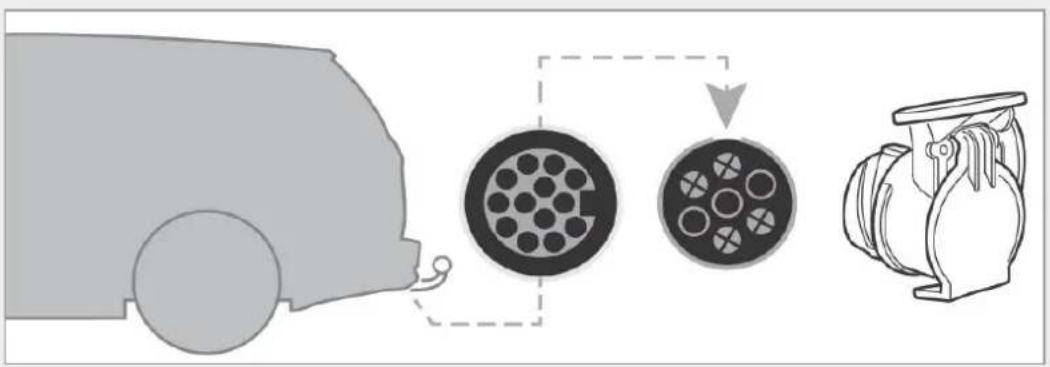

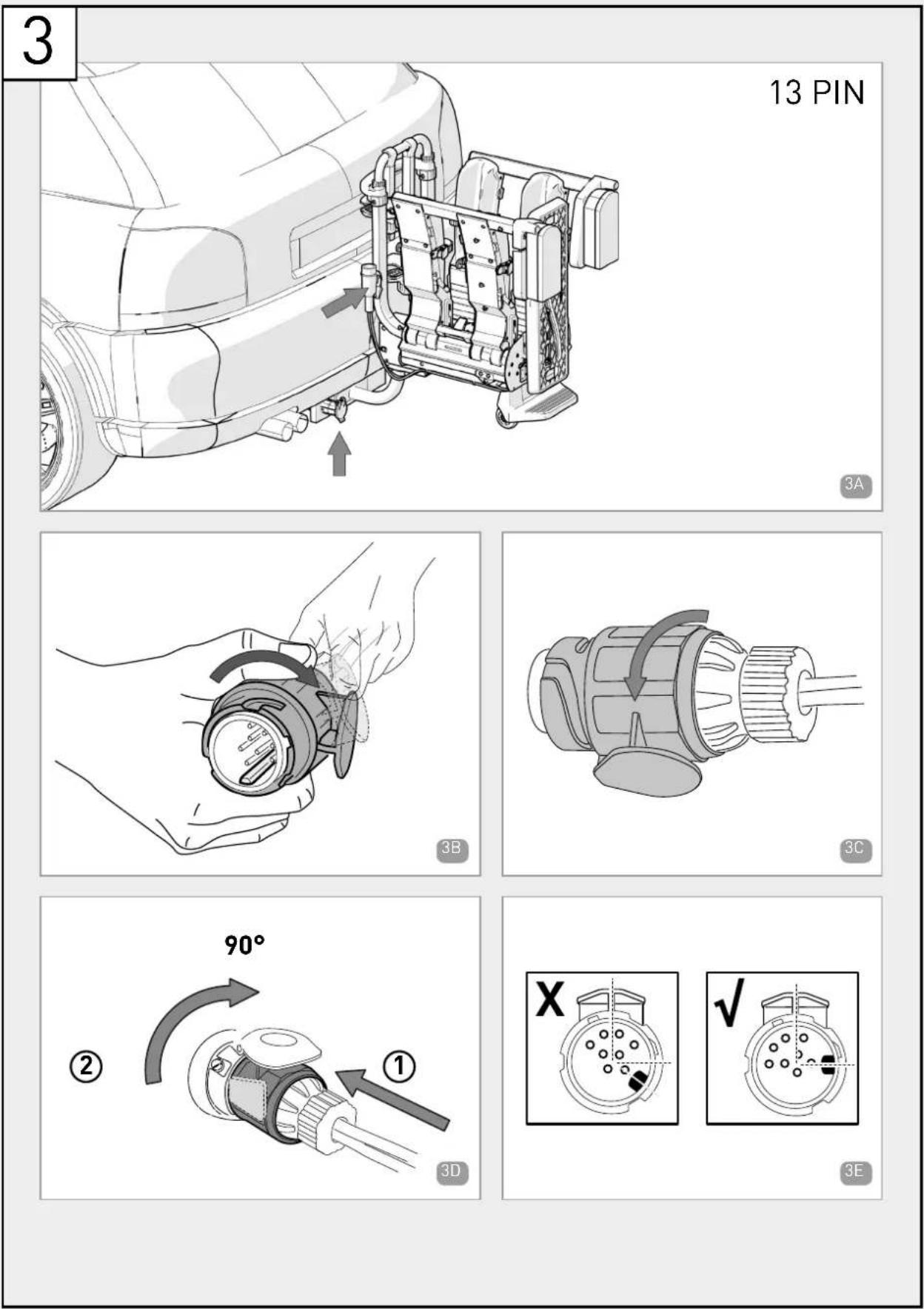

ADAPTOR TO 7 ON 13 PIN - COD. 1027057

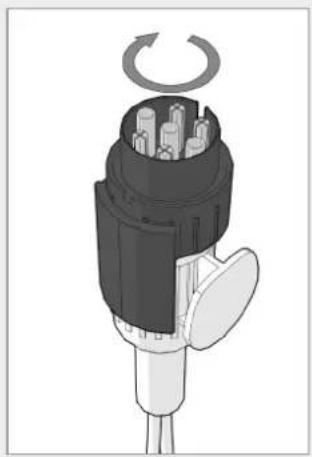

7 PIN

ADAPTOR TO 7 ON 13 PIN - COD. 1027057

Technical line drawing of two electrical connectors with internal components (no text or symbols)

Diagram of a plug with internal components and a circular arrow indicating rotation (no text or symbols)

1

Mechanical component diagram showing a rotating wheel with mounting holes and a curved arrow indicating rotation (no text or symbols)

2

Technical line drawing of a mechanical component with circular holes and a base mount (no text or symbols)

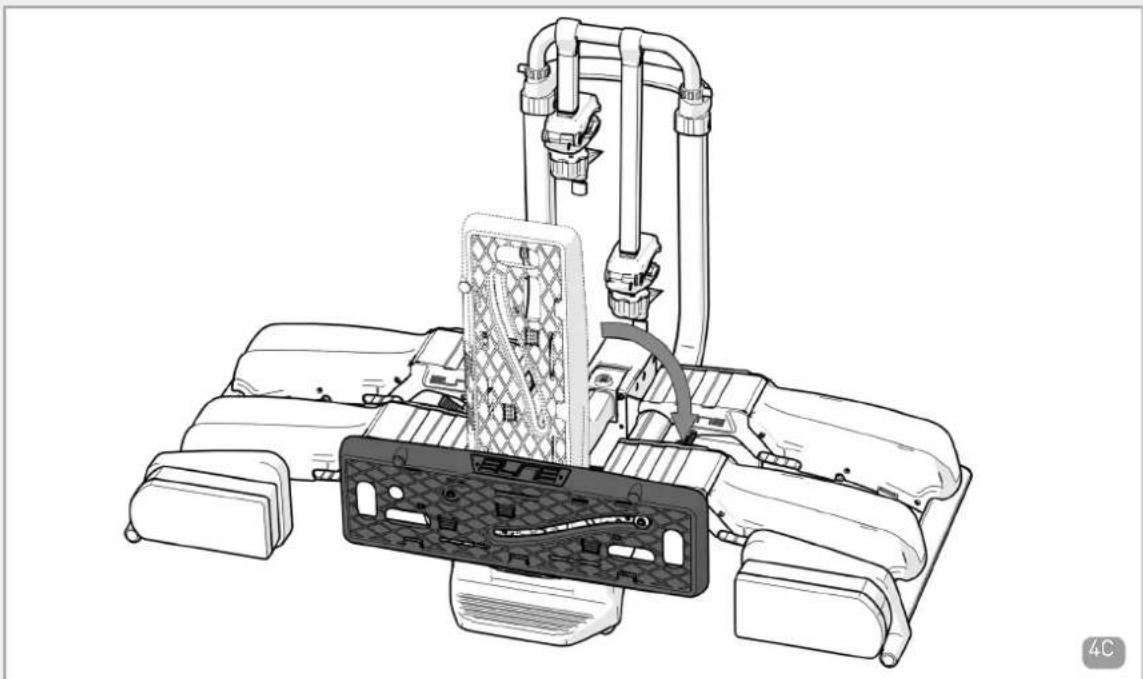

4

Diagram of a vehicle's rear view showing two wheels and a handle, with no text or symbols present.

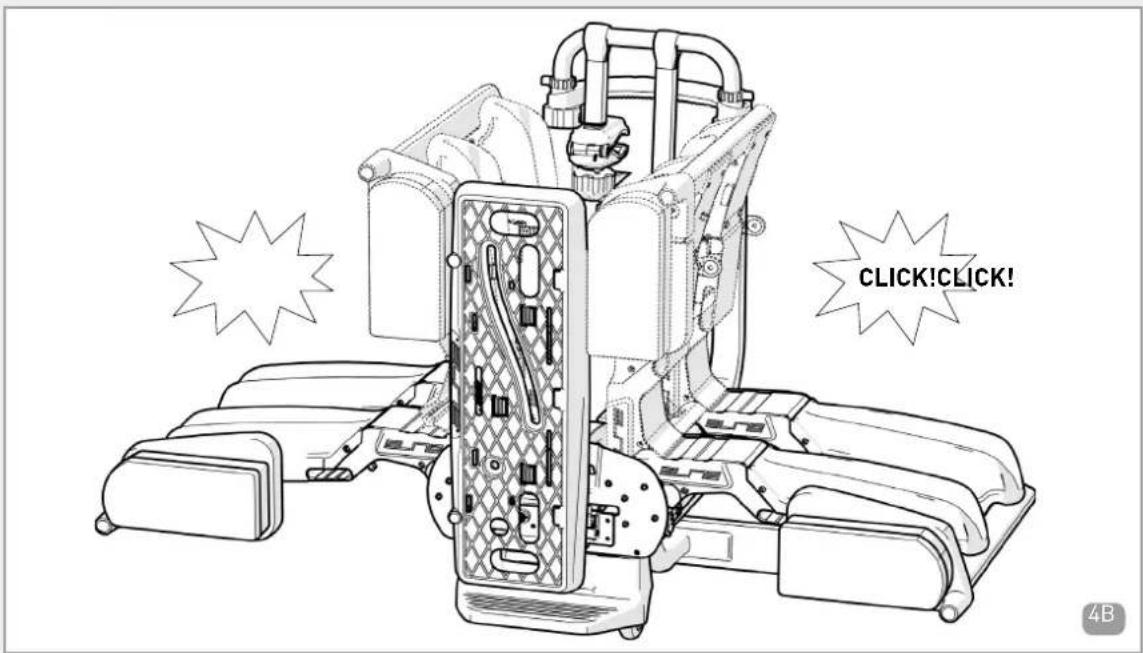

4A

Technical line drawing of a vehicle chassis with internal components and no visible text or symbols

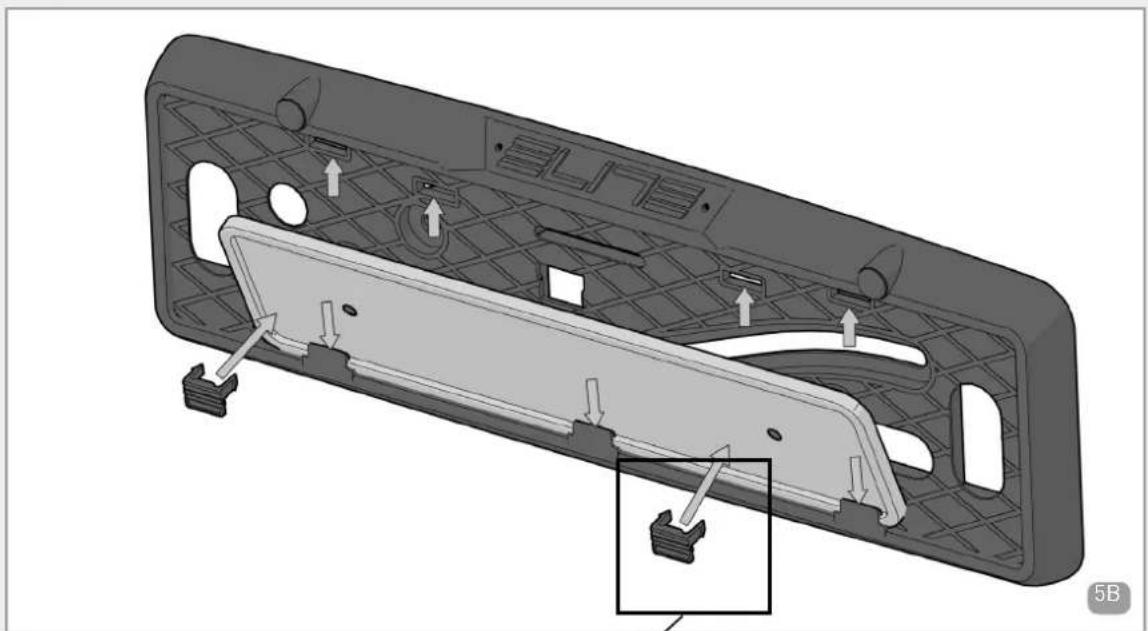

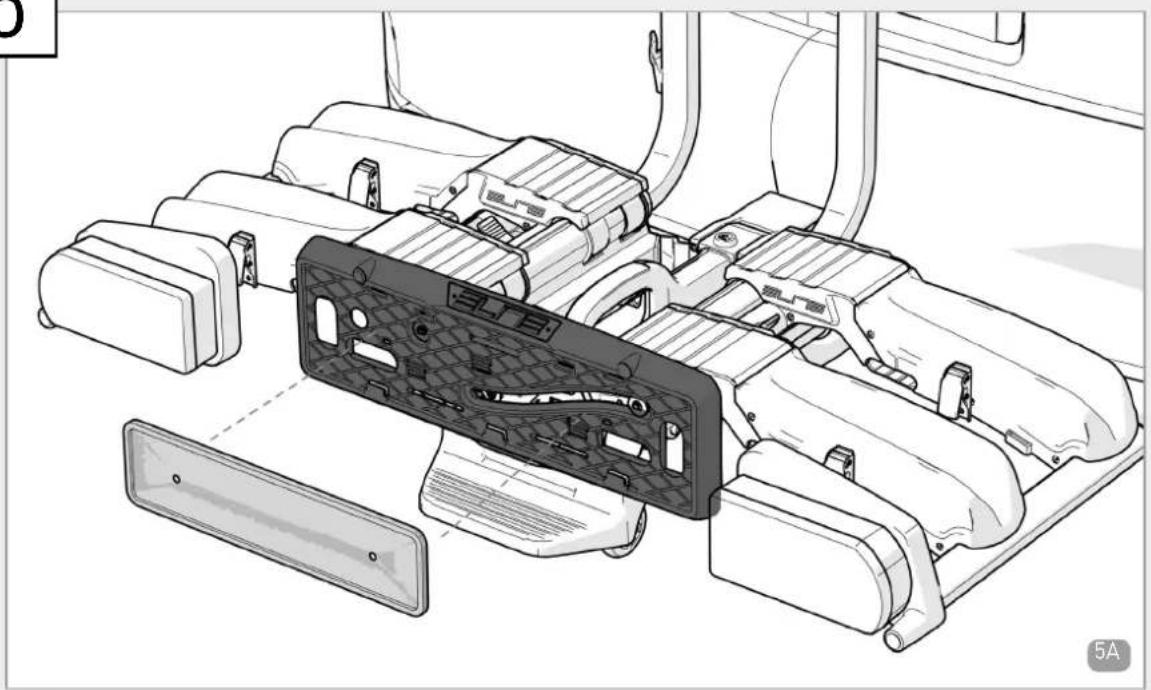

5

Technical illustration of a vehicle's internal components, showing a car chassis with no visible text or symbols.

3D diagram of a car chassis showing internal components and mounting points (no text or symbols)

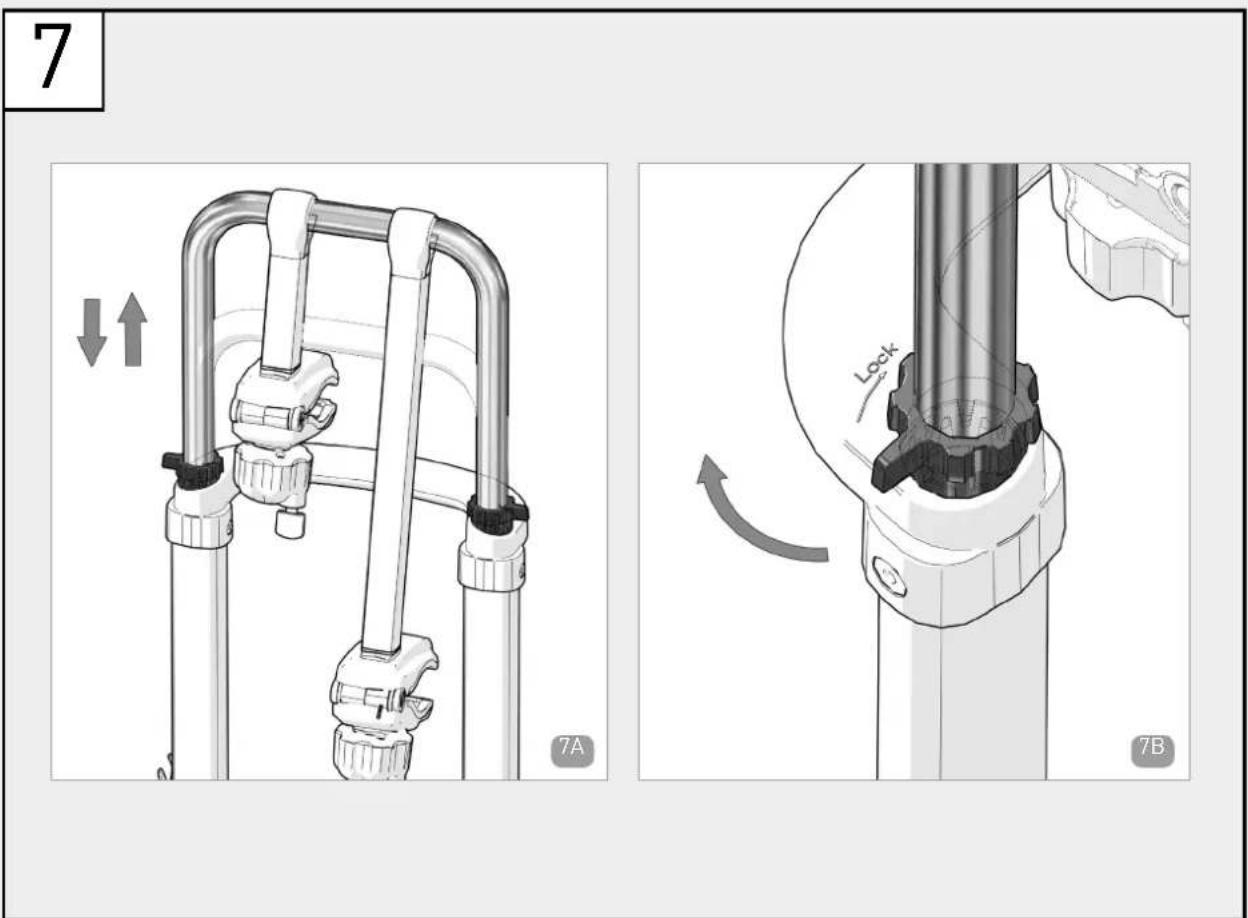

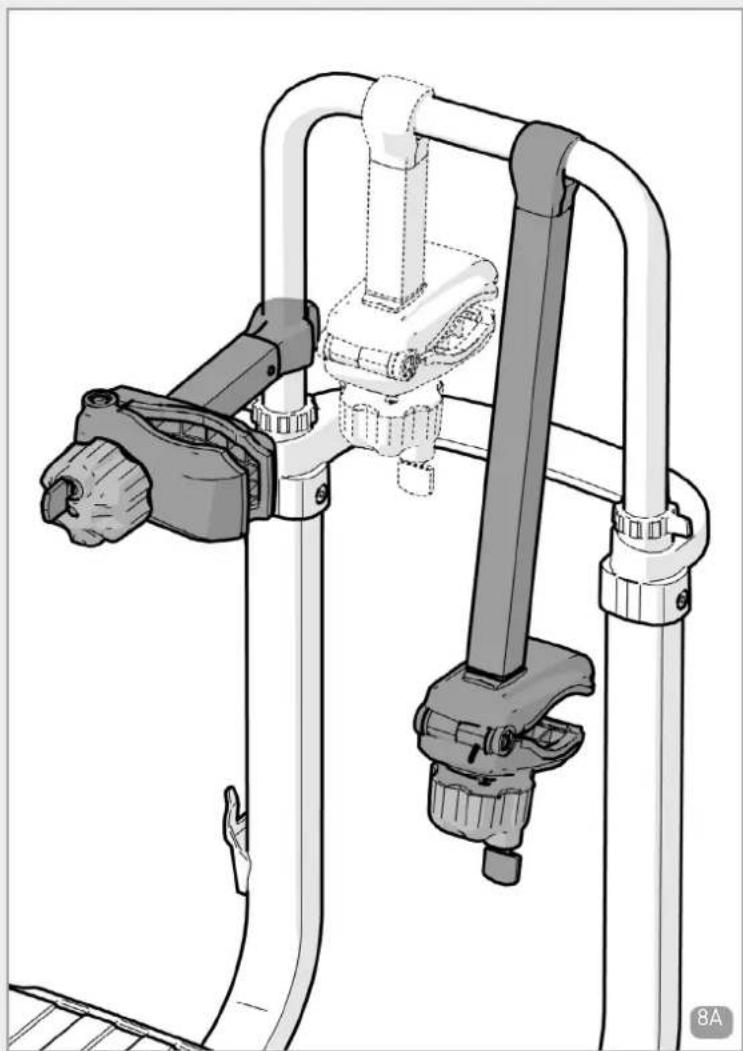

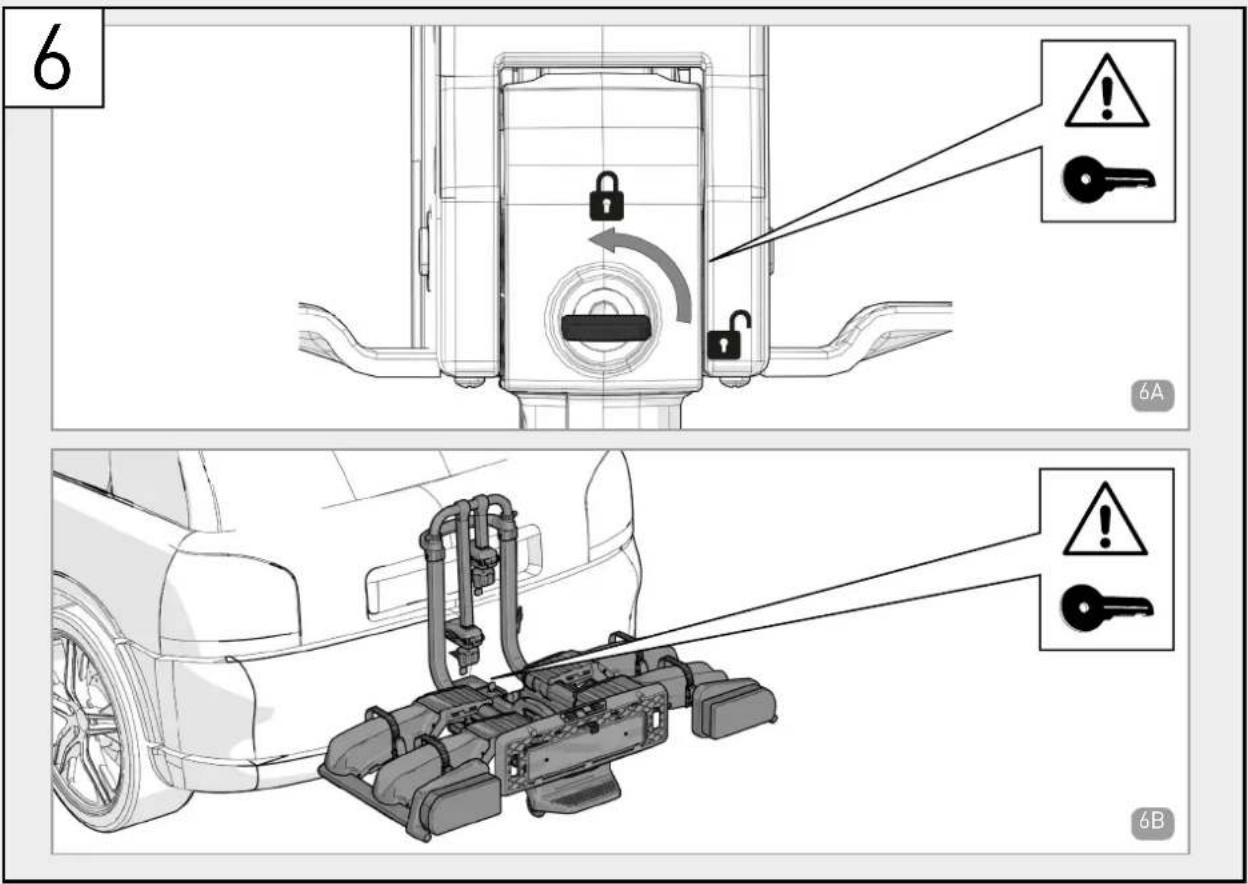

8

Technical illustration of a mechanical device with attached clamps and tubing (no text or symbols)

Mechanical device with directional arrows indicating motion or force (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Pure mechanical diagram showing a lever mechanism with no text or symbols

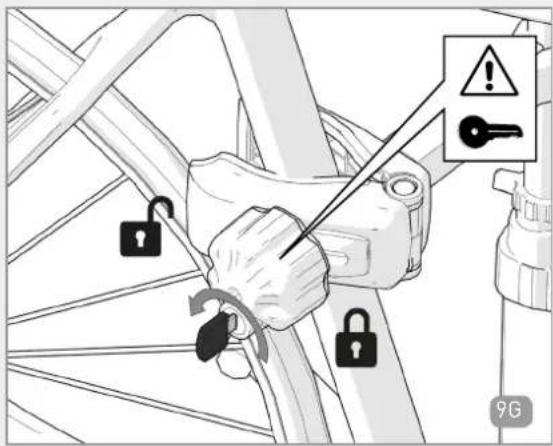

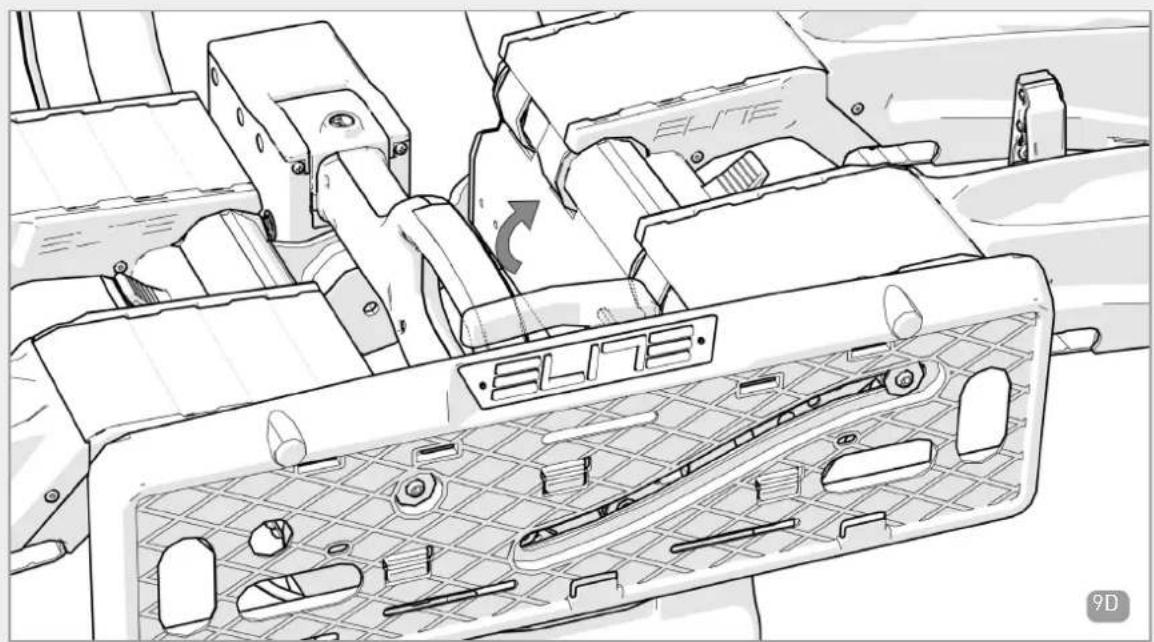

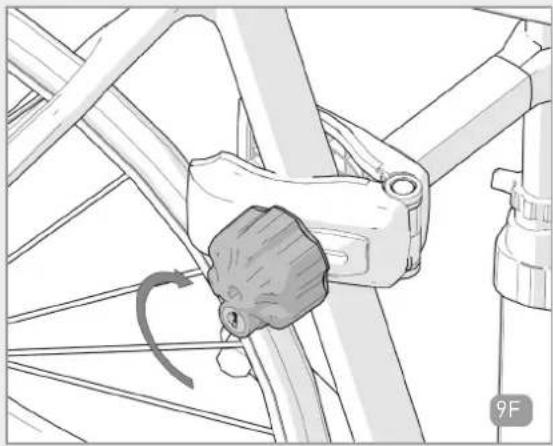

9

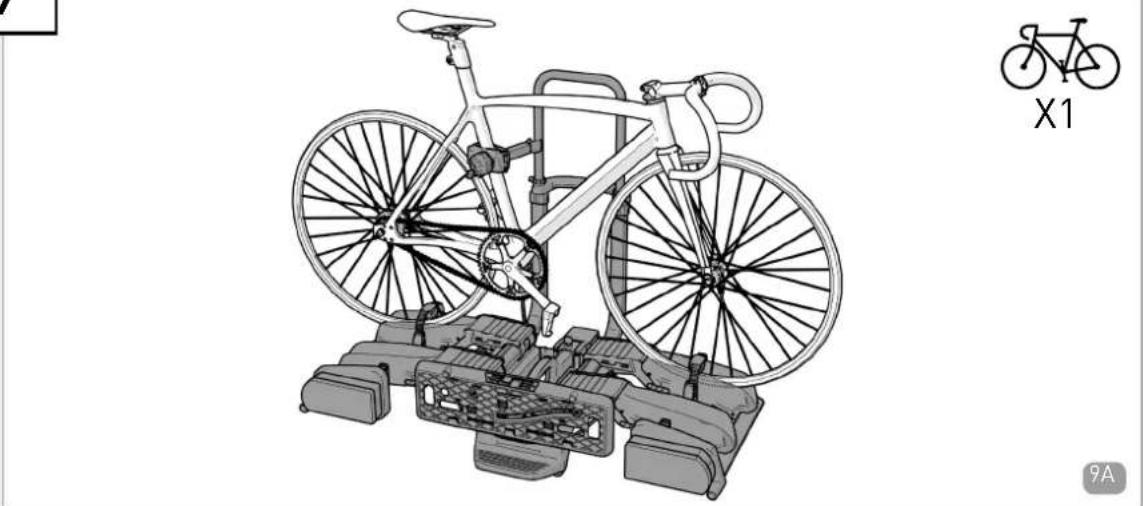

Line drawing of a bicycle stationary exercise platform with labeled X1 (no text or symbols on the diagram itself)

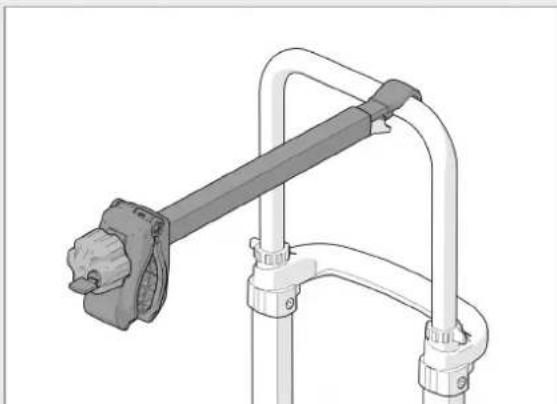

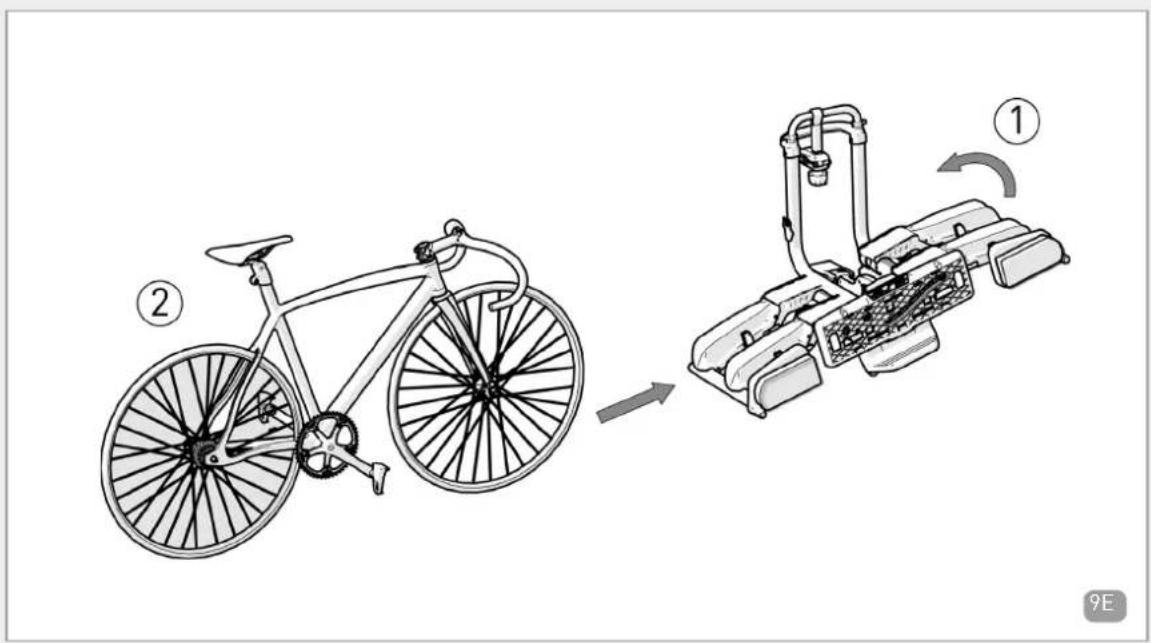

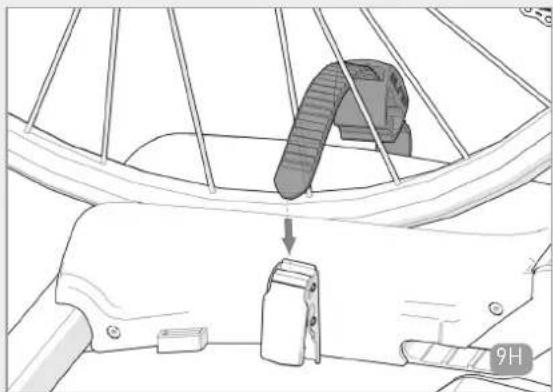

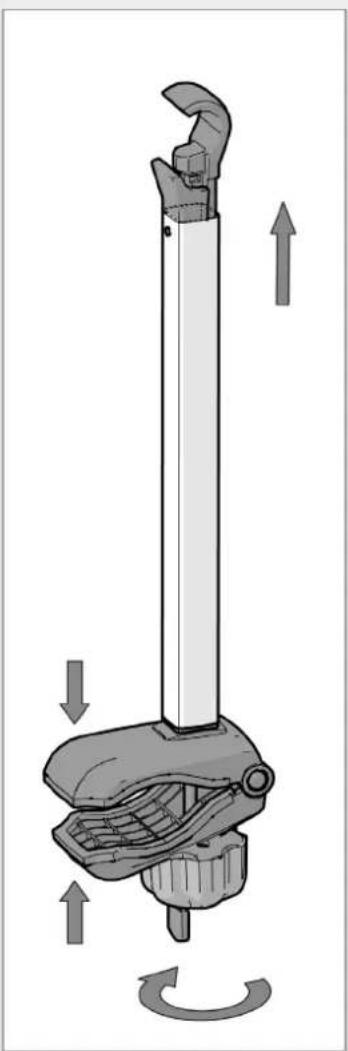

9

Technical line drawing of an electronic device interior showing internal components and a labeled tray (no readable text or symbols)

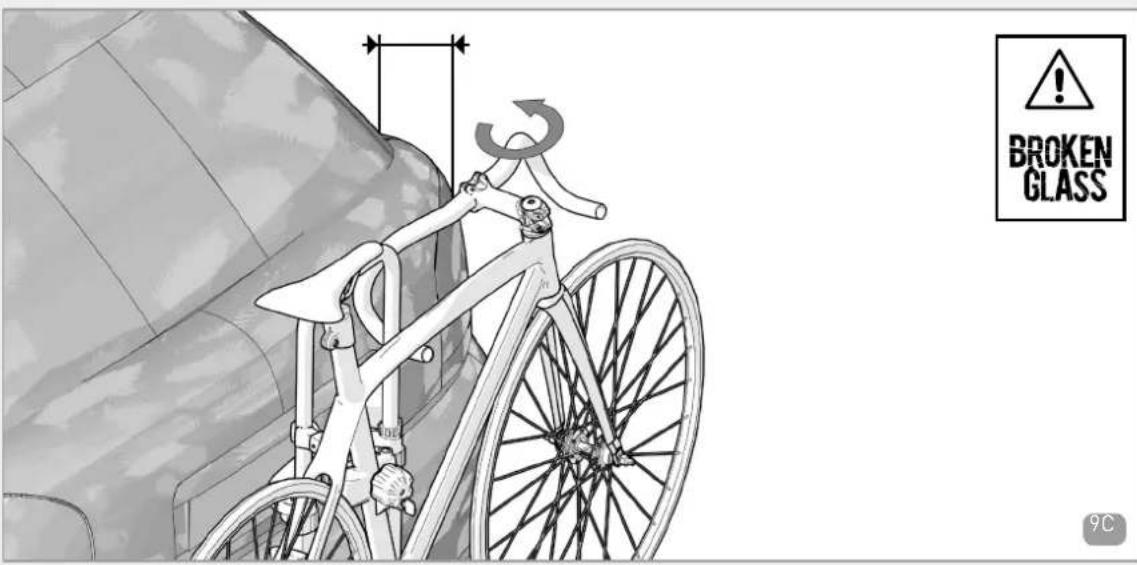

9

Mechanical assembly diagram showing a gear mechanism with rotational motion (no text or symbols)

Diagram of a car interior showing a seatbelt and gear mechanism (no text or symbols)

Technical line drawing of a car seatbelt assembly (no text or symbols)

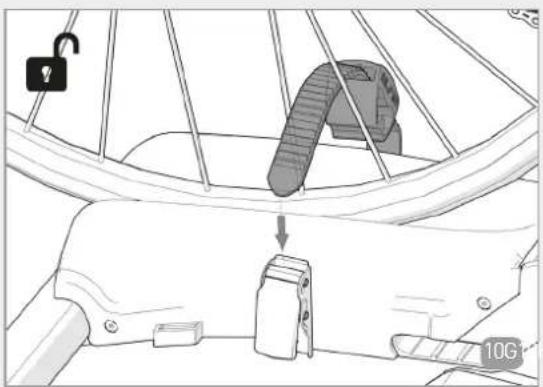

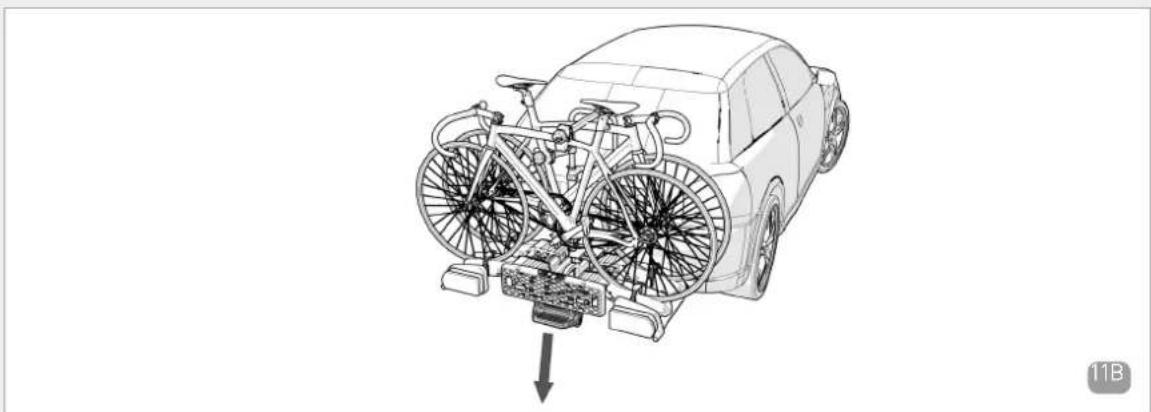

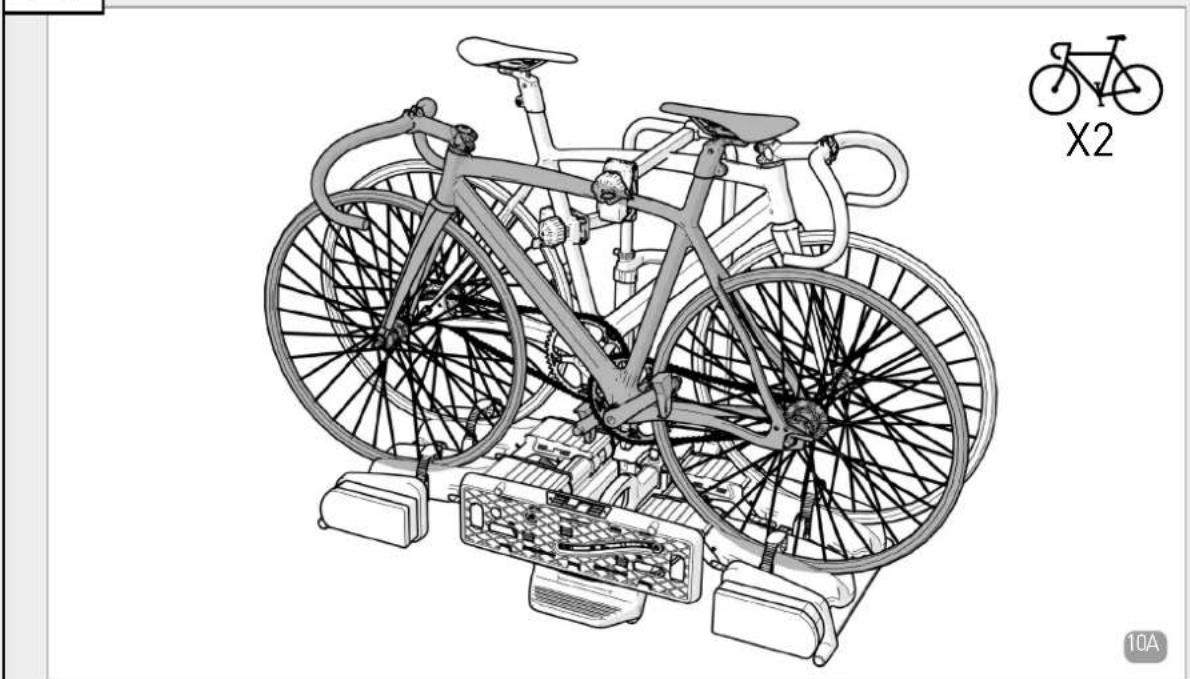

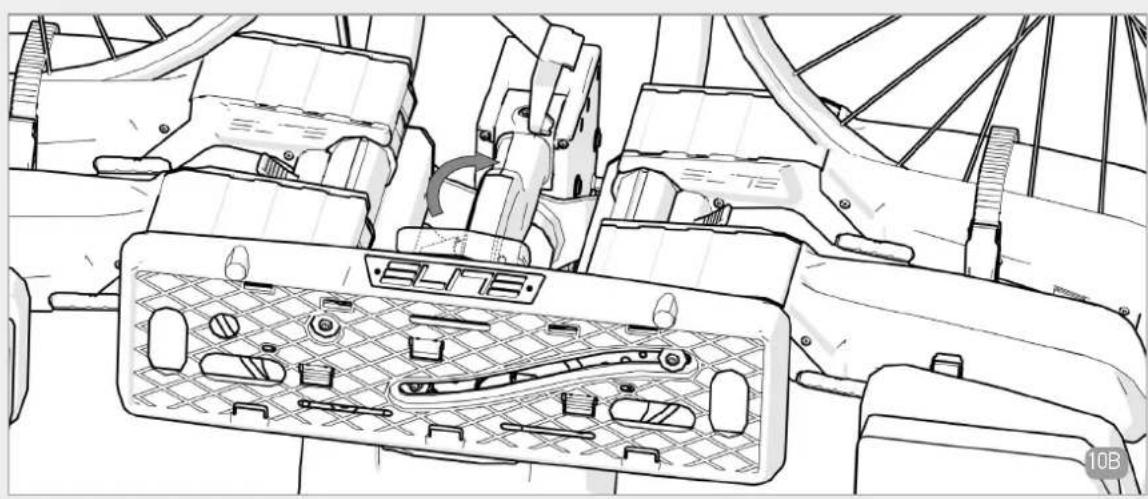

10

Line drawing of a bicycle with visible wheels and accessories, no text or symbols present

Technical line drawing of a mechanical component with internal parts and mounting holes (no text or symbols)

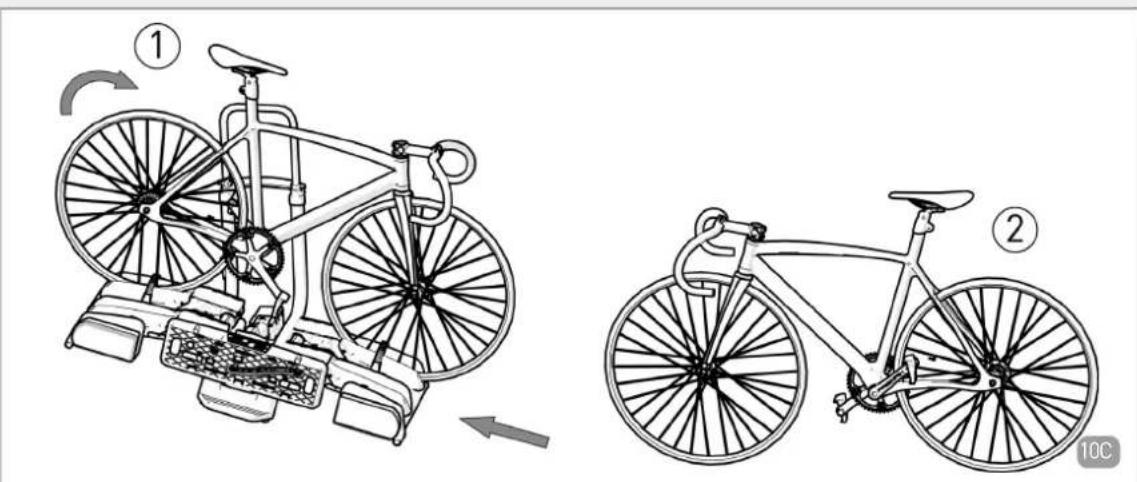

10

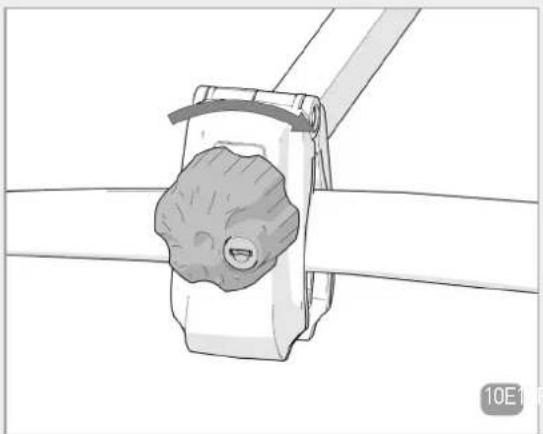

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram of a car interior showing a lock, gear shift, and steering wheel (no text or symbols)

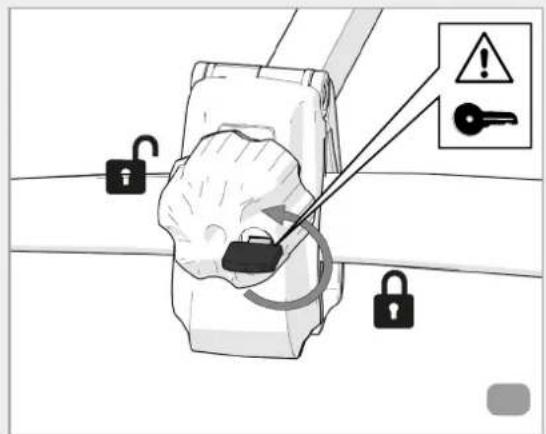

Line drawing of a car seatbelt buckle with a lock icon (no text or symbols)

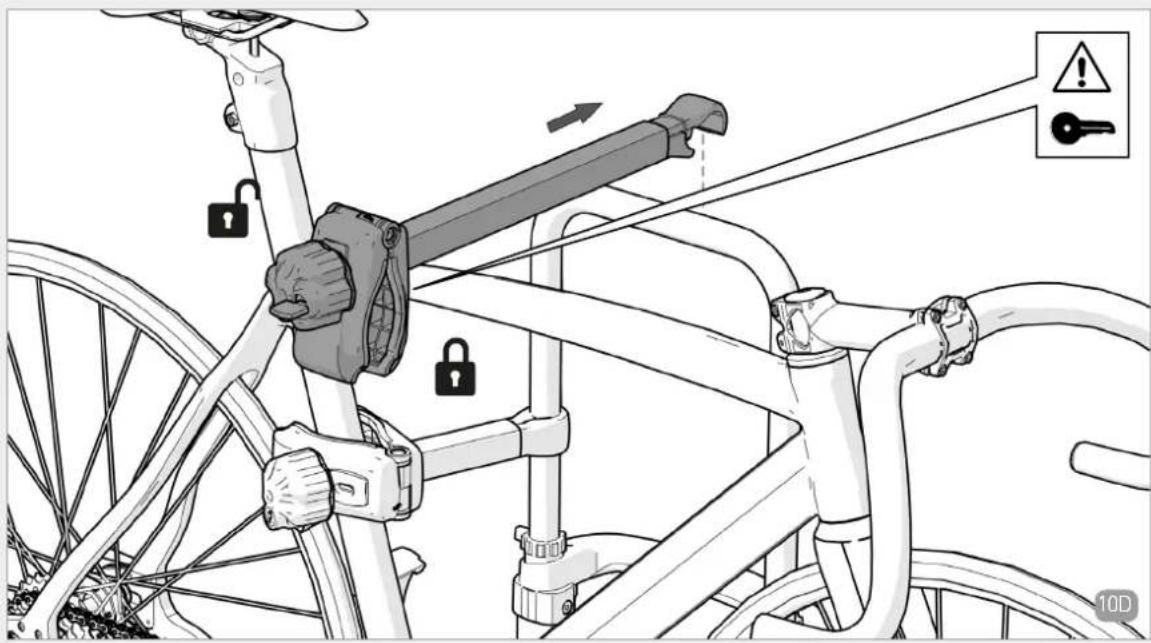

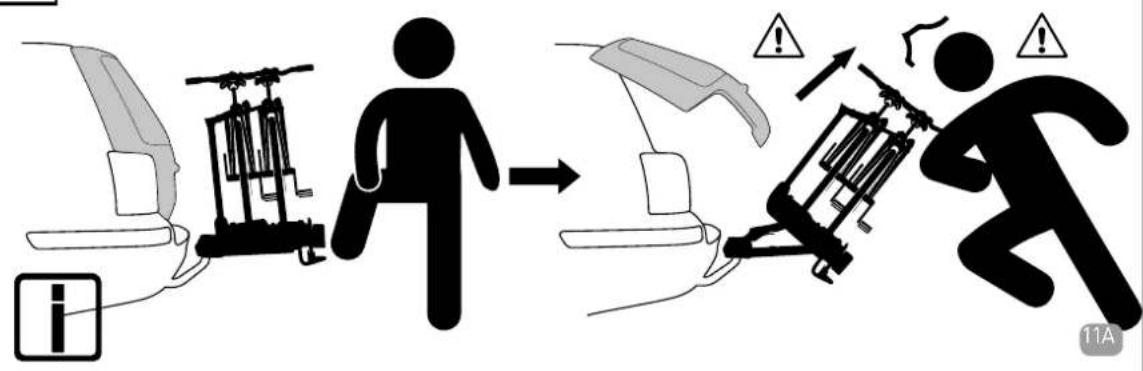

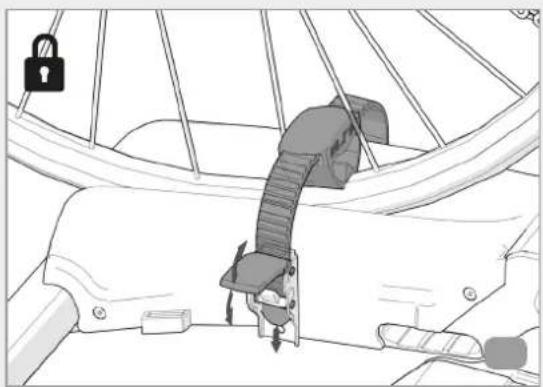

11

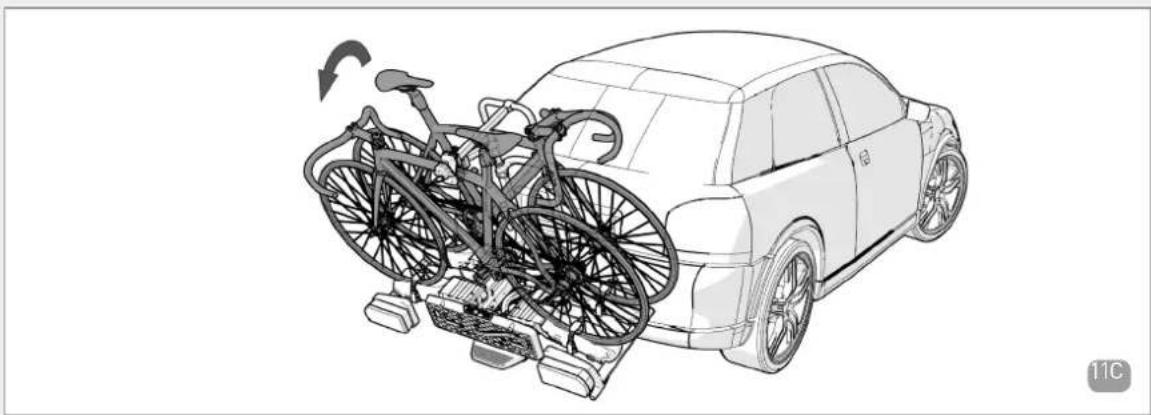

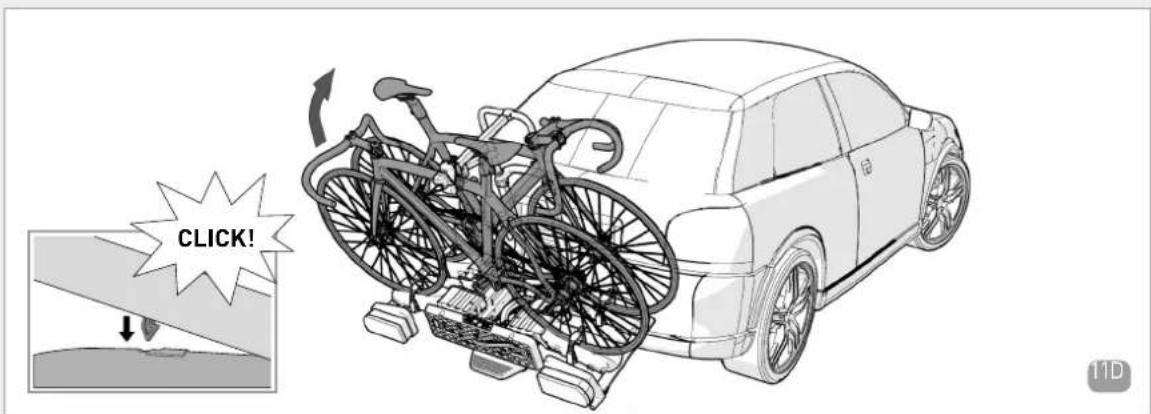

Technical line drawing of a car with two bicycles mounted on a battery pack, showing internal components and a downward arrow indicating motion (no text or symbols)

Line drawing of a bicycle-mounted parking lift system on a sedan, showing wheelbase and wheels (no text or symbols)

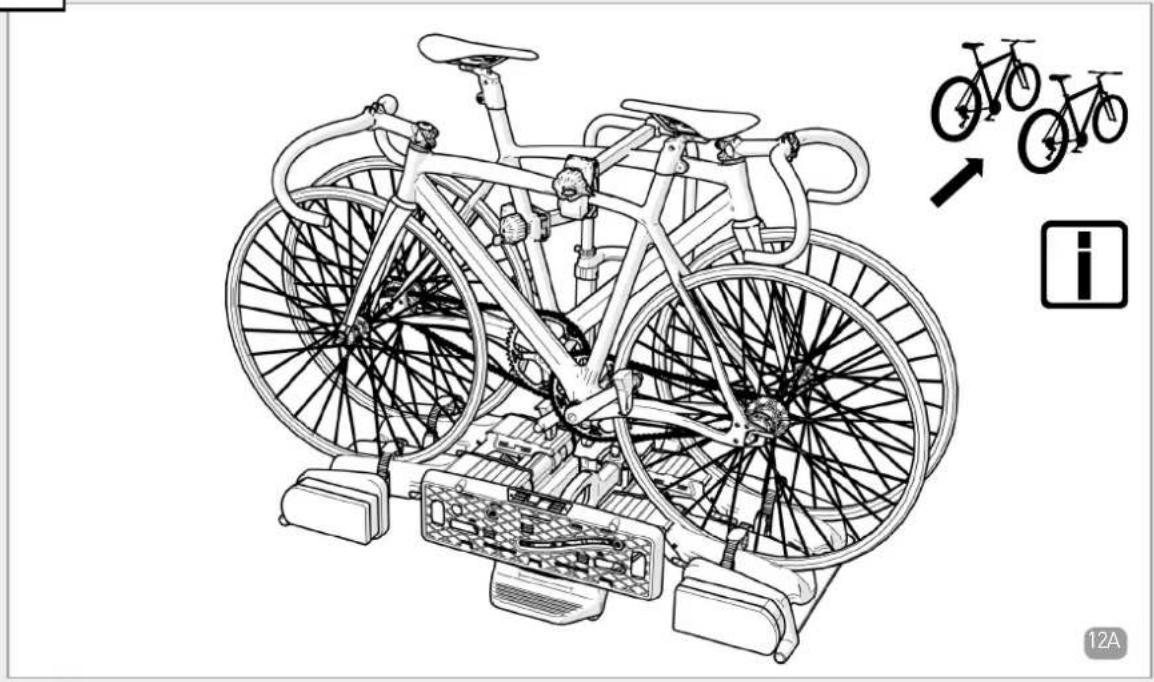

12

Line drawing of a bicycle with dual wheels and control panel, accompanied by an icon indicating bicycle lane (no text or symbols on the diagram itself)

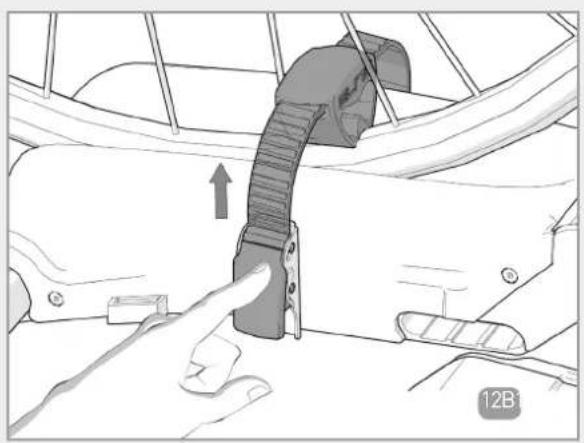

Diagram of a car interior showing a hand pressing a cable with an upward arrow, no text or symbols present

Diagram of a mechanical clamp or bracket assembly with a circular component and directional arrow (no text or symbols)

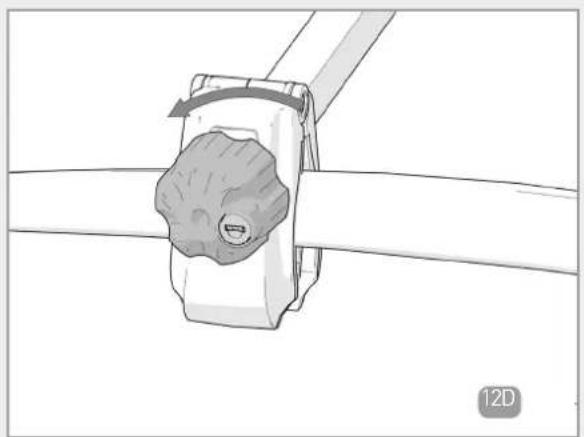

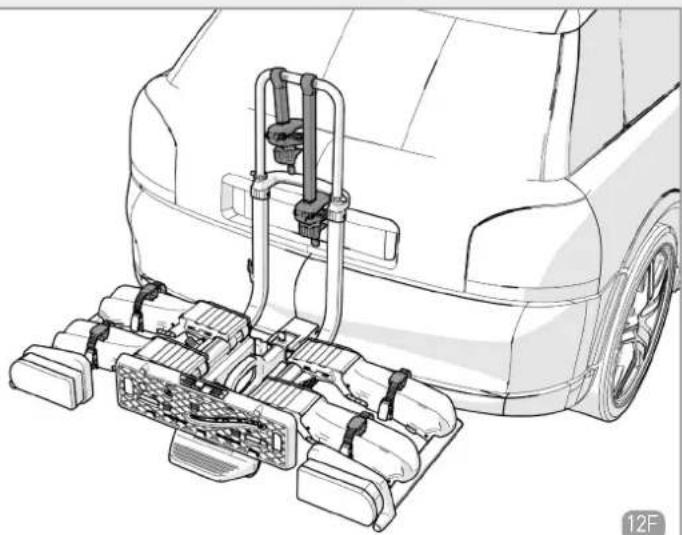

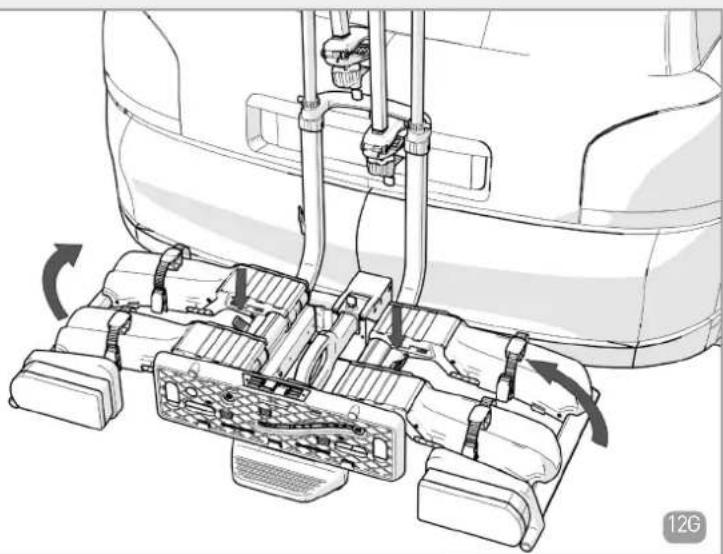

12

12E

Technical line drawing of a car's rear suspension system with attached vehicle chassis (no text or symbols)

Technical line drawing of a vehicle's internal components with directional arrows indicating motion (no text or symbols)

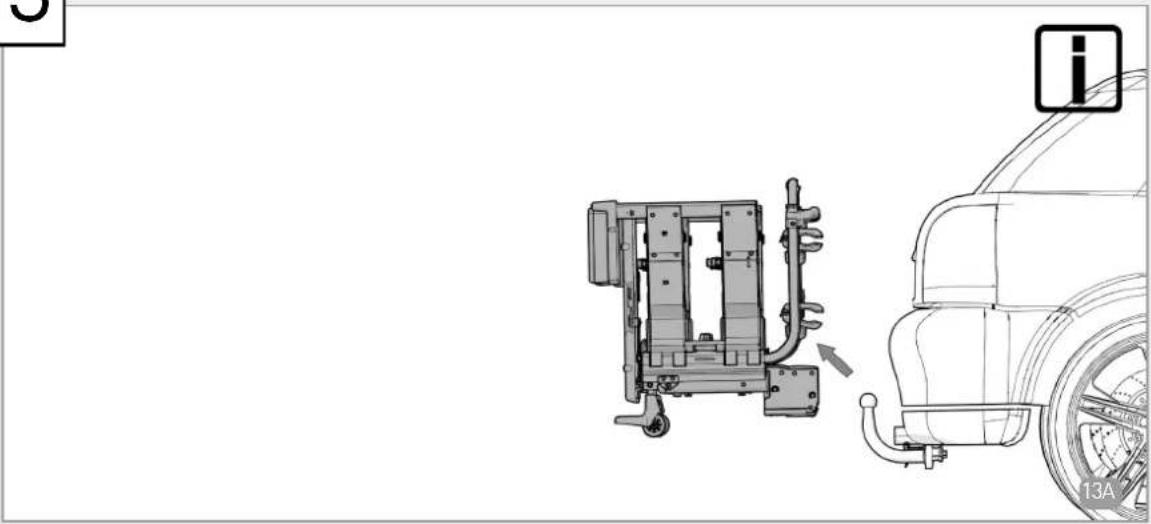

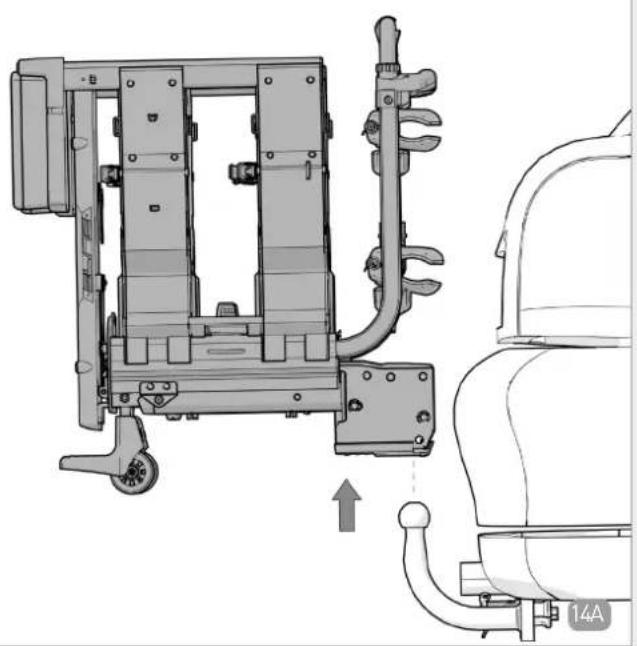

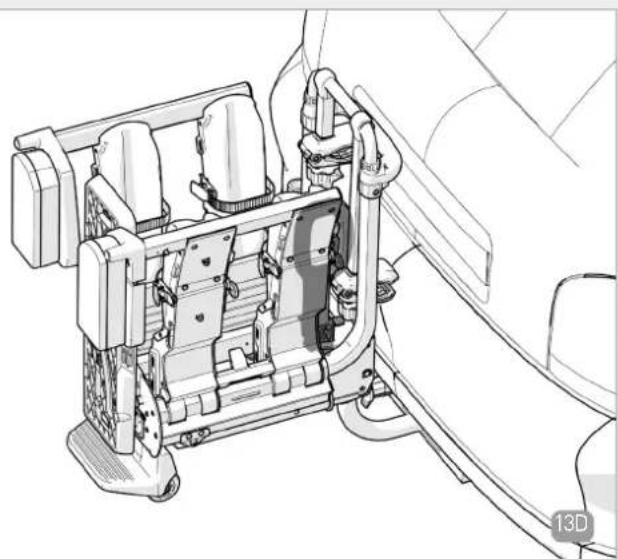

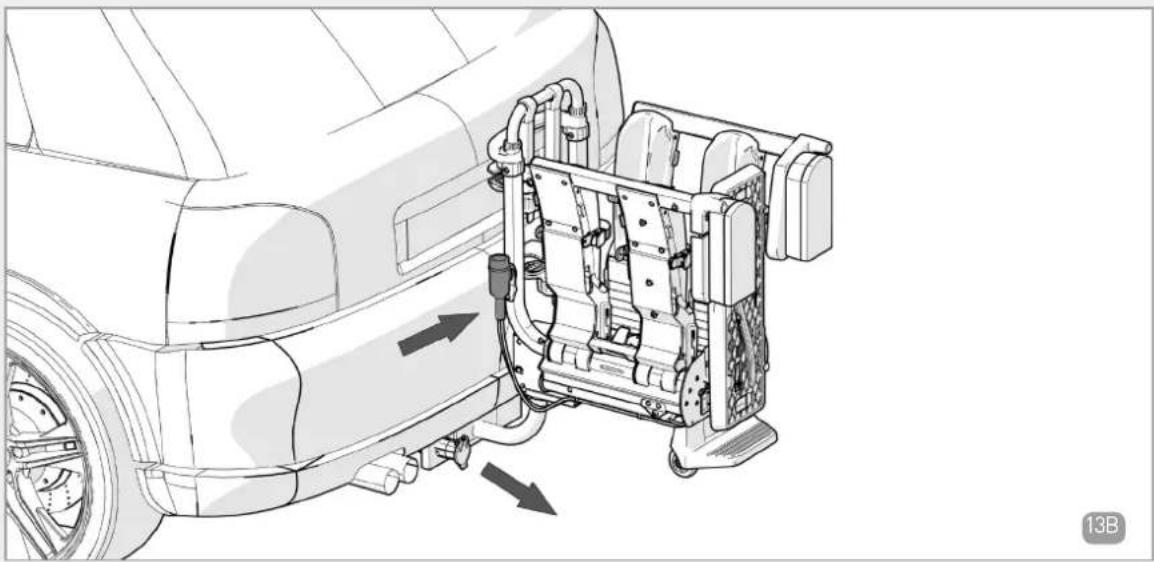

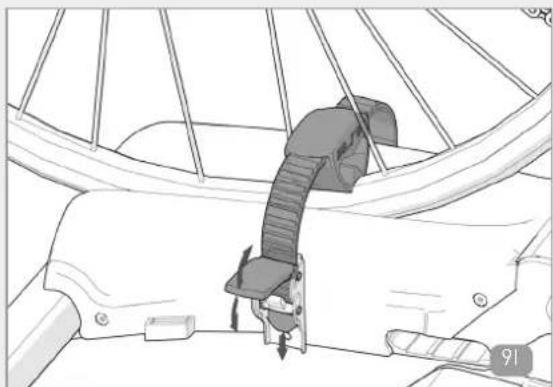

13

Technical line drawing of a vehicle's internal components and exterior view, showing a mechanical assembly and wheel assembly (no text or symbols)

Technical line drawing of a car's internal engine compartment assembly (no text or symbols)

Technical line drawing of a vehicle's internal engine compartment assembly (no text or symbols)

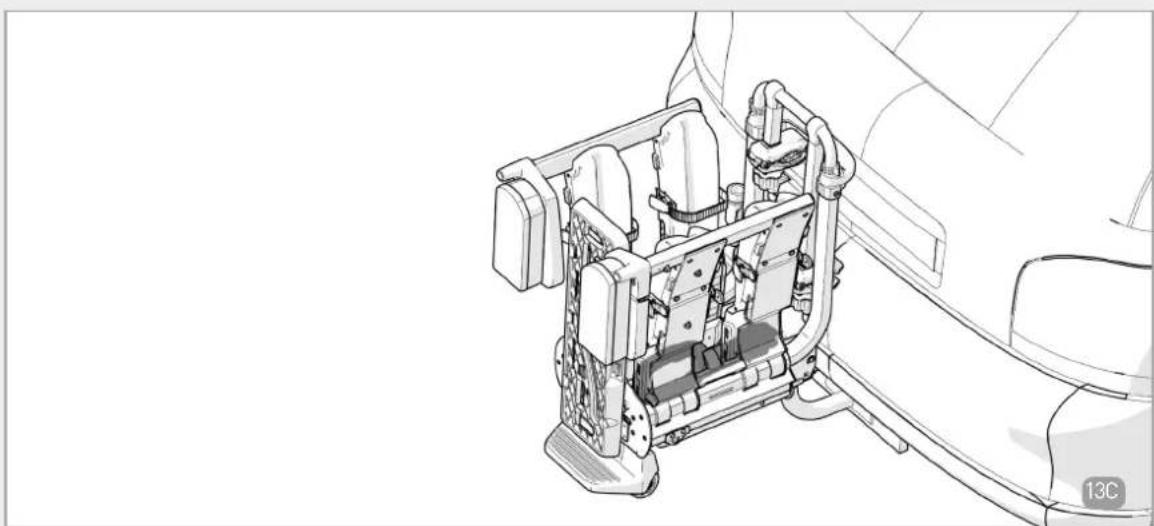

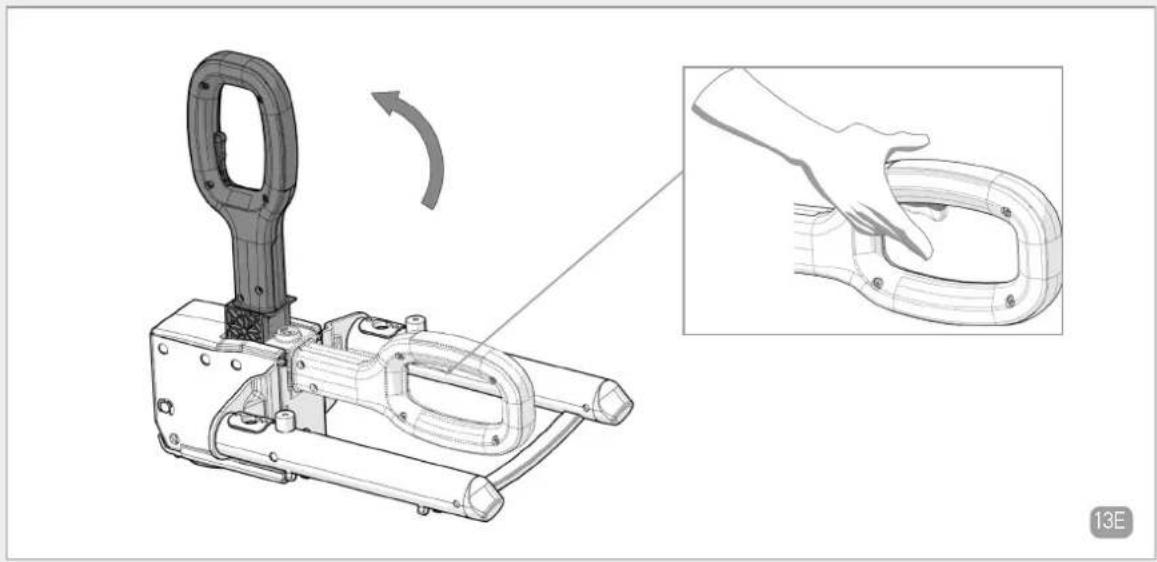

13

Technical line drawing of a vehicle's internal components, showing structural parts and suspension (no text or symbols)

Technical illustration of a mechanical device with a handle and internal components, showing a close-up view of the component being rotated (no text or symbols present)

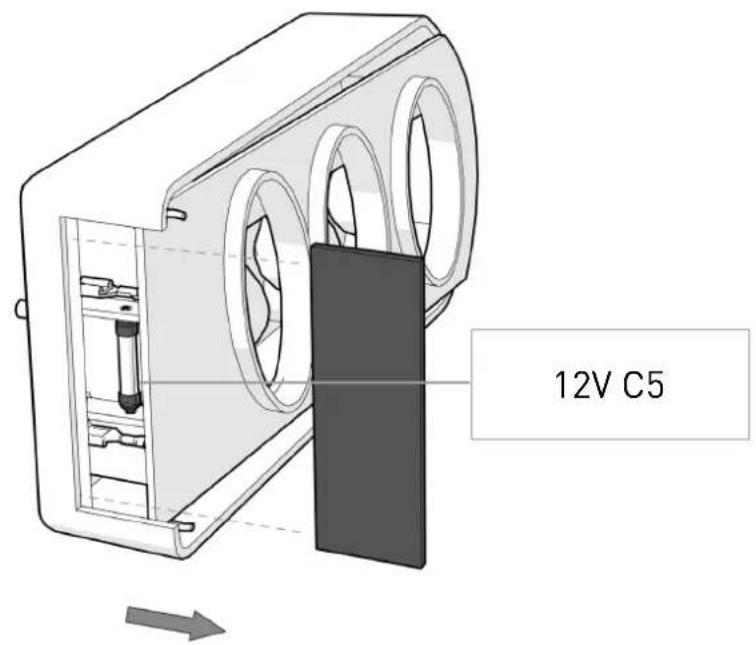

14

Technical line drawing of a mechanical device with no visible text or symbols

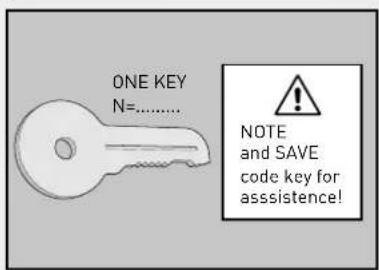

NOTE

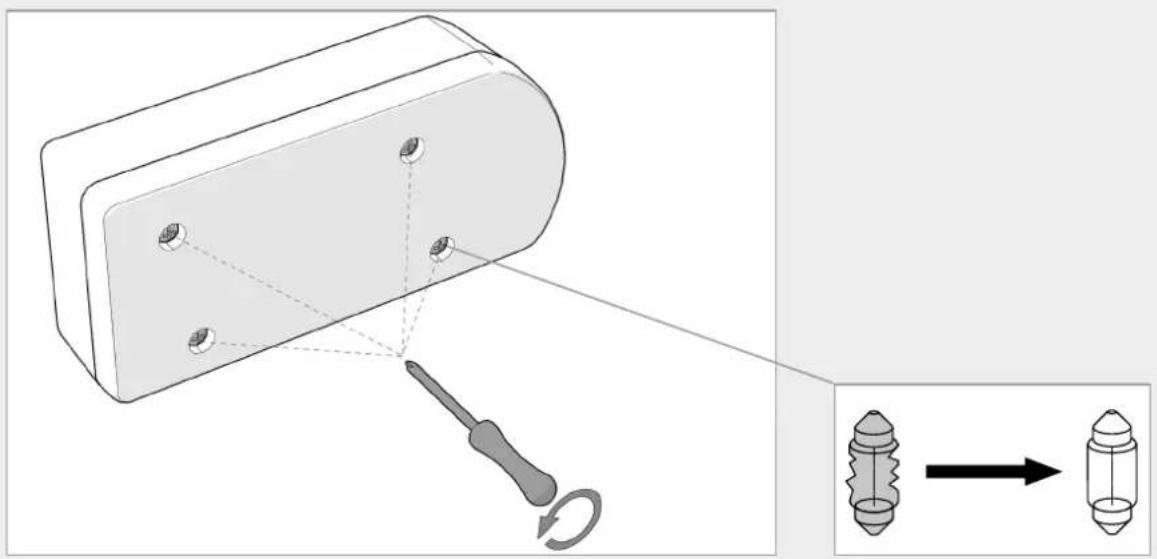

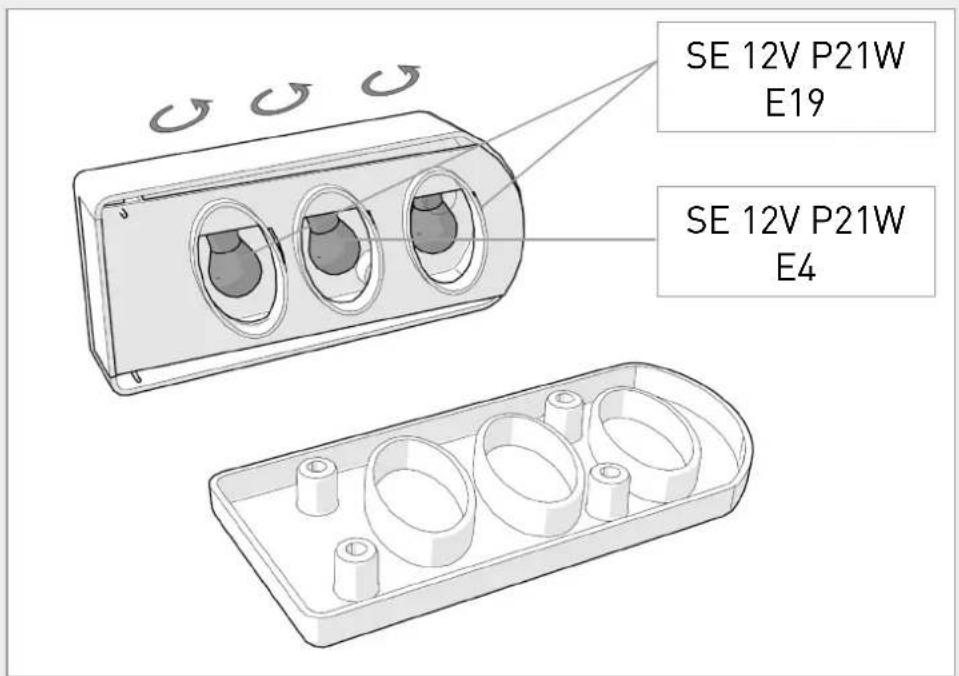

Diagram showing a screwdriver interacting with a component, with an inset illustrating the process (no text or symbols present)

NOTE

NOTE

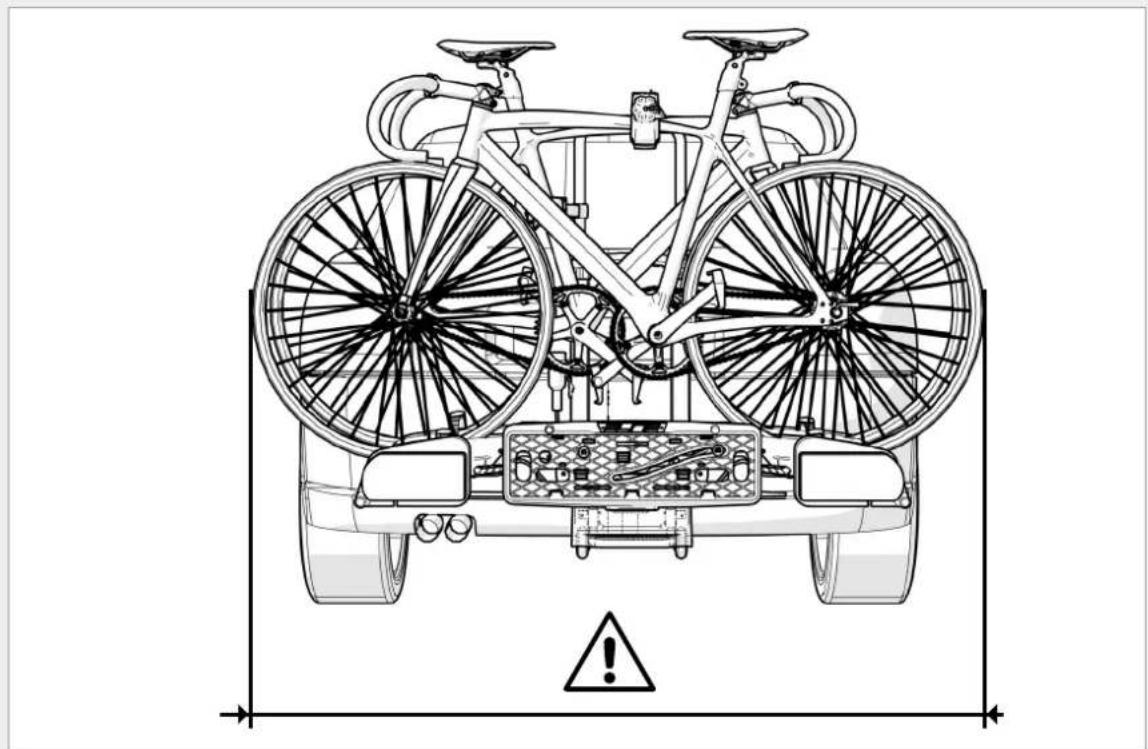

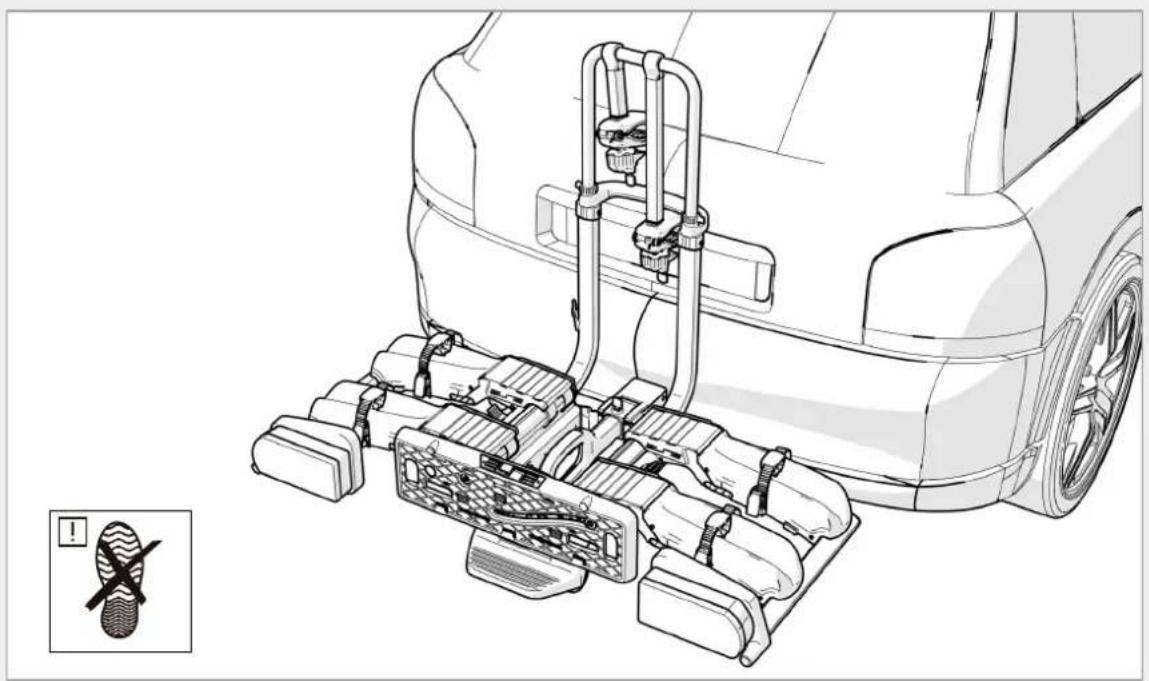

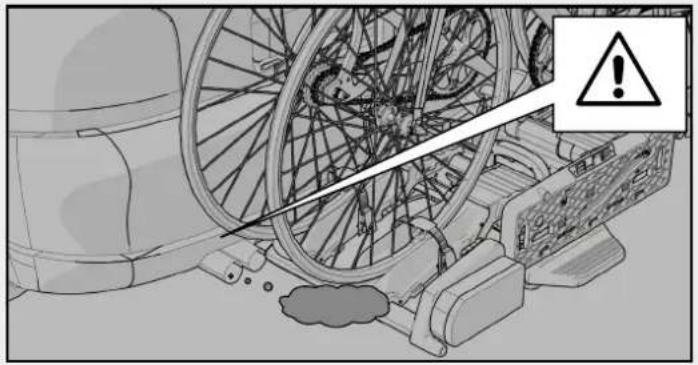

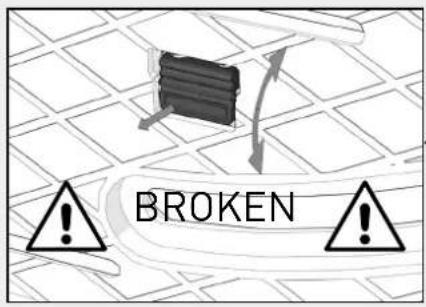

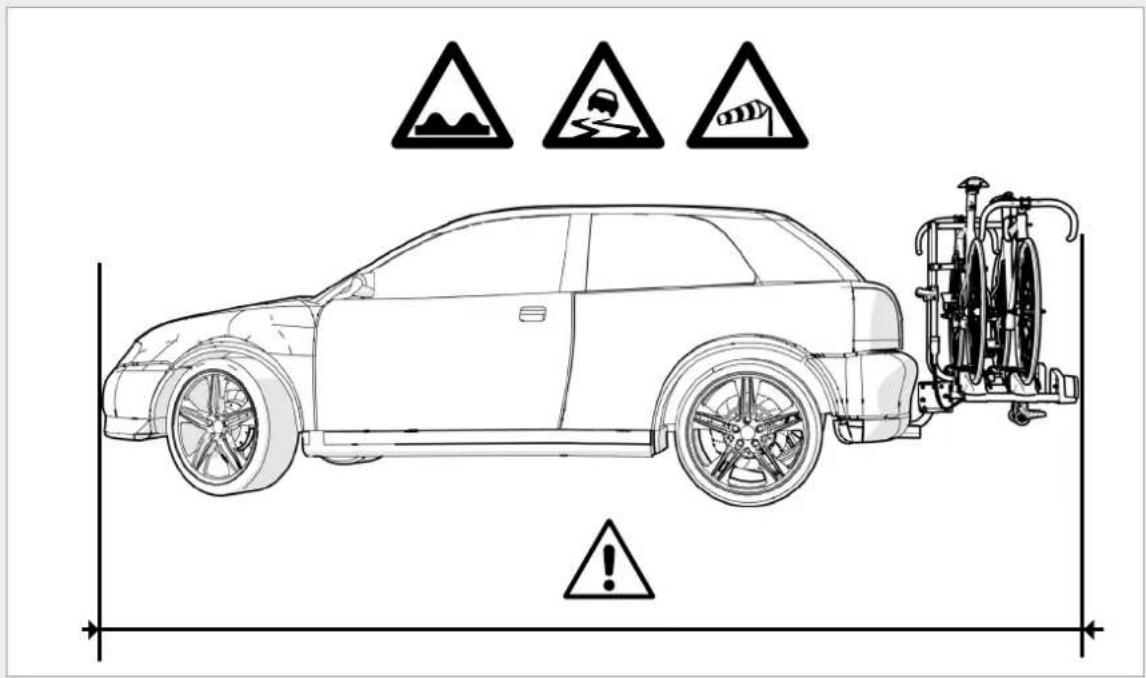

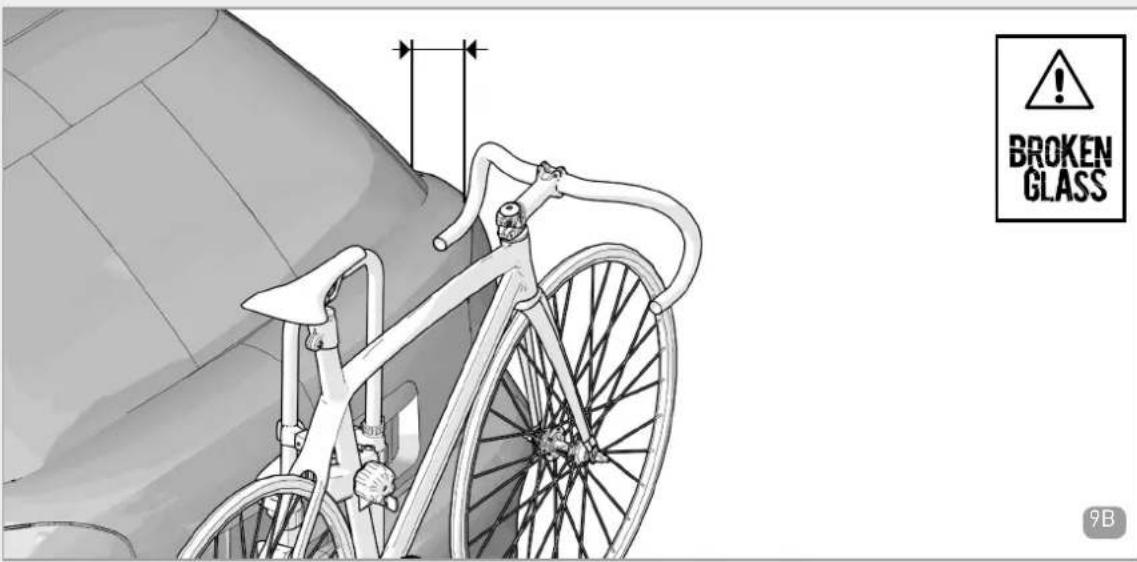

ATTENTION

Technical line drawing of a bicycle with front wheel, rear wheels, and warning symbol (no text labels)

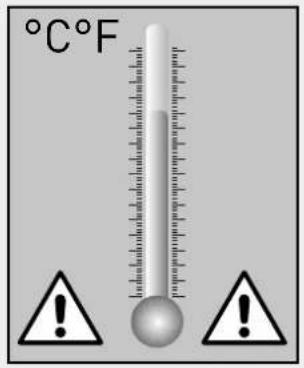

ATTENTION

Technical line drawing of a car interior with mechanical components and a warning symbol (no text or labels)

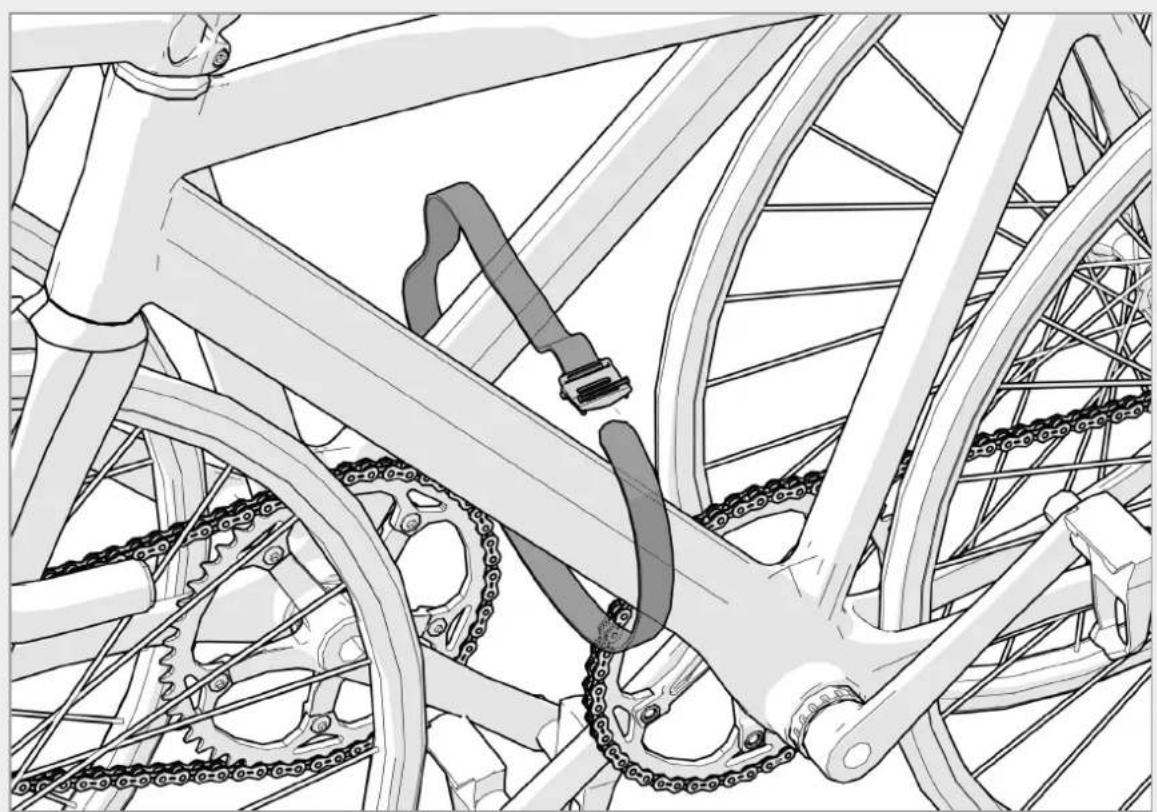

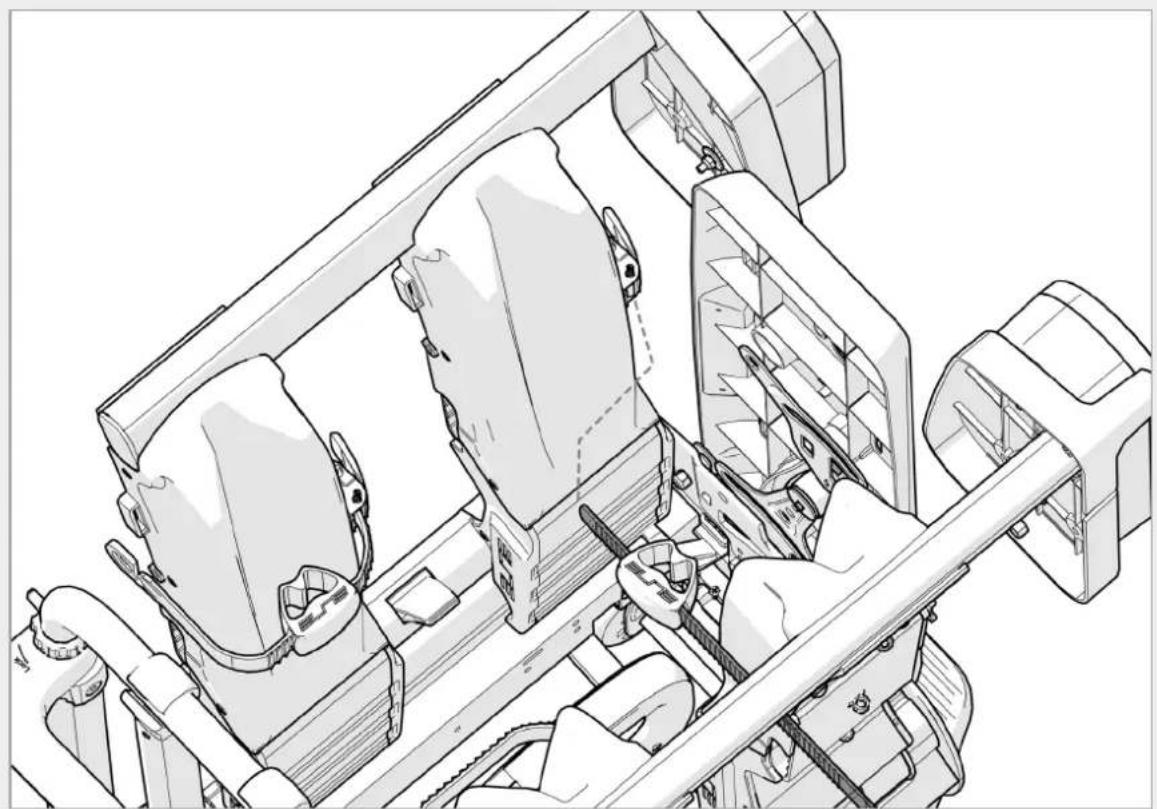

ADVICE

Technical line drawing of a mechanical assembly with multiple components and no visible text or symbols

Technical line drawing of bicycle frame structure with chains and a belt (no text or symbols)

NOTES
