BRUGSANVISNING DX2010 BOSCH
DX2010 Series Input Expander
www.boschsecurity.com
BOSCH
Invented for life


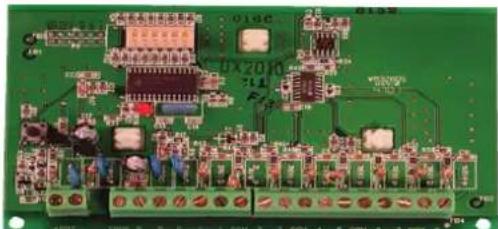

Green printed circuit board with various electronic components and connectors (no readable text or symbols)The DX2010 Input Expander connects directly to the data bus of a compatible control panel. Each expander adds eight input loops. Install up to five expanders in a control panel's enclosure (three on the interior sidewalls and two on the back wall of the enclosure).
Certifications and approvals
France AFNOR NF, A2P Type 2 (122000076-03)
Region Certification
| Europe CE 2014/30/EU EMC Directive (EMC);2014/35/EU Low-Voltage Directive(LVD); 2011/65/EU Restriction of theuse of certain hazardous substances inelectrical and electronic equipment(RoHS) |
Belgium INCERT B-509-0005
▶ Up to eight sensor input loops
▶ Directly connects to the control panel data bus
Region Certification
| USA UL DX2010: AMCX: Central Station AlarmUnits (UL1610, UL1635), AMTB: Control Panels, SIA False Alarm Reduction, AOTX: Local Alarm Units (UL464, UL609), APAW: Police Station Alarm Units (UL365, UL464), APOU: Proprietary Alarm Units (UL1076), NBSX: Household Burglar Alarm System Units (UL1023), UTOU: Control Units and Accessories - Household System Type (UL985) |
| CSFM DX2010: 7167-1615: 183 and7167-1615: 223 July 2008 |
Installation/configuration notes
Compatibility Information
Control Panels Easy Series (ICP-EZM2-NA, ICP-EZM2-UK, ICP-EZM2-LC), D4412, D6412, DS7220V2, and DS7240V2
Technical specifications
Outputs
Outputs: 100 mA, 12 VDC supervised output for accessories
Environmental Considerations
| Operating Temperature: 0°C to +50°C (+32°F to +122°F) |
| Relative Humidity: 5% to 85% at +30°C (+86°F), non-condensing |
Loop
| Inputs: Up to eight inputs | Input contacts may be normally-open (NO) or normally-closed (NC) with appropriate end-of-line resistor(s) for supervision. |
| Resistance: 60Ω maximum | |
| Terminal Wire Size: 1.8 mm (14 AWG) to 0.8 mm (22 AWG) | |
Power Requirements
| Current (Maximum): 35 mA standby | |
| 35 mA maximum with connected accessories | |
| Voltage (Operating): 8 VDC to 14 VDC | |
Ordering information
DX2010 Input Expander
Zone expansion module with 8 DOEL zone inputs.
Order number DX2010
DX2011 Package
Includes a DX2010 Input Expander with a D203 Metal Enclosure.
Order number DX2011
DX2012 Package
Includes a DX2010 Input Expander with an AE20
Plastic Enclosure.
Order number DX2012
Accessories
AE20 Universal Plastic Enclosure
Mounts to a single gang/double gang box, a 9 cm (3.5 in.) octagonal box, or a 10 cm (4 in.) square box.
The dimensions are 12 cm x 16 cm x 4 cm (4.7 in. x 6.2 in. x 1.5 in.). Accommodates wall tamper switches on the modules.
Order number AE20
