BRUGSANVISNING Club 602C JBL

INSTALLATION MANUAL

Club 322F

Club 3412T

Club 422F

Club 522F

Club 602C

Club 602CTP

Club 620F

Club 622

Club 6422F

Club 8622F

Club 9632

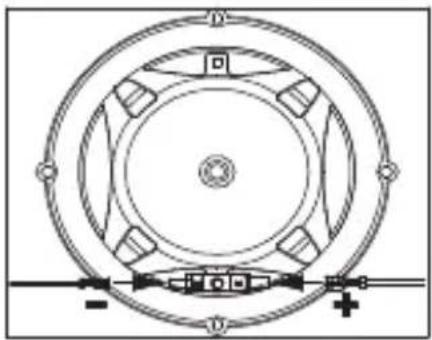

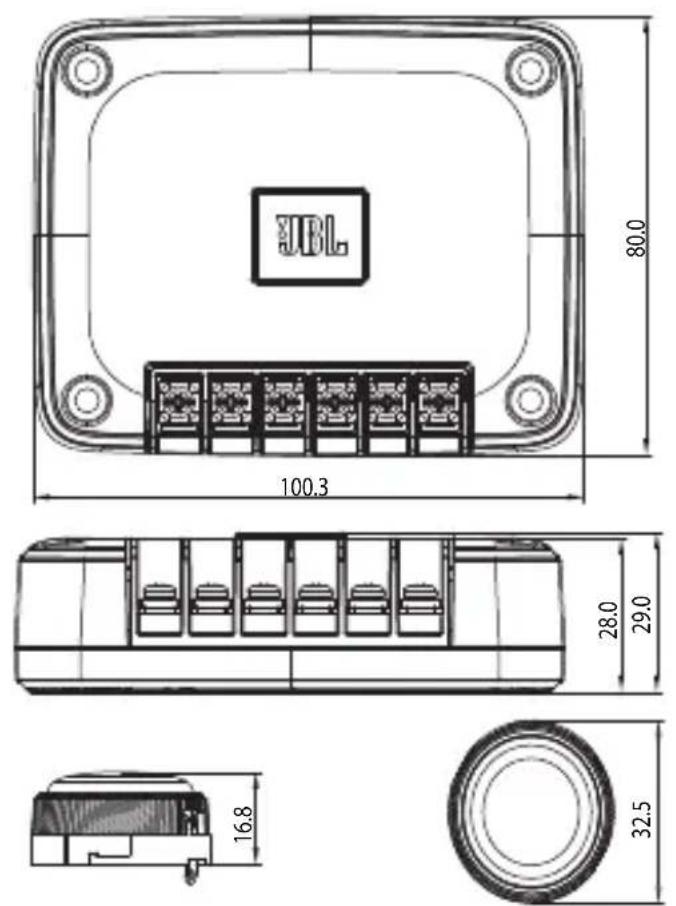

Club 602C

Technical line drawing of a circular mechanical component with symmetrical features and mounting points (no text or symbols)


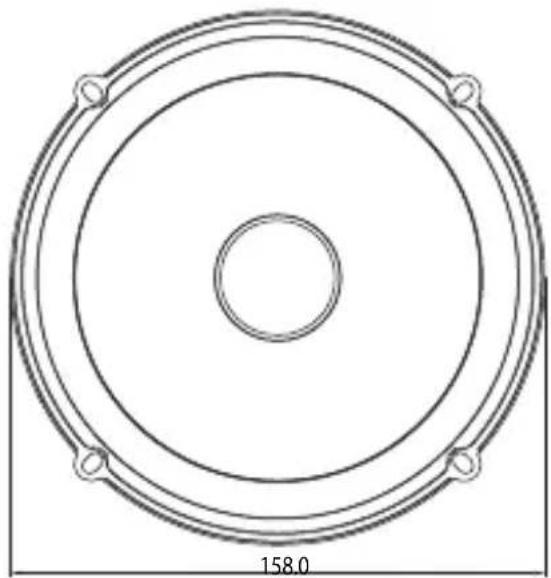

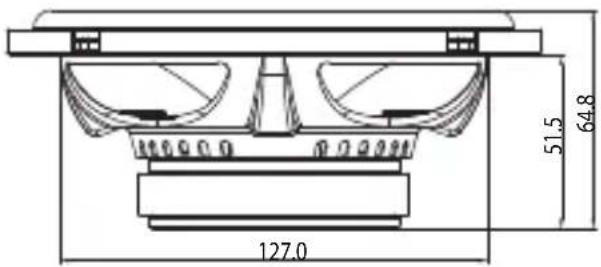

Circular diagram with concentric rings and a central circle, labeled '158.0' at the bottom (no text or symbols within the diagram itself)

Specifications

• Type: 6-1/2" (160mm) Two-Way Component Speaker System
  • Power Handling: 70W RMS, 210W peak
  • Sensitivity (@ 2.83V): 92dB
  • Frequency Response: 55Hz – 20kHz
  • Nominal Impedance: 3.0 ohms

Thiele-Small Parameters

• BL (Tm): 3.635
• DCR (ohms): 2.37
• Mms (g): 14.409
• Sd (cm2): 132.73
• Cms (μm/N): 0.257
• Vas (l): 6.4107
• Fs (Hz): 82.7
• Qes: 1.340
  • Qms: 10.965
• Qts: 1.194
  • Crossover Point: 5.5kHz

HARMAN International Industries, Incorporated, 8500 Balboa Boulevard, Northridge, CA 91329 USA

© 2019 HARMAN International Industries, Incorporated. All rights reserved. JBL is a

trademark of HARMAN International Industries, Incorporated, registered in the United States and/or other countries.

Features, specifications and appearance are subject to change without notice.

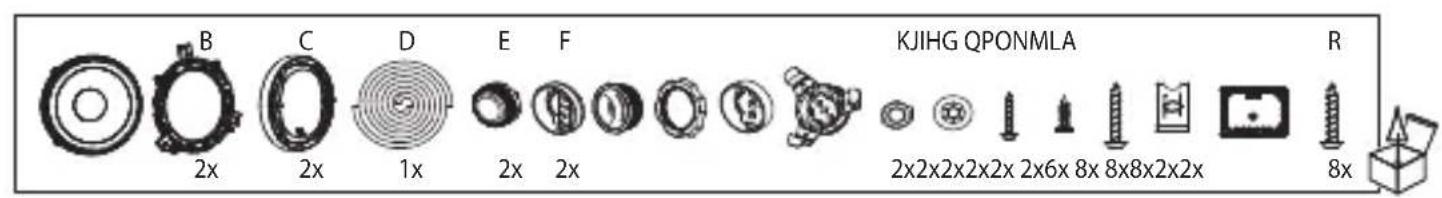

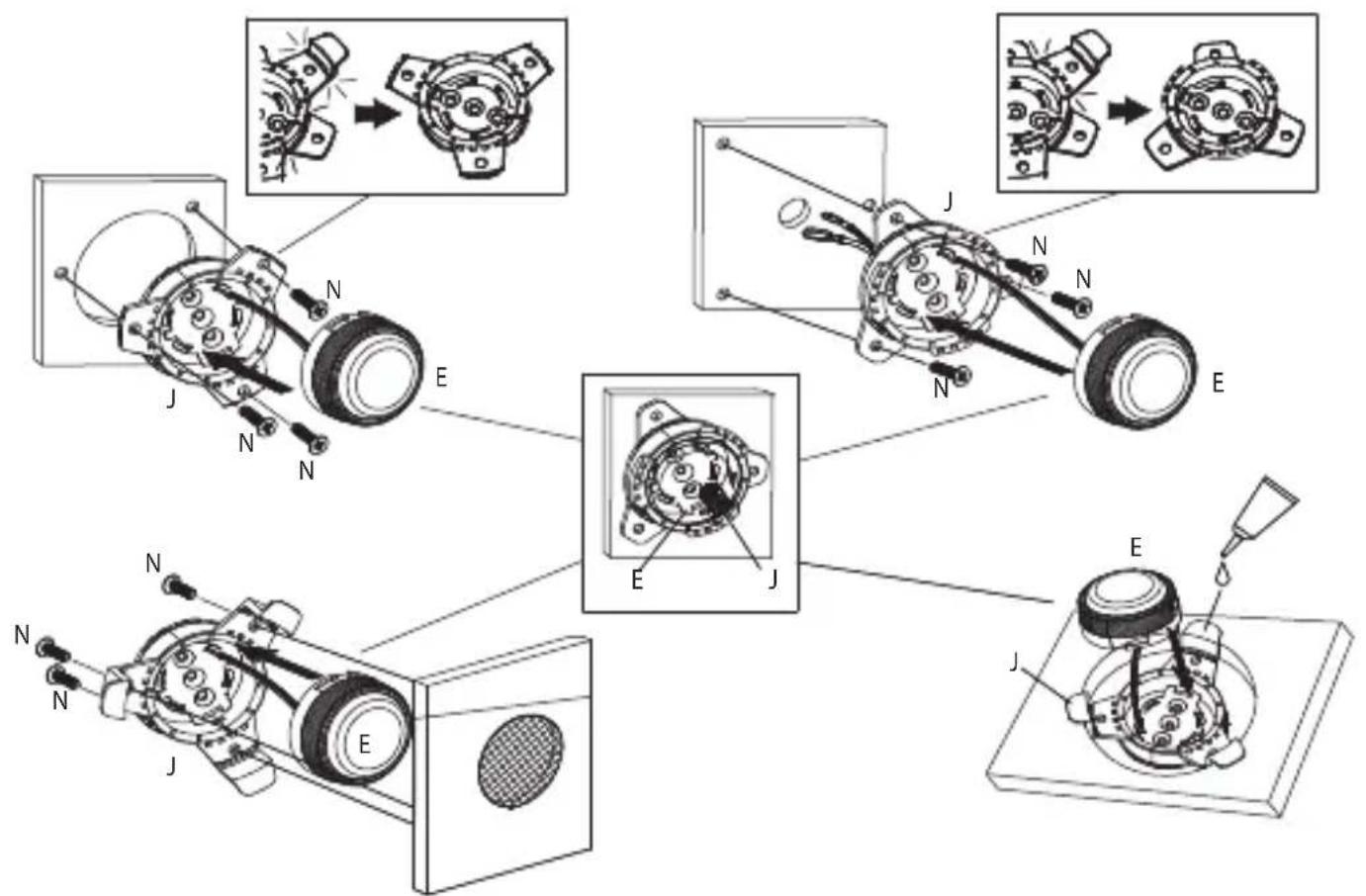

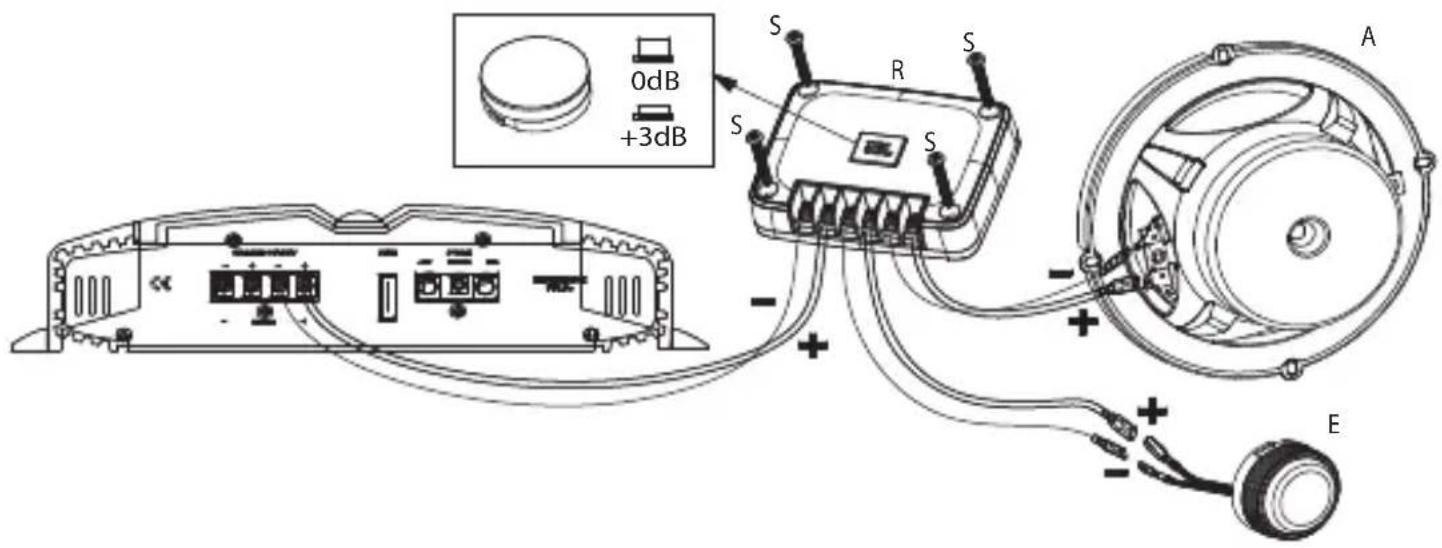

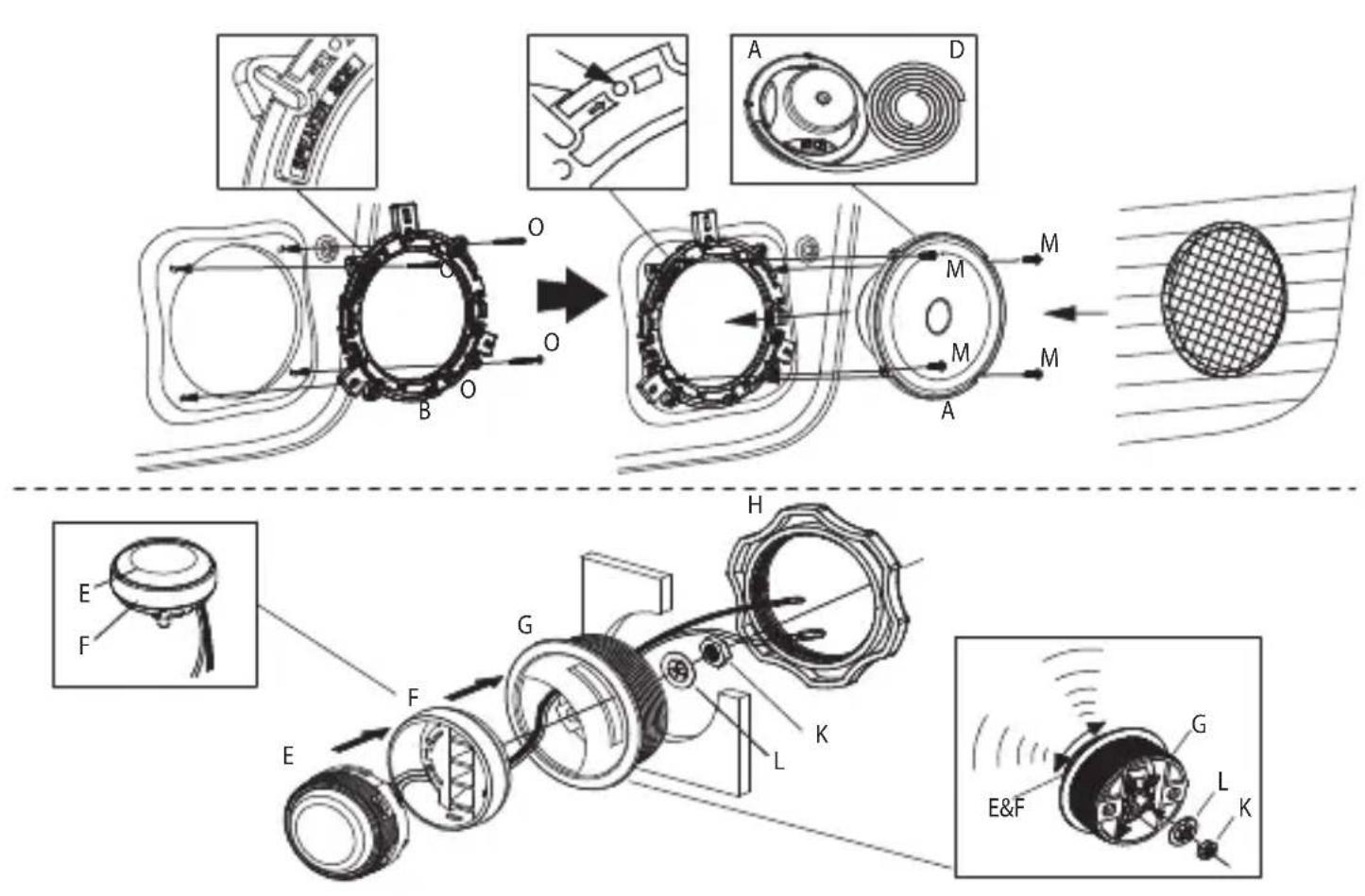

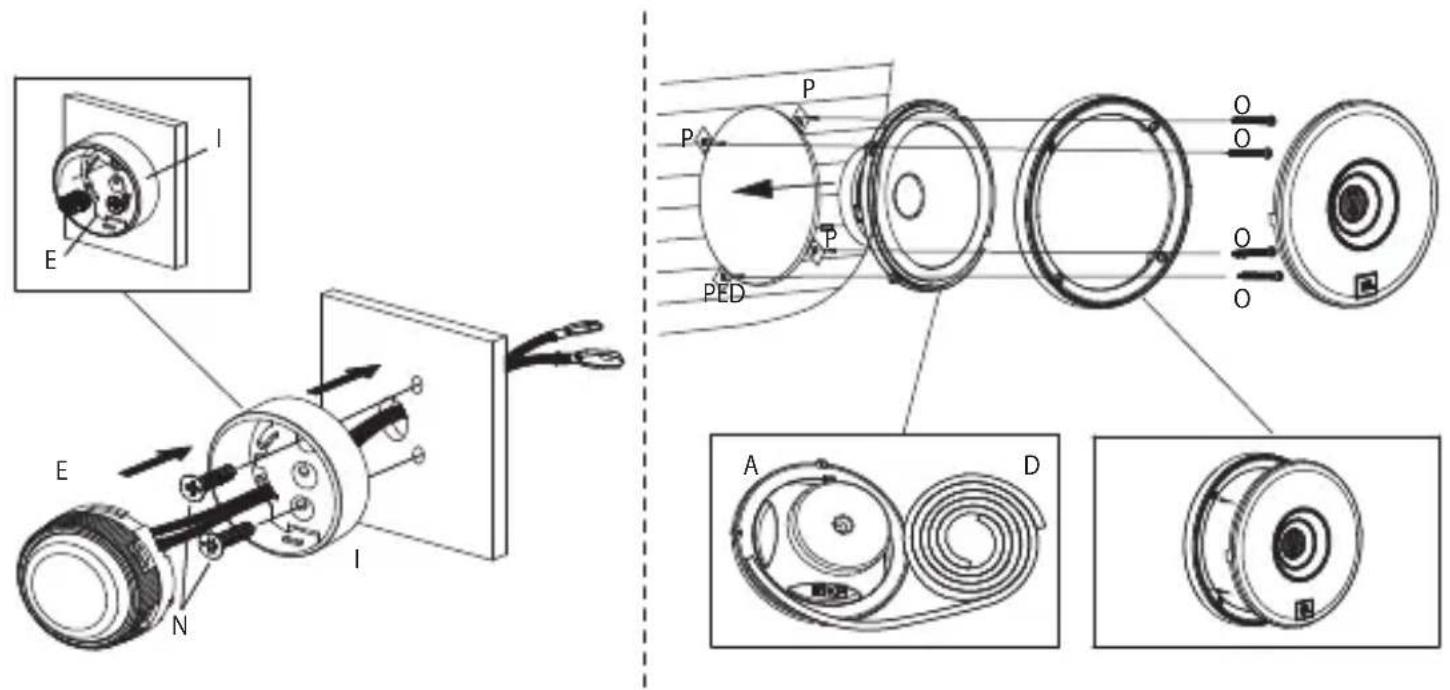

WHAT'S IN THE BOX

CONTENU DE LA BOÍTE | CONTEÚDO DA

CAIXA

L

F

A

Concentric circular rings on black background, labeled '×2' below (no other text or symbols)

M

G

B

Technical line drawing of a circular mechanical component with mounting brackets and a cross symbol (no text or labels)

N

H

Simple line drawing of a ring shape with a cross mark (no text or symbols)

C

Abstract geometric line drawing with concentric ovals and a small square, no text or symbols present

0

1

D

Abstract spiral pattern with concentric circles and a marked point '×2' (no text or symbols within the pattern)

P

J

Technical line drawing of a mechanical component with no visible text or symbols

The results of the present study are presented in Table 1. The mean values of the three parameters were 2.0% (range, 1.5 - 3.0% ) and 2.4% (range, 1.5 - 3.0% ). The mean values of the other parameters were 1.8% (range, 1.5 - 2.5% ) and 1.9% (range, 1.5 - 2.5% ). The mean values of the other parameters were 1.7% (range, 1.5 - 2.5% ) and 1.6% (range, 1.5 - 2.5% ).

0

Simple geometric icon with a square frame and circular elements, labeled '×2' below (no text or symbols within the diagram itself)

K

TECHNICAL SPECS

CARACTÉRISTIQUES TECHNIQUES

ESPECIFICAÇÕES TÉCNICAS

70WRMS

210W PEAK

[@2.83V):92DB

55Hz - 20kHz

3.0 OHMS
