BRUGSANVISNING PPI82560MS BOSCH

Series 8, Induction Hob, 78 cm, Black, PPI82560MS

Pure electrical circuit lines without any symbols

Precise power control, cool cooking experience

• Induction: Fast, precise cooking, easy cleaning and low energy consumption
• Comfort Profile: elegant, appealing design with bevelled front and metal strips on the side.
• Power Boost: up to 35% faster heating compared to highest power level.
• Timer with switch-off function: turns off the assigned cooking zone after the set time.

Product name/family: .... Cooking zone ceramic Built-in / Free-standing: .... Built-in
Energy input: Electric
Total number of positions that can be used at the same time: ..... 2
Min. required niche size for installation (HxWxD): .....59 x 700-700 x 400-400 mm
Width of the appliance: 780 mm
Dimensions (HxWxD): 59 x 780 x 450 mm
Dimensions of the packed product (HxWxD): ..... 135 x 855 x 534 mm
Net weight: 10.3 kg
Gross weight: 13.0 kg
Residual heat indicator: ....Separate
Location of control panel:.... Front
Basic surface material: Ceramic
Color of surface: ....Black, Alu, brushed
Length electrical supply cord: 150.0 cm
Sealed Burners: No
Heating with booster: All
Power of heating element (kW in boost): ....[3.1] kW
Connection rating: 3500 W
Fuse protection: 16 A
Voltage: 220-240 V
Frequency: 50-60 Hz
Energy input: ....Electric
Plug type: no plug
Appliance Dimensions (h x w x d) (in): ____ x x
Dimensions of the packed product: 5.31 x 21.02 x 33.66
Net weight: 23.000 lbs
Gross weight: 29.000 lbs
Total number of positions that can be used at the same time: ...... 2
Length electrical supply cord: 150.0 cm
Min. required niche size for installation (HxWxD): .....59 x 700-700 x 400-400 mm
Dimensions (HxWxD): 59 x 780 x 450 mm
Dimensions of the packed product (HxWxD): ..... 135 x 855 x 534 mm
Net weight: 10.3 kg
Gross weight: 13.0 kg

Series 8, Induction Hob, 78 cm, Black, PPI82560MS

Precise power control, cool cooking experience

Cooking Zone

- 1.8kW power, boost to 3.1kW

Design

• Ceram glass sheet, bevel in rear and front, side stainless steel profile, luxurious tone, high transparence
• "Easy to clean" cleaning immediately, comfortable and easy
• "DirectSelect" touch control, 1-9 power level selection

General Information

- 2 stage residual heat indicator

- Fast and effective, save more than 20% time than traditional gas hob, enjoy more free time

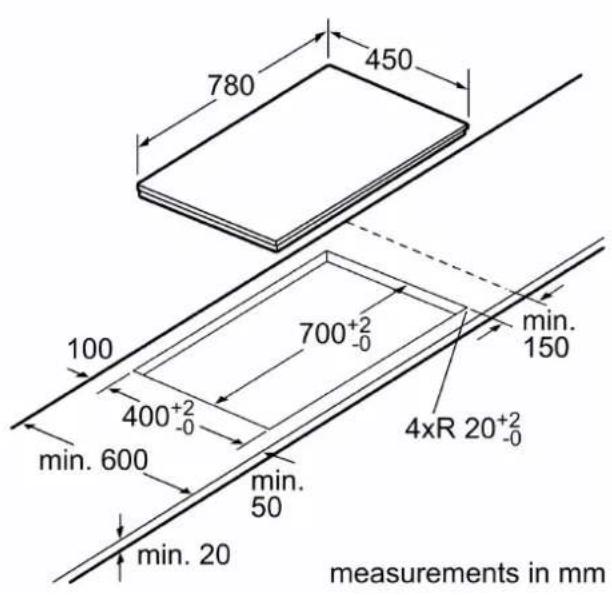

Technical Information

Series 8, Induction Hob, 78 cm, Black, PPI82560MS

780 450 100 400+2 -0 min. 600 700+2 -0 min. 50 min. 20 4xR 20+2 -0 450 150 780 measurements in mm
