BRUGSANVISNING Spotting Scope WP Eyepiece NIKON

Thank you for purchasing the Nikon Spotting Scope Eyepiece for use with digital cameras. This eyepiece is convenient for shooting subjects viewed through the Nikon Spotting Scope with COOLPIX digital cameras. Of course it can also be used for eye observation.

Items supplied

- Eyepiece x1

• Rubber eyecup for eye observation x1 (ABR)
• Eyepiece cap x1 (EAX)

• Eyepiece mount cap x1 (EBL)

Rubber eyecup for eye observation

Attach the rubber eyecup to the eyepiece when viewing the subject with your eyes. It prevents the metal part from touching your skin or eyeglass lenses. Remove it when shooting subjects with the camera.

Please do not touch the metal part inside of eyepiece flange.

• Specifications and design are subject to change without notice.
• No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON VISION CO., LTD.

NIKON VISION CO., LTD.

Customer Service Department

3-25. Futaba 1-chome. Shinagawa-ku,

Tokyo 142-0043, Japan

Tel: [phone] Fax: [phone]

Printed in China (178K) /2E

Spotting Scope WP Eyepiece

20x/ 25x DS

16-48x Zoom/ 20-60x Zoom DS

DIGISCOPING

Instruction Manual

E

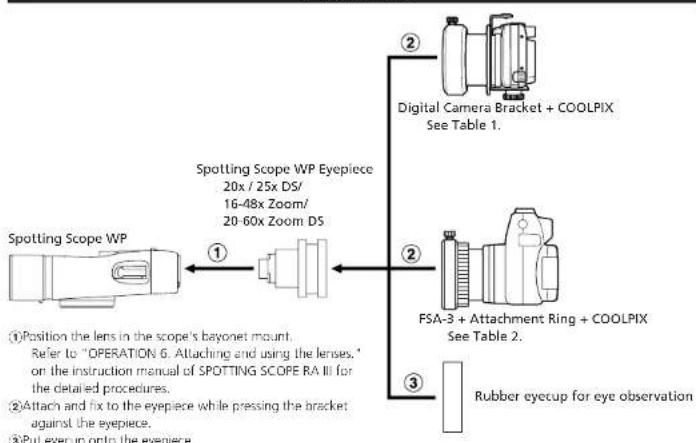

Attachment

Combination of camera bracket/attachment and Nikon COOLPIX digital camera

Digital Camera Bracket COOLPIX
FSB-1/ FSB-1A 7900/ 5200/ 4200
FSB-2 4600/ 5600
FSB-3 P1/ P2
FSB-4 P3/ P4
FSB-5 S1/S3/S5/S6/S7/S7/S8
FSB-6 P5000
