BRUGSANVISNING P3224-LV AXIS

AXISP3224-LVNetworkCamera

AboutthisDocument

ThismanualisintendedforadministratorsandusersofAXISP3224-LV NetworkCamera, andisapplicabletofirmware6.10andlater.It includesinstructionsforusingandmanagingtheproductonyour network.Previousexperienceofnetworkingwillbeofusewhenuing thisproduct.SomeknowledgeofUNIXorLinux-basedsystemsmay alsobeusefulwhendevelopingshellscriptsandapplications.Later versionsofthisdocumentwillbepostedatwww.axis.com.Sealsotheproductsonlinehelp,availablethroughtheweb-basedinterface.

LegalConsiderations

Videosurveillancecanberegulatedbylawsthatvaryfromcountryto country.Checkthelawsinyourlocalregionbeforeusingthisproduct forsurveillancepurposes.

Thisproductincludesone(1)H.264decoderlicense.Topurchase furtherlicenses,contactyourreseller.

Liability

Everycarehasbeentakeninthepreparationofthisdocument.Please informyourlocalAXisofficeofanyinaccuraciesoromissions.Axis CommunicationsABcannotbeheldresponsibleforanytechnical or typographicalerrorsandreservestherighttomakechangestothe productandmanualswithoutpriornotice.AxisCommunicationsAB makesnowarrantyofanykindwithregardtothematerialcontained withinthisdocument,including,butnotlimitedto,theimplied warrantiesofmerchantabilityandfitnessforaparticularpurpose.Axis CommunicationsABshallnotbeliablenorresponsibleforincidental or consequentialdamagesinconnectionwiththefurnishing,performance oruseofthismaterial.Thisproductisonlytobeusedforitsintended purpose.

IntellectualPropertyRights

AxisABhasintellectualpropertyrightsrelatingtotechnologyembodied intheproductdescribedinthisdocument.Inparticular,andwithout limitation,theseintellectualpropertyrightsmayincludeoneormore ofthepatentslistedatwww.axis.com/patent.htmandoneormore additionalpatentsorpendingpatentapplicationsintheUSandother countries.

Thisproductcontainslicensedthird-partysoftware.Seethemenuitem "About"intheproduct'suserinterfaceformoreinformation.

ThisproductcontainssourcecodecopyrightAppleComputer, Inc.,underthetermsofApplePublicSourceLicense2.0(see www.opensource.apple.com/apsl).Thesourcecodeisavailablefrom https://developer.apple.com/bonjour/

EquipmentModifications

This equipment must be installed and used in strict accordance with the instructions given in the user documentation. This equipment contains no user-serviceable components. Unauthorized equipment changes or modifications will invalidate all applicable regulatory certifications and approvals.

TrademarkAcknowledgments

AXISCOMMUNICATIONS, AXIS, ETRAX, ARTPECandVAPIXare registeredtrademarksortrademarkapplicationsofAxisABinvarious jurisdictions. All other company names and products are trademarksor registeredtrademarksof their respective companies.

Apple,Boa,Apache,Bonjour,Ethernet,InternetExplorer,Linux, Microsoft,Mozilla,Real,SMPTE,QuickTime,UNIX,Windows,Windows VistaandWWWareregisteredtrademarksoftherespectiveholders. JavaandallJava-basedtrademarksandlogosaretrademarkors registeredtrademarksofOracleand/oritsaffiliates.UPnP ^TM is certificationmarkoftheUPnP ^TM ImplementersCorporation.

SD, SDHC and SDXC are trademarks or registered trademarks of SD-3C, LLC in the United States, other countries or both. Also, miniSD, microSD, miniSDHC, microSDHC, microSDXC are all trademarks or registered trademarks of SD-3C, LLC in the United States, other countries or both.

RegulatoryInformation

Europe

CE ThisproductcomplieswiththeapplicableCEmarkingdirectives andharmonizedstandards:

- Electromagnetic Compatibility (EMC) Directive 2014/30/EU. See Electromagnetic Compatibility (EMC) on page 2.

LowVoltage(LVD)Directive2014/35/EUSeeSafetyorpaga

- Restrictions of Hazardous Substances (RoHS) Directive 201 1/65/EU. See Disposal and Recycling on page 3. Acopy of the original declaration of conformity may be obtained from Axis Communications AB. See Contact Information on page 3.

Electromagnetic Compatibility(EMC)

This equipment has been designed and tested to fulfill applicable standards for:

- Radiofrequencyemissionwheninstalledaccordingtothe instructionsandusedinitsintendedenvironment.

- Immunitytoelectricalandelectromagneticphenomenawhen installedaccordingtotheinstructionsandusedinitsintended environment.

USA

Usinganunshieldednetworkcable(UTP)—Thisequipmenthas beentestedusinganunshieldednetworkcable(UTP)andfoundto complywiththelimitsforaClassAdigitaldevice,pursuantopart 15oftheFCCRules.Theselimisaredesignedtoprovidereasonable protectionagainstharmfulinterferencewhentheequipmentis operatedinacommercialenvironment.Thisequipmentgenerates, uses,andcanradiatoradiofrequencyenergyand,ifnotinstalledand usedinaccordancewiththeinstructionmanual,maycauseharmful interferencetoradiocommunications.Operationofthisequipmentina residentialareaislikelytocauseharmfulinterferenceinwhichcase theuserwillberequiredtocorrecttheinterferenceathisownexpense.

Usingashieldednetworkcable(STP)—Thisequipmenthasalso beentestedusingashieldednetworkcable(STP)andfoundtocomply withthelimitsforaClassBdigitaldevice,pursuanttopart15ofthe FCCRules.Theselimitsaredesignedtoprovidereasonableprotection againstharmfulinterferenceinaresidentialinstallation.This equipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycause harmfulinterferencetoradiocommunications.However,thereisno guaranteeethatinterferencewillnotoccurinaparticularinstallation.If thisequipmentdoescauseharmfulinterferencetoradioortelevision reception,whichcanbedeterminedbyturningtheequipmentoffand on,theuserisencouragedtotrytocorrecttheinterferencebyoneor moreofthefollowingmeasures:

•Reorientorrelocatethereceivingantenna.

- Increase these separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that which there receiver is connected.

- Consultthedealeroranexperiencedradio/TVtechnicianforhelp. Tobeusedinaresidentialareaorademandingelectricalenvironment, theproductshallbeconnectedusingashieldednetworkcable(STP) thatisproperlygrounded.

Canada

ThisdigitalapparatuscomplieswithCANICES-3(ClassB).Theproduct shallbeconnectedusingashieldednetworkcable(STP)thatis properlygrounded.CetappareilnumériqueestconformeàlanormeCANNMB-3(classB).Leproduitdoîtêtreconnectéal'aided'uncâble réseaublindé(STP)quiestcorrectementmisàlaterre.

Europe

This digitalequipmentfulfillstherequirementsforRFemission according to the ClassBlimitofEN55022. Theproduct shall be connected usingashieldednetworkcable(STP) that is properly grounded.

Thisproductfulfillstherequirementsforemissionandimmunity according to EN50121-4 and EC62236-4 railway applications. Thisproductfulfillstherequirementsforimmunity according to EN61000-6-1 residential, commercial and light-industrial environments.

Thisproductfulfillstherequirementsforimmunityaccordingto EN61000-6-2industrialenvironments.

Thisproductfulfillstherequirementsforimmunityaccordingto EN55024officeandcommercialenvironments.

Australia/NewZealand

This digitalequipmentfulfillstherequirementsforRFemission according to the ClassBlimitofAS/NZSCISPR22. The product shall be connected using ashieldednetworkcable(STP) that is properly grounded.

Japan

この装置は、クラスB情報技術装置です。この装置は、家庭環境で使用することを目的としていますが、この装置がラジオやテレビジョン受信機に近接して使用されると、受信障害を引き起こすことがあります。取扱説明書に従って正しい取り扱いをして下さい。本製品は、シールドネットワークケーブル(STP)を使用して接続してください。また適切に接地してください。

Korea

이기기는가정용(B급)전자파적합기기로서주로가정에서사용하는것을목적으로하며,모든지역에서사용할수있습니다.적절히접지된STP(shieldedtwistedpair)케이블을사용하여제품을연결하십시오.

Safety

ThisproductcomplieswithIEC/EN/UL60950-1,SafetyofInformation TechnologyEquipment.Ifitsconnectingcablesareroutedoutdoors, theproductshallbegroundedeitherthroughshieldednetworkcable (STP)orotherappropriatemethod.

Photobiological Safety

Thisproductfulfillstherequirementsforphotobiologicalsafety accordingtoIEC/EN62471(riskgroup1).

Battery

TheAxisproductusesa3.0VCR2032lithiumbatteryasthepower supplyforitsinternalreal-timeclock(RTC).Undernormalconditions thisbatterywilllastforaminimumofffiveyears.

LowbatterypoweraffectstheoperationoftheRTC,causingittoresetateverypower-up.Whenthebatteryneedsreplacing,alogmessagewillappearintheproduct'sserverreport.Formoreinformationabouttheserverreport,seetheproduct'ssetuppagesorcontactAxissupport.

The battery should not bereplaced unless required, but if the battery does need replacing, contact Axissupport at www.axis.com/techsupfor assistance.

Lithiumcoincell3.0Vbatteriescontain1,2-dimethoxyethane;ethylene glycoldimethylether(EGDME),CASno.110-71-4.

WARNING

• Riskofexplosionifthebatteryisincorrectlyreplaced.
• Replaceonlywithanidenticalbatteryorabatterywhichis recommendedbyAxis.
• Disposeofusedbatteriesaccordingtolocalregulationsor thebatterymanufacturer'sinstructions.

DisposalandRecycling

Whenthisproducthasreachedtheendofitsusefullife,disposeof itaccordingtolocallawsandregulations.Forinformationabout yournearestdesignatedcollectionpoint,contactyourlocalauthority responsibleforwastedisposal.Inaccordancewithlocallegislation, penaltiesmaybeapplicableforincorrectdisposalofthiswaste.

Europe

Thissymbolmeansthattheproductshallnotbedisposedof togetherwithhouseholdorcommercialwaste.Directive2012/19/EU onwasteelectricalandelectronicequipment(WEEE)isapplicablein theEuropeanUnionmemberstates.Topreventpotentialharmto humanhealthandtheenvironment,theproductmustbedisposed ofinanapprovedandenvironmentallysaferecyclingprocess. For informationaboutyournearestdesignatedcollectionpoint,contact yourlocalauthorityresponsibleforwastedisposal.Businessesshould contacttheproductssupplierforinformationabouthowtodispose ofthisproductcorrectly.

ThisproductcomplieswiththerequirementsofDirective2011/65/EUon therestrictionoftheuseofcertainhazardoussubstancesinelectrical andelectronicequipment(RoHS).

China

Thisproductcomplieswiththerequirementsofthelegislative actAdministrationontheControlofPollutionCausedbyElectronic InformationProducts(ACPEIP).

ContactInformation

AxisCommunicationsAB

Emdalavägen14

22369Lund

Sweden

Tel:[phone]

Fax:[phone]

www.axis.com

Support

Shouldyourequireanytechnicalassistance,pleasecontactyourAxis reseller.Ifyourquestionscannotbeansweredimmediately,your resellerwillforwardyourqueriesthroughtheappropriatechannelsto ensurearapidresponse.IfyouareconnectedtotheInternet,youcan:

downloaduserdocumentationandsoftwareupdates
findanswerstoresolvedproblemsintheFAQdatabase.Search byproduct, category, orphrase
reportproblemstoAxissupportstaffbyloggingintoyourprivate supportarea
chatwithAxissupportstaff
visitAxisSupportatwww.axis.com/techsup/

LearnMore!

VisitAxislearningcenterwww.axis.com/academy/forusefultrainings, webinars,tutorialsandguides.

SafetyInformation

HazardLevels

DANGER

Indicatesahazardoussituationwhich,ifnotavoided,willresultindeathorseriousinjury.

⚠ WARNING

Indicatesahazardoussituationwhich,ifnotavoided,couldresultindeathorseriousinjury.

CAUTION

Indicatesahazardoussituationwhich,ifnotavoided,couldresultinminorormoderateinjury.

NOTICE

Indicatesasituationwhich,ifnotavoided,couldresultindamagetoproperty.

OtherMessageLevels

Important

Indicatessignificantinformationwhichisessentialfortheproducttofunctioncorrectly.

Note

Indicatesusefulinformationwhichhelpsingettingthemostoutoftheproduct.

SafetyInformation....4

HazardLevels....4

OtherMessageLevels....4

HardwareOverview....7

ConnectorsandButtons....7

LEDIndicators......8

AccesstheProduct....9

AccessfromaBrowser....9

AccessfromtheInternet....9

SettheRootPassword....10

CameraOrientation....10

ConfigureCaptureMode....10

SetPowerLineFrequency....10

TheLiveViewPage....11

MediStreams

HowtoStreamH.264....13

MJPEG....13

AXISMediaControl(AMC)....13

AlternativeMethodsofAccessingtheVideoStream....14

SetuptheProduct

BasicSetup....15

Setfocusandzoom....15

Video....16

SetUpVideoStreams....16

StreamProfiles....18

ONVIFMediaProfiles....18

CameraSettings....18

ViewArea....21

Aboutoverlaytext....21

PrivacyMask 22

Configure the liveViewPage

PTZ(PanTiltZoom)....25

PresetPositions....25

GuardTour....25

Advanced....26

ControlQueue....26

Detectors

CameraTampering....28

AXIS/idedMotionDetection

Considerations....29

StartandStoptheApplication....29

ConfigureApplication....29

UsingtheApplicationinanActionRule....32

Applications

ApplicationLicenses....34

UploadApplication....34

ApplicationConsiderations....34

Events....36

ConvertEventTypeActionRules....36

SetUpActionRules....36

Add Recipients....38

CreateSchedules....40

SetUpRecurrences....40

Recording

FindRecordings....41

PlayRecording....41

ExportVideoClip....42

ContinuousRecording....42

Languages....43

SystemOptions

Security......44

TableofContents

Date&Time....46

Network......47

Storage....52

Maintenance....54

Support......55

Advanced....55

ResettoFactoryDefaultSettings....56

Troubleshooting....57

ChecktheFirmware....57

UpgradetheFirmware....57

Symptoms, Possible Causes and Remedial Actions......57

TechnicalSpecifications....60

PerformanceConsiderations....62

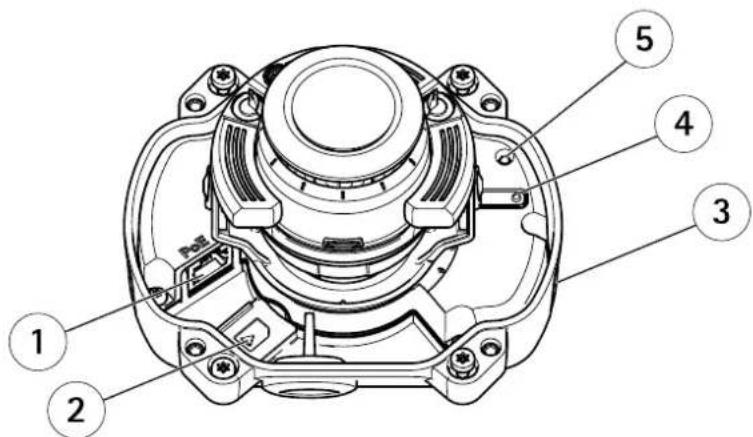

HardwareOverview

1 Networkconnector(PoE)
2 SDmemorycardslot
3 Partnumber(P/N)&Serialnumber
4 Controlbutton
5 StatusLEDindicator

ConnectorsandButtons

Fortechnicalspecifications,seepage60.

NetworkConnector

RJ45EthernetconnectorwithPoweroverEthernet(PoE).

NOTICE

Duetolocalregulationsortheenvironmentalandelectricalconditionsinwhichtheproductistobeused,ashieldednetwork cable(STP)maybeappropriateorrequired.Allcablesconnectingtheproducttotherenetworkandthatareroutedoutdoors orindemandingelectricalenvironmentssshallbeintendedfortheirspecificuse.Makesurethatthenetworkdevices areinstalledinaccordancewiththemanufacturer'sinstructions.Forinformationaboutregulatoryrequirements,see ElectromagneticCompatibility(EMC)onpage2.

SDCardSlot

NOTICE

• Riskofdamage to SDcard. Donotuses sharptools, metal objects are excessive force when inserting or removing the SDcard. Use your fingersto insert and remove the card.
• Riskofdatalossandcorruptedrecordings.DonotremovetheSDcardwhiletheproductisrunning.Disconnectpoweror unmounttheSDcardfromtheAxisproduct'swebpagesbeforeremoval.

ThisproductsupportsmicroSD/microSDHC/microSDXCcards(notincluded).

ForSDcardrecommendations,seewww.axis.com

ControlButton

Forlocationofthecontrolbutton,seeHardwareOverviewonpage7.

Thecontrolbuttonisusedfor:

- Resetting the product to factory default settings. See page 56.

Connecting an AXISided Hosting Systems Service Page 4. To connect press and hold button for about seconds until the Status LED flashes green.

Connecting to AXIS Interne Dynamic DNS Service Seepage48 To connect press and hold the button for about seconds.

LEDIndicators

StatusLED	Indication
Unlit	Connectionandnormaloperation.
GreenShowssteadygreenfor10secondsfornormaloperationafterstartupcompleted.
Amber	Steadyduringstartup.Flashesduringfirmwareupgrade.
Amber/RedFlashesamber/redifnetworkconnectionisunavailableorlost.

AccesstheProduct

ToinstalltheAxisproduct,seetheInstallationGuidesuppliedwiththeproduct.

Theproductcanbeusedwithmostoperatingsystemsandbrowsers.Werecommendthefollowingbrowsers:

• InternetExplorer ^® withWindows ^®
• Safari ^ withOSX ^
• Chrome TM orFirefox® withotheroperatingsystems.

ToviewstreamingvideoinInternetExplorer, allowinstallationofAXISMediaControl(AMC)whenprompted.

TheAxisproductincludesone(1)H.264decoderlicenseforviewingvideostreams. ThelicenseisautomaticallyinstalledwithAMC. Theadministratorcandisabletheinstallationofthedecoderstoppreventinstallationofunlicensedcopies.

Note

- QuickTime ^TM is also supported for viewing H.264 streams.

AccessfromaBrowser

1.Startawebbrowser.
2.EntertheIPaddressorhostnameoftheAxisproductinthebrowser'sLocation/Addressfield.

ToaccesstheproductfromaMaccomputer(OSX),gotoSafari,clickonBonjourandselecttheproductfromthe drop-downlist.

If you donot know the I paddress, use AXISIP Utility to locate the product on thenetwork. For information about how to discover and assign I paddress, the document Assign I P Address and Access the video Stream or Axis Support web at www.axis.com/techsup

Note

ToshowBonjourasabrowserbookmark, gotoSafari>Preferences.

1. Enteryourusernameandpassword.Ifthisisthefirsttimetheproductisaccessed,therootpasswordmustfirstbe configured.Forinstructions,seeSettheRootPasswordonpage10.
2. The product'sLiveViewpageopensinyourbrowser.

Note

The controls and layout of the liveView pagemay have been customized to meet specific installation requirements and user preferences. Consequently, some of the examples and functions featured her may differ from those displayed in your own liveView page.

Accessfromthelnternet

Onceconnected,theAxisproductisaccessibleonyourlocalnetwork(LAN).ToaccesstheproductfromtheInternetyoumust configureyournetworkroutertoallowincomingdatatrafficctotheproduct.Todothis,enabletheNAT-traversalfeature,which wilattemptautomaticallyconfiguretheroutetallowaccesstheproductThisenabledronSetupSystemOptions>Network>TCP/IPAdvanced.

FomoreinformationedNATraversa(portmappingforPv4orpage50SeAlsoAXISnterneDynamidDNServicat www.axiscam.net

ForTechnicalnotesonthisandothertopics,visittheAxisSupportwebatwww.axis.com/techsup

SettheRootPassword

Tacces the Axi product you must the password for the default administrator user of this sloner the Configure Root Passworddialog, which opens when the product is accessed for the first time.

Topreventnetworkeavesdropping,therootpasswordcanbesetviaanencryptedHTTPSconnection,whichrequiresanHTTPS certificate. HTTPS(HypertextTransferProtocoloverSSL)isaprotocolusedtoencrypttrafficbetweenwebbrowsersandservers.The HTTPscertificateensuresencryptedexchangeofinformation.SeeHTTPSonpage45.

The default administrator usenameroortpermanentandtannobeleleted the password for root to stop the product must be reset another default setting See ResetToFactor Default Settings page 56.

TosetthepasswordviaastandardHTTPconnection, enteritdirectlyinthedialog.

TosetthepasswordviaanencryptedHTTPSconnection,followthesesteps:

1.ClickUseHTTPS.
A temporary certificate(validforoneyear)iscreated,enabling encryptionofalltraffictoandfromtheproduct,andthe passwordcannowbesetsecurely.
2.Enterapasswordandthenre-enterittoconfirmthespelling.
3.ClickOK.Thepasswordhasnowbeenconfigured.

CameraOrientation

ThisettingsdefinedthfirstimethoproductsaccessedDependingprhowtheAxisproductinstalledselecteilingwall

Tochangethesesettings, the product must be restored to the original factory default settings. To restore restore the product, goto SetupSystemOptions Maintenance product's web pages. For information about these and restored Maintenance page 54.

Camera Orientation

How is this camera mounted?

OK

This camera works differently depending on if it is wall mounted or ceiling mounted. Make sure to select the correct camera orientation before saving.

ConfigureCaptureMode

CapturemodedefinesthemaximumresolutionandmaximumframerateavailableintheAxisproduct.Thecapturemodesettingalso affectsthecamera'sangleofview.

Select the desired capture mode from the drop-down list and click OK.

See also Capture Mode on page 19.

SetPowerLineFrequency

PowelinfrequencysetfirstimtheAxiproductaccessedandonlychangedfromPlainConfig(sepage56) orbyresettingtheproducttofactorydefault.

Selectthepowerlinefrequency(50Hzor60Hz)usedatthelocationoftheAxisproduct.Selectingthewrongfrequencymaycause imageflickeriftheproductisusedinfluorescentlightenvironments.

Note

Powerline frequency varies depending on geographic region. The Americas usually use 60Hz, whereas most other part of the world use 50Hz. Local variations could apply. Always check with the local authorities.

TheLiveViewPage

The controls and layout of the liveView pagemay have been customized to meet specific installation requirements and user preferences. Consequently, some of the examples and functions featured her may differ from those displayed in your own live view page. The following provides an overview of each available control.

ControlsontheLiveViewPage

Click the viewsize button to show the image useful size (right button) to scale down the image to fit the browser window (left button).

ClicWDRortenableWDRintensbacklightconditionsClicWDRffolisableWDRnow lightconditionsforoptimalexposure.

SelectstreamprofileoftheLiveViewpagefromthStreamProfiledrop-downlistInformation abouthowtoconfigurestreamprofiles,seepage18.

The ManualTriggerbutton is used to trigger an action rule from the LiveView page. Information about how to configure and enable the button, see ManualTriggeronpage 1.

ClickSnapshots=av=snapshotthevideimageThisbuttonprimarilyntendedfousewhen theAXISMediaControlviewertoolbarisnotavailable.EnablethisbuttonfromLiveViewConfig>ActionButtons.

Activatode-activatdRlluminationfromSetupVideoCameraSettingsEnablethisbuttonfromLiveViewConfig>ActionButtons. MovetheslidertoincreaseordecreasetheintensityoftheLEDs.

ManualTrigger

The ManualTriggerused triggeraction rule from the liveView page. The manual trigger can be used to validate actions during product installation and configuration.

Toconfigurethemanualtrigger:

1.GotoSetup>Events.

2.ClickAddtoaddanewactionrule.

BonthTriggedrop-downlistselectnpuSignal.

1. From these second drop-downlist, select Manual Trigger.
2. Select the desired action and configure the other settings as required.

Formoreinformationaboutactionrules,seeEventsonpage36.

ToshowthemanualtriggerbuttonsintheLiveViewpage:

1. GotoSetup>LiveViewConfig.

2ndeActionButtonsselecShowmanuatriggebutton.

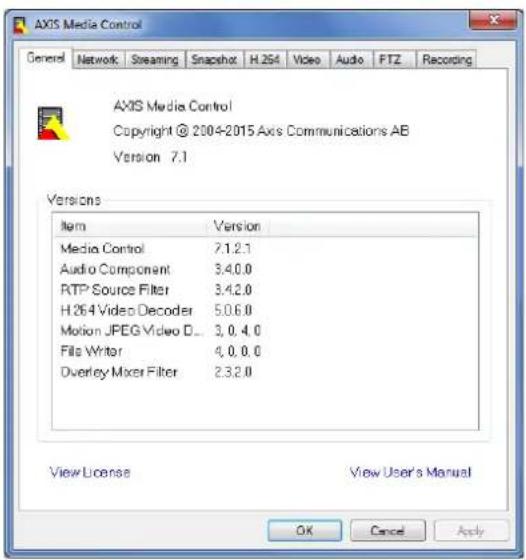

AXISMediaControlviewertoolbar

TheAXISMediaControlviewetoolbarsavailableInterneExploreOnlySeeAXISMediaControl(AMCbrpage)Jomore information.Thetoolbardisplaysthefollowingbuttons:

ThePlaybuttonconnectstotheAxisproductandstartsplayingamediastream.

TheStopbuttonstopsthemediastream.

TheSnapshotbuttontakesasnapshotofthevideoimage.

ClickhViewFullScreerbuttonandhevideimagowilfilthentirescreenPresES(Escape)thecomputer keyboardtocancelfullscreenview.

The Recordbuttonisused record the current video stream any you computer thdocation where the recordings saved carb specified the AMControlPane Enable this button from LiveViewConfigVieweSettings.

PTZControls

Note

These control are available to digit aPTZ enabled the selected view areased view area page 2.

With the PTZ control queue enabled the time each user is controlled by the PTZ settings limited click button or requests release controlled by the PTZ control the PTZ control queue setup and PTZ control queue.

Click the Emulatjoystickmodbutton and clickthemagtomove the camera view with the direction of the mousepointer.

Click the Centemode button and click the image to center the camera view with a position.

Thecentermodebuttoncouldalsobeusedtozoominonaspecificarea.Clickintheimageanddragtodrawa rectanglesurroundingtheareatobemagnified.Tozoomout,rotatethemousewheel.

Toviewaspecificviewareaorpresetposition,selectitfromtheSourcelist.

ParandTilbarsUsdharrowtoparandilthecameraviewpoliclonpositionrthbatsteethcameraviewto thatposition.

Zoombar–Usethearrowstozoominandout,orclickonapositiononthebartozoomthatposition.

The PTZ control can be disabled under PTZ Advanced Controlssee Control or page 26.

MediaStreams

TheAxisproductprovidesseveralvideostreamformats.Yourrequirementsandthepropertiesofyournetworkwilldeterminethetypeyouuse.

TheLiveViewpageintheproductprovidesaccessoH.264andMotionJPEGvideostreams,andtothelistofavailablestream profiles.Otherapplicationsandclientscanaccessvideostreamsdirectly,withoutgoingviatheLiveViewpage.

HowtoStreamH.264

H.264can, without compromising image quality, reduce the size of a digital video file by more than 80% compared with the Motion JPEG format and as much as 50% more than the MPEG-4 standard. This means that much less network bandwidth and storage space are required for a video file. Or seen another way, much higher video quality can be achieved for a given bitrate.

Deciding which combination of protocols and method stoused depends on your viewing requirements, and on the properties of your network. The available options in AXIS Media Control are:

UnicastRTP	Thisunicastmethod(RTPoverUDP)isused forliveunicastvideo,especiallywhenitis importanttohaveanup-to-datevideostream, evenifsomeframesaredropped.	Unicastingisusedforvideo-on-demand transmissionsothatthereisnovideotraffic onthenetworkuntilaclientconnectsand requeststhestream.Notethatthereareamaximumof10 simultaneousunicastconnections.
RTPoverRTSP	Thisunicastmethod(RTPtunneledoverRTSP) isusefulasitisrelativelysimpletoconfigure firewallstoallowRTSPtraffic.
RTPoverRTSPoverHTTP	Thisunicastmethodcanbeusedtotraverse firewalls.Firewallsarecommonlyconfiguredto allowtheHTTPprotocol,thusallowingRTPto betunneled.
MulticastRTP	Thismethod(RTPoverUDP)shouldbeusedforlivemulticastvideo.Thevideostreamisalways up-to-date,evenifsomeframesaredropped.Multicastingprovidesthemostefficientusageofbandwidthwhentherearelargenumbersof clientsviewingsimultaneously.Amulticastcannothowever,passanetworkrouterunlessthe routerisconfiguredtoallowthis.ItisnotpossibletomulticastovertheInternet,forexample.Notealsothatallmulticastviewerscountasoneunicastviewerinthemaximumtotalof10 simultaneousconnections.

AXISMediaControlnegotiateswiththeAxisproducttodeterminethetransportprotocoltouse.Theorderofpriority,listedintheAMCControlPanel,canbechangedandtheoptionsdisabled,tosuitspecificrequirements.

Note

H.264islicensedtechnology.TheAxisproductincludesoneH.264viewingclientlicense.Installingadditionalunlicensed copiesoftheclientisprohibited.Topurchaseadditionallicenses,contactyourAxisreseller.

MJPEG

This formatusesstandardJPEGstillimagesforthevideostream. These images are displayed and updated at a rather sufficient to create stream that shows constantly updated motion.

TheMotionJPEGstreamusesconsiderableamountsofbandwidth,butprovidesexcellentimagequalityandaccesstoeveryimage containedinthestream.TherecommendedmethodofaccessingMotionJPEGlivevideofromtheAxisproductistousetheAXISMediaControlInInternetExplorerinWindows.

AXISMediaControl(AMC)

AXISMediaControl(AMC)inInternetExplorerinWindowsistherecommendedmethodofaccessinglivevideofromtheAxisproduct.

TheAMCControlPanelcanbeusedtoconfigurevariousvideosettings.PleaseeseetheAXISMediaControlUser'sManualformore information.

TheAMCControlPanelisautomaticallyinstalledonfirstuse,afterwhichitcanbeconfigured.OpentheAMCControlPanelfrom:

- WindowsControlPanel(fromtheStartscreenorStartmenu)

Alternatively right-click the video image Interne Explore and click Settings.

AlternativeMethodsofAccessingtheVideoStream

YoucanalsoaccessvideoandimagesfromtheAxisproductinthefollowingways:

MotiodPEGervepush(ifupported by the client Chromo Firefox;example) This option maintains a proper HTTP connection to the browser and sends data as and when required, for as long as required.

Window Media Player This requires AXIS Media Control and the 264 decoder installed. The following paths can be used:

- QuickTime TM. The following pathscanbeused:

Note

• =IPaddress
  •TheAxisproductsupportsQuickTime6.5.1andlater.
• QuickTimemayaddlatencytothevideostream.
• It maybe possible to use other player to view the H.264 stream using the paths above, although Axis does not guarantee this.

SetUptheProduct

The Axproduct are configured by users with administrator operator rights to the product Setup pages click Setup the copyright-hand corner of theLiveViewpage.

- Administratorshaveunrestrictedaccesstoallsettings.

Operator:averestrictedaccesssettings#user#page44

Seealsotheonlinehelp

BasicSetup

BasicSetupprovidesshortcutstothesettingsthatshouldbemadebeforeusingtheAxisproduct:

1.Users.Seepage44.
2.TCP/IP.Seepage47.
3. Date&Time.Seepage46.
4.VideoStream.Seepage16.
5.Focus&Zoom.See page 15.

TheBasicSetupmenucanbedisabledfromSystemOptions>Security>Users.

Setfocusandzoom

1. Install the camera as described in the Installation Guide.

@VideoFocusoom.

OrthBasicabsethezoomevelusinghølider.

Clicktheobuttortomovthezoompositiononstep.

Clickthebuttonmovthezoompositionimultiplsteps.

Note

Movementsinfrontofthecamerashouldbeavoidedwhenperformingautofocus.

4.ClickPerformautofocus.
5. If the autofocus was not satisfying, goto the Advanced tab.

OntheAdvancedtab, focuscanbeadjustedmanually:

ClickOpenrisopertherisotsmaximumpositionThisgiveshsmallestlepthofieldanprovideshbest conditionsforfocusing.

1. FocusissetintheFocuswindow. Usethemousetomoveandresizethefocuswindow.
   3.ClickintheFocuspositionbartofocusonadesiredlocation.

Clicktheorbuttonmovthfocuspositiononstep.

Clickthebuttonmovethfocuspositionmultipleteps.

1. Whensatisfied, clickEnableiristoenabletheiris.

Video

ItispossibletoconfigurethefollowingvideofeaturesinyourAxisproduct:

•Videostream.See page 16.
- Streamprofiles.See page 18.
•ONVIFMediaProfiles.Seepage18.
- Camerasettings.See page 18.
•Viewareas.Seepage21.
•Overlayimage.Seepage21.
- Privacymask.See page22.

SetUpVideoStreams

Toetuphproduct'sidestreamsgdVideoVideStream.

Thevideostreamsettingsaredividedintothefollowingtabs:

• Image.Seepage16.
  •H.264.Seepage17.
• Zipstream.Seepage17
• MJPEG.See page 18.

PixelCounter

Thepixelcountershowsthenumberofpixelsinanareaoftheimage. Thepixelcounterisusefulinsituationswherethereis aspecificsizerequirement,forexampleinfacerecognition.

Thepixelcountercanbeused:

When setting a video stream setup, video streams or page 1. UndePreview clic Open and select this show pixel counterption enable the rectangle in the image Us thermous domov and size the rectangle pent the number pixels in Width and height fields and clic apply.

- When accessing theLiveViewpageinInternetExplorerwithAXISMediaControl(AMC)inWindows.Right-clickinthe imageandselectPixelcounter.Usethemousetomoveandresizetherectangle.


The defaultmagsettings can be configured under Video+VideoStreamSelectdImageTab.

The followingsettingsareavailable:

- Resolution.Selectthedefaultresolution.

CompressionThe compression leve affect the image quality bandwidth and file size saved images should be the compression, the higher the image quality with higher bandwidth requirements and larger filesizes.

• Mirrorimage.lfrequired, theimagecanbemirrored.
• Rotateimage.lfrequired, theimagecanberotated.

Maximunframeate avoid bandwidth problemsthframeat allowed each viewer and limited fixed amount Alternatively the frame at car between which means the Axiproduct always delivers the highest framerate possible under the current conditions.

OverlayettingSeeAboutoverlaytextbrpag21.

ClickSavetoapplythenewsettings.

H.264

H.264,alsoknownasMPEG-4Part10/AVC,isavideocompressionstandardthatprovideshighqualityvideostreamsatlowbitrates. AnH.264videostreamconsistsofdifferenttypesofframessuchasl-framesandP-frames.Anl-frameisacompleteimagewhereas P-framesonlycontainthedifferencesfrompreviousframes.

The H.264streamsettings are configured from the VideoVideoStreampageSelect the H.264ab The settings defined this pagewillapplytoall H.264streamsthatdonotuseastreamprofile.

The GOLengththe number frames between two consecutive frames increasing the GOLengthmay have considerably bandwidth requirements in some cases, but may also have an adverse effect on image equality.

TheAxisproductsupportsthefollowingH.264profile(s):

BaselineTheBaselineprofileRecommendedforclientsthational'supportCABACentropycoding.

MainTheMainprofilprovideshighercompressionwithmaintainedvidequalitycomparedtheBaselineprofilbut requiresmoreprocessingpowertodecode.

HighTheHighprofilprovides reduced bit at and higher compression with maintained video quality compared the Mainprofile but requires more processing power to decode.

ThebitatcarbetsVariablebitate(VBR)Maximunbitate(MBR)VBRadjustthebitataccordingtheimage complexity,usingupmorebandwidthforincreasedactivityintheimage,andlessforlowerimageactivity.Whentheactivityin theceneincreases,thebitratewouldusuallyincreaseaswell.Ifthereisasurplusinbandwidth,thismaynotbeanissueand selectingvariablebitate(VBR)wilbesufficientButbandwidthlimited,recommendedcontrothebitatselectingMaximunbitate(MBR)Whertheactivitythecencreases/BRadjustthebitataccordingthecomplexityusingup morebandwidthforincreasedactivityinthescene,andlessforlowersceneactivity.MBRallowsyoutosetatargetbitratethat limitsthebandwidthconsumption.

TheMBRtargetbitrateworksliketheceilingofatent.Itlimitsthebitrate,whilemaintainingsomeflexibility.Thebitrate maybounceupanddownwithinthesettargetbutwhenitnearsthesettargetvalue,thelimitationkicksin.However,because MBRwillalwaysprioritizeacontinuousvideostream,itallowstemporaryovershootsfromthetargetbitrate.Becausesettinga targetvaluepreventsthebitratefromincreasing,framerateandimagequalityareaffectednegatively.Topartlycompensatefor this,selectwhichvariableshallbeprioritized,framerateorimagequality.Notsettingaprioritymeansthatframerateand imagequalityareequallyaffected.

The current coordinate can set appearance table overlay UndeOverlay Settings, select include text and the modifier # bin the field.

Toapplythesettings,clickSave.

Axis'ZipstreamTechnology

Zipstreamisabitrate-reductiontechnologyoptimizedforvideosurveillance.ZipstreamreducetheaveragebitrateintheH.264 streambyremovingunnecessarydataandmakesitpossibletoallowhigherresolutions,reducestoragecostortokeeprecordingsfor alongertime.Toreducethebitrate,Zipstreamreducesthenumberofbitsintheareasoftheimagethatarelessinterestingfroma videosurveillanceperspective,forexamplethebackground.Imagedetailsthatareimportantforforensicvideoanalysis,forexample facesandlicenseplates,arepreservedwithenoughnumberofbits.

TheseZipstreamstrengthoptionsareavailable:

- Off.Zipstreamdisabled.

LowesZipstreamstrengthLowbandwidthreductionNovisiblequalitydegradationmostscenes

MediumZipstreamstrengthMediumbandwidthreductionLimitedvisuaqualitydegradationimoprioritizedareainsomescenes

HighesZipstreamstrengthHighbandwidthreductionVisiblequalitydegradationimoprioritizedareasmanscenes

LowesZipstreamstrengththedefaultsettingoftheproductThisconfigurationisverysafeuserapplicationswhilestill reducingthebitrate.

Forcloud-connectedcamerasorcamerasusingedgestoragethatneedtolimitthebitrateforincreasedstoragetimeitis recommendedselectdHighesZipstreamstrengthThisettingsvergoodcombinewithmotiondetectionotriggeringand variablebitrate(VBR)wherethebitrateisallowedtoadapttochangesincomplexityinthescene.

Axis'ZipstreamTechnologyforH.264conformstotheH.264standardandiscompatiblewiththird-partyclientsandVMSsolutions thatdecodeH.264video.

ThebitratecontrollerbuiltintotheproductcanbecombinedwithZipstreamtoenforceamaximumbitrate(MBR)limit.Axis CommunicationsrecommendsusingVBRorMBRwitharatherhighbitratelimittoenablethefullpotentialofAxis'Zipstream Technology.

MJPEG

Sometimes the imagesize is large du et low light or complex scenery. Adjusting them a maximum framesize help to control the bandwidth and storage used by the Motion PEG video stream ithese situation Setting the framesized default setting provides consistently good image quality at the expense of increased bandwidth and storage usage in low light. Limiting the frame size optimizes bandwidth and storage usage, but may give poor image quality. Toprevent increased bandwidth and storage usage, the maximum framesize should be set to an optimal value.

StreamProfiles

Astreamprofileisasetofpredefinedstreamsettingsincludingresolution,compression,framerateandoverlaysettings.Stream profilescanbeused:

- Whensettinguprecordingusingactionrules.SeeEventsonpage36.

- Whensettingupcontinuousrecording.SeeContinuousRecordingonpage42.

In theLiveViewpageselectstreamprofilfromtheStreamprofildrop-downlist.

For quick setup, use one of the predefined stream profiles. Each predefined profile has a descriptiven name, indicating its purpose. If required, the predefined stream profile is can be modified and new customized stream profile can be created.

To create new profile to modify existing profile to Setup Video Stream Profiles.

To select default stream profile for the LiveView page and Setup LiveView Config.

ONVIFMediaProfiles

AnONVIFmediaprofileconsistsofasetofconfigurationsthatcanbeusedtochangemediastreamsettings.ONVIFmediaprofiles canbesetthroughtheONVIFMediaProfileSettingspageandbeusedbyaclienttoconfiguremediastreamproperties.

The ONVIFmediaprofile page is all such pre-configure profiles. These profiles cannot be removed. Pre-configured media profiles have been included in the product for quick setup. It is also possible to configure new ONVIFmediaprofiles as per required specifications. To add new ONVIFmediaprofile click Add and then the required information you can also modify remove profile from this page.

CameraSettings

The Video Camer Settings page provides access to advanced image settings for the Axis product.

CaptureMode

CapturemodedefinesthemaximumresolutionandmaximumframerateavailableintheAxisproduct.Acapturemodewithalarge maximumresolutionhasareducedmaximumframerateandviceversa.Thecapturemodesettingalsoaffectsthecamera'sangle of viewastheeffectivesizeoftheimagesensordiffersbetweencapturemodes.

Important

Changingcapturemodewhentheproducthasbeenconfiguredisnotrecommendedasmostothersettingswillbeeitherremovedorreset.

Tochangecapturemode, followthesesteps:

1. GotoSetup>Video>CameraSettings.
2. Selectthenewcapturemode.
   3.ClickSave.

ImageAppearance

TochangImageAppearancedothemenusundeSetupVideoCameraSettings.

Increasing the Colorevel Increase the color saturation The value gives maximum color saturation and the value gives minimum colors saturation.

Thimag Brightnessaradjustedtheange0-100wherehighewalueproducesbrightimage.

Increasing sharpness can increase bandwidth usage sharper image might increase image noises especially now light conditions. Alowersetting reduces image noise, but the whole image will appear less sharp.

The Contrastangesthe relative difference between light and dark tar be adjusted using the slidebar.

LocaContrast applies contrast specific area of image Uscholidet adjust the contrast where high value produces animagewith high contrast between the dark and light areas and dissuitable for scenes with wider dynamic range.

WhiteBalance

TochangethissettinggotoSetup>Video>CameraSettings

Whitebalanceisusedtomakecolorsintheimageappearthesameregardlessofthecolortemperatureofthelightsource.TheAxis productcanbesettoautomaticallyidentifythelightsourceandcompensateforitscolor.Alternatively,selectthetypeoflight

sourcefromthedrop-downlist.Foradescriptionofeachavailablesetting,seetheonlinehelp

The white balance window enabled for the Automation and Automation outdoor options that appear in the White balance drop-down list. Select of the options from the drop-down list to the white balance window properties. Select Automatic use the default settings for the Automation and Automation outdoor options (in the White balance drop-down list). Select Custom manually set a reference window for white balance in the view area.

WideDynamicRange

Widdynamicrange(WDRForensicCapture) provided balancedimages in scenes whether is considerable, considerable, between light and dark areas in the image. The camera automatically handle the transition between such scenes and low-light conditions. In rare light conditions disabling WDR might give a better image.

Important

UseWDRincombinationwithautomaticexposurecontrol. Otherexposuresettingscouldgiveundesirableresults.

ExposureSettings

Exposure is the amount of light the camera's sensor captures for ascene. To much light results in a washed out image and too little light results in a dark image.

Exposure value Used the Exposure value slides adjustment over albrightness of the image.

Exposurecontrol-Selectasuitableoptiontocontroleexposure.

FomostcenethAutomaticoptionwilprovidethebestresultsThehutterspeedsautomaticallysetproduceoptimum imagequality.

If the mageflicker that a because of fluorescent samples, the light sources are reduced to the image selection. The Flicker option that matches the power line frequency.

TheHoldcurrentoptionlocksthecurrentexposuresettings.

MaxexposureShutterspeedalscalledexposuretimestandsothdengthofimthecamershutterspenthereby exposingthecamerasensortolight.Ifshutterspeedisfastitcanfreezeactioneffectively.Ifshutterspeedisslow,itcancause movingobjectstoappearblurred.Decreasingtheexposuretimewillreducemotionblur.

Exposure zones This setting determines which part the image used to calculate the exposure from the situation that the Auto setting can be used.

YoucanselectapredefinedareabydefiningIncludeandExcludewindowswithintheimage.Excludewindowsexcludeareasthatare toobrightordark,andIncludewindowsincludeareasinthescenethathavebetterlightingwhichwillcontributetotheexposuredata. TheremustbeatleastoneIncludewindow.TherecanbeatotaloftenIncludeandExcludewindowstotailortheexposurezone.

NotethatanExcludewindowiseffectiveonlywhenplacedinsideanincludewindow.

Tip: IfanareaisextremelybrightdrawanIncludewindowtocoverthewholeareaanddefineExcludewindowswithinitto blockoutthebrightareas.

Shutter&Gain

NormalLightUsechelidetsethPrioritybetweenLowmotionbluandLownoisdWhenprioritizingownois(slider allthewaytotheleft)theAxisproductwillautomaticallydecreaseshutterspeedasbrightnessdecreases.Whentheshutter speedeaches/30theAxisproductwillincreasegainuntithesetmaximungairfonormalightreachedSelecthMax gainvalufronthdrop-downlisThisdefineshupperlimifogainthcontextbnormalightMafashuttersets shutterspeedlimitinnormallightconditions.Dependingonascenario,theshutterspeedlimitmayneedtobedefined.Thiss donthroughSystemOptionsAdvancedPlainConfig.

LowLightUschelidetsethPrioritybetweenLowmotionbluandLovnoiseVherprioritizingowmotionbluf(slider allthewaytotheright)thecamerawillautomaticallyincreasegainasbrightnessdecreases.Whenthegainreachesthet maximumgainforlowlight,thecamerawilldecreaseshutterspeeduntilthesetmaximumshutterforlowlightisreached. Thisisthedefaultprioritysettingforlowlight.

Irisadjustment

SelectEnableautomatic adjustment automatically compensate for changing light conditions. This option is not available if a fixed dirisis used.

UsthereisadjustmentlidetsethepreferredF-valueThecalerepresentshəmountherisopenlfetotheriis openedasmuchaspossible.Ifsetto100,theirisisclosedasmuchaspossible.TheactualF-valueisshownbelowtheslider.If automaticirisadjustmentisenabled,theiriswillstayatthispositionaslongaslightconditionsarefavorable.Iflightconditions change,theiriswilladjustitselftothebestirissettings.Ifautomaticirisadjustmentisdisabled,theiriswilllockontheset positionregardlessoflightconditions

Day/Night

TheIRcutfilterpreventsinfrared(IR)lightfromreachingtheimagesensor.Inpoorlightingconditions,forexampleatnight,orwhenusingarexternalRampsetdIRcutfiltertoOffThisincreasedightsensitivityandallowtheproducto"seeInfraredightTheimageisshowninblackandwhitewhentheIRcutfilterisoff.

If using automatic Exposure control, the R filter Auto automatically switch between Or and Off according to the lighting conditions.

The Day/NightshiftevebahelpsleterminewhthercamerawilshiffromdaymodtonightmodeNormallythecamera automaticallychangesmodfromdayonightwherverdarklevel00thsliderByettingDay/Nightshifteveta lowervalue,thecamerawillchangetonightmodeearlier.

Built-inIRIlluminationsLEDs

WARNING

Riskofeyeinjury.DonotlookdirectlyintotheIRLEDatshortdistance.SincethelightprovidedfromtheIRLEDisoutsideof thevisiblerange,itisnotpossibletoseeifitisactive.UsethecameratocheckifthelRilluminationisactive.

TheIRilluminationcanbeactivatedorde-activated,anditsintensitycanbeincreasedordecreasedbymovingtheslider,from theproduct'sLiveViewpage.

OthesettingscarbedefinedfromSetupVideoCameraSettings.

De-selecthEnableRlluminationoptiondisabledRlluminationaltogether,foudisablehSynchronizedRlluminationwithday/nightoption,IRilluminationwillnotbesynchronizedwithday/nightchanges.

ToconfigureRilluminationclickEdit.

The Illumination window display the approximate Right will illuminate given the current settings When Anglof illumination set AutothdRllumination is automatically adjusted according to the camera's zoom when this Autobehavior is disabled, impossible manually adjusting Anglof Right by moving the Anglof Illumination slider.

ViewArea

AviewareiscroppedfarbfthfulviewEachviewareistreatedbvideosourcerLiveViewandhastownvideostreamandPTZsettings.

When setting up avieware aitis recommended that the videostream resolution is the same size as smaller than the view area size. Setting the videostream resolution larger than the view area size implies digitally scaled up video aftersensor capture, requiring more bandwidth without adding image information.

TenablegddVideoCameraSettingsandelecEnableViewAreas.

Toaddanewviewarea:

1. GotoVideo>ViewArea.

2.ClickAdd.

The new iew are appears under Selected iev area Enter descriptiven a mer the Nam field.

SelectAspectationVideestreamresolution.

5.Anewviewareacoversthewholeimage.Usethemousetomoveandresizetheviewarea.

1. SelectEnablePTZtoenabledigitalPTZfortheviewarea.

7.ClickSavetosavethesettings.

TomodifyviewareaselecttheviewarearthdandmodifythsettingsasequiredClickSave.

Toremoveaviewarea,selecttheviewareaandclickRemove.

Note

ThePTZfunctionalityisusefulduringinstallationoftheAxisproduct.Useaviewareatocropoutaspecificpartofthefullview.

Aboutoverlaytext

Anoverlaytextcandisplaythecurrentdateandtime,oratextstring.Whenusingatextstring,so-calledmodifierscanbeusedto displayinformationsuchasthecurrentbitrateorthecurrentframerate.

It's also possible to display text when action rule triggered how to include overlay text from action rule page 22.

Aboutoverlayimages

Anoverlayimageisastaticimagesuperimposedoverthevideostream.Theimage,forexampleacompanylogo,isfirstuploadedto theAxisproductandthenusedtoprovideextrainformationortomaskapartoftheimage.

Imagespecifications:

• The uploadedimages should be a Windows 24-bit BMP image with maximum 250 colors.
• Theimagewidthandheight,inpixels,mustbeexactlydivisiblebyfour.
  •The image cannot belarger than the maximum imager resolution.
• If combining text and image overlays, take into consideration that the text overlay occupies 16 or 32 pixels in height (depending on the resolution) and has the same width the video image.

Sinceitisstatic, the position and size of an overlay image will remain the sameregardless of resolution and span, tiltor zoom movements.

TalwayscoverselecteparofthemonitoredareauseprivacymaskSeePrivacyMaskorpage22.

Howtoincludeoverlaytextinanactionrule

Note

Todisplayoverlaytextinmultipleviewareas, overlaytextmustenabledlineachviewarea.

GoVideoVideStreamandelectdImageab.

UndeOverlassettingsselectIncludtext.

Entethmodify#DWhertheulestriggered#Displacedbythextspecifiedrthactionrule.

Additional text in this field will be displayed also when the action rule is not active.

@doEventsActionRuleandcreateyouactionrule.

From the Actions list selec Overlay text.

6.EnterthetexttodisplayintheTextField.

Specify the Duration Then Text Bar displayed while the rule active for fixed number seconds.

PrivacyMask

Aprivacymaskisauser-definedareathatpreventusersfromviewingpartsofthemonitoredarea.Privacymasksappearas blocksofsolidcolororblurredimageelementsandareappliedonthevideostream.Privacymaskscannotbebypassedusingthe VAPIX®applicationprogramminginterface(API).

The PrivacyMaskList(VideoPrivacyMask) shows all the mask that are currently configured in the Axisproduct and indicates if they are enabled.

Youcanaddanewmask,re-sizethemaskwiththemouse,chooseacolorforthemask,andgivethemaskaname.

Formoreinformation,seetheonlinehelp

Important

Adding many privacy masks may affect the product's performance.

ConfiguretheLiveViewPage

YoucancustomizetheLiveViewpageandalterittosuityourrequirements.ItispossibletedefinethefollowingfeaturesoftheLiveViewpage.

• StreamProfile.Seepage18.
• DefaultViewerforBrowser.Seepage23.
  -ViewerSettings.Seepage23.

ActionButtonsThesearchbuttonsdescribedControlsorthedLiveViewPage1 1.

-UserDefinedLinks.Seepage24.

DefaultViewerforBrowsers

FromLiveViewConfigDefaultVieweselecthedefaultmethodofviewingideimagesyoubrowserTheproductattempts toshowthevideoimagesintheselectedvideoformatandviewer.Ifthisisnotpossible,theproductoverridesthesettingsand selectsthebestavailablecombination.

BroDescription
WindowsInternetExplorer	AMC	RecommendedviewerinInternetExplorer(H.264/MotionJPEG).
	QuickTime	H.264.
	StDisplaystillImage	gesonly.ClicktheRefreshbuttoninyourbrosertoviewa newimage.
Otherbrowsers	ServerPush	Recommendedviewerforotherbrowsers(MotionJPEG).
	QuickTime	H.264.
	StDisplaystillImage	gesonly.ClicktheRefreshbuttoninyourbrosertoviewa newimage.

Formoreinformation,pleaseesetheonlinehelp

ViewerSettings

Toconfigureoptionsfortheviewer, gotoLiveViewConfig>ViewerSettings.

SelectShowewetoolbatalisplaytheAXISMediaControl(AMC)theQuickTimeviewetoolbaundethideoimageinyourbrowser.

H264lecodeinstallationThe administrator and disable installation of the H.264lecode included with AXISMedia Control. This is used to prevent installation of unlicensed copies. Further decoder licenses can be purchased from your Axisreseller.

SelectShowcrosshainPTJoystickmode enable crosshat will indicate the center of the image PTJoystick mode.

SelectUsePTZoystickmodasdefaultenablejoystickmodehemodecanchangedemporarilyfromthe PTZcontrolpanel.

SelectEnablerecordingbutton enablerecordingfromtheLiveViewpageThisbuttonisavailablewhenusingtheAMCviewer.TherecordingsaresavedtothelocationspecifiedintheAMCControlPanel.SeeAXISMediaControl(AMC)onpage13.

UserDefinedLinks

Todisplayuser-definedinkintheLiveViewpageselecthShowcustomlinkoptiongivthdlnanamandherentethURL tolinkto.Whendefiningaweblinkdonotremovethehttp://fromtheURLaddress.Customlinkscanbeusedtorunscriptsor activateexternaldevicesconnectedtotheproduct,ortheycanlinktoawebpage.Customlinksdefinedascgilinkswillrunthe scriptinthebackground,inahiddenframe.Definingthelinkasaweblinkwillopenthelinkinanewwindow.

PTZ(PanTiltZoom)

ThePTZmenuisavailableifdigitalPTZ(pan,tiltandzoom)isenabledintheselectedviewarea.Formoreinformationonviewareas, seeViewAreaonpage21.

PresetPositions

Apresetpositionisasavedviewthatcanbeusedtoquicklysteerthecameratoaspecificposition.Apresetpositionconsistsof thefollowingvalues:

•Panandtiltpositions
- Zoomposition

Eachviewareahasitsownpresetpositions.

AccessthePresetPositions

Presetpositionscanbeaccessedinseveralways:

• ByselectingthepresetfromtheSourcedrop-downlistintheLiveViewPage.
• Whensettingupactionrules.Seepage36.
• Whensettingupguardtours.Seepage25.

AddaPresetPosition

1. GotoPTZ>PresetPositions.

Click them agous the control to teeth camera view the desire position see Preset Positions.

3.EnteradescriptivenameintheCurrentpositionfield.
4.ClickAddtosavethepresetposition.

To include these positionamaint overlaytextcode, select include overlayext and enteth modified. The field form or information about modifiers see FileNamingDate/TimeFormatsthonline help

?

SettheHomePosition

The entire view are treated with the composition which readily accessible by clicking the HomeButton or the live view page and in the Preset Position setup window.

TheproductcanbeconfiguredtoreturntotheHomepositionwhenthePTZfunctionalityhasbeeninactiveforaspecifiedlengthoftimeEntethdengthofimintheturrthomeftefieldandlicSavSethdimderdpreventheproducfromautomaticallyreturningtotheHomeposition.

GuardTour

Aguardtourdisplaysthevideostreamfromdifferentpresetpositions,one-by-one,inapredeterminedorderoratrandomandforconfigurabletimeperiods.Theenabledguardtourwillkeeprunningaftertheuserhasloggedofforclosedthebrowser.

Toaddaguardtour:

GdPTZGuardToundclicAdd.

2.Enteradescriptivename.

1. Specify the pause length between runs.

2. SelectanavailablepresetpositionandclickApply.

3. Specify theViewTimeinsecondsorminutes.

SpecifyViewOrderselecttheRandomviewDeoption.

7.ClickSave.

TomodifyremoveguardoursgdoPTZGuardTourselectheguardourithGuardTouListandlicModify/Remove.

Note

ForproductsthatsupportLimitedGuardTour,theproducthasafixedminimumviewtime

Formoreinformationseetheonlinehelp

Advanced

Controls

AdvancedPTZsettingscanbeconfiguredunderPTZ>Advanced>Controls.

The PaneShortcutCommandButtonisshowshuser-definedbuttonthataraccessedfromtheViewpage'Strl panel. These buttons are used to provide direct access command issued using the APIX® application programming interface. ClickAddtoaddanewshortcutcommandbutton.

The following PTZ controls are enabled by default:

•Pancontrol
- Tiltcontrol
- Zoomcontrol

Talisable specific controls deselect options unde Enable/Disable controls.

Ifusing multiple view areas, deselecting a control will only disable the control in these selected view area.

Note

DisablingPTZcontrolswillnotaffectpresetpositions. Forexample, ifthetiltcontrolisdisabled, theproductcanstillmoveto presetpositionsthatrequireatiltmovement.

ControlQueue

Note

• The administratorcanenableanddisablePTZcontrolsforselectedusers.
• Toidentifydifferentusersintheviewergroup,cookiesmustbeenabledontheclient.

The ControlqueupoltimesmeasuredsecondsFomoreinformationsethonlinhelp

The administratocansetupqueufoPTZcontrollerfromPTZControlQueueOncsetupthePTZControlQueuebuttons appearintheLiveViewpageofferingoneviewerexclusivecontrolforalimitedperiodoftime. Otheruserswillbeplacedinqueue.

AuserwhbelongsgroupisedUserspage44withnighePT7prioritycangbeforetheusersirthequeueandake controloftheproduct.Theorderofpriorityisasfollows:

Administrator-AradministratotakesovePTZontroregardlessofwhofirstqueueTheadministrator wilbe removedfromthequeue60secondsafterthelastPTZcontrolcommand.

Event-TheAxiproductarbeconfiguredto@presepositionwhertriggeredbyalarm(seEventspage36). Theeventwillimmediatelybeplacedfirstinthequeueexceptwhenanadministratorisincontrol.

1. Operator—Sameas administrator but with lower priority

GuardTour-Aguardou(sepage25) aPT:controfoanindefinitperiodoftimd,mayoverriddenbyan operator,eventoradministrator.Theguardtourwillresumewhenhigherprioritygroupsleavethequeue.

Viewer-MultipleviewersmustwaifotheiturnTheviewehasSecondPTZontrobeforecontrolpassed ontothenextviewerinqueue.

Detectors

CameraTampering

CameraTamperingcangenerateanalarmwheneverthecameraisrepositioned,orwhenthelensiscovered,spray-paintedorseverely defocused.Tosendanalarm,forexampleanemail,anactionrulemustbesetup.

Toconfigure tampering detection:

1. GotoDetectors > CameraTampering.

SethMinimundurationthattheimthatmustlapsbeforealarmigeneratedincreasetimdprevent falsealarmsforknownconditionsthataffecttheimage.

Select Alarmfodarkimages&alarmshouldbegeneratedfightaredimmedturnedofforthdenisprayed, covered,orrenderedseverelyoutoffocus.

4.ClickSave.

Toconfiguretheproducttosendanalarmwhentamperingoccurs:

1. GotoEvents>ActionRules.

2.ClickAddtosetupanewactionrule.

1. EnteraNamefortheactionrule.

UndeConditionselecDetectorsfromthTriggerist.

1. SelectTamperingfromthelistofdetectors.

2. Optionally, select as schedule and set additional conditions.

SelectactionTo sendaremailselectSendNotificationandselectRecipientfromtheDisbDefinedrecipients.

Note

The Which Executive Option Unde Duration cannot be used with cameramperings since camerampering does not have duration and onceithasbeentriggereditwillnotautomaticallyreturntoitsuntriggeredstate.

Formoreinformationonactionsrules,seeEventsonpage36.

AXISVideoMotionDetection

AXISVideoMotionDetectionisanapplicationthatdetectsmovingobjectsinthecamera'sfieldofview.Whenamovingobject isdetected,AXISVideoMotionDetectionssendsanalarmthatcanbeusedbytheAxisproductorbythird-partysoftware,to,forexample,recordvideoorsendanotification.

AXIS/ided MotionDetection included with the Axis product and available under SetupApplications. Use AXIS/ideo MotionDetection, the application must first best started. To avoid detecting unwanted objects, the applications should be configured. During configuration, visual confirmation can be used to help understand the effect of the different filters. When visual confirmation is enabled, red polygonsshow which objectsthe application detects and green polygonsshow which objectsthe application ignores.

Considerations

BeforeusingAXISVideoMotionDetection3,takethefollowingintoconsideration:

• Smallanddistantobjectsmightnotbedetected.
• Detection accuracy may be affected by weather conditions such as heavy rainorsnow.
• MakesurethatthelightingconditionsarewithintheAxisproduct'sspecification.Addadditionallightingifneeded.
• Makesurethatthecameraisnotsubjecttoexcessivevibrations.Vibrationsmightcausefalsedetections.

StartandStoptheApplication

TstarthapplicationselectrthInstalledApplicationsisbrtheApplicationspagandclickStart.

Tostoptheapplication,selectitinthelistandclickStop.

ConfigureApplication

The application is available from SetupApplicationsMotionDetectionGoSettingsandherelickAXIS AXIS AXIS Video Motion Motion Detection Settings/scopingtheapplication'swebpage.

ToconfigureAXISVideoMotionDetection3,followthesesteps:

Modify the size of position of include area This there are in which moving objects will be detected. See include Area on page 29.

Optionally added more exclud areas Objects are excluded will be ignored See Exclude Are on page 30.

3.ClickSavetoapplythechanges.

Use visual confirmation to verify the settings. See Visual Confirmation on page 30.

Iso many unwanted objects are detected, enable and configure non more of the ignore filter. See ignore Filters on page 31.

After modifying setting click save apply the changes. The video stream will be restarted and may take few seconds before the change is applied.

IncludeArea

Theincludeareaistheareainwhichmovingobjectswillbedetected.Objectsmovingoutsidetheincludeareawillbeignored. Theobjectwillbedetectedalsoifonlyapartoftheobjectisinsidetheincludearea.

Note

Tomodifytheincludearea,InternetExplorerandAXISMediaControl(AMC)mustbeused.

Thedefaultincludeareaisasquarethatcoversthewholeimage.Clickontheicontohighlighthearea.

Usethemousetoreshapeandresizetheareasothatitonlycoversthepartoftheimageinwhichmovingobjectsshouldbedetected. Thedefaultsquarecanbechangedtoapolygonwithupto20points(corners).

• Toaddanewpoint, clickontheincludeareaborder.Dragthepointtothedesiredposition.
• Toremoveapoint, right-clickonthepoint.
• Tomoveapoint, dragthepointtothenewposition.
• Tomovetheentireincludearea, placethemousepointerinsidethearea. Whenthepointerbecomesacross, dragthe areatothenewposition.
• Toselecttheincludearea,clickontheborder.

Toresettheincludeareatoitsdefaultsize,clickReset.

ExcludeArea

Anexcludeareaisanareainwhichmovingobjectswillbeignored.Useexcludeareasifthereareareasinsidetheincludearea thattriggeralotofunwanteddetectedobjects.Upto10excludeareascanbeused.

Note

Toaddandmodifyexcludeareas,InternetExplorerandAXISMediaControl(AMC)mustbeused.

To address excluding a click Add default exclude a rectangle placed in the center of the image. The theme to move, reshape and resize the areas so that it covers the desired part of the image. The defaults square can be changed to a polygon with up to 20 points (corners).

• Tomovetheexcludearea, placethemousepointerinsidethearea. When the pointer becomes across, drag the area to thenew position.
• Toaddanewpoint, clickontheexcludeareaborder.Dragthepointtothedesiredposition.
• Toremoveapoint, right-clickonthepoint.
• Tomoveapoint, dragthepointtothenewposition.
• Toselectanexcludearea,clickontheborder.

Toremoveanexcludearea,selecttheareaandthenclickRemove.

Tohighlighttheexcludeareas,clickonthe

icon.

VisualConfirmation

Visualconfirmationisusedtovalidatethatthesettingsarecorrect,thatis,thatallobjectsthatshouldbedetectedaredetected.

Note

Tousevisualconfirmation, Internet Explorer and AXIS Media Control (AMC) must be used.

When visual confirmation is enabled, all moving objects found by the application will be circled and followed by polygons. A red polygon indicates that the object is found and detected as a moving object. Agreen polygon indicates that the object is found but is ignored because it is not in the include area or because of one of the ignore filters.

Toenablevisualconfirmation:

1. Select the Enable visual confirmation option.
   2.ClickSave.

Note

- Visualconfirmationisdisabledafter15minutes.

After modifying setting click Save apply the change The video stream will be restarted and may take few seconds before the change is applied.

- Enablingvisualconfirmationmayintroducevideolatency.

IgnoreFilters

IfAXISVideoMotionDetection3detectstoomanyunwantedobjects,startbymodifyingtheincludeandexcludeareas.Ifstilltoo manyobjectssaredetected,useoneormoreoftheignorefilters.

Supportedignorefilters:

• Swayingobjects—Usedtoignoreobjectsthatonlymoveashortdistance
• Short-livedobjects—Usedtoignoreobjectsthatonlyappearintheimageforashortperiodoftime
• Smallobjects—Usedtoignoresmallobjects

Ignorefiltersareappliedtoallmovingobjectsfoundbytheapplicationandshouldbeconfiguredwithcaretoensurethatno importantobjectsareignored.

Onlyuseignorefiltersifneededanduseasfewfiltersaspossible. Enableandconfigureonefilteratatimeandusevisualconfirmation toverifythesettingsbeforeenablinganotherfilterWhenconfiguringfilterstartwithsmallfiltersizeclicSavendusevisual confirmationtoverifythesettings.lfrequired,increasethefiltersizeinsmallstepsuntilthenumberofunwantedobjectsisreduced.

SwayingObjectIgnoreFilter

Theswayingobjectfilterisusedtoavoiddetectingobjectsthatonlymoveashortdistance,forexamplemovingtrees,flagsandtheir shadows.Usethefilterifsuchobjectscausealotoffalsedetections.Iftheswayingobjectsinthescenearelarge,forexamplelarge pondsorlargetrees,useexcludeareasinsteadofthefilter.Thefilterwillbeappliedtoallmovingobjectsinsceneand,ifsettoavaluetoolarge,importantobjectsmightnotbedetected.

When the waying object filter is enabled and the application finds a moving object, the object will not be reported as detected (red polygon in visual confirmation) until the travel distance is larger than the set filtersize. The alarms sent by the application will be sent when the object is detected. If the alarm is used to start are recording, configure the pre-trigger times that there are cording also include the time the object moved in the scene before being detected.

Toenablethefilter:

1. Select the Swaying objectsoption.
   2.Clickonthe icontoshowthefiltersizeintheimage.
2. Usethemousetoadjustthefiltersize.Startwithasmallsize.Objectsmovingadistanceshorterthanthedistancefrom thecenterofthecrosstooneofthearrowheadswillbeignored.Thefiltercanbemovedtothelocationofaswaying objecttomakeiteasiertoadjustthesize.Notethatthefilterwillbeappliedtoallobjectsintheimage,notonlytothe onesatthelocationwherethefilterisplaced.
   4.ClickSavetoapplythefilter.
3. Usevisualconfirmation to verify the settings.
4. If the result is not satisfactory, increase the filtersize small steps.

Thefiltersizecanalsobesetbyenteringavaluebetween10and50inthefield.Thevaluecorrespondstothedistancefromthe centerofthecrosstooneofthearrowheads.Thevalue100impliesthatanobjectmusttravelfromitsinitialpointtoonethirdofthe imagewidthtorheightbeforebeingdetected.Thevalue50implieshalfthatdistance,thatis,theobjectmusttraveladistanceof onesixthoftheimagewidthtorheightbeforebeingdetected.

Short-LivedObjectIgnoreFilter

Theshort-livedobjectfilterisusedtoavoiddetectingobjectsthatonlyappearforashortperiodoftime,suchaslightbeamsfroma passingcarandquicklymovingshadows.Usethefilterifsuchobjectscausealotoffalsedetections.

Whentheshort-livedobjectfilterisenabledandtheapplicationfindsamovingobject,theobjectwillnotbereportedasdetected(redpolygoninvisualconfirmation)untilthesetimeaspassed.Thealarmsentbytheapplicationwillbesentwhentheobjectis detected.Ifthealarmisusedtostartarecording,configurethepre-triggertimesothattherecordingalsoincludesthetimethe objectmovedinthescenebeforebeingdetected.

Toenablethefilter:

1. SelecttheShort-livedobjectsoption.
   2.Enterthenumberofsecondsinthefield.Thenumberofsecondsistheminimumtimethatmustpassbeforetheobjectis detected.Startwithasmallnumber.
   3.ClickSavetoapplythefilter.
2. Usevisualconfirmation to verify the settings.
3. If the result is not satisfactory, increase the filtersize in small steps.

SmallObjectIgnoreFilter

Thesmallobjectfilterisusedtoavoiddetectingobjectsthataretoosmall.Forexample,ifonlymovingcarsshouldbedetected,the smallobjectfiltercanbeusedtoavoiddetectingpeopleandanimals.

Ifusingthesmallobjectfilter, take into consideration that an object far from the camera appears smaller than an object closet to the camera. If the filter is set to ignore object sthesize of a person, people that are closet to be cameracan still be detected because they are larger than the filters size.

Toenablethefilter:

1. SelecttheSmallobjectsoption.

2.Clickonthe

icontoshowthefiltersizeintheimage.

1. Usethemousetoadjustthefiltersize.Startwithasmallsize.Movingobjectsthatfitinsidetherectanglewillbeignored. Thefilterdisplayedintheimagecanbemovedtomakeiteasiertocomparethefiltersizewiththesizeofobjects intheimage.Notethatthefilterwillbeappliedtoalobjectsintheimage,alsotoobjectsthatarenotlocatedat thepositionofthedisplayedfilter.
   4.ClickSavetoapplythefilter.
2. Usevisualconfirmation to overify the settings.
3. If the result is not satisfactory, increase the filtersize in small steps.

Thefiltersizecanalsobesetbyenteringthewidthandheightinthefields. Thewidthhandheightarethemaximumwidthand maximumheightoftheobjectstoignoreandaremeasuredinpercentoftheimagewidthandheight.Valuesbetween5and100 canbeused.

Using the Application in an Action Rule

The following examples show to configure the Axis product to record video when AXIS Video Motion Detection 3 detectsmotion.

InsertarS deardrtheAxiproductogd SetupSystemOptionsStoragertheAxiproduct'swebpagesand configuretheproducttouseanetworkshare.

Optionallygd:SetupVideoStreamProfilesandcreatestreamprofileusforecording.

GdoSetupEventsActionRulesandclickAddcreatenewactionrule.

From the Triggeredrop-downlistselectApplicationsandtherselectVMD.

Configure the settings required. For example only record video during certain time periods, select Schedule.

UndeActionsselectRecordVidedfromthTypdrop-downlist.

1. Selectthestreamprofileandstoragedevicetouseandconfigurethepre-andpost-triggertimes.

2. MakesurethattheruleisenabledandthenclickOK.

Note

TappeairthTriggeristthapplicationomusbstartedandtstatusmustedloRunning.

Applications

AXISCameraApplicationPlatform(ACAP)isanopenplatformthatenablesthirdpartiestodevelopanalyticsandotherapplications forAxisproductsForminformationaboutavailableapplicationsdownloadstrialsandicensesgetwww.axis.com/applications

Note

The application AXIS/ided Motion Detection is included with this product. See AXIS/ided Motion Detection.

- Several applications can run at the same time but some applications might not be compatible with each other. Certain combination of applications might require to much processing power or memory resources when run in parallel. Verify that the applications work together before deployment.

ApplicationLicenses

Someapplicationsneedalicensetorun.Licensescanbeinstalledintwoways:

•Automaticinstallation—requiresaccesstothelnternet
- Manualinstallation—obtainthelicensekeyfromtheapplicationvendoranduploadthekeytotheAxisproduct

Torequestalicense, theAxisproductserialnumber(S/N) is required. The serial number can be found on the product label and under SystemOptions > Support > SystemOverview.

UploadApplication

Touploadandstartanapplication:

1. GotoSetup>Applications.

2ndeUploadApplicationclickBrowseLocatethapplicationfileandclickUploadPackage.

1. Install the license (if applicable). For instructions, seethedocumentation provided by the application vendor.

Start the applicationGd page Applications select the application in the disf installed applications and click Start.

1. Configuretheapplication.Forinstructions,seethedocumentationprovidedbytheapplicationvendor.

Note

• Applicationscanbeuploadedbyproductadministrators.
• ApplicationsandlicensescanbeinstalledonmultipleproductsatthesametimeusingAXISCameraManagement,version 3.10andlater.

To generate file for the application to Application Select the application and click Log.

ApplicationConsiderations

Ifanapplicationisupgraded, applicationsettings, including the license, will be removed. The license must be installed and the application reconfigured.

If the Axis product's firmware is upgraded, uploaded applications and their settings will remain unchanged, although this is not guaranteed by Axis Communications. Not that the application must be supported by thenew firmware. For information about firmware upgrades, see Upgrade the Firmware.

If the Axis product is restarted, running applications will restart automatically.

If the Axis product is restored, uploaded applications remain unchanged but must be restarted. Tostart the application, goto Setup Application Select the application in the dis installed applications and click Start Information about restoring the Axis product, see Maintenance.

If theAxisproductisresettofactorydefault, uploadedapplicationsandtheirsettingsareremoved.Forinformationaboutfactory default, see ResettoFactoryDefaultSettings.

Events

TheEventpagesallowyoutoconfiguretheAxisproducttoperformactionswhendifferenteventsoccur. Forexample, theproduct canstartarecordingorsendanemailnotificationwhenmotionisdetected.Thesetofconditionsthatdefineshowandwhen theactionistriggerediscalledanactionrule.

ConvertEventTypeActionRules

If the Axis products upgraded firmware version 5.4 later it recommended to convert Event Types to Action Rules The legacy Use Event Types in the camerawil continuudowor but wilhobe visibl erthuse interface of the camera The Event Types need to converted Action rules become visibl erthuse interface.

ToconverEvenTypeActionRules&EventsActionRulesandyclicConvert.

NOTICE

This is not recommended when using a VMS based on the old Event Management System.

SetUpActionRules

Anactionruledefinestheconditionsthatmustbemetfortheproducttoperformanaction,forexemplerecordvideoorsendan emailnotification.Iffmultipleconditionsaredefined,allofthemmustbemettotriggertheaction.

FomoreinformationaboutavailabletriggersandactionsseeTriggersorpage3andActionsorpage38.

The following example describes how to setup an action rule to record video to an network share if there is movement in the camera's field of view.

Setupmotiondetectionandaddanetworkshare:

GdApplicationsstartandconfigureAXISidedMotionDetectionSeeAXISidedMotionDetection.

QdsSystemOptionsStorageandetuphetworkshareSeepage54.

Setuptheactionrule:

GdEventsActionRulesandlicAdd.

1. SelectEnableruleandenteradescriptivenamefortherule.

SelectApplicationsfromtheTriggerdrop-downlistandtheselect/MD3

OptionallyselectScheduleandAdditionaConditionSebelow.

UndeActionsselectRecordVidedfromthTypdrop-downlist.

SelectStreamprofil and configure the Duration settings as described below.

1. SelectNetworkSharefromtheStoragedrop-downlist.

Touse mortharon trigge fo the action rule select Additional conditions and click Add add additionatriggers When using additional conditions, all conditions must bemettotrigger the action.

To prevent an action from being triggered repeatedly, Waiteastime can set Entethdimer hours minutes and seconds, during which the triggers should be ignored before the action rule can be activated again.

The recording Duration of actions can be set into a threshold immediately before and after the event Select Pre-trigger time and/or Post-triggered number seconds. When while the active enabled and action triggered again during the post-trigger time, therecording timewill be extended with another post-trigger time period.

Formoreinformation,seetheonlinehelp

Triggers

Available actionultriggersandconditionsinclude:

ApplicationsUsed installed applicationsdriggethruleSeeApplicationsorpage34.

VMD3Trigger the rule when AXIS/ided Motion Detection detects moving object See AXIS/ided Motion Detection.

- Detectors

Day/NightModeTriggethe rule wherthproduct switches between day model (IRcfilterpn) and night mode (IRcutfilteroff). This can forexample be used to control an external infrared (IR) light connected to an output port.

LivStreamAccessedTriggetheulewheranystreamisaccessedandduringdgestoragplayback. Thiscanforexamplebeusedtosendnotifications.

TamperingTriggetheulewhertamperingsdetectedSeeCameraTamperingorpage28.

- Hardware

NetworkTriggetheulefetworkconnectionisobrestoredThisaforexamplebusedstart recordingtotheSDcard.

TemperatureTriggetheRulethtemperaturfalloutsideinsidtheoperatingangofthproductThis canforexamplebeusedtosendmaintenancenotifications.

- InputSignal

ManualTriggerTriggerButtonusingtheManualTriggerbuttontheLiveViewPageSecControlson theLiveViewPageonpage11.Thiscanforexamplebeusedtovalidateactionsduringproductinstallation andconfiguration.

VirtualInputscarbused by VMSVidedManagemenSystemdriggeactionsVirtualInputscanfor example, beconnectedtobuttonsintheVMSuserinterface.

•PTZ

MovingTrigger the rule whether the camera view moves dueto PTZ operation This is a example used as an additional condition to prevent an action rule triggered by motion detection to record video while the camera view moves dueto PTZ operation.

PreseReachedTrigger rule whether the camera stops at prese position This can be example used with the Send Images action to upload images from the preset position.

•Storage

Disruption Triggetheula storage problems are detected for example if storage devices unavailable, removed, full, locked or if other reader or write problems occur. This can forexample be used to send maintenance notifications.

RecordingTriggertheulwhertheAxiproductrecordsdthestoragedeviceTherecordingstatusrigger canbeusedtonotifytheoperator,forexamplebyflashingLEDlights,iftheproducthasstartedorstoppedto recordtothestoragedevice.Notethat,thistriggercanbeusedonlyforedgestoragerecordingstatus.

•System

SystemReadyTrigger rule whether product has been started and services are running. This for example be used to send an notification when the product restarts.

•Time

RecurrenceTriggeth#ulperiodicallySeSeUpRecurrencesorpage4Thisarforexampbusedo uploadanimageevery5minutes.

UsScheduleTriggertheRuleaccordingdthselectedscheduleSeeCreatSchedulesorpage40.

Actions

Availableactionsinclude:

- IRIllumination-ActivateordeactivatelRlight.

Day/NightVisionModeSetlaymode(IRufilteon)nightmode(IRufilteoff).

OverlayTextDisplayoverlaytextSeeHowincludeoverlaytextinteractionrulepage22.

- PTZControl

-PresetPosition-Gotoapresetposition.

GuardTourStartguardouSeeGuardTourorpage25.

- RecordVideo–Recordvideotoaselectedstorage.

- SendImages–Sendimagestoarecipient.

- SendNotification-Sendanotificationmessagetoarecipient.

SendSNMP Trap SendSNMP Trap message the operator MakesurthaSNMP enabled and configured under SystemOptionsNetworkSNMP.

- SendVideoClip-Sendavideocliptoarecipient.

- WDRMode-TheWDRModecanbeturnedonoroffwhentheactionruleistriggered.

AddRecipients

Theproduct cansendmediafilesandmessagestonotifyusersaboutevents.Beforetheproductcansendmediafilesornotification messagesyoumustlefinonoremorerecipientsFormformationaboutavailableoptionsseRecipientTypesorpage38.

Toaddarecipient:

GoEventsRecipientandlicAdd.

2.Enteradescriptivename.

3.SelectarecipientType.

4.Entertheinformationneededfortherecipienttype.

5.ClickTesttotesttheconnectiontotherecipient.

6.ClickOK.

RecipientTypes

The following recipients are available:

RecipientUsewithaction	Notes
Email	SendImagesSendNotificationSendVideoClip	Anemailrecipientcancontainmultipleemailaddresses.
FTP	SendImagesSendVideoClip
SFTPSendImages	SendVideoClip	EncryptedfiletransferusingSSHFileTransportProtocol(SFTP).SFTPisamoresecuremethodthanFTPbutfiletransfermightbeslower,especiallyforlargefilessuchashighresolutionvideo.SpecifylogininformationfortheSFTPserverandtheserver'spublickeyMD5fingerprint(32hexadecimaldigits).TheSFTPprecipientsupportsSFTPserversusingSSH-2withRSAandDSAhostkeytypes.RSAisthepreferredmethod.TouseDSA,disabletheRSAkeyontheSFTPserver.
HTTP	SendImagesSendNotificationSendVideoClip
HTTPSSendImages	SendNotificationSendVideoClip	EncryptedfiletransferusingHyperTextTransferProtocolSecure(HTTPS).SpecifylogininformationfortheHTTPSserverandvalidatetheserver'scertificate.IfthereisaproxybetweentheAxisproductandtheHTTPSserver,alsospecifytheproxysettings.
NetworkShareSendImages	SendVideoClip	Anetworksharecanalsobeusedasastoragedeviceforrecordedvideo.GoSystemOptions>Storagetoconfigureanetworksharebeforesettingupacontinuousrecordingoranactionruletorecordvideo.Formoreinformationaboutstoragedevices,seeStorageonpage52.
TCPSendNotification

SetUpEmailRecipients

Emailrecipientscanbeconfiguredbyselectingoneofthelistedemailproviders,orbyspecifyingtheSMTPserver,portand authenticationusedby,forexample,accorporateemailserver.

Note

Some email providers have security filter that prevent users from receiving or viewing large amount of attachments, from receiving scheduled emails and similar. Check the email provider's security policy to avoid delivery problems and locked email accounts.

Tosetupanemailrecipientusingoneofthelistedproviders:

GdEvents Recipients and licAdd.

EnterNamandelecEmailfromthTypeist.

Entethemailaddresses@endmailstortheTdieldUscommasseparatenultipladdresses.

1. Select the email provider from the Provider list.

5.Entertheuser|Dandpasswordfortheemailaccount.

6.ClickTesttosendatestemail.

TsetpremailrecipientsingforexamplecorporatemaierverfollowinstructionsaboveputelectUsedefineds ProvideEntethemailaddressappeansendeinthFromfieldSelectAdvancedettingandspecifythSMTServer addressportandauthenticationmethodOptionallyselectUsencryptiontorendemailsovearencryptedconnectionTheserver

certificatecanbevalidatedusingthecertificatesavailableintheAxisproduct.Forinformationonhowtouploadcertificates, see Certificatesonpage46.

CreateSchedules

Schedulescanbeusedasactionruletriggersorasadditionalconditions,forexampletorecordvideoifmotionisdetectedoutside officehours.Useoneofthepredefinedschedulesorcreateanewscheduleasdescribedbelow.

Tocreateanewschedule:

GdEventsSchedulesandliclAdd.

1. Enteradescriptivename and the information needed for daily, weekly, monthly or yearly schedule.
   3.ClickOK.

Taus the schedule in action rule selects the schedule from the Schedule drop-down list the Action Rule Setup page.

SetUpRecurrences

Recurrencesareusedtotriggeractionrulesrepeatedly,forexamplevery5minutesoreveryhour.

Tosetuparecurrence:

GdEventsRecurrencesandlicAdd.

2.Enteradescriptivenameandrecurrencepattern.
3.ClickOK.

To set the recurrence in action rule first select Time on the triggered drop-down list the Action Rule Setup page and then select the recurrence from these second drop-down list.

To modify remove recurrences select the recurrence path Recurrence List and click Modify Remove.

Recordings

TheAxisproductcanbeconfiguredtorecordvideocontinuouslyoraccordingtoanactionrule:

• Tostartacontinuousrecording,seepage42.
• Tosetupactionrules,seepage36.
  •Toaccessrecordings,seeFindRecordingsonpage41.
  • Toplayrecordings, see PlayRecordingonpage41.
  • Toexportarecordingasavideoclip, see ExportVideoCliponpage42.
• Toconfigurecameracontrolledstorage,seeStorageonpage52.

FindRecordings

Recordingstore@theDearnetworkshareaccessedfromRecordingsListpageThepagedistalrecordingsn thestoragedeviceandshowseachrecording'sstartdateandtime,durationandtheeventthattriggeredtherecording.

Note

Therecording'sstartdateandtimeissetaccordingtotheAxisproduct'sdateandtimesettings.IftheAxisproductisconfiguredausetimzonedifferenfromthdocatimezonemakeuredeconfigurehRecordingimfiltersaccordingtchproduct'stizoneDatandtimesettingsareconfiguredundeSystemOptionsDateTimeedDateTimeonpage46.

Tofindarecording, followthesesteps:

1. GotoRecordings>List.

AreductnumberfecordingsdisplayedselecthdesireoptionundeFilter:

RecordingtimeListecordingthatstartedbetweenFromanddimes.

EventListecordingthatwerdriggeredbyspecificEventSelectcontinuoudistontinuousrecordings.

Storage-Listrecordingsfromaspecificstoragedevice.

Sort-Specifyhowrecordingsshouldbesortedinthelist.

Results–Specify maximum number of recording stodisplay.

To apply the filters click the Filte button Some filters may take long time complete.

1. TherecordingsaredisplayedintheRecordinglist.

T play recording select the recording and click Play Se also Play Recording or page 4.1.

To view detailed information about recording, select the recording and lic Properties.

To export recording, part of recording via eclip select the recording and lic Export Seals Export/ided Clip on page42.

To remove recording from the storage device, select the recording and click Remove.

PlayRecording

RecordingsontheSDcardornetworksharecanbeplayeddirectlyfromtheAxisproduct'swebpages.

Toplayarecording, followthesesteps:

1. GotoRecordings>List.

DreducethenumberofecordingsdisplayedselecthdesiredoptionsundeFilteandclickthFiltebuttorto applythefilters.SeealsoFindRecordingsonpage41.

Select recording and click Play The recording will be played a new browser window.

ExportVideoClip

Recordings on the SD cardornetworkshare can be exported as videoclips. It is possible to export a complete recording or part of are cording.

Note

TheexportedrecordingisaMatroskavideofile(.mkv).ToplaytherecordinginWindowsMediaPlayer,AXISMatroskaFileSplittemusbinstalledAXISMatroskaFilSplittercabdownloadedfromwww.axis.com/techsup/software

Toexportavideoclip, followthesesteps:

1. GotoRecordings>List.

DreducethnumbeofecordingdisplayedselectddesiredoptionsundeFilteandclickthFiltebuttorto applythefilters.SeealsoFindRecordingsonpage41.

Select recording and click Export The Export Recording dialog opens.

1. Bydefault, the completerecording is selected. To export a part of the recording, modify the start and stop times.

2. Optionally, enterafilename for therecording.

6.ClickExport.

Note

Recordingscanalsobeexportedfromtheplaybackwindow.

ContinuousRecording

The Axiproductarbeconfigured continuously saved storage device information about storage devices see Storage or page 52 prevent the disk from becoming full is recommended configured the disk automatically removed recordings.

Ifanewstreamprofileisselectedwhilearecordingisongoing,therecordingwillbestoppedandsavedintherecordinglistanda newrecordingwiththenewstreamprofilewillstart.Allpreviouscontinuousrecordingswillremainintherecordinglistuntilthey areremovedmanuallyorthroughautomaticremovalofoldrecordings.

Tostartacontinuousrecording,followthesesteps:

1. GotoRecordings>Continuous.

2.SelectEnabled.

1. SelectthetypeofstoragedevicefromtheStoragelist.

2. SelectaStreamprofiletouseforcontinuousrecordings.

5.ClickSavetosaveandstarttherecording.

Languages

MultiplelanguagescanbeinstalledintheAxisproduct.AllwebpagesincludingtheonlinehelpwillbedisplayedintheselectedlanguageTo switchlanguagesgoSetupLanguagesandfirstuploadthenewLanguagefileBrowseandocatchthe landfillclicktheUploadLanguagebutton.SelectthenewlanguagefromthelistandclickSave.

Note

• Resetting the product to factory default settings will erase any uploaded language files and reset the product language to English.
• ClickingtheRestorebuttonontheMaintenancepagewillnotaffectthelanguage.
• Afirmwareupgradewillnotaffectthelanguageused. However if you have uploaded an ewlanguageto the product and later upgradethe firmware, it may happen that the translation no longer match the product's web pages. In this case, upload an updated language file.
• Alanguagealreadyinstalledintheproductwillbereplacedwhenacurrentoralaterverersionofthelanguagefileisuploaded.

SystemOptions

Security

Users

Use access controlled enabled by default and bar configured under SystemOptions Security Users Administrator can setup other users by giving them usernames and passwords. It is also possible to allow anonymous viewer login, which means that anybody may access the Live View page.

Theuserlistdisplaysauthorizedusersandusergroups(accesslevels):

•ViewershaveaccesstotheLiveViewpage
-Operatorshaveaccesstoallsettingsexcept:
-creatingandmodifyingPTZpresets
-creatingandmodifyingPTZcontrolsettings
-creatingandmodifyingprivacymasksettings
-uploadingapplicationsandlanguagefiles
-anyofthesettingsincludedintheSystemOptions

Administrator have unrestricted accessal settings. The administrator can add modify and remove other users.

Note

NotchawtherthoptionEncryptedunencryptedselectedtheobserverwilencypthepasswordThisthedefault optionforanewunitoraunitresettofactorydefaultsettings.

UndeHTTP/RTSIPasswordSettingsselecttheTypeofpasswordallowYoumayneedallowunencryptedpasswordsifthereareviewingclientsthatdonotsupportencryption,orifyouupgradedthefirmwareandexistingclientssupportencryptionbutneedtologinagainandbeconfiguredtousethisfunctionality.

UndeUseSettingsselecttheEnablanonymousvieweloginoptiontallowanonymoususersaccesstheLiveViewpage.

Select the Enablanonymou PTZontrologirtallowanonymoususeraccess the PTZ controls.

DeselecttheEnablBasiSetupoptionthetaBasiSetupmenuBasiSetupprovidesquickaccesssettingsthatshouldbe madebeforeusingtheAxisproduct.

ONVIF

ONVIF(OpenNetworkVideoInterfaceForum)isaglobalinterfacestandardthatmakesiteasierforendusers,integrators,consultants,andmanufacturerstotakeadvantageofthepossibilitiesofferedbynetworkvideotechnology.ONVIFenablesinteroperabilitybetweendifferentvendorproducts,increasedflexibility,reducedcostandfuture-proofsystems.

BycreatingauseryouautomaticallyenableONVIFcommunication.UsetheusernameandpasswordwithallONVIFcommunication withtheproduct.Formoreinformationseewww.onvif.org

IPAddressFilter

IAddressfiltering enableorth SystemOptions Security. IAddressFilterpage. Once enabled the listed address are allowed, denied access the AxiproductSelectAllowoDenyronthdistance. Apply tenableAddressfiltering.

The administrator can add up to 256IP addressentriestothelist (asingleentry can contain multipleIP addresses).

HTTPS

HTTPS(HyperTextTransferProtocoloverSecureSocketLayer,orHTTPoverSSL)isawebprotocolprovidingencryptedbrowsing. HTTPScanalsobeusedbyusersandclientstoverifythatthecorrectdeviceisbeingaccessed. Thesecuritylevelprovidedby HTTPSisconsideredadequateformostcommercialexchanges.

TheAxisproductcanbeconfiguredtorequireHTTPSwhenusersfromdifferentusergroups(administrator, operator, viewer)login.

TouseHTTPSarHTTPScertificatenusfirsbeinstalledGoSystemOptionsSecurityCertificatesinstallandmanage certificates.SeeCertificatesonpage46.

ToenableHTTPSontheAxisproduct:

1. GotoSystemOptions>Security>HTTPS
2. SelectanHTTPCertificatefromthelistofinstalledcertificates.
3. Optionally, click Ciphers and select the encryption algorithm for SSL.
4. SettheHTTPSConnectionPolicyforthedifferentusergroups.
   5.ClickSavetoenablethesettings.

Taccess the Axis product via desired protocol, the address field browser, https://fortheHTTPprotocol. and http://fortheHTTPprotocol.

The HTTP Sport change or the System Options Network TCP/IP Advance page.

IEEE802.1X

IEEE802.1Xisastandardforport-basedNetworkAdmissionControlprovidingsecureauthenticationofwiredandwirelessnetwork devices.IEEE802.1XisbasedonEAP(ExtensibleAuthenticationProtocol).

ToaccessanetworkprotectedbyIEEE802.1X,devicesmustbeauthenticated.Theauthenticationisperformedbyanauthentication servertypicallyRADIUServerexampleswhichareFreeRADIUSandMicrosoftInternetAuthenticationService.

InAxisimplementation, theAxisproductandtheauthenticationserveridentifythemselveswithdigitalcertificatesusingEAP-TLS (ExtensibleAuthenticationProtocolTransportLayerSecurity)ThecertificatesareprovidedbyCertificationAuthorityCA). Youneed:

• aCAcertificatetoauthenticatetheauthenticationserver.
• aCA-signedclientcertificatetoauthenticatetheAxisproduct.

To create and install certificates go to System Options Security Certificates See Certificates or page 48 Many CAcertificates are preinstalled.

ToallowtheproducttoaccessanetworkprotectedbyIEEE802.1X:

1. GotoSystemOptions>Security>IEEE802.1X.
   SelectCAcertificatandClienCertificatfromtheistoInstalledcertificates.
   UndeSettingsselecttheEAPVersionanprovidetheEARidentityassociatedwiththeClientertificate.
2. ChecktheboxtoenableIEEE802.1XandclickSave.

Note

Forauthenticationtoworkproperly, the date and timesettings in the Axis product should be synchronized with an NTP server. See Date & Time on page 46.

Certificates

Certificatesareusedtoauthenticatedevicesonanetwork.Typicalapplicationsincludeencryptedwebbrowsing(HTTPS),network protectionviaIEEE802.1Xandsecureuploadofimagesandnotificationmessagesforexampleviaemail.Twotypesofcertificates canbeusedwiththeAxisproduct:

Server/Clientcertificates-ToauthenticatetheAxisproduct.

CAcertificatesToauthenticatpeecertificatesfoexamplethecertificatoofauthenticationserveincastheAxisproducts connectedtoanIEEE802.1Xprotectednetwork.

Note

Installedcertificates,exceptpreinstalledCAcertificates,willbedeletediftheproductisresettofactorydefault.Preinstalled CAcertificatesthathavebeendeletedwillbereinstalled.

Server/Client certificate can be self-signed issued by Certificate Authority(CA) Self-signed certificate offers limited protection and can be used before CA-issued certificate has been obtained.

Toinstallaself-signedcertificate:

1. GotoSetup>SystemOptions>Security>Certificates.
2. ClickCreateself-signedcertificateandprovidetherequestedinformation.

TocreateandinstallaCA-signedcertificate:

1. Createaself-signedcertificateasdescribedabove.
2. GotoSetup>SystemOptions>Security>Certificates.
   ClickCreatecertificatesigningequestanprovidetherequestedinformation.
3. CopythePEM-formattedrequestandsendtotheCAofyourchoice.
   Whether signed certificates returned clicked install certificate and upload certificate.

Server/Clientcertificates:baninstalled.Certificatfronsigningequesta.CertificatanprivatkeySelectCertificate andprivatekeyiftheprivatekeyistobeuploadadasaseparatefileorifthecertificateisinPKCS#12format.

The Axis product shipped with severapreinstalled CAcertificates, required additional CAcertificates, can be installed:

1. GotoSetup>SystemOptions>Security>Certificates.
2. ClickInstallcertificateanduploadthecertificate.

Date&Time

The Axi product's lat and dim settings are configured under System OptionsDateTime.

CurrenServeTimedisplaythecurrentlatandtime(24clock)Thetimecarbeisplayednl2hclockirthetexoverlay(see below).

TachangthedatandimsettingsselecthepreferredTimmodundeNewServeTime:

SynchronizwithcomputetimeSetslatandimaccordingthecomputer'slockWiththisoptiondatandtimearesetonceandwillnotbeupdatedautomatically.
SynchronizwithNTServerObtainslatandimefromNTServerWiththisoptiondatandimsettingsare updatedcontinuouslyEoinformationonNTBettingsseeNTPConfigurationorpage49.
IfusingnostamefothENTServerDNServermustconfiguredSeeDNSConfigurationorpage49.
- Setmanually—Allowsyoutomanuallysetdateandtime.

Ifusing NTServerselectyouTimezonefromthedrop-downlistrequiredcheckAutomaticallyadjustodaylightsaving timechanges.

The DateTimeFormatUsedImageshedatandimformadisplayedstexoverlaythevidestreamUshe

predefinedformatsorseeFileNaming&Date/TimeFormatsintheonlinehelp forinformationonhowtocatecustomdateand timeformatsIncluddatandimitheroverlaytextgVideoandelectIncluddatandIncludtime.

Network

BasicTCP/IPSettings

TheAxisproductsupportsIPversion4andIPversion6.Bothversionscanbeenabledsimultaneously, andatleastoneversion mustalwaysbeenabled.

IPv4AddressConfiguration

Bydefault, theAxisproductissettouseIPv4(IPversion4) and to obtain theIPaddress automatically via DHCP. TheIPv4settings are configured under SystemOptions > Network > TCP/IP > Basic.

DHCP(DynamicHostConfigurationProtocol) allows network administrator to centrally manage and automate the assignment of IP addresses. DHCP should only be enabled if using dynamicIP address notification, or if the DHCP can update a DNS server. It is then possible to access the Axis product by name (hostname).

If DHCP is enabled and the product cannot be accessed, run AXISIPUtility to search then network for connected Axis products, or reset the product that factor default settings (see page 56) and perform then installation again.

To usestatid PaddresscheckUsech following Paddress and specify the Paddress subnet mask and default router.

IPv6AddressConfiguration

IfIPv6(IPversion6)isenabled,theAxisproductwillreceiveanIPaddressaccordingtotheconfigurationinthenetworkrouter.

TenablePv6gdcSystemOptionsNetworkTCP/IPBasicOthesettingsforPvShouldbeconfiguredrthetworkrouter.

ARP/Ping

The product's Address can be assigned using ARP and Ping for instructions see Assign/Address Using ARP/Ping or page 47.

TheARP/Pingserviceisenabledbydefaultbutisautomaticallydisabledtwominutesaftertheproductisstarted,orassoonasanIP addressisassigned.Tore-assignIPaddressusingARP/Ping,theproductmustberestartedtoenableARP/Pingforanadditional twominutes.

TodisabletheServicegtoSystemOptionsNetworkTCP/IPBasicandleathoptionEnableARP/PingettingofPaddress.

Pinging the product is still possible when the service is disabled.

AssignIPAddressUsingARP/Ping

Theproduct'sIPaddressscanbeassignedusingARP/Ping.Thecommandmustbeissuedwithin2minutesofconnectingpower.

1. AcquireafreestaticIPaddressonthesamenetworksegmentasthecomputer.
2. Locatetheserialnumber(S/N) on the product label.
   3.Openacommandpromptandenterthefollowingcommands:

Linux/Unixsyntax

arp-s<IPaddress><serialnumber>temp
ping-s408<IPaddress>

Linux/Unixexample

arp-s192.168.0.12500:40:8c:18:10:00temp
ping-s408192.168.0.125

Windowssyntax(thismayrequirethatyourunthecommandpromptasanadministrator)

arp-s<IPaddress><serialnumber>
ping-1408-t<IPaddress>

Windowsexample(thismayrequirethatyourunthecommandpromptasanadministrator)

arp-s192.168.0.12500-40-8c-18-10-00
ping-l408-t192.168.0.125

1. Check that thenetwork cable is connected and then restart the product by disconnecting and reconnecting power.

ClosthecommanpromptwhertheproductespondswithReplyfrom92.168.0.125:..osimilar.

Openbrowseandyphttp://irtheLocation/Addressfield.

For themethods of assigning the addresses the document Assignor/Address and Access the Video Stream or Axis Support web at www.axis.com/techsup

Note

To open command prompt Windowsoperth Start menu and type cmdth Run/Searchfield.

- TousetheARPcommandinWindows8/Windows7/WindowsVista,right-clickthecommandprompticonandselectRunasadministrator.

To open command prompt Mac OS Xoperth Termin utility from Application Utilities.

AXISVideoHostingSystem(AVHS)

AVHSusedinconjunctionwithanAVHSservice,provideseasyandsecureInternetaccesstoliveandrecordedvideoaccessiblefromanylocation.FormoreinformationandhelptofindalocalAVHSServiceProvidergotowww.axis.com/hosting

The AVHSetting are configured under SystemOptions Network TCP Basic The possibility to connect AVHService is enabled by default. Todisable, clear the Enable AVHSbox.

One-clickable Press and hold the product's contro button (sed Hardware Overview page) on bous Second so connect to AVHS service over the Internet. Once registered Always will be enabled and the Ax product stays connected to the AVHS service. If the product is not registered within 24 hours from when the button is pressed, the product will disconnect from the AVHS service.

AlwaysTheAxiproductwilconstantlyattemptconnecttheAVHServiceovethinternetOnceregisteredtheproductwill stayconnectedtotheservice.Thisoptioncanbeusedwhentheproductisalreadyinstalledanditisnotconveniettousethe one-clickinstallation.

AXISInternetDynamicDNSService

AXISnterneDynamidDNServiceassignshostnamefoeasyaccesstdthproductFomoreinformationsewww.axiscam.net

To regist the Axis product with AXIS Interne Dynamic DNS Service System Options Network TCP/IPBasid Under Services click the AXIS Interne Dynamic DNS Service Setting button (requires access to Internet) The domain name currently registered at AXIS Internet Dynamic DNS service for the product can at any time be removed.

Note

AXISInternetDynamicDNSServicerequiresIPv4.

AdvancedTCP/IPSettings

DNSConfiguration

DNSDomainNamServiceprovideshtranslationofhostnameidAddressesTheDNSettingsareconfiguredundecSystem Options>Network>TCP/IP>Advanced.

SelectObtainDNServeaddressiaDHCRusethDNSettingprovidedbythDHCRerver.

TomakemanuasettingsselectUsethe followingDNServeaddressandspecifythe following:

DomainamEntethelomain(s)searchforthoshnameusedbytheAxiproductMultipl domainsarseparated by semicolonsThehoshnameiswaythefrisparbfullyqualifieddomainameforexamplenyserveristhoshamerthefullyqualifieddomainamemyserver.mycompany.comwheremycompany.comthelomainame.

Primary/SecondaryDNServerEntethAddressofthprimaryandsecondaryDNServerThesecondaryDNServes optionalandwillbeusediftheprimaryisunavailable.

NTPConfiguration

NTP(NetworkTimeProtocol)isusedtosynchronizetheclocktimesofdevicesinanetwork.TheNTPsettingsareconfiguredunder SystemOptions>Network>TCP/IP>Advanced.

SelectObtainNTBerveaddressidHCRustheNTBettingprovidedbytheDHCServer.

TomakmanuasettingsselectUsethfollowingNTBerveaddressandentethnosthamofAddressoftheNTBerver.

HostNameConfiguration

TheAxisproductcanbeaccessedusingahostnameinsteadofanIPaddress.ThehostnameisusuallythesameastheassignedDNS nameThehostnameconfiguredundesystemOptionsNetworkTCP/IPAdvanced.

SelectObtainhostamoviaPv4DHCRusnosthamprovidedbythDHCServerunningprPv4.

SelectUsethehostnametosetthehostnamemanually.

SelectEnablDynamiDNSUpdates dynamically update docaDNServers whenever the Axis product's Paddress changes.

Formoreinformation,seetheonlinehelp

Link-LocalIPv4Address

Link-LocalAddress enabled default assignment the product additional address which can be used to access the product from other hosts on the same segment on the local network. The product can have a Link-LocalIPandastic or DHCP-suppliedIPaddressatthesametime.

This function can be disabled under System Options Network TCP/IP Advanced.

HTTP

The HTTP port used by the Axisproduct are changed under SystemOptionsNetworkTCP/IP Advanced addition the default setting, which is 80, any port in therange 1024-65535 can be used.

HTTPS

The HTTPSportused by the Axi product are changed under SystemOptions Network TCP/IP Advanced addition to the default setting, which is 443, any portion in the range 1024-65535 can be used.

TenableHTTPSgdsystemOptionsSecurityHTTPSFomoreinformationsedHTTPSpage45.

NATtraversal(portmapping)forIPv4

Anetworkrouterallowsdevicesonaprivatenetwork(LAN)toshareasingleconnectiontothelnternet.Thisisdonebyforwarding networktrafficfromtheprivatenetworktothe"outside",thatis,theInternet.Securityontheprivatenetwork(LAN)isincreased sincemostroutersarepre-configuredtostopattemptsstoaccesstheprivatenetwork(LAN)fromthepublicnetwork(Internet).

Use NATraversawhetherAxiproductslocatedbrarintranet(LAN)andyouwishtomakitavailabfromthe(WAN)side ofaNATrouter.WithNATtraversalproperlyconfigured,allHTTPtraffictoanexternalHTTPportintheNATrouterisforwardedto theproduct.

NATraversalsconfiguredindeSystemOptionsNetworkTCP/IPAdvanced.

Note

• ForNATtraversaltowork, this must be supported by the router. Therouter must also support UPnP
  TM.
• In this context, router refer to an any network routing devices such as NATrouter, Networkrouter, Internet Gateway, Broadbandrouter, Broadband sharing device, or as softwares such as firewall.

Enable/DisableWhenenabledtheAxiproductattemptsconfigurportmappingnAToutepryournetworkusingUPnP NotethatUPnP™ mustbeenabledintheproduct(seeSystemOptions>Network>UPnP).

TM.

Usmanually selected NATouteSelect this option manually select NAToute and the address that the route in the field. If norouter is specified, the product automatically searches for NATrouterson your network. If more than one router is found, the default router is selected.

Alternative HTTP port Select this option manually defines external HTTP Port Enter port the range 024-65535. The portfield isempty or contains the default setting, which is 0, a port number is automatically selected when enabling NAT traversal.

Note

• AnalternativeHTTPportcanbeusedorbeactiveevenifNATtraversalisdisabled. ThisisusefulifyourNATrouterdoesnot supportUPnPandyouneedtomanuallyconfigurereportforwardingintheNATrouter.
• If you attempt to manually enter a port that is already in use, another available port is automatically selected.
  WherthportselectedautomaticallyitsdisplayedthisfieldTochangthisentemewportnumberandclickSave.

FTP

TheFTPserverrunningintheAxisproductenablesuploadofnewfirmware,userapplications,etc.TheFTPservercanbedisabled underSystemOptions>Network>TCP/IP>Advanced.

Note

ThisFTPserverhasnothingtodowiththeproduct'sabilitytotransferimagesviaFTPtootherlocationsandservers.

RTSP

TheRTSPserverrunningintheAxisproductallowsaconnectingclienttostartanH.264stream.TheRTSPportnumbercanbe changedundeSystemOptionsNetworkTCP/IBAdvancedThedefaultport554.

Note

H.264videostreamswillnotbeavailableiftheRTSPserverisdisabled.

SOCKS

SOCKSisanetworkingproxyprotocol.TheAxisproductcanbeconfiguredtouseaSOCKSservertoreachnetworksontheother sideofafirewallorproxyserver.ThisfunctionalityisusefuliftheAxisproductislocatedonalocalnetworkbehindafirewall,and notifications,uploads,alarms,etcneedtobesenttoadestinationoutsidethelocalnetwork(forexamplethelnternet).

SOCKSconfigured under System Options Network SOCKS from more information set the online help

QoS(QualityofService)

QoS(QualityofService)guaranteesacertainlevelofaspecifiedresourcetoselectedtrafficonanetwork.AQoS-awarenetwork prioritizesnetworktrafficandprovidesagreaternetworkreliabilitybycontrollingtheamountofbandwidthanapplicationmayuse.

The DoSettings are configured under SystemOptions Network. QoS Using DSCI Differentiated Service Codepoint values the Axisproduct can mark different types of traffic.

SNMP

TheSimpleNetworkManagementProtocol(SNMP)allowsremotemanagementofnetworkdevices.AnSNMPcommunityisthe groupofdevicesandmanagementstationrunningSNMP.Communitynamesareusedtoidentifygroups.

AXISVideoMIB(ManagementInformationBase)forvideohardwarecanbeusedtomonitorAxis-specific,hardware-related issuesthatmayneedadministrativeattention.FormoreinformationaboutAXISVideoMIBandtodownloadMIBfiles,goto www.axis.com/techsup

Tenable and configure SNMPth the Axi product get th System Options Network SNMP page.

Dependingonthelevelofsecurityrequired,selecttheversiononSNMPtouse.

Trapareused by the Axis product send messages to management system important events and status changes Check Enable traps and enter the address where the trap message should be sent and the trap community that should receive the message.

Note

If HTTPSisenabled, SNMPv1 and SNMPv2 should be disabled.

TrapfoSNMR1/v2areused by the Axiproduct send messages to management system important events and status change. Check Enable trap and the address where the trap message should be sent and the community that should receive them message.

The followingtrapsareavailable:

•Coldstart
•Warmstart
- Linkup
- Authenticationfailed

Note

AllAXISVideoMIBtrapsareenabledwhenSNMPv1/v2ctrapsareenabled.Itisnotpossibletoturnonoroffspecifictraps.

SNMR3 provides encryption and secure passwords to strap with SNMR3 and SNMR3 management application required.

TousSNMR3HTTPSmustenabledshedHTTPSorpage45enableSNMR3checkboxanprovidthenitialuser password.

Note

The initial password can only be set once. If the password is lost, the Axis product must be reset to factory default, see ResettoFactoryDefaultSettingspage56.

UPnP ^TM

TheAxisproductincludessupportforUPnP ^TM .UPnP ^TM isenabledbydefaultandtheproductisautomaticallydetectedbyoperating systemsandclientsthatsupportthisprotocol.

UPnPTM canbedisabledunderSystemOptions>Network>UPnP

RTP/H.264

The RT Portugal and multicast settings are configured under System Options Network RTP.

The RTP portranged defines the range of ports from which the video ports are automatically selected. Form multicast streams, only certain IP addresses and port numbers should be used.

SelectAlwayMulticastVidedstartmulticaststreamingwithoutpeningarRTSBession.

Bonjour

TheAxisproductincludessupportforBonjour.Bonjourisenabledbydefaultandtheproductisautomaticallydetectedbyoperating systemsandclientsthatsupportthisprotocol.

BonjourcanbedisabledunderSystemOptions>Network>Bonjour.

Storage

SDCard

NOTICE

Topreventdatacorruption, the SDcardshouldbeunmountedbeforeremoval.

Note

ForSDcardrecommendationssee www.axis.com

TheAxisproductsupportsmicroSD/microSDHC/microSDXCcards.

The following SDcardfilesystemsaresupported:

ext4-recommendedluditsresiliencagainstlatalosifhecardsjectediftherebruppowelosstaccess datastoredonthecardfromtheWindowsoperatingsystem,athird-partyext4driverorapplicationisrequired.
• vFAT—supportedbymostoperatingsystemsforpersonalcomputers.

The SDcardsmanagedorthSystemOptionsStoragePageClickSICardopenStorageManagement.

If he card's tatushows a failed click Check disk to see if problem can be found and her try Repair this option only available for SD cards with next 4. For SD cards with v FAT, use acard reader or computertot roubles hoot the card.

T avoid filling the card is recommended to remove recordings continuously. Unde Genera Settings select Remove recordings older than and select then number of days or weeks.

Tstopwriting the card an protectecording from being removed select Lockunde Genera Settings.

MountandUnmountSDCard

NOTICE

Topreventcorruptionofrecordings,theSDcardshouldalwaysbeunmountedbeforeitisejected.

TheSDcardisautomaticallyymountedwhenthecardisinsertedintotheAxisproductorwhentheproductisstarted.Amanual mountisonlyrequiredifthecardhasbeenunmountedandnotejectedandre-inserted.

TounmounttheSDcard:

OpertheAxiproduct'swebpagesandSetupSystemsOptionsStorage.

2.ClickSDCard.

3.ClickUnmount.

1. The card can now be removed.

FormatSDCard

NOTICE

FormattingtheSDcardwillremovealldataandrecordingsstoredonthecard.

TheAxisproductcanbeconfiguredtoautomaticallyformatSDcardsthataareinsertedintotheproduct.IfautoformatisenabledandanSDcardisinserted,theproductwillcheckiftheSDcardhastheext4filesystem.Ifthecardhasadifferentfilesystem,thecardwillautomaticallybeformattedtoext4.

Important

Ifautoformatisenabled,onlyuseneworemptySDcards.Anydatastoredonthecardwillbelostwhenthecardisinserted intotheAxisproduct.

Toenableautomaticformatting, followthesesteps:

OpertheAxisproduct'swebpagesandSetupSystemsOptionsStorage.

2.ClickSDCard.

UndeGeneraSettingsselectAutoformato.

4.ClickOKtosavesettings.

AnSDcardinsertedintotheproductcanbemanuallyformattedtooneofthesupportedfilesystems.Tomanuallyformatthe SDcard,followthesesteps:

1. Insert the SD card in the SD card slot.

OpertheAxisproduct'swebpagesandSetupSystemsOptionsStorage.

3.ClickSDCard.

1. ClickFormatandselectthedesiredfilesystem.

5.ClickOKtostartformattingthecard.

EncryptSDCardData

Topreventunauthorizedindividualsandsystemsfromaccessingrecordedvideo,theSDcardcontentcanbeencrypted.Encryption canonlybeenabledwhenthecardisunmounted.Afterenablingencryption,theSDcardmustbeformattedsothatnounencrypted dataremainsonthecard.Thecardmustalsobemountedbeforeitcanbeused.

Note

Ifautoformatisenabled, thecardwillbeformattedandmountedautomaticallywhenencryptionisenabled. The format and mountsteps below should then beskipped.

ToencrypttheSDcardcontent:

OpertheAxisproduct'swebpagesandSetupSystemsOptionsStorage.

Click CardoperStorageManagement.

1. If the SD card is mounted, click Unmounttounmountthecard.

4.ClickEncrypt.

1. SelectEnableSDcardencryptionandenterapassphrase.

2. BackinStorageManagement, clickFormattoformattheSDcard.

7.ClickMounttomounttheSDcard.

It possible changing the passphrase without e formatting the card Oper Storage Management clic Encrypt and the hold and new passages. The passphrase can only be changed when the card is mounted. Ongoing recordings will not be affected if the passphrase is changed.

Talisable encryption unmounted Card and follow the steps above but leath Enable Card encryption option The card must be formatted and mounted when encryption has been disabled.

NetworkShare

NetworkshareallowsyoutoaddnetworkstoragesuchasaNAS(network-attachedstorage).TheNASshallbededicatedfor recordingsanddatafromtheAxisproductsconnectedtothenetwork.ForinformationaboutreferenceNASdevices,goto www.axis.com/products/axis-camera-companion/support-and-documentation

Note

ForNASrecommendationsseewww.axis.com

Toaddanetworkshare:

1. GotoSystemOptions>Storage.
   2.ClickNetworkShare.
   3.EntertheIPaddress,DNSorBonjourametothehostserverintheHostfield.
   4.EnterthenameoftheshareintheSharefield.Subfolderscannotbeused.

I ^s required ^e selectTheshare requires ogirandentethusenamananspassword.

6.ClickConnect.

TeleaalrecordingsandatafromtheAxiproduct'soldeorthdesignatedshareclickCleaundeStorageTools.

To avoid filling the share if recommended remove recordings continuously Under Recording Settings; select Remove recordings older than and select then number of days or weeks.

Tstopwriting@shareanprotectecordingfrombeingemovedselectLockundeRecordingSettings.

Maintenance

The Axis product provides several maintenance functions. These are available under System Options Maintenance.

ClickRestart perform correct start the Axiproducts no behaving expected This will have affected any of the current settings.

Note

ArestartclearsallentriesintheServerReport.

ClickRestoreresetmostsettingsdhfactorydefaultvaluesThefollowingsettings are not affected:

• thestaticIPaddress
• thedefaultrouter
• thesubnetmask
• thesystemtime
  • theIEEE802.1Xsettings

•thebootprotocol(DHCPorstatic)

- uploadedapplicationsarekeptbutmustberestarted

ClickDefaultresetSettingsincludinghdAddressdthfactorydefaultvaluesThisbuttonshouldusedwithcautionTheAxiproductandalsdresetfactorydefaultusingthecontrolbuttonseeResetFactoryDefaultSettingspage56.

Forinformationaboutfirmwareupgrade,seeUpgradetheFirmwareonpage57.

Support

SupportOverview

The SystemOptionsSupportSupportOverviewpage provides information on troubleshooting and contact information, should you require technical assistance.

See also Troubleshooting on page 57.

SystemOverview

Together overview of the Axi product status and settings go System Options Support System Overview Information that can be found here includes firmware version, IP address, network and security settings, event settings, imagesettings and recent log items. Many of the captions are linked to the proper Setup page.

Logs&Reports

The SystemOptionsSupportLogReportpage generates logs and reports useful system analysis and troubleshooting if contactingAxisSupport, please provide a valid Server Report with your query.

SystemLog-Providesinformationaboutsystemevents.

AccesLogListalfailed attempts to access the product The AccesLogan also configured disal connections to the product(seebelow).

ServeReport Provides information about the product status: pop-up window The Access Log automatically included in the Server Report.

Youcanviewordownloadtheserverreport.Downloadingtheserverreportcreatesa.zipfilethatcontainsacompleteserverreport texfileUTF-formatSelectdIncludenapshowwithdefaultmagsettingsoptionincludesnapshoftheproductlive View.Theserverreport.zipfileshouldalwaysbeincludedwhencontactingsupport.

ParametelisShowProduct' parameters and their current settings This may prove useful when troubleshooting or when contacting AxisSupport.

ConnectionList-Listsallclientsthatarecurrentlyaccessingmediastreams.

CrashReport-Generatesanarchivewithdebugginginformation.Thereporttakesseveralminutestogenerate.

Advanced

Scripting

Scriptingallowsexperienceduserstocustomizeandusetheirownscripts.

NOTICE

Improperuse may cause unexpected behavior and loss of contact with the Axis product.

Axisstronglyrecommendsthatyoudonotusethisfunctionunlessyouunderstandtheconsequences.AxisSupportdoesnotprovide assistanceforproblemswithcustomizedscripts.

To Perth Script Editor and System Options Advanced Scripting Scriptauses problems, reseth products factory defaultsettings, see page 56.

Formoreinformation,seewww.axis.com/developer

FileUpload

Files,forexamplewebpagesandimages,canbeuploadedtotheAxisproductandusedascustomsettings.Touloadafile,go toSystemOptions>Advanced>FileUpload.

Uploadedfilesaccessedthroughhttp:///local//wherethe selectedusergroup(viewer,operatororadministrator)fortheuploadedfile.

PlainConfig

PlainConfigisforadvanceduserswithexperienceofAxisproductconfiguration.Mostparameterscanbesetandmodifiedfrom thispage.

ToperPlainConfigdSystemOptionsAdvancedPlainConfigAxisSupportdoesnoprovideassistance.

ResettoFactoryDefaultSettings

Important

Resettofactorydefaultshouldbeusedwithcaution.Aresettofactorydefaultwillresetallsettings,includingtheIP address,tothefactorydefaultvalues.

Note

The installation and management software tools are available from the support pages on www.axis.com/techsup

Toresettheproducttothefactorydefaultsettings:

1. Disconnectpowerfromtheproduct.
   PresandholdthecontrobuttonandeconnectpowerSedHardwareOvervieworpag
2. Keep the control button pressed for 15–30 seconds until the status LED indicator flashes amber.
3. Releasethecontrolbutton. The process is complete when the status LED indicator turns green. The product has been reset to the factory default settings in DHCP server available on the network the default address 192.168.0.90
4. Using the installation and management software tools, assign an Paddress, set the password, and access the videostream.

ItalspossiblereseparametersfactorydefaultviahewebinterfaceGdoSetupSystemOptionsMaintenanceandclickDefault.

Troubleshooting

ChecktheFirmware

Firmwareissoftwarethatdeterminesthefunctionalityofnetworkdevices.Oneofyourfirstactionswhentroublershootingaproblem shouldbetocheckthecurrentfirmwareversion.Thelatestversionmaycontainacorrectionthatfixesyourparticularproblem.The currentfirmwareversiontheAxiproductsdisplayedthepagSetupBasiSetupandrSetupAbout.

UpgradetheFirmware

Important

• Yourdealerreservestherighttochargeforanyrepairattributabletofaultyupgradebytheuser.
• Preconfiguredandcustomizedsettingsaresavedwhenthefirmwareisupgraded(providingthefeaturesareavailableinthenewfirmware)althoughthisisnotguaranteedbyAxisCommunicationsAB.

Note

• Aftertheupgradeprocesshascompleted, theproductwillrestartautomatically. Ifrestartingtheproductmanuallyafterthe upgrade, wait10minutesevenifyoususpecttheupgradehasfailed.
• When you upgrade the Axis product with the latest firmware from Axis website, the product receives the latest functionality available. Always read the upgrade instructions and releases notes available with each new release before upgrading the firmware.

Toupgradetheproduct'sfirmware:

1. Download the latest firmware file to your computer, available free of charge at www.axis.com/techsup
2. GotoSetup>SystemOptions>Maintenanceintheproduct'swebpages.
   UndeUpgradServeryclicBrowse and locate the file your computer.
   4.ClickUpgrade.
3. Wait approximately 10 minutes while the product is being upgraded and restarted. Then access the product.

AXISCameraManagementbanusedomultipleupgradesSeewww.axis.comfromoreinformation.

Symptoms, Possible Causes and Remedial Actions

ProblemssettingtheIPaddress

WhenusingARP/Ping	Trytheinstallationagain.TheIPaddressmustbesetwithintwominutesafterpowerhasbeen appliedtotheproduct.EnsurethePinglengthissetto408.Forinstructions,seeAssignIPAddressUsingARP/Pingonpage47.
Theproductislocatedona differentsubnet	IfthelPaddressintendedfortheproductandthelPaddressofthecomputerusedtoaccessthe productarelocatedondifferentsubnets,youwillnotbeabletosethelPaddress.Contactyour networkadministratortoobtainanIPaddress.

Troubleshooting

TheIPaddressisbeingused byanotherdevice

DisconnecttheAxisproductfromthenetwork.RunthePingcommand(inaCommand/DOS window,typepingandthelPaddresssoftheproduct):Ifyoureceive:Replyfrom:bytes=32;time=10... thismeansthatthelPaddressmayalreadybeinusebyanotherdeviceonthenetwork. ObtainanewIPaddressfromthenetworkadministratorandreinstalltheproduct.Ifyoureceive:Requesttimedout,thismeansthatthelPaddressisavailable forusewiththeAxisproduct.Checkallcablingandreinstalltheproduct.

PossibleIPaddressconflict withanotherdeviceonthe samesubnet.

ThestaticIPaddressintheAxisproductisusedbeforetheDHCPserversetsadynamicaddress. ThismeansthatifthesamedefaultstaticIPaddressisalsousedbyanotherdevice,theremay beproblemsaccessingtheproduct.

Theproductcannotbeaccessedfromabrowser

Cannotlogin	WhenHTTPSisenabled,ensurethatthecorrectprotocol(HTTPorHTTPS)isusedwhenattemptingtdoginYoumayneedmanuallytypehttpithttpsithebrowser'saddressfield.
	Ifthepasswordfortheuserrootislost,theproductmustberesettothefactorydefaultsettings.SeeResettoFactoryDefaultSettingsonpage56.
ThelPaddresshasbeenchangedbyDHCP	IPaddressesobtainedfromaDHCPserveraredynamicandmaychange.IfthelPaddresshasbeenchanged,useAXISIPUtilityorAXISCameraManagementtolocatetheproductonthenetwork.Identifytheproductusingitsmodelorserialnumber,orbytheDNSname(ifthenamehasbeenconfigured).
	Ifrequired,astaticlPaddressscanbeassignedmanually.Forinstructions,seethedocumentAssignandAddressandAccesstheVideStreamorAxisSupportwebwww.axis.com/techsup.
CertificateerrorwhenusingIEEE802.1X	Forauthenticationtoworkproperly,thedateandtimesettingsintheAxisproductshouldbesynchronizedwithanNTPserver.SeeDateEtTimeonpage46.

Theproductisaccessiblelocallybutnotexternally

RouterconfigurationToconfigureyourroutertoallowincomingdatatrafficitotheAxisproduct,enabletheNAT-traversalfeaturewhichwillattempttoautomaticallyconfiguretheroutertoallowaccesstotheAxisproductsedNATraversa(portmapping)forPv4orpage50TheroutemustupportUPnP		TM.
Firewallprotection	CheckthelInternetfirewallwithyournetworkadministrator.
Defaultroutersrequired	CheckifyouneedtoconfiguretheroutersettingsfromSystemOptions>Network>TCP/IP>Basic.

ProblemswithstreamingH.264

ProblemswithAXISMedia Control(InternetExplorer only)	ToenabletheupdatingofvideoimagesinInternetExplorer,setthebrowsertoallowActiveX controls.Also,makesurethatAXISMediaControlisinstalledonyourcomputer.
NoH.264displayedinthe client	CheckthattherelevantH.264connectionmethodsandcorrectinterfaceareenabledintheAMC ControlPanel(streamingtab).SeeAXISMediaControl(AMC)onpage13.
	IrtheAMCcontroPanelselectdH.264bandclicSetdefaultH.264decoder.
	CheckthaRTSPenabledundesystemOptionsNetworkTCP/IPAdvanced.
MulticastH.264only accessiblebylocalclients	Checkifyourroutersupportsmulticasting,orifteroutersettingsbetweentheclientandthe productneedtobeconfigured.TheTTL(TimeToLive)valuemayneedtobeincreased.
NomulticastH.264 displayedintheclient	CheckwithyournetworkadministratorthatthemulticastaddressesusedbytheAxisproduct arevalidforyournetwork.
	Checkwithyournetworkadministratortoseeifthereisafirewallpreventingviewing.

Troubleshooting

PoorrenderingofH.264 images	Ensurethatyourgraphicscardisusingthelatestdriver.Thelatestdriverscanusuallybe downloadedfromthemanufacturer'swebsite.
Colorsaturationisdifferent inH.264andMotionJPEG	Modifythesettingsforyourgraphicsadapter.Refertotheadapter'sdocumentationformore information.
Lowerframeratethan expected	SeePerformanceConsiderationsonpage62.Reducethenumberofapplicationsrunningontheclientcomputer.Limitthenumberofsimultaneousviewers.Checkwiththenetworkadministratorthatthereisenoughbandwidthavailable.CheckintheAMCControlPanel(H.264tag)thatvideoprocessingisNOTsettoDecodeonly keyframes.Lowertheimageresolution.SetCaptureModchaprioritizesframeRateChanginghecapturemodeprioritizeframeRatewilllowerthemaximumresolution.SeeCaptureModeonpage19.Themaximumframespersecondisdependentonthutilityfrequency(60/50Hz)oftheAxis product.SeeTechnicalSpecificationsonpage60.

Videoandimageproblems,general

Imageunsatisfactory	CheckthevidestreamandcamersettingsundefSetupVideoVideStreamandSetup>Video>CameraSettings.
Storageanddiskmanagementproblems
Storagedisruption	Astoragedisruptionalarmissentifastoragedeviceisunavailable,removed,full,lockedorifotherreadwriteproblemsoccurIdentifythesourcoftheproblemcheckthSystemLogunderSystemOptions>Support>LogstReports.Dependingontheproblem,itmightbenecessarytore-mountthestorgagedevice.Forinformationonhowtosetupastoragedisruptionalarm,seeEventsonpage36.
Videocannotberecorded	CheckthattheSDcardisnotwriteprotected(thatis,readonly).
SDcardcannotbemountedReformattheSDcardandthenclickMount.

NOTICE

Formattingthecardwillremoveallcontent,includingallrecordings,fromtheSDcard.

TechnicalSpecifications

Camera
Imagesensor	ProgressivescanRGBCMOS1/2.8"
LensVarifocal,3.0-10.5mm,F1.4Horizontalfieldofview92°-34°Verticalfieldofview50°-20°Remotefocusandzoom,P-Iriscontrol,IRcorrected
DayandnightAutomaticallyremovableinfrared-cutfilter
Minimumillumination	HDTV720p25/30fpswithWDR-ForensicCapture:Color:0.25lux,F1.4B/W:0.05lux,F1.4,0luxwithIRilluminationonHDTV720p50/60fps:Color:0.5lux,F1.4B/W:0.1lux,F1.4,0luxwithIRilluminationon
Shuttertime	1/142850sto2s
Cameraangleadjustment	Pan±180°,tilt-5to+75°,rotation±95°
Video
Vidocompression	H.264Baseline,MainandHighProfile(MPEG-4Part10/AVC)MotionJPEG
Resolutions	1280x960to160x90
Framerate	WithWDR:25/30fpswithpowerlinefrequency50/60HzWithoutWDR:50/60fpswithpowerlinefrequency50/60Hz
Vidostreaming	Multiple,individuallyconfigurablestreamsinH.264andMotionJPEGAxis'ZipstreamtechnologyinH.264Controllableframerateandbandwidth,VBR/MBRH.264
Multi-viewstreaming	2individuallycroppedoutviewareas
Imagesettings	Compression,Color,Brightness,Sharpness,Contrast,Whitebalance,Exposurecontrol(includingautomaticgain control),Exposurezones,Finetuningofbehavioratdifferentlightlevels,WDR-ForensicCapture:Upto120dB dependingonscene,Localcontrast,Textandimageoverlay,Mirroringofimages,PrivacymasksRotation:0°,90°,180°,270°,includingCorridorFormat
Pan/Tilt/Zoom	DigitalPTZ
Network
SecurityPasswordprotection,IPaddressfiltering,HTTPsaencryption,IEEE802.1X a networkaccesscontrol,Digest authentication,Useraccesslog,CentralizedCertificateManagement
Supportedprotocols	IPv4/v6,HTTP,HTTPsa,SSL/TLSa,QoSLayer3DiffServ,FTP,CIFS/SMB,SMTP,Bonjour,UPnP TM,SNMPv1/v2c/v3(MIB-II),DNS,DynDNS,NTP,RTSP,RTP,SFTP,TCP,UDP,IGMP,RTCP,ICMP,DHCP,ARP,SOCKS,SSH
Systemintegration
ApplicationProgrammingInterface	OpenAPIforsoftwareintegration,includingVAPIX®andAXISCameraApplicationPlatform;specifications atwww.axis.comAXISVideoHostingSystem(AVHS)withOne-ClickConnectionONVIFProfileS,specificationatwww.onvif.org
Analytics	AXISVideoMotionDetection3,ActivetamperingalarmSupportforAXISCameraApplicationPlatformenablinginstallationofAXISCrossLineDetection,AXISDigitalAutotrackingandthird-partyapplications,seewww axis.com/acap
EventtriggersAnalytics,Edgestorageevents
Eventactions	Fileupload:FTP,SFTP,HTTP,HTTPS,networkshareandemailNotification:email,HTTP,HTTPS,TCPandSNMPtrapVideorecordingtoedgestoragePre-andpost-alarmvideobufferingSendvideoclipOverlaytextIRilluminationon/off
Data streaming	Eventdata
Built-in installation aids	Remotezoom,Remotefocus,Pixelcounter,OptimizedIRwithadjustableIRilluminationangleandintensity
General
Casing	AluminuminnercameramodulewithencapsulatedelectronicsIP52-rated,IK08impact-resistantcasingwith dehumidifyingmembraneColor:whiteNCSS1002-BForrepaintinginstructionsofskincoverorcasingandimpactonwarranty,contactyourAxispartner.
SustainabilityPVCfree
Memory512MBRAM,256MBFlash
Power	PoweroverEthernetIEEE802.3af/802.3atType1Class3,max10.2W,typical3.9W
Connectors	RJ4510BASE-T/100BASE-TXPoE
IRillumination	OptimizedIRwithpower-efficient,long-life850nmIRLEDswithadjustableangleofilluminationandintensity.Rangeofreachupto25m(82ft)dependingonscene
Storage	SupportformicroSD/microSDHC/microSDXCcardSupportforrecordingtodedicatednetwork-attachedstorage(NAS)ForSDcardandNASrecommendationssee www axis.com
Operating conditions	0°Cto50°C(32°Fto122°F)Humidity10to85%RH(non-condensing)
Storage conditions	-40°Cto65°C(-40°Fto149°F)
Approvals	EN55022ClassB,EN61000-6-1,EN61000-6-2,EN55024,EN50121-4,IEC62236-4,FCCPart15SubpartBClassAandB,ICES-003ClassB,VCCIClassB,RCMAS/NZSCISPR22ClassB,KCCKN22ClassB,KN24IEC/EN/UL60950-1,IEC/EN62471IEC60068-2-1,IEC60068-2-2,IEC60068-2-14IEC60068-2-6(vibration),IEC60068-2-27(shock),IEC60068-2-78,IEC/EN60529IP52,IEC/EN62262IK08
Dimensions	Height:101mm(4in)ø149mm(57/8in)
Weight	580g(1.3lb)
Included accessories	InstallationGuide,Windowsdecoder1-userlicense,Mountingbracket,Cablegasket,ResistorxT20L-key,Drill template
Optional accessories	AXISACIConduitBracketBAXISACIConduitAdaptersAXIST94K01LRecessedMountKitAXIST94K01DPendantKitAXIST91Mounts

TechnicalSpecifications

	AXISSkinCoverC,Black
Video management software	AXISCameraCompanion,AXISCameraStation,VideomanagementsoftwarefromAxis'ApplicationDevelopment Partnersavailableonwww axis.com/techsup/software
Languages	English,German,French,Spanish,Italian,Russian,SimplifiedChinese,Japanese,Korean,Portuguese,Traditional Chinese
Warranty	Axis3-yearwarrantyandAXISExtendedWarrantyoption,see www axis.com/warranty

aThisproductincludessoftwaredevelopedbytheOpenSSIProjectfousertheOpenSSIToolkit(www.openssl.org)andcryptographicsoftwarewrittenbyEricYoung([e-mail]).

Environmental responsibility: www.axis.com/environmental-responsibility

PerformanceConsiderations

Whensettingupyour system, it is important to consider how various settings and situations will affect performance. Some factors affect the amount of bandwidth (the bitrate) required, others can affect the framerate, and some affect both. If the load on the CPU reaches its maximum, this will also affect the framerate.

The following factors are among them most important to consider:

• Highimageresolutionand/orlowercompressionlevelsresultinimagescontainingmoredata.Bandwidthaffected.
• AccessbylargenumbersofMotionJPEGand/orunicastH.264clients.Bandwidthaffected.
• Simultaneousviewingofdifferentstreams(resolution, compression)bydifferentclients.Effectonframerateand bandwidth.
• AccessingMotionJPEGandH.264videostreamssimultaneously.Framerateandbandwidthaffected.
• Heavyusageofeventsettingsaffecttheproduct'sCPUload.Framerateaffected.
• UsingHTTPSmayreduceframerate, inparticularifstreamingMotionJPEG.
• Heavynetworkutilizationduetopoorinfrastructure.Bandwidthaffected.
• Viewingonpoorlyperformingclientcomputerslowersperceivedperformance.Framerateaffected.
• RunningmultipleAXISCameraApplicationPlatform(ACAP)applicationssimultaneouslymayaffecttheframerateand thegeneralperformance.
