BRUGSANVISNING RF122-150 SoundTube

RF series

Install Instructions For:

RF122-150

Speaker will fit 2 cubic foot backcans/grilles from:

AMK, Atlas, Elkay, Lowell, Quam and others

Box contents

1 Speaker

1.435.647.9555 | 800.647.TUBE | www.soundtube.com

© 2007 SoundTube Entertainment, Inc. All rights reserved. PN INS-RF122-150 Rev 11.16.0

Warning Warning

SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.

Do not spec or install speaker near support beam, ventilation duct or other structure that may interfere with speaker function or dispersion.

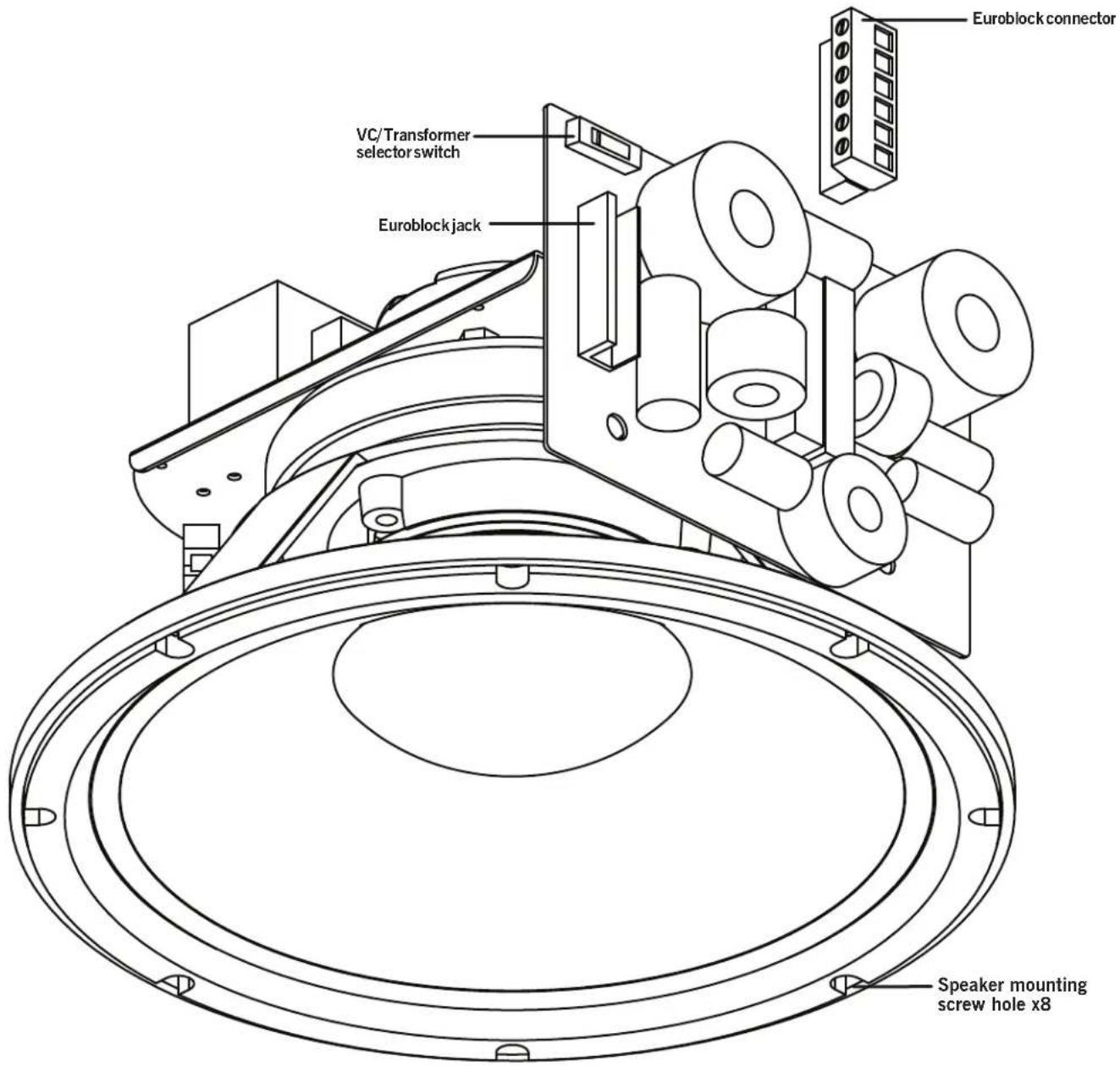

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

Simple line drawing of a hand holding a flat object above a horizontal line (no text or symbols)

Diagram of a cable or connector being inserted into a socket, with no visible text or symbols

Simple line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

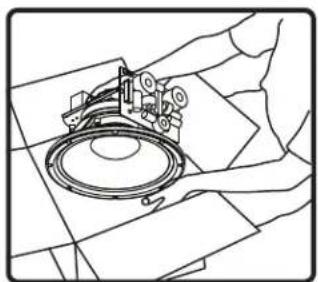

1. Unpack speaker. 3. Connect2 Signalfire Remove old speaker from backbox and grille. Save grille nuts to reattach grille.

New Install - Install backbox following instructions provided by the manufacturer.

euroblock. Use diagram on speaker or at the bottom of this page to chose desired tap setting.

1. If using 8ohm/VC direct set switch on top left of PC board to 8 Ohm mode.

Technical line drawing of a mechanical assembly with wires and components (no text or symbols)

1. Connect euroblock to speaker.

Simple line drawing of a hand holding a circular object above a horizontal line (no text or symbols)

1. Insert speaker into backbox.

Simple line drawing of a hand holding a flatboard over a surface (no text or symbols)

1. Attach grille 7. Done!

Simple geometric diagram with a diamond shape inside a rectangle (no text or symbols)

Tap setting Chart
