BRUGSANVISNING 12.301321-03 PIONEER

Pioneer

sound. vision. soul

Installation manual for:

Audi A4 2002 -->

With Symphony radio

Disassembled electronic components laid out on a plain surface, including plastic enclosures and terminal blocks (no text or symbols visible)

Installation kit includes the following items:

* 1X 2-ISO 110 mm. metal bracket
* 1X Radio trim
* 1X Replacement panel
* 2X Mounting plates
* 2X Mounting spacers
* 4X Screws
* 2X Cushion
* 2X Radio keys

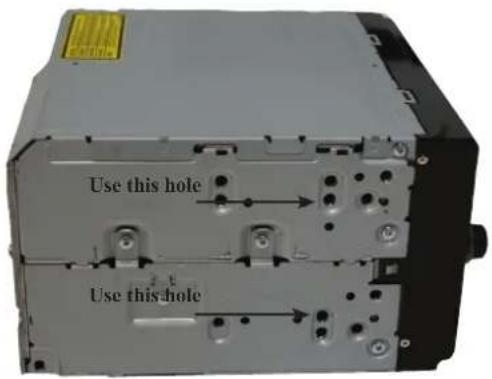

Use this hole Use this hole

PIONEER 12.301321-03 - With Symphony radio - 3

Pioneer HD1BT

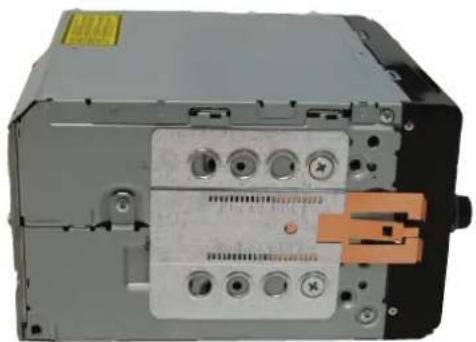

We advice to use the following positions. Other positions are also possible.

Use position 1 marked with a cross. Use position 14 & 16 marked with an arrow. Measured from left to right.

Exterior view of a mechanical device with multiple ports and mounting holes (no visible text or symbols)

PIONEER 12.301321-03 - With Symphony radio - 5

Pioneer Avic D3

We advice to use the following positions. Other positions are also possible.

Use position 1 marked with a cross. Use position 9 & 11 marked with an arrow Measured from left to right.

Pioneer

sound. vision. soul

1

Interior view of a vehicle's dashboard and control panel (no visible text or symbols)

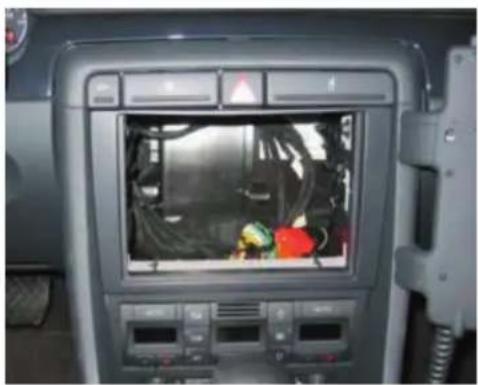

Remove original radio.

2

Interior view of a vehicle dashboard with a central touchscreen display showing internal components (no visible text or symbols)

Place Audi a4 2 ISO panel

3

Interior view of a vehicle's rear dashboard showing internal wiring and display panel (no visible text or symbols)

Place metal 2 DIN bracket.

4

Interior view of a car dashboard with a digital display showing a blurred scene (no visible text or symbols)

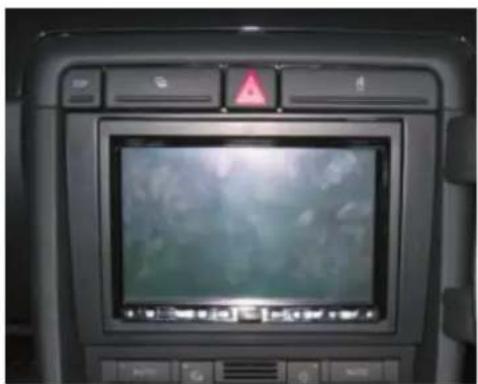

Place panels back in reverse order.
