BRUGSANVISNING 12.301232-04 PIONEER

Pioneer

sound. vision. soul

2-DIN 12.301232-01/

12.301232-18

Installation manual for:

Opel various models

Exterior view of a plastic enclosure with metal components and two empty rectangular enclosures on a green background (no text or symbols)

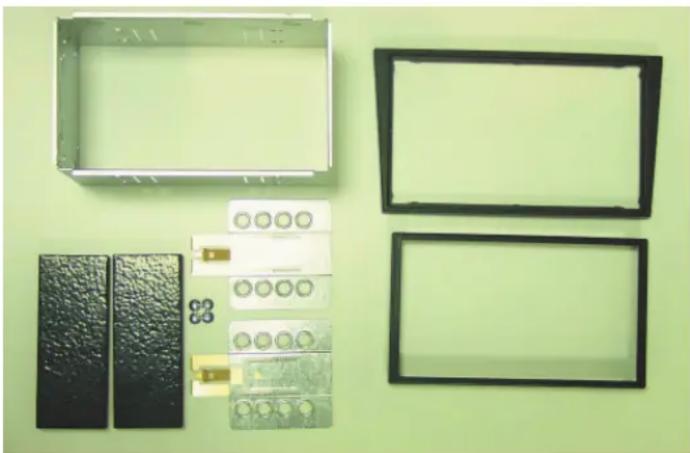

Installation kit includes the following items:

* 1X 2-ISO 100 mm. metal bracket
* 1X Replacement frame
* 1X Radio trim
* 2X Mounting plates
* 2X Mounting spacers
* 4X Screws
* 2X Cushion

Use this hole Use this hole

PIONEER 12.301232-04 - Opel various models - 3

Pioneer HD1BT

We advice to use the following positions.

Other positions are also possible.

Use position 1 marked with a cross.

Use position 12 & 14 marked with an arrow.

Measured from left to right.

Close-up of a mechanical or electronic device with multiple ports and mounting brackets (no visible text or symbols)

PIONEER 12.301232-04 - Opel various models - 5

Pioneer Avic D3

We advice to use the following positions.

Other positions are also possible.

Use position 1 marked with a cross.

Use position 10 & 12 marked with an arrow

Measured from left to right.

Pioneer sound. vision. soul

1

Interior view of a car dashboard with air filters and control knobs (no visible text or symbols)

Remove the original radio unit using Philips radio keys at the location of the arrows.

2-DIN 12.301232-01/12.301232-18

2

Interior view of a car dashboard with air filters and a central touchscreen display (no visible text or symbols)

Remove the original radio bracket. This is tighten by a screw at the location of the arrow. (The screw might be at a other location in other models)

3

Interior view of a car dashboard with air filters and a digital display (no visible text or symbols)

Place the replacement panel and the 2-Din met bracket.

4

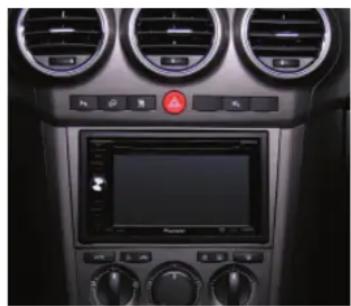

Interior view of a car dashboard with air conditioners, a central touchscreen display, and control buttons (no visible text or symbols)

Place the head unit and radio trim.

Opel Agila 2004 --> Black 12.301232-13

Opel Agila/ Corsa /Astra--> 2004 Black 12.301232-01

Opel Antara 2007 --> Black 12.301232-18

Opel Astra 2004 -->

Opel Astra 2004 --> Black 12.301232-06

Opel Astra 2004 --> Silver 12.301232-04

Opel Astra 2006 --> Beige 12.301232-17

Opel Corsa 2006 --> Beige 12.301232-14

Opel Corsa 2006 --> Silver 12.301232-15

Opel Corsa 2006 --> Black 12.301232-16

Opel Corsa C/Corsa C Combi 2003 --> Silver 12.301232-03

Opel Meriva/ Tigra 2003 --> Silver 12.301232-03

Opel Vectra C+CW/ Signum 2005 --> Silver 12.301232-07

Opel Vectra C+CW/ Signum 2005 --> Antracite 12.301232-08

Opel Vectra C+CW/ Signum 2005 --> Black 12.301232-09

Opel Vectra/ Signum 2003 --> 2005 Antracite12.301232-02

Opel Vivaro/ Vectra --> 2003 Black 12.301232-01

Opel Zafira 2005 --> Silver 12.301232-10

Opel Zafira 2005 --> Antracite 12.301232-11

Opel Zafira 2005 --> Black 12.301232-12

Antracite 12.301232-05
