BRUGSANVISNING VTD-C75 Vitek
VITEK
PERFORMANCE YOU NEED
QUALITY YOU TRUST
VTD-B72 / C75 / C14
B/W & COLOR INDOOR DOME CAMERAS


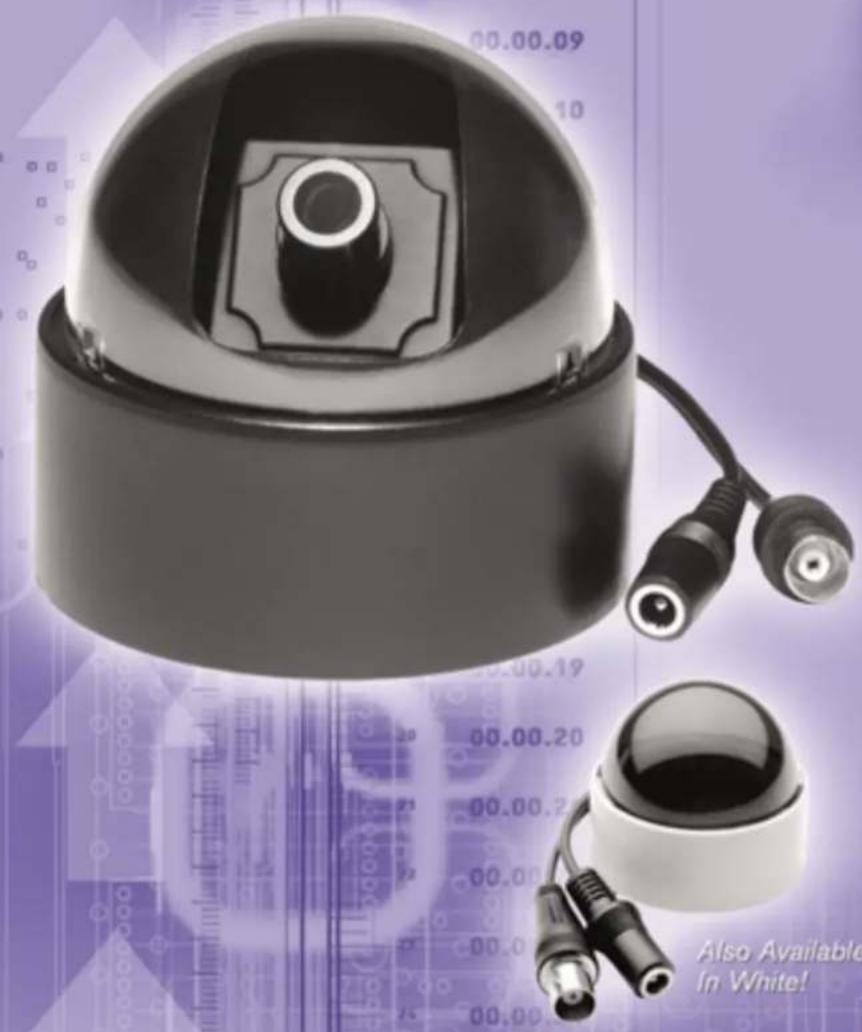

Black-and-white photo of a security camera with dual cables and a sensor, displayed against a purple background (no text or symbols on the main objects)VTD-B72:
1/3" B/W SONY CCD WITH 400 TVL
▶ 0.1 LUX SENSITIVITY
▶ ATTRACTIVE AND COMPACT
▶ CHOOSE FROM BLACK OR WHITE BASE AND BUBBLE
VTD-C75:
1/3" COLOR SONY CCD WITH 420 TVL
▶ 0.5 LUX SENSITIVITY
▶ ATTRACTIVE AND COMPACT
▶ CHOOSE FROM BLACK OR WHITE BASE AND BUBBLE
VTD-C14:
1/4" COLOR PANASONIC CCD WITH 380 TVL
1.0 LUX SENSITIVITY
▶ ATTRACTIVE AND COMPACT
▶ CHOOSE FROM BLACK OR WHITE BASE AND BUBBLE
The B/W (VTD-B72) and Color (VTD-C75 & VTD-C14) Indoor Dome Cameras deliver sharp, natural images at a very low overall cost. These small yet attractive cameras are an excellent choice for convenience stores or office buildings. They accept 12 VDC power input for ease of use in remote or covert installations.
| Specifications | VTD-B72 | VTD-C75 | VTD-C14 |
| Image Device | 1/3" B/W Sony CCD image Sensor | 1/3" Color Sony CCD Image Sensor | 1/4" Color Panasonic CCD image sensor |
| Effective Pixels | 512 x 492 | 510 x 492 | 512 x 492 |
| Resolution | 400 TV Lines | 420 TV Lines | 380 TV Lines |
| Minimum Illumination | 0.1 Lux / F2.0 | 0.5 Lux / F2.0 | 1 Lux / F2.0 |
| S/N Ratio | More Than 48dB | More Than 48 db | More Than 48dB (AGC Off) |
| Electronic Shutter | 1/60 to 1/100,000 sec. | 1/60 to 1/100,000 sec. | 1/60 to 1/100,000 sec. |
| Gamma Correction | N/A | N/A | 0.45 |
| White Balance | N/A | Auto White Balance | Auto White Balance |
| AGC | N/A | N/A | Yes |
| BLC Function | N/A | Auto Detect | N/A |
| Lens Angle | 92° | 92° | 70° |
| Video Output | Composite: 1.0 Vp-p / 75Ω | Composite: 1.0 Vp-p / 75Ω | Composite: 1.0 Vp-p / 75Ω |
| Power Source | 12VDC (+/-10%) | 12VDC (+/-10%) | 12VDC (+/-10%) |
| Power Consumption | 120mA | 120mA | 80mA |
| Standard Lens | f3.6mm / F2.0 (2.9/6/8/12mm Optional) | f3.6mm / F2.0 (2.9/6/8/12mm Optional) | f3.6mm / F2.0 (2.9/6/8/12mm Optional) |
| Dimensions (W x H) | 3.43" x 3.18" | 3.43" x 3.18" | 3.43" x 3.18" |
| Weight | 280 g. / 9.87 oz. / 0.611 lbs. | 280 g. / 9.87 oz. / 0.611 lbs. | 280 g. / 9.87 oz. / 0.611 lbs. |
