BRUKSANVISNING SC-204R SANYO

INSTRUCTION MANUAL

SC-163R/204R

VACUUM CLEANER

Cartoon illustration of a white robotic head with black accents and open mouth (no text or symbols)

Please Read The Instruction Manual Carefully Before Use Save These Instructions

SANYO Electric Co., Ltd. Made in China

FEATURES

Warning: This appliance is for household use only. It is only used to remove dust indoors but not applied for industrial or coating areas.

• Streamline mold-making and luxury design, representing modern fashionable life fully.
• Multi-filter avoids the second air pollution

Using the multi-filter system ensures all the dust stays in the body, and the air is clean from the outlet.

• Small in dimension, but the dust bag capacity is large. It is a economical appliance indeed.
• One appliance fitted with multi-purpose nozzle suck up dust on carpet or hard floor but also to remove dust on wall, ceiling, couch, bed and all home electric appliance.
• Reasonable design for the dust bag holder. Dust bag can drop down automatically, when you press the clamp button, it is convenient and healthy.
• 360° swivel suction tube for easy cleaning
• With bumping protection device, avoiding scratch on the body in use.
  • High suction power and stepless speed regulation

Using electronic regulation system, you can adjust the suction power as you need between 1400W to 1600W by adjusting a suction control.

• Dust bag full indicator function

When the dust bag or the air filter is full of dust, the dust full indicator on top of the body will be covered by red indications. This shows that you need to empty the dust bag or clean the air filter.

This motor is equipped with a heat sensitive thermostat. If for some reason the vacuum cleaner will overheat, it will then stop working automatically. When the motor gets cool, the unit will restart by itself.

DESCRIPTIONS OF PARTS

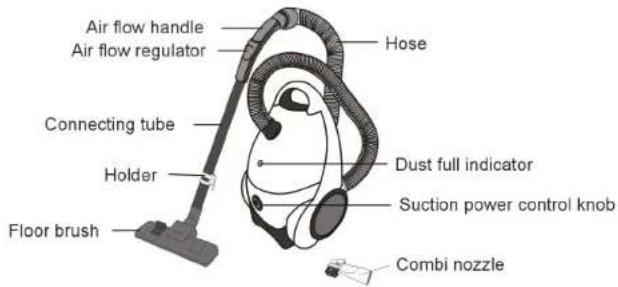

Assemble the parts for your appliance by referring to the figure as shown below:

PRECAUTIONS

1. This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely.
2. Young children should be supervised to ensure that they do not play with appliance.
3. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
4. Keep the appliance away from high temperature objects such as stove so as not to influence its operation by deforming its plastic parts (fig. 1).
5. Do not bend, step, pull or carry by the flexible hose.
6. Stop using the broken or demaged hose (fig.2).
7. When you need to clean or repair your appliance or stop operation, unplug from the power outlet. To unplug, be sure to hold the plug, not to pull or carry by the power cord (fig.3).
8. Be sure to place dust bag in right position. Do not operate the appliance without dust bag in its position (fig.4).

FEATURES

Warning: This appliance is for household use only. It is only used to remove dust indoors but not applied for industrial or coating areas.

• Streamline mold-making and luxury design, representing modern fashionable life fully.
• Multi-filter avoids the second air pollution

Using the multi-filter system ensures all the dust stays in the body, and the air is clean from the outlet.

• Small in dimension, but the dust bag capacity is large. It is a economical appliance indeed.
• One appliance fitted with multi-purpose nozzle suck up dust on carpet or hard floor but also to remove dust on wall, ceiling, couch, bed and all home electric appliance.
• Reasonable design for the dust bag holder. Dust bag can drop down automatically, when you press the clamp button, it is convenient and healthy.
• 360° swivel suction tube for easy cleaning
• With bumping protection device, avoiding scratch on the body in use.
  • High suction power and stepless speed regulation

Using electronic regulation system, you can adjust the suction power as you need between 1400W to 1600W by adjusting a suction control.

• Dust bag full indicator function

When the dust bag or the air filter is full of dust, the dust full indicator on top of the body will be covered by red indications. This shows that you need to empty the dust bag or clean the air filter.

This motor is equipped with a heat sensitive thermostat. If for some reason the vacuum cleaner will overheat, it will then stop working automatically. When the motor gets cool, the unit will restart by itself.

DESCRIPTIONS OF PARTS

Assemble the parts for your appliance by referring to the figure as shown below:

PRECAUTIONS

1. This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely.
2. Young children should be supervised to ensure that they do not play with appliance.
3. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
4. Keep the appliance away from high temperature objects such as stove so as not to influence its operation by deforming its plastic parts (fig. 1).
5. Do not bend, step, pull or carry by the flexible hose.
6. Stop using the broken or demaged hose (fig.2).
7. When you need to clean or repair your appliance or stop operation, unplug from the power outlet. To unplug, be sure to hold the plug, not to pull or carry by the power cord (fig.3).
8. Be sure to place dust bag in right position. Do not operate the appliance without dust bag in its position (fig.4).

1. Do not vacuum particles such as mud, paste and wall ashes, otherwise it may result in obstruction to the dust bag or air filter or damage to the motor. If sucking up these particles, please immediately clean the dust bag and air flow filter (fig.5).

2. Do not vacuum hair rolls, large paper rolls or other objects which may easily lead to block the suction hole, suction tube or hose. Otherwise it may cause break-down or deforming of body cover. If any suction block occurs stop operation immediately by unplugging from the outlet for cleaning (fig.6).

3. When cleaning the appliance, wet cloth soaked with water or neutral detergent shall be used. Do not use high volatility or alcoholic detergent such as gasoline. Otherwise it may lead to breakage or fadeness of the body cover (fig.7).

4. When in use, do not block or shelter the rear outlet cover to avoid influencing normal air exhaustion. Otherwise, the motor will be damage by overheat.

HOW TO ASSEMBLE

1. Press the button on top of the plastic suction tube head and then push it in the direction of air inlet hole till locked (fig.8).

2. To release the hose, press the button on top of the plastic suction tube head and then pull it out towards you (fig.9).

3. How to use connecting tubes and curved wand? To connect, insert the bigger end of the connecting tube into air flow handle and then rotate it to firm connection (fig.10).

4. To connect each tube, refer to the above instruction 3 (fig.10).

5. To connect tube with floor brush, insert the smaller end of connecting tube into the joint part of the floor brush. Rotate it to firm connection (fig.11).

6. To connect tube with crevice nozzle, refer to the above instruction 5 (fig.10).

HOW TO OPERATE

1. Pull out the power cord

The power cord can be pulled out as long as it is marked with yellow color. Do not exceed the red mark (fig.12).

1. Power cord rewinding

When not in use, unplug the power cord from the outlet.

Press the cord rewind button to wind back the power cord (fig.13).

1. Power button

After plugging into electrical power outlet, press the power button on the body cover to control start and stop (fig.14).

1. Suction regulation

When the power button is on, rotate the suction controller on the middle of rear cover so that the suction power can be adjusted by stepless speed regulation (fig.15).

You can control suction power not only by suction control knob but also by air flow regulator on handle (fig.16).

1. For storage

Insert the plastic holder attached on the connecting tube into the holder hook hole on the front underside of body (fig.17).

1. For cleaning

Pull the connecting tube out of the holder concave (fig.17).

HOW TO USE

1. For corner or crevice place, you can use combi nozzle(fig.18).

2. When the cleaner indicator on top of the body is filled with red indications, it means the dust bag is full of dust. You need to clean cloth dust bag or replace paper dust bag. Also clean the air filter immediately when clogged (fig. 19).

REPLACING THE DUST BAG

1. Lift up the front cover clamp to open the front cover (fig.20).

2. Remove dustbag holder with dustbag (fig.21).

3. If you use a paper dust bag, replace it with a new one. If a cloth dust bag, take out the clip and open the dust bag to empty dust. Insert it back to its position after making sure to seal the bag well with the clip (fig.22).

4. To assemble the dust bag, press the clamp button on the bag holder, and insert the dust bag into the two slots. Release the button to clip the dust bag (Fig.23).

5. If the dust bag is broken, replace it immediately. Warning: The dust bag must be properly attached.

6. Replacing the air inlet filter Open the front cover and turn the dust bag holder over to take out the filter for cleaning or replacing (fig.24).

7. Replacing the air outlet filter Press the clamp position of the air outlet cover to release the air outlet cover for clean up or a new replacement (fig.25).

8. Cleaning the air inlet and outlet filter (fig.26).

1) Put the filter into running water for rinsing.

2) Remove water with towel, then dry it in cool place.

Warning: Do not wash the filter in a washing machine or dry it with a hair dryer to avoid deformation.

TROUBLE SHOOTING GUIDE

Please check the following details before you have your appliance repaired in an authorized servicing department:

Problem	Possible reason	Solution
Motor does not work	1. Check if the power plug is firmly inserted into the outlet.2. Check if the power switch of the appliance is on.	Insert the plug back again into the outlet to secure it is switched on and then turn the power switch on.
Suction power becomes weak	1. Check if the hose, floor brush or connecting tube is clogged.2. Check if the dust is full.3. Check if the air filter is clogged, the connecting tube is correctly attached.	Immediately remove the obstruction and empty dust. Clean the dust bag and reassemble of connecting tubes.
Power cord will not fully rewind	Check if the power cord is twisted.	Pull out the power cord at its certain length and rewind it.
Power cord can not be taken out	The power cord may be twisted.	Rewind or pull the cord in or out for sereral times by pressing the power cord rewind button.
Power cord rewinds itself	The inertial rewinding by the cord rewinder device may lead to be out of control.	Pull the power cord out in for 4-5 times. If still rewinds itself, ask for an authorized servicing department for repair.
No speed regulation	The speed regulation device may be out of control	Restart the appliance for reuse at several times, if it is exactly out of control, ask for an authorized servicing department.
Front cover can't be closed	Check if no dust bag is put inside or the front cover deform without dust bag in right position.	Put the dust bag in right position. If problem still remains, take the appliance to the authorized servicing department.
Dust full indicator is covered by red indications	Check if the floor brush, the hose or the long connecting tube is blocked. See if the dust bag is full and the air filter is clogged.	Immediately remove obstructions away. Clean or replace the dust bag. Clean the air inlet filter.

If the power cord has been broken, it must be repaired or replaced by servicing department that appointed by manufacturer. Do not handle it yourself.
