BRUKSANVISNING IP-3-AFP Finlux

MODEL iP-3-AFP

ENGLISH MANUAL PLAN

SIZE: 102(W) × 136(H) MM

MATERIAL: 80G WOODFREE PAPER

PRINTING COLOR: BLACK

OPERATING INSTRUCTIONS

FINLUX

Line drawing of a rectangular electronic device with buttons and a central display (no text or symbols)

iPod/ iPhone DOCKING HIGH FIDELITY SPEAKER SYSTEM

WITH FM PLL RADIO TUNER

AND ALARM CLOCK

MODEL: iP-3-AFP

Made for

iPhone

The lightning flash and arrowhead within the triangle is a warning sign alerting you of "dangerous voltage" inside the product.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel.

The exclamation point within the triangle is a warning sign alerting you of important instructions accompanying the product.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPLIANCE TO DRIPPING OR SPLASHING LIQUIDS. NOTE: CAUTION SYMBOLS ARE PRINTED ON THE BOTTOM OF UNIT. PLEASE REFER TO INSTRUCTION MANUAL.

CAUTION: GROUNDING OR POLARIZATION. THE PRECAUTIONS SHOULD BE TAKEN SO THAT THE WIDER BLADE OF THE AC PLUG MUST MATCH THE SLOT IN RECEPTACLE "WALL SOCKET".

THE APPARATUS SHOULD NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS SHOULD BE PLACED ON THE APPARATUS.

THE MARKING AND RATING LABEL IS LOCATED AT BOTTOM ENCLOSURE OF THE APPARATUS. THE MAINS PLUG IS USED AS THE DISCONNECT DEVICE AND IT SHALL REMAIN READILY OPERABLE. TO BE COMPLETELY DISCONNECTED THE POWER INPUT, THE MAINS PLUG OF THE APPARATUS SHALL BE DISCONNECTED FROM THE MAINS COMPLETELY. THE MAINS PLUG SHOULD NOT BE OBSTRUCTED OR SHOULD BE EASILY ACCESSED DURING INTENDED USE.

UNDER THE INFLUENCE OF ELECTROSTATIC PHENOMENON,

THE PRODUCT MAY MALFUNCTION AND USER TO POWER RESET

ELECTROSTATIC DISCHARGE (ESD) PRECAUTION

WHEN ELECTROSTATIC DISCHARGE (ESD) OCCURS AT THE FRONT SURFACE (WHETHER METAL OR PLASTIC) OR NEAR ANY PART OR ANY BUTTON OF THIS UNIT, OR AT THE USB PORT AND/ OR SD-CARD SLOTS (IF THEY EXIST ON THIS PRODUCT), THERE MAY BE A POSSIBILITY THAT THE PRODUCT MAY STOP OPERATION AND/ OR SHUT DOWN IMMEDIATELY. THIS IS A NORMAL CONDITION AND INTENDED TO PROTECT THE UNIT AND INTERNAL COMPONENTS AGAINST DAMAGE.

IN SUCH A CASE, PLEASE RESET THE UNIT (BY DISCONNECTING AND RECONNECTING AC-POWER SOURCE) TO REVERT THE UNIT TO NORMAL OPERATION.

DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE.

CAUTION

BATTERY SHOULD NOT BE EXPOSED TO EXCESSIVE HEAT SUCH AS SUNSHINE, FIRE OR THE LIKE.

FRONT VIEW:

LOCATION OF CONTROLS

1. LED DISPLAY

2. SPEAKER

3. BACK-UP BATTERY

COMPARTMENT (BOTTOM OF UNIT)13. VOL. - KEY

1. CAVITY FOR DOCK ADAPTOR

2. ON/ STANDBY KEY

3. PLAY/ PAUSE KEY

4. FUNCTION/CL. SET

5. SEARCH - / SKIP - KEY

6. SEARCH + / SKIP + KEY

7. AL-MODE/ AL-SET KEY

8. EQ/ SLEEP KEY

9. MEMORY KEY

10. VOL. - KEY

11. VOL. + KEY

12. SNOOZE/ DIMMER KEY

13. iPod/ iPhone STAND BOARD

14. DC JACK (DC 7V) —— -—

15. FM ANTENNA WIRE

E-3

POWER SUPPLY

AC OPERATION (EXTERNAL AC-DC POWER ADAPTOR)

THIS SET IS EQUIPPED WITH A "DC-JACK" CAPABLE OF ACCEPTING

AC-ADAPTORS WITH A RATING OF DC - 70, 2A, AND WITH A PLOG WITH THE FOLLOWING POLARITIES AS SHOWN/CENTER POSITIVE

PLEASE USE ONLY THE SUPPLIED AC-ADARTOR TO OPERATE THE UNIT

USE OF OTHER ADAPTORS MAY DAMAGE THE UNIT OR CAUSE IT TO MALFUNCTION.

- PLUG THE TAIL END OF THE AC-ADAPTOR INTO THE DC-JACK (SOCKET)

ON THE REAR OF THE UNIT.

- INSERT THE PLUG OF THE AC-ADAPTOR INTO A WALL OUTLET WITH AC-POWER.

PRESS THE ON/OFF KEY TO SWITCH ON THE UNIT.

THIS UNIT IS DESIGNED TO OPERATE WITHOUT EVER BEING TOTALLY POWERED "OFF".

IT WILL EITHER BE ON OR IN STAND BY MODE

IN STANDBY MODE, THE BLUE BACK-LIGHT OF THE DIGITAL DISPLAY WILL BE DIMMED

BUT THE DISPLAY WILL SHOW THE CURRENT TIME (CLOCK FUNCTION)

ANY TIME DURING STANDBY MODE, YOU CAN SWITCH ON THE UNIT BY PRESSING THE YOUNO DEE KEY

THE ON/OFF KEY SAVE ENERGY BY

- SAVE ENERGY BY SWITCHING THE SYSTEM TO STANDOT MODE WHEN NOT IN USE.

BACK UP BATTERIES

OPEN THE BATTERY DOOR AT THE BOTTOM OF UNIT.

- INSERT 2 PCS "AAA-CELL" (UM-4/LR03 TYPE) BATTERIES IN THE BATTERY

COMPARTMENT.

THESE 2 BATTERIES ARE FOR BACKUP OF THE "CLOCK" DURING BRIEF POWER

OUTAGES*

DIMMER FUNCTION

THIS SET HAS A DIMMER FUNCTION TO ADJUST THE BRIGHTNESS LEVEL

OF THE DISPLAY BACKLIGHT. SIMPLY ADJUST IT AS DESIRED BY PRESSING

THE SNOOZE/ DIMMER KEY REPEATEDLY (HI-DIMMER / LOW-DIMMER / OFF)

TO REDUCE EYE STRAIN, AND TO SAVE ENERGY

THE DISPLAY BACKLIGHT WILL ALWAYS RETURN IN HI-DIMMER AFTER RESET THE UNIT.

E-4

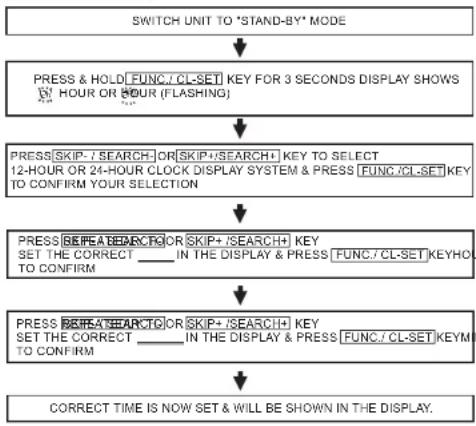

DIGITAL CLOCK FUNCTION

THE SET HAS A BUILT-IN DIGITAL CLOCK, WHEN THE SET IS IN "STANDBY MODE". (THE DISPLAY WILL CONTINUOUSLY SHOW THE CURRENT TIME).

HOW TO SET CORRECT TIME:

ALARM FUNCTION

- THIS SET IS EQUIPPED WITH 3 ALARM MODES: BUZZER, RADIO AND iPod. BEFORE SETTING THE ALARM, MAKE SURE TO SET THE CLOCK (SEE "DIGITAL CLOCK FUNCTION" IN THE PERVIOUS SECTION).

PREPARE FOR THE ALARM SETTINGS

PRESS THE ON/ STANDBY KEY TO SWITCH ON THE SET (DISPLAY BLUE LIGHT WILL BE "ON")

"ALARM" TIME SETTING

1. PRESS THE ON/STANDBY KEY TO PUT THE SET INTO "STANDBY" MODE.
2. PRESS AND HOLD KAK-SETIAL-MODE THE DISPLAY WILL NOW SHOW:

1. PRESS SKIP- / SEARCH- AND SKIP+ / SEARCH+ KEY TO REACH THE HOUR OF THE DESIRED WAKE UP TIME THEN PRESS AL-SET/ AL-MODE KEY TO CONFIRM THE DISPLAY WILL NOW SHOW:

1. PRESS SKIP- / SEARCH- AND SKIP+ / SEARCH+ KEY TO REACH THE MINUTES OF THE DESIRED WAKE UP TIME, THEN PRESS THE AL-SET/ AL-MODE KEY TO CONFIRM.

5. "ALARM" MODE SETTING

NOW SELECT THE SOURCE THAT YOU WISH THE UNIT TO PLAY AT THE "WAKE UP" TIME AS BELOW: PRESS THE ON/STANDBY KEY TO SWITCH ON THE SET (DISPLAY BLUE LIGHT WILL BE "ON")

1. FOR iPod/ iPhone : CONNECT THE iPod/ iPhone AS DESCRIBED. SELECT THE SONG OR THE DESIRED PLAYLIST TO PLAY AT THE 'WAKE UP' TIME. START AND PAUSE PLAYBACK OF THE SONG/PLAYLIST AT THE POINT FROM WHICH YOU WANT PLAYBACK TO BEGIN AT THE 'WAKE UP' TIME.

FOR RADIO : TUNE IN THE DESIRED STATION.

1. ADJUST THE VOLUME LEVEL AS DESIRED BY PRESSING VOL. UP OR VOL. DN - KEY

ONCE THE DESIRED SOURCE HAS BEEN READY, PRESS THE ON/STANDBY KEY TO PUT THE SET INTO STANDBY MODE AND THEN SHORT PRESS THE AL-SET/AL-MODE KEY REPEATEDLY TO SELECT THE SOURCE AS DESIRED.

*REMARK: AL = BUZZER ALARM / FM = RADIO / iPod = iPod / iPhone

1. THE ALARM TIME IS NOW FULLY PROGRAMMED AND THE ALARM SYMBOL WILL APPEAR TO INDICATE THAT THE ALARM FUNCTION IS "ACTIVE".

1. THE SET WILL NOW AUTOMATICALLY SWITCH "ON" AT THE WAKE-UP TIME AS YOU HAVE CHOSEN, AS LONG AS THE ALARM FUNCTION IS "ACTIVE".
2. TO TURN OFF THE UNIT AFTER IT HAS AUTOMATICALLY SWITCHED ON,
   SIMPLY PRESS THE ON/STANDBY KEY ONCE. THIS WILL SWITCH OFF THE SET BUT WILL NOT CLEAR THE ALARM SETTINGS, AND THE SET WILL SWITCH ON AGAIN AUTOMATICALLY ON THE NEXT DAY AT EXACTLY THE SAME PRESET TIME
3. TO DEACTIVATE THE ALARM, PRESS & RELEASE THE AL-SET/AL-MODE KEY.
   THE ALARM SYMBOL "AL" DISAPPEARS FROM THE DISPLAY.
4. TO ACTIVATE THE ALARM AGAIN, REPEAT THE PROCEDURE OF "ALARM TIME SETTING" AS DESCRIBED.

IMPORTANT:

IF THE ALARM IS SET AS WAKE TO iPod, YOU WILL NEED TO CONNECT
THE iPod/ iPhone PROPERLY AS DESCRIBED. OTHERWISE, THE BUZZER ALARM WILL
SOUND AT THE SETTIME IF THE iPod HAS NOT BE CONNECTED.
THE ALARM SET-UP MODE, WHERE THE SYMBOL "AL" IS FLASHING, WILL TIME-OUT IF THERE IS NO INPUT FOR 3 SECONDS AND RETURN TO "STANDBY MODE". SHOULD THE ALARM SET-UP MODE TIME OUT THE ALARM SYMBOL WILL NOT
SHOULD THE ALARM SET-UP MODE TIME-OUT, THE ALARM SYMBOL AL' WILL NOT BE DISPLAYED AND THE ALARM TIME SETTING INSTRUCTIONS WILL HAVE TO BE REPEATED FOR THE ALARM TO BE SET.

SNOOZE FUNCTION

• WHENEVER THE ALARM COMES ON, IT CAN BE TEMPORARILY SUSPENDED
  FOR A SHORT PERIOD OF APPROCTIT, BY PRESSING THE SNOZEL DIMMER KEY ONSE

THE SNOOZE/ DIMMER KEY ONCE.

- THE ALARM WILL THEN AUTOMATICALLY COME ON AGAIN AFTER THE ARPTSICATIVOZEL REIOD HAS ENDED

THE AMMINDIA BLOGOZE PERIOD HAS ENDED.

- THE PROCEDURE CAN BE REPEATED FOR APPROXIMATELY 90 MINUTES FROM ORIGINAL ALARM WAKE-UP TIME.

AUTOMATIC POWER OFF SLEEP FUNCTION

• THIS SET HAS A SPECIAL SLEEP TIMER FUNCTION WHICH CAN AUTOMATICALLY SWITCH OFF THE UNIT. THIS IS USEFUL FOR SLEEPING TO MUSIC AT NIGHT.
• AT ANY TIME WHILE THE UNIT IS OPERATING, PRESS & HOLD THE EQ/SLEEP KEY UNTIL THE "SL" SYMBOL FLASHING, THEN PRESS THE EQ/SLEEP KEY REPEATEDLY TO CHOOSE THE AUTOMATIC POWER OFF TIME.

(*OFF MEANS SLEEP TIMER IS DEACTIVATED)

ELECTRONIC VOLUME CONTROL

- THIS UNIT USES AN ELECTRONIC VOLUME CONTROL (PUSH BUTTON TYPE)

- TO INCREASE OR DECREASE THE LOUDNESS OF UNIT, PRESS

THE VOLUME UP (VOL+) OR VOLUME DOWN (VOL-) KEYS RESPECTIVELY.

- RELEASE THE KEY WHEN VOLUME LEVEL IS AT THE

- SOMETIMES, ESPECIALLY DURING LISTENING TO THE RADIO, YOU MAY NOTICE

A "CLICK-CLICK-CLICK" (REPEATING) SOUND WHEN YOU ARE INCREASING OR

DECREASING THE VOLUME. THIS IS A NORMAL CONDITION & THE SOUND WILL DISAPPEAR WHEN YOU RELEASE THE VOLUME KEY (WHEN YOU REACH THE DESIRED VOLUME LEVEL).

OPERATION OF RADIO

- PRESS THE "ON/ STANDBY" KEY ONCE TO SWITCH ON THE UNIT.

- PRESS THE FUNC./CL-SET KEY REPEATEDLY UNTIL THE DISPLAY SHOWS "FM"

- EXTEND AND ADJUST THE FM-WIRE ANTENNA TO OBTAIN THE BEST RECEPTION.

MANUAL FREQUENCY ADJUSTMENT (SCAN MODE)

- PRESS (AND IMMEDIATELY RELEASE) THE SKIP- /SEARCH- AND

SKIP+/SEARCH+ KEYS TO "SCAN" (MANUALLY ADJUST) THE RADIO

FREQUENCY "UP" OR "DOWN" BY 1-STEP AT A TIME.

- THE RADIO DIGITAL DISPLAY WILL INDICATE THE EXACT FREQUENCY AT EACH

STEP'S POSITION.

- WHEN A DESIRED FREQUENCY OR STATION IS REACHED. IT CAN BE SAVED INTO

ONE OF THE "MEMORY" POSITIONS. (SEE "RADIO MEMORY" SECTION).

AUTOMATIC FREQUENCY ADJUSTMENT (SEEK MODE)

- PRESS AND HOLD (FOR 2 SECONDS) THE SKIP-/SEARCH- AND

SKIP+/SEARCH+ KEYS TO "SEEK" (AUTOMATICALLY ADJUST) THE RADIO

FREQUENCY "UP" OR "DOWN" TO THE NEXT AVAILABLE RADIO STATION

- THE RADIO DIGITAL DISPLAY WILL INDICATE THE EXACT FREQUENCY OF THE NEXT STATION THAT IS FOUND

STATION THAT IS FOUND,

- WHEN A DESIRED STATION IS REACHED. IT CAN BE SAVED INTO ONE OF THE

"MEMORY" POSITIONS. (SEE "RADIO MEMORY" SECTION).

RADIO MEMORY (STATION PRESET MEMORY STORAGE)

- AT ANY TIME, THE CURRENTLY DISPLAYED STATION OR FREQUENCY CAN BE

STORED INTO ONE OF THE MEMORY POSITIONS.

- PRESS [MEMORY] KEY UNTIL "CD1" FLASHES IN THE DISPLAY

- PRESS SKIP-/SEARCH AND SKIP+/SEARCH+ KEYS TO SELECT DESIRED

MEMORY POSITION. (THERE ARE TOTAL 30 MEMORY POSITIONS)

- PRESS [MEMORY] KEY ONCE TO SAVE THE SELECTED STATION INTO THE

SELECTED MEMORY POSITION

- TO RECALL ANY SAVED MEMORY. SIMPLY PRESS | MEMORY | KEY ONCE THEN

SELECT THE MEMORY POSITIONS BY PRESSING SKIP-SEARCH- AND

SKIP+/SEARCH+ KEYS THE SAVED RADIO-BAND WILL BE RECAULLED

- TO CLEAR THE MEMORY OF ANY POSITION, SIMPLY SAVE A NEW STATION TO

THE SAME MEMORY POSITION.

OPERATION WITH THE iPod/ iPhone

TURN ON BOTH THE UNIT AND THE iPod' iPhone.

• CONNECT THE iPod'TWO THE UNIT AS DESCRIBED.
• PRESS THE FUNC/CL-SET KEY REPEATEDLY UNTIL THE DISPLAY SHOWS "iPod".
• PRESS THE PLAY/PAUSE ▶ KEY ON THE UNIT, THEN THE FIRST SONG WILL
  START PLAYING
• THE iPod/ iPhone DISPLAY WILL INDICATE THE INFORMATION OF THE CURRENT SONG.
• AT ANYTIME DURING PLAYBACK, PRESS THE PLAY/PAUSE KEY TO PAUSE PLAYBACK. PRESS PLAY/PAUSE KEY TO RESUME PLAYBACK OF THE SAME SONG & POSITION.
• AT ANYTIME DURING PLAYBACK, PRESS AND RELEASE THE SKIP-/SEARCH- OR SKIP+/SEARCH+ KEYS TO SKIP FORWARD OR BACKWARDS BY ONE SONG, AS DESIRED.
• AT ANYTIME DURING PLAYBACK, PRESS AND HOLD THE SKIP-/SEARCH- OR SKIP+/SEARCH+ KEYS TO FAST-FORWARD (CUE) OR FAST-REVERSE (REVIEW) THE SPECIFIC SONG, WHICH IS CURRENTLY PLAYING.
• YOU CAN OPERATE THE iPod/ iPhone USING EITHER THE UNIT'S BUTTONS, OR DIRECTLY WITH THE iPod/IF520E.
• WHEN THE iPod iPhone HAS BEEN CONNECTED WITH THE UNIT, IT WILL START CHARGING THE BATTERY OF THE iPod iPhone
• NEVER REMOVE (OR UNPLUG) THE iPod/ iPhone FROM THE SET DURING PLAYBACK, ALWAYS PAUSE PLAYBACK FIRST AND THEN PRESS THE FUNC/ CL SET KEY TO SWITCH TO ANOTHER SOURCE (EG. "RADIO") BEFORE REMOVING OR UNPLUGGING THE iPod/ iPhone TO PREVENT DAMAGE TO YOUR SONG FILES OR MEMORY DEVICES.

"Made for iPod, "Made for iPhone, " mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone may affect wireless performance.

MUSIC EQUALIZER

- AT ANYTIME DURING PLAYBACK, PRESS EGY/REEEDLY TO CHOOSE THE DESIRED SOUND EFFECT ACCORDING TO THE MUSIC YOU ARE LISTENING TO :

E-9 E-10

iPod STAND BOARD

THIS UNIT IS DESIGNED TO ALLOW YOU TO CONNECT AN iPod/ iPhone WITHOUT THE NEED FOR DOCK CONNECTORS. THE DESIGN OF THE UNIT HAS BEEN STRUCTURED TO PROVIDE SUPPORT TO THE CONNECTOR UNDER NORMAL USAGE WITHOUT EXCESSIVE PRESSURE ON THE iPod/ iPhone WHEN CONTROLLING PLAYBACK USING THE iPod/ iPhone SCREEN.
- iPod STAND BOARD CAN BE ADJUSTED BY THE SLIDER WHICH LOCATED AT THE REAROF UNIT. - SIMPLY SLIDE UP AND DOWN AS DESIRED.

iPod STAND BOARD SLIDER

SPECIFICATIONS

POWER SUPPLY : ....DC 7V, 2A THOUGH BUILT-IN DC JACK EXTERNAL AC-DC POWER ADAPTOR 100V-240V \~ 50/60Hz BACK-UP BATTERY:UM-4"/AAA"/LR03.1.5Vx2 PCS (BATTERIES NOT INCLUDED) POWER CONSUMPTION : .... 15 W SPEAKER : .... SPEAKER 2" FREQUENCY : .... FM 87.5 - 106 MHz

MODEL iP-3-AFP

ENGLISH MANUAL PLAN
