BRUKSANVISNING AK7736AS Zephyr
BACK DRAFT DAMPER

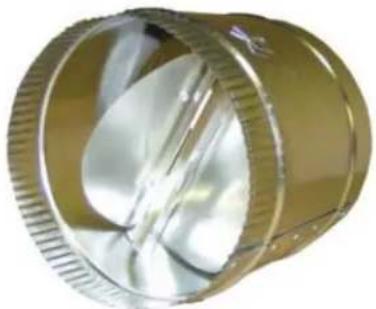

ROUND DAMPER TO PREVENT RETURN-AIR FROM ENTERING KITCHEN

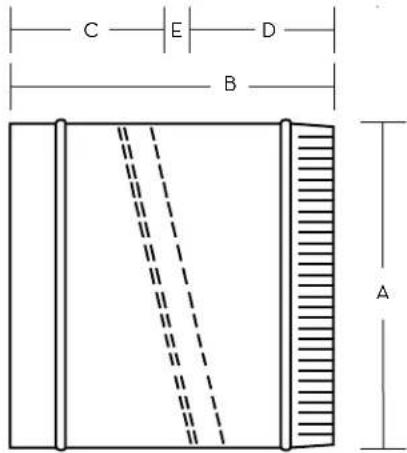

DUCT DIMENSIONS
| MODEL | SIZE | A | B | C | D | E |
| AK00029 | 6” | 6” | 6” | 2-7/8 | 2-7/8 | 1/4 |
| AK00049 | 7” | 7” | 7” | 3-1/4 | 3-1/4 | 1/2 |
| AK00069 | 8” | 8” | 8” | 3-5/8 | 3-5/8 | 3/4 |


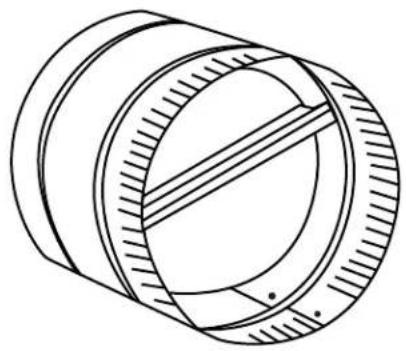

Close-up of a metallic cylindrical fan or impeller with visible blades and central hub (no text or symbols)FEATURES
- Vertical Duct Application
-
Foam Seal for Damper Closure
-
Galvanized (G-90)
- NOT FOR USE WITH DRYER VENT APPLICATIONS
Side View
TAPERED REDUCER
REDUCES ROUND DUCT SIZE
DUCT DIMENSIONS
| MODEL | SIZE | A | B | C |
| AKooo39 | 7x6" | 1-3/4" | 1-3/4" | 5" |
| AKooo37 | 8x6" | 1-3/4" | 1-3/4" | 4-3/4" |
| AKooo35 | 8x7" | 1-3/4" | 1-3/4" | 4-1/4" |
| AKooo40 | 10x8" | 1-3/4" | 1-3/4" | 5" |
FEATURES
- Tapered for Best Air Flow
- Galvanized (G-90)
Side View
EXHAUST CAP FOR ROUND DUCTING, INSTALLS ON ROOF
DUCT
DIMENSIONS
| MODEL | SIZE | A | B | C | D | E | F | G | H | I |
| AK00046 | 6” | 12” | 6” | 3” | 15” | 10” | 5-1/8 | 3-1/4 | 1-7/8 | 3-1/4 |
| AK00047 | 7” | 12” | 7” | 2-1/2 | 15” | 11” | 5-1/8 | 3-1/4 | 1-7/8 | 3-1/4 |
| AK00048 | 8” | 15” | 8” | 3-1/2 | 15” | 12” | 5-1/2 | 3-1/2 | 2” | 3-1/4 |
| AK00050 | 10” | 15” | 10” | 2-1/2 | 2 O | ” 1 | 6-1/2 | 4-1/4 | 2-1/4 | 3-1/2 |
- Low Profile
- Mesh Bird Screen
- Install of Any Roof Pitch
- Galvanized (G-90)
Side View
WALL CAP EXHAUST, 3-1/4"x10" RECTANGULAR
EXHAUST CAP FOR RECTANGULAR DUCTING, PREVENTS RETURN-AIR, INSTALLS ON EXTERIOR WALL
DIMENSIONS
| MODEL | A | B | C | D | E | F | G |
| AK00041 | 3-1/4 | 10 | 5-5/8 | 11 | 5 | 12-3/4 | 9-1/2 |
- Aluminum Damper Included
- Galvanized (G-90)
- Mesh Bird Screen
- NOT FOR USE WITH INLET
- Rain Proof
VENT APPLICATIONS
Front View
Top View
WALL CAP EXHAUST, ROUND
EXHAUST CAP FOR ROUND DUCTING, PREVENTS RETURN-AIR, INSTALLS ON EXTERIOR WALL
DUCT
| MODEL | SIZE | A | B | C | D | E | F | G | H |
| AK00042 | 6" | 6" | 7-5/8" | 8" | 1" | 8-1/2" | 9" | 8-5/8" | 7-1/8" |
| AK00043 | 7" | 7" | 8-5/8" | 9-5/8" | 1" | 8-1/2" | 10-3/4" | 9-5/8" | 8-1/8" |
| AK00044 | 8" | 8" | 10" | 11-5/8" | 1-3/4" | 8-1/2" | 10-3/8" | 11-1/8" | 10-3/8" |
| AK00045 | 10" | 10" | 12" 13" | 1-3/4" | 8-1/2" | 11-1/2" | 13-5/8" | 13-7/8" |
DIMENSIONS
- Aluminum Damper Included
- Rain Proof
- Mesh Bird Screen
- Galvanized (G-90)
Top View
WALL CAP INLET, ROUND
FRESH AIR INLET FOR ROUND DUCTING, COMMONLY USED WITH MAKE-UP AIR KITS
DUCT
| MODEL | SIZE | A | B | C | D | E | F | G | H |
| AK00030 | 6" | 6" | 7-5/8" | 8" | 1" | 8-1/2" | 9" | 8-5/8" | 7-1/8" |
| AK00031 | 7" | 7" | 8-5/8" | 9-5/8" | 1" | 8-1/2" | 10-3/4" | 9-5/8" | 8-1/8" |
| AK00032 | 8" | 8" | 10" | 11-5/8" | 1-3/4" | 8-1/2" | 10-3/8" | 11-1/8" | 10-3/8" |
DIMENSIONS
- Mesh Bird Screen
- Galvanized (G-90)
- Rain Proof
Top View
- BACK DRAFT DAMPER
- ROUND DAMPER TO PREVENT RETURN-AIR FROM ENTERING KITCHEN
- FEATURES
- TAPERED REDUCER
- REDUCES ROUND DUCT SIZE
- ROOF CAP EXHAUST, J-VENT
- EXHAUST CAP FOR ROUND DUCTING, INSTALLS ON ROOF
- WALL CAP EXHAUST, 3-1/4"x10" RECTANGULAR
- EXHAUST CAP FOR RECTANGULAR DUCTING, PREVENTS RETURN-AIR, INSTALLS ON EXTERIOR WALL
- WALL CAP EXHAUST, ROUND
- EXHAUST CAP FOR ROUND DUCTING, PREVENTS RETURN-AIR, INSTALLS ON EXTERIOR WALL
- WALL CAP INLET, ROUND
- FRESH AIR INLET FOR ROUND DUCTING, COMMONLY USED WITH MAKE-UP AIR KITS
