BRUKSANVISNING AK7748AS Zephyr

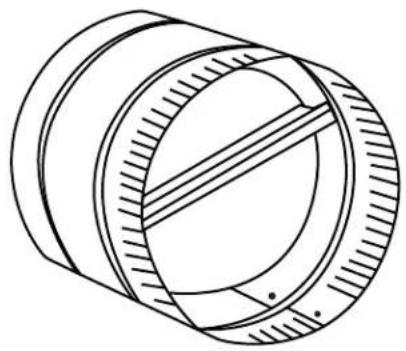

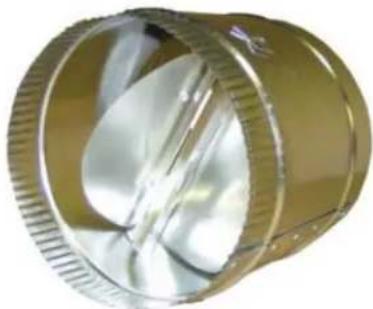

BACK DRAFT DAMPER
ROUND DAMPER TO PREVENT RETURN-AIR FROM ENTERING KITCHEN
DUCT DIMENSIONS
| MODEL | SIZE | A | B | C | D | E |
| AK00029 | 6" | 6" | 6" | 2-7/8 " | 2-7/8 " | 1/4 " |
| AK00049 | 7" | 7" | 7" | 3-1/4 " | 3-1/4 " | 1/2 " |
| AK00069 | 8" | 8" | 8" | 3-5/8 " | 3-5/8 " | 3/4 " |
- Vertical Duct Application
-
Foam Seal for Damper Closure
-
Galvanized (G-90)
- NOT FOR USE WITH DRYER VENT APPLICATIONS
TAPERED REDUCER
REDUCES ROUND DUCT SIZE
DUCT DIMENSIONS
| MODEL | SIZE | A | B | C |
| AK00039 | 7x6" | 1-3/4" | 1-3/4" | 5" |
| AK00037 | 8x6" | 1-3/4" | 1-3/4" | 4-3/4" |
| AK00035 | 8x7" | 1-3/4" | 1-3/4" | 4-1/4" |
| AK00040 | 10x8" | 1-3/4" | 1-3/4" | 5" |
FEATURES
- Tapered for Best Air Flow
- Galvanized (G-90)
EXHAUST CAP FOR ROUND DUCTING, INSTALLS ON ROOF
DUCT
DIMENSIONS
| MODEL | SIZE | A | B | C | D | E | F | G | H | I |
| AK00046 | 6" | 12" | 6" | 3" | 15" | 10" | 5^-1/8" | 3^-1/4" | 1^-7/8" | 3^-1/4" |
| AK00047 | 7" | 12" | 7" | 2^-1/2" | 15" | 11" | 5^-1/8" | 3^-1/4" | 1^-7/8" | 3^-1/4" |
| AK00048 | 8" | 15" | 8" | 3^-1/2" | 15" | 12" | 5^-1/2" | 3^-1/2" | 2" | 3^-1/4" |
| AK00050 | 10" | 15" | 10" | 2^-1/2" | 2 O | " 1 | 6^-1/2" | 4^-1/4" | 2^-1/4" | 3^-1/2" |
- Low Profile
- Mesh Bird Screen
- Install of Any Roof Pitch
- Galvanized (G-90)


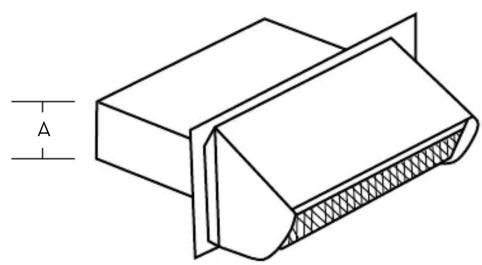

WALL CAP EXHAUST, 3-1/4"x10" RECTANGULAR
EXHAUST CAP FOR RECTANGULAR DUCTING, PREVENTS RETURN-AIR, INSTALLS ON EXTERIOR WALL
DIMENSIONS
| MODEL | A | B | C | D | E | F | G |
| AK00041 | 3^-1/4 ′′ | 10′′ | 5^-5/8 ′′ | 11′′ | 5′′ | 12^-3/4 ′′ | 9^-1/2 ′′ |
- Aluminum Damper Included
- Galvanized (G-90)
- Mesh Bird Screen
- NOT FOR USE WITH INLET
- Rain Proof
VENT APPLICATIONS
WALL CAP EXHAUST, ROUND
EXHAUST CAP FOR ROUND DUCTING, PREVENTS RETURN-AIR, INSTALLS ON EXTERIOR WALL
DUCT
| MODEL | SIZE | A | B | C | D | E | F | G | H |
| AK00042 | 6" | 6" | 7-5/8" | 8" | 1" | 8-1/2" | 9" | 8-5/8" | 7-1/8" |
| AK00043 | 7" | 7" | 8-5/8" | 9-5/8" | 1" | 8-1/2" | 10-3/4" | 9-5/8" | 8-1/8" |
| AK00044 | 8" | 8" | 10" | 11-5/8" | 1-3/4" | 8-1/2" | 10-3/8" | 11-1/8" | 10-3/8" |
| AK00045 | 10" | 10" | 12" 13" | 1-3/4" | 8-1/2" | 11-1/2" | 13-5/8" | 13-7/8" |
DIMENSIONS
- Aluminum Damper Included
- Rain Proof
- Mesh Bird Screen
- Galvanized (G-90)
WALL CAP INLET, ROUND
FRESH AIR INLET FOR ROUND DUCTING, COMMONLY USED WITH MAKE-UP AIR KITS
DUCT
| MODEL | SIZE | A | B | C | D | E | F | G | H |
| AK00030 | 6" | 6" | 7-5/8" | 8" | 1" | 8-1/2" | 9" | 8-5/8" | 7-1/8" |
| AK00031 | 7" | 7" | 8-5/8" | 9-5/8" | 1" | 8-1/2" | 10-3/4" | 9-5/8" | 8-1/8" |
| AK00032 | 8" | 8" | 10" | 11-5/8" | 1-3/4" | 8-1/2" | 10-3/8" | 11-1/8" | 10-3/8" |
DIMENSIONS
- Mesh Bird Screen
- Galvanized (G-90)
- Rain Proof

