KORISNIČKI PRIRUČNIK Pro Diver 20176 INVICTA
PRESENTATION

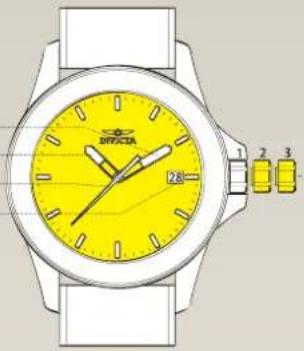

Display Elements
Minute Hand
Hour Hand
Second Hand
Date
Crown Positions:
- Normal position
- Setting of date
- Setting of hour, minute, date
INSTRUCTIONS
MANUAL
NH35A
SETTINGS
Set the Time, Hour, Minute
1.1 Pull the crown to position 3.
1.2 Turn the crown clockwise to set hour/minute hands to the desired time.
1.3 Push the crown back to position 1.
2.1 Set the crown to position 2.
2.2 Turn the crown clockwise step-by-step to the desired date.
2.3 Push the crown back to position 1.
!! Attention !! Do not set the date between 9:00PM and 4:00A.M. As this will cause a malfunction.
To wind up the Mainspring
Manual winding - Fully wound up by turning the crown minimum 55 times
– Fully wound up by turning the ratchet wheel screw 8 times
Machine winding – Rotary speed: 30rpm
- Operation time: 60 mintues
