NÁVOD NA OBSLUHU 9731 STI
Safety Technology International
2306 Airport Road
Waterford · Michigan · 48327-1209
Phone: 248-673-9898
E-mail: info@sti-usa.com • Web: www.sti-usa.com
Taylor House • 34 Sherwood Road • Bromsgrove
Worcestershire • B60 3DR • England
Tel: +44 (0)1527 520 999
E-mail: info@sti-emea.com · Web: www.sti-emea.com
Unit 7A • Lockheed Avenue
Airport Business Park
Waterford • X91 HWF2 • Ireland
E-mail: info@sti-emea.com

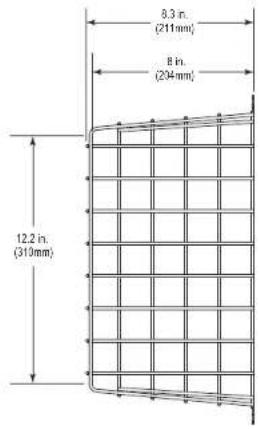

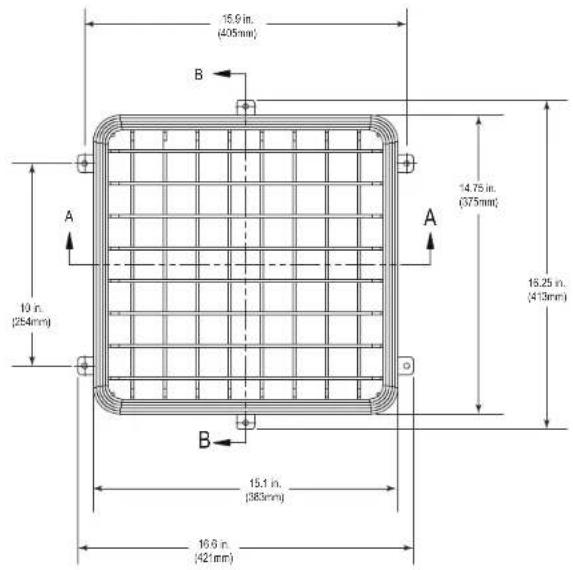

SECTION A-A
SECTION B-B
INSTALLATION INSTRUCTIONS
- Center and place wire guard over device or product to be protected and mark all 6 hole locations with pencil or marker.
- Drill all 6 holes using 1/4" diameter drill 1-1/2" deep.
- Insert anchors into drilled holes.
- Place wire guard in position, insert screws and tighten.
Three year warranty or a one year limited warranty
(from date of purchase) on most products. See website for details.
Electronic warranty form at www.stl-usa.com/wc14
USA
STI-9731 WIRE GUARD
All specifications and information shown were current as of publication and are subject to change without notice.
9731 APR2022
ADDITIONAL WIRE GUARDS AVAILABLE
Visit www.sti-usa.com/w1 for complete details
All dimensions are approximate
SMOKE DETECTOR GUARDS
STI-9601 8.25 x 2.75"
STI-9601-SS 8.25 x 2.75"
STI-9602 8.25 x 4.25"
STI-9604 7 x 3.25"
STI-9604-SS 7 x 3.25"
STI-9605 7.125 x 4.5
STI-9605-SS 7.125 x 4.5"
STI-9609 8.25 x 4.6"
STI-9609-SS 8.25 x 4.6"
STI-9610 8.25 x 6"
STI-9712 6.87 x 4.53"
STI-9713 6.87 x 2.50"
STI-9605
BEAM SMOKE DETECTORS
STI-9623 7.75 x 6 x 6"
STI-9624 8.875 x 5.5 x 4.75"
STI-9706 10.82 x 9.32 x 4"
STI-9707 11 x 9.62 x 5.5"
STI-9840 6.61 x 5.78"
STI-9841 11.52 x 10 x 3.58"
STI-9845 6.7 x 9.2 x 4.07"
STI-9846 7.6 x 11.6 x 5.6"
STI-9624
PIR GUARDS
STI-9618 4.62 x 5.37 x 3 ^st
STI-9619 7.75 x 5.37 x 5.62"
STI-9620 6.25 x 4 x 2.25"
STI-9621 7 x 5.75 x 4.50"
STI-9622 8.75 x 4 x 3.75"
STI-9618 STI-9621
EXIT SIGN WIRE CAGES
STI-9640 10.5 x 13.75 x 2.75"
STI-9740 15.5 x 20.5 x 6"
STI-9742 15.59 x 16.09 x 3.30"
STI-9640
EMERGENCY LIGHT CAGES
STI-9641 19.7 x 14.6 x 4"
STI-9644 8.7 x 17.7 x 5"
STI-9645 13.8 x 21.7 x 5.9"
STI-9649 10.75 x 24.75 x 11.25"
STI-9703 5 x 13.5 x 4"
STI-9649
CLOCK/BELL WIRE CAGES
STI-9631-R 10.5" Diameter - Red
STI-9635 14.25" Diameter
STI-9636 20.75" Diameter
STI-9637 26.75" Diameter
STI-9636
BEACON & SOUNDER CAGES
STI-9614 7.9 x 6"
STI-9615 3.7 x 3.5"
STI-9617 5.9 x 4.9"
STI-9664 3.86 x 6.18"
STI-9665 7 x 8.43"
STI-9750 9.6 x 2.8"
STI-9754 8.4 x 9.2 x 3.5"
STI-9760 8.5 x 3.2"
STI-9761 8.5 x 5.7"
STI-9762 6.2 x 4.75 x 2.5"
STI-9763 6.2 x 4.75 x 4"
STI-9764 6.6 x 6 x 2.5"
STI-9765 6.6 x 6 x 4.4"
STI-9766 8.2 x 6.75 x 2.9"
STI-9767 8.2 x 6.75 x 5"
STI-9615 STI-9664
MISCELLANEOUS WIRE CAGES
STI-9705 7.4 x 6.15 x 3.39"
STI-9708 7.49 x 6.74 x 6.09"
STI-9711 8.26 x 8.26 x 3.54"
STI-9714 8.55 x 8.55 x 6.23"
STI-9717 6.1 x 9.3 x 2.4"
STI-9720 6.1 x 9.3 x 4.9"
STI-9729 7 x 7 x 7"
STI-9730 12 x 12 x 12"
STI • www.sti-usa.com • www.sti-emea.com
STI-9731 12 x 12 x 8"
STI-9732 18 x 15 x 13"
STI-9880 10.45 x 62.75 x 6.2"
STI-9881 10.45 x 98.25 x 6.2"
STI-101075 10 x 10 x (63 to 75)"
STI-241416 33.25 x 23.29 x 16"
STI-282121 39.06 x 32.01 x 21.29"
STI-101075
STI-9705 STI-9729 STI-9880
APR2022
