MANUAL DE UTILIZARE TX-W28D2DP PANASONIC

TX-W32/28D2DP Operating Instruction

Panasonic

OperatingInstructions

ColourTelevision

TXW32D2DP

TX-W28D2DP

(U.K.Standard)

Front view of a flat-screen television set (no visible text or symbols)

King of Pictures

GAOO

TQB8E22402-

"Dolby", "ProLogic" and the double Symbol are trademark of Dolby Laboratories Licensing Corporation.

ManufacturedunderlicensefromDolbyLaboratories LicensingCorporation.

Pleasereadtheseinstructionscompletelybeforeuse andretainthemforfuturereference.

CONTENTS

WarningsandPrecautions3.

Accessories4.

FittingRemoteControlBatteries4.

QuickStartGuide5.

Basic Controls 8

Using the On Screen Menus 9

PIP Controls 10

Aspect Control 11

Main Menu 13

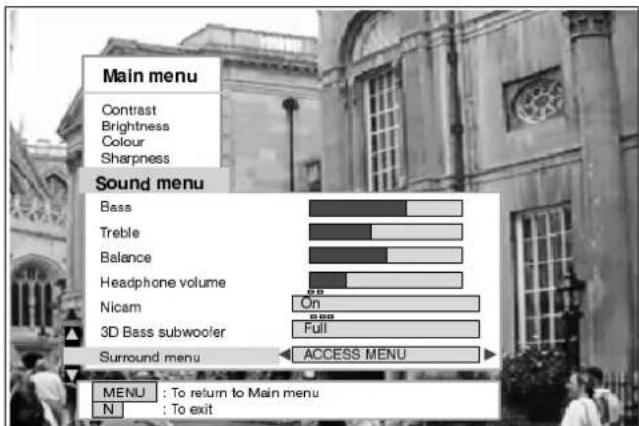

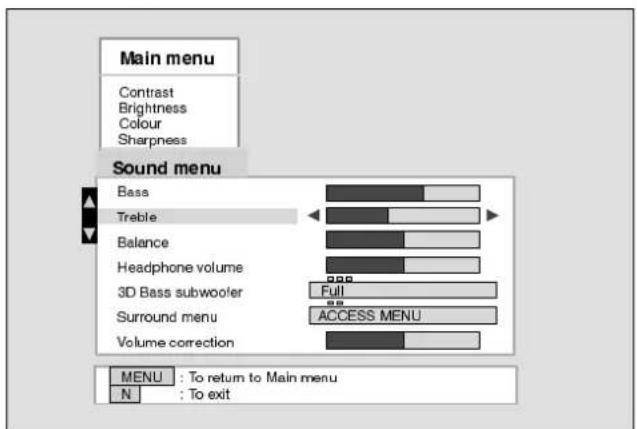

Sound Menu 14

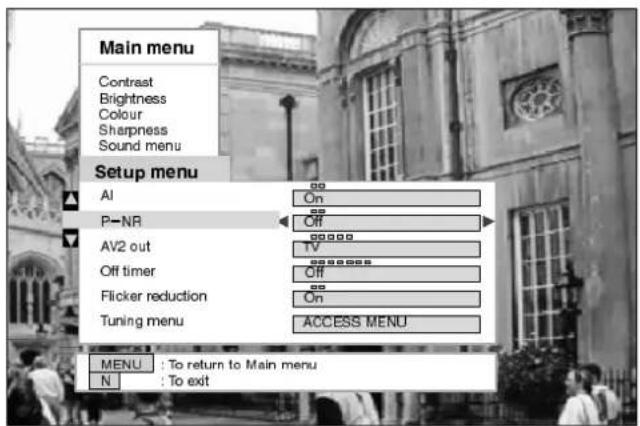

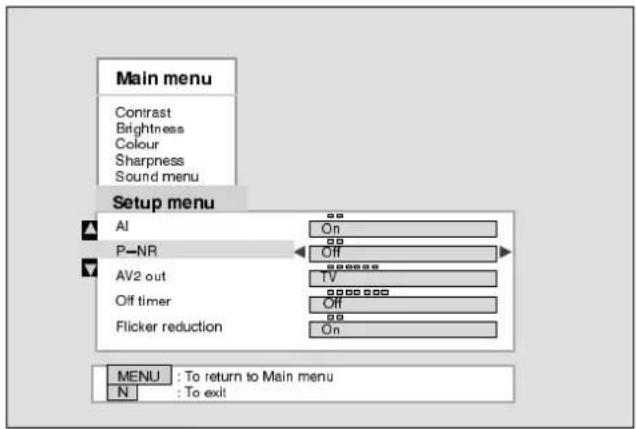

.SetupMenu15

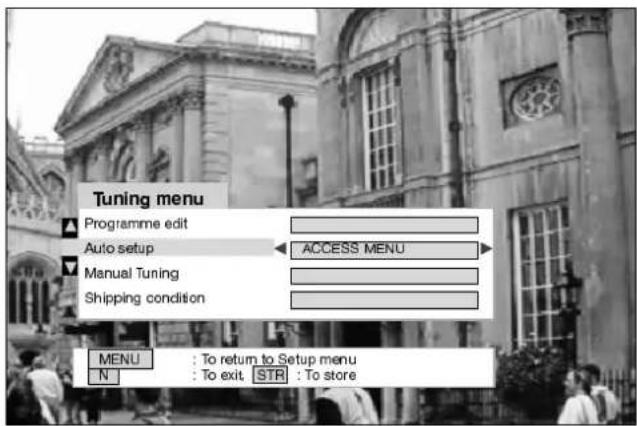

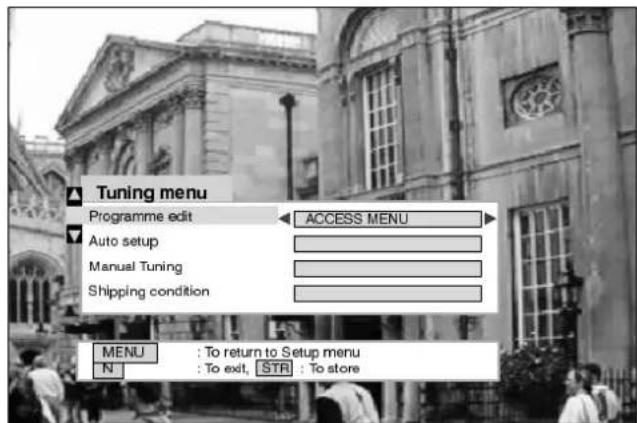

Tuning Menu 16

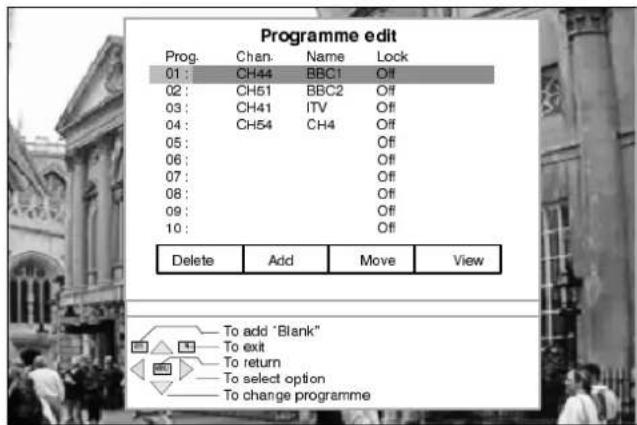

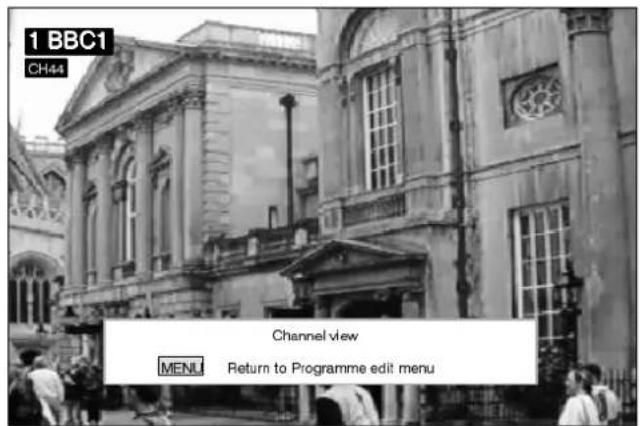

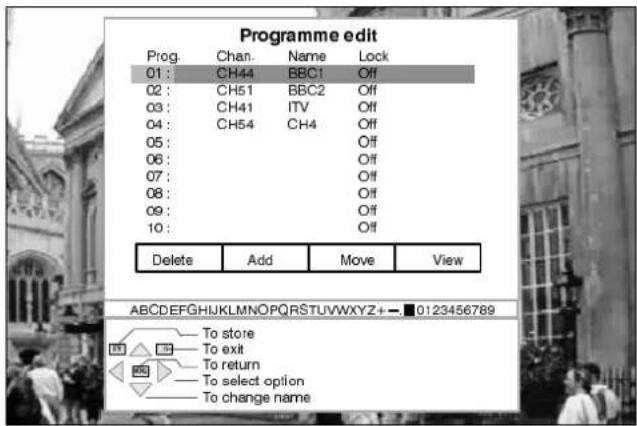

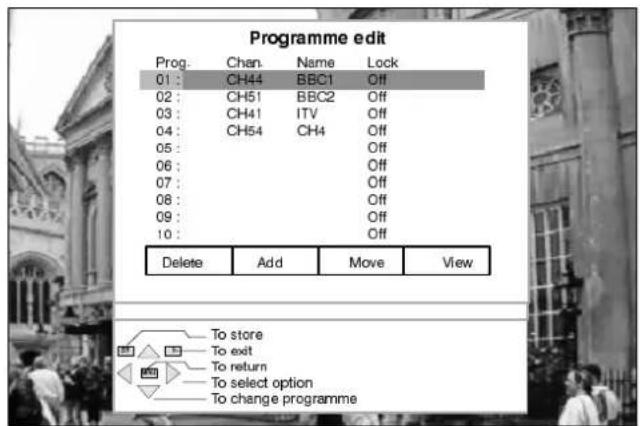

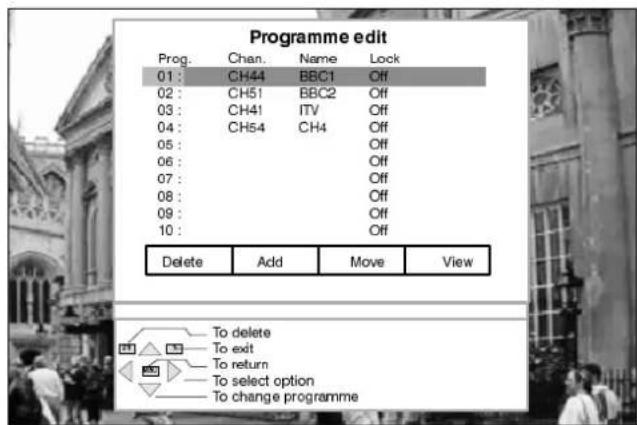

TuningMenu - Programmeedit 17

TuningMenu - AutoSetup 22

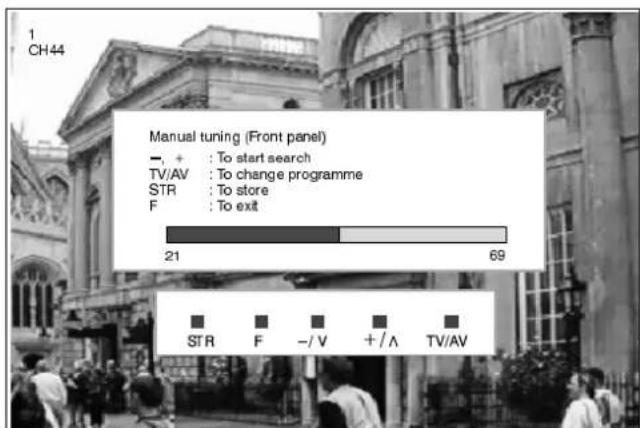

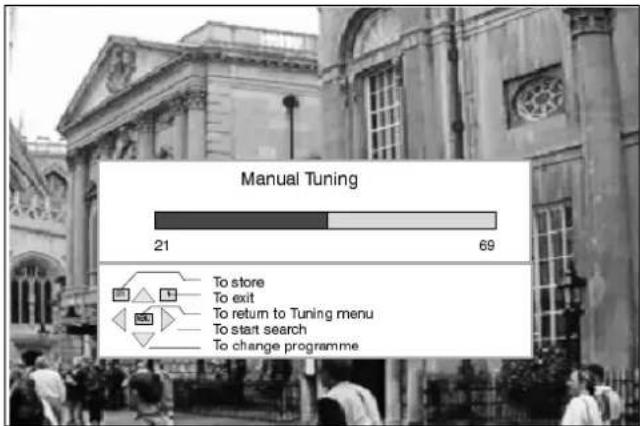

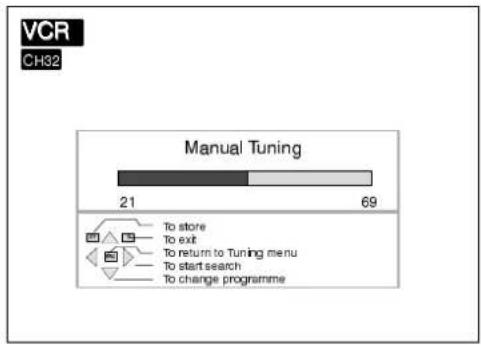

TuningMenu - Manualtuning 23

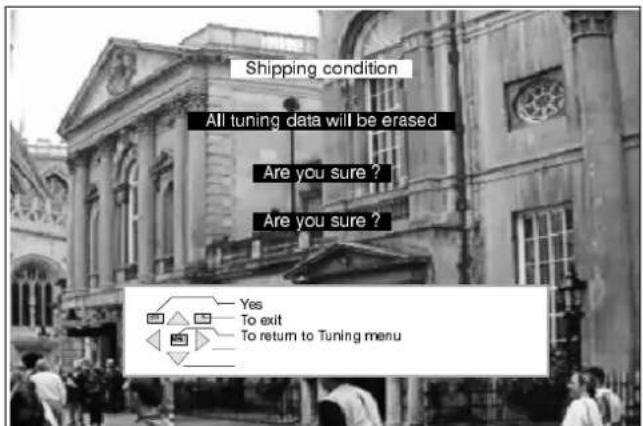

TuningMenu - ShippingCondition 24

AV Select and Setup 25

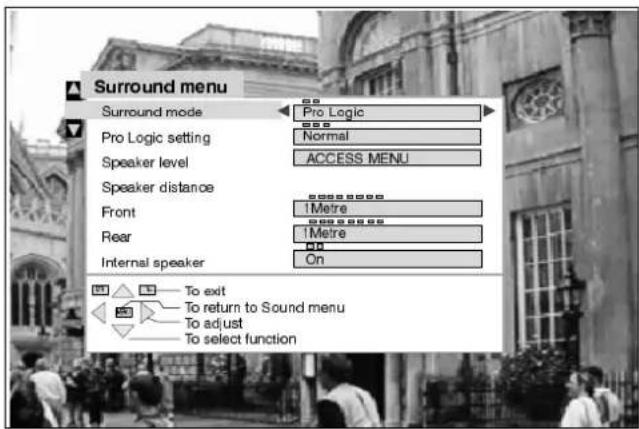

Dolby Pro Logic Surround Menu 26

Pro Logic mode 27

Simulated mode 28

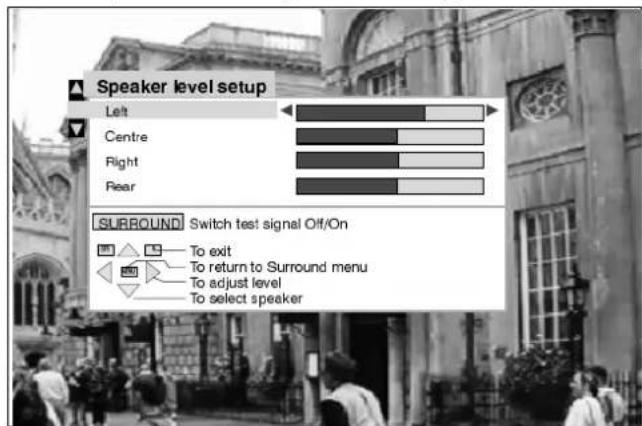

Speaker level setup 28

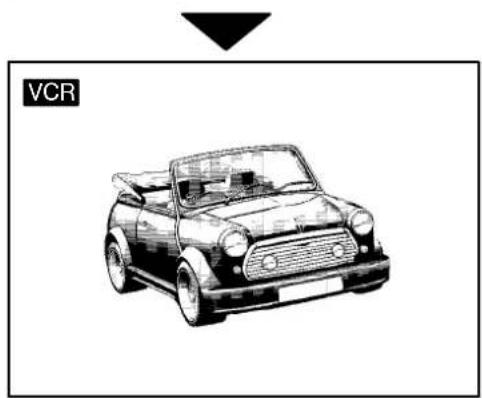

Teletext Operation 29

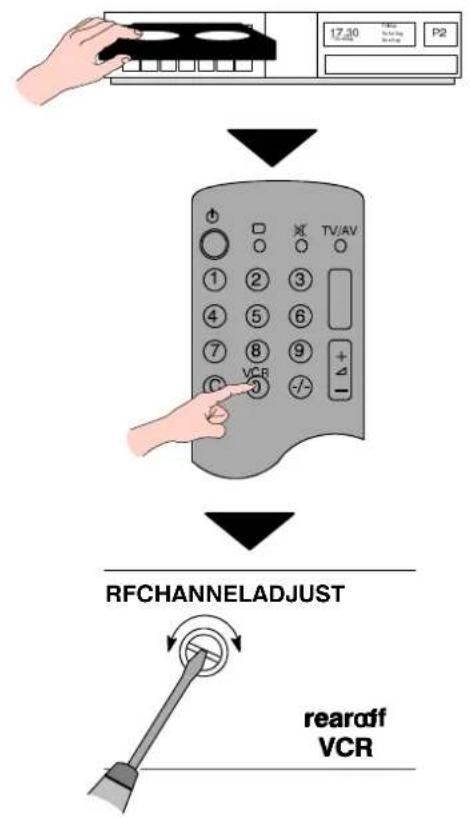

VCR and Satellite Receiver Installation 31

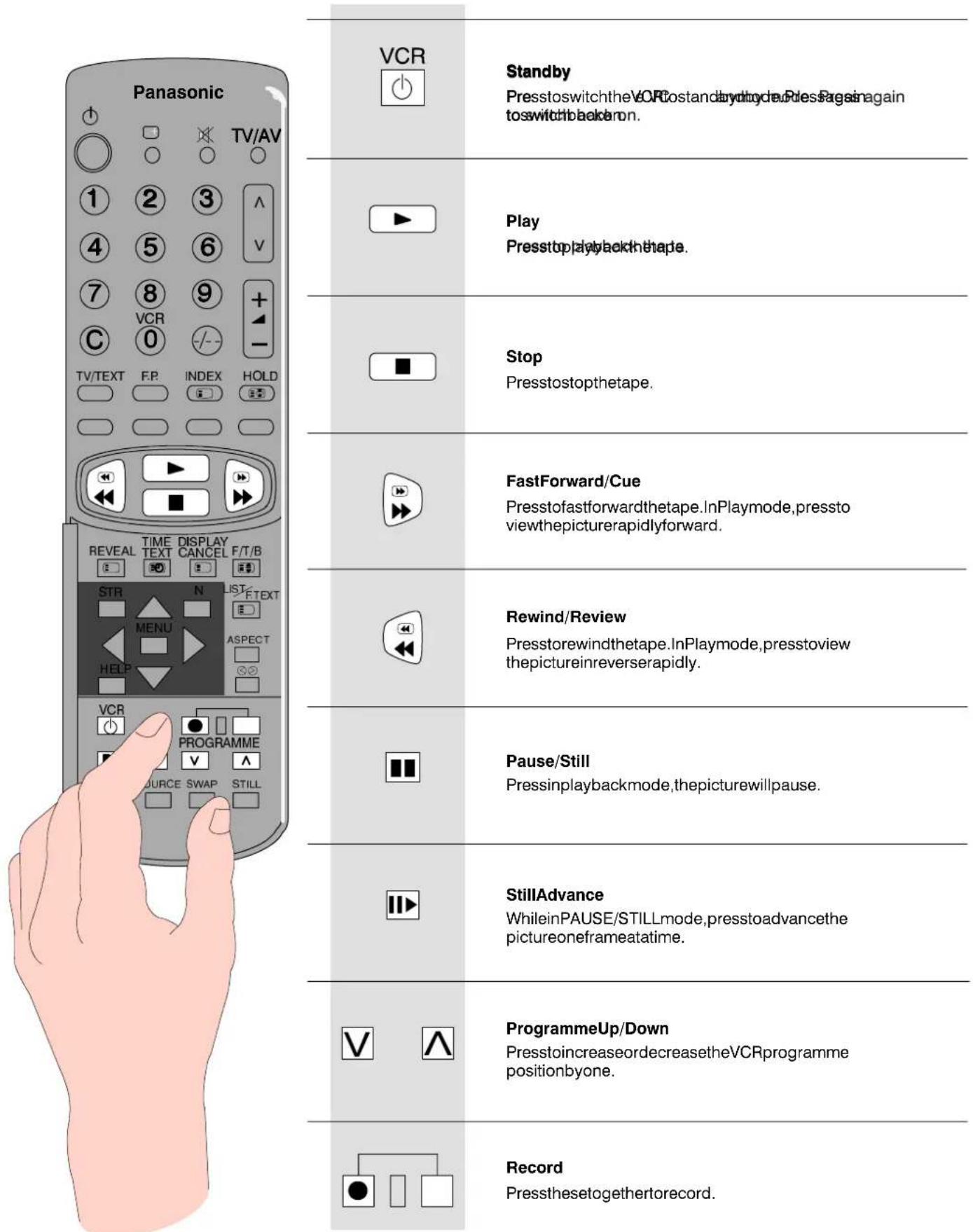

VCR Control 32

Audio / Video Connections 33

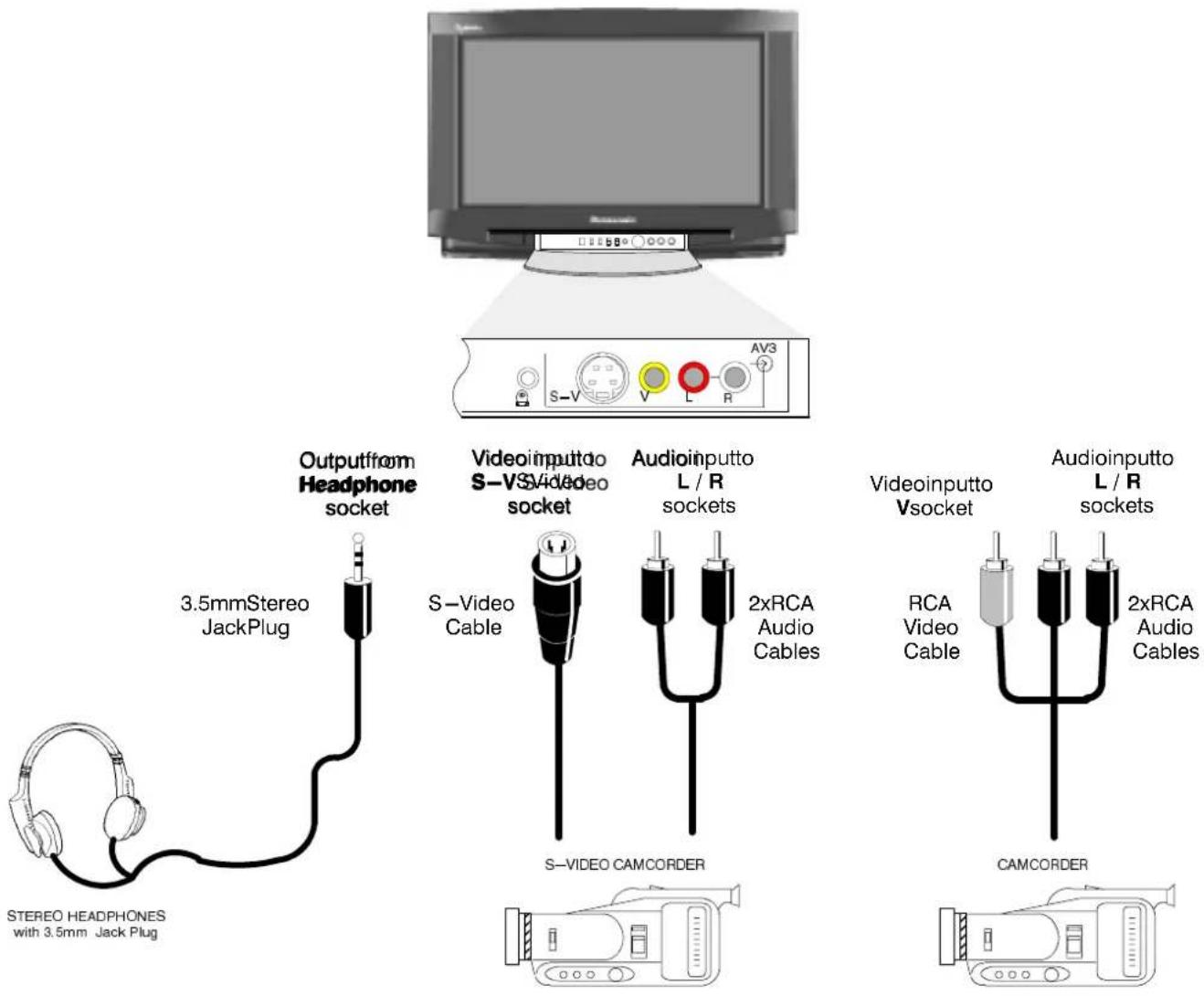

ViathefrontAV34pinS —Video,Audio/Video (RCA)andHeadphoneSockets33

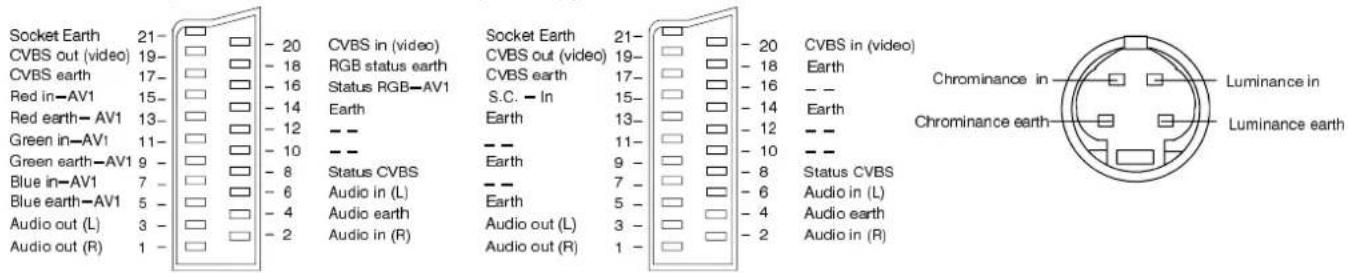

SCART and S—Video Terminal Information ..... 33

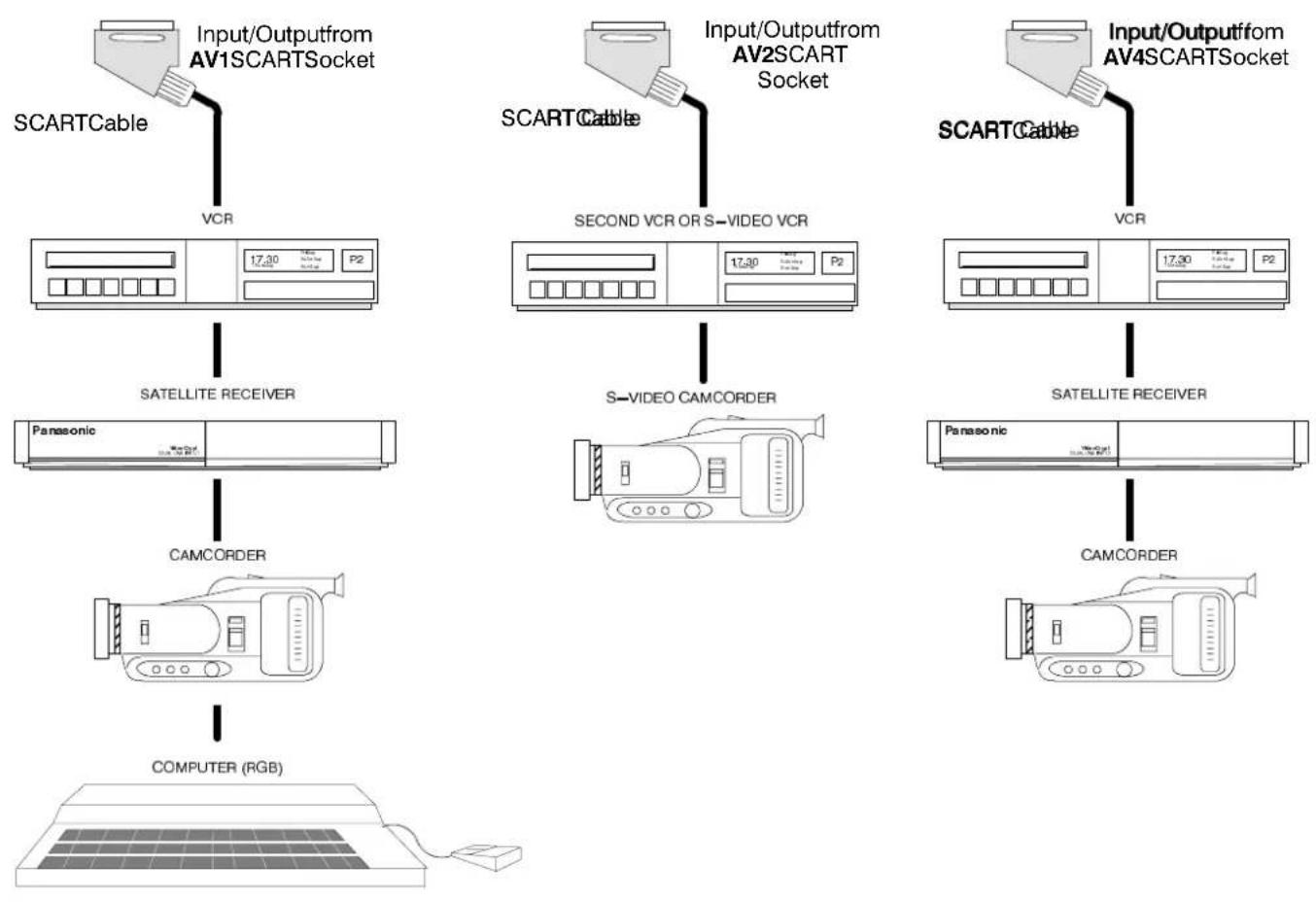

ViatherearAV1/AV2/AV421Pin(SCART) and RCA Audio Out terminals 34

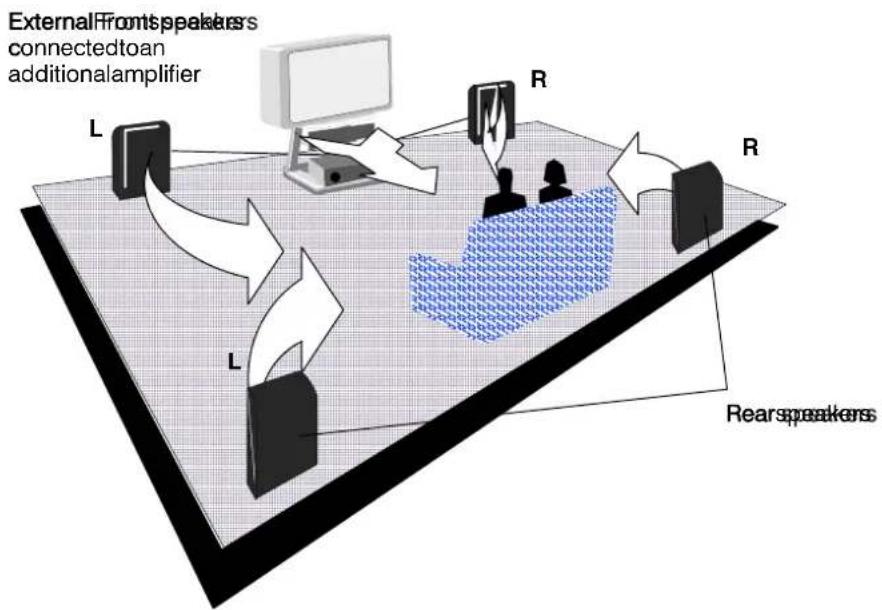

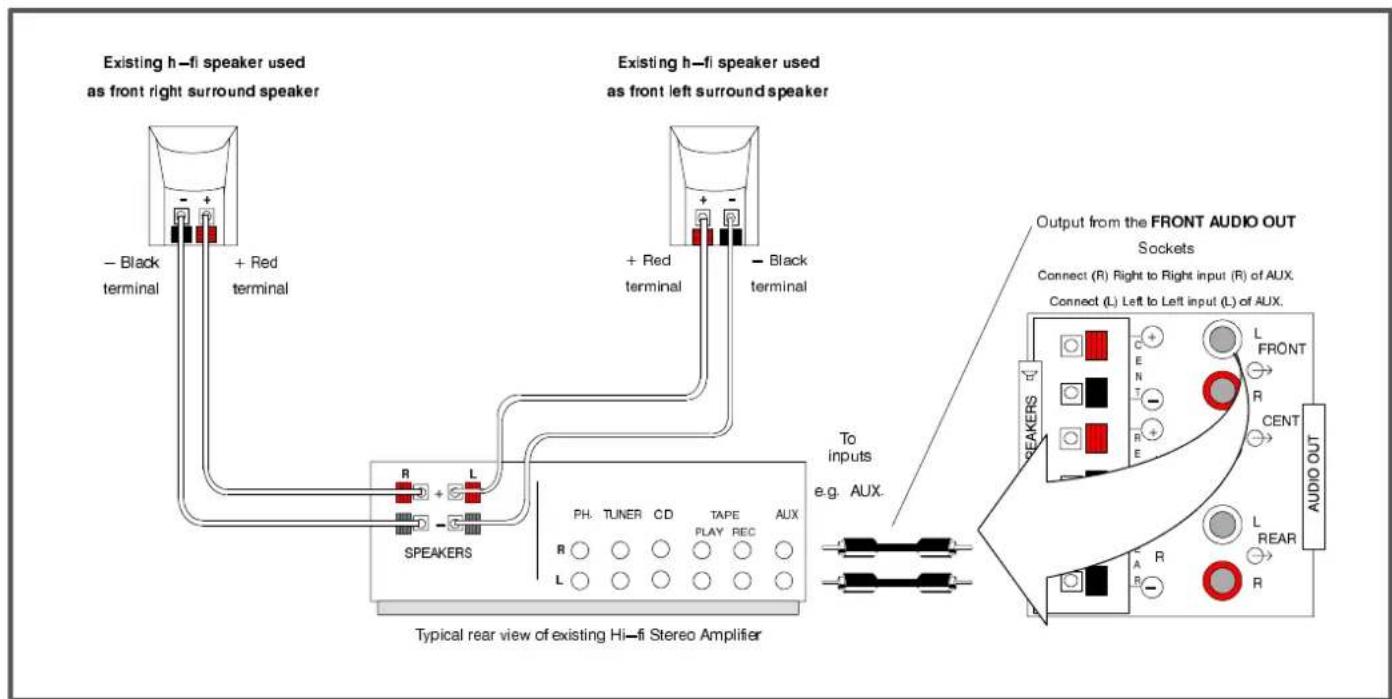

Using external amplifiers and speakers ..... 35

Trouble-shooting 36

For your guidance 37

Specifications 37

●ThisTVisdesignedtooperateonA.C.220240V,50Hz.
- This TViscapable of receiving the following transmission standard, PALI.
- Topreventdamagewhichmightresultinelectricshockorfire,do notexposethisTVsettorainorexcessivemoisture.
●WARNING:HIGHVOLTAGE!!!
Donotremovetherearcoveraslivepartsareaccessiblewhenit isremoved.Therearenouserserviceablepartsinside.
- Avoid exposing the TV settodirect sunlight and othersources of heat.
- RemovethemainsplugfromthewallsocketwhentheTVsetis notusedforaprolongedperiodoftime.

●CABINETANDPICTURETUBECARE

Removethemainsplugfromthewallsocket. The cabinet and picturetubecanbecleaned with asoftclothmoistened with mild detergentandwater. Donotusesolutions containing benzolorpetroleum. TVsetscanproducestatic electricity, care must be taken whenever touching the TV screen.

- Adequate ventilation is essential to prevent failure of electrical components. Were recommend that at least 5cm is left all around this TV even when it is placed inside a cabinet between the shelves.

FORYOURSAFETYPLEASEREADTHEFOLLOWINGTEXTCAREFULLY

This appliance is supplied with a fitted three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this plug. If the fuseisreplacedthenthereplacementfusemustbe5ampratedandshouldbeapprovedbyASTAorBSItoBS1362.

CheckfortheASTAmark

ortheBSImark

onthebodyofthefuse.

Ifthefittedplughasaremovablefusecoveryoumustensurethatitisrefittedwhenthefuseis replaced. Ifyoulosethefusecovertheplugmustnotbeuseduntilareplacementcoveris obtained. ReplacementfusecoverscanbepurchasedthroughyourlocalPanasonicdealer.

The plug fitted to this appliance incorporates a mains filter circuit. If this is removed or replaced with a non-filtered plug this television will no longer meet the European standardsforElectromagneticCompatibility(EMC).Ifthefittedplugisunsuitablefor thesocketoutletinyourhomeanappropriateadaptershouldbeused.

Nonetheless, if the fitted plug is replaced, the fuses should be taken out and the cut -off plug disposed of safely. There is danger of severe electrical shock if the cutoff plug is inserted into any 13amp. socket.

Ifanewplugistobefittedpleaseobservethewiringcodeasshownbelow. Ifinanydoubtpleaseconsultaqualifiedelectrician.

Howtoreplacethefuse(forplugtypeshowninexample1):

Liftouttheremovablefusecompartmentwithascrewdriverandreplacethefuse,thenrefit securelyintothemainsplug(Seeexample1).

Howtoreplacethefuse(forplugtypeshowninexample2):

Liftopenthefusecompartment, inthemainsplug, withascrewdriver, andreplacethefuse, thenpressthefusecoverdownsecurely. (Seeexample2).

Example1.

Illustration of a black electrical plug with a screwdriver and two orange buttons (no text or symbols)

Example2.

Illustration of a black electrical plug with orange connectors and a gray connector (no text or symbols)

IMPORTANT : - The wires in the mains lead of this appliance are coloured in accordance with the following code : - BLUE:NEUTRAL BROWN:LIVE

As the colours of the wires in the mains lead of this appliance may not correspond to the markings identifying the terminals in your plug, proceedings follows:

1. TheBLUEwiremustbeconnectedtotheterminalmarked'N'orcolouredblack.
2. TheBROWN wiremustbeconnectedtotheterminalmarked'L'orcolouredred.

IMPORTANTNOTE : Under no circumstances should either of these wires be connected to the Earth terminal of the three pin plug, markedwiththeletter'E'ortheearthsymbol.

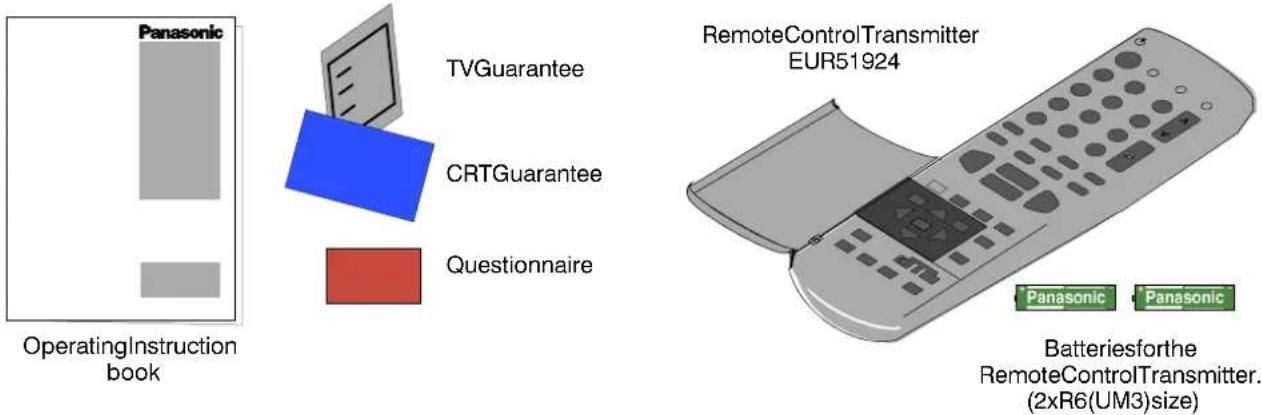

Checkthatyouhavetheaccessoriesanditemsshown

TS-400DP

Consistingof:

VS-WD2DPVideocabinet

1Centrespeaker

2xRearSpeakers

2xSpeakerCables

3D rendering of a cylindrical container with two horizontal compartments (no text or symbols)

Videocabinet

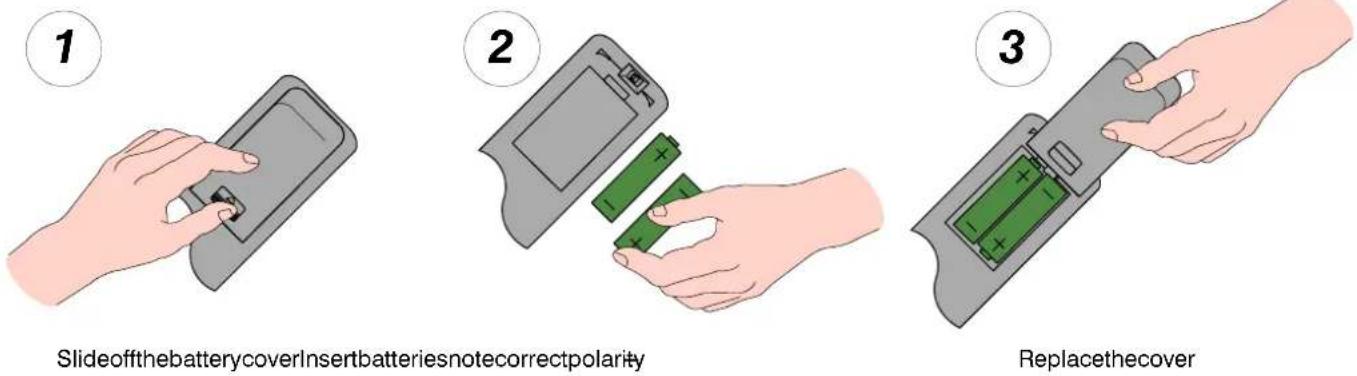

FITTINGREMOTECONTROLBATTERIES

Notes:

●Makesurethatthebatteriesarefittedthecorrectwayround.
- Do not mix old batteries with new batteries. Remove old, exhausted batteries immediately.
- Do not mix different battery types, i.e. Alkaline and Manganese. Do not use rechargeable (Ni-Cad) batteries.

1.2.3.....

Line drawing of a Panasonic air conditioner front panel with antenna and power cord (no text or symbols)

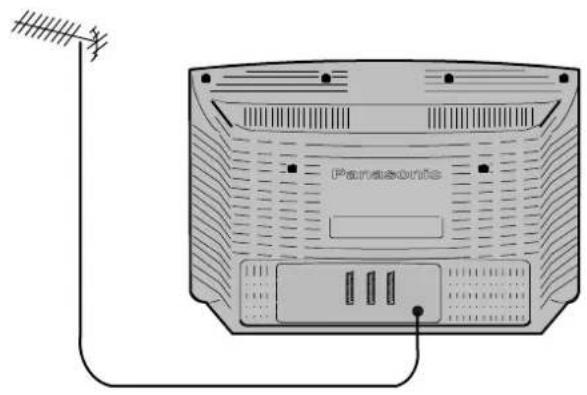

TVonly

ConnectAerialcoaxialcabledirecti toTVRFINsocket.

OR

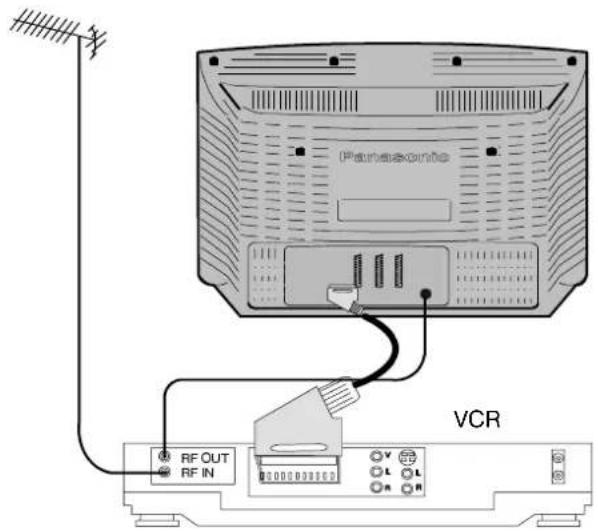

USINGAVCR

ConnectAerialcoaxialcabletoRFInputsocketof VCRandaRFcoaxialcablefromVCRRFOutsocketto TVRFINsocket.

TheVCRcanalsobeconnectedtotheTVusinga SCARTtoSCARTleadifyouareusingastereoVCR. UsetheAV121pinterminalforaVCR.Toconnectan S-VideoVCRusetheAV2S21pinterminal.

Further details of Audio/Video connections can be found on pages 33 and 34.

OR

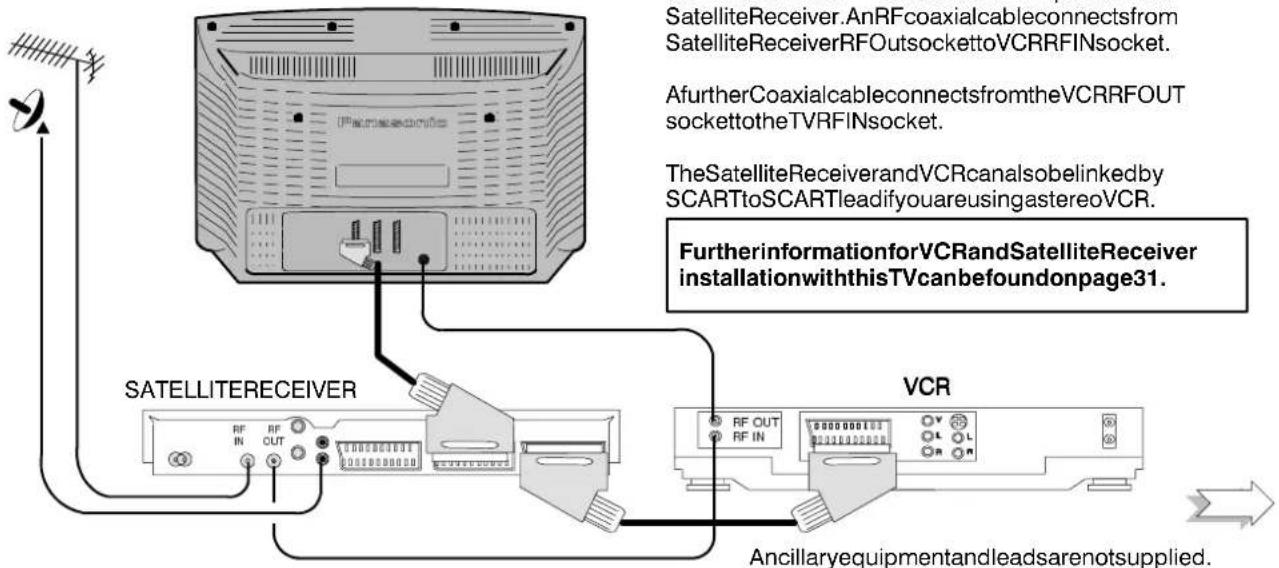

USINGAVCRANDSATELLITERECEIVER

ConnectAerialco -axialcabletoRFInputsocketof SatelliteReceiver.AnRFcoaxialcableconnectsfrom SatelliteReceiverRFOutsockettoVCRRFINsocket.

A further Coaxial cable connects from the VCRRFOUT socket to the TVRFIN socket.

TheSatelliteReceiverandVCRcanalsobelinkedby SCARTtoSCARTleadifyouareusingastereoVCR.

FurtherinformationforVCRandSatelliteReceiver installationwiththisTVcanbefoundonpage31.


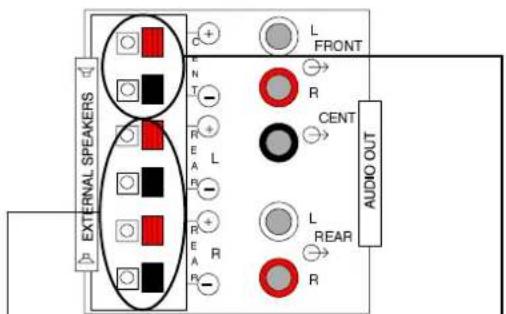

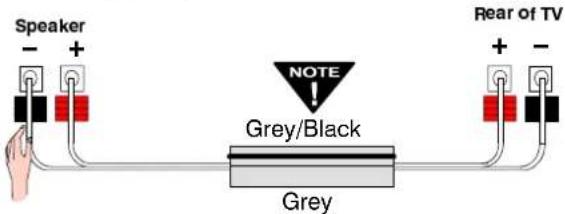

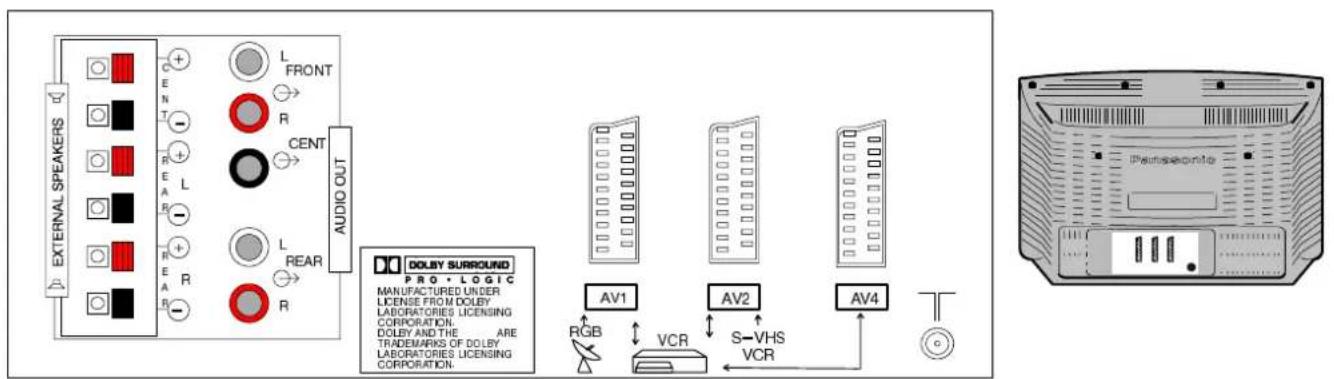

Connect the speakers with the TV switched off

Ensurethatbarespeaker wiresarenottouching

Front view of a portable electronic device with ventilation grilles and control buttons (no visible text or symbols)

Rearspeakers

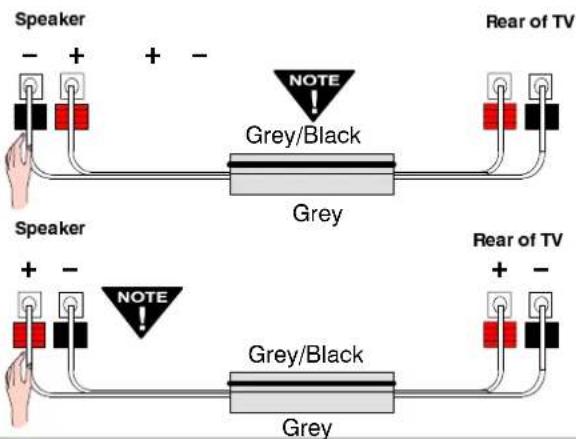

The REARspeakerscanbeconnected inoneoftwowaysAorB:

Withbothspeakersconnectedinthesameway thenthesoundwillbe'true'totheoriginal soundsignal.

Withthewiringtoonespeaker'crossedover' thenanadditional,artificialambienceeffectwill becreated.

3D rendering of a cylindrical device with a labeled 'Centrespeaker' above it (no other text or symbols)

TheCENTREspeaker may be supplied with either greyorblackcable and should be connected to the TVasshown below:

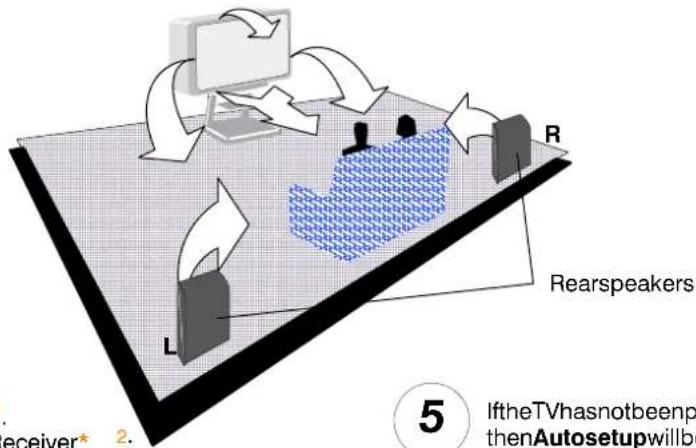

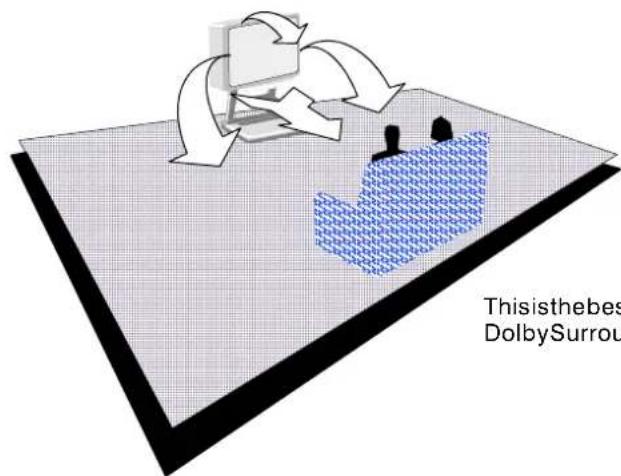

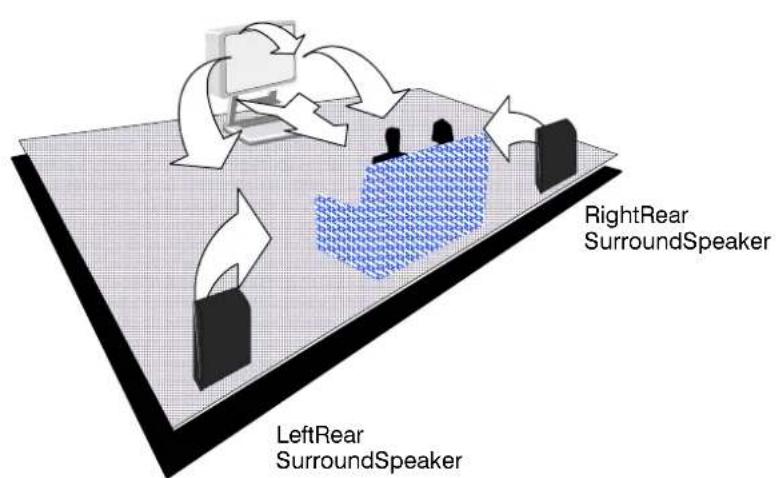

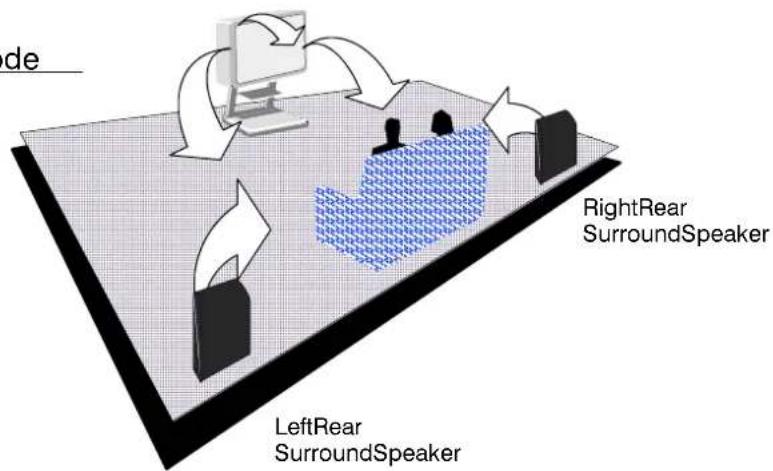

Positionthespeakers

SwitchONyourVCR* 1. SwitchONyourSatelliteReceiver* 2. PlugtheTVintomainssocketandswitchon. Programmeswillappearimmediatelyifyour dealerhasprogrammedtheTVforyou.

Illustration of a hand pointing at a screen connected to an electrical outlet (no text or symbols visible)

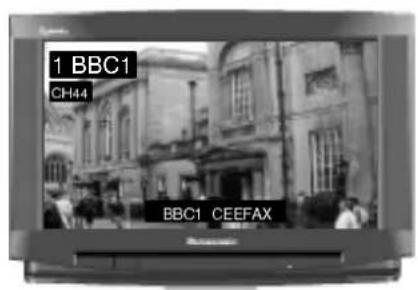

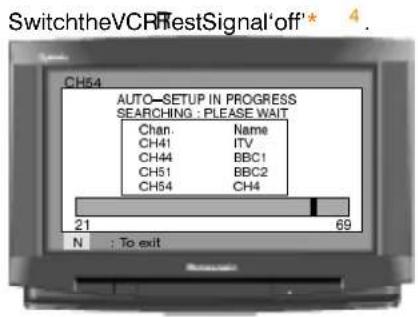

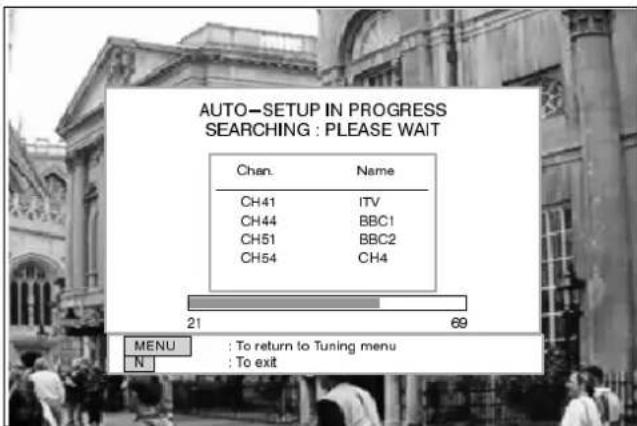

If the TV has not been programmed for you then Autosetup will begin. TV stations will be located, sorted into order and stored ready for use* 3.

... READY TO GO!

*1. We recommend that you have the VCR's test signal 'on' — refer to your VCR instruction book.
*2. We recommend that your Satellite Receiver is set to either SKY ONE or SKY NEWS to ensure reliable tuning, when Auto—Setup has finished, any satellite channel that have been stored will be listed as "SAT".
*3. The sorting order depends upon the TV signal, the broadcasting system, and reception conditions. If either BBC1, BBC2 or ITV are not located, then their respective pre-allocated programme positions 1 to 3 will not be used and therefore remain blank. Programme position4willalsobeblankifChannel4,S4CandChannel5arenotavailable.

Prog. Position	All channels	No CH5	No CH5 / S4C	No CH4 / CH5	No S4C	No CH4 / S4C	No CH4 / S4C / CH5
1	BBC1	BBC1	BBC1	BBC1	BBC1	BBC1	BBC1
2	BBC2	BBC2	BBC2	BBC2	BBC2	BBC2	BBC2
3	ITV	ITV	ITV	ITV	ITV	ITV	ITV
4	CH4	CH4	CH4	S4C	CH4	CH5	-
5	S4C	S4C	SAT	SAT	CH5	SAT	SAT
6	CH5	SAT			SAT
7	SAT

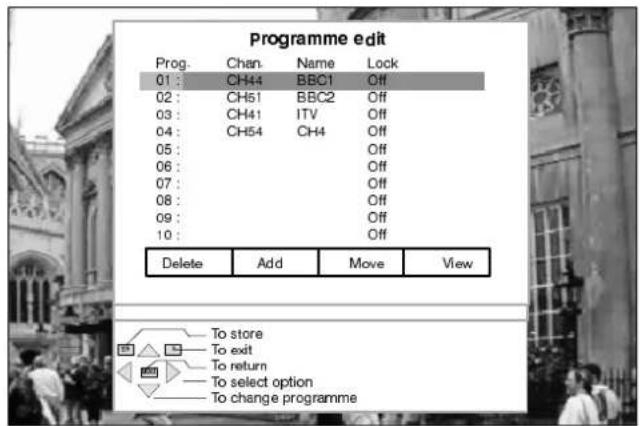

If the order is not to your preference it can be rearranged. Refer to the Programme Edit menu — see page 17 for details.

*4. If your VCR Test Signal appears as a programme position it can be deleted or moved to programme position '0' using the Programme Edit menu. IT IS IMPORTANT THAT you use only programme position '0' for your VCR. If your VCR does not appear to operate on programme position 0 (the VCR Position) refertopage18or31forguidance.

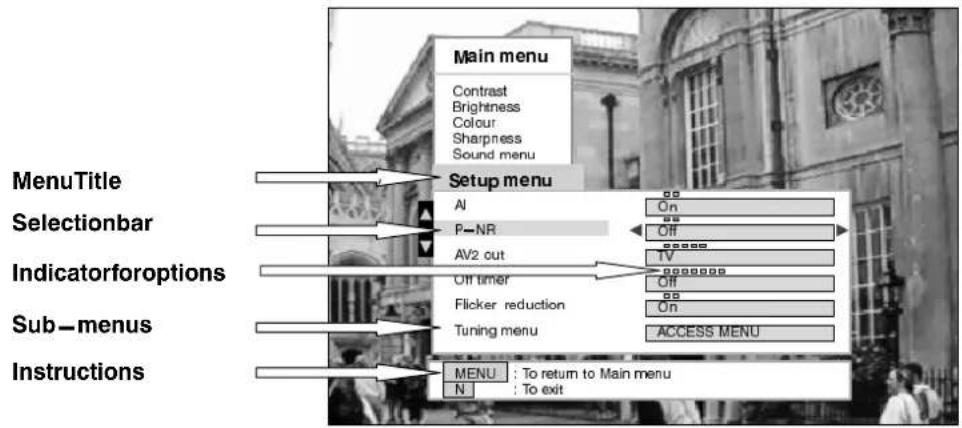

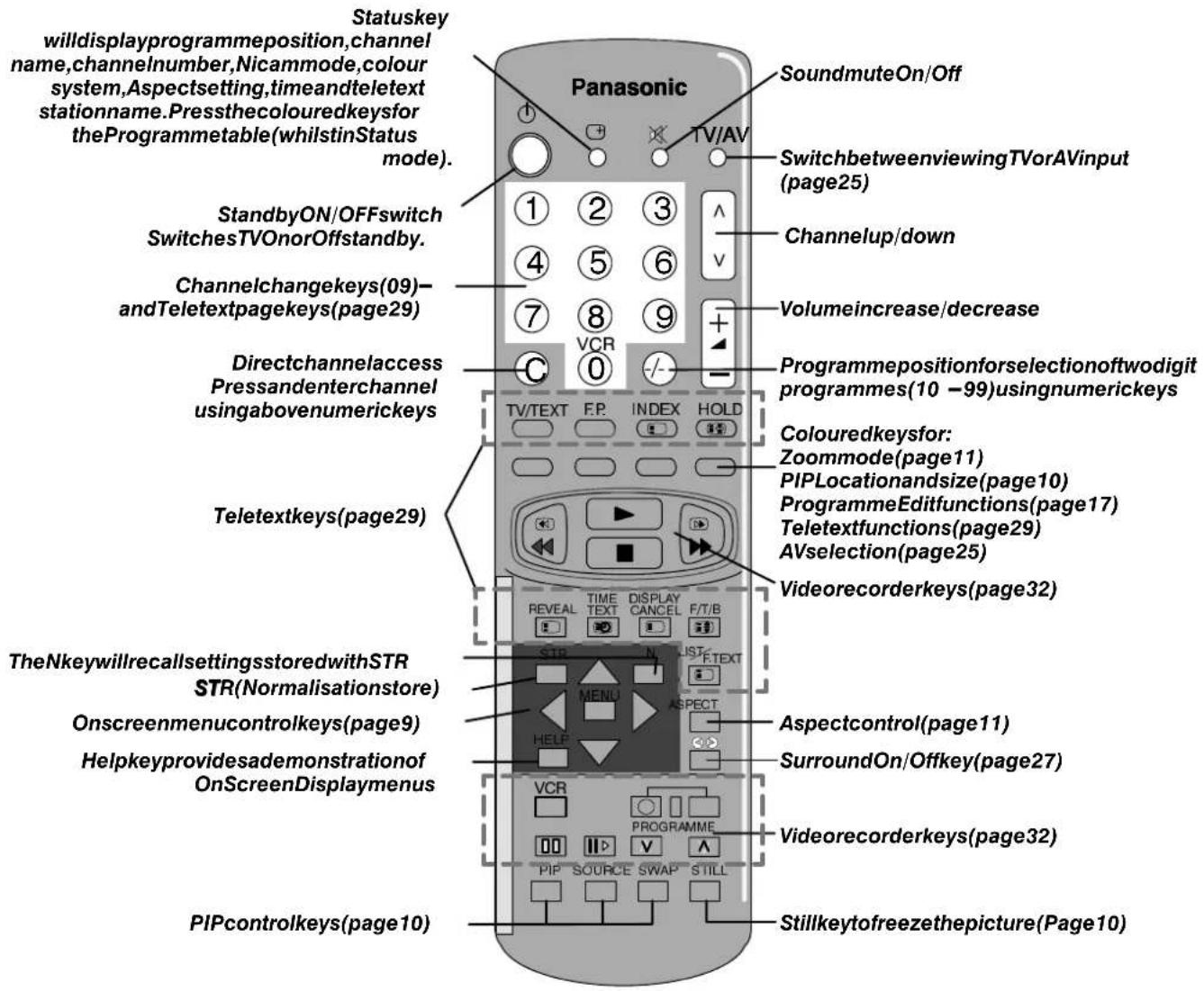

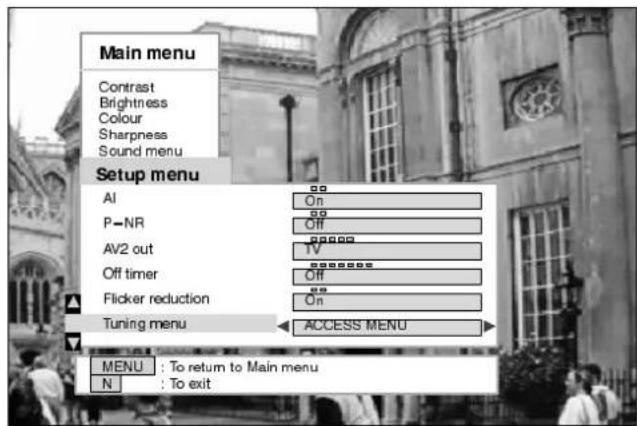

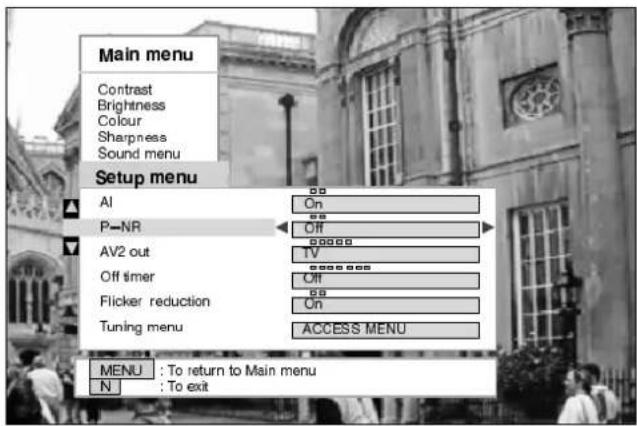

ThisTVhasacomprehensivesystemofOnScreenDisplaymenustoaccess adjustmentsandoptions.

The following comment on the key system is edited to assess and adjusted settings for the OIS GreenDi SpayMemus.

Some selections, for example, Contrast, Brightness, Colour and Sharpness will allow output increase or decrease their level.

Someselections,foreexampleOfftimer,allowachocicetobemade.

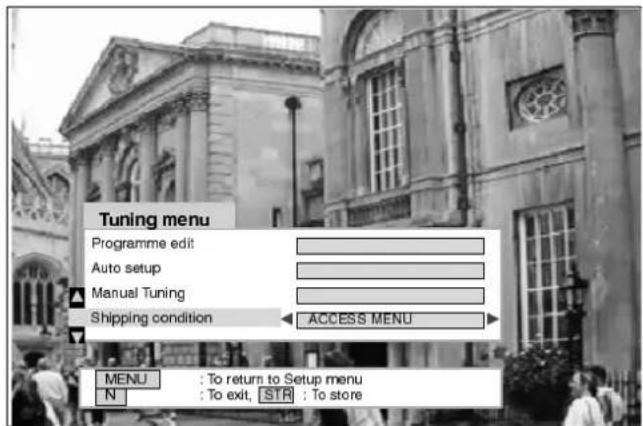

Some selections, for example Tuning menu, will lead to a further menu.

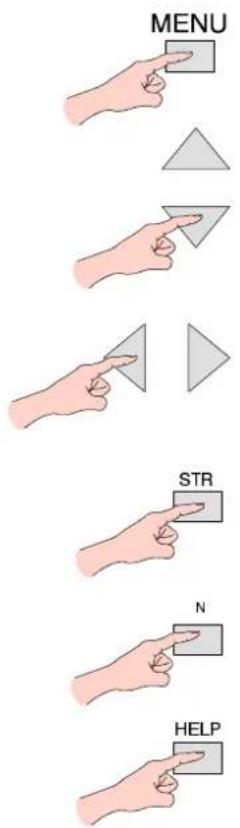

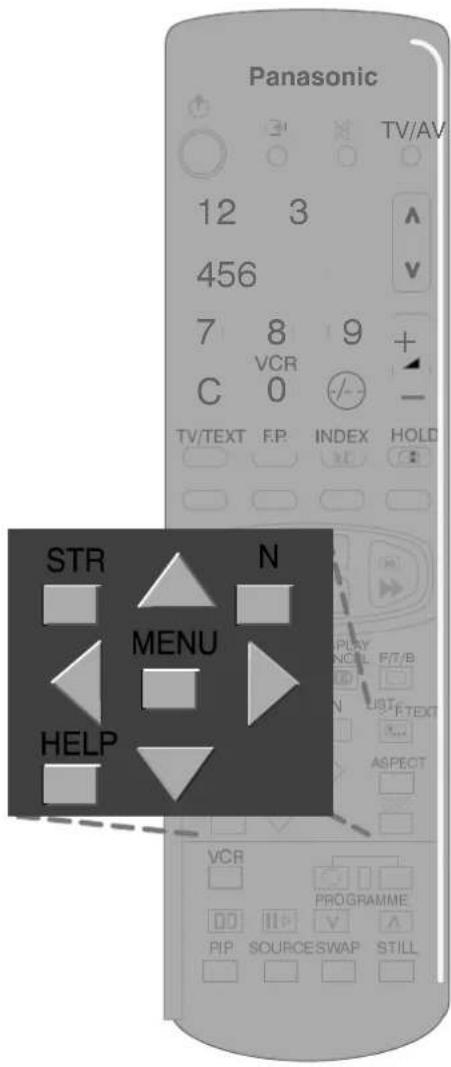

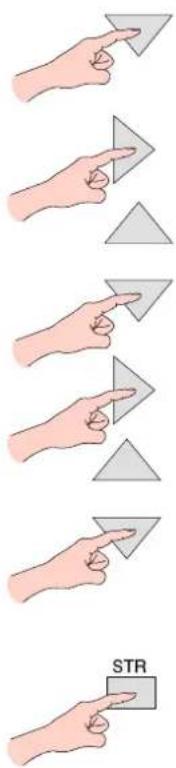

The 'MENU' key is used to open the Main menu and also return to either the Main menu or a previous menu.

The▲▼ keysareusedtomovethecursorupor downthemenus.

The◀▶ keysareusedtoaccessmenus,adjust levelsortoselectfromarangeofoptions.

The 'STR' key is used to store settings after your adjustment or choice has been made.

The 'N' key is used to leavethemenusystem and return to then normal viewingscreen.

The 'HELP' keywillrunademonstrationofthe menusavailable.

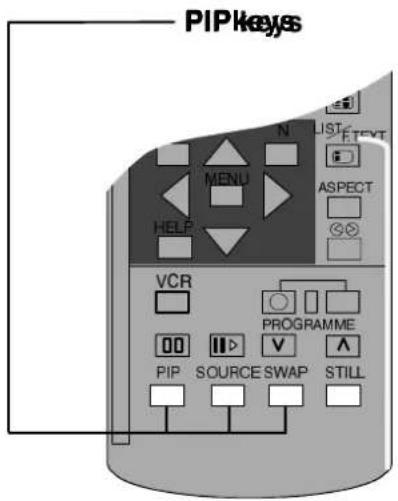

TheremotecontrolhaskeystocontrolthePIP(pictureinpicture)feature.

The PIPkey will wish the PIFuRtifomction OnandOff, PIPofferstwopiptoreviewing.

TheSOURCEkeywillallowyoutochoose whetheryouusethecurrentTVscreenor theinputtoAV1,AV2,AV3orAV4asthe PIPpicture.

TheSWAPkeywillallowyoutoswapthe PIPpicturewiththeMainpictureand vice-versa.

STILLControl

The STILLkeyallowsyoutofreezethe pictureatanytime.

When using the STILL key with the PIP function press to freeze the Main picture, press again to release the Main picture and freeze the PIP picture, press again to release the PIP picture.

Exterior view of a classical-style building with people gathered in front (no visible text or signage)

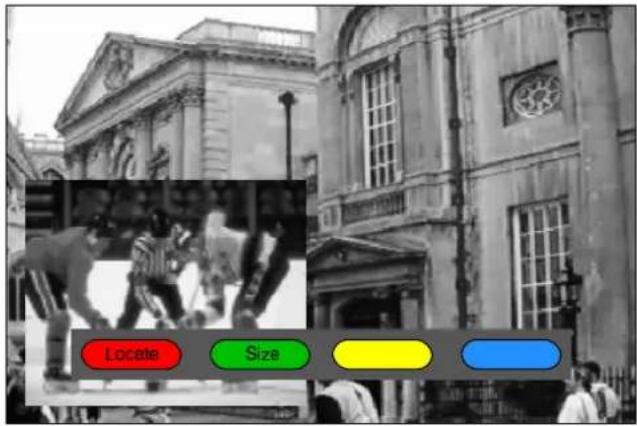

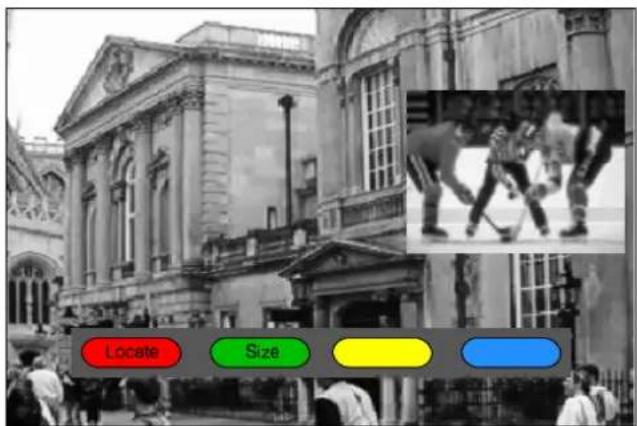

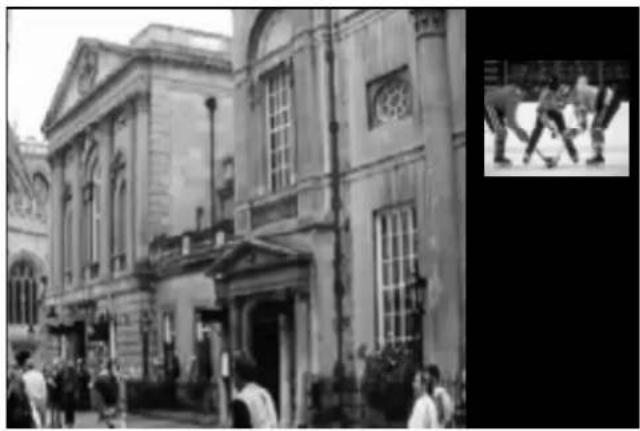

PressingthePIPkeywilldisplaythePIPpicture (shownin4:3Normalmode)

WhenviewinginanAspectmodeotherthan4:3,i.e. Wide,Zoom,S Zoom,FullorJust,pressingthePIPkey willalsodisplaytheLocateandSizeoptions.

ThePIPpicturehasbeenmovedtoanalternativeposition andmadesmallerbypassingtheLocatekeytwice followedbytheSizekeyonce.

ThewidescreenTVwillallowyoutoenjoyviewingthepictureatitsmaximumsize,including widescreen'cinemaformat'pictures.

WIDE/PANASONIC AUTO

Grid background with two vertical gray bars and a large circle, no text or symbols present

Some broadcasts are transmitted together with a wide screen identification signal (WSS). If the TV receives this signal then it will automatically switch to widescreen 14:9 or 16:9 mode.

The automatic widescreenswitching depends upon reception conditions and the strength of the signal. If the signal is poor and therefore the WSS is weak then it is possible that the picture may not expand to full size and that the TV will display black areas around the edges.

A4:3picturesetto4:3A4:3pictureswitchedto

Justmode

If the original sources signal was a standard 4:3 aspect ratio then you might prefer to view in its original size.

PresstheAspectkey,theredandgreenkeysthatappear,willallowyoutochoosebetweenviewingat standard4:3sizeorexpaniedinJustmode.

4:3

Simple circular diagram on a grid background with two vertical bars and a blue label '4:3' in the top-left corner (no text or symbols within the diagram itself)

A4:3pictureswitchedto itsnormal4:3viewing mode

4:3 will display a 4:3 picture at its standard 4:3 size and can be selected if you wish to view in this format.

Zoom

Grid background with a circular outline and colored rectangular blocks at the bottom (no text or symbols)

Theredkeywillreducethe picturesizevertically

Simple diagram with a curved line and colored blocks on a grid background (no text or symbols)

Thegreenkeywillenlarge thepicturevertically

In Zoom mode the size of the visible picture may vary according to the aspect ratio of the original picture. Theredandgreenkeysallowyoutoadjustthesize.

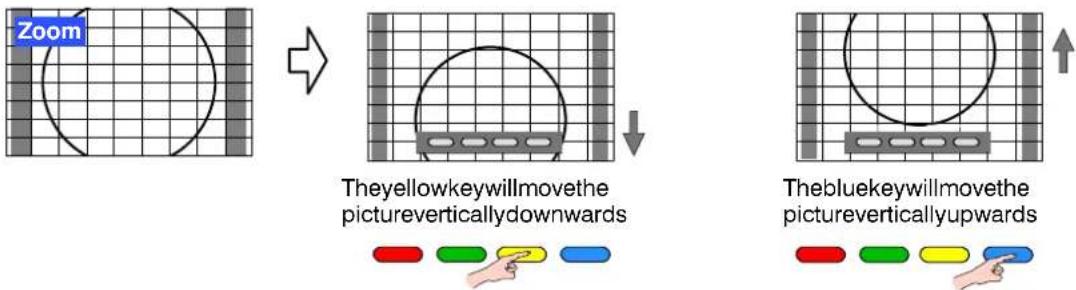

Zoom

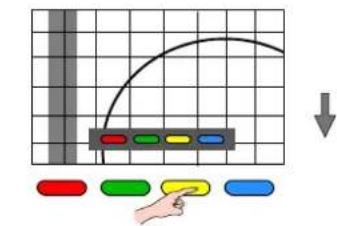

Thepicturecanbemovedverticallyusingtheblueandyellowkeys.
S-Zoom

In S-Zoom mode the red and green keys will allow you to move the picture horizontally. Theyellowandbluekeyswillallowyoutomovethepicturevertically.
Full

Fullwilldisplaythepictureatitsmaximum sizebutwithslightelongation.

Just

Justmodewilldisplaya4:3pictureatmaximumsizebutwithaspect correctionappliedtothecentreofthescreensothatelongationisonlyapparentattheleftandrightedgesofthescreen.Thesizeofthepicturewill dependupontheoriginalsignal.

Notes:

• The on screen selector keys that appear for some aspect functions will clear after a few seconds. If you subsequently wish to select anoperationthenpresstheAspectkeyoncemoreforthekeystoreappear.
• The widescreen aspect ratios of different films and programmes can vary. If these are wider than a standard 16:9 aspect picture thenablackbandmaybevisibleatthetopandbottomofthescreen.
• If, in WIDE mode, you experience problems with the screen display size when playing back widescreen format recordings from your VCR then it is possible that the tracking controls of your VCR require adjustment (your VCR instruction book will contain adjustment details).

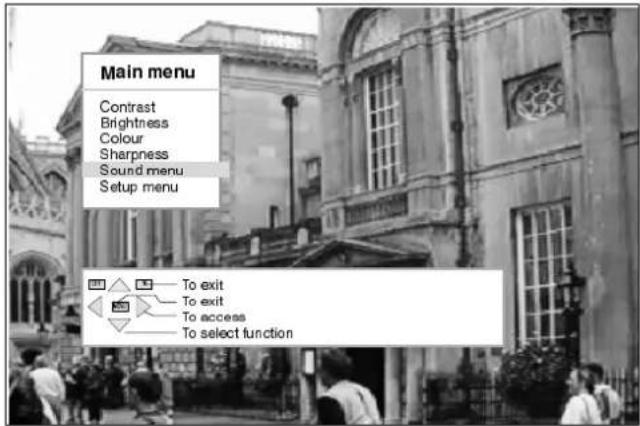

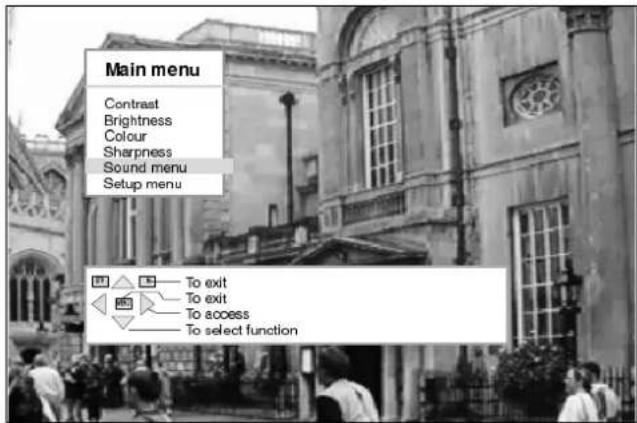

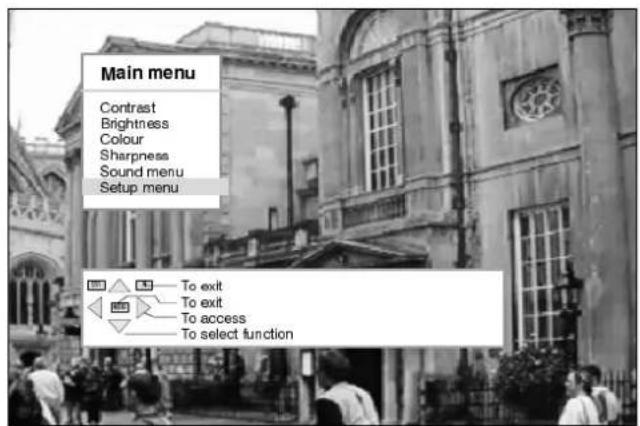

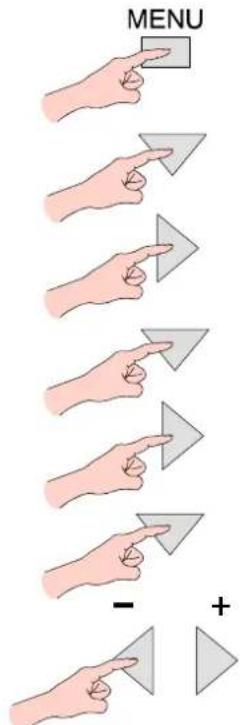

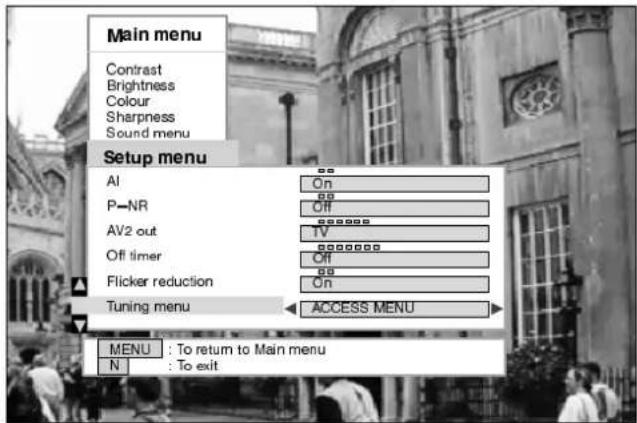

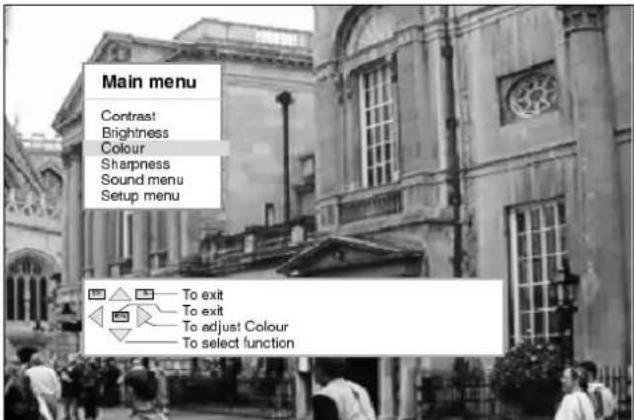

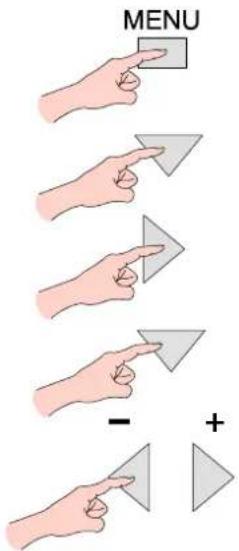

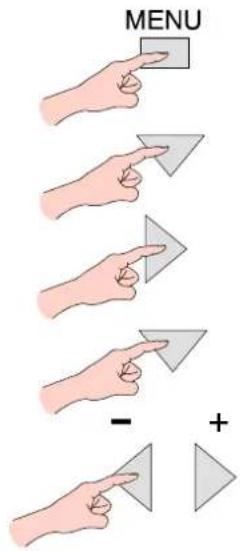

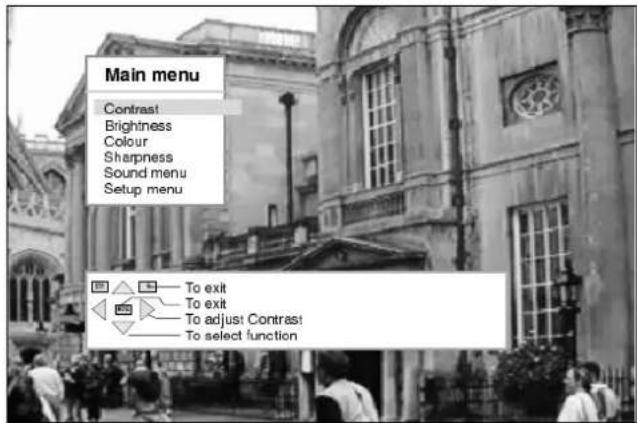

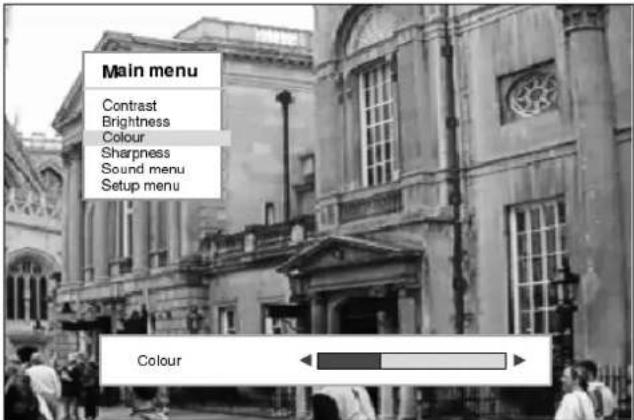

AllmenusstartfromtheMainmenu(exceptAVselectandTuningprocedure(Frontpanel)). Youwillalsofindthebasicpicturequalityadjustmentswithinthismenu.

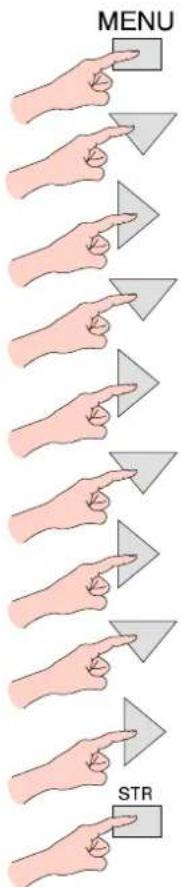

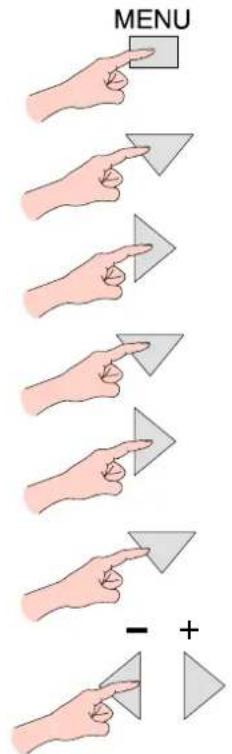

OpentheMainmenu

Movetoyourchoice

Accessyourchoice

Increaseordecreaselevelsor movetotheSoundorSetup menus.

Contrast

TheContrastleveloftheTVcanbe adjusted,tosuitthelightingconditionsof theroom,asnecessary.

Brightness

TheBrightnesslevelcanbeadjustedto suityourviewingconditions.

Colour

TheColourlevelcanbeadjustedtoyour ownpreference.

Sharpness

Thepicturecanbesoftenedorsharpened toyourownpreference.

Tint

TheTintadjustmentwillonlyappearasa menuitemifyouhaveanNTSCsignal sourceconnectedtotheTVandwillallow adjustmentofthehue.

Sound Menu

LeadstotheSoundmenu andallows adjustmentstobemadeto thesound quality.

Setup Menu

Leads to the Setup menu for various featureadjustments.

Todoose Mainmenu

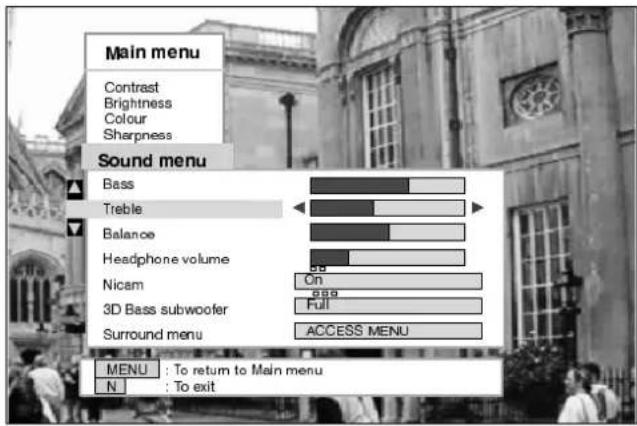

TheSoundmenuwillallowyoutosetyourpersonalpreferencesforallaspectsofsoundquality

OpentheMainmenu

MovetoSoundmenu

AccessSoundmenu

Movetoyourchoice

Increaseordecreaselevels, choosefromoptionsoraccessthe Surroundmenu.

Bass

Trehlitz

Balance

Nicam

3D Bases subwoofer

Surround Menu

Bassadjustmentwillemphasisethelower, deeperfrequenciesandcanbeincreased ordecreased.

Trebleadjustmentwillemphasisethe sharper, higherfrequenciesandcanbe increasedordecreased.

Balanceaffectsthelevelsofsound betweentheleftandrightspeakers. Adjustmentcanbemadesothatthelevel frombetweenspeakerswillsuityour listening position. Balance is not selectableinDolbyProLogicorSimulated operation.

Theheadphonevolumecanbeadjusted independentlyoftheTVspeakerssothat everyonecanenjoylisteningattheirown comfortlevel.

SelectOntoprovidestereosoundreproduction.

SelectOffforFMMonosoundoutput.

IfNicamMonoisbeingtransmittedselecteitherFMMono(Off),NicamMonol(M1)orNicamMonoll(M2).Theoptionsdependuponthesignal beingtransmitted.

IfreceptiondeterioratesitisadvisabletoswitchtoFMMono(Off).

When Nicam transmissions are not being received, the sound will be FM Mono(Off) only.

3DBasssubwoofercanbeswitchedtoOff, Normal, or Full forsuper deepbassresponse.

LeadstotheSurroundmenuforDolbyProLogicandsimulatedmodes ofoperation, asdescribedonPages26to28.

MENU

ReturntoMaiimeranu

To exit means system

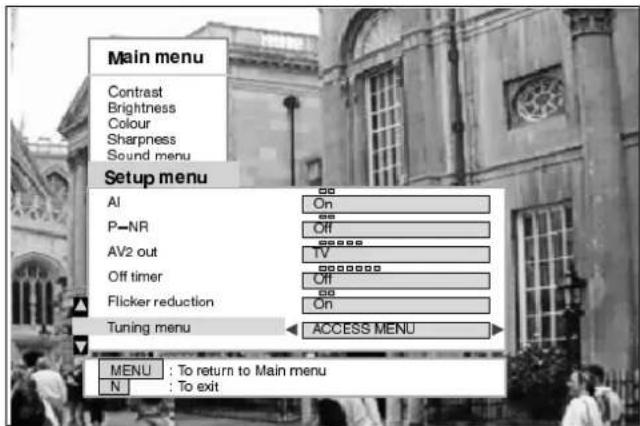

TheSetupmenuprovidesaccesstovariousadvancedfeaturesandalsototheTuningmenu

OpentheMainmenu

MovetoSetupmenu

AccessSetupmenu

Movetoyourchoice

Increaseordecreaselevelsor choosefromoptions

Alautomaticallyanalysestheincoming pictureandprocessesittogiveimproved contrast, optimumfieldofdepthandvivid colourtones.

P-NRwillautomaticallyreduce unwantedpictureinterference.

AV2offersyouachoiceofsignalstosend totheAV2SCARTsocket.Youcan choosefromthecurrentTVprogramme position,thesignalentering AV1/AV3/AV4ormonitor - thepicture displayedonscreen.

OfftimerwillswitchtheTVoffaftera presettimehaselapsed.You canchoose from between 0 to 90 minutes in 15 minute intervals.

You will normally find that Flicker reductionisbestsettoONtoreduceany slightpicturemovement. However, it is possible that some occasional broadcastsmaybenefitbyselectingthe OFFposition.

LeadstoTuningoptions, asdescribedon Pages 16to24.

ReturntoMārimerenu
To exit menus system

The Tuningmenuprovidesaccesstobothmanualandautomatictuningmenus

OpentheMainmenu

MovetoSetupmenu

AccessSetupmenu

MovetoTuningmenu

AccessTuningmenu

Movetoyourchoice

Increaseordecreaselevels, choosefromoptionsoraccess menu's.

Programme edit

AccessingProgrammeeditmenuwill allowstationstobemoved,added, deleted,namedandlocked.Further detailsonpage17.

Auto setup

TheAutosetupmenuallowsyouto automaticallyretunetheTV.Further detailsonpage22.

Manualtuning

The Manual tuning menu allows individual programme positions to be tuned manually. Further detail on page 23.

Shipping condition

Allows you to clear all tuning information and reset all control levels back to factory settings. Further detail on page 24.

ReturntoSetippneranu

To exitmeerus system

TheProgrammeeditmenuallowsyoutodelete,add,move,retune,nameandlockchannels

OpentheMainmenu

MovetoSetupmenu

AccessSetupmenu

MovetoTuningmenu

AccessTuningmenu

MovetoProgrammeedit

AccessProgrammeedit

MENU

Illustration of five hand gestures pointing at a square and two triangles (no text or symbols)

Illustration of two hands pointing to a right-pointing arrow (no text or symbols)

Todeleteanunwantedprogrammeposition

Choosetheprogrammeposition

Presstheredkeyonremote control

PressSTRtodelete

Note: ItisnotpossibletodeletetheVCR channel.

If you have completed changes the Program design edit menutthem

Toaddaprogrammeposition

Choosewheretoaddablank programme

Pressthegreenkey

PressSTRtoadd

Thisblankprogrammecanthenbe tuned, named, locked, movedor viewed.

If you have completed changesto the Programme edit menuthen

Tomoveaprogrammetoanotherposition

Choosetheprogrammeposition

Presstheyellowkeyonremote control

Choosenewposition

PressSTRtostore

If you have completed changesto the Programmeedit menuthen

Toviewaprogrammeposition

Choosetheprogrammeposition

Pressthebluekeyonremote control

Illustration of two hands holding a rectangular object, one pointing at the top and the other on the right (no text or symbols)

Thescreenwillreturnto Programmeeditafterafew seconds

Totuneaprogrammeposition

Choosetheprogrammeposition

Movetothechannelsetting

Increaseordecreasechannel number

PressSTRtostore

If you have completed changes the Programmeedit menuthen

Torenameaprogrammeposition

Choosetheprogrammeposition

MovetotheNameposition

Choosethenewcharacter

Movetothenextcharacter position

Continueuntilrenamingis completed

PressSTRtostore

If you have completed changesto the Programme edit menuthen

Tolockaprogrammepositiontoprevent access

Choosetheprogrammeposition

Movetothelockposition

Choosebetweenlockonorlock off

PressSTRtostore

If you have completed changesto the Programme edit menuthen

Accesstothelockedprogramme positionisprevented.

Whenaprogrammepositionis locked,DirectChannelAccess usingthe'C'andnumerickeyson theremotecontrolisnotavailable.

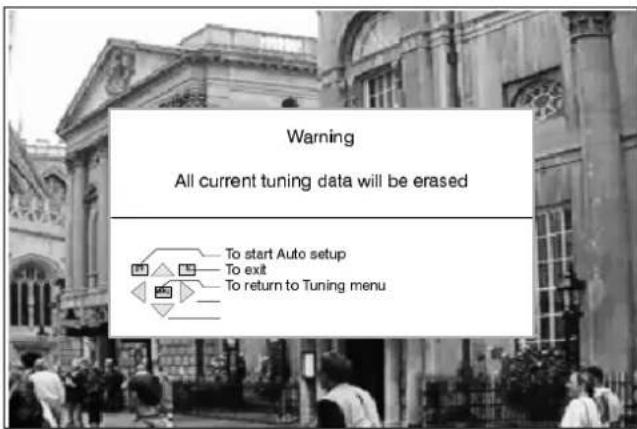

TheAutosetupmenuwillallowyoutoautomaticallyretunetheTVtoyourlocalstations.

Itisusefulifyoumovetoadifferentregion.

OpentheMainmenu

MENU

MovetoSetupmenu

AccessSetupmenu

MovetoTuningmenu

AccessTuningmenu

MovetoAutosetup

AccessAutosetupmenu

PresstostartAutosetup

TheTVwillsearchfor,locateand orderyourlocalstations.

Oncethisoperationiscompleted theTVwilldisplayprogramme position1.

Note:

ThesortingorderdependsupontheTVsignal,thebroadcasting system,andreceptionconditions.Iftheorderisnottoyour preferenceitcanberearranged.RefertotheProgrammeEdit menuseepage17fordetails.

MENU

ReturntoTuning menu

OR

To exitmeerus system

ManualtuningoftheProgrammepositionsisavailableeitherfromtheonscreendisplaymenu orfromthefrontpanelcontrols

Manualtuningmenu

OpentheMainmenu

MovetoSetupmenu

AccessSetupmenu

MovetoTuningmenu

AccessTuningmenu

MovetoManualtuning

AccessManualtuning

Selecttheprogrammeposition

Starttuning

PressSTRtostore

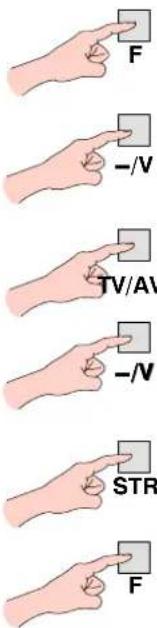

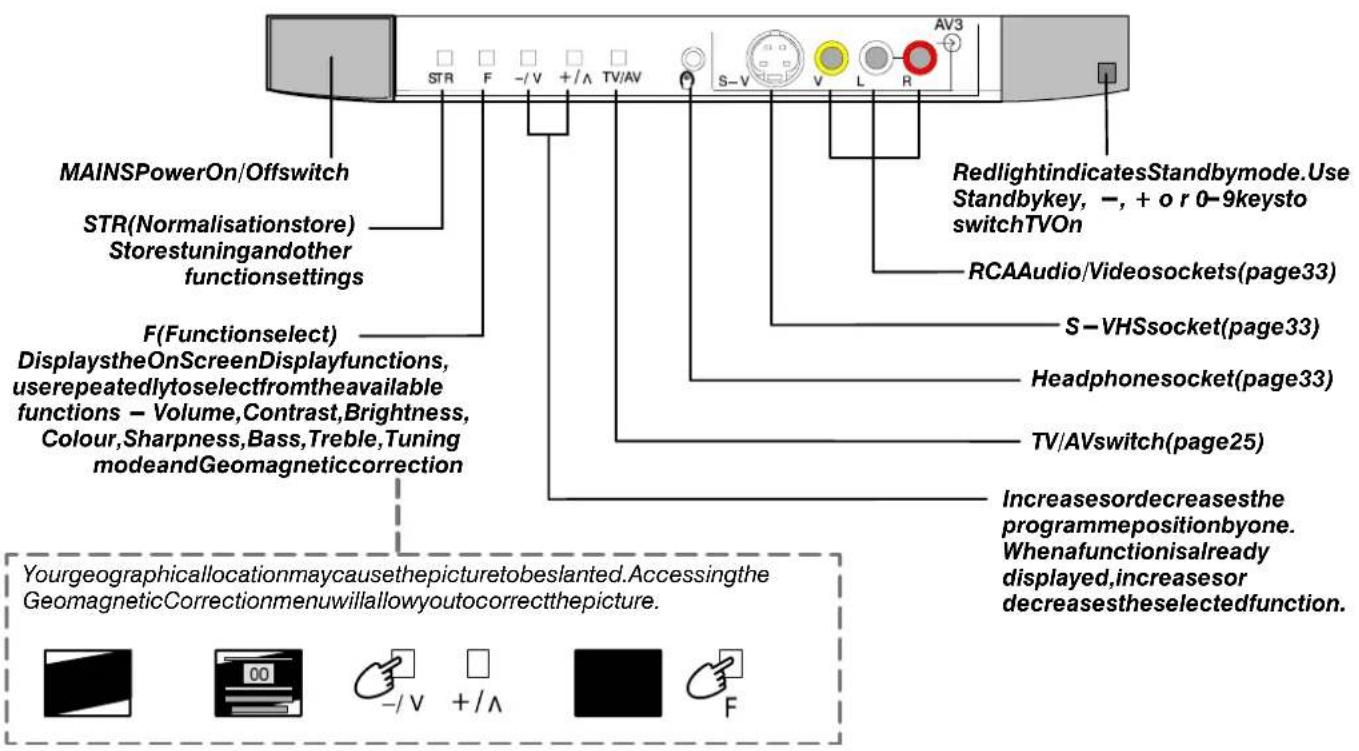

Manualtuning(Frontpanel)

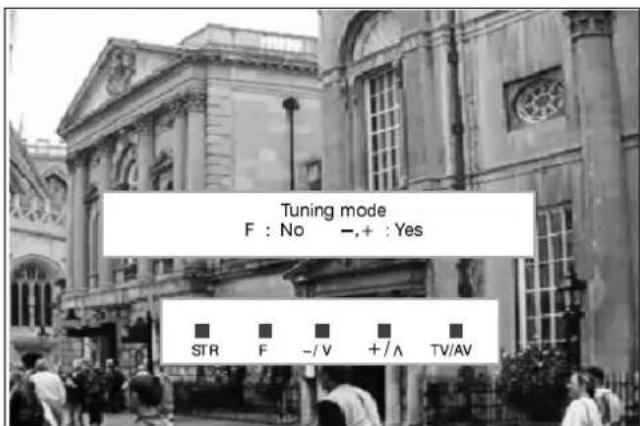

PresstheFbutton(Frontpanel) until "Tuningmode" is reached

Pressthe - or+buttontoaccess "Tuningmode"

PresstheTV/AVbuttontochange totherequiredprogramme position

Pressthe - or+buttontostart thetuningsearch

PressSTRtostorechanges

PresstheFbuttontoexit

ShippingconditionallowsyoutoresettheTVtoitsoriginalcondition,i.e.nochannelstunedin.

This is useful for example, if you move to a different area then you will probably want the TV to tune itself to your new local stations.

This can be done either through the Shipping Condition menu or through the Auto setup menu.

The Shipping condition menu will reset all data, clearing all tuning information and resetting all control levels back to factory settings. You may need to adjust your VCR or programme position '0' VCR after operating the Shipping Condition menu – refertopage31.

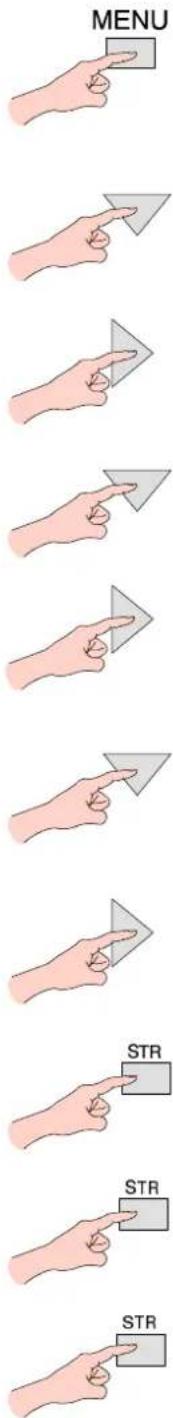

OpentheMainmenu

MovetoSetupmenu

AccessSetupmenu

MovetoTuningmenu

AccessTuningmenu

MovetoShippingcondition

AccessShippingcondition

PressSTRtostart

Pressagain, to confirm, when you are asked, "Areyousure?"

SwitchTVoffandwaitforafew seconds.

SwitchTVonagain.

Autosetuptuningwillbegin, stationswillbelocated, sorted and storedreadyforuse. SeePage22 fordetails.

Two hand gestures pointing at a gray triangular object, no text or symbols present

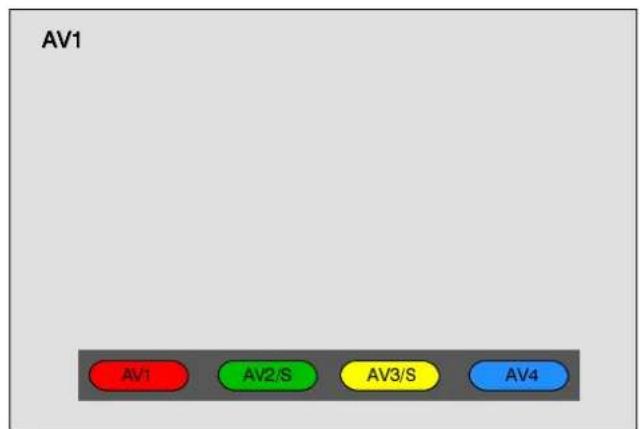

TheAVSelectmenuwillallowyoutochoosewhichAVsourcetoview.

PresstheTV/AVkey (remotecontrolorTV)

Presstheappropriatecoloured keyofremotecontrol(whilstthe optionsremainonscreen)

Pressthegreenoryellowkeys againstoselectS -Videoinput

Youmaywishtomake adjustmentsintheSetuporSound menus

SetupMenu

OpentheMainmenu	MENU
MovetoSetupmenu
AccessSetupmenu
Movetoyourchoice
Choosefromoptions

SoundMenu

OpentheMainmenu	MENU
MovetoSoundmenu
AccessSoundmenu
Movetoyourchoice
Increaseordecreaselevels, choosefromoptionsoraccessthe Surroundmenu.

Normally stereo reproduction uses left and right speakers, but Dolby Pro Logic Surround also uses a centre channel and a rear channel. The centrechannelsharpenssoundperspectiveanddialogueclaritywhilsttherearchannelisusedtoimmersetheviewerin ambience and special effects. The reproduction is furtherenhanced by the Dolby ProLogic decoder incorporated to generate clearer positioning of sounds and a fulleffectoverawider listening area.

TouseDolbyProLogicSurroundwhenreceivingtelevisionprogrammesthathavebeenproducedwiththeDolbyProLogicSurround information, you must be able to receive NICAM Stereo transmissions, if NICAM Stereo transmissions are not transmitted in your area thentheDolbyPrologicSurroundinformationwillnotbepresentanditwillnotbepossibletouseProLogicoperation(unlessyouare playingbackfromastereoVCR).

Dolby Pro Logic Surround will operate with videos, laser discs and TV programmes that bear the Dolby Surround logo :

DO DOLBY SURROUND

OpentheMainmenu

MovetoSoundmenu

AccessSoundmenu

MovetoSurroundmenu

AccessSurroundmenu

Movetoyourchoice

Choosefromoptionsoraccessthe speakerlevelmenu.

Surroundmoote

Prollogio/ Simulated setting

ChoosingProLogicalallowsselectionof Normal, Phantomor3channelmodes, as describedonPage27.

ChoosingSimulatedallowsselectionof Disco, MovieorStadiummodes, as describedonPage28.

Speaker level

Speaker distance Front / Rear

Allowsadjustmentoftheoutputlevelsfor eachchannel,asdescribedonPage28.

Allowssettingofthedistancefromthe listeningpositiontothefrontandrear speakers.Iftherearsurroundspeakers areclosertoyouthanthecentrespeaker, youmayheardialogue"leakage"fromthe rear surround speakers. It may be necessarytoreducetheoutputlevelofthe rearchanneltorectifythisphenomenon.

InternalSpeaker

NormallysettoOn, but, when separate external amplified frontspeakers are connected, then the internals peakers can be switched Off. See Page 35 for connection details.

ChoosingSurroundProLogicmodeallowsthreepossiblemodesofoperation:

Normal, Phantomor3Channel.

DolbySurroundProLogicNormalmode

PressingtheSurround switchwillswitchthe surroundmodeinto2 channelstereoonly (andvice -versa)

DolbySurroundProLogicPhantommode

DolbySurroundProLogic3Channelmode

This is the best modetouse if rearspeakers are not connected. It offers Dolby Surround Pro Logice effect but without there arsurroundspeakers.

SIMULATEDMODE

Simulated surround modes allow various types of surround effects to be produced by mimicking both the direct sound, as heard by the audience, and the sound reflected back from the surrounding walls e.g. ceiling and floor space in a space such as a Disco. There are three different effectstochoosefrom, each reflecting adifferentatmosphere.

Setting	EffectAppropriatesources
Disco	Aroomsofullofmusicthatitseemstoengulfthe listener.	Disco,DanceorJazzmusic.
Movie	Playbackofsoftware(films)notencodedwithDolby surround.	AllmoviesormusicsoftwarerecordedwithoutDolby surround.
StadiumAlargesportsstadiumpackedforalivegame.Anylivesportsoccasion.

SPEAKERLEVELSETUP

The speaker output levels from the different options, e.g. Left, Centre, Right and Rear should be adjusted, from your usual listening position, to obtain the best results. The level can be set using either the TV sound or the provided test signal.

Theadjustmentsavailablewillvaryaccordingtothemodechosen.

SpeakerlevelsetupshowninProLogicmode

TELETEXTOPERATION

• Teletext features may vary depending on the Broadcasting Companies and is only available if the channel selected is transmitting Teletext.
• This TV set is capable of receiving German TOP Teletext transmissions, it will automatically switch to them if they are being received. This will be indicated in the display area at the bottom of the screen.
• Pressing the MENU key whilst in Teletext operation will display the contrast function with a cyan bar, press ◀ to alter the setting asrequired.

- Wheninteletextmode, thevolumemaystillbealteredtothedesiredlisteninglevel.

WhatisLISTmode?

In LIST mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV's memory.

WhatisFASTEXT?

InFASTEXTmode, four differently coloured subjects are situated at the bottom of the display. To access more information about one of these subjects, press the appropriately coloured button. This facility enables fast access to information of the subjects shown.

	TV/TeletextmodePresstheTV/TEXTkey.ThescreenwilldisplaytheTeletextpage.PressagainwhenyouwishtoreturntoTV.mode.
	PageSelectionPagescanbeselectedintwoways:a.PresstheUp/Downkeystoincreaseordecreasethepagenumberbyone.b.Byenteringthepagenumber,using0 -9ontheremotecontrol.
	Red/Green/Yellow/BluekeysInFASTEXTmodethesecorrespondtothedifferentlycolouredsubjects.InLISTmodetheycorrespondtothedifferentlycolouredpagenumbers.
	List / F.textWheninList/FastextoperationPresstochangefromFASTEXTmodetoLISTmodeandviceversa.InFASTEXTmodefourdifferentlycolouredsubjectsaredisplayedatthebottomofthepage.Presstheappropriatecolouredkeytoaccessmoreinformationaboutoneofthesesubjects.
	ListStoreInLISTmodethefourpagenumberscanbealteredforchannelpositions125only. -Todothis,pressoneofthecolouredkeysandenterthenewpagenumber.PressandholdSTR,thepagenumberswillchangecolour.
	IndexWheninFASTEXToperationPressINDEXtoreturntothemainindexpage.Dependingonthewayinformationistransmitted,thismayhavetobepressedmorethanoncetoreturntothemainindexpage.
	Full/Top/BottomPresstoexpandtheTOPhalfofthepagepagPressagaintoexpandtheBOTTOMhalf.Pressagaintoreturntonormal(FULL)size.
	RevealPresstorevealhiddenwordse.g.quizpageanswers.Pressagaintohide.

ItisnotpossibletochangetheprogrammepositionwheninNewsflash,UpdateorSubCodedPageAccessoperation.

Hold

To hold the date text page when viewing tipal@information. Pressagaintorenturntoautomaticpageupdate.

DisplayCancel

Press DISPLAY CANCEL to view the TV picture whilst searching for a Teletext page. Whenfound, the screen will display the pagenumber at the top left. Press DISPLAY CANCEL to view the page. Press TV / TEXT to return on normal TV operation.

NewsFlash

When a news flash page has been selected, press DISPLAY CANCEL to view the TV picture, when an update is received, it will be displayed on screen. Press DISPLAY CANCEL to remove updated news. Press TV / TEXT to return on normal TV operation.

Update

Press DISPLAY CANCEL to see the update of information on certain pages. When an update is received, the pagenumber will be displayed at the top left of the screen. Press DISPLAY CANCEL to view the page. Press TV / TEXT to return normal TV operation.

FavouritePage(F.P.)

Storesafavouritepageinmemoryforinstantrecall.Tostoresuchapage,theTVmust beinLISTmode,andtheprogrammepositionmustbefrom1 - 25.PresstheBLUE key,selectthepagenumber,thenpressSTR.Thepagenumberisnowstored. PressFPtorecallthispage.

Dependingonthetransmissionsequence,whentheF.P.keyispressed,thecontentsof thefavouritepagemaytakesometimetoappear.Onlythepagenumberisstored,not it'scontents.

SubCoded PageAccess

Whenteletextinformationexceedsmorethanonepage,itmaytakesometimeforthe automaticchangingofthesubpagestoreachthesubpageyourequire.Itispossibleto entryyourrequiredsubpageandcontinuewatchingthenormalprogrammeuntilthe correctsubpageisfound. Selecttherequiredpagenumberusingkeys0 - 9.

PressTIMETEXT,****willbedisplayed(toprightofthescreen).

Enterdesiredsubpagenumberbeforethe****disappears. Toselectpage6enter0,0,0and6.

IfinLISTmode,a'T'willappearinthecurrentboxatthebottom.

Press DISPLAY CANCEL to view a normal TV programme.

When the page is available, press DISPLAY CANCEL to view the page.

Toclearthepageperformoneofthefollowing:

• Selectanewpagenumber.
• Press TV/TEXT to return to normal TV operation.

YournewTVissuppliedwithprogrammeposition'0'settoreceiveanRFsignalfromyourVCR.

However, if for some reason your VCR is tuned to a different RF channel then you will not receive any picture or sound from your VCR on programme position '0' of the TV. It will be necessary to either adjust the RF channel of your VCR or to adjust the tuning of the TV's programmeposition '0'orbothuntilreceivestheRFoutputchannelofyourVCR.

It is intended that this advice is used in conjunction with the instruction books for your ancillary equipment.

TOTUNEYOURVCRTOTHETV

Note:
SomeVCR'sarecapableofadjustingtheir RFchannelviatheirremotecontrolunit.

Line drawing of a classic convertible car (no text or symbols)

Insert recorded tape and select playback

SetTVto programme position'0' VCR

Adjust tuning

Operation completed

Seebelowfor installationofVCR and SatelliteReceiver

TOTUNNEYQUBRVTKOTBIEVERVCR

AccesstheManualtuningmeneias as detailed on page 23.

▼ ▲ To selectprogrammeposition'0'

◀ ▶ To start search if you play back

Programmepositionandcurrentchannel aredisplayedtopleftofscreen

Line drawing of a vintage convertible car (no text or symbols on the car itself)

If you are going to use a Satellite Receiver and a VCR it is important, to avoid tuning problems, that they are both tuned to output their signals on differing channels. For example, if your VCR is tuned to output channel 32, your Satellite Receiver could be set to output channel 34. RefertoyourSatelliteReceiverandVCRinstructionbooksforprecisetuninginformation.

The Remote Control is capable of operating some functions of selected Panasonic VCRs, please consult your dealer for details. Some VCR have different functions, so to ensure compatibility, please refer to the VCR's instruction book.

FrontAV34PinS -Video,RCAAudio/VideoandHeadphoneSockets

AncillaryequipmentandcablesshownarenotsuppliedwiththisTVset. et.

SCARTandSVideoTerminalInformation

AV1andAV421pinSCARTterminalsSVideo4pAM22pipi8SCARTentaimahal

Suitable inputs for AVN1circleRGB(Red/Red/Green/Blue).
AV4 does not have RGB input capability.
AV2 - Pins15and20aredependent on AV2S4-18/MD/DODSWtchirthing.

RearAV1/AV2(S)/AV421PinSCARTandRCAAudioOutTerminals

Notes:

Ancillary equipment and additional show area and supply width this TV set. TV set.

DomconneetacomputerwithMIFLOItput(5V)tofVsssetthis set.

The AV2 21 pin terminal can also be used as an Output to Audio / Video Equipment (refer to page 15 for details).

Audiooutusingexternalamplifiersandspeakers

The Audio Out sockets on the rear of the TV allow you to create your own custom sound output system using additional external amplifiers and speakers. You may decide, for example, to use an external amplifier and speakers for the Front surroundoutput.

Utilisinganexistingstereohi -fisystemcomprisingoneamplifier, connectedtotheFRONTDOLBYSURROUNDOUT socketsandtwospeakerstoallowseparatefrontleftandrightchannels.

TheinternalspeakercanbeswitchedoffintheSurroundmenu.

Notes:

AllAudiooutsocketscanbeconnectedtheateramalifiersafidspeakershipouvaityocreateyourowateustomsystem.

The level of the significance found in the Abel A Ouits Oakesis is controlled by the TVyothene Tovolome control.

The extra equipment required districts supplied.

Symptoms		Checks
PictureSound
SnowyPicture	NoisySound	Aeriallocation,directionorconnection
MultipleImages	NormalSound	Aeriallocation,directionorconnection
Interference	NoisySound	ElectricalappliancesCars/MotorcyclesFluorescentlightsSwitchonP -NRinSetupmenutoreducepicture noise
NormalPicture	NoSound	VolumelevelSoundmuteswitchedon
NoPicture	NoSound	TVsettoAVmodeNotpluggedintoA.C.outletNotswitchedonPicture/SoundcontrolssetatminimumlevelsCheckifinstandbymode
NoColour	NormalSound	Colourcontrolssetatminimumlevels
PoororDistortedPicture	WeakorNoSound	RetuneChannel(s)
ColouredPatches	NormalSound	MagneticInterferencefromunshieldedequipmentReceivermovedwhileswitchedON,switchTVoffor 30minutes.
NormalPicture	Weakordistortedsound	Soundreceptionmayhavedeteriorated.SwitchNicamsetting(Soundmenu)toOffuntil receptionimproves.

■Service

Beforerequestingservice, pleaserefertothetroubleshooting guideonpreviouspagetodeterminethesymptoms. To obtain servicepleasecontactyourlocalPanasonicdealerquotingthe modelnumberandserialnumber(botharelocatedattherearofthe TV).

■TVGames/HomeComputers

ExtendeduseofTVgamesorhomecomputerswithanytelevision setcancauseapermanent'shadow'onthescreen. Thistypeof irreversiblepicturetubedamage,canbelimitedbyobservingthe followingpoints:

• Reducethebrightness and contrast level to a minimum viewing level.
• Donotoperatethetelevisionsetforacontinuousperiodof timewhileusingTVgamesorhomecomputers.
• This type of picture tubed damage, is not an operating defect, and such is not covered by the Panasonic warranty.

■SleepFeature

If these is not switched off when the TV station stop transmitting, it will automatically go to standby mode after 30 minutes. This function will not operate when the TV in AV mode.

■LastPositionMemory

Certainfunctionshavealastpositionmemory,i.e.thesettingatthe timeofswitch -offwillbethesettingusedwhenthereceiveris switchedonagain: -

Programme Tint(M.NTSC/NTSConly) 3DBass PIP

AVPosition(ifpreviouslysetbyremotecontrol)

Flickerreduction Contrast

Volume Sharpness

Nicam Aspect

Bass Standby

Treble Artificial Intelligence(Al)

Balance Colour

AV2OUTselection Brightness

Status Headphonevolume

P-NR Surroundmode

Speakerlevelsetting Speakerdistance

Volumecorrection(inAVmodeonly)

SPECIFICATIONS

	TX-W32D2DP	TX-W28D2DP
PowerSource	220 -240V50HzA.C.
Power consumption	207W	199W
Standbyconsumption	1W
Picture Tube	Diagonal 82cm, 76cm visible diagonal	Diagonal 70cm, 66cm visible diagonal
Audio Output (Music)	Front 20W x 2, Rear 15W x 2, Centre 20W, 3D Bass 26W
Dimensions H	555mm	497mm
	862mm	760mm
	553mm	503mm
Weight (Kg)	52	39
Receiving Systems/ Bandname	PAL I UHF E21-69PAL525/60 Pla.ybackofNTSCta..pefromPALVideorecorders..(VCR)M.NTSC Playback from M.NTSC Videorecorders (VCR)NTSC (AV input only) Playback from NTSC Videorecorders (VCR)
Aerial - Rear	UHF
Headphones - Front	3,5mm
AV1 - Rear	21 pin terminal - Audio / Video in / out, RGB in
AV2 - Rear	21 pin terminal - Audio / Video in / out, S-Video in, Selectable output
AV4 - Rear	21 pin terminal - Audio / Video in /out
DolbySurroundOut -Rear	5xDolbySurroundOutRCAExternalSpeakerconnections - 2 x Front, 2 x Rear, 1 x Centre
AV3 - Front	S-Video in, 2 x RCA Audio in, 1 x RCA Video in

• Specifications are subject to change without notice. Weight and dimensions shown are approximate.
• "Dolby", "ProLogic" and the double - Dsymbol are trademark of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories Licensing Corporation.

NOTES
