INSTRUKCJA OBSŁUGI ACK-PRO Ozito

AIR CHISEL

10.2mm Shank

INSTRUCTION MANUAL

SPECIFICATIONS

Max Air Pressure: 90psi (6Bar)

Av. Air Consumption: 113l/min (4cfm)

No Load Speed: 4,500 bpm

Chisel Shank (Round): 10.2mm (0.4")

Barrel Stroke: 43mm

Air Inlet: 1/4" BSP

Weight: 1.05kg

ACK-PRO

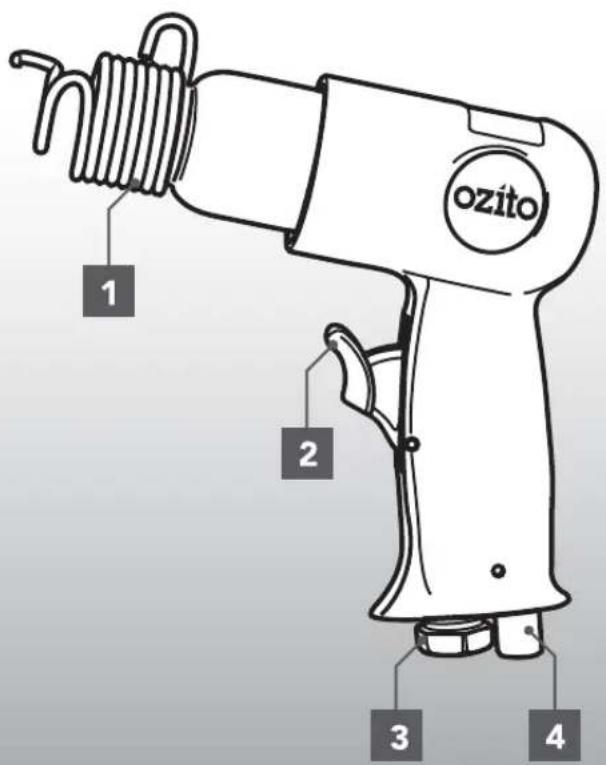

KNOW YOUR PRODUCT

1 Quick Change Spring

2 On/Off Trigger

3 Air Inlet

4 Air Regulator

GENERAL AIR TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety
   a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
   b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
   c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
   d. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
   e. Check the maximum pressure rating of any tools or accessories that you intend using with the compressor. The output pressure of the air from the compressor must be regulated so that it never exceeds the rated pressure of the tool or accessory.
   f. Always wear safety goggles or glasses when using the air compressor. Never point the nozzle of an accessory towards any part of your body or towards another person.
   g. Drain the moisture from the tank daily. It will help prevent corrosion.

h. Use safety equipment including safety goggles or shield, ear protection, breathing respirator mask and protective clothing.
i. Air tools should not be used in a potentially explosive environment.
j. Use safety equipment including safety goggles or shield, ear protection, breathing or respirator mask and protective clothing.
k. The tool must be used only for its prescribed purpose. Any use other than those mentioned in this Manual will be considered a case of misuse. The user and not the manufacturer shall be liable for any damage or injury resulting from such cases of misuse.

WARNING! In the event that an air line is cut or broken, the air supply must be turned off at the compressor. A broken air line which is not supported is extremely dangerous and can whip around very quickly, both with the capability of striking people, and blowing foreign particles into the air.

Do not attempt to catch the air line but immediately keep bystanders well clear and turn off the air supply to the hose, turn off the compressor at the On / Off button, and then remove the hose from the compressor.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given the supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

AIR CHISEL SAFETY WARNINGS

WARNING! Use thick cushioned gloves and limit the exposure time by taking frequent breaks.

• Vibration caused by the hammer action may be harmful to your hands and arms.
- When removing an accessory from the tool avoid contact with skin and use proper protective gloves when grasping the bit or accessory. Accessories may be hot after prolonged use.
- Always wear eye protection and a dust mask for dusty applications and when drilling/chiselling overhead. Sanding particles can be absorbed by your eyes and inhaled easily and may cause health complications.

DESCRIPTION OF SYMBOLS

	Warning		Read instruction manual
	Wear ear protection		Wear eye protection
/min	Revolutions orreciprocation per minute		No load speed

SPARE PARTS

Quick Change Spring SPACKPRO-07

Trigger SPACKPRO-08

Spare parts can be ordered from the Special Orders Desk at your local Bunnings Warehouse.

For further information, or any parts not listed here, visit www.ozito.com.au or contact Ozito Customer Service:

Australia 1800 069 486

New Zealand 0508 069 486

Email: [e-mail]

CONNECTING TO COMPRESSOR

1. Remove black plastic cap from air inlet.

2. Wrap the threaded male end with teflon tape in a clockwise direction.

3. Screw the male nitto fitting clockwise into the female end of the air inlet.

4. Pull back the sleeve on hose fitting, insert male end & release sleeve on hose fitting.

Close-up of a hand pressing down on a mechanical component (no visible text or symbols)

Close-up of hands holding a small object with a black-and-white cap, next to a spool of paper (no visible text or symbols)

Close-up of a mechanical component with a threaded fitting and a metallic housing (no visible text or symbols)

Close-up of a black mechanical component being held by fingers (no visible text or symbols)

Note: This tool is rated at 90psi. Ensure your compressor is set no higher than 90psi.

ATTACHING TOOLS

WARNING! Before attaching or removing any accessories, be sure to disconnect the air chisel from the air supply.

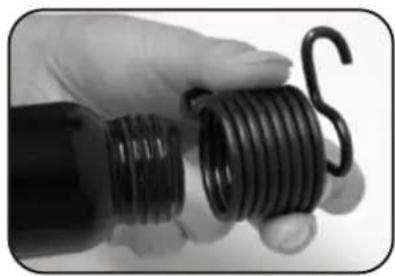

1. Screw the quick change spring onto the housing.

2. Slide the attachment into the hole while holding the quick change spring back.

3. To release the attachment pull back the spring and then remove.

Hand holding a black plastic bottle with a coiled spring attached (no text or symbols visible)

Close-up of hands adjusting a black mechanical component (no visible text or symbols)

Close-up of hands holding a black plastic component (no visible text or symbols)

Alternatively, you can place the accessory into the housing and then screw in the quick change spring.

OPERATION

1. Select the desired tool attachment and lock into place using the quick change spring.

2. To turn the chisel on, squeeze the on/off trigger. To turn off, release the on/off trigger.

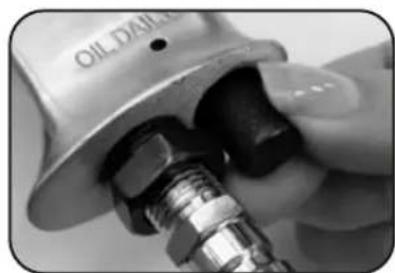

3. To restrict the air flow turn the regulator valve to a lower setting.

Five black mechanical tools arranged on a plain surface (no text or symbols visible)

Close-up of a hand holding a small object, possibly a device or tool, with no visible text or symbols.

Close-up of a hand holding a metal pipe fitting with a cap labeled 'OIL DAILY' (no other text or symbols visible)

TROUBLESHOOTINGMAINTENA

• Keep the ventilation vents of the chisel clean at all times, if possible, prevent foreign matter from entering the vents.
• If the enclosure of the chisel requires cleaning, do not use solvents but a moist soft cloth only. Never let any liquid get inside the chisel; never immerse any part of the chisel into a liquid.
• Oil the chisel after each use.

If the air chisel fails to work effectively, perform the following checks:

• Check the air regulator is not fully tightened. Try selecting a higher setting.
• Check the air inlet is free of any dirt or blockages.
• Ensure the chisel is lubricated properly.
• Check that the pressure on the air compressor is within its working range. If not, let the compressor rest to re-pressurise / refer to the compressor instruction manual.
