INSTRUKCJA OBSŁUGI WakeTower MRWT8B BOSS

USER'S MANUAL

MRWT8B/ MRWT8C/ MRWT8W

2-Way Fully Marinized

Marine Waketower Speaker System

Making waterproof connections

To ensure a tight, waterproof connection between the speaker wires and the terminals on the waketower speakers, we have included rubber terminal covers. Installed properly, these will prevent water penetration and reduce the risk of corrosion in the marine environment.

1- Snip off the end of each terminal cover. This will create a hole at that end, through which you will feed the speaker wire. Since a waterproof connection is desired, before you cut, try to determine the resulting ho-e size you need -- the goal is that the wire fits very snugly in the hole.

2- Pull the speaker wires through the holes in the covers.

3- Attach the wires to the terminals and slide the covers fully onto the terminals. Be sure to observe proper speaker polarity for best sound.

System dimensions

BOSS

marine

MRWT8B/MRWT8C/MRWT8W

2-WAY WAKETOWER SYSTEM

11.2011

CE

e1

tech support: www.bossaudio.com/support

All specifications subject to

change without notice.

BOSS®

AUDIO SYSTEMS

BOSS Audio Systems • 3451 Lunar Court • Oxnard, CA 93030

www.bossaudio.com

USER'S MANUAL

MRWT8W

MRWT8B

MRWT8C

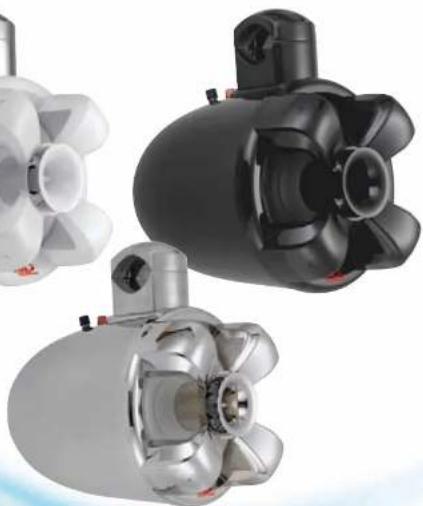

8" (203mm) MARINE WAKETOWER

2-WAY FULL RANGE SPEAKER SYSTEM

Close-up of a white plastic bottle partially submerged in dark liquid, with bubbles of water rising (no text or symbols visible)

Three industrial turbine components with metallic and black outlines, no visible text or symbols

BOSS®

AUDIO SYSTEMS

MRWT8B MRWT8C MRWT8W 2-Way Fully Mannized Marine Waketower Speaker System

Congratulations on your purchase of a BOSS Marine Waketower Speaker System. It has been designed, engineer and manufactured to bring you the highest level of performance a quality, and will afford you year of listening pleasure.

Thank you for making BOSS your choice for marine audio entertainment!

Specifications

Mid Bass Driver: 8"(203mm) diameter poly injection cone santoprene surround 1.5"(39mm) high temperature KEISV voice coil

Tweeter: 1" (25mm) bullet tweeter

Crossover network: Built-in

Impedance: 4 Ohms

Power Capacity: 700W peak/350 watts RMS

Frequency Response: 40Hz - 20kHz

Sensitivity: 96dB (1 wall/1 meter)

Dimensions: 10" (W) x 13-1/2" (H) x 13-1/2" (D) (254 W) x 342 (H) x 342 (D) mm

Weight (each speaker system): 12.8 lbs (5.7kg)

All specifications subject to charge without notice.

USER'S MANUAL

Introduction

Your new MRWT8B/MRWT8C/MRWT8W waketower speakers are high-powered, fully-waterproof 2-way systems featuring 8° drivers and a 1" bullet tweeter.

BOSS understands that waketower systems are placed in many different kinds of installations, so we have provided you with ability to securely attach these systems to mounting tube diameters of 2-3 inches (51-76mm).

What is included?

When first unpacking your new wakstower speaker system, please check first that the package contains all of the items below. If something is missing, contact the store where you purchased the product.

• (1) Waketower speaker
• (1) mounting clamp
• (2) rubber mounting pads
• (2) mounting bolts

Safety considerations when installing

While we have designed the mounting system to provide a safe and stable installation, it is important to remember that these are heavy products and the boating environment can be extremely bumpy and turbulent. So please consider this and use extreme caution when mounting to avoid what may be a very serious accident.

Some safety considerations include:

1- Do not mount the speaker in a location where someone may either walk into it and strike their head or where a turbulent ride may make them lose their footing and be hurled into the speaker and injured.
2- Secure the wires to the speaker in many locations along their route to your audio source so that there are no hanging loops of wire. In dim lighting a vessel passenger may not see these and may be injured if it crosses their neck or face.
3- Use extreme care in tightening the mounting clamps. We have included rubber pads to dampen the attachment, but the rubber will compress under the clamps and as a result, the clamp may appear to be tighter than it actually is. So after your installation is complete, be sure to check the bolts and tighten further if possible before taking your boat out for an audio adventure.
4- Do not install these speakers where they may block the view of the pilot and prevent safe operation of the vessel.

MRWT8B/ MRWT8C/ MRWT8W 2-Way Fully Marinized Marine Waketower Speaker System

Installation

It is strongly recommended that you work with an assistant to install these speakers. They are very heavy and it is difficult to hold them in the mounting location AND insert and tighten the hardware.

1- Unpack and disassemble the clamp systems on your waketower system, making sure to put all components of the system in a safe location.
2- Determine the optimal locations for your speaker systems on the mounting tubing on your vessel.
3- Place the front rubber pads on the inner surface of the front half of each clamp (the clamp part that is a permanent part of the speaker system).

6 - Insert (2) bolts through each rear clamp into the front clamps and tighten each bolt until you feel resistance. Then tighten each of the four bolts a few turns, and repeat until all are fully tightened. By tightening all equally, you will greatly improve the safety of the mounting.

Technical line drawing of a mechanical device with no visible text or symbols

4- Lift the speaker to the proper location so that the front clamps/rubber pads press on the front of the mounting tubing.
5- Place the rear rubber pads on the rear surface of the mounting tubing and put the rear clamp halves in place over the rubber pads.
